Model Maytag CRG860A GAS RANGE – Common Parts & Diagrams

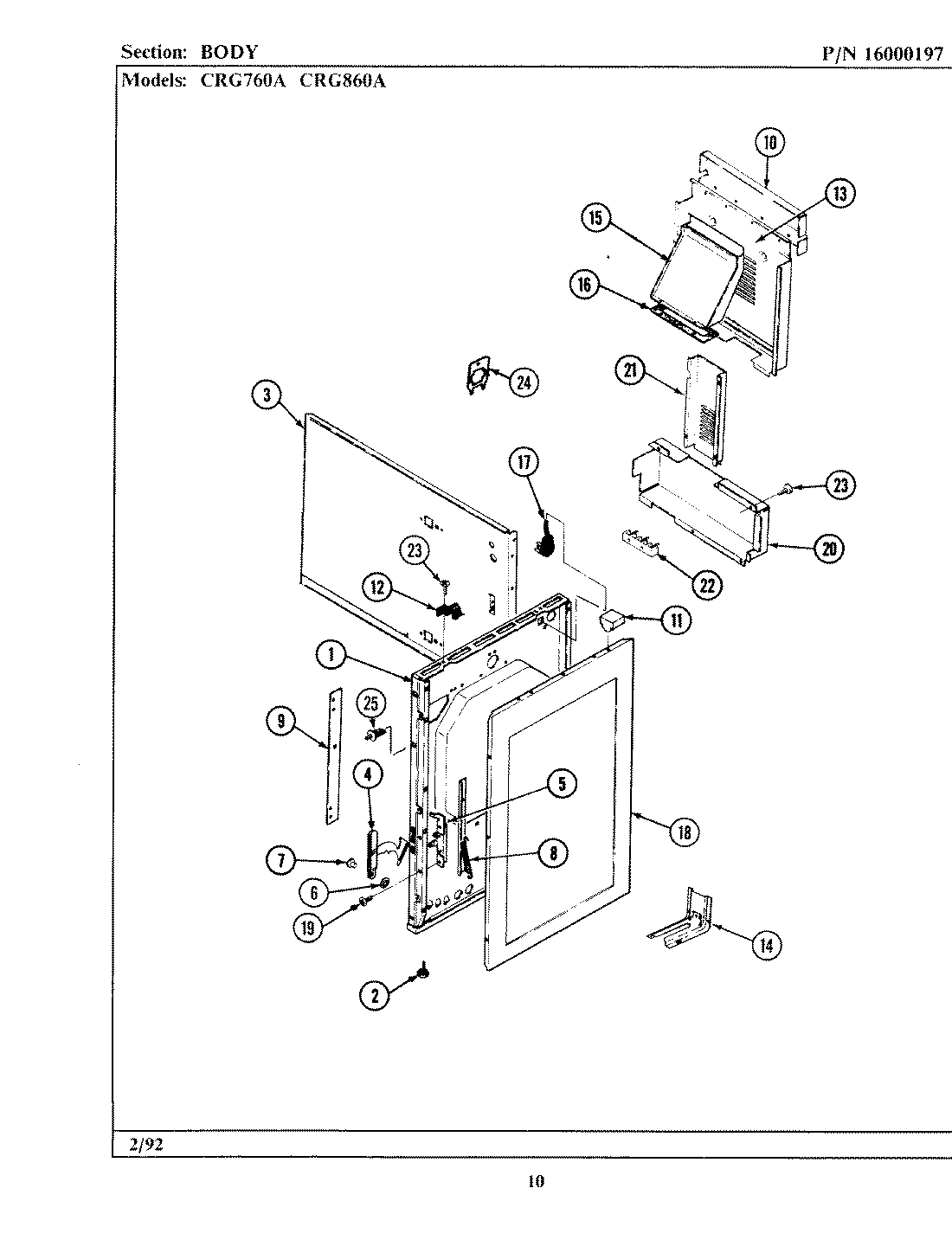

01 - BODY (xCRG760A xCRG860A)

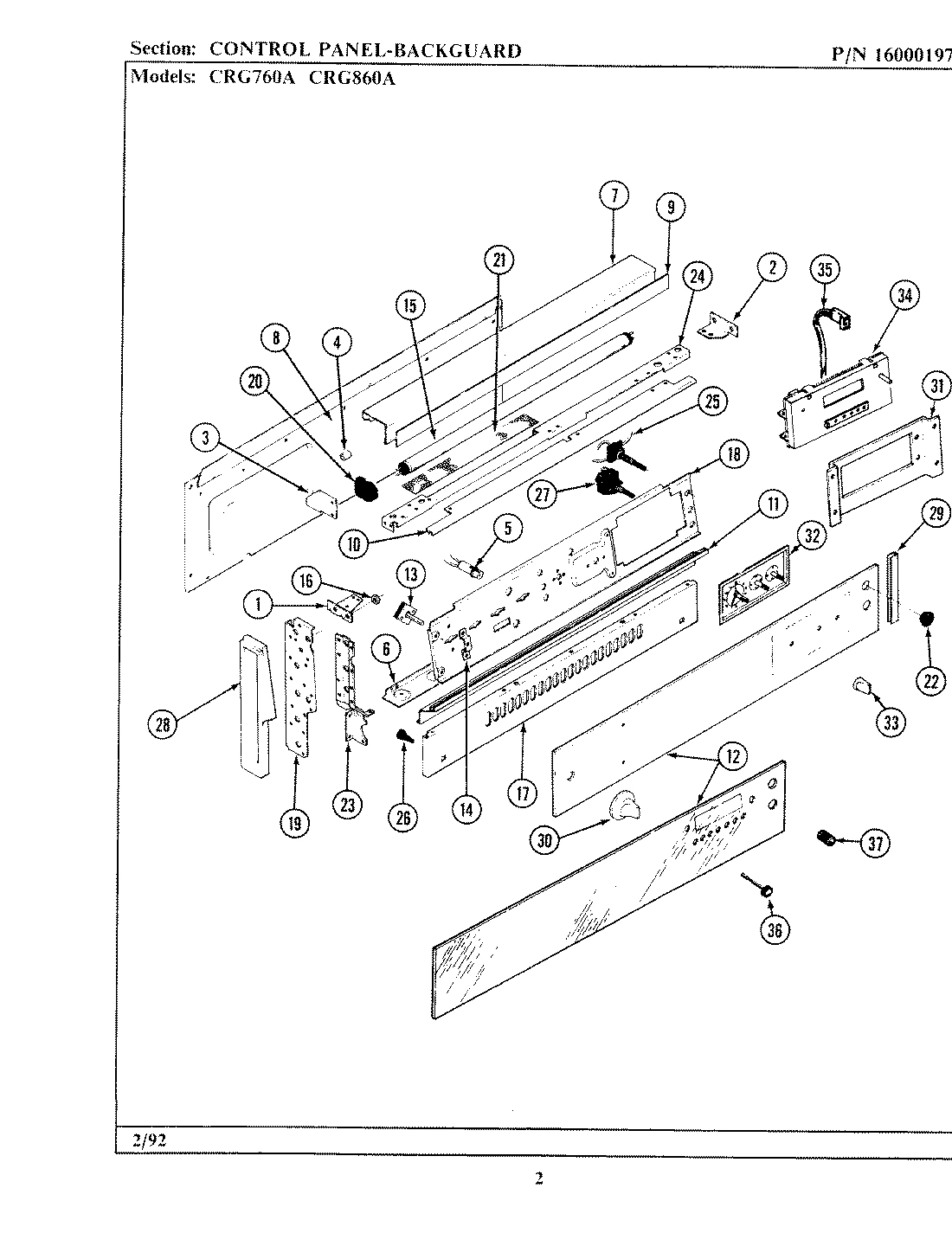

02 - CONTROL PANEL (xCRG760A xCRG860A)

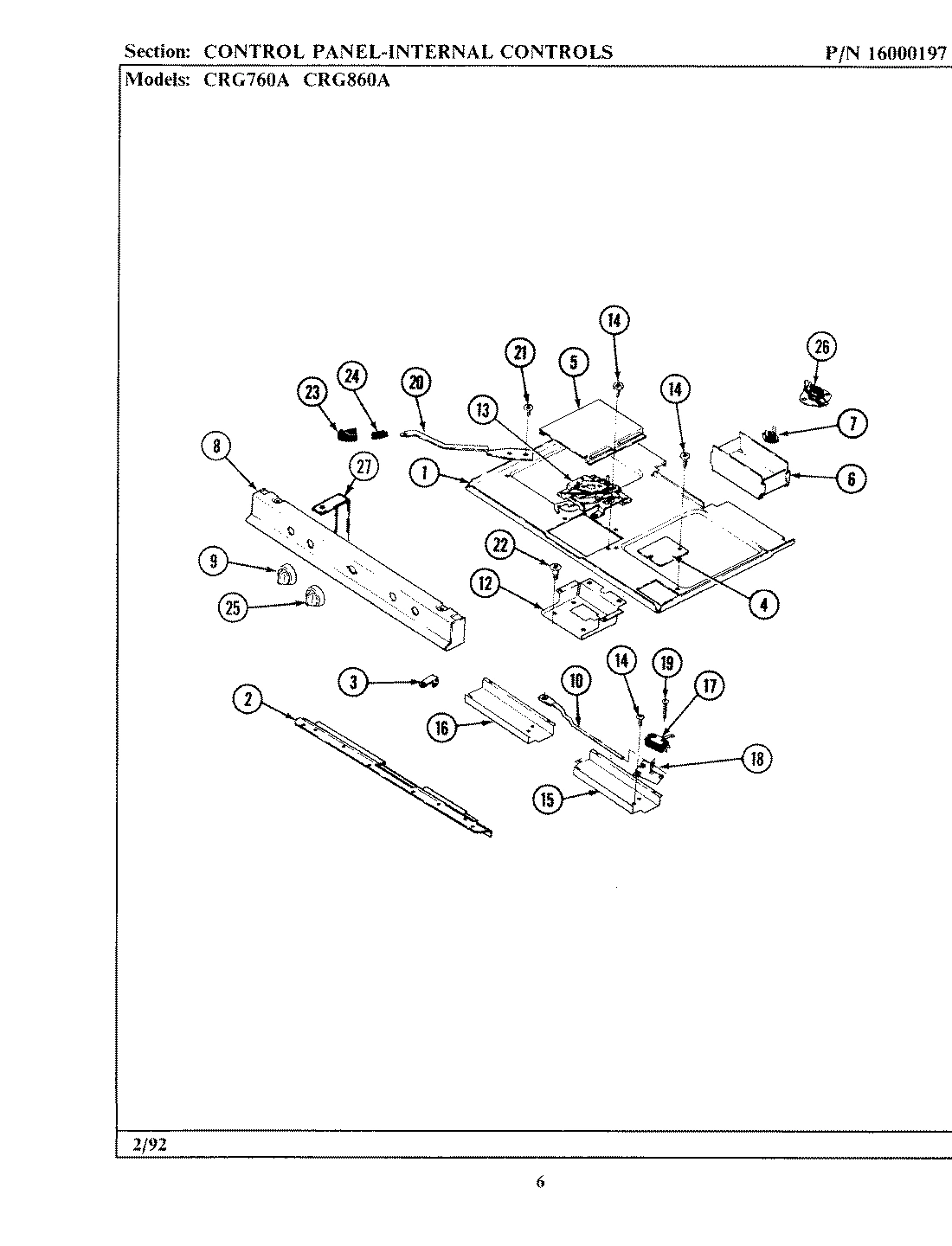

03 - INTERNAL CONTROLS (xCRG760A xCRG860A)

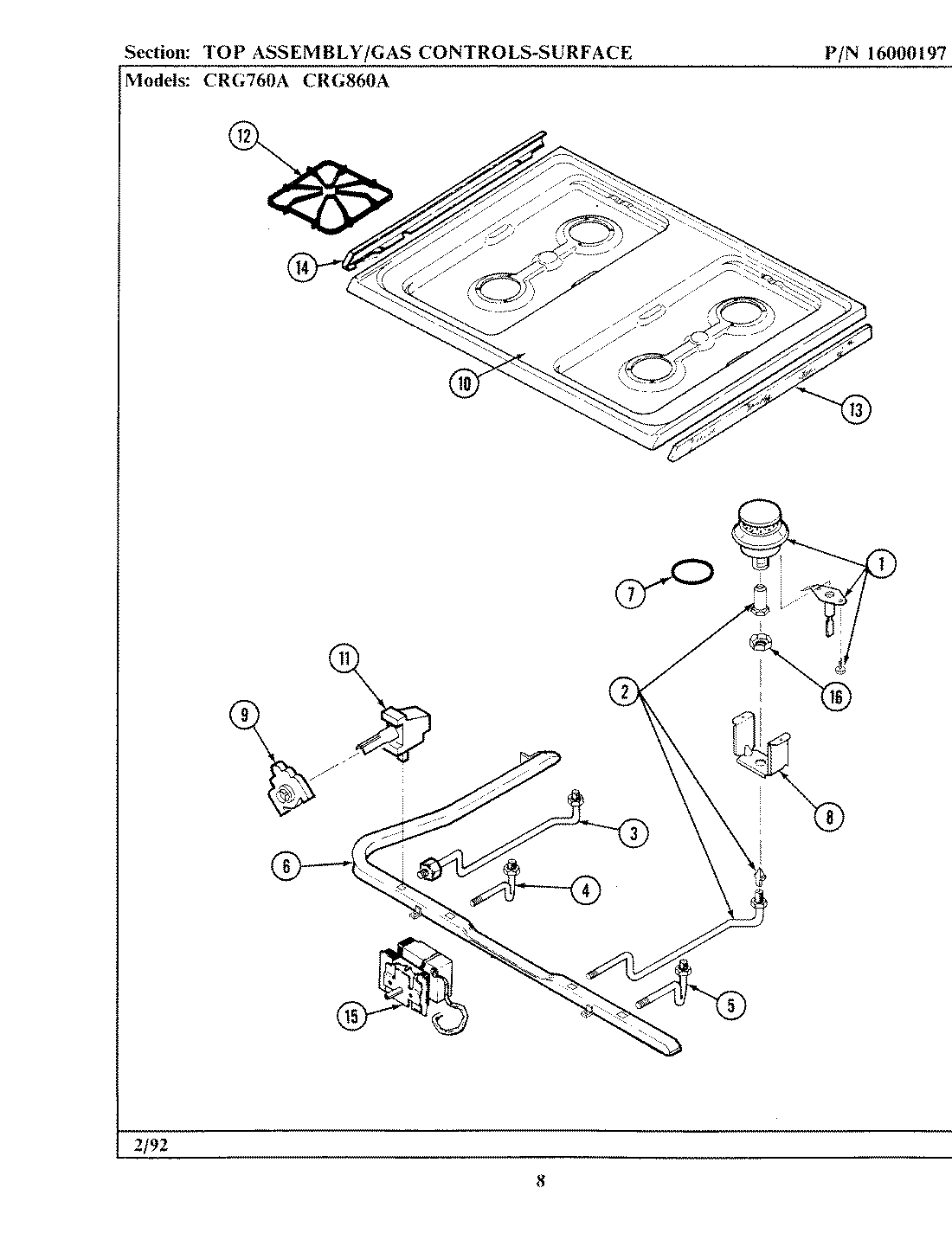

04 - TOP ASSEMBLY (xCRG760A xCRG860A)
Common parts from model Maytag CRG860A GAS RANGE
1
MAY 5111A360-60 MAY 5111A360-60 Contact Us For Availability
1
MAY 3801F002-34 MAY 3801F002-34 Contact Us For Availability
1
MAY 4011F200-80 MAY 4011F200-80 Contact Us For Availability
1
MAY 3412D015-09 MAY 3412D015-09 Contact Us For Availability
1
MAY 3412D016-09 MAY 3412D016-09 Contact Us For Availability
1
MAY 5111A361-60 MAY 5111A361-60 Contact Us For Availability
1
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
1
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
2
MAY 3801F109-34 MAY 3801F109-34 Contact Us For Availability
2
MAY 4012F020-80 MAY 4012F020-80 Contact Us For Availability
2
MAY 7507P069-60 MAY 7507P069-60 Contact Us For Availability
3
MAY 8008P012-60 MAY 8008P012-60 Contact Us For Availability
3
MAY 4002F165-80 MAY 4002F165-80 Contact Us For Availability
3
MAY 8008P014-60 MAY 8008P014-60 Contact Us For Availability
3
MAY 3804F006-51 MAY 3804F006-51 Contact Us For Availability
3
MAY 3801F047-34 MAY 3801F047-34 Contact Us For Availability
3
MAY 3801F049-34 MAY 3801F049-34 Contact Us For Availability
3
MAY 7507P092-60 MAY 7507P092-60 Contact Us For Availability
4
MAY 3420A033-34 MAY 3420A033-34 Contact Us For Availability
4
MAY 8007P004-60 MAY 8007P004-60 Contact Us For Availability
4
MAY 4005F139-51 MAY 4005F139-51 Contact Us For Availability
4
MAY 7507P073-60 MAY 7507P073-60 Contact Us For Availability
5
MAY 3418A029-34 MAY 3418A029-34 Contact Us For Availability
5
MAY 3418A030-34 MAY 3418A030-34 Contact Us For Availability
5
MAY 8016P008-60 MAY 8016P008-60 Contact Us For Availability
5
MAY 4005F137-80 MAY 4005F137-80 Contact Us For Availability
5
MAY 7507P071-60 MAY 7507P071-60 Contact Us For Availability
6
MAY 7112P019-60 MAY 7112P019-60 Contact Us For Availability
6
MAY 4005F155-80 MAY 4005F155-80 Contact Us For Availability
6
MAY 3807F219-51 MAY 3807F219-51 Contact Us For Availability
6
MAY 7513P104-60 MAY 7513P104-60 Contact Us For Availability
7
MAY 7724P010-60 MAY 7724P010-60 Contact Us For Availability
7
MAY 7403P187-60 MAY 7403P187-60 Contact Us For Availability
7
MAY 8003P003-60 MAY 8003P003-60 Contact Us For Availability
7
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
8
MAY 4005S309-80 MAY 4005S309-80 Contact Us For Availability
8
MAY 7118P004-60 MAY 7118P004-60 Contact Us For Availability
8
MAY 7712P119-60 MAY 7712P119-60 Contact Us For Availability
8
MAY 3807F378-45 MAY 3807F378-45 Contact Us For Availability
9
MAY 3601F214-51 MAY 3601F214-51 Contact Us For Availability
9
MAY 7728P023-60 MAY 7728P023-60 Contact Us For Availability
9
MAY 7733P069-60 MAY 7733P069-60 Contact Us For Availability
9
MAY 7403P280-60 MAY 7403P280-60 Contact Us For Availability
10
MAY 3601F107-51 MAY 3601F107-51 Contact Us For Availability
10
MAY 7101P058-60 MAY 7101P058-60 Contact Us For Availability
10
MAY 7706P194-60 MAY 7706P194-60 Contact Us For Availability
10
MAY 7807P012-60 MAY 7807P012-60 Contact Us For Availability
10
MAY 2001F080-09 MAY 2001F080-09 Contact Us For Availability
10
MAY 2001F080-81 MAY 2001F080-81 Contact Us For Availability
10
MAY 2001F080-84 MAY 2001F080-84 Contact Us For Availability
11
MAY 8003P011-60 MAY 8003P011-60 Contact Us For Availability
11
MAY 7706P097-60 MAY 7706P097-60 Contact Us For Availability
11
MAY 7101P296-60 MAY 7101P296-60 Contact Us For Availability
11
MAY 7502P220-60 MAY 7502P220-60 Contact Us For Availability
12
MAY 7112P073-60 MAY 7112P073-60 Contact Us For Availability
12
MAY 7910P051-60 MAY 7910P051-60 Contact Us For Availability
12
MAY 3807F408-45 MAY 3807F408-45 Contact Us For Availability
12
MAY 2003W023-00 MAY 2003W023-00 Contact Us For Availability
13
MAY 3601F112-51 MAY 3601F112-51 Contact Us For Availability
13
MAY 3604F159-45 MAY 3604F159-45 Contact Us For Availability
13
MAY 8002P021-60 MAY 8002P021-60 Contact Us For Availability
13
MAY 7746P026-60 MAY 7746P026-60 Contact Us For Availability
14
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
14
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
14
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
14
MAY 7103P064-60 MAY 7103P064-60 Contact Us For Availability
14
MAY 7746P025-60 MAY 7746P025-60 Contact Us For Availability
15
MAY 4006W026-23 MAY 4006W026-23 Contact Us For Availability
15
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
15
MAY 3818F027-45 MAY 3818F027-45 Contact Us For Availability
16
MAY 7201P013-60 MAY 7201P013-60 Contact Us For Availability
16
MAY 3818F025-45 MAY 3818F025-45 Contact Us For Availability
16
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
16
MAY 8312D075-60 MAY 8312D075-60 Contact Us For Availability
17
MAY 5195D083-60 MAY 5195D083-60 Contact Us For Availability
17
MAY 7401P018-60 MAY 7401P018-60 Contact Us For Availability
17
MAY 7402P024-60 MAY 7402P024-60 Contact Us For Availability
17
MAY 2620W053-90 MAY 2620W053-90 Contact Us For Availability
17
MAY 7003P019-60 MAY 7003P019-60 Contact Us For Availability
17
MAY 7003P039-60 MAY 7003P039-60 Contact Us For Availability
17
MAY 7403P077-60 MAY 7403P077-60 Contact Us For Availability
18
MAY 2618F073-70 MAY 2618F073-70 Contact Us For Availability
18
MAY 2618F073-71 MAY 2618F073-71 Contact Us For Availability
18
MAY 2618F073-74 MAY 2618F073-74 Contact Us For Availability
18
MAY 3605F171-80 MAY 3605F171-80 Contact Us For Availability
18
MAY 3807F193-45 MAY 3807F193-45 Contact Us For Availability
19
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
19
MAY 3605F006-80 MAY 3605F006-80 Contact Us For Availability
19
MAY 3605F008-80 MAY 3605F008-80 Contact Us For Availability
19
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
20
MAY 4005F396-80 MAY 4005F396-80 Contact Us For Availability
20
MAY 7408P005-60 MAY 7408P005-60 Contact Us For Availability
20
MAY 8009P019-60 MAY 8009P019-60 Contact Us For Availability
21
MAY 3818F032-80 MAY 3818F032-80 Contact Us For Availability
21
MAY 3604F079-80 MAY 3604F079-80 Contact Us For Availability
21
MAY 7101P018-60 MAY 7101P018-60 Contact Us For Availability
22
MAY 7214P007-60 MAY 7214P007-60 Contact Us For Availability
22
MAY 7401P015-60 MAY 7401P015-60 Contact Us For Availability
22
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
23
MAY 3807W355-51 MAY 3807W355-51 Contact Us For Availability
23
MAY 3807W356-51 MAY 3807W356-51 Contact Us For Availability
23
MAY 7701P088-60 MAY 7701P088-60 Contact Us For Availability
24
MAY 3801F021-45 MAY 3801F021-45 Contact Us For Availability
24
MAY 3807F391-80 MAY 3807F391-80 Contact Us For Availability
24
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
25
MAY 5185D258-60 MAY 5185D258-60 Contact Us For Availability
25
MAY 7403P240-60 MAY 7403P240-60 Contact Us For Availability
25
MAY 5700A284-60 MAY 5700A284-60 Contact Us For Availability
26
MAY 7105P002-60 MAY 7105P002-60 Contact Us For Availability
26
MAY 7403P091-60 MAY 7403P091-60 Contact Us For Availability
27
MAY 7403P104-60 MAY 7403P104-60 Contact Us For Availability
27
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
28
MAY 7109P010-60 MAY 7109P010-60 Contact Us For Availability
28
MAY 7726P029-60 MAY 7726P029-60 Contact Us For Availability
28
MAY 7726P030-60 MAY 7726P030-60 Contact Us For Availability
29
MAY 7720P061-60 MAY 7720P061-60 Contact Us For Availability
34
MAY 7003P043-60 MAY 7003P043-60 Contact Us For Availability
34
MAY 7601P181-60 MAY 7601P181-60 Contact Us For Availability
35
MAY 5170P100-60 MAY 5170P100-60 Contact Us For Availability
36
MAY 7711P452-60 MAY 7711P452-60 Contact Us For Availability
37
MAY 7711P431-60 MAY 7711P431-60 Contact Us For Availability
NI
MAY 7712P042-60 MAY 7712P042-60 Contact Us For Availability
× ![]()
