Model Maytag CRG7700BAL GAS RANGE – Common Parts & Diagrams

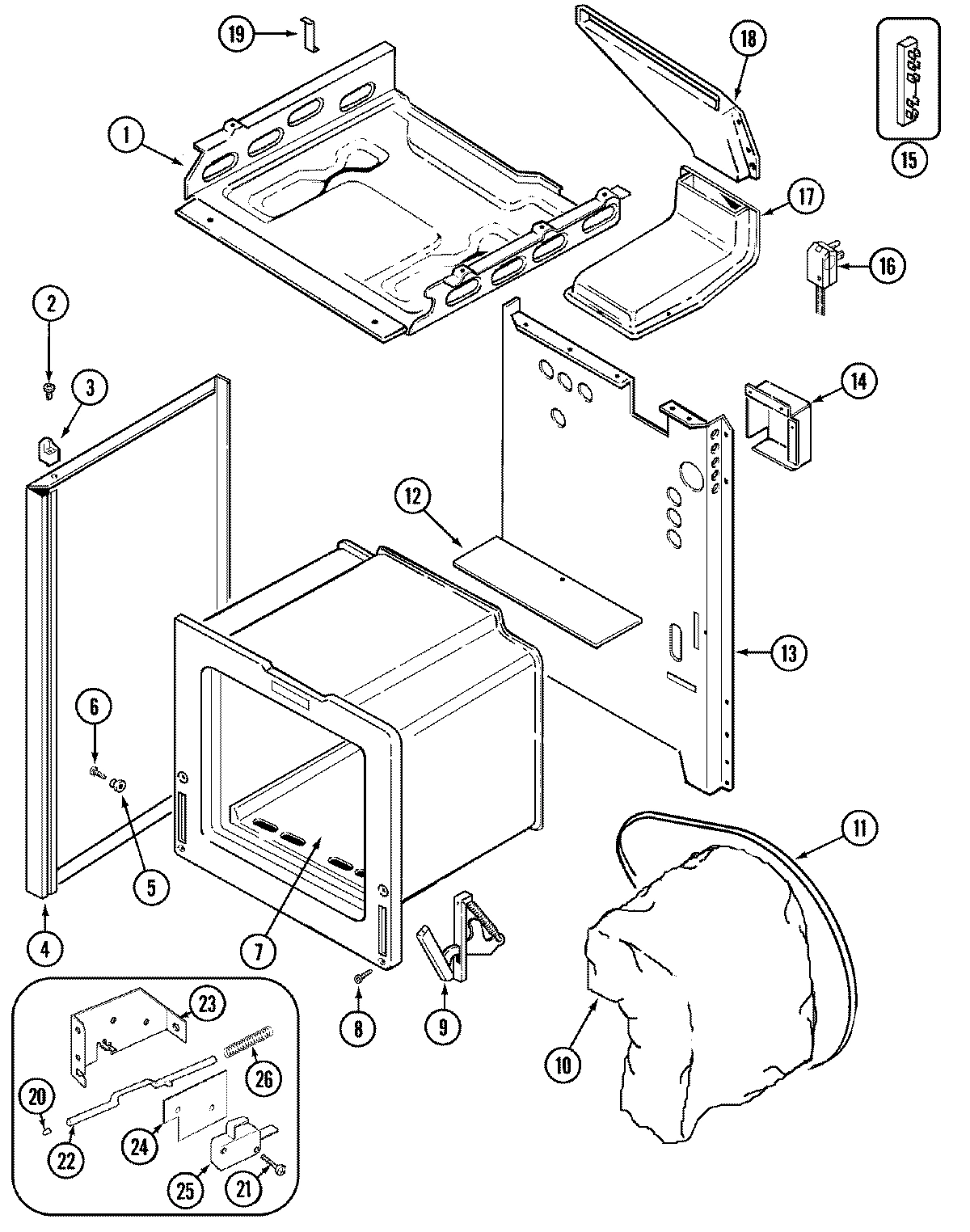

01 - BODY

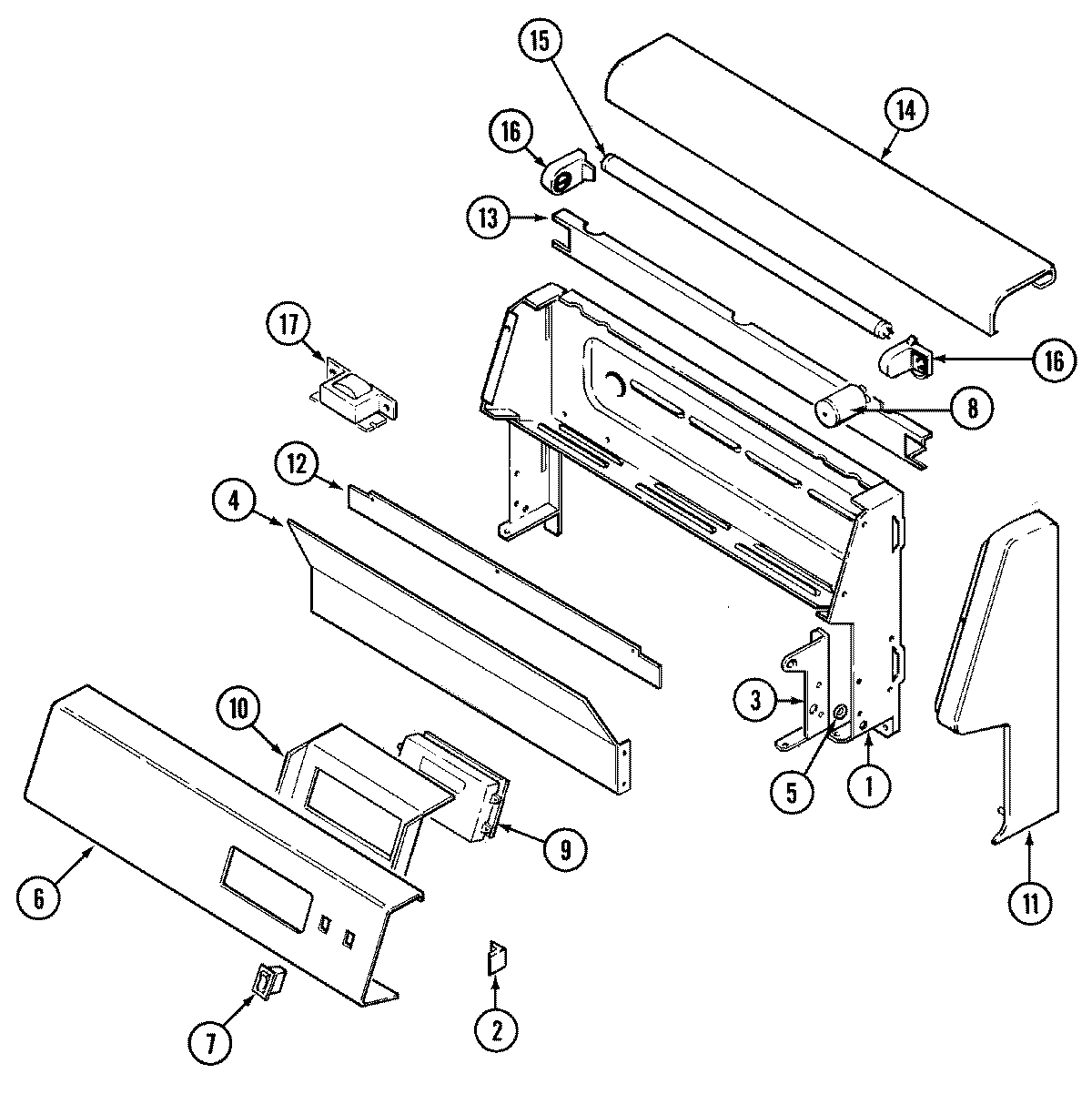

02 - CONTROL PANEL

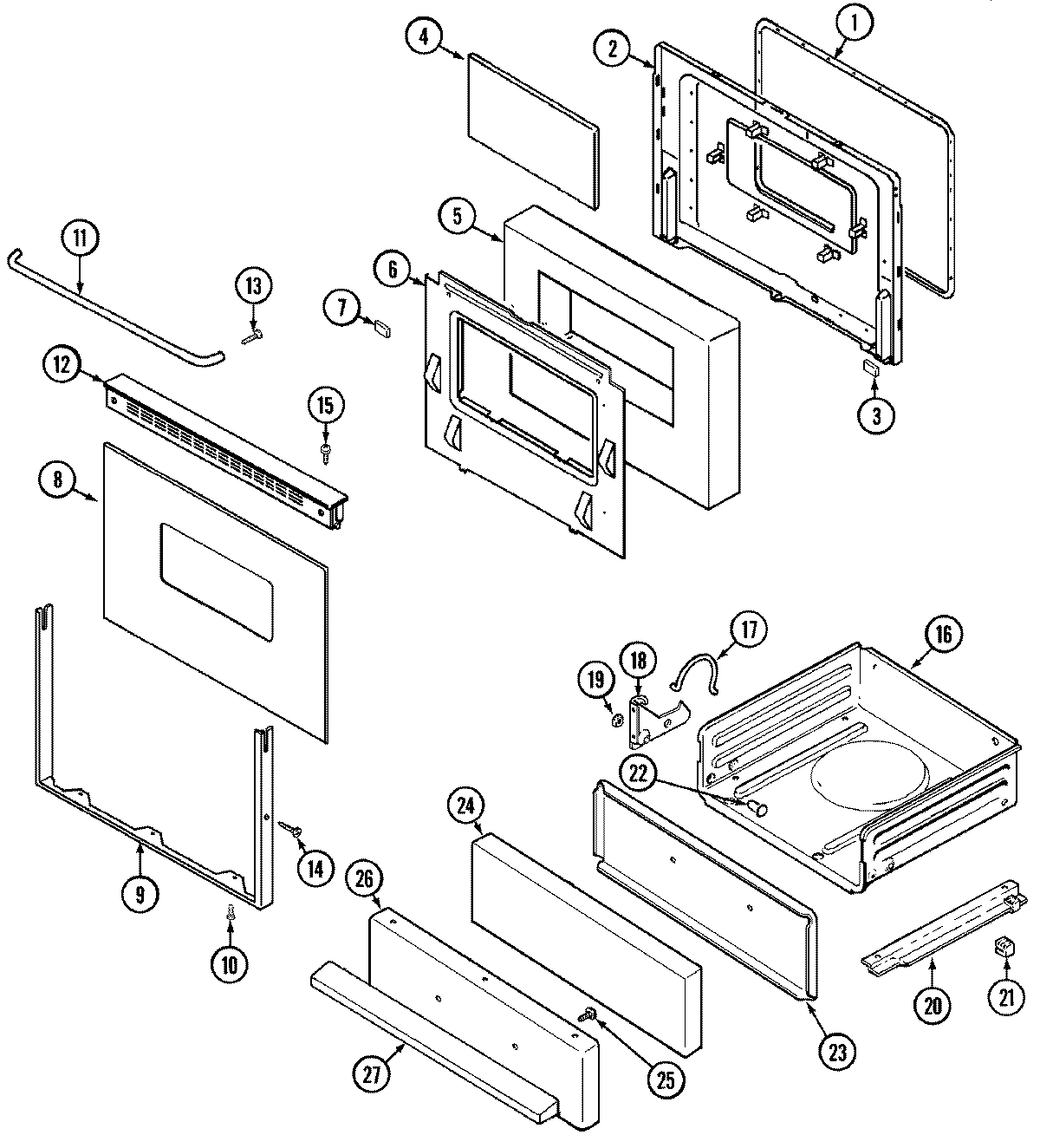

03 - DOOR/DRAWER

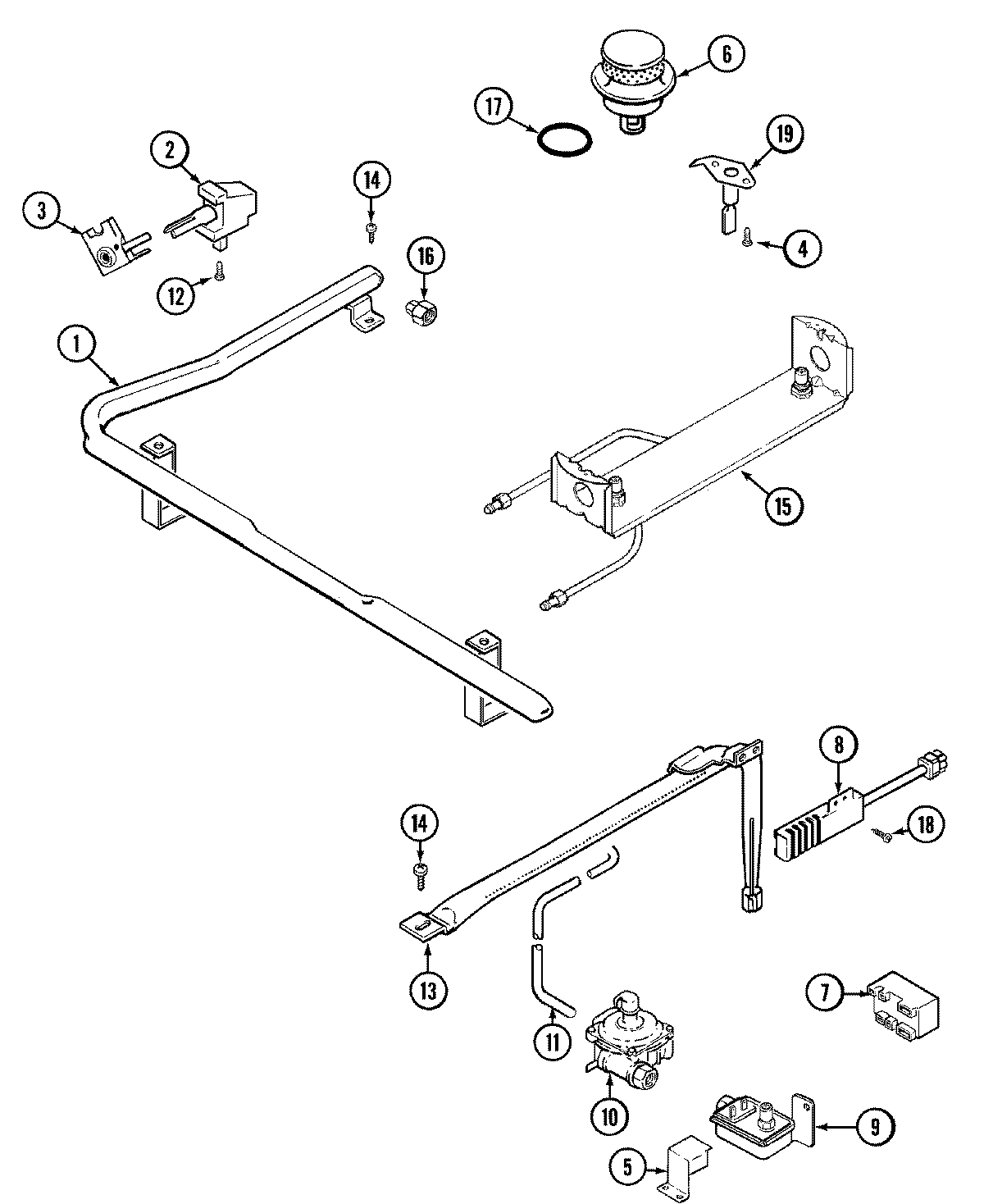

04 - GAS CONTROLS

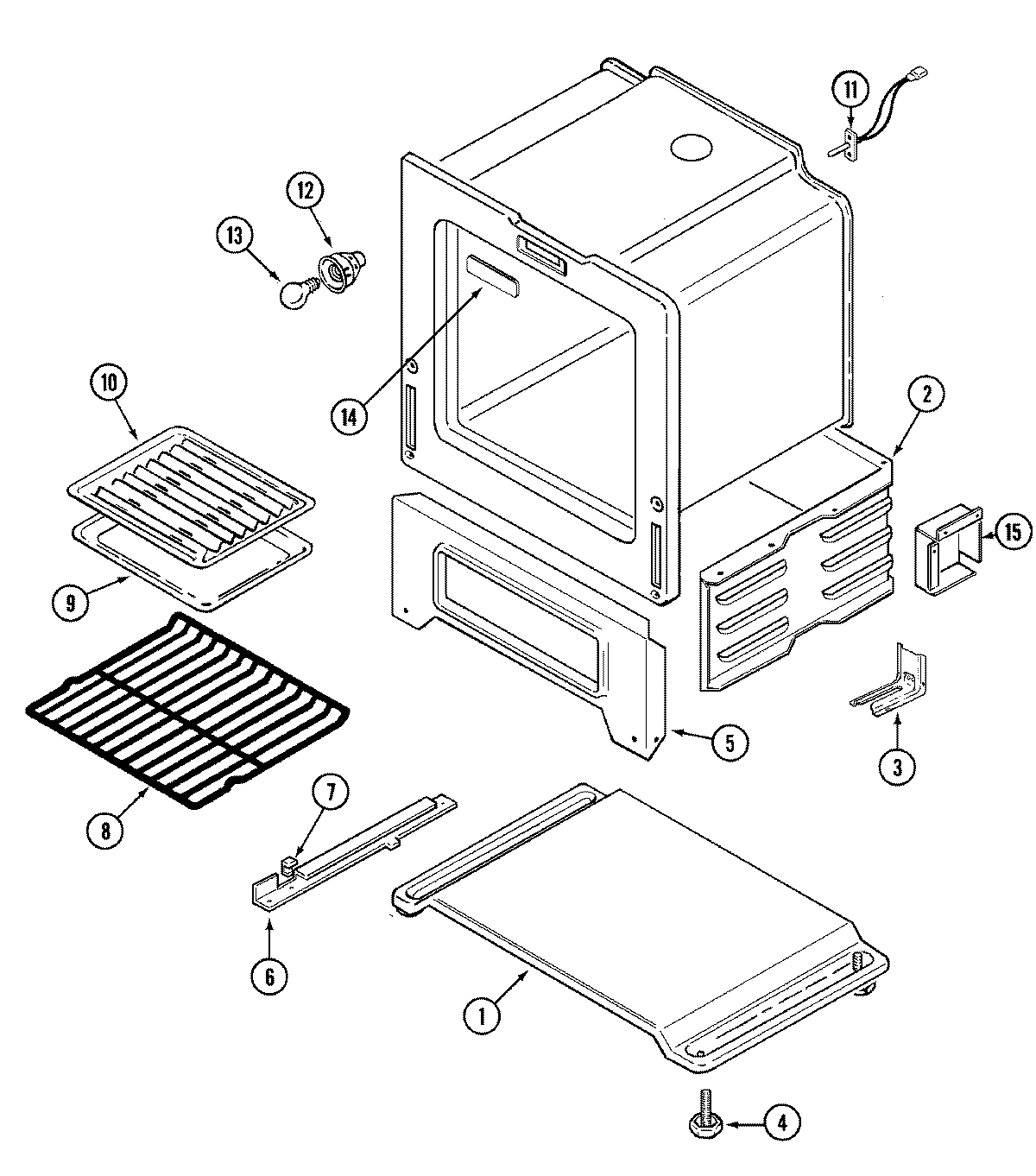

05 - OVEN/BASE

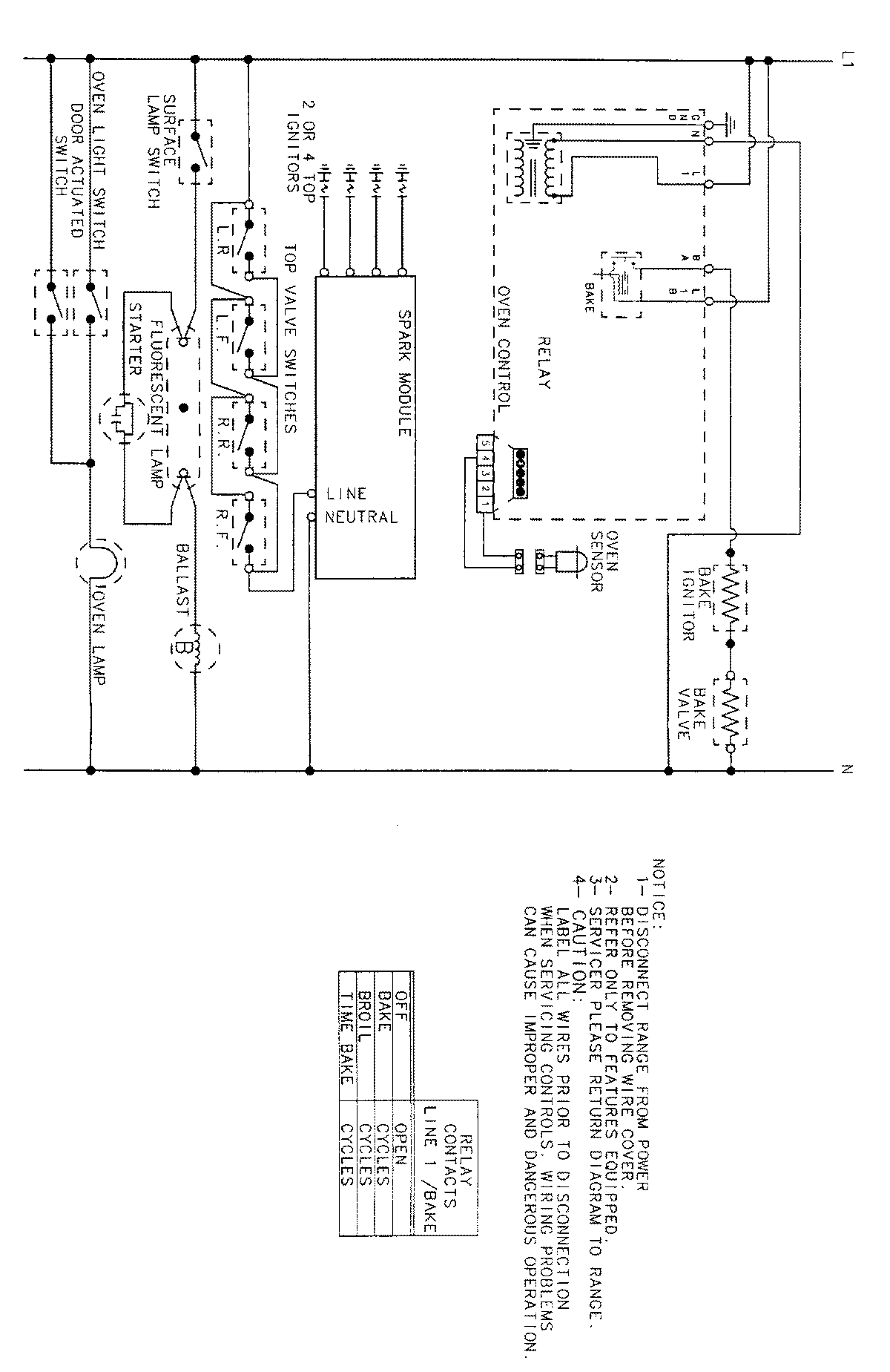

06 - WIRING INFORMATION
Common parts from model Maytag CRG7700BAL GAS RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 4005F448-45 MAY 4005F448-45 Contact Us For Availability
1
MAY 7513P156-60 MAY 7513P156-60 Contact Us For Availability
1
MAY 4003W029-80 MAY 4003W029-80 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 2402W213-19 MAY 2402W213-19 Contact Us For Availability
2
MAY 7502P252-60 MAY 7502P252-60 Contact Us For Availability
2
MAY 4016F044-45 MAY 4016F044-45 Contact Us For Availability
3
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
3
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
3
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
4
MAY 74001311 MAY 74001311 Contact Us For Availability
4
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
4
MAY 7902P319-60 MAY 7902P319-60 Contact Us For Availability
5
MAY 7002P158-60 MAY 7002P158-60 Contact Us For Availability
5
MAY 4005F433-51 MAY 4005F433-51 Contact Us For Availability
5
MAY 2201F077-19 MAY 2201F077-19 Contact Us For Availability
6
MAY 74001431 MAY 74001431 Contact Us For Availability
6
MAY 3601F240-80 MAY 3601F240-80 Contact Us For Availability
6
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
6
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
6
MAY 3404F018-51 MAY 3404F018-51 Contact Us For Availability
6
MAY 3404F021-51 MAY 3404F021-51 Contact Us For Availability
7
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
7
MAY 7403P309-60 MAY 7403P309-60 Contact Us For Availability
7
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
7
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
7
MAY 8016P010-60 MAY 8016P010-60 Contact Us For Availability
8
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
8
MAY 7902P361-60 MAY 7902P361-60 Contact Us For Availability
9
MAY 7501P137-60 MAY 7501P137-60 Contact Us For Availability
9
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
9
MAY 74002007 MAY 74002007 Contact Us For Availability
9
MAY 7706P309-60 MAY 7706P309-60 Contact Us For Availability
9
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
10
MAY 4804F039-60 MAY 4804F039-60 Contact Us For Availability
10
MAY 4804F044-60 MAY 4804F044-60 Contact Us For Availability
10
MAY 3801F343-45 MAY 3801F343-45 Contact Us For Availability
10
MAY 7507P123-60 MAY 7507P123-60 Contact Us For Availability
10
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
11
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
11
MAY 7726P091-60 MAY 7726P091-60 Contact Us For Availability
11
MAY 7726P092-60 MAY 7726P092-60 Contact Us For Availability
11
MAY 7701P149-60 MAY 7701P149-60 Contact Us For Availability
11
MAY 3414F104-44 MAY 3414F104-44 Contact Us For Availability
11
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
12
MAY 3807F416-51 MAY 3807F416-51 Contact Us For Availability
12
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
12
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
12
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
12
MAY 7706P305-60 MAY 7706P305-60 Contact Us For Availability
12
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
13
MAY 4002F211-80 MAY 4002F211-80 Contact Us For Availability
13
MAY 8008P021-60 MAY 8008P021-60 Contact Us For Availability
13
MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability
13
SCREW MAY 7101P326-60 Contact Us For Availability
13
MAY 3403D023-45 MAY 3403D023-45 Contact Us For Availability
13
MAY Y707319 MAY Y707319 Contact Us For Availability
14
MAY 4005F385-51 MAY 4005F385-51 Contact Us For Availability
14
MAY 74001221 MAY 74001221 Contact Us For Availability
14
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
15
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
15
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
15
MAY 5187D030-60 MAY 5187D030-60 Contact Us For Availability
15
MAY 5187D031-60 MAY 5187D031-60 Contact Us For Availability
15
MAY 3807F432-45 MAY 3807F432-45 Contact Us For Availability
16
MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability
16
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
16
MAY 7724P066-60 MAY 7724P066-60 Contact Us For Availability
16
MAY 3407F012-19 MAY 3407F012-19 Contact Us For Availability
16
MAY 7103P121-60 MAY 7103P121-60 Contact Us For Availability
17
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
17
MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability
17
MAY 7803P064-60 MAY 7803P064-60 Contact Us For Availability
17
MAY 7803P065-60 MAY 7803P065-60 Contact Us For Availability
17
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
18
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
18
MAY 3418F079-51 MAY 3418F079-51 Contact Us For Availability
18
MAY 3418F080-51 MAY 3418F080-51 Contact Us For Availability
19
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
19
MAY 7103P022-60 MAY 7103P022-60 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
20
MAY 74001631 MAY 74001631 Contact Us For Availability
20
MAY 3404F022-51 MAY 3404F022-51 Contact Us For Availability
20
MAY 3404F023-51 MAY 3404F023-51 Contact Us For Availability
21
MAY 8016P011-60 MAY 8016P011-60 Contact Us For Availability
21
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
21
MAY 74001663 MAY 74001663 Contact Us For Availability
22
MAY 74001630 MAY 74001630 Contact Us For Availability
22
MAY 7113P012-60 MAY 7113P012-60 Contact Us For Availability
23
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
23
MAY 2404F035-19 MAY 2404F035-19 Contact Us For Availability
24
MAY 74001872 MAY 74001872 Contact Us For Availability
24
MAY 4804F025-60 MAY 4804F025-60 Contact Us For Availability
25
MAY 74001628 MAY 74001628 Contact Us For Availability
26
SPRING, DOOR SWITCH WPL 74001629 No Longer Available
26
MAY 2403F028-74 MAY 2403F028-74 Contact Us For Availability
27
MAY 7701P119-60 MAY 7701P119-60 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 5170P204-60 MAY 5170P204-60 Contact Us For Availability
NI
MAY 5180D151-60 MAY 5180D151-60 Contact Us For Availability
NI
MAY 74001429 MAY 74001429 Contact Us For Availability
NI
MAY 5125A357-60 MAY 5125A357-60 Contact Us For Availability
NI
MAY 5140M038-60 MAY 5140M038-60 Contact Us For Availability
NI
MAY 74002232 MAY 74002232 Contact Us For Availability
NI
MAY 15001712 MAY 15001712 Contact Us For Availability
× ![]()
