Model Maytag CRE9800DDB ELECTRIC RANGE – Common Parts &amp; Diagrams

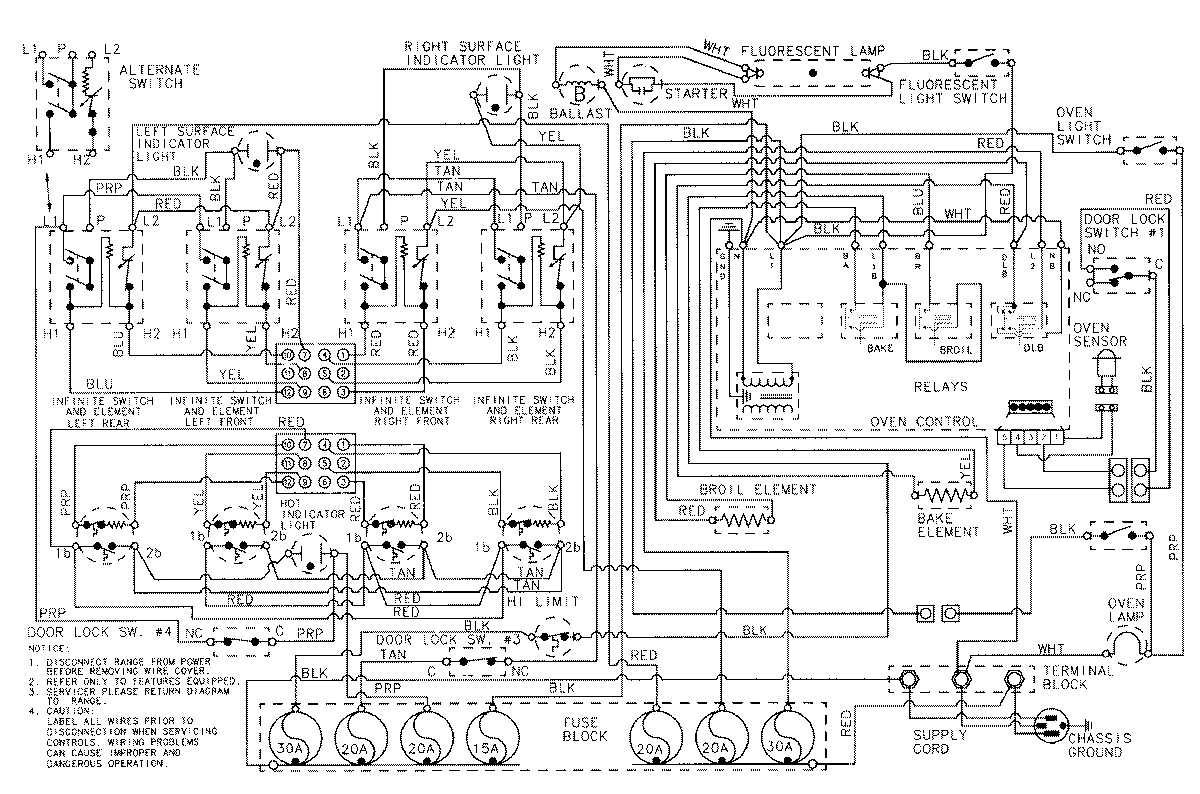

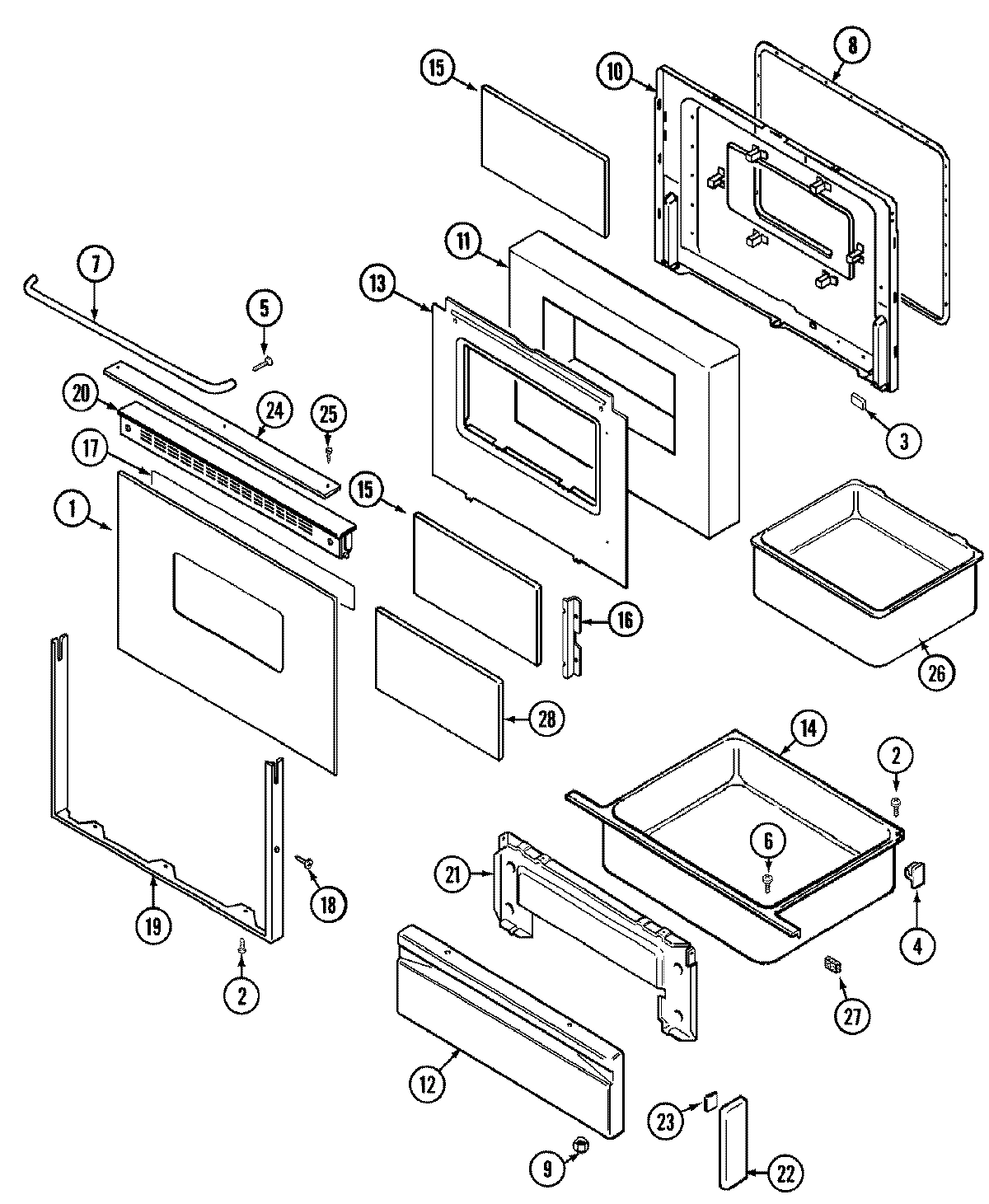

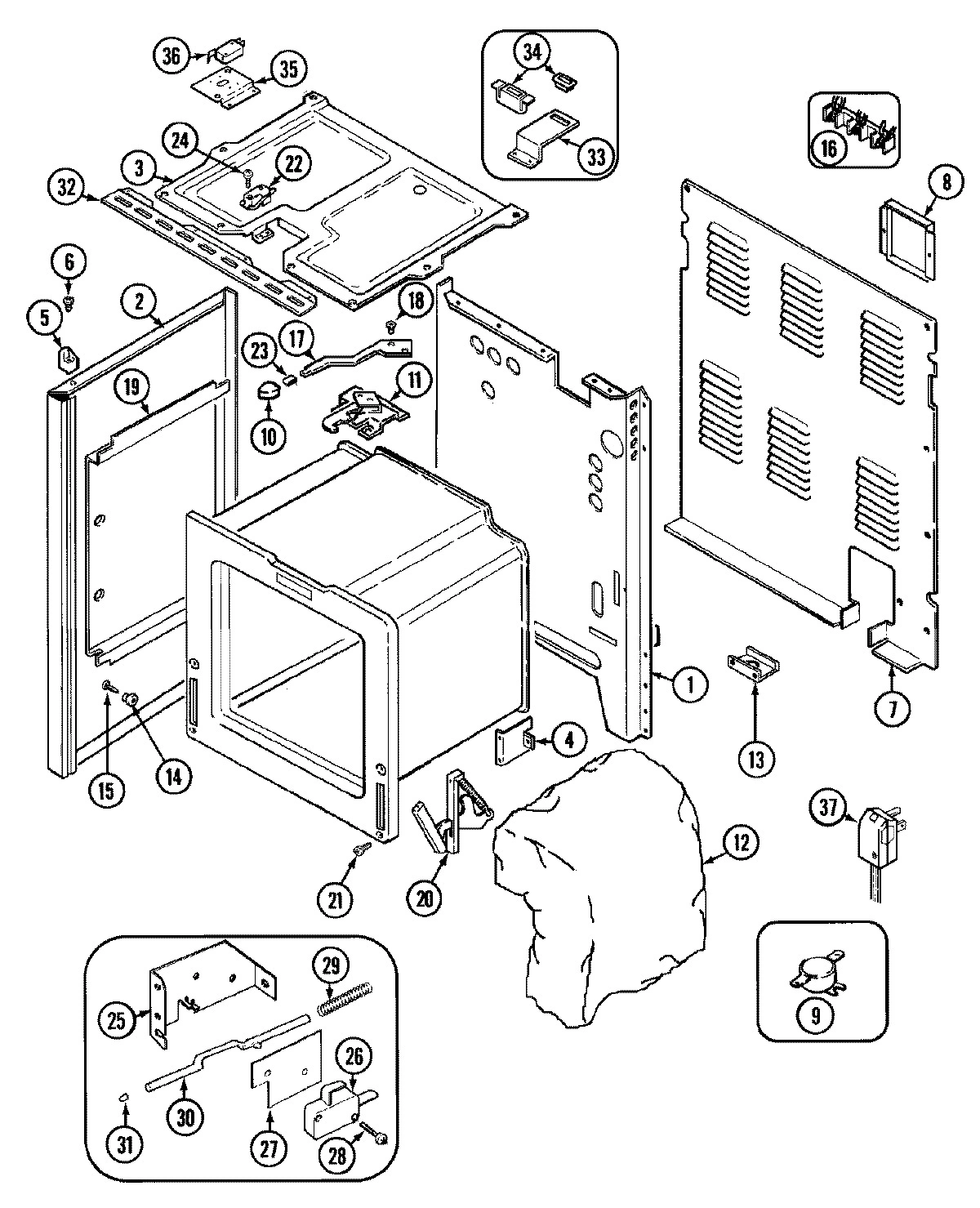

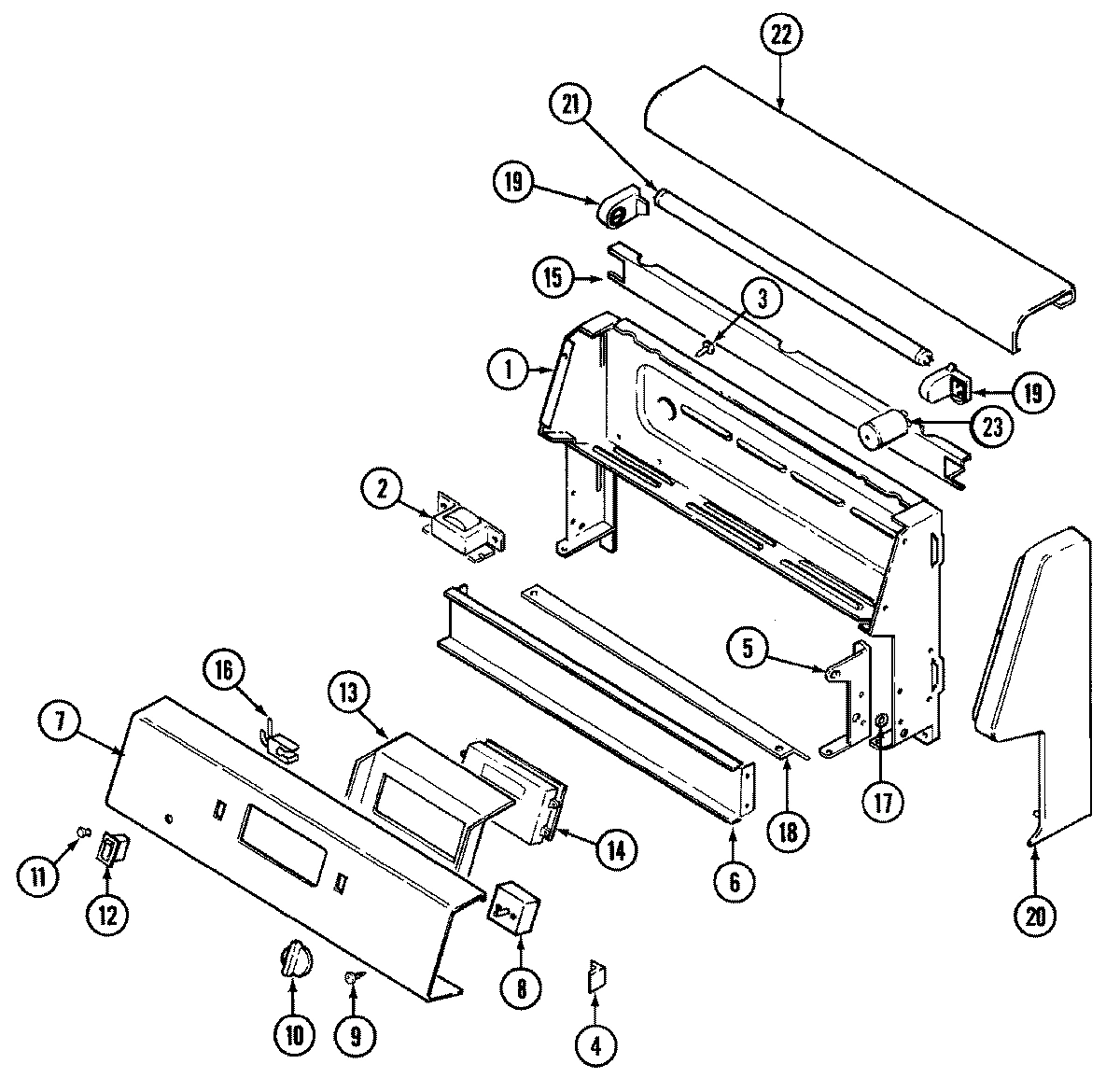

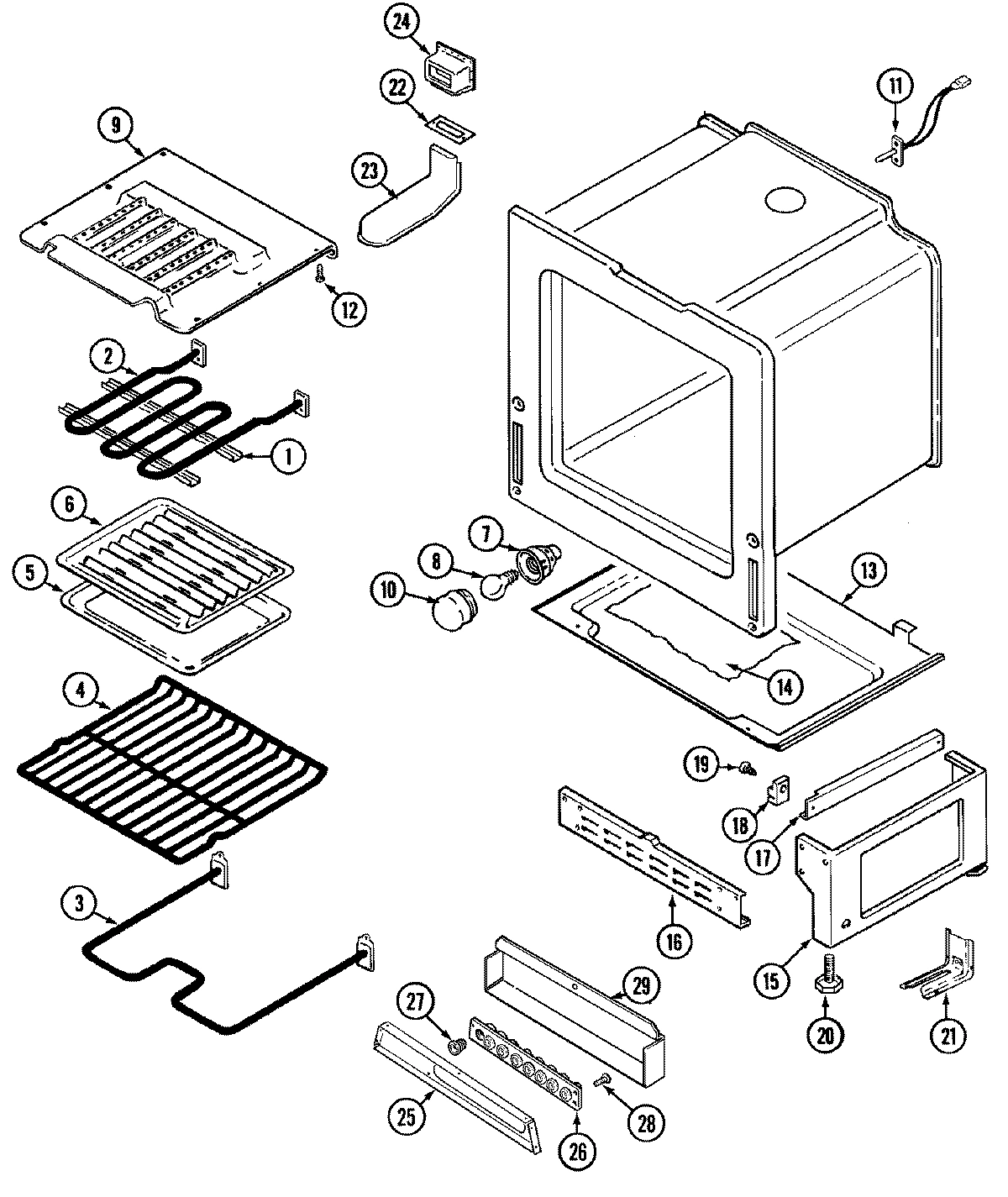

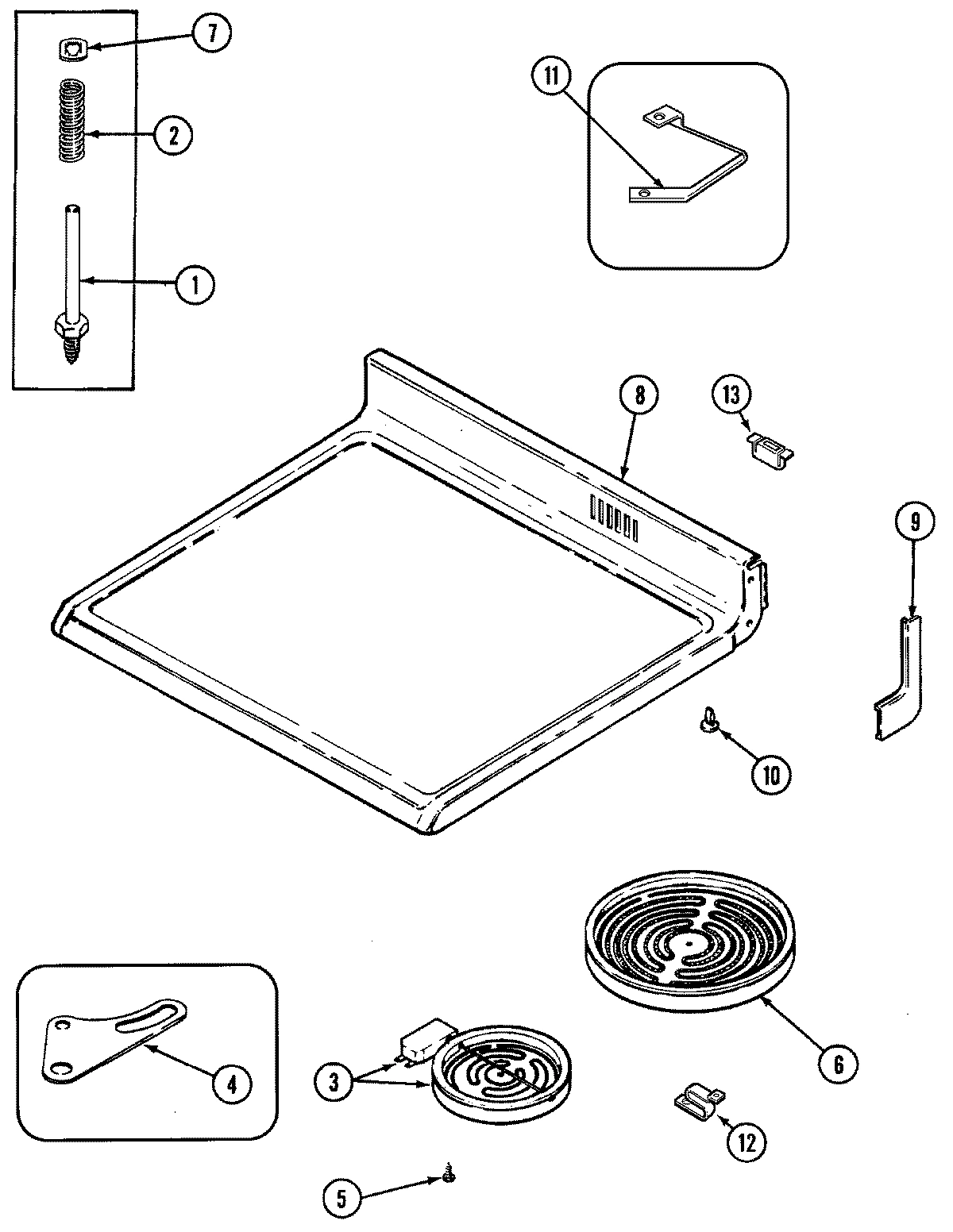

1

MAY 74002162 MAY 74002162 Contact Us For Availability

1

MAY 7902P361-60 MAY 7902P361-60 Contact Us For Availability

1

MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability

1

MAY 7113P013-60 MAY 7113P013-60 Contact Us For Availability

2

WPY04000059 Whirlpool Bake Element Backorder WPL WPY04000059 $86.90

2

MAY 74003033 MAY 74003033 Contact Us For Availability

2

MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability

2

MAY 7803P066-60 MAY 7803P066-60 Contact Us For Availability

3

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 $119.31

3

MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability

3

MAY Y04000058 MAY Y04000058 Contact Us For Availability

3

MAY Y04000064 MAY Y04000064 Contact Us For Availability

4

WP8004P026-60 Whirlpool Support In Stock WPL WP8004P026-60 $5.31

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $39.71

4

MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability

4

MAY 3819F013-45 MAY 3819F013-45 Contact Us For Availability

5

SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability

5

SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability

5

MAY 3807F453-60 MAY 3807F453-60 Contact Us For Availability

5

MAY 3807F454-60 MAY 3807F454-60 Contact Us For Availability

5

SCREW MAY 7101P326-60 Contact Us For Availability

5

MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability

5

SCREW MAY 7101P349-60 Contact Us For Availability

6

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $117.39

6

MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability

6

MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability

6

MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability

6

MAY 74002652 MAY 74002652 Contact Us For Availability

6

MAY Y04000063 MAY Y04000063 Contact Us For Availability

7

WP7407P182-60 Whirlpool Lamp Backorder WPL WP7407P182-60 $37.04

7

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

7

MAY 4005F455-51 MAY 4005F455-51 Contact Us For Availability

7

MAY 7703P553-60 MAY 7703P553-60 Contact Us For Availability

7

MAY 7701P149-60 MAY 7701P149-60 Contact Us For Availability

7

MAY 74003125 MAY 74003125 Contact Us For Availability

7

MAY 7112P091-60 MAY 7112P091-60 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

8

WA906B Whirlpool Cooktop Glass Scraper In Stock WPL WA906B $3.50

8

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $24.38

8

WP7403P239-60 Whirlpool Oven Switch In Stock WPL WP7403P239-60 $20.40

8

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $54.35

8

MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability

8

MAY 74001833 MAY 74001833 Contact Us For Availability

8

MAY 74003075 MAY 74003075 Contact Us For Availability

8

MAY 8308P002-60 MAY 8308P002-60 Contact Us For Availability

9

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.51

9

WP7101P309-60 Whirlpool Screw In Stock WPL WP7101P309-60 $2.51

9

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

9

MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability

9

MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability

9

MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability

9

MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability

WP7103P114-60 Whirlpool Snap Nut Backorder WPL WP7103P114-60 $4.58

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $39.18

MAY 74001719 MAY 74001719 Contact Us For Availability

MAY 7737P036-60 MAY 7737P036-60 Contact Us For Availability

MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability

MAY 7103P136-60 MAY 7103P136-60 Contact Us For Availability

MAY 74001428 MAY 74001428 Contact Us For Availability

W10828565 Whirlpool Screw Backorder WPL W10828565 $3.02

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $2.85

MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability

MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability

MAY 74003032 MAY 74003032 Contact Us For Availability

MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability

MAY W10124350 MAY W10124350 Contact Us For Availability

MAY 74001842 MAY 74001842 Contact Us For Availability

MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability

MAY 74001437 MAY 74001437 Contact Us For Availability

8004P093-60 Whirlpool Support C Backorder WPL 8004P093-60 $5.23

MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability

MAY 74001800 MAY 74001800 Contact Us For Availability

MAY 7403P309-60 MAY 7403P309-60 Contact Us For Availability

MAY 74001438 MAY 74001438 Contact Us For Availability

MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability

MAY 74003053 MAY 74003053 Contact Us For Availability

MAY 3801F276-45 MAY 3801F276-45 Contact Us For Availability

MAY 74001843 MAY 74001843 Contact Us For Availability

MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability

MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability

MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability

MAY 74001320 MAY 74001320 Contact Us For Availability

MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability

MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability

MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability

MAY 74001841 MAY 74001841 Contact Us For Availability

MAY 4020W017-80 MAY 4020W017-80 Contact Us For Availability

MAY 74003016 MAY 74003016 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $13.45

MAY 74002109 MAY 74002109 Contact Us For Availability

KIT, HARDWARE ADAPTER MAY 74008298 Contact Us For Availability

MAY 7407P101-60 MAY 7407P101-60 Contact Us For Availability

MAY 74001844 MAY 74001844 Contact Us For Availability

MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability

WP3195558 Whirlpool Nut Backorder WPL WP3195558 $4.36

MAY 74001725 MAY 74001725 Contact Us For Availability

MAY 74003005 MAY 74003005 Contact Us For Availability

MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability

MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability

18

SCREW, LEVER MAY 7101P230-60 Contact Us For Availability

18

MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability

18

MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability

MAY 74001449 MAY 74001449 Contact Us For Availability

MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability

MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability

MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability

MAY 7724P066-60 MAY 7724P066-60 Contact Us For Availability

MAY 7706P309-60 MAY 7706P309-60 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $78.10

MAY 74001311 MAY 74001311 Contact Us For Availability

MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability

MAY 7726P091-60 MAY 7726P091-60 Contact Us For Availability

MAY 7726P092-60 MAY 7726P092-60 Contact Us For Availability

MAY 7706P305-60 MAY 7706P305-60 Contact Us For Availability

SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability

MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability

MAY 2404F043-80 MAY 2404F043-80 Contact Us For Availability

MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability

MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability

MAY 74001144 MAY 74001144 Contact Us For Availability

MAY 74001743 MAY 74001743 Contact Us For Availability

MAY 74001999 MAY 74001999 Contact Us For Availability

MAY 74001221 MAY 74001221 Contact Us For Availability

MAY 7744P092-60 MAY 7744P092-60 Contact Us For Availability

MAY 7201P054-60 MAY 7201P054-60 Contact Us For Availability

MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability

MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability

TAPE MAY 8270P098-60 Contact Us For Availability

MAY 4006W107-45 MAY 4006W107-45 Contact Us For Availability

24

MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability

24

MAY 3826W014-45 MAY 3826W014-45 Contact Us For Availability

25

BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability

25

SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability

25

MAY 74001339 MAY 74001339 Contact Us For Availability

26

MAY 74001628 MAY 74001628 Contact Us For Availability

26

MAY 8312P079-60 MAY 8312P079-60 Contact Us For Availability

26

MAY 7401P031-60 MAY 7401P031-60 Contact Us For Availability

MAY 74001872 MAY 74001872 Contact Us For Availability

MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability

MAY 7416P004-60 MAY 7416P004-60 Contact Us For Availability

MAY 7416P005-60 MAY 7416P005-60 Contact Us For Availability

MAY 7416P006-60 MAY 7416P006-60 Contact Us For Availability

28

MAY 74002002 MAY 74002002 Contact Us For Availability

28

MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability

28

MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability

29

MAY 4005F445-51 MAY 4005F445-51 Contact Us For Availability

30

MAY 74001630 MAY 74001630 Contact Us For Availability

31

MAY 74001631 MAY 74001631 Contact Us For Availability

32

MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability

33

MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability

34

MAY 7407P106-60 MAY 7407P106-60 Contact Us For Availability

35

MAY 74001744 MAY 74001744 Contact Us For Availability

36

MAY 74001708 MAY 74001708 Contact Us For Availability

37

MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability

MAY 7111P020-60 MAY 7111P020-60 Contact Us For Availability

MAY 16000327 MAY 16000327 Contact Us For Availability

MAY 5170P206-60 MAY 5170P206-60 Contact Us For Availability

MAY 74001310 MAY 74001310 Contact Us For Availability

MAY 74001473 MAY 74001473 Contact Us For Availability

MAY 74001616 MAY 74001616 Contact Us For Availability

MAY 74002165 MAY 74002165 Contact Us For Availability

MAY 74002181 MAY 74002181 Contact Us For Availability

MAY 74002972 MAY 74002972 Contact Us For Availability

MAY 15001707 MAY 15001707 Contact Us For Availability
