Model Maytag CRE9600ACW ELECTRIC RANGE – Common Parts & Diagrams

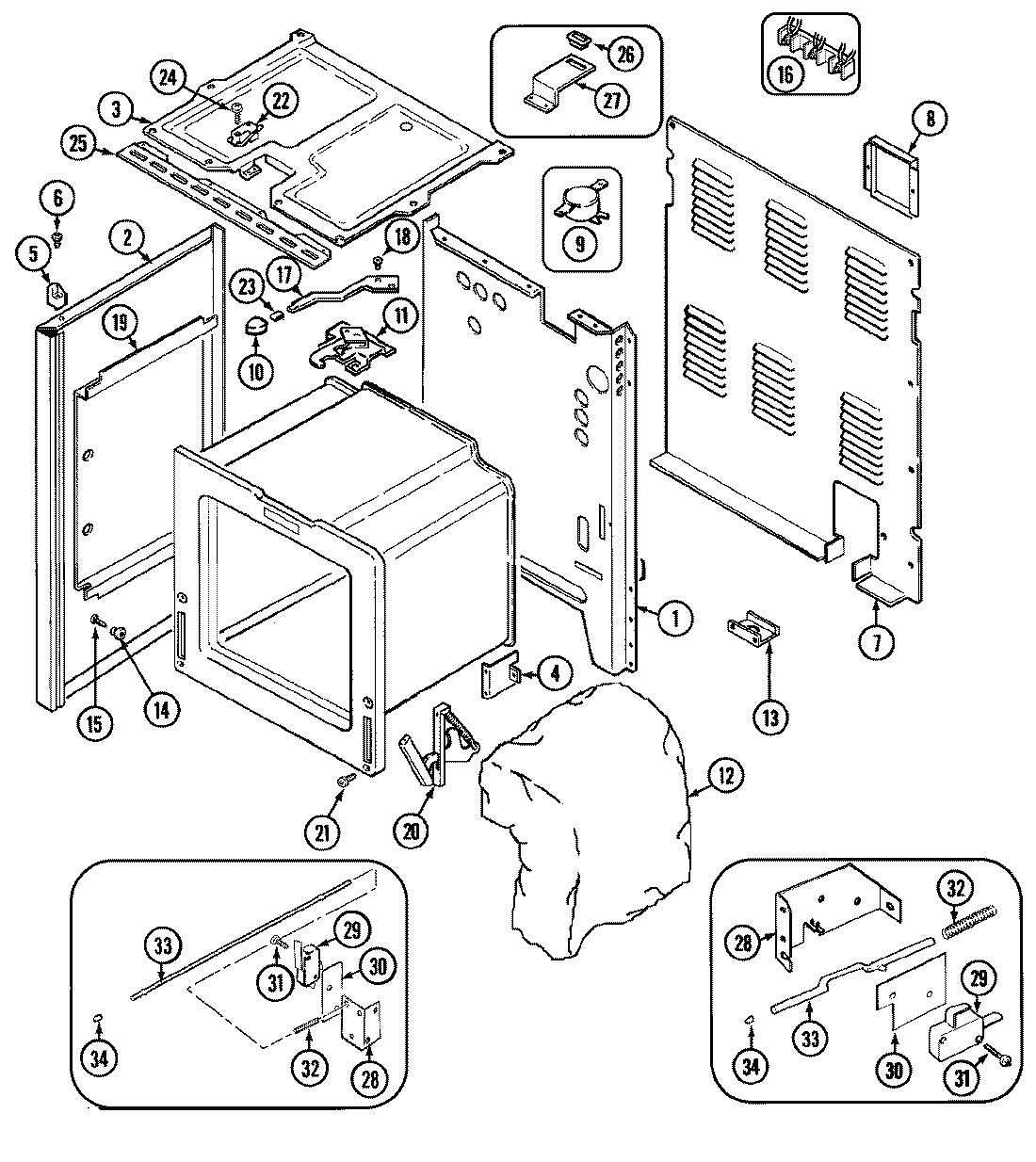

01 - BODY

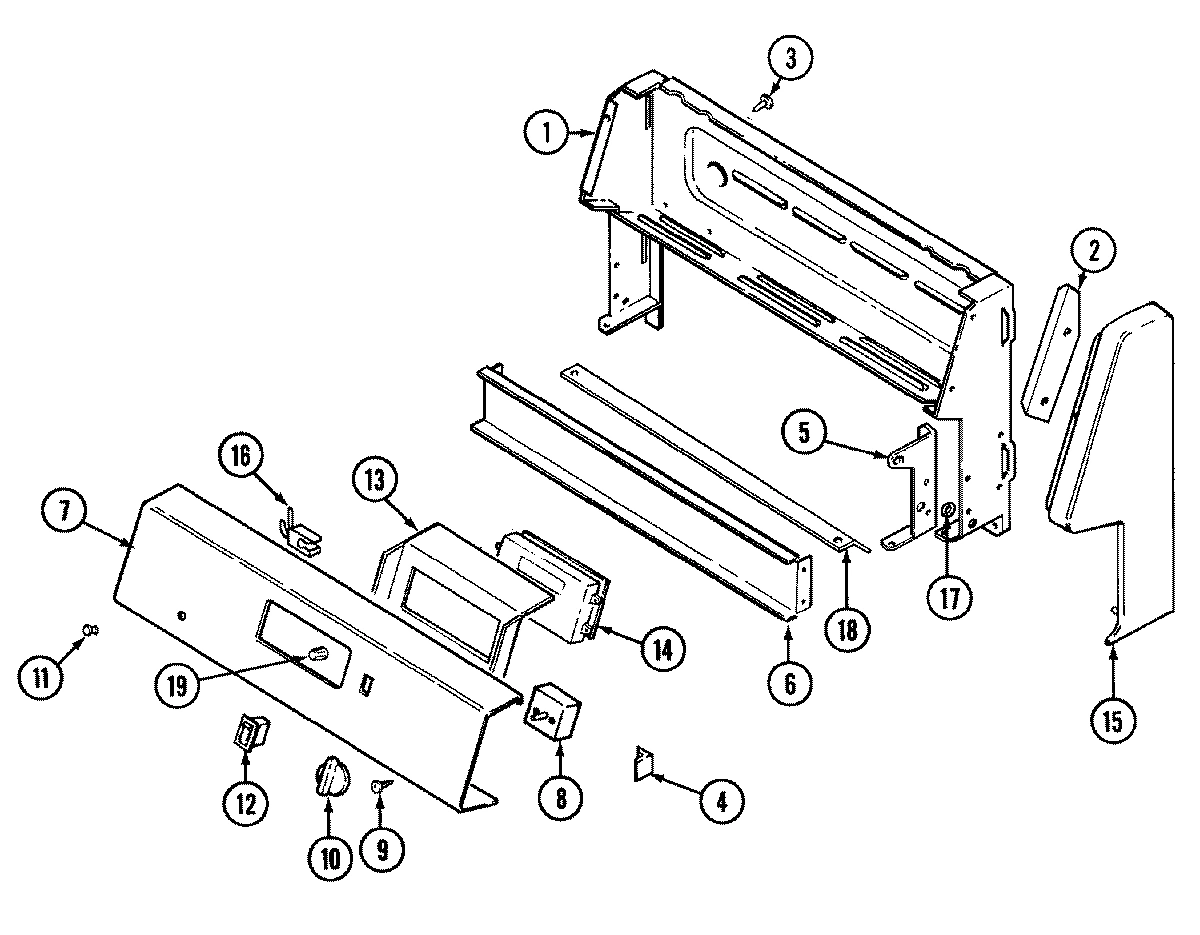

02 - CONTROL PANEL

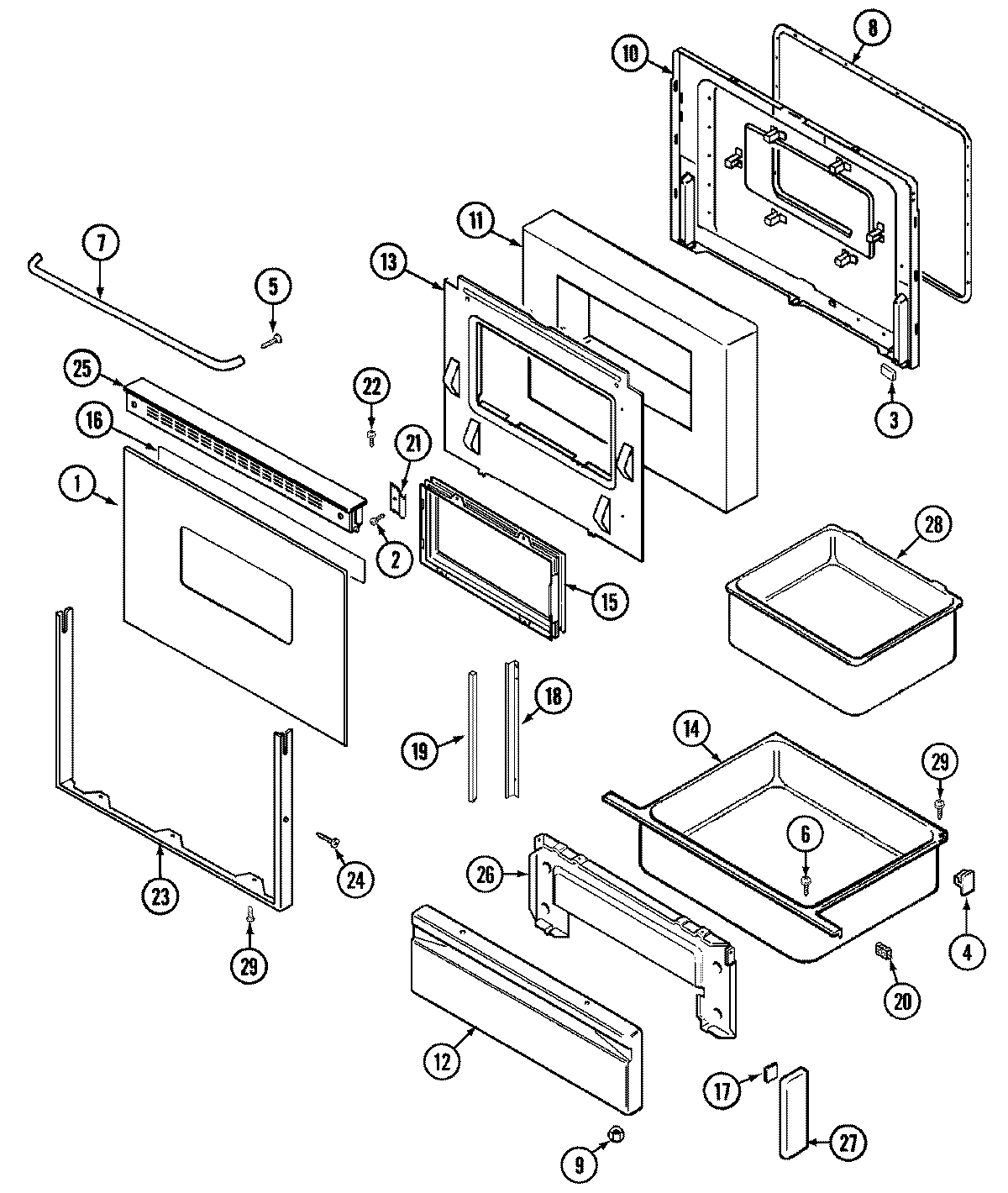

03 - DOOR/DRAWER

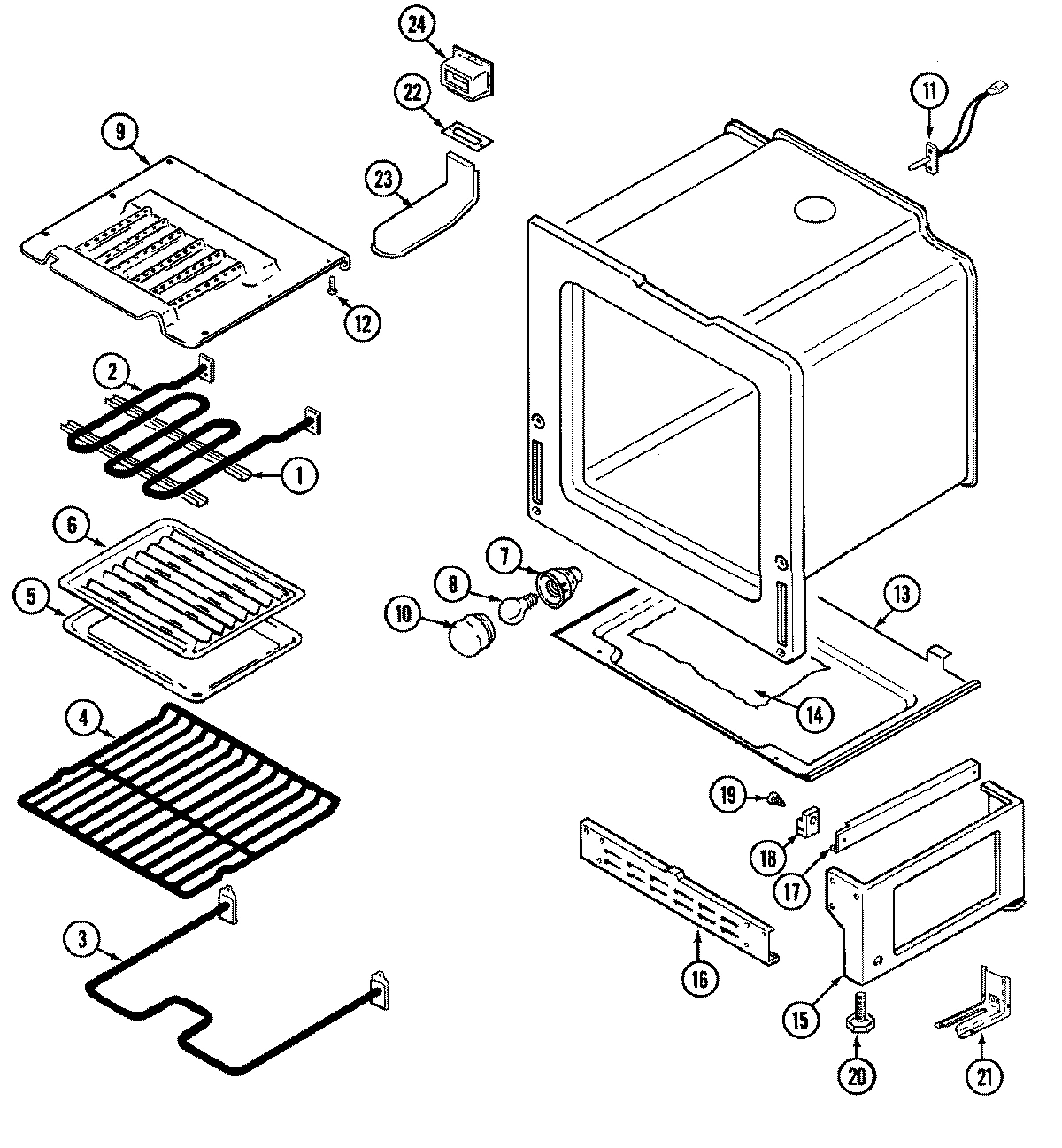

04 - OVEN/BASE

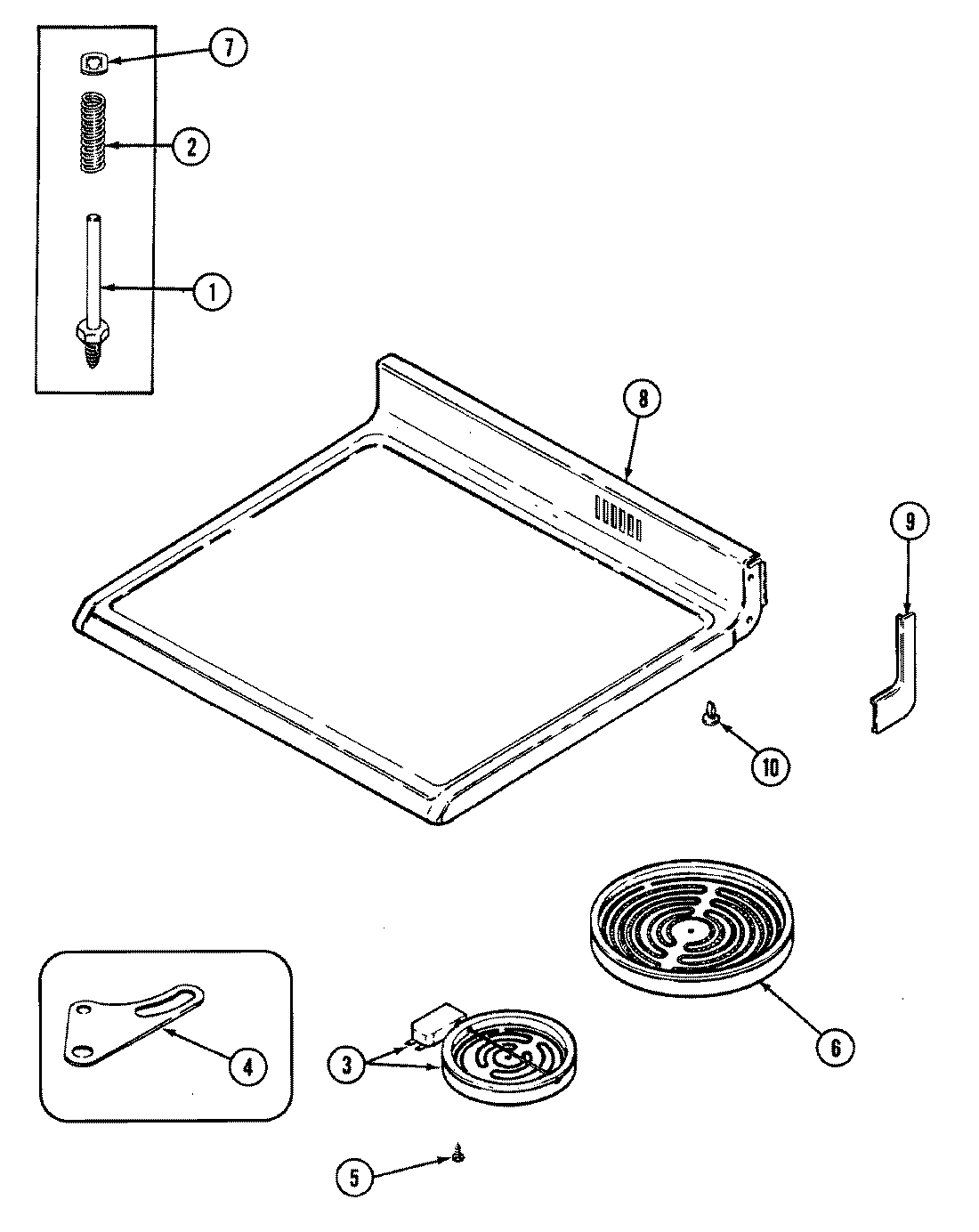

05 - TOP ASSEMBLY

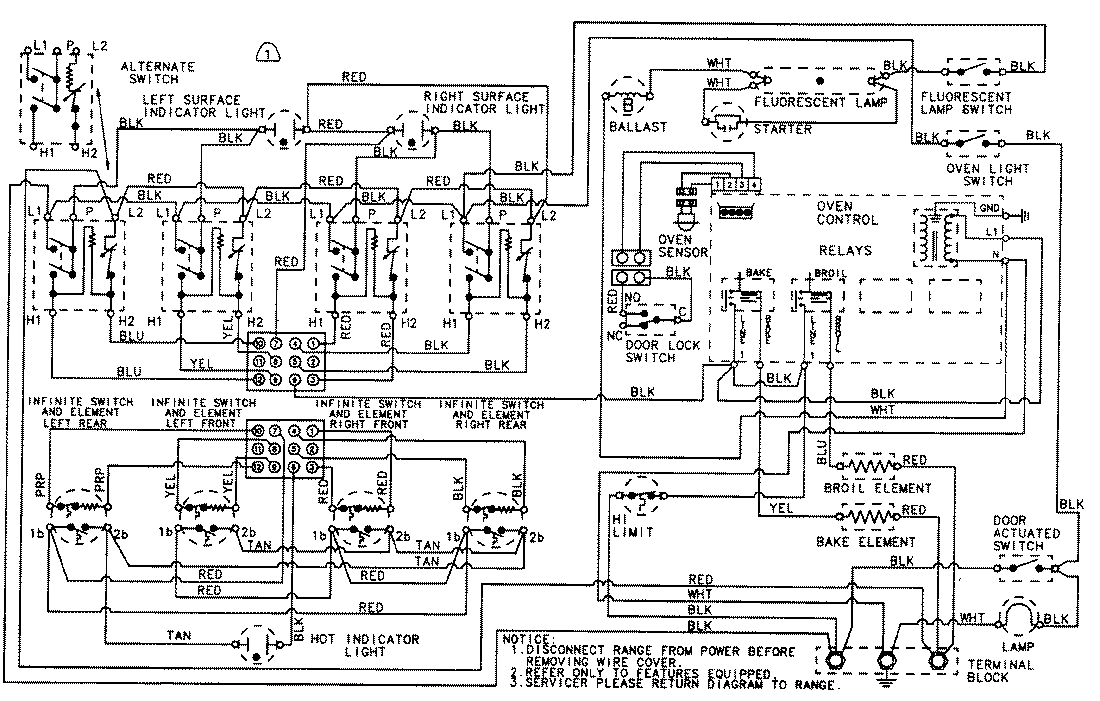

06 - WIRING INFORMATION
Common parts from model Maytag CRE9600ACW ELECTRIC RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 7902P361-60 MAY 7902P361-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7113P013-60 MAY 7113P013-60 Contact Us For Availability
2
MAY 3807F449-45 MAY 3807F449-45 Contact Us For Availability
2
MAY 3807F450-45 MAY 3807F450-45 Contact Us For Availability
2
MAY 74001449 MAY 74001449 Contact Us For Availability
2
MAY 7803P066-60 MAY 7803P066-60 Contact Us For Availability
3
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY Y04000058 MAY Y04000058 Contact Us For Availability
3
MAY 7406P074-60 MAY 7406P074-60 Contact Us For Availability
3
MAY Y04000064 MAY Y04000064 Contact Us For Availability
4
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
4
MAY 3819F013-45 MAY 3819F013-45 Contact Us For Availability
5
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
5
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
5
MAY 3418D097-60 MAY 3418D097-60 Contact Us For Availability
5
MAY 3418D098-60 MAY 3418D098-60 Contact Us For Availability
5
SCREW MAY 7101P326-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
SCREW MAY 7101P349-60 Contact Us For Availability
6
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
6
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 7406P073-60 MAY 7406P073-60 Contact Us For Availability
6
MAY Y04000063 MAY Y04000063 Contact Us For Availability
7
MAY 4005F455-51 MAY 4005F455-51 Contact Us For Availability
7
MAY 7703P554-60 MAY 7703P554-60 Contact Us For Availability
7
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
7
MAY 7701P149-60 MAY 7701P149-60 Contact Us For Availability
7
MAY 7112P091-60 MAY 7112P091-60 Contact Us For Availability
8
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
8
MAY 5706S077-81 MAY 5706S077-81 Contact Us For Availability
9
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 7746P034-60 MAY 7746P034-60 Contact Us For Availability
9
MAY 7746P035-60 MAY 7746P035-60 Contact Us For Availability
10
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
10
MAY 7737P036-60 MAY 7737P036-60 Contact Us For Availability
10
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
10
MAY 7103P136-60 MAY 7103P136-60 Contact Us For Availability
10
MAY 8016P016-60 MAY 8016P016-60 Contact Us For Availability
11
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
11
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
11
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
11
MAY 4804F051-60 MAY 4804F051-60 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
12
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
12
MAY 74001159 MAY 74001159 Contact Us For Availability
12
MAY 7403P309-60 MAY 7403P309-60 Contact Us For Availability
12
MAY 74001438 MAY 74001438 Contact Us For Availability
12
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
MAY 74001488 MAY 74001488 Contact Us For Availability
13
MAY 3601F236-51 MAY 3601F236-51 Contact Us For Availability
13
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 7601P224-60 MAY 7601P224-60 Contact Us For Availability
14
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
14
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
15
MAY 7726P061-60 MAY 7726P061-60 Contact Us For Availability
15
MAY 7726P062-60 MAY 7726P062-60 Contact Us For Availability
15
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
15
MAY 4020W017-80 MAY 4020W017-80 Contact Us For Availability
16
MAY 7407P101-60 MAY 7407P101-60 Contact Us For Availability
16
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
16
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
17
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
17
TAPE MAY 8270P098-60 Contact Us For Availability
17
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
18
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
18
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
18
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
19
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
19
MAY 7711P475-60 MAY 7711P475-60 Contact Us For Availability
19
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
19
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
20
MAY 74001311 MAY 74001311 Contact Us For Availability
20
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
20
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
21
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
21
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
21
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
21
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
22
MAY 7403P363-60 MAY 7403P363-60 Contact Us For Availability
22
MAY 7201P054-60 MAY 7201P054-60 Contact Us For Availability
23
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
23
MAY 7706P294-60 MAY 7706P294-60 Contact Us For Availability
23
MAY 4006W107-45 MAY 4006W107-45 Contact Us For Availability
24
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
24
MAY 3826W014-45 MAY 3826W014-45 Contact Us For Availability
25
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
25
MAY 7744P128-60 MAY 7744P128-60 Contact Us For Availability
26
MAY 7407P089-60 MAY 7407P089-60 Contact Us For Availability
26
MAY 7407P097-60 MAY 7407P097-60 Contact Us For Availability
26
MAY 2404F043-80 MAY 2404F043-80 Contact Us For Availability
27
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
27
MAY 7744P092-60 MAY 7744P092-60 Contact Us For Availability
28
MAY 3801F316-51 MAY 3801F316-51 Contact Us For Availability
28
MAY 3801F354-51 MAY 3801F354-51 Contact Us For Availability
28
MAY 8312P079-60 MAY 8312P079-60 Contact Us For Availability
29
MAY 12001053 MAY 12001053 Contact Us For Availability
29
MAY 4874F001-60 MAY 4874F001-60 Contact Us For Availability
30
MAY 7003P047-60 MAY 7003P047-60 Contact Us For Availability
30
MAY 7003P062-60 MAY 7003P062-60 Contact Us For Availability
31
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
32
MAY 7803P067-60 MAY 7803P067-60 Contact Us For Availability
33
MAY 7809P017-60 MAY 7809P017-60 Contact Us For Availability
33
MAY 7809P022-60 MAY 7809P022-60 Contact Us For Availability
34
MAY 8003P012-60 MAY 8003P012-60 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 5170D153-60 MAY 5170D153-60 Contact Us For Availability
NI
MAY 5170P187-60 MAY 5170P187-60 Contact Us For Availability
NI
MAY 8111P005-60 MAY 8111P005-60 Contact Us For Availability
NI
MAY 8308P002-60 MAY 8308P002-60 Contact Us For Availability
NI
MAY 15001197 MAY 15001197 Contact Us For Availability
× ![]()
