Model Whirlpool CRE900 ELECTRIC RANGE – Common Parts & Diagrams

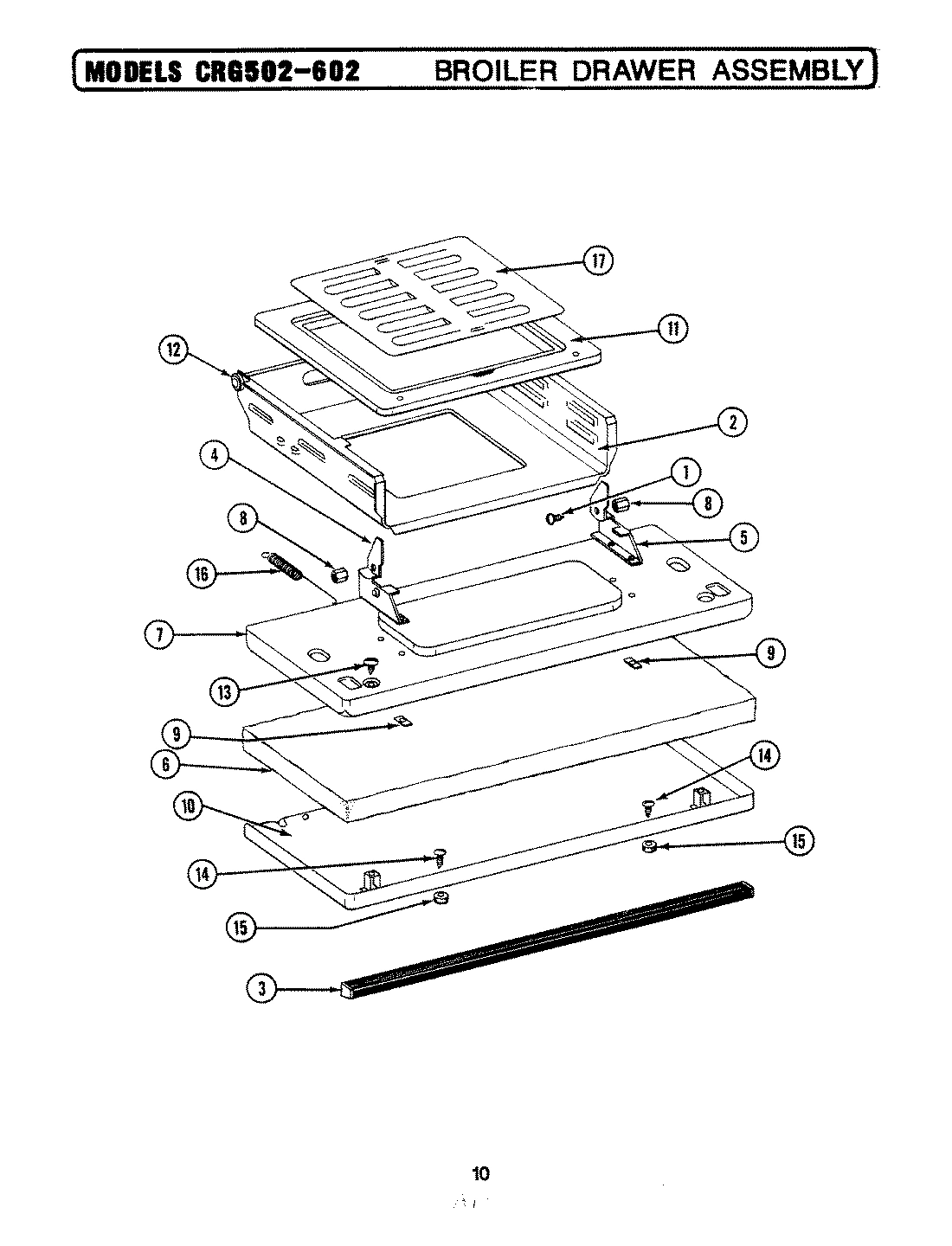

03 - OVEN ASSEMBLY

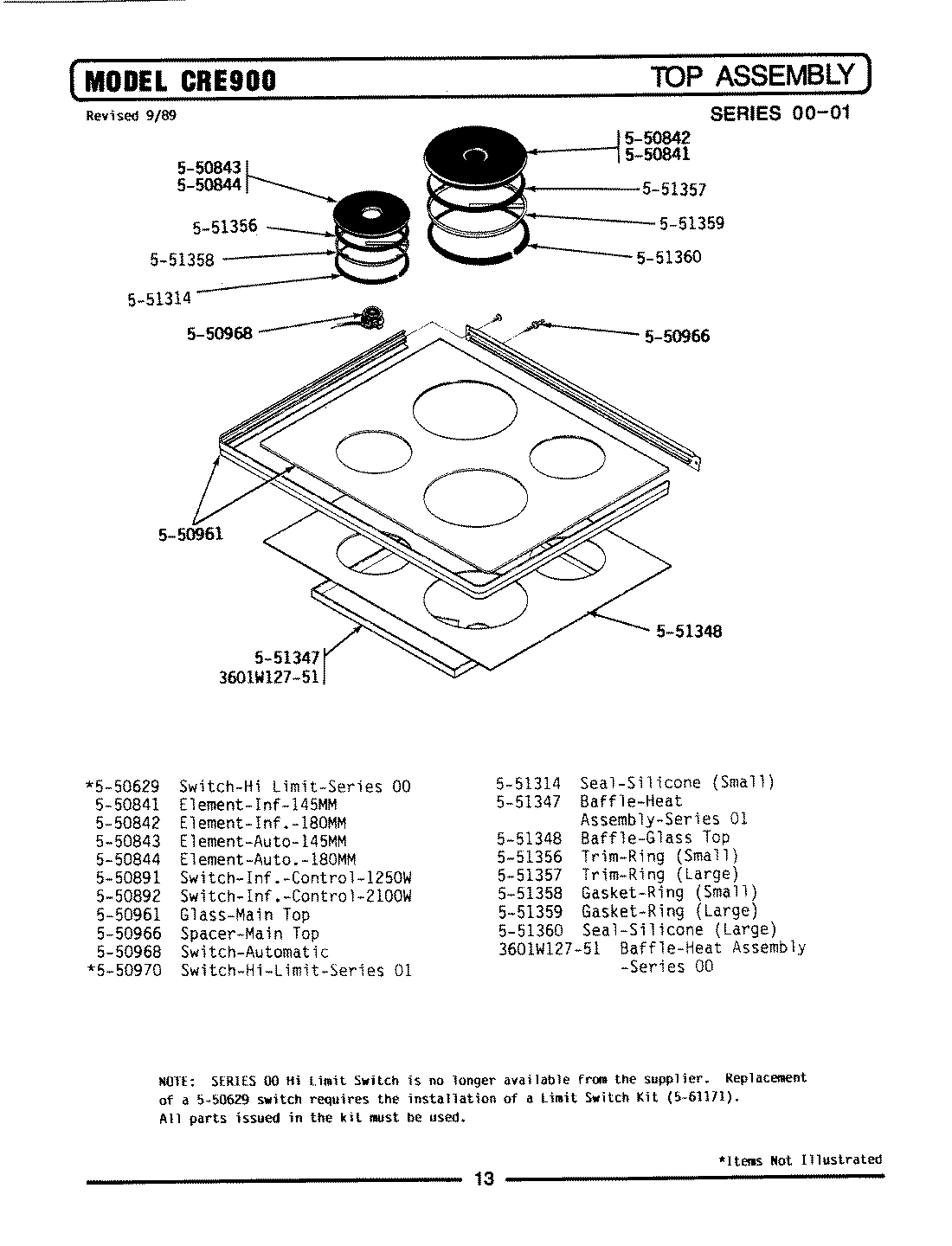

04 - TOP ASSEMBLY

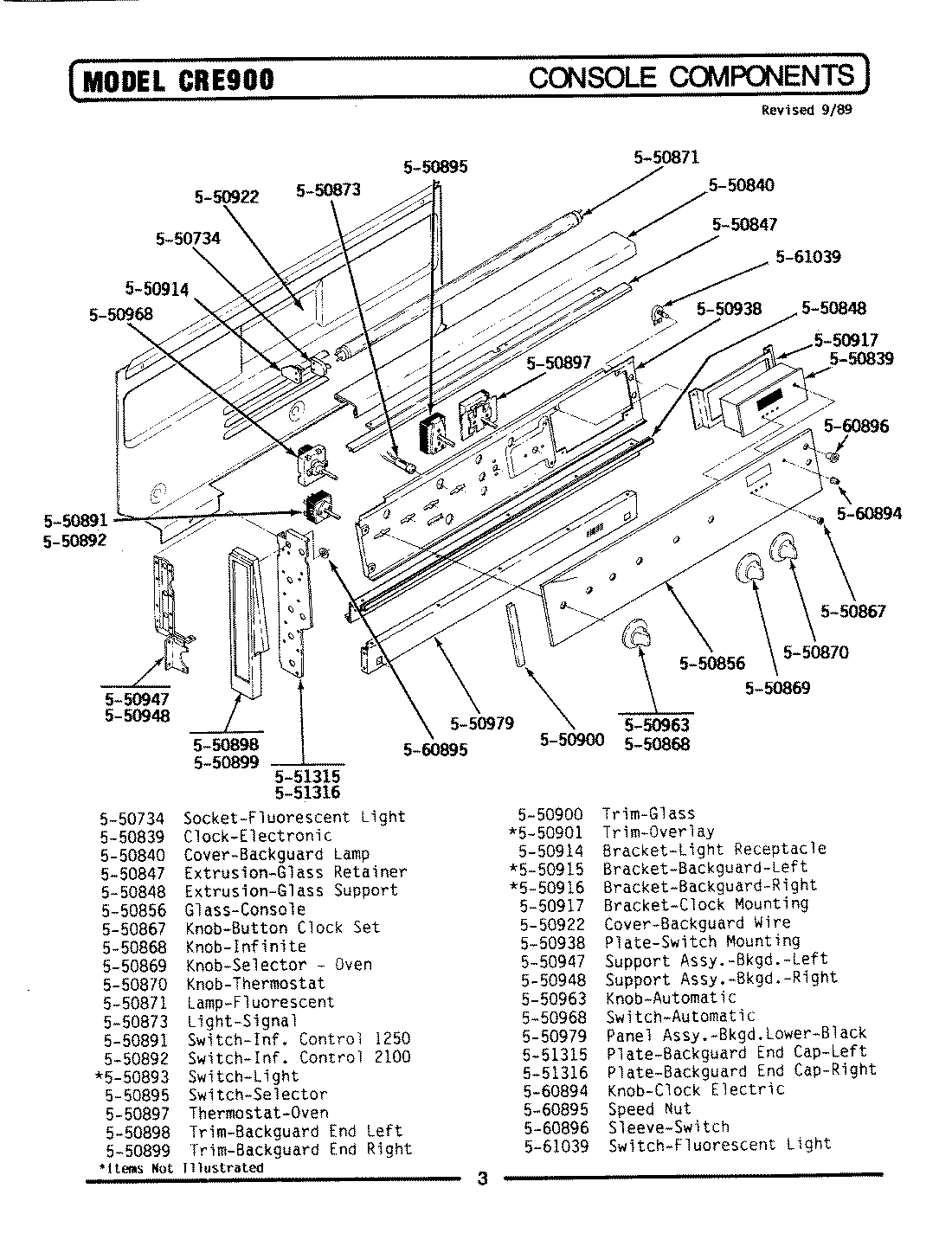

01 - CONTROL PANEL

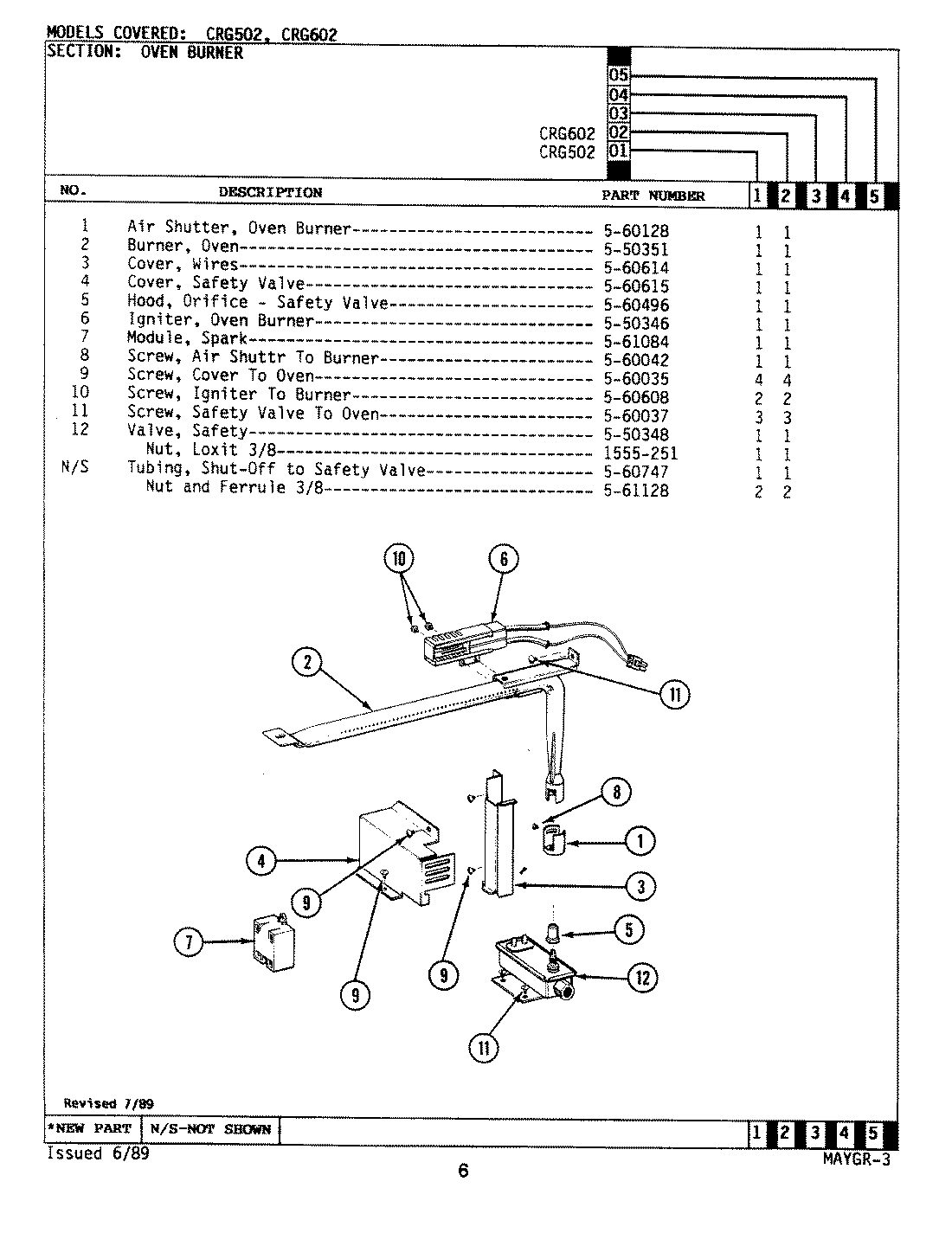

02 - DOOR & DRAWER ASSEMBLY
Common parts from model Whirlpool CRE900 ELECTRIC RANGE
1
BALLAST WPL 550699 Contact Us For Availability
1
LIGHT SOCKET WPL 550734 Contact Us For Availability
1
COMPT. BUMPER WPL 550702 Contact Us For Availability
2
DOOR PEN CLIP WPL 550711 Contact Us For Availability
2
CLOCK, ELECTRONIC WPL 550839 Contact Us For Availability
2
BUMPER, DOOR WPL 550836 Contact Us For Availability
3
ELEMENT, INF. 180MM WPL 550842 Contact Us For Availability
3
COVER, BACKGUARD LAMP WPL 550840 Contact Us For Availability
3
FRAME ASSY, DOOR WPL 550849 Contact Us For Availability
4
ELEMENT, AUTO. 145MM WPL 550843 Contact Us For Availability
4
EXTRUSION, GLASS RET. WPL 550847 Contact Us For Availability
4
GLASS, INNER DOOR WPL 550857 Contact Us For Availability
5
DOOR HINGE PIN WPL 550739 Contact Us For Availability
5
ELEMENT, AUTO. 180MM WPL 550844 Contact Us For Availability
5
EXTRUSION, GLASS SUPT. WPL 550848 Contact Us For Availability
6
BRACKET - TIE DOWN WPL 550781 Contact Us For Availability
6
GLIDE, SVR DRAWER - FRONT WPL 550862 Contact Us For Availability
6
GLASS, CONSOLE WPL 550856 Contact Us For Availability
7
BLOCK, DISCONNECT PIN WPL 550833 Contact Us For Availability
7
GLIDE, SVR DRAWER - REAR WPL 550863 Contact Us For Availability
7
KNOB, BUTTON CLOCK SET WPL 550867 Contact Us For Availability
8
GLASS - MAIN TOP WPL 550961 Contact Us For Availability
8
HANDLE, OVEN DOOR WPL 550865 Contact Us For Availability
9
BOLT, DOOR LOCK WPL 550835 Contact Us For Availability
9
SPACER, MAIN TOP WPL 550966 Contact Us For Availability
9
KNOB, SELECTOR WPL 550869 Contact Us For Availability
10
CATCH, DOOR LOCK WPL 550837 Contact Us For Availability
10
SEAL, SILASTIC WPL 550879 Contact Us For Availability
11
CLIP - TOP RETAINER WPL 550838 Contact Us For Availability
11
SEAL, HORIZONTAL WPL Y550880 Contact Us For Availability
12
GASKET, ELEMENT WPL 551314 Contact Us For Availability
12
LIGHT, SIGNAL WPL 550873 Contact Us For Availability
12
SPACER, OVEN DOOR HANDLE WPL 550883 Contact Us For Availability
13
BAFFLE, HEAT ASSY WPL 551347 Contact Us For Availability
13
BRACE, SERVICE DRAWER WPL 550912 Contact Us For Availability
14
GASKET, LAMP GUARD RET. WPL 550851 Contact Us For Availability
14
BAFFLE, GLASS TOP WPL 551348 Contact Us For Availability
14
BRACKET, DRAWER MTG WPL 550918 Contact Us For Availability
15
TRIM, RING SMALL WPL 551356 Contact Us For Availability
15
DRAWER, SERVICE WPL 550924 Contact Us For Availability
16
GASKET, BROIL UNIT WPL 550853 Contact Us For Availability
16
TRIM, RING LARGE WPL 551357 Contact Us For Availability
16
SWITCH-SELECTOR WPL 550895 Contact Us For Availability
16
LINING ASSY, OVEN DOOR WPL 550931 Contact Us For Availability
17
GASKET, LAMPGUARD WPL 550854 Contact Us For Availability
17
GASKET, 145MM WPL 551358 Contact Us For Availability
17
THERMOSTAT, OVEN WPL 550897 Contact Us For Availability
17
PAD, OVEN DOOR WPL Y550932 Contact Us For Availability
18
GASKET, OVEN WPL 550855 Contact Us For Availability
18
GASKET - RING - LARGE WPL 551359 Contact Us For Availability
18
TRIM, BACKGUARD END LEFT WPL 550898 Contact Us For Availability
18
RETAINER, GLASS WPL 550939 Contact Us For Availability
19
RUNNER, INNER WPL 550942 Contact Us For Availability
19
SEAL - SILICONE - LARGE WPL 551360 Contact Us For Availability
19
TRIM, BACKGUARD END RIGHT WPL 550899 Contact Us For Availability
20
BAFFLE, HEAT ASY WPL 3601W12751 Contact Us For Availability
20
TRIM, GLASS WPL 550900 Contact Us For Availability
20
FRAME ASSY SERV DWR WPL 550958 Contact Us For Availability
21
LEVER, DOOR LOCK WPL 550872 Contact Us For Availability
21
HANDLE, SERVICE DOOR WPL 550962 Contact Us For Availability
22
RECEPTACLE, OVEN LIGHT WPL 550875 Contact Us For Availability
22
BRACKET, LAMPGUARD WPL 550914 Contact Us For Availability
22
SPACER, SERVICE DOOR HANDLE WPL 550967 Contact Us For Availability
23
SCREW WPL 550876 Contact Us For Availability
23
PANEL ASSY, SVC DWR BLACK WPL 550980V Contact Us For Availability
24
RUNNER, OUTER WPL 550982 Contact Us For Availability
25
SWITCH-LOCK WPL 550894 Contact Us For Availability
25
BRACKET, CLOCK MOUNTING WPL 550917 Contact Us For Availability
25
GLASS, DOOR BLACK WPL 551067 Contact Us For Availability
26
SWITCH, OVEN DOOR LIGHT WPL 550896 Contact Us For Availability
26
COVER, BACKGUARD WIRE WPL 550922 Contact Us For Availability
26
RIVET WPL 551194 Contact Us For Availability
27
TUBE, OVEN VENT WPL 550904 Contact Us For Availability
27
PLATE, SWITCH MOUNTING WPL 550938 Contact Us For Availability
28
BACK, MAIN WPL 550905 Contact Us For Availability
28
SUPPORT ASSY, BKGD LF WPL 550947 Contact Us For Availability
28
SCREW, DOOR HANDLE WPL Y551318 Contact Us For Availability
29
BOTTOM, BURNER BOX WPL 550906 Contact Us For Availability
29
SUPPORT ASSY, BKGD RT WPL 550948 Contact Us For Availability
29
BAFFLE, INSULATION OVEN DOO WPL 551328 Contact Us For Availability
30
BOX ASSY, VENT WPL 550907 Contact Us For Availability
30
KNOB, SWITCH AUTO WPL 550963 Contact Us For Availability
30
BAFFLE, INSULATION OVEN DOO WPL 551329 Contact Us For Availability
31
BRACE, BACK WPL 550908 Contact Us For Availability
31
SWITCH, AUTOMATIC WPL 550968 Contact Us For Availability
31
SPACER, GLASS CORNER WPL 551333 Contact Us For Availability
32
BRACE, INNER SIDE WPL 550910 Contact Us For Availability
32
PANEL ASSY, BKGD LWR WPL 550979 Contact Us For Availability
32
LINING ASSY, OVEN DOOR WPL 551345 Contact Us For Availability
33
BRACKET, BURNER BOX WPL 550913 Contact Us For Availability
33
PLATE, BKGD END CAP LEFT WPL 551315 Contact Us For Availability
33
BAFFLE, OVEN DOOR HANDLE WPL 551346 Contact Us For Availability
34
BRACKET, LIGHT RECEP. WPL 550919 Contact Us For Availability
34
PLATE, BKGD END CAP RIGHT WPL 551316 Contact Us For Availability
34
PAD, INNER OVEN DOOR WPL 560897 Contact Us For Availability
35
COVER, ACCESS WPL 550920 Contact Us For Availability
35
KNOB, CLOCK ELECTRIC WPL 560894 Contact Us For Availability
36
COVER, BACK BURNER BOX WPL 550921 Contact Us For Availability
36
SPEED NUT WPL Y560895 Contact Us For Availability
37
COVER, WIRE HOUSING WPL 550923 Contact Us For Availability
37
SLEEVE, SWITCH WPL 560896 Contact Us For Availability
37
SUPPORT FOR CLOCK-LEFT WPL 560158 Contact Us For Availability
38
FRONT, BURNER BOX BOTTOM WPL 550925 Contact Us For Availability
38
SWITCH, PUSH WPL 561039 Contact Us For Availability
38
OVEN DOOR PAD ASSY WPL 561116 Contact Us For Availability
39
FRONT, OVEN UPPER WPL 550926 Contact Us For Availability
39
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
40
HINGE, OVEN DOOR LEFT WPL Y550927 Contact Us For Availability
41
HINGE, OVEN DOOR RIGHT WPL 550928 Contact Us For Availability
42
HOUSING, LAMP WPL 550929 Contact Us For Availability
43
RETAINER, LIGHTGUARD WPL 550940 Contact Us For Availability
45
SHIELD, BROIL WPL 550944 Contact Us For Availability
46
SUPPORT, BROIL UNIT WPL 550950 Contact Us For Availability
47
SUPPORT, LATCH WPL 550951 Contact Us For Availability
48
SUPPORT, LOCK SWITCH WPL 550952 Contact Us For Availability
49
SUPPORT, OVEN REAR WPL 550953 Contact Us For Availability
50
FAN ASSY WPL 550957 Contact Us For Availability
51
PIN, DOOR HINGE WPL 550964 Contact Us For Availability
52
SWITCH, HI-LIMIT FAN WPL 550969 Contact Us For Availability
53
BRACKET, MAIN TOP RET WPL 550976 Contact Us For Availability
54
COVER, FAN ASSEMBLY WPL 550977 Contact Us For Availability
55
LINING ASSY, INSIDE WPL 550978 Contact Us For Availability
57
CLIP, DR LK HANDLE WPL 550990 Contact Us For Availability
58
LINK, DOOR LOCK WPL 551004 Contact Us For Availability
59
WPL 551044 WPL 551044 Contact Us For Availability
60
WPL 551134 WPL 551134 Contact Us For Availability
61
WPL 551139 WPL 551139 Contact Us For Availability
62
WPL 551203 WPL 551203 Contact Us For Availability
63
WPL 551310 WPL 551310 Contact Us For Availability
64
WPL 551313 WPL 551313 Contact Us For Availability
65
WPL 551378 WPL 551378 Contact Us For Availability
66
WPL 560900 WPL 560900 Contact Us For Availability
70
WPL 560980 WPL 560980 Contact Us For Availability
71
WPL 560981 WPL 560981 Contact Us For Availability
72
WPL 560982 WPL 560982 Contact Us For Availability
73
WPL 560983 WPL 560983 Contact Us For Availability
74
WPL 560996 WPL 560996 Contact Us For Availability
75
WPL 561037 WPL 561037 Contact Us For Availability
NI
HI-LIMIT THERMOSTAT WPL 550629 Contact Us For Availability
NI
SWITCH, HI-LIMIT GLASS WPL 550970 Contact Us For Availability
NI
SWITCH, LIGHT WPL 550893 Contact Us For Availability
NI
TRIM, OVENLAY WPL 550901 Contact Us For Availability
NI
BRACKET, BACKGUARD-LEFT WPL 550915 Contact Us For Availability
NI
BRACKET, BACKGUARD-RIGHT WPL 550916 Contact Us For Availability
× ![]()
