Model Maytag CRE8700BDE ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

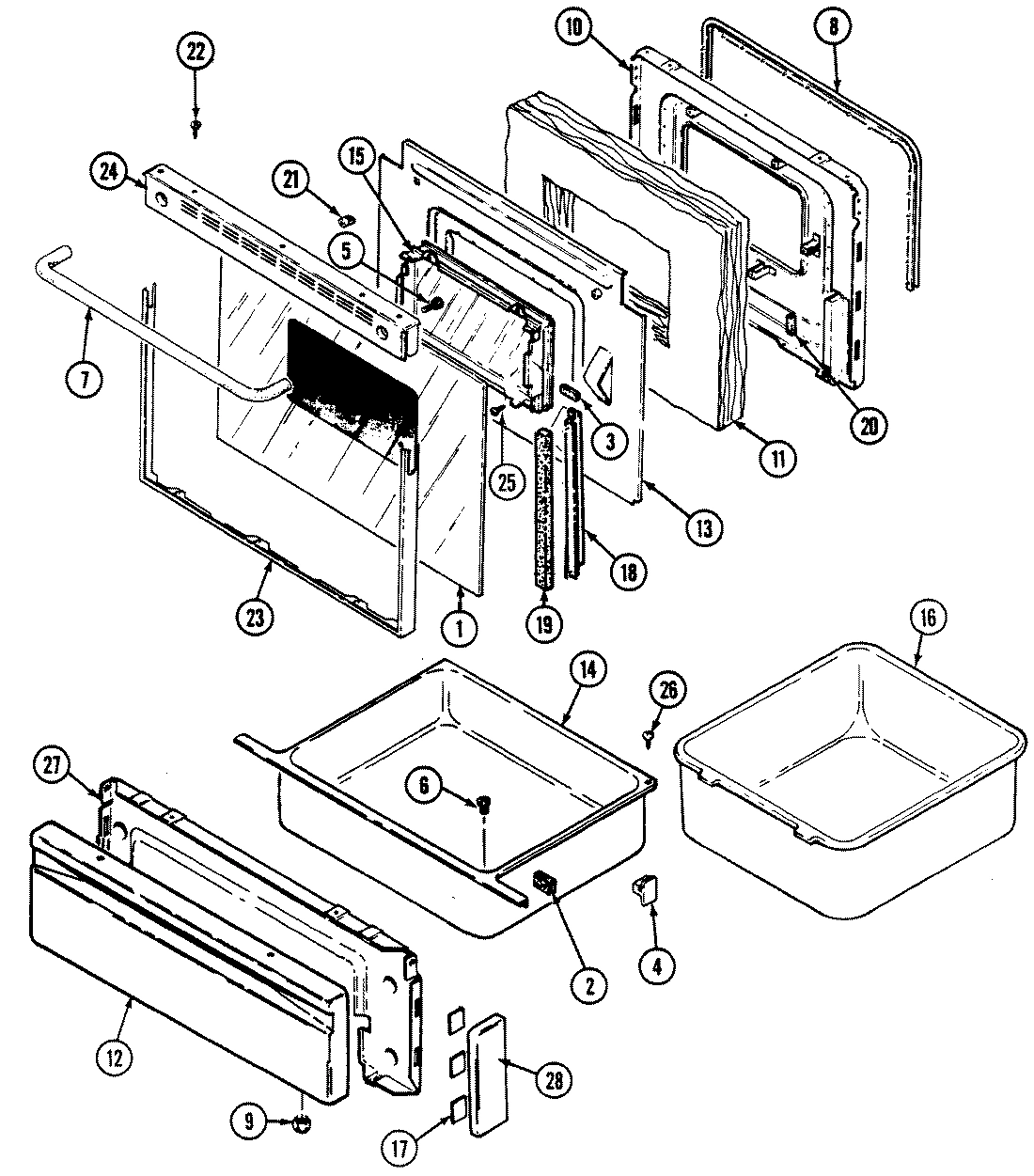

03 - DOOR/DRAWER

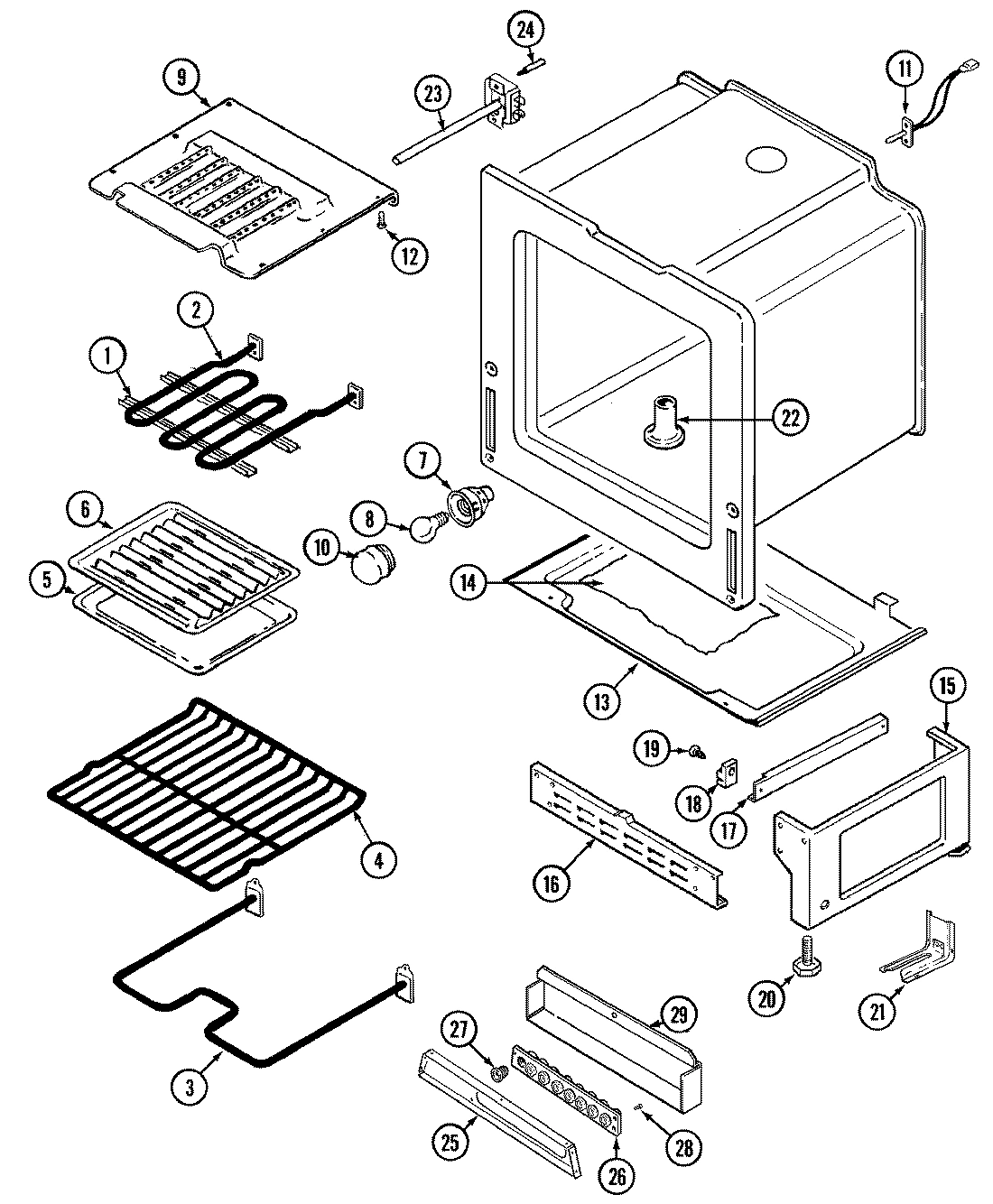

04 - OVEN/BASE

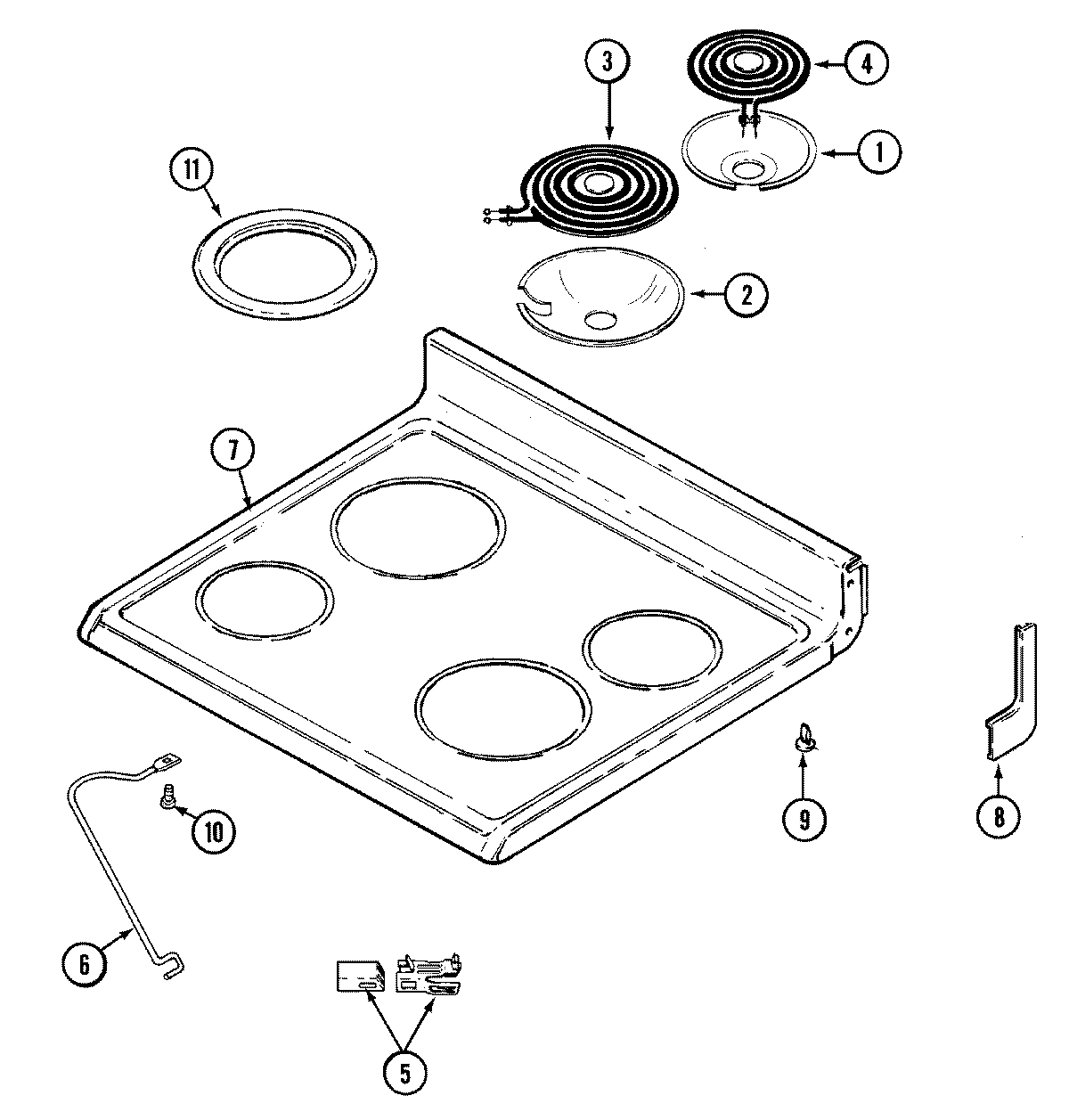

05 - TOP ASSEMBLY
Common parts from model Maytag CRE8700BDE ELECTRIC RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 7902P360-60 MAY 7902P360-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7725P036-60 MAY 7725P036-60 Contact Us For Availability
2
MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability
2
MAY 8010P086-60 MAY 8010P086-60 Contact Us For Availability
2
MAY 7725P037-60 MAY 7725P037-60 Contact Us For Availability
3
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY Y04000058 MAY Y04000058 Contact Us For Availability
3
MAY Y04000055 MAY Y04000055 Contact Us For Availability
4
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
4
MAY 7801P046-60 MAY 7801P046-60 Contact Us For Availability
4
MAY Y04000056 MAY Y04000056 Contact Us For Availability
5
MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability
5
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
5
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
5
SCREW MAY 7101P326-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 1430306K MAY 1430306K Contact Us For Availability
6
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 7809P014-60 MAY 7809P014-60 Contact Us For Availability
7
MAY 7118P022-60 MAY 7118P022-60 Contact Us For Availability
7
MAY 7703P556-60 MAY 7703P556-60 Contact Us For Availability
7
MAY 7701P128-60 MAY 7701P128-60 Contact Us For Availability
7
MAY 2002W078-81 MAY 2002W078-81 Contact Us For Availability
8
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
8
MAY 7103P129-60 MAY 7103P129-60 Contact Us For Availability
8
MAY 7407P095-60 MAY 7407P095-60 Contact Us For Availability
8
MAY 7746P034-60 MAY 7746P034-60 Contact Us For Availability
8
MAY 7746P035-60 MAY 7746P035-60 Contact Us For Availability
9
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
10
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
10
MAY 7701P133-60 MAY 7701P133-60 Contact Us For Availability
10
MAY 7737P037-60 MAY 7737P037-60 Contact Us For Availability
10
MAY 7103P136-60 MAY 7103P136-60 Contact Us For Availability
10
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
11
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
11
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
11
MAY 7002P155-60 MAY 7002P155-60 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
11
MAY 7744P053-60 MAY 7744P053-60 Contact Us For Availability
11
MAY 7744P054-60 MAY 7744P054-60 Contact Us For Availability
12
MAY 4804F030-60 MAY 4804F030-60 Contact Us For Availability
12
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
12
MAY 2416F039-62 MAY 2416F039-62 Contact Us For Availability
12
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
MAY 3801F276-45 MAY 3801F276-45 Contact Us For Availability
13
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
13
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 7601P195-60 MAY 7601P195-60 Contact Us For Availability
14
MAY 3405F015-80 MAY 3405F015-80 Contact Us For Availability
14
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
15
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
15
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
15
MAY 4020W007-80 MAY 4020W007-80 Contact Us For Availability
16
MAY 7407P101-60 MAY 7407P101-60 Contact Us For Availability
16
MAY 8312P073-60 MAY 8312P073-60 Contact Us For Availability
16
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
17
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
17
MAY 74001725 MAY 74001725 Contact Us For Availability
17
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
17
TAPE MAY 8270P098-60 Contact Us For Availability
17
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
18
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
18
MAY 3818F052-51 MAY 3818F052-51 Contact Us For Availability
18
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
19
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
19
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
19
MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability
19
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
20
MAY 7106P049-60 MAY 7106P049-60 Contact Us For Availability
20
MAY 7726P065-60 MAY 7726P065-60 Contact Us For Availability
20
MAY 7726P066-60 MAY 7726P066-60 Contact Us For Availability
20
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
20
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
21
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
21
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
21
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
21
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
21
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
21
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
22
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
22
MAY 74001162 MAY 74001162 Contact Us For Availability
22
MAY 7724P060-60 MAY 7724P060-60 Contact Us For Availability
22
MAY 7724P062-60 MAY 7724P062-60 Contact Us For Availability
22
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
23
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
23
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
23
MAY 7101P320-60 MAY 7101P320-60 Contact Us For Availability
23
MAY 7706P298-60 MAY 7706P298-60 Contact Us For Availability
23
MAY 7404P057-60 MAY 7404P057-60 Contact Us For Availability
24
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
24
MAY 3418A087-34 MAY 3418A087-34 Contact Us For Availability
24
MAY 3418A088-34 MAY 3418A088-34 Contact Us For Availability
24
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
24
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
24
MAY 7744P089-60 MAY 7744P089-60 Contact Us For Availability
24
MAY 7118P020-60 MAY 7118P020-60 Contact Us For Availability
25
COVER, VENT MAY 4005F432-45 Contact Us For Availability
25
MAY 3801F309-80 MAY 3801F309-80 Contact Us For Availability
25
MAY 7103P064-60 MAY 7103P064-60 Contact Us For Availability
26
MAY 4005F451-80 MAY 4005F451-80 Contact Us For Availability
26
MAY 7101P329-60 MAY 7101P329-60 Contact Us For Availability
26
MAY 7401A031-60 MAY 7401A031-60 Contact Us For Availability
27
MAY 74001134 MAY 74001134 Contact Us For Availability
27
MAY 2404F033-80 MAY 2404F033-80 Contact Us For Availability
27
MAY 7416P004-60 MAY 7416P004-60 Contact Us For Availability
27
MAY 7416P005-60 MAY 7416P005-60 Contact Us For Availability
27
MAY 7416P006-60 MAY 7416P006-60 Contact Us For Availability
28
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
28
MAY 7744P093-60 MAY 7744P093-60 Contact Us For Availability
28
MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability
29
MAY 8003P012-60 MAY 8003P012-60 Contact Us For Availability
29
MAY 4005F417-51 MAY 4005F417-51 Contact Us For Availability
30
MAY 3801F316-51 MAY 3801F316-51 Contact Us For Availability
31
MAY 7003P047-60 MAY 7003P047-60 Contact Us For Availability
32
MAY 7403P281-60 MAY 7403P281-60 Contact Us For Availability
33
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
34
MAY 7803P067-60 MAY 7803P067-60 Contact Us For Availability
35
MAY 7809P017-60 MAY 7809P017-60 Contact Us For Availability
36
MAY 7109P020-60 MAY 7109P020-60 Contact Us For Availability
37
MAY 8007P023-60 MAY 8007P023-60 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 5170D159-60 MAY 5170D159-60 Contact Us For Availability
NI
MAY 5170P161-60 MAY 5170P161-60 Contact Us For Availability
NI
MAY 5170P187-60 MAY 5170P187-60 Contact Us For Availability
NI
MAY 5195D082-60 MAY 5195D082-60 Contact Us For Availability
NI
MAY 8111P002-60 MAY 8111P002-60 Contact Us For Availability
× ![]()
