Model Maytag CRE8400BGW ELECTRIC RANGE – Common Parts & Diagrams

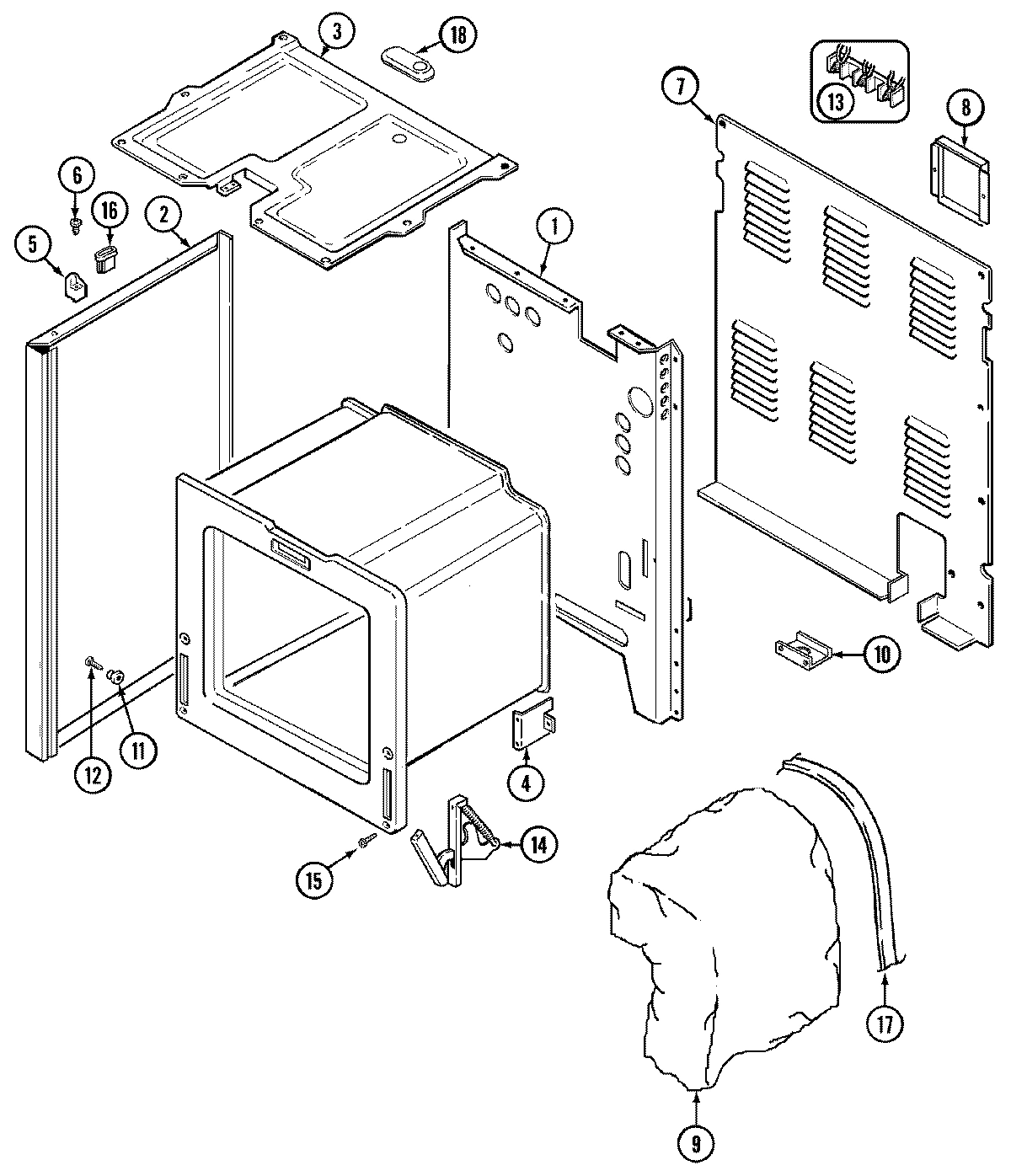

01 - BODY

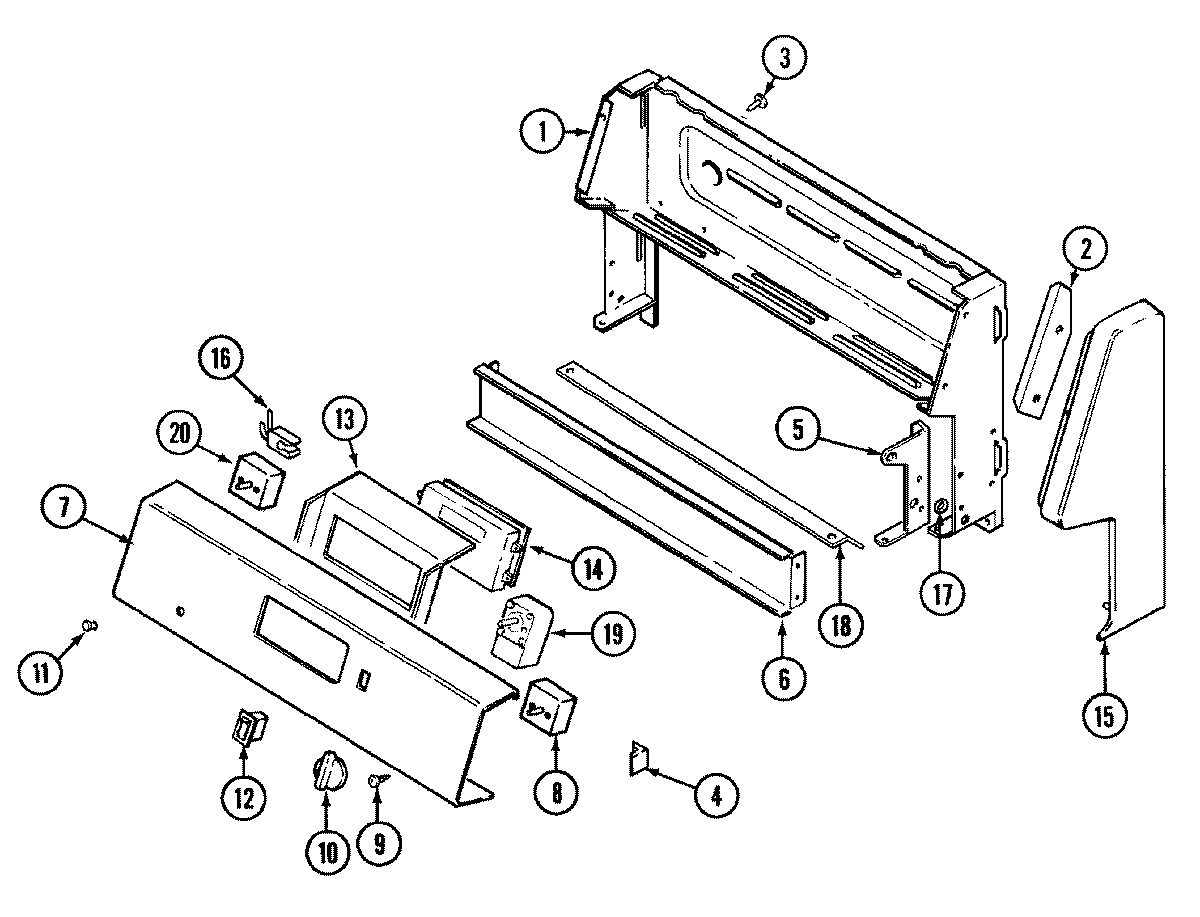

02 - CONTROL PANEL

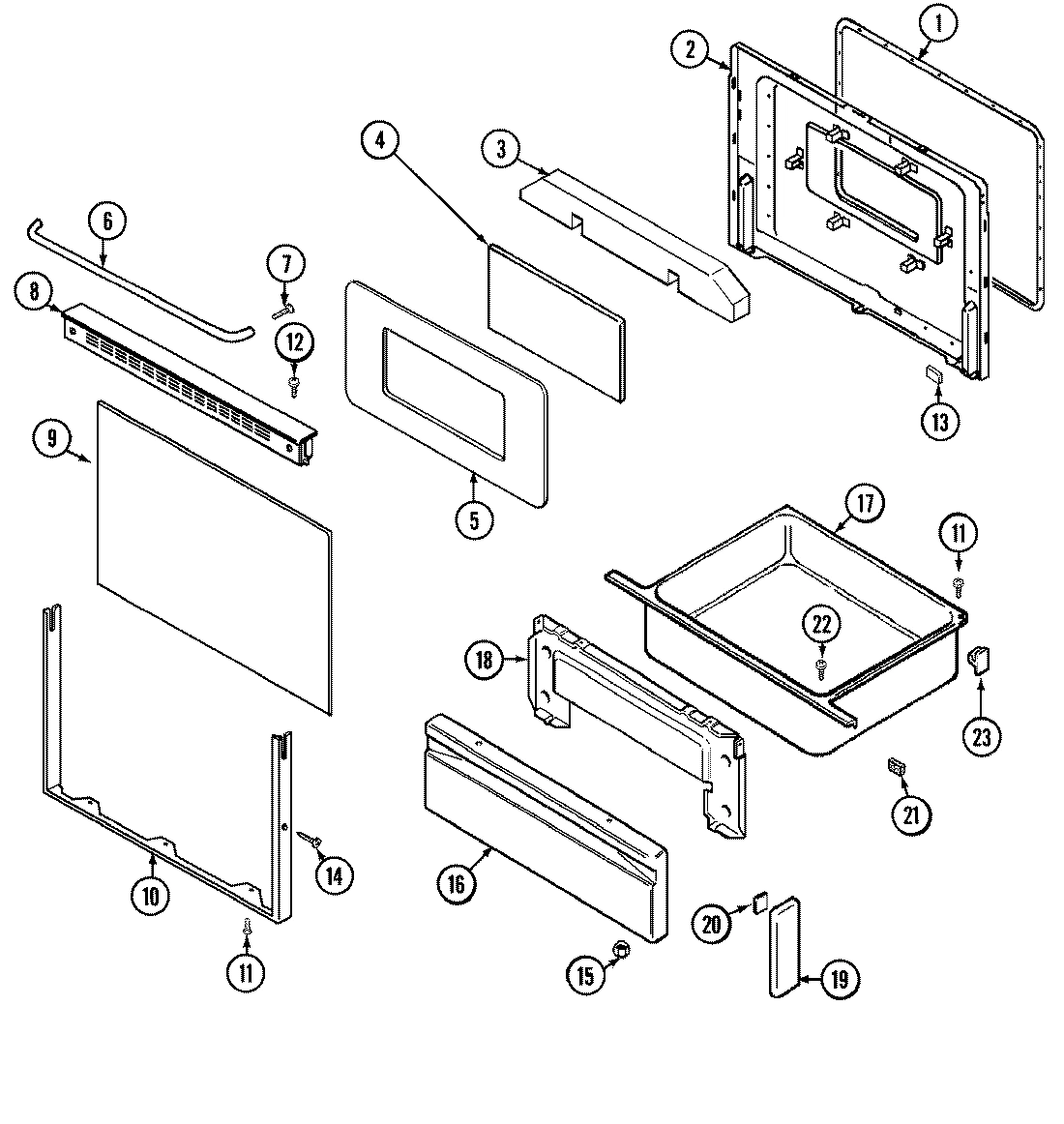

03 - DOOR/DRAWER

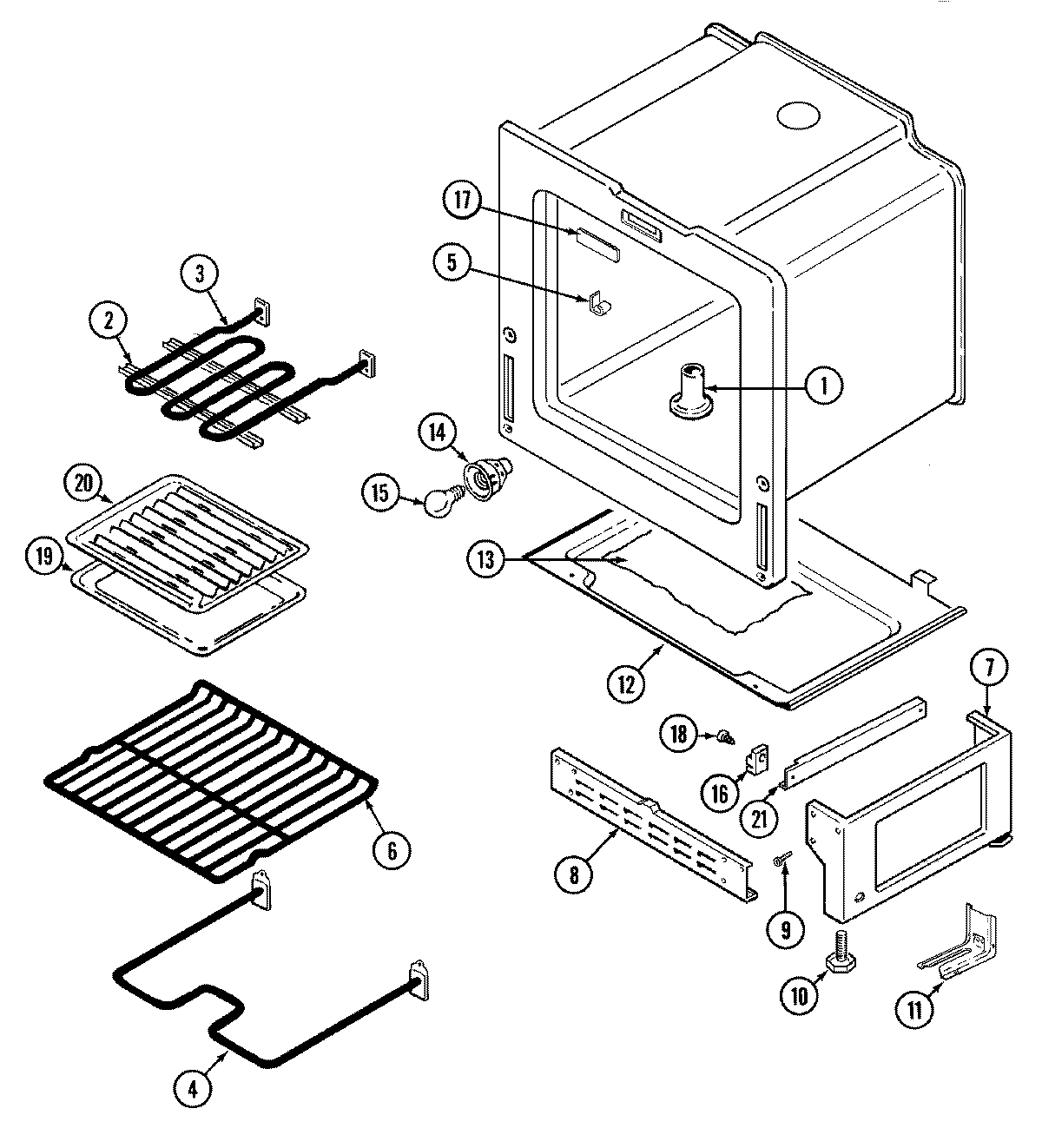

04 - OVEN/BASE
05 - TOP ASSEMBLY

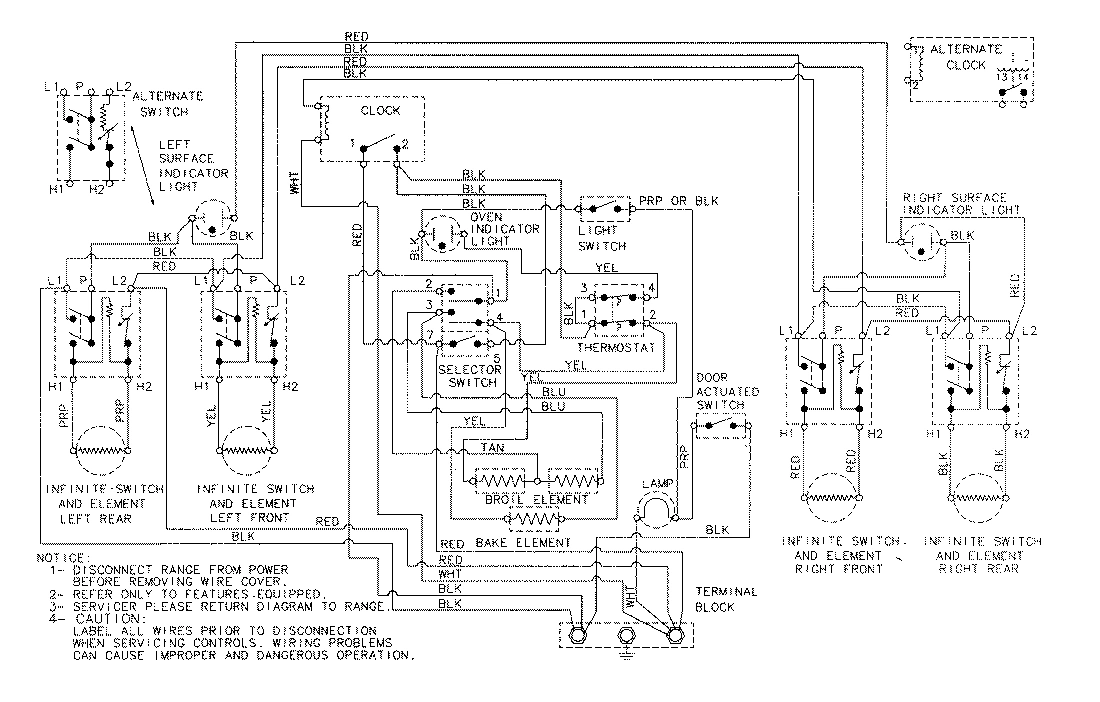

06 - WIRING INFORMATION
Common parts from model Maytag CRE8400BGW ELECTRIC RANGE
1
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
1
MAY 74002162 MAY 74002162 Contact Us For Availability
2
MAY 3807F449-45 MAY 3807F449-45 Contact Us For Availability
2
MAY 3807F450-45 MAY 3807F450-45 Contact Us For Availability
2
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
2
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
2
MAY 74002460 MAY 74002460 Contact Us For Availability
2
MAY 74003248 MAY 74003248 Contact Us For Availability
2
MAY 3807F389-45 MAY 3807F389-45 Contact Us For Availability
3
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
3
MAY 74002458 MAY 74002458 Contact Us For Availability
3
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
4
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
4
MAY 74002459 MAY 74002459 Contact Us For Availability
4
MAY Y04000058 MAY Y04000058 Contact Us For Availability
4
MAY 12001230 MAY 12001230 Contact Us For Availability
5
MAY 3418D097-60 MAY 3418D097-60 Contact Us For Availability
5
MAY 3418D098-60 MAY 3418D098-60 Contact Us For Availability
5
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
5
MAY 74002461 MAY 74002461 Contact Us For Availability
5
MAY 74001780 MAY 74001780 Contact Us For Availability
6
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
6
MAY 7701P149-60 MAY 7701P149-60 Contact Us For Availability
6
MAY 1430306K MAY 1430306K Contact Us For Availability
7
MAY 7703P671-60 MAY 7703P671-60 Contact Us For Availability
7
SCREW MAY 7101P326-60 Contact Us For Availability
7
MAY 74001521 MAY 74001521 Contact Us For Availability
7
MAY 4020W017-80 MAY 4020W017-80 Contact Us For Availability
7
MAY 74003016 MAY 74003016 Contact Us For Availability
7
MAY 2002W103-81 MAY 2002W103-81 Contact Us For Availability
8
MAY 7706P305-60 MAY 7706P305-60 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
8
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
9
MAY 4804F039-60 MAY 4804F039-60 Contact Us For Availability
9
MAY 4804F044-60 MAY 4804F044-60 Contact Us For Availability
9
MAY 7902P361-60 MAY 7902P361-60 Contact Us For Availability
9
MAY 74001170 MAY 74001170 Contact Us For Availability
10
MAY 74001311 MAY 74001311 Contact Us For Availability
10
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
10
MAY 7737P036-60 MAY 7737P036-60 Contact Us For Availability
10
MAY 7706P309-60 MAY 7706P309-60 Contact Us For Availability
10
MAY 7101P141-60 MAY 7101P141-60 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
11
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
11
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
12
MAY 7403P309-60 MAY 7403P309-60 Contact Us For Availability
12
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
13
MAY 3801F346-51 MAY 3801F346-51 Contact Us For Availability
13
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
13
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
14
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
14
MAY 7602P122-60 MAY 7602P122-60 Contact Us For Availability
15
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
15
MAY 7726P061-60 MAY 7726P061-60 Contact Us For Availability
15
MAY 7726P062-60 MAY 7726P062-60 Contact Us For Availability
15
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
16
MAY 74001256 MAY 74001256 Contact Us For Availability
16
MAY 7407P101-60 MAY 7407P101-60 Contact Us For Availability
16
MAY 2416F050-71 MAY 2416F050-71 Contact Us For Availability
16
MAY 74003566 MAY 74003566 Contact Us For Availability
16
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
17
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
17
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
17
MAY 74003618 MAY 74003618 Contact Us For Availability
17
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
18
MAY 74001449 MAY 74001449 Contact Us For Availability
18
COVER, VENT MAY 4005F432-45 Contact Us For Availability
18
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
18
MAY 2404F043-80 MAY 2404F043-80 Contact Us For Availability
19
MAY 7404P105-60 MAY 7404P105-60 Contact Us For Availability
19
MAY 7744P093-60 MAY 7744P093-60 Contact Us For Availability
19
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
20
TAPE MAY 8270P098-60 Contact Us For Availability
20
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
21
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
21
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
21
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 74001590 MAY 74001590 Contact Us For Availability
NI
MAY 74002469 MAY 74002469 Contact Us For Availability
NI
MAY 74002934 MAY 74002934 Contact Us For Availability
NI
MAY 15001886 MAY 15001886 Contact Us For Availability
× ![]()
