Model Whirlpool CRE7900ADE ELECTRIC RANGE – Common Parts & Diagrams

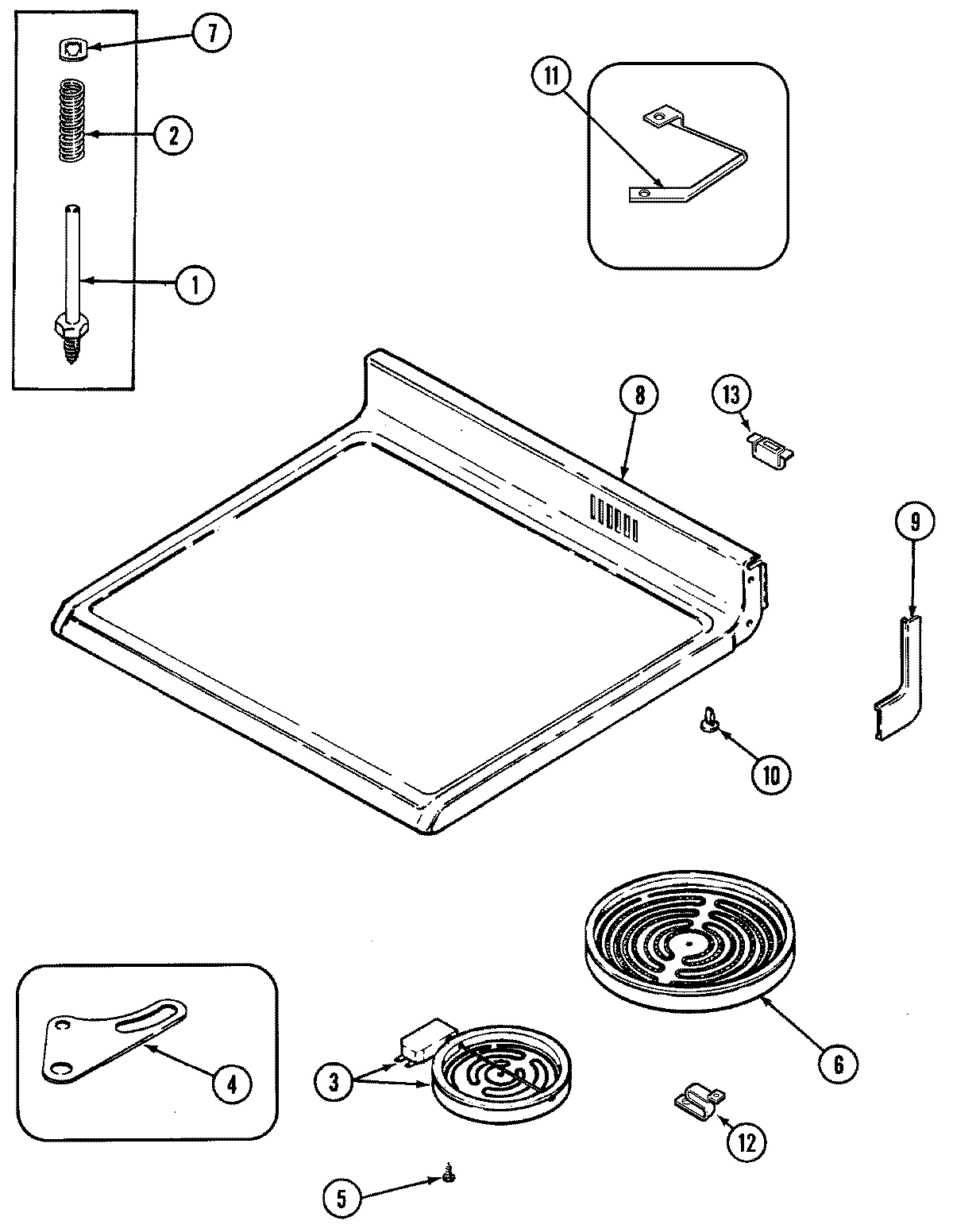

05 - TOP ASSEMBLY

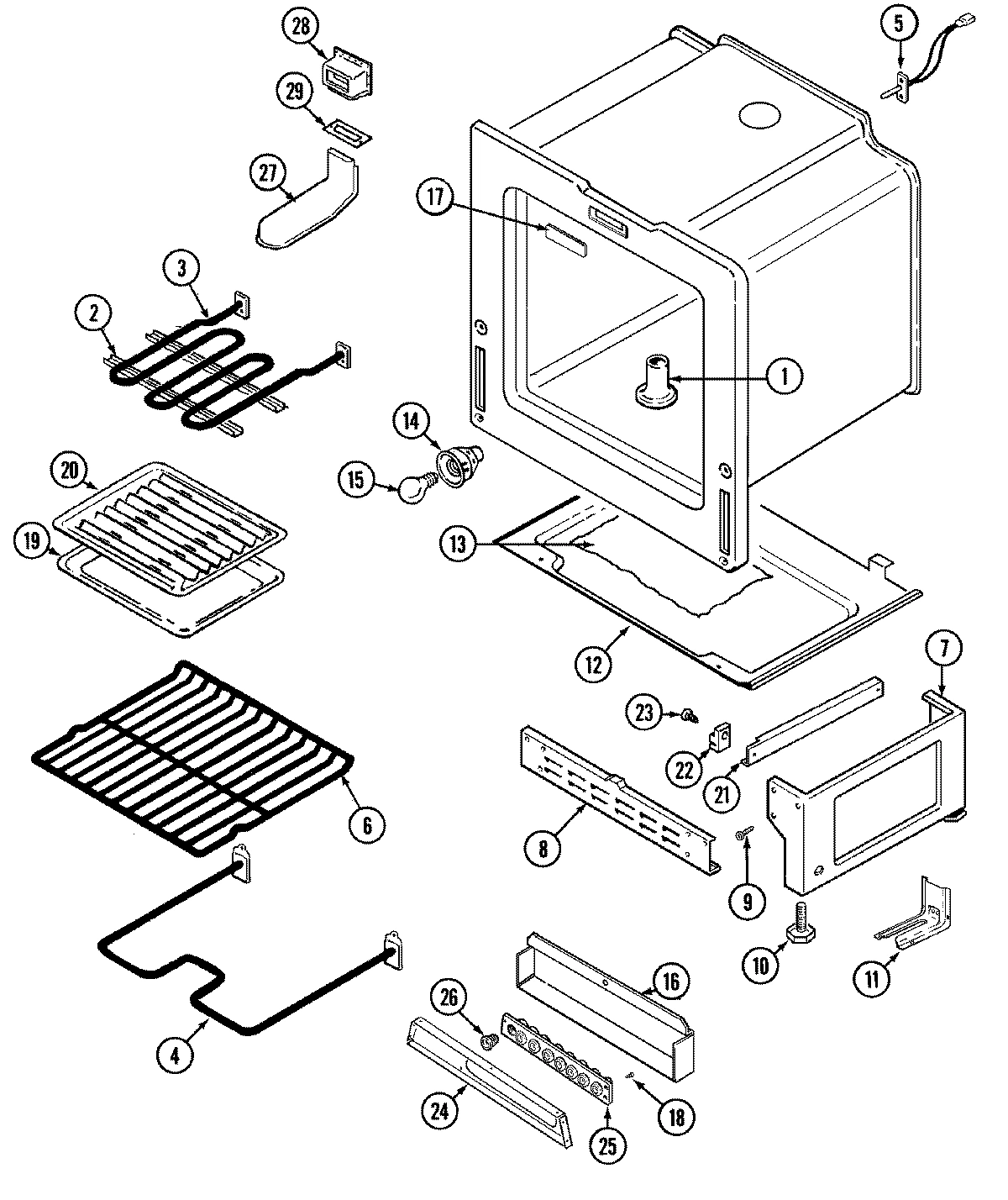

04 - OVEN/BASE

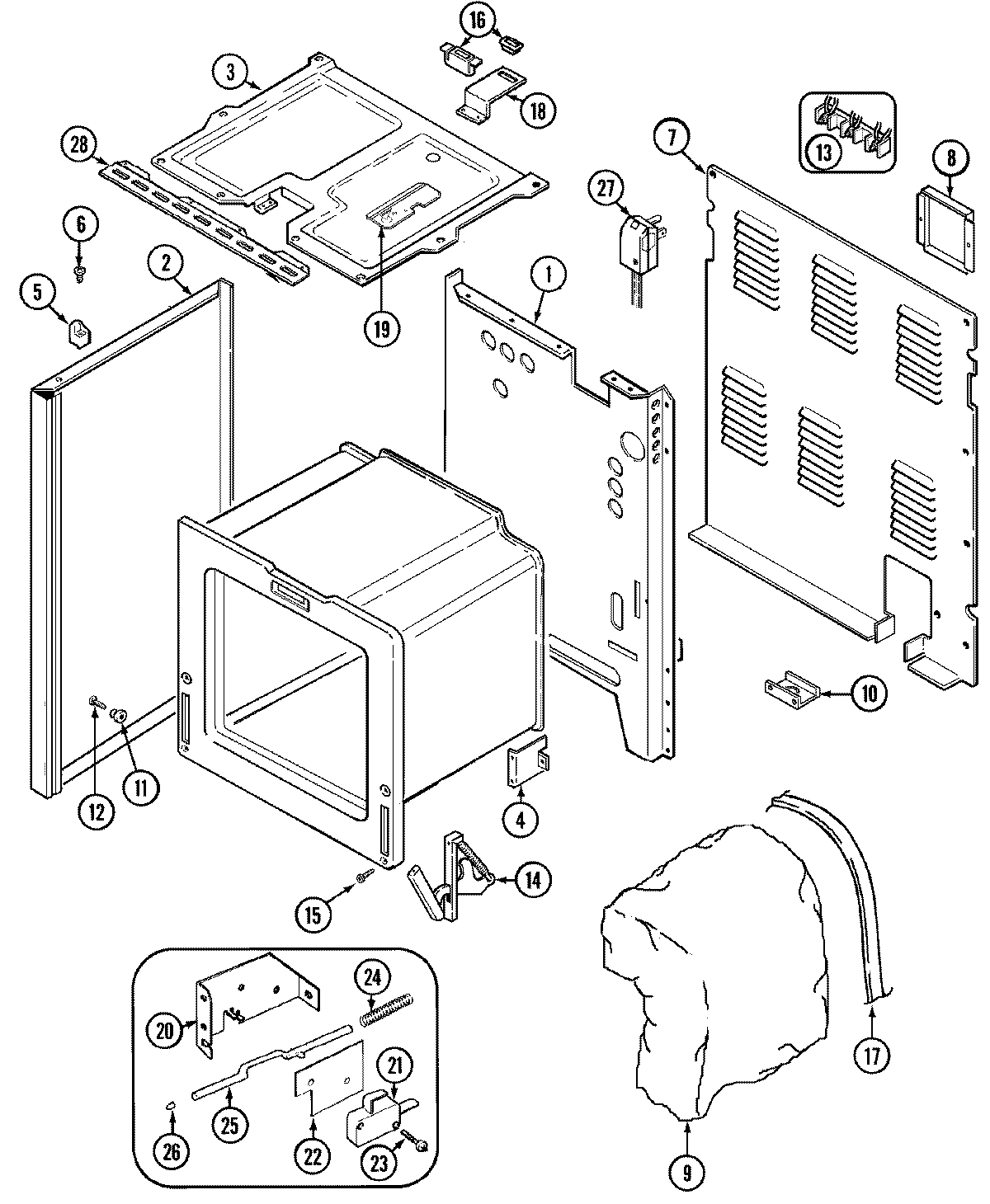

01 - BODY

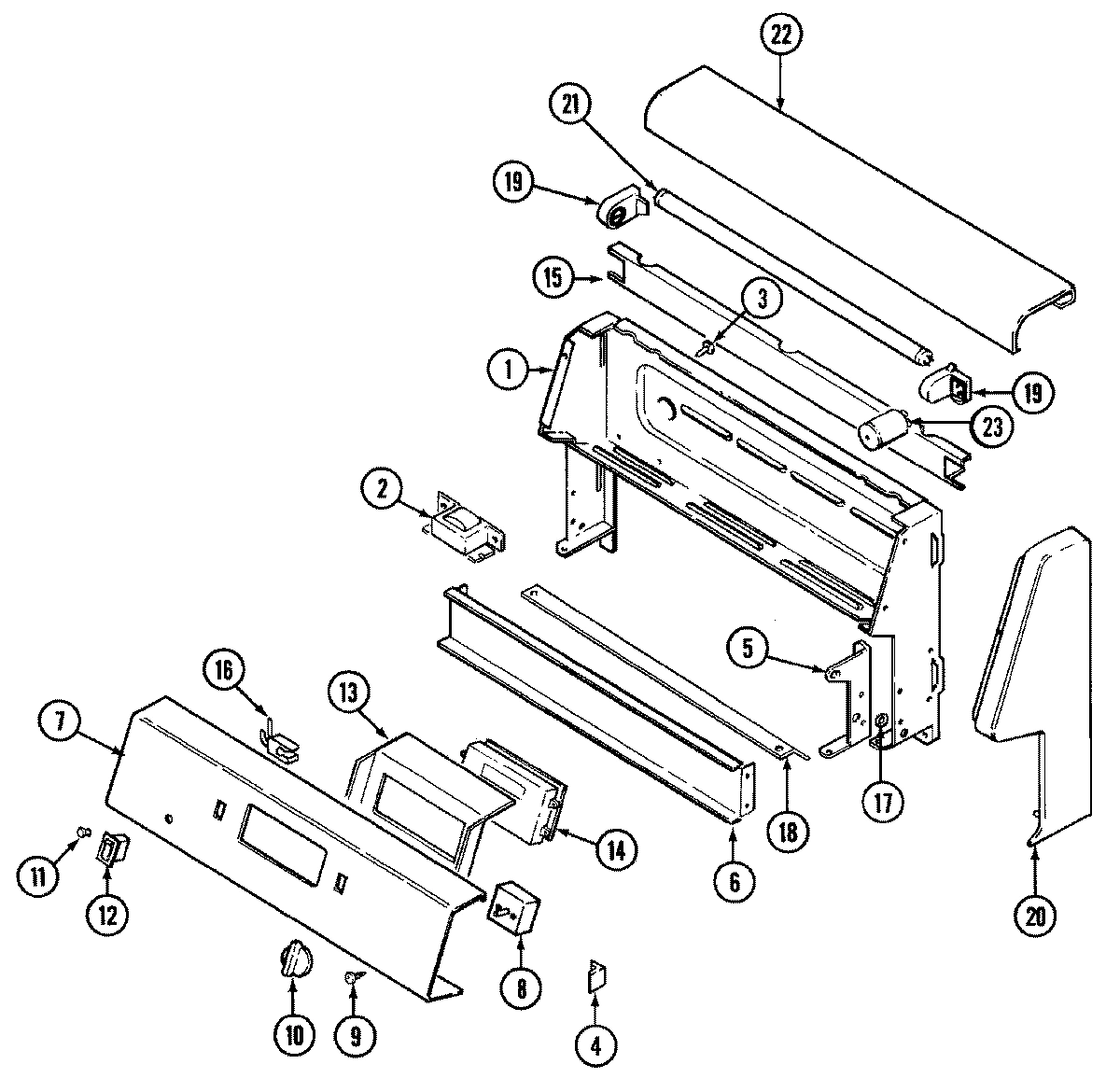

02 - CONTROL PANEL

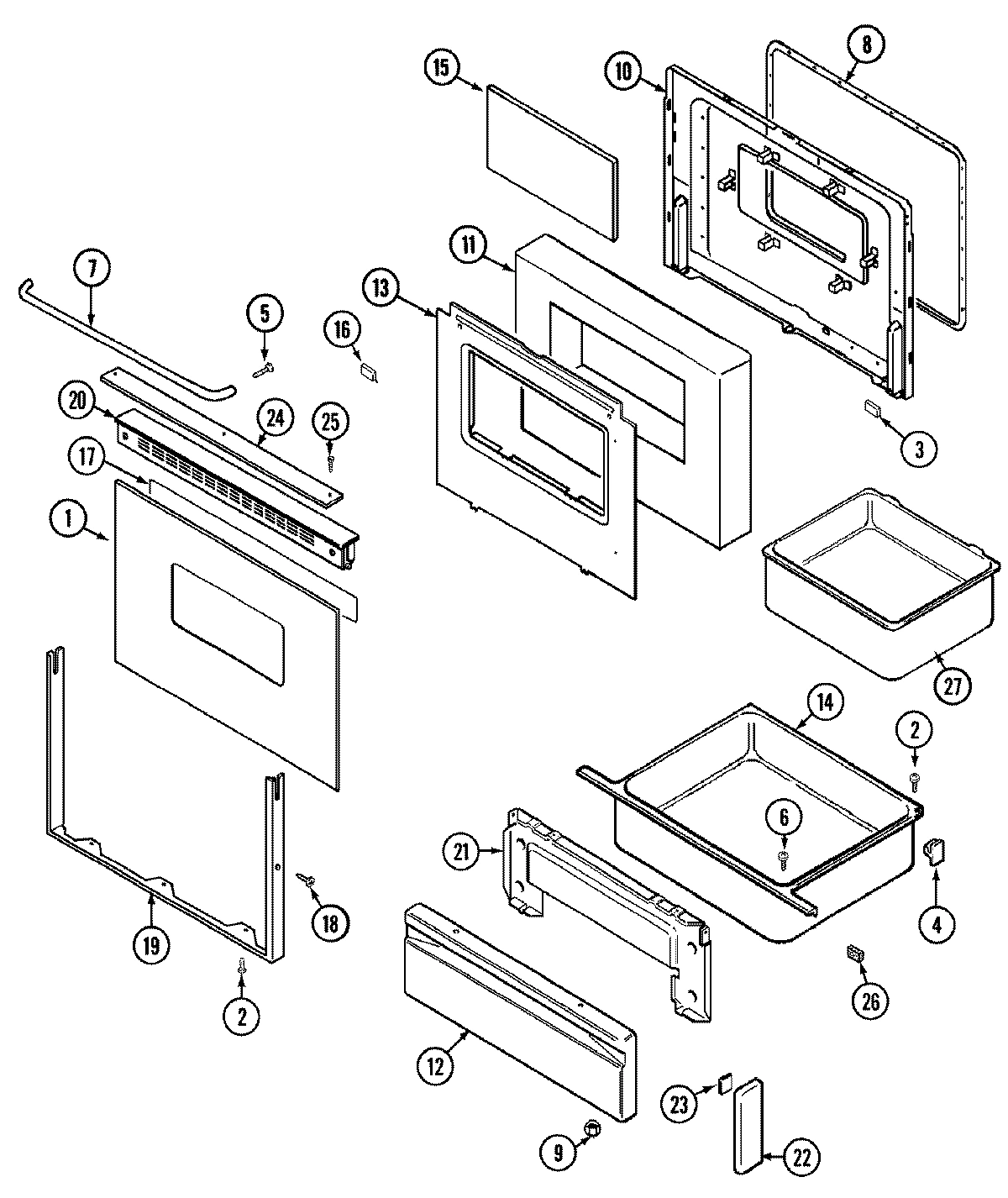

03 - DOOR/DRAWER

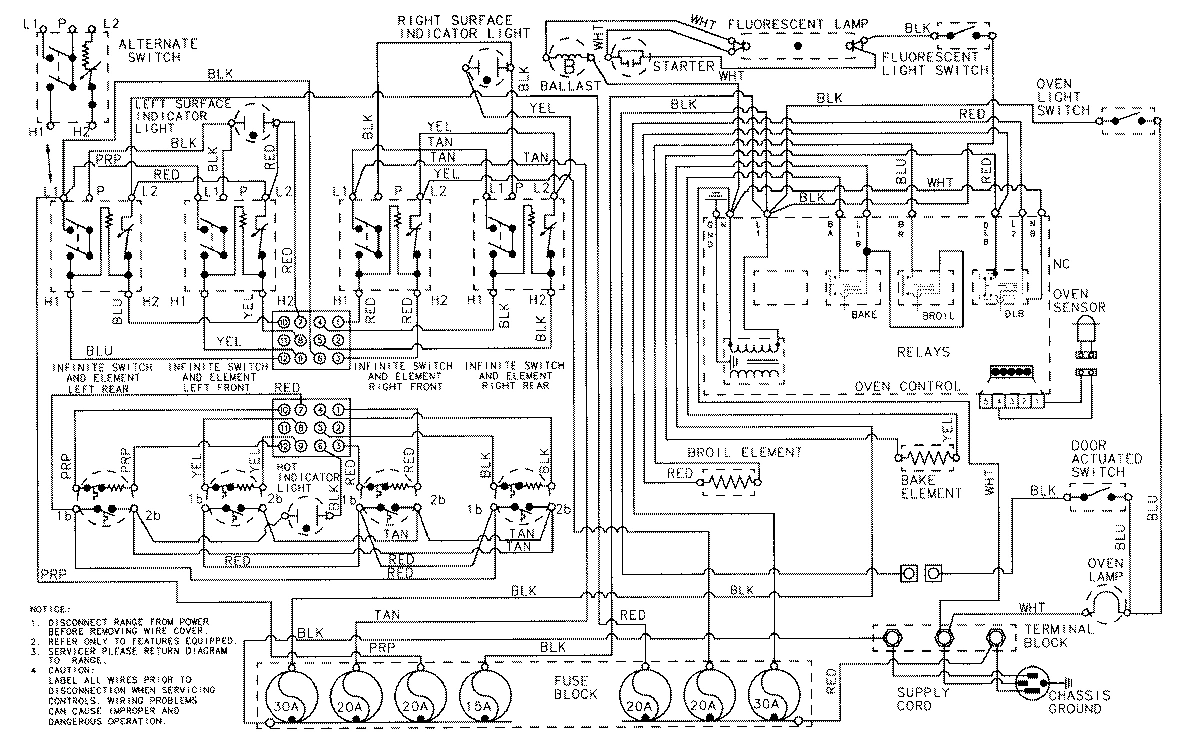

06 - WIRING INFORMATION
Common parts from model Whirlpool CRE7900ADE ELECTRIC RANGE
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
SHIELD, WIRE WPL 3604F21851 Contact Us For Availability
1
SCREW WPL 7101P33760 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P36060 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
BALLAST WPL 74003033 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 74001695 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
NUT WPL 7103P08260 Contact Us For Availability
4
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
5
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SUPPORT, MAIN TOP (RT) WPL 3807F45360 Contact Us For Availability
5
SUPPORT, LEFT WPL 3807F45460 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
6
LIMITER (8``) WPL 74002652 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
7
PANEL, CONTROL (WHT) WPL 74002179 Contact Us For Availability
7
HANDLE, OVEN DOOR (WHT) WPL 7701P15060 Contact Us For Availability
8
TOP, MAIN (WHT.TOP/GRY GLASS) WPL 74001331 Contact Us For Availability
8
TOP, MAIN (WHT GLASS/WHT TOP) WPL 74003052 Contact Us For Availability
8
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
9
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
9
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
9
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
9
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
10
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
10
LEG, LEVELING WPL 74001311 Contact Us For Availability
10
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
10
KNOB, SWITCH (WHT) WPL 74002760 Contact Us For Availability
10
KNOB, VALVE (WHT) WPL 7737P03760 Contact Us For Availability
10
LINING, DOOR WPL 2402W21319 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
LINING, DOOR WPL 74002460 Contact Us For Availability
10
LINING, DOOR WPL 74003248 Contact Us For Availability
11
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW WPL 7101P34460 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P15860 Contact Us For Availability
11
INSULATION, DOOR WPL 74002458 Contact Us For Availability
12
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
12
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
12
SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F05071 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F34345 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
14
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
14
HINGE WPL 7106P05560 Contact Us For Availability
14
SCREW WPL 7118P01360 Contact Us For Availability
14
CLOCK (WHT) WPL 74002180 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
14
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
15
BULB-OVEN WPL 7407P10360 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
15
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
15
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
16
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
16
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10660 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
17
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
17
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
17
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
18
SCREW WPL 7101P06860 Contact Us For Availability
18
NUT WPL 7103P06460 Contact Us For Availability
18
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
19
SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability
19
COVER, RECEPTACLE WIRES WPL 74002824 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
COVER, WIRE (LIGHT) WPL 7724P06660 Contact Us For Availability
19
FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability
20
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
20
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
20
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
20
END CAP, PANEL (RT-WHT) WPL 74001050 Contact Us For Availability
20
END CAP, PANEL (LT-WHT) WPL 74001051 Contact Us For Availability
20
END CAP (RT-WHT) WPL 7726P09360 Contact Us For Availability
20
END CAP (LT-WHT) WPL 7726P09460 Contact Us For Availability
20
TRIM, DOOR (UPPER-WHT) WPL 7706P30660 Contact Us For Availability
21
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
21
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
LINING WPL 2404F04380 Contact Us For Availability
22
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
22
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
22
COVER, LIGHT (WHT) WPL 74001222 Contact Us For Availability
22
HARNESS, WIRE (COOKTOP) WPL 74001473 Contact Us For Availability
22
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
23
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
23
MANUAL, USE & CARE WPL 74001310 Contact Us For Availability
23
MANUAL, USE & CARE (FCH) WPL 74002165 Contact Us For Availability
23
MANUAL, USE & CARE (FRENCH) WPL 74002972 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
24
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
24
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
24
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
25
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
25
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
25
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
25
SCREW (WHT) WPL 74001278 Contact Us For Availability
26
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
26
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
26
BUMPER, ROD WPL 74001631 Contact Us For Availability
26
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
27
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
27
CORD, POWER WPL 7402P05060 Contact Us For Availability
27
BASKET, DRAWER WPL 8312P07960 Contact Us For Availability
28
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
28
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
29
GASKET, VENT WPL 7201P05460 Contact Us For Availability
NI
CLAMP, WIRE WPL 7111P02060 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001714 Contact Us For Availability
× ![]()
