Model Whirlpool CRE500 ELECTRIC RANGE – Common Parts & Diagrams

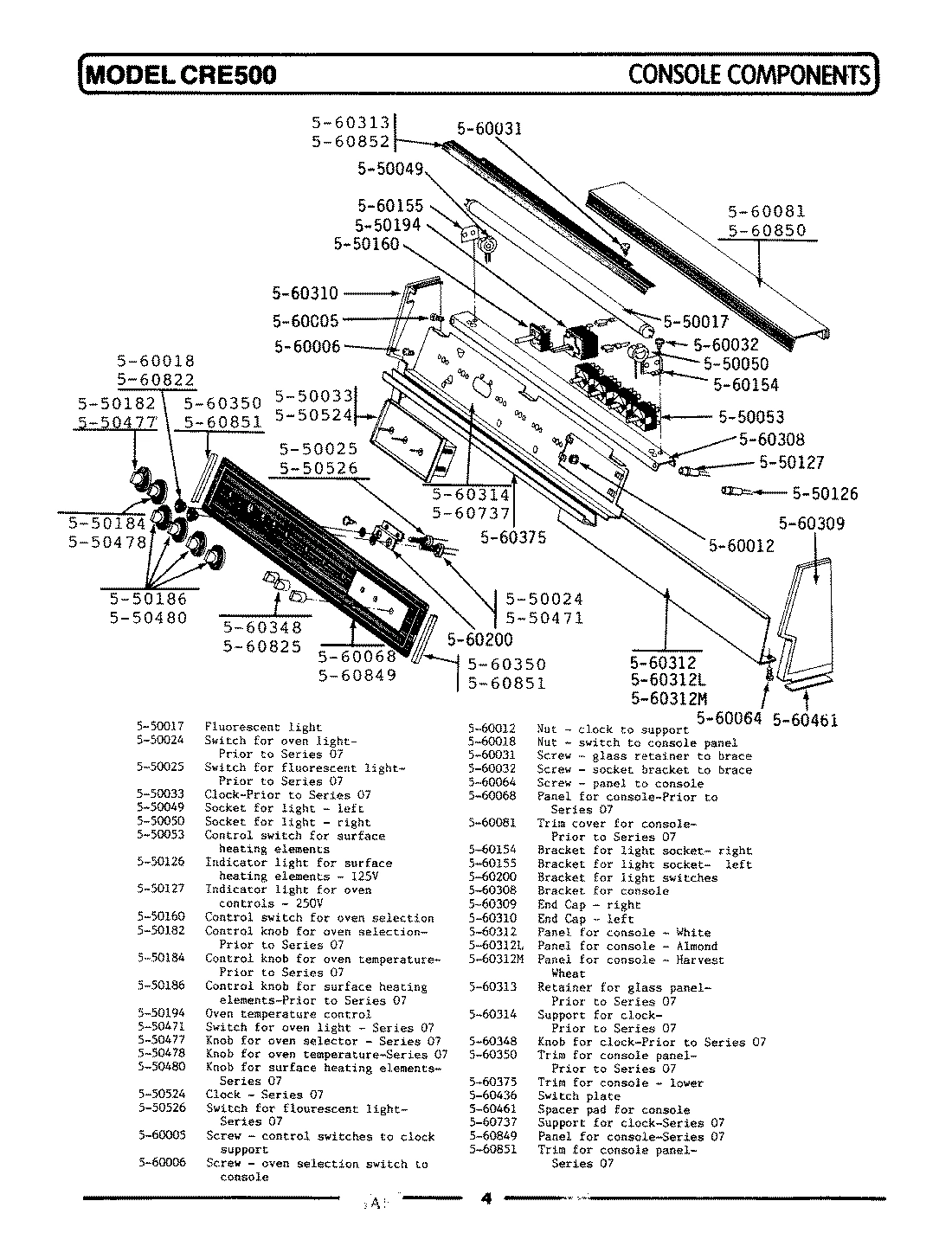

01 - CONTROL PANEL

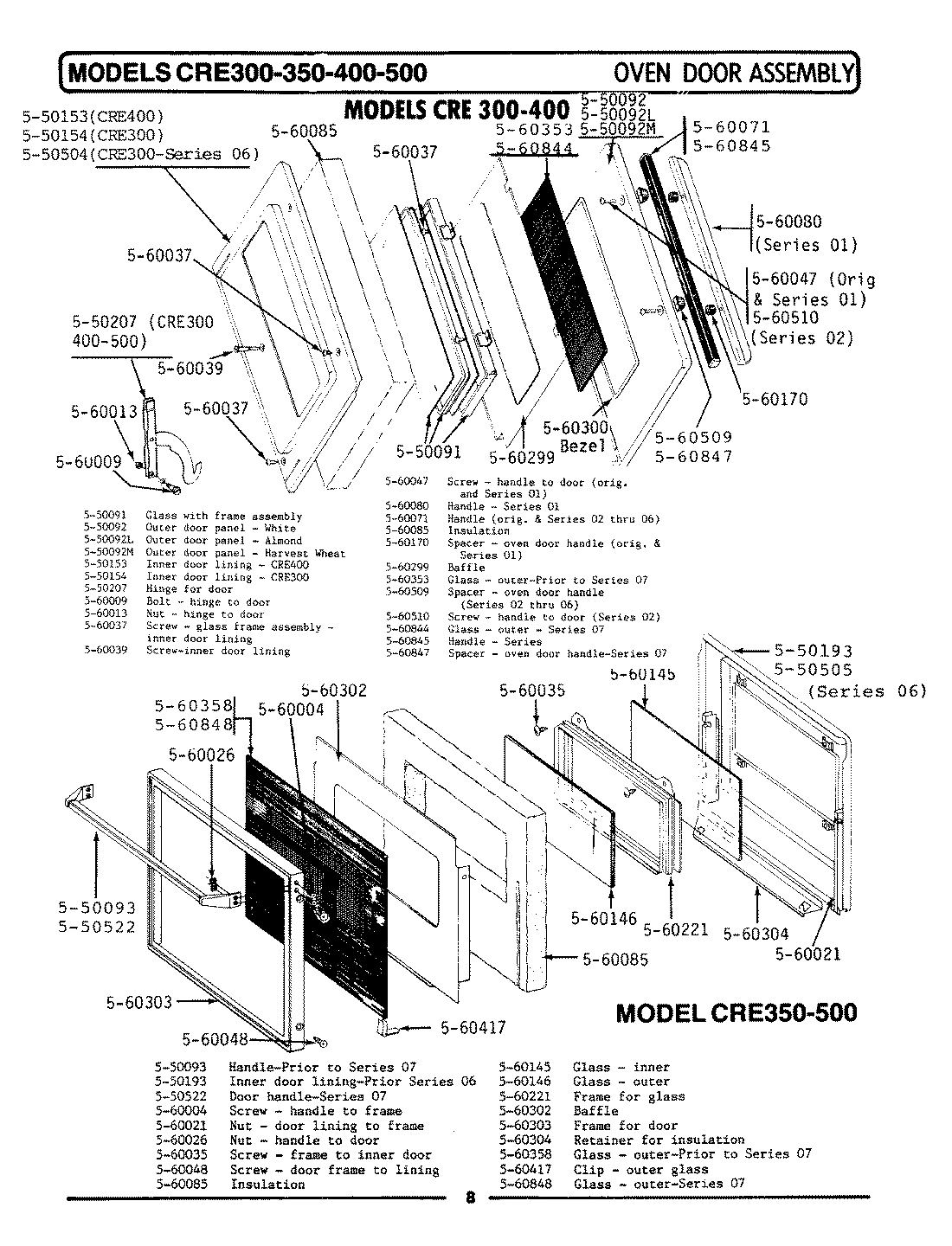

02 - DOOR ASSEMBLY
06 - REAR VIEW
05 - OVEN ASSEMBLY
03 - DRAWER ASSEMBLY
04 - FRONT VIEW
07 - TOP ASSEMBLY
Common parts from model Whirlpool CRE500 ELECTRIC RANGE
1
HANDLE FOR DOOR WPL 550093 Contact Us For Availability
1
LOCK WASHER WPL 530087 Contact Us For Availability
1
CATALYTIC BURNER WPL 550080 Contact Us For Availability
2
SWITCH FOR OVEN LIGHT WPL 550024 Contact Us For Availability
2
INNER DOOR LINING WPL 550193 Contact Us For Availability
2
DRAWER WPL 550077 Contact Us For Availability
2
HINGE SUPPORT-RIGHT WPL 550210 Contact Us For Availability
3
DOOR HANDLE WPL 550522 Contact Us For Availability
3
BALLAST WPL 550020 Contact Us For Availability
3
BROIL ELEMENT WPL 550139 Contact Us For Availability
3
DRAWER PANEL-WHITE WPL 550078 Contact Us For Availability
3
HINGE SUPPORT-LEFT WPL 550211 Contact Us For Availability
4
CLOCK ASSEMBLY WPL 550033 Contact Us For Availability
4
BOLT WPL 560004 Contact Us For Availability
4
POWER CORD - 4 FT. WPL 550246 Contact Us For Availability
4
FOIL WPL 550206 Contact Us For Availability
4
DRAWER PANEL-ALMOND WPL 550078L Contact Us For Availability
4
SCREW WPL 560528 Contact Us For Availability
5
SOCKET FOR LIGHT-LEFT WPL 550049 Contact Us For Availability
5
NUT WPL 560021 Contact Us For Availability
5
SOCKET FOR OVEN LIGHT WPL 550058 Contact Us For Availability
5
POWER CORD - 5 FT. WPL 550248 Contact Us For Availability
5
SCREW WPL 560052 Contact Us For Availability
5
DRAWER PANEL-HARVEST WHEAT WPL 550078M Contact Us For Availability
5
SCREW WPL 560038 Contact Us For Availability
6
SOCKET FOR LIGHT-RIGHT WPL 550050 Contact Us For Availability
6
SCREW WPL 560058 Contact Us For Availability
6
ROLLER REPAIR KIT WPL 550274 Contact Us For Availability
7
CONTROL SWITCH-HEAT ELEMENT WPL 550053 Contact Us For Availability
7
INSULATION WPL 560086 Contact Us For Availability
7
BOLT WPL 560008 Contact Us For Availability
8
INDICATOR LIGHT-125 VOLT WPL 550126 Contact Us For Availability
8
SCREW-DOOR FRAME WPL 560048 Contact Us For Availability
8
SCREW WPL 560041 Contact Us For Availability
8
INSULATION WPL 560092 Contact Us For Availability
9
INDICATOR LIGHT-250 VOLT WPL 550127 Contact Us For Availability
9
INSULATION WPL 560085 Contact Us For Availability
9
NUT WPL 560015 Contact Us For Availability
9
CLIP FOR CAPILLARY TUBE WPL 560112 Contact Us For Availability
9
NUT-BURNER BOX WPL 560020 Contact Us For Availability
10
CONTROL SWITCH-OVEN SELECTO WPL 550160 Contact Us For Availability
10
GLASS-INNER WPL 560145 Contact Us For Availability
10
NUT WPL 560017 Contact Us For Availability
10
TOP-WHITE WPL 560263 Contact Us For Availability
10
VENT PIPE WPL 560166 Contact Us For Availability
10
HANDLE FOR DOOR WPL 560071 Contact Us For Availability
10
NUT-BRACE WPL 560023 Contact Us For Availability
11
KNOB FOR OVEN SELECTOR WPL 550182 Contact Us For Availability
11
GLASS-OUTER WPL 560146 Contact Us For Availability
11
ADJUSTABLE LEG WPL 560029 Contact Us For Availability
11
TOP-ALMOND WPL 560263L Contact Us For Availability
11
CLIP-MULLION ELEMENT WPL 560175 Contact Us For Availability
11
SPACER WPL 560120 Contact Us For Availability
12
KNOB FOR OVEN TEMPERATURE WPL 550184 Contact Us For Availability
12
SCREW-FRAME TO INNER DOOR WPL 560035 Contact Us For Availability
12
FRAME FOR GLASS WPL 560221 Contact Us For Availability
12
RUBBER BUMPER WPL 560161 Contact Us For Availability
12
TOP-HARVEST WHEAT WPL 560263M Contact Us For Availability
12
CLIP-CAPILLARY TUBE WPL 560176 Contact Us For Availability
13
KNOB FOR SURFACE ELEMENT WPL 550186 Contact Us For Availability
13
BAFFLE WPL 560302 Contact Us For Availability
13
SCREW-INNER DOOR LINING WPL 560039 Contact Us For Availability
13
TRIM FOR TOP-RIGHT WPL 560265 Contact Us For Availability
13
DOOR HANDLE WPL 560845 Contact Us For Availability
14
CONTROL SWITCH-OVEN TEMP WPL 550194 Contact Us For Availability
14
FRAME FOR DOOR WPL 560303 Contact Us For Availability
14
TRIM FOR TOP-LEFT WPL 560266 Contact Us For Availability
14
HEAT DEFLECTOR WPL 560253 Contact Us For Availability
14
SCREW WPL 560053 Contact Us For Availability
15
SWITCH FOR OVEN LIGHT WPL 550471 Contact Us For Availability
15
RETAINER FOR INSULATION WPL 560304 Contact Us For Availability
15
SCREW WPL 560049 Contact Us For Availability
15
BRACE-MAIN FRONT WPL 560160 Contact Us For Availability
15
FRONT PLATE FOR ENCLOSURE WPL 560450 Contact Us For Availability
16
KNOB, SELECTOR SWITCH WPL 550477 Contact Us For Availability
16
GLASS-OUTER WPL 560358 Contact Us For Availability
16
BRACKET FOR BURNER BOX WPL 560159 Contact Us For Availability
16
LINK FOR DOOR SPRING WPL 560163 Contact Us For Availability
17
KNOB, OVEN CONTROL WPL 550478 Contact Us For Availability
17
CLIP-OUTER GLASS WPL 560417 Contact Us For Availability
17
BRACKET FOR DOOR SPRING WPL 560164 Contact Us For Availability
18
CONTROL KNOB WPL 550480 Contact Us For Availability
18
GLASS, OVEN DOOR WPL 560848 Contact Us For Availability
18
COVER-TERMINAL BLOCK WPL 560162 Contact Us For Availability
18
SUPPORT-BROIL ELEMENT WPL 560456 Contact Us For Availability
18
SEAL FOR OVEN WPL 560167 Contact Us For Availability
19
CLOCK-AUTOMATIC WPL 550524 Contact Us For Availability
19
GROUND LUG WPL 560165 Contact Us For Availability
19
SPRING FOR DOOR WPL 560168 Contact Us For Availability
20
SWITCH, FLUORESCENT LIGHT WPL 550526 Contact Us For Availability
20
BRACKET-TERMINAL BLOCK WPL 560169 Contact Us For Availability
20
BRACKET FOR HINGE-RIGHT WPL 560172 Contact Us For Availability
21
COVER FOR LIGHT SOCKET WPL 560171 Contact Us For Availability
21
BRACKET FOR HINGE-LEFT WPL 560173 Contact Us For Availability
22
BRACKET FOR OVEN LIGHT WPL 560185 Contact Us For Availability
22
GASKET FOR VENT BOX WPL 560181 Contact Us For Availability
23
NUT-CLOCK TO SUPPORT WPL 560012 Contact Us For Availability
23
BRACKET FOR TOP WPL 560188 Contact Us For Availability
24
NUT-SWITCH TO CONSOLE WPL 560018 Contact Us For Availability
24
WASHER WPL 560190 Contact Us For Availability
24
TRIM FOR OVEN WPL 560189 Contact Us For Availability
25
SCREW WPL 560031 Contact Us For Availability
25
BURNER BOX KIT WPL 550272 Contact Us For Availability
25
BUSHING - WIRE HARNESS WPL 560194 Contact Us For Availability
26
BACK PANEL WPL 560250 Contact Us For Availability
27
SCREW WPL 560064 Contact Us For Availability
27
SIDE PANEL-WHITE WPL 560256 Contact Us For Availability
27
BRACE FOR SUPPORT-RIGHT WPL 560251 Contact Us For Availability
28
PANEL FOR CONSOLE WPL 560068 Contact Us For Availability
28
SIDE PANEL-ALMOND WPL 560256L Contact Us For Availability
28
BRACE FOR SUPPORT-LEFT WPL 560252 Contact Us For Availability
29
TRIM COVER FOR CONSOLE WPL 560081 Contact Us For Availability
29
SIDE PANEL-HARVEST WHEAT WPL 560256M Contact Us For Availability
29
FRAME FOR DRAWER WPL 560254 Contact Us For Availability
30
BRACKET, LIGHT SOCKET-RIGHT WPL 560154 Contact Us For Availability
30
BASE SUPPORT-RIGHT WPL 560257 Contact Us For Availability
31
BRACKET, LIGHT SOCKET-LEFT WPL 560155 Contact Us For Availability
31
BASE SUPPORT-LEFT WPL 560258 Contact Us For Availability
32
BRACKET FOR LIGHT SWITCH WPL 560200 Contact Us For Availability
32
TRACK FOR DRAWER-RIGHT WPL 560259 Contact Us For Availability
33
BRACKET FOR CONSOLE WPL 560308 Contact Us For Availability
33
TRACK FOR DRAWER-LEFT WPL 560260 Contact Us For Availability
34
END CAP-RIGHT WPL 560309 Contact Us For Availability
34
SUPPORT BRACKET-RIGHT WPL 560261 Contact Us For Availability
35
END CAP-LEFT WPL 560310 Contact Us For Availability
35
SUPPORT BRACKET-LEFT WPL 560262 Contact Us For Availability
36
CONSOLE PANEL-WHITE WPL 560312 Contact Us For Availability
36
SUPPORT FOR INSULATION WPL 560267 Contact Us For Availability
37
CONSOLE PANEL-ALMOND WPL 560312L Contact Us For Availability
37
COVER FOR INSULATION WPL 560270 Contact Us For Availability
38
CONSOLE PANEL-HARVEST WHEAT WPL 560312M Contact Us For Availability
38
COVER FOR WIRE WPL 560594 Contact Us For Availability
39
RETAINER FOR GLASS PANEL WPL 560313 Contact Us For Availability
39
TRIM FOR END PANEL WPL 560264 Contact Us For Availability
39
FRAME FOR OVEN WPL 560370 Contact Us For Availability
40
SUPPORT FOR CLOCK WPL 560314 Contact Us For Availability
40
FRAME FOR OVEN WPL 560371 Contact Us For Availability
41
KNOB FOR CLOCK WPL 560348 Contact Us For Availability
41
SHIELD-OVEN BOTTOM WPL 560376 Contact Us For Availability
42
TRIM FOR CONSOLE PANEL WPL 560350 Contact Us For Availability
42
BACK PANEL WPL 560268 Contact Us For Availability
42
BRACKET-WIRE HARNESS WPL 560441 Contact Us For Availability
43
TRIM FOR CONSOLE-LOWER WPL 560375 Contact Us For Availability
43
TERMINAL BOX WPL 560269 Contact Us For Availability
43
PACKING-MAIN TOP WPL 560452 Contact Us For Availability
44
BACK PANEL WPL 560311 Contact Us For Availability
44
WASHER WPL 560463 Contact Us For Availability
45
WIRE CONNECTOR WPL 560460 Contact Us For Availability
45
BOTTOM, BURNER BOX WPL 560838 Contact Us For Availability
46
SPACER PAD FOR CONSOLE WPL 560461 Contact Us For Availability
46
PANEL FOR CONSOLE WPL 560737 Contact Us For Availability
47
BACKGUARD, GLASS WPL 560849 Contact Us For Availability
47
THERMOSTAT - DISC TYPE WPL 550422 Contact Us For Availability
48
TRIM, BACKGUARD GLASS WPL 560851 Contact Us For Availability
48
THERMOSTAT WPL 550423 Contact Us For Availability
NI
SWITCH PLATE WPL 560436 Contact Us For Availability
× ![]()
