Model Electrolux CRE3510LWF ELECTRIC RANGE – Common Parts & Diagrams

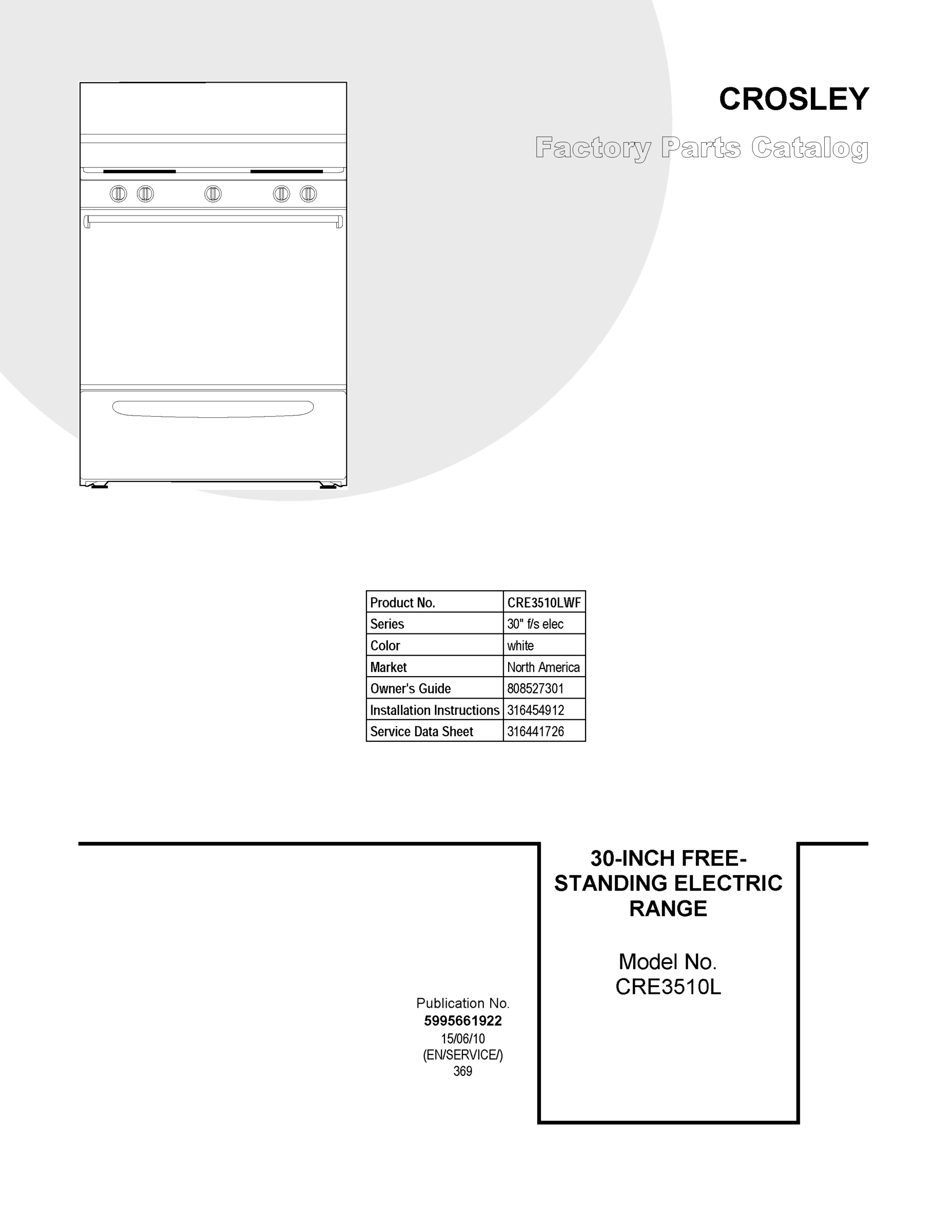

01 - COVER SHEET

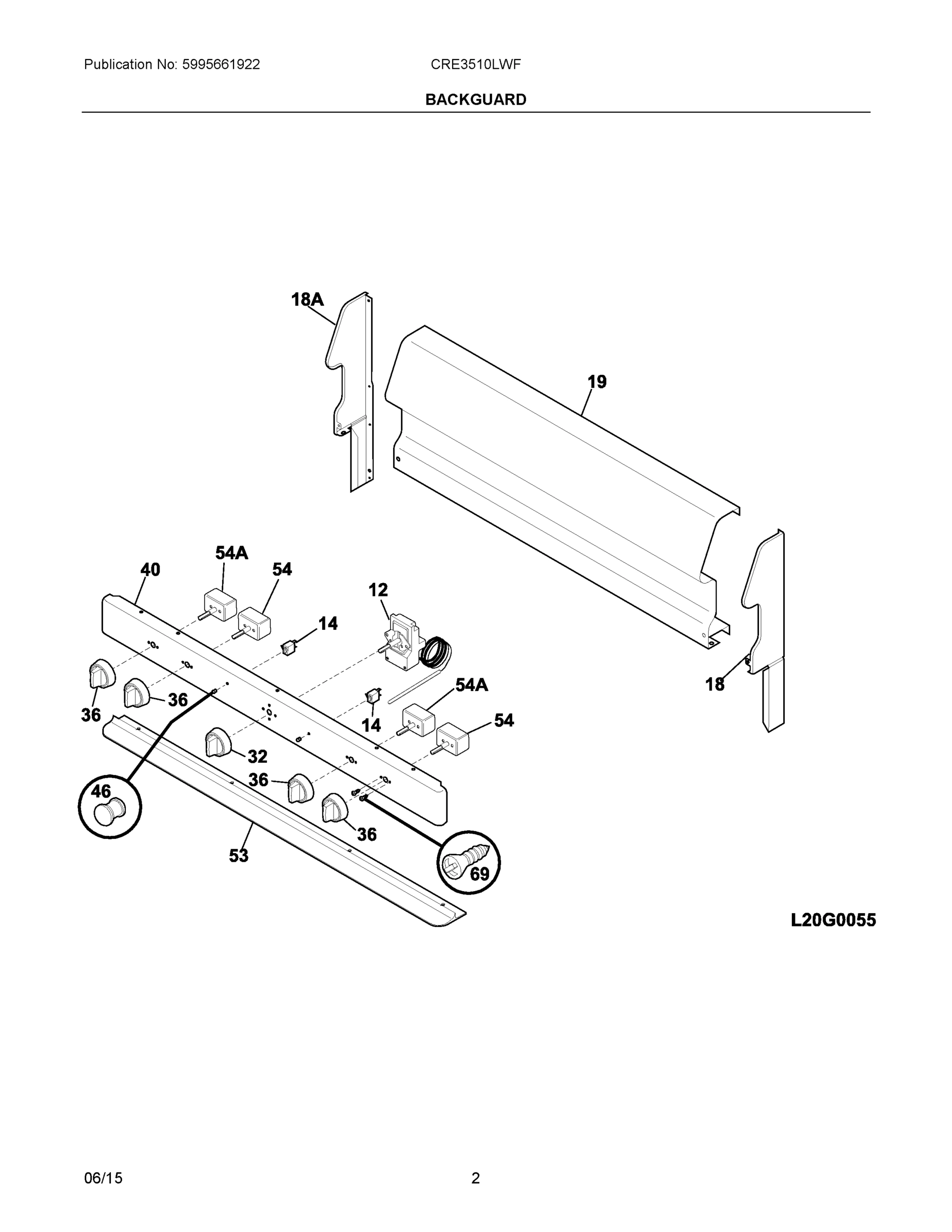

02 - BACKGUARD

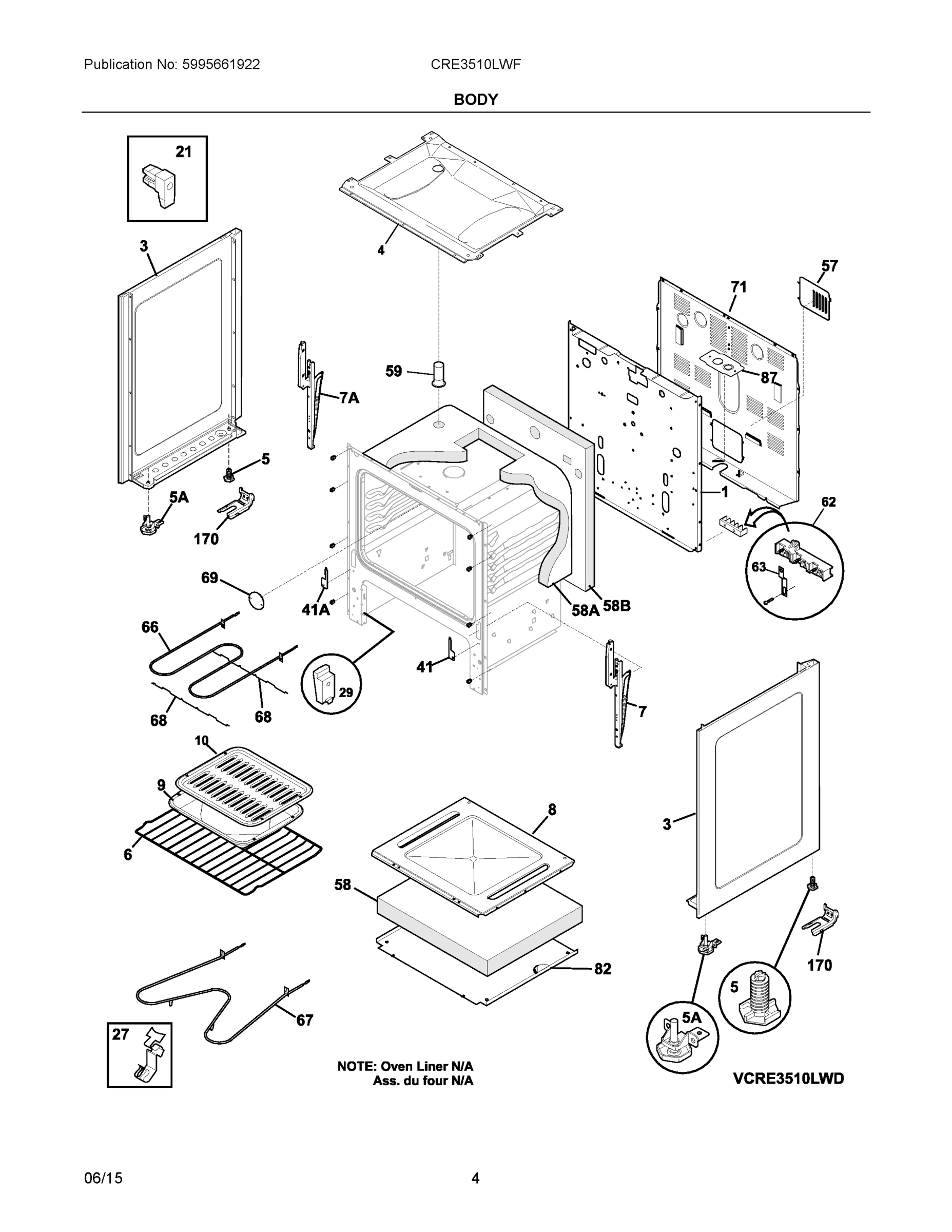

03 - BODY

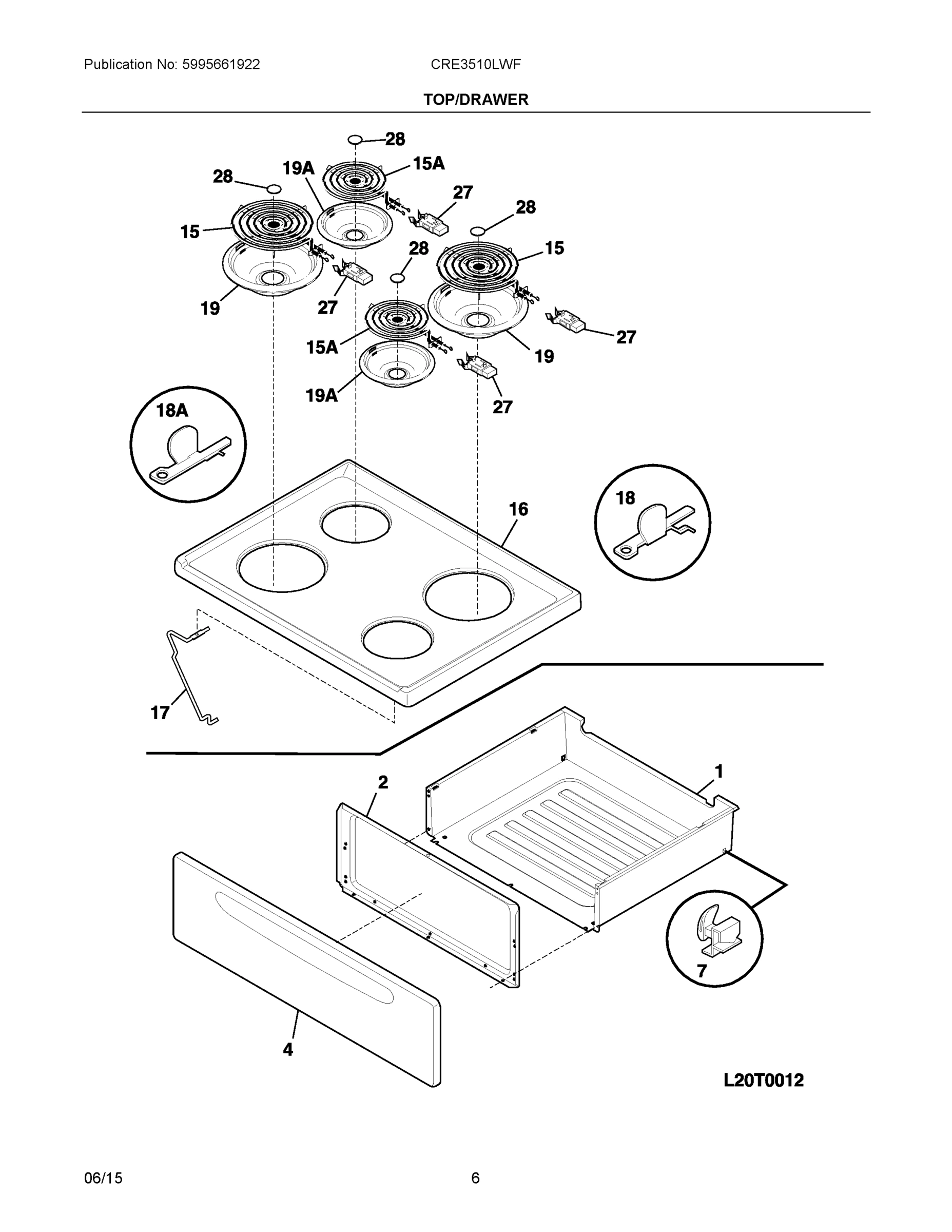

04 - TOP/DRAWER

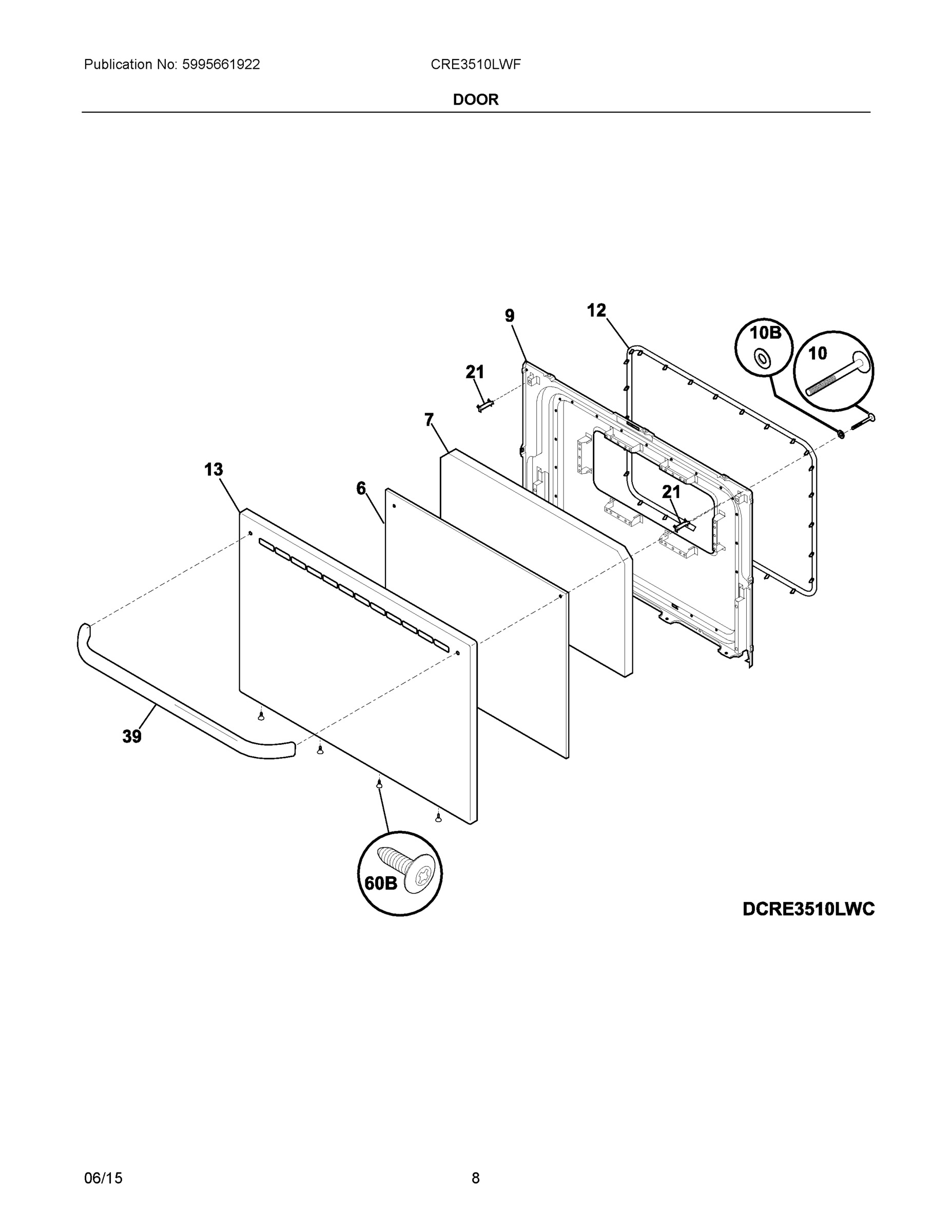

05 - DOOR
Common parts from model Electrolux CRE3510LWF ELECTRIC RANGE
4
PANEL, DRAWER FRONT, WHITE WCI 316403501 Contact Us For Availability
4
WCI 316210103 WCI 316210103 Contact Us For Availability
7
HINGE, OVEN DOOR, RH WCI 316566212 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316236801 Contact Us For Availability
7A
HINGE, OVEN DOOR, LH WCI 316566213 Contact Us For Availability
8
PANEL,, OVEN BOTTOM WCI 316495903 Contact Us For Availability
9
PAN, BROILER OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
INSERT, BROILER PAN OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 316202609 Contact Us For Availability
16
MAIN TOP, WHITE WCI 316245402 Contact Us For Availability
17
ROD, MAINTOP SUPPORT WCI 316066900 Contact Us For Availability
18A
BRACKET, HINGE, MAIN TOP LH WCI 08067746 Contact Us For Availability
18A
END CAP, WHITE, LH WCI 316263405 Contact Us For Availability
21
SPACER, DOOR HANDLE, (2) WCI 316284101 No Longer Available
32
KNOB, THERMOSTAT, WHITE WCI 316102331 Contact Us For Availability
36
KNOB, CONTROL, WHITE WCI 316102327 Contact Us For Availability
41
COVER, HINGE CUTOUT, RH WCI 316233400 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
PLUG, BUTTON, OVEN PROBE WCI 316246400 Contact Us For Availability
× ![]()
