Model Maytag CRC21T2RL2 COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - TRAY, GREASE SHIELD, CABINET,
02 - DOOR
03 - FUSES, ANTENNAS, BLOWER, DUCTS, CAVITY
04 - ELECTRICAL COMPONENTS
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION

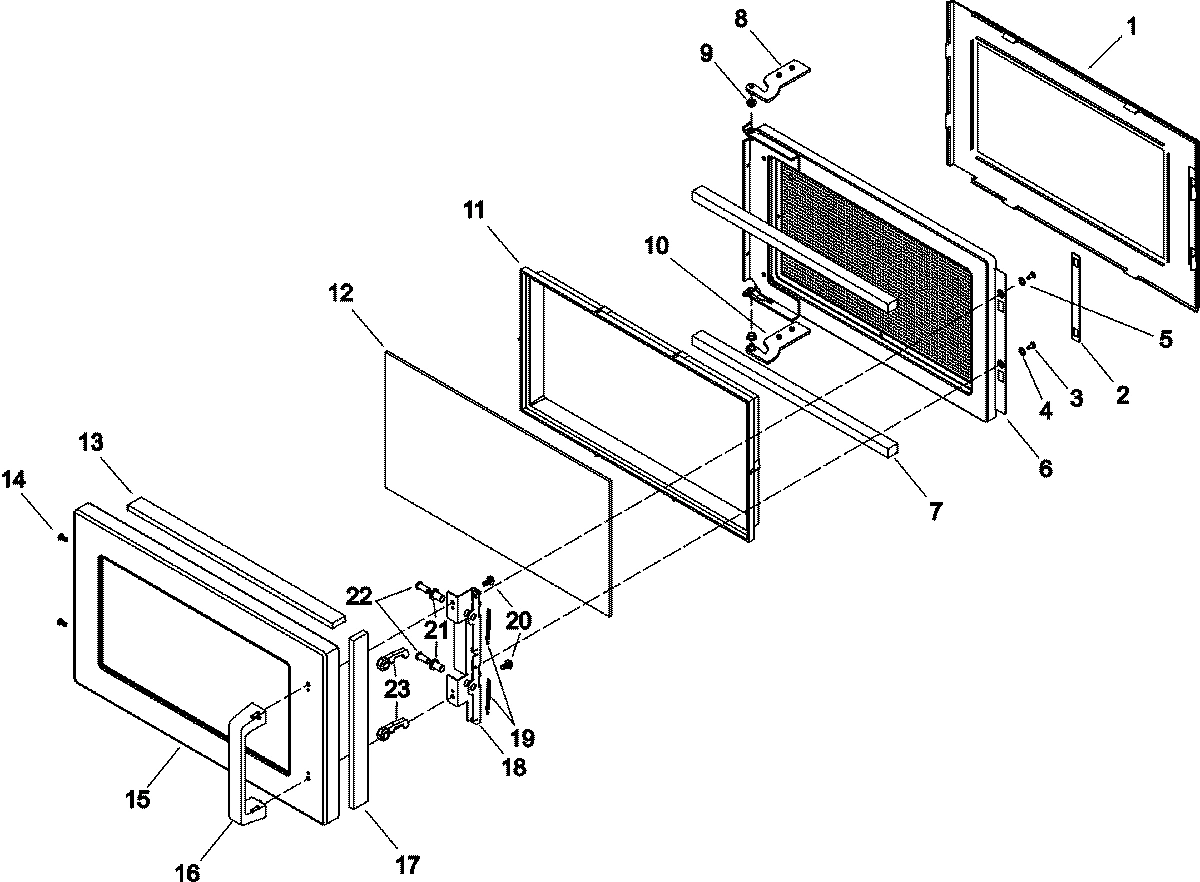

01 - DOOR

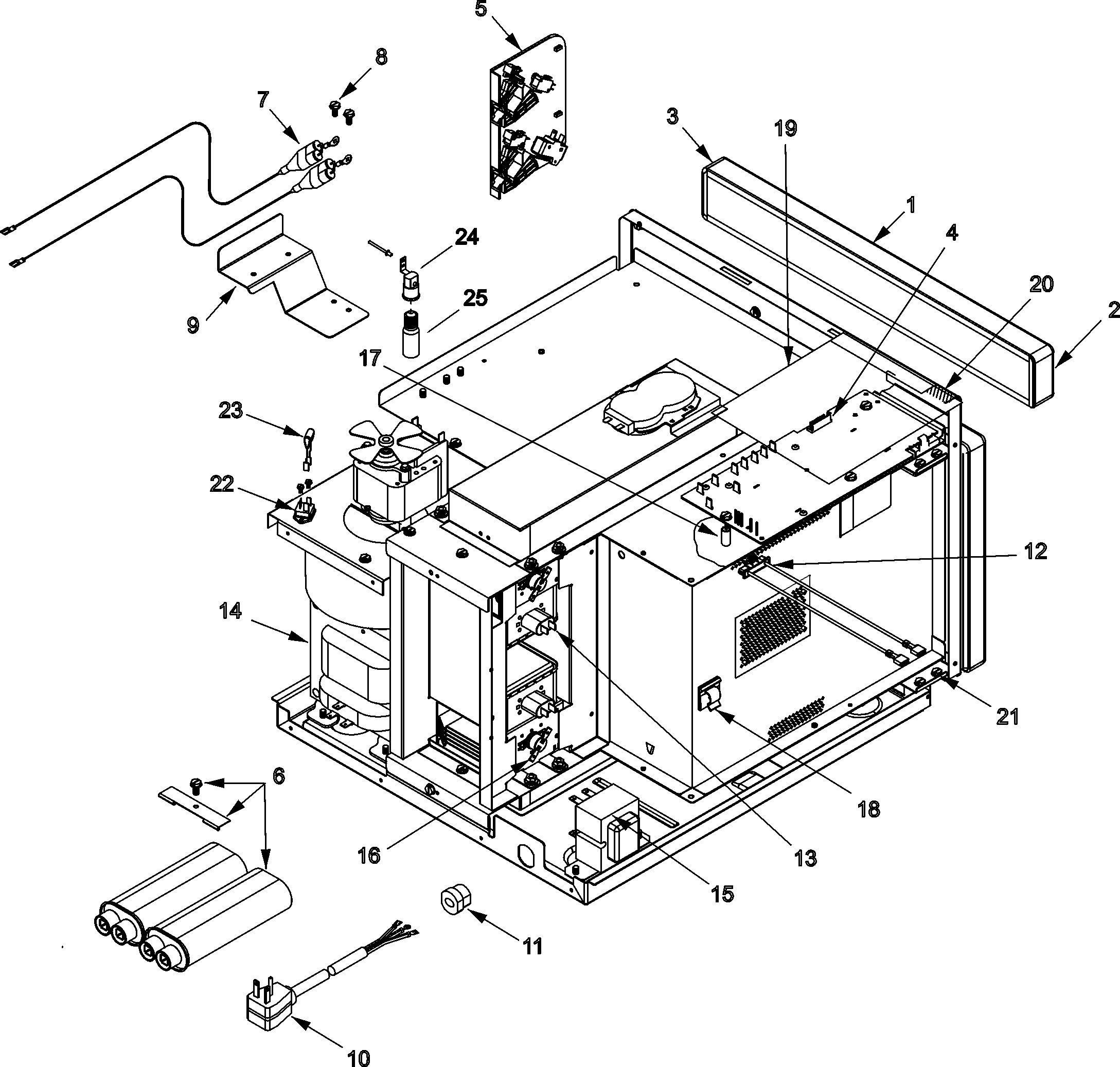

02 - ELECTRICAL COMPONENTS

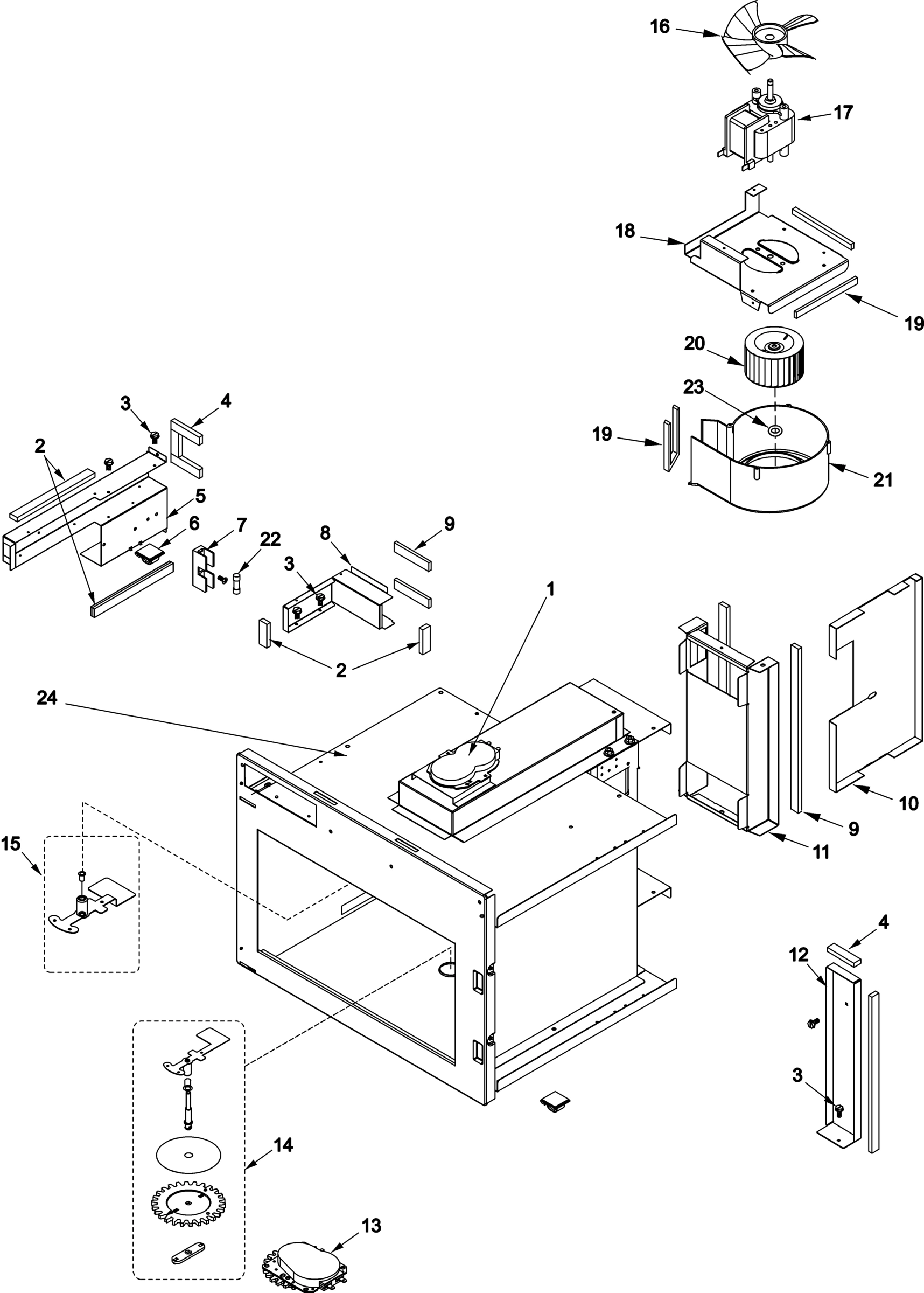

03 - FUSES, ANTENNAS, BLOWER, DUCTS, CAVITY
04 - SUPPLEMENTAL INFORMATION

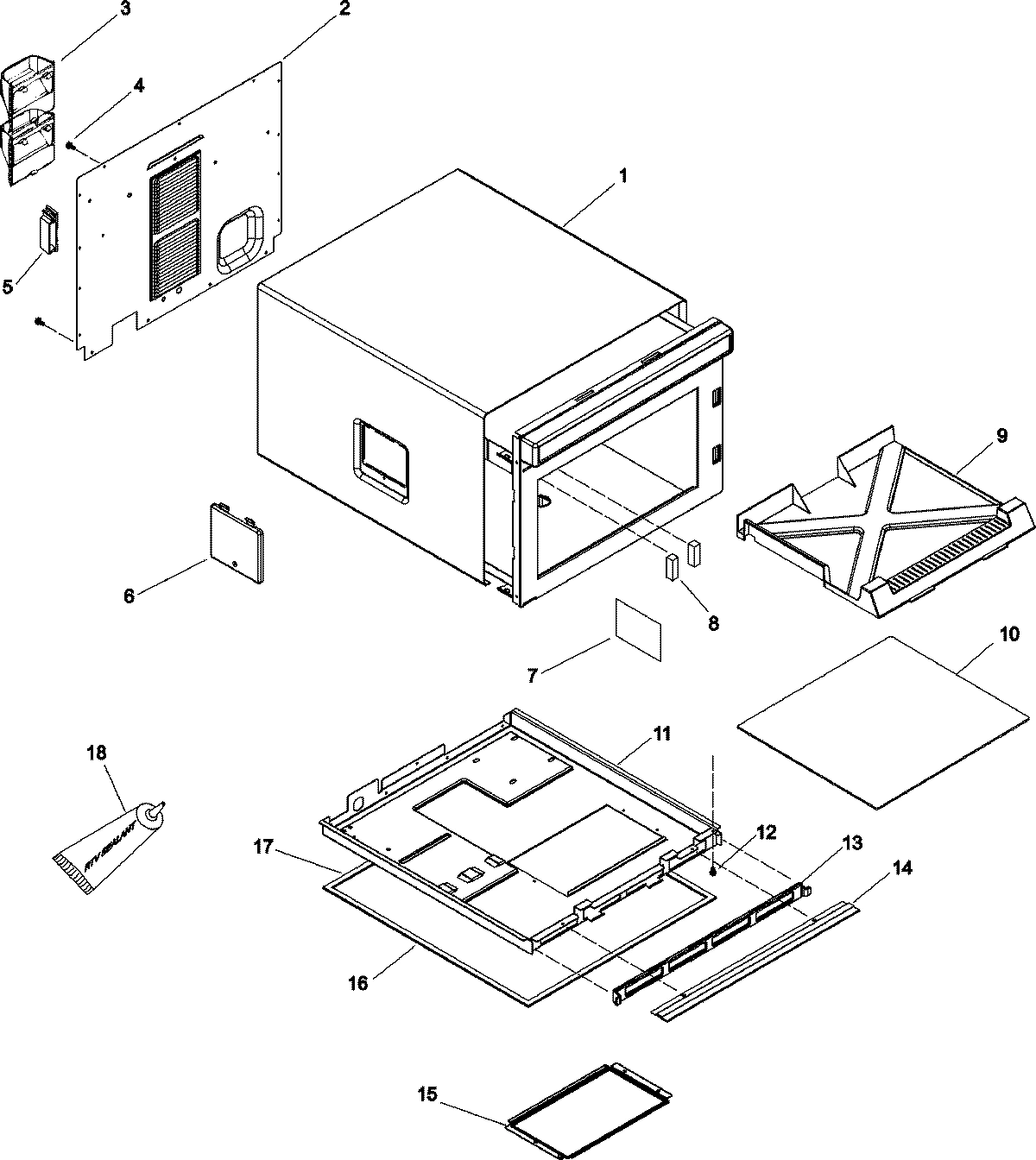

05 - TRAY, GREASE SHIELD, CABINET,

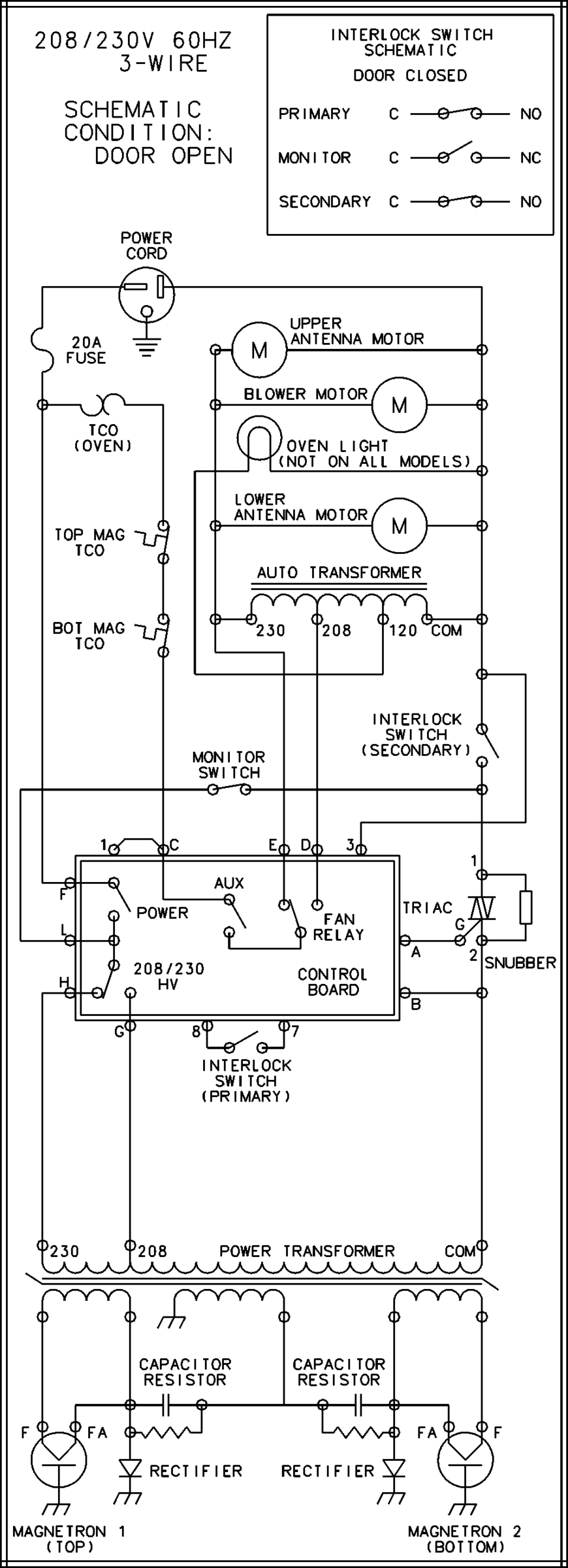

06 - WIRING INFORMATION
Common parts from model Maytag CRC21T2RL2 COMMERCIAL MICROWAVE
1
MAY R0150148 MAY R0150148 Contact Us For Availability
1
MAY R0150197 MAY R0150197 Contact Us For Availability
1
MAY M0216517 MAY M0216517 Contact Us For Availability
001
MAY R9900111 MAY R9900111 Contact Us For Availability
1
ASSY, TOUCH PANEL MAY R9900580 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
2
MAY M0275058 MAY M0275058 Contact Us For Availability
2
MAY 12296804 MAY 12296804 Contact Us For Availability
3
MAY M0230815 MAY M0230815 Contact Us For Availability
3
MAY 12131002 MAY 12131002 Contact Us For Availability
3
MAY 12296601 MAY 12296601 Contact Us For Availability
004
MAY A3030302 MAY A3030302 Contact Us For Availability
4
MAY M0274066 MAY M0274066 Contact Us For Availability
4
MAY 12002446 MAY 12002446 Contact Us For Availability
4
MAY M0227333 MAY M0227333 Contact Us For Availability
5
WASHER MAY M0272503 Contact Us For Availability
5
MAY 12135604 MAY 12135604 Contact Us For Availability
5
ASSY,INTERLOCK SWITCH MAY 12538901Q Contact Us For Availability
5
MAY M0237906 MAY M0237906 Contact Us For Availability
5
MAY M0118705 MAY M0118705 Contact Us For Availability
6
MAY 12132501 MAY 12132501 Contact Us For Availability
6
COVER LIGHT (SS) MAY 10785608 Contact Us For Availability
6
MAY M0249632 MAY M0249632 Contact Us For Availability
6
MAY M0274072 MAY M0274072 Contact Us For Availability
7
MAY R9900114 MAY R9900114 Contact Us For Availability
7
FUSE HOLDER MAY 10091101 Contact Us For Availability
7
KIT, DIODE MAY R9800022 Contact Us For Availability
8
MAY 12126805 MAY 12126805 Contact Us For Availability
8
MAY 12135704 MAY 12135704 Contact Us For Availability
9
MAY 12126601 MAY 12126601 Contact Us For Availability
9
MAY 5210001001 MAY 5210001001 Contact Us For Availability
9
MAY 10966607 MAY 10966607 Contact Us For Availability
9
MAY 12529501 MAY 12529501 Contact Us For Availability
10
MAY R0150144 MAY R0150144 Contact Us For Availability
10
MAY 12126806 MAY 12126806 Contact Us For Availability
10
MAY 12134101 MAY 12134101 Contact Us For Availability
10
MAY 10098917 MAY 10098917 Contact Us For Availability
11
MAY R0000036 MAY R0000036 Contact Us For Availability
11
MAY R0150147 MAY R0150147 Contact Us For Availability
11
MAY 59001558 MAY 59001558 Contact Us For Availability
11
STRAIN RELIEF MAY M0370003 Contact Us For Availability
12
MAY M0216529 MAY M0216529 Contact Us For Availability
12
MAY 12133804 MAY 12133804 Contact Us For Availability
12
MAY 12525701 MAY 12525701 Contact Us For Availability
12
MAY 59001667 MAY 59001667 Contact Us For Availability
13
MAY 59001659 MAY 59001659 Contact Us For Availability
13
MAY 12210804 MAY 12210804 Contact Us For Availability
13
MAY 10489404 MAY 10489404 Contact Us For Availability
14
MAY 12131301 MAY 12131301 Contact Us For Availability
14
MAY M0230518 MAY M0230518 Contact Us For Availability
14
MAY R9900585 MAY R9900585 Contact Us For Availability
14
TRANSFORMER- HV MAY 12136102 Contact Us For Availability
15
MAY 12486002 MAY 12486002 Contact Us For Availability
15
MAY R9900567 MAY R9900567 Contact Us For Availability
15
MAY R0150185 MAY R0150185 Contact Us For Availability
15
MAY M0251028 MAY M0251028 Contact Us For Availability
16
MAY 59001643 MAY 59001643 Contact Us For Availability
16
MAY B5706704 MAY B5706704 Contact Us For Availability
16
MAY B5684121 MAY B5684121 Contact Us For Availability
16
MAY M0229916 MAY M0229916 Contact Us For Availability
17
MAY 59001642 MAY 59001642 Contact Us For Availability
17
MAY 12210803 MAY 12210803 Contact Us For Availability
17
MAY 12138105 MAY 12138105 Contact Us For Availability
17
MAY M0308801 MAY M0308801 Contact Us For Availability
18
MAY M0275598 MAY M0275598 Contact Us For Availability
18
MAY 12114401 MAY 12114401 Contact Us For Availability
18
MAY 12271103 MAY 12271103 Contact Us For Availability
19
MAY C8893502 MAY C8893502 Contact Us For Availability
19
MAY A3030303 MAY A3030303 Contact Us For Availability
19
MAY 12160602 MAY 12160602 Contact Us For Availability
20
MAY M0253516 MAY M0253516 Contact Us For Availability
20
MAY 12138201 MAY 12138201 Contact Us For Availability
20
MAY M0275163 MAY M0275163 Contact Us For Availability
21
MAY M0800501 MAY M0800501 Contact Us For Availability
21
MAY 12138302 MAY 12138302 Contact Us For Availability
21
MAY M0253540 MAY M0253540 Contact Us For Availability
22
MAY 12127001 MAY 12127001 Contact Us For Availability
22
FUSE, 20 AMP MAY M0805303 Contact Us For Availability
22
MAY R0157373 MAY R0157373 Contact Us For Availability
23
MAY 12126901 MAY 12126901 Contact Us For Availability
23
MAY M0118901 MAY M0118901 Contact Us For Availability
23
MAY 10172901Q MAY 10172901Q Contact Us For Availability
24
CAVITY KIT- HDC18, 21 MAY 12002678 Contact Us For Availability
24
MAY R9900584 MAY R9900584 Contact Us For Availability
25
MAY A3073101 MAY A3073101 Contact Us For Availability
NI
MNL,SVC-COMM`L MICRO MAY RS2240002 Contact Us For Availability
NI
MAY RT2240005 MAY RT2240005 Contact Us For Availability
NI
MAY 59001668 MAY 59001668 Contact Us For Availability
NI
MAY 59001661 MAY 59001661 Contact Us For Availability
NI
MAY 12485601 MAY 12485601 Contact Us For Availability
NI
MAY 12155701 MAY 12155701 Contact Us For Availability
NI
MAY 59001679 MAY 59001679 Contact Us For Availability
NI
MAY 59001690 MAY 59001690 Contact Us For Availability
NI
MAY 59001696 MAY 59001696 Contact Us For Availability
NI
MAY R0193551 MAY R0193551 Contact Us For Availability
NI
MAY 15003474 MAY 15003474 Contact Us For Availability
× ![]()
