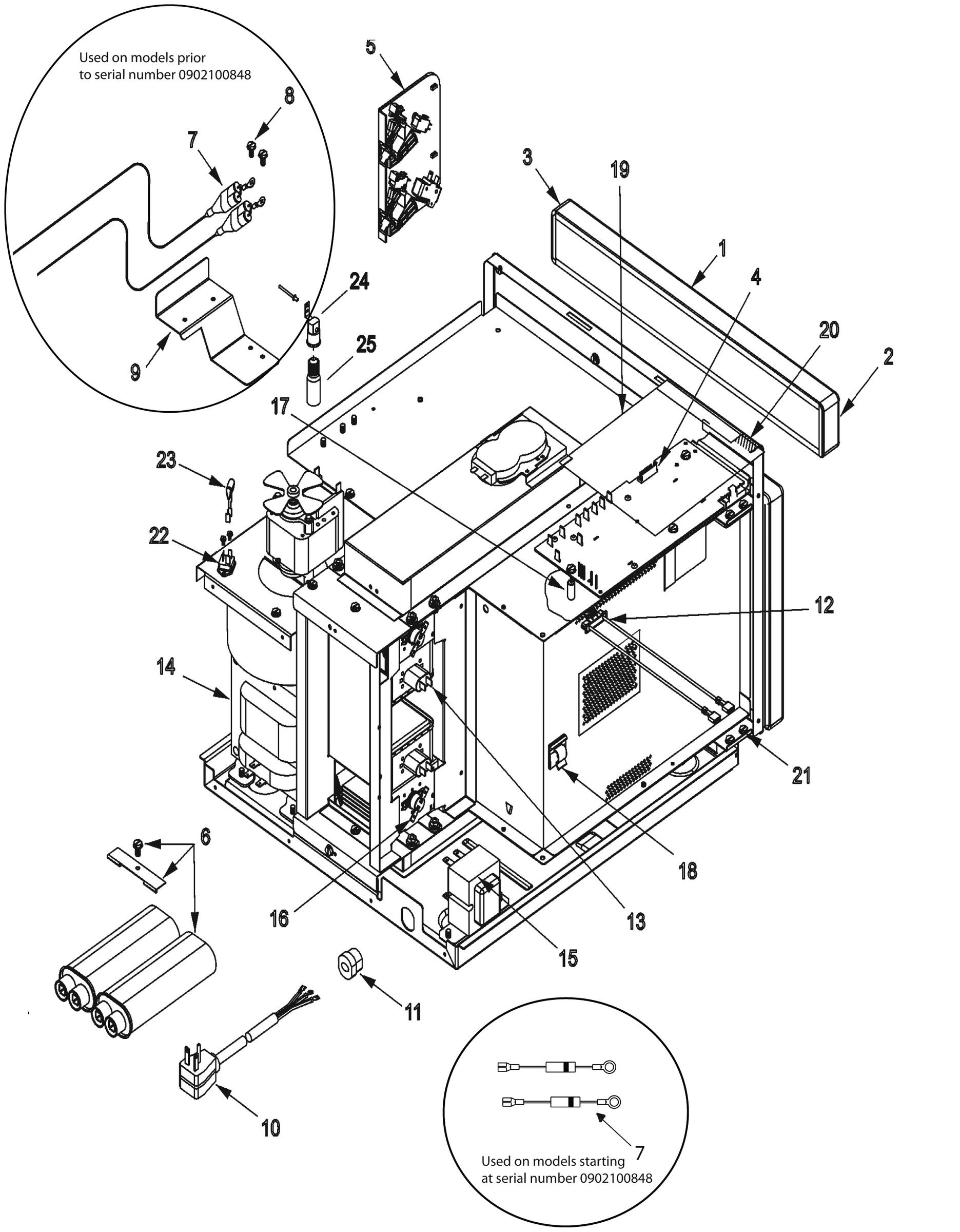

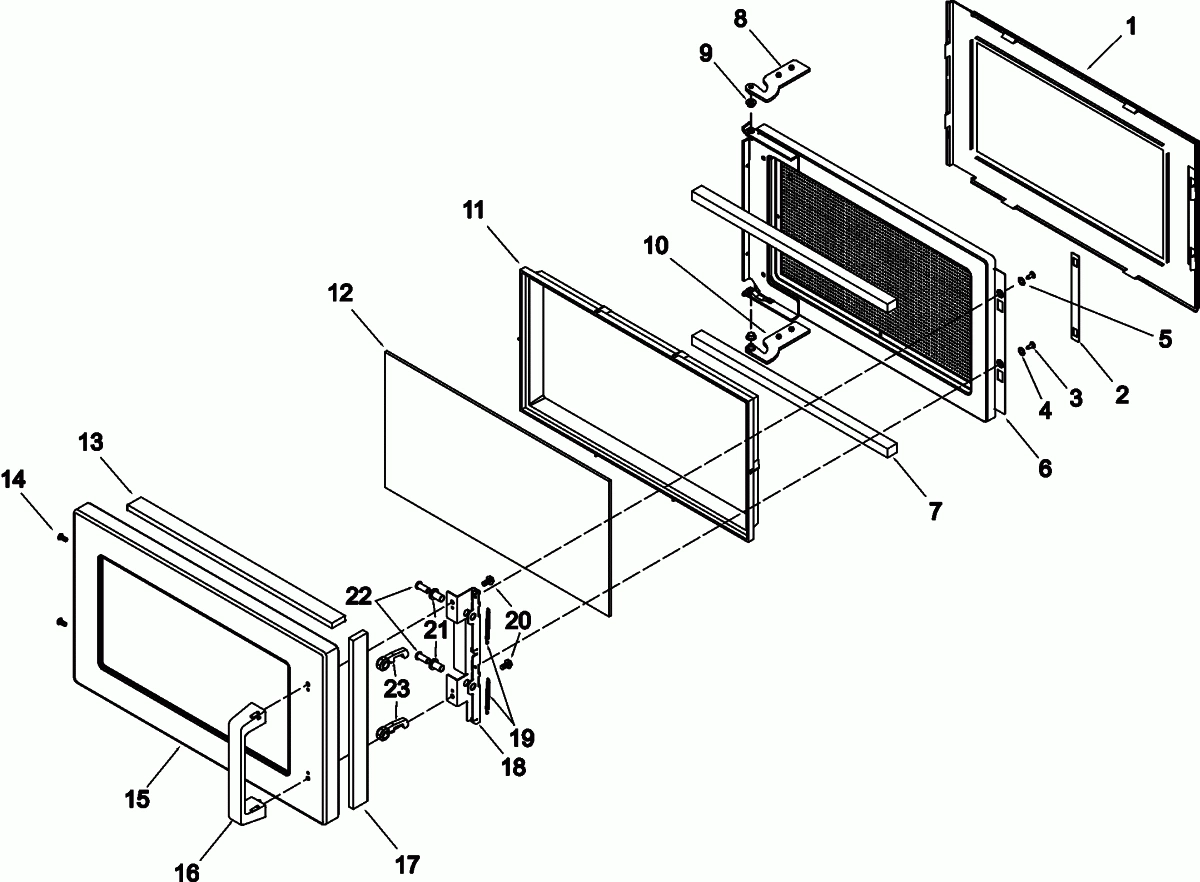

Model Accelerated Cooking Products CRC21T2RL-P1330509M Amana Menumaster CRC21T2RL – Common Parts &amp; Diagrams

1

59174529 Amana Touch Panel Assembly Backorder ACP 59174529 $162.00

1

R0150197 Amana Antenna Motor Kit - Top Backorder ACP R0150197 $85.65

2

12131001 Amana Right ESC End Cap Backorder ACP 12131001 $6.23

2

ACCESS PANEL-E CT ACP 12296806 Contact Us For Availability

3

12131002 Amana End Cap ESC Backorder ACP 12131002 $6.23

3

TECH SHEET-COMM'L MICRO **NO ACP RT2240005 Contact Us For Availability

3

DUCT-AIR ACP 12296601 Contact Us For Availability

4

12990525 Amana Screw - Small Head Backorder ACP 12990525 $5.14

4

KIT, HV/LV BOARD ACP 12002446 Contact Us For Availability

5

59114167 Amana Interlock Switch Assembly In Stock ACP 59114167 $97.49

5

CLIP-GUIDE ACP M0118705 Contact Us For Availability

6

13095201 Amana Screw, Oval Backorder ACP 13095201 $5.14

6

13098101 Amana Welded Door Ring Backorder ACP 13098101 $48.13

6

59174538 Amana Capacitor and Diode Kit, 0.82 In Stock ACP 59174538 $45.43

6

59174559 Amana Light Cover Hardware Backorder ACP 59174559 $29.43

6

SPACER-RUBBER ACP M0274072 Contact Us For Availability

7

R9900114 Amana Window Kit Backorder ACP R9900114 $25.08

7

HARNESS, WIRE ACP 59001668 Contact Us For Availability

8

14179127 Amana Exhaust Duct Kit & Gasket Backorder ACP 14179127 $119.93

8

HARNESS, HV ACP 59001661 Contact Us For Availability

9

5210001001 Amana Nylon Bushing Backorder ACP 5210001001 $5.14

9

59124202 Amana Antenna Shield In Stock ACP 59124202 $40.15

9

R9800022 Amana Diode Kit In Stock ACP R9800022 $70.63

9

HARNESS, LW ANTENNA ACP 13017801 Contact Us For Availability

12155702 Amana Menu Label Backorder ACP 12155702 $6.09

14159092 Amana Ceramic Tray and Sealer Kit In Stock ACP 14159092 $116.35

14179128 Amana Hinge Kit Top & Bottom Backorder ACP 14179128 $42.21

59002112 Amana Power Cord Backorder ACP 59002112 $35.19

DIVIDER, FLOW ACP 12134101 Contact Us For Availability

11

12107407 Amana MAG Outlet Duct Backorder ACP 12107407 $12.80

11

BASE PAN ASSY ACP R0000036 Contact Us For Availability

12

B5795319 Amana Cavity Thermal Cutout In Stock ACP B5795319 $13.00

12

BARRIER-AIR ACP 12525701 Contact Us For Availability

12

SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability

13

59001659 Amana Screen Filter In Stock ACP 59001659 $21.98

13

59004013 Amana Magnetron In Stock ACP 59004013 $118.14

13

R9900668 Amana Antenna Motor Bottom Kit In Stock ACP R9900668 $60.18

14

R9900585 Amana Installation Kit In Stock ACP R9900585 $69.15

14

SCREW, SM ACP M0210816 Contact Us For Availability

14

TRIM ACP 12131301 Contact Us For Availability

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $5.14

20173001 Amana Rotary Igniter Backorder ACP 20173001 $15.81

59174581 Amana Auto Transformer and Snubber Backorder ACP 59174581 $93.98

R0150185 Amana Antenna Retainer Assembly Backorder ACP R0150185 $28.03

16

B5684121 Amana Thermal Cutout Backorder ACP B5684121 $5.80

16

B5706704 Amana Motor Fan Blade Backorder ACP B5706704 $7.09

17

59174525 Amana Blower Motor Assembly Backorder ACP 59174525 $189.74

17

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 $43.09

18

59002167 Amana Sealer In Stock ACP 59002167 $15.93

18

BRKT-BLOWER WSH ACP 12271103 Contact Us For Availability

19

C8893502 Amana Door Latch Spring Backorder ACP C8893502 $5.14

19

GASKET, PER FT ACP 59002162 Contact Us For Availability

20

12138201 Amana Blower Wheel Backorder ACP 12138201 $14.57

21

12138302 Amana Blower Scroll Backorder ACP 12138302 $7.71

22

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $57.41

22

M0805303 Amana Fuse 20A In Stock ACP M0805303 $22.88

23

12126901 Amana Door Latch Backorder ACP 12126901 $5.14

23

20020502 Amana Retainer Backorder ACP 20020502 $5.14

23

59002017 Amana Snubber Assembly Backorder ACP 59002017 $38.45

24

14159099 Amana Cavity Kit for 18 & 21 Backorder ACP 14159099 $767.91
