Model Whirlpool CR220W ELECTRIC COOK-TOP – Common Parts & Diagrams

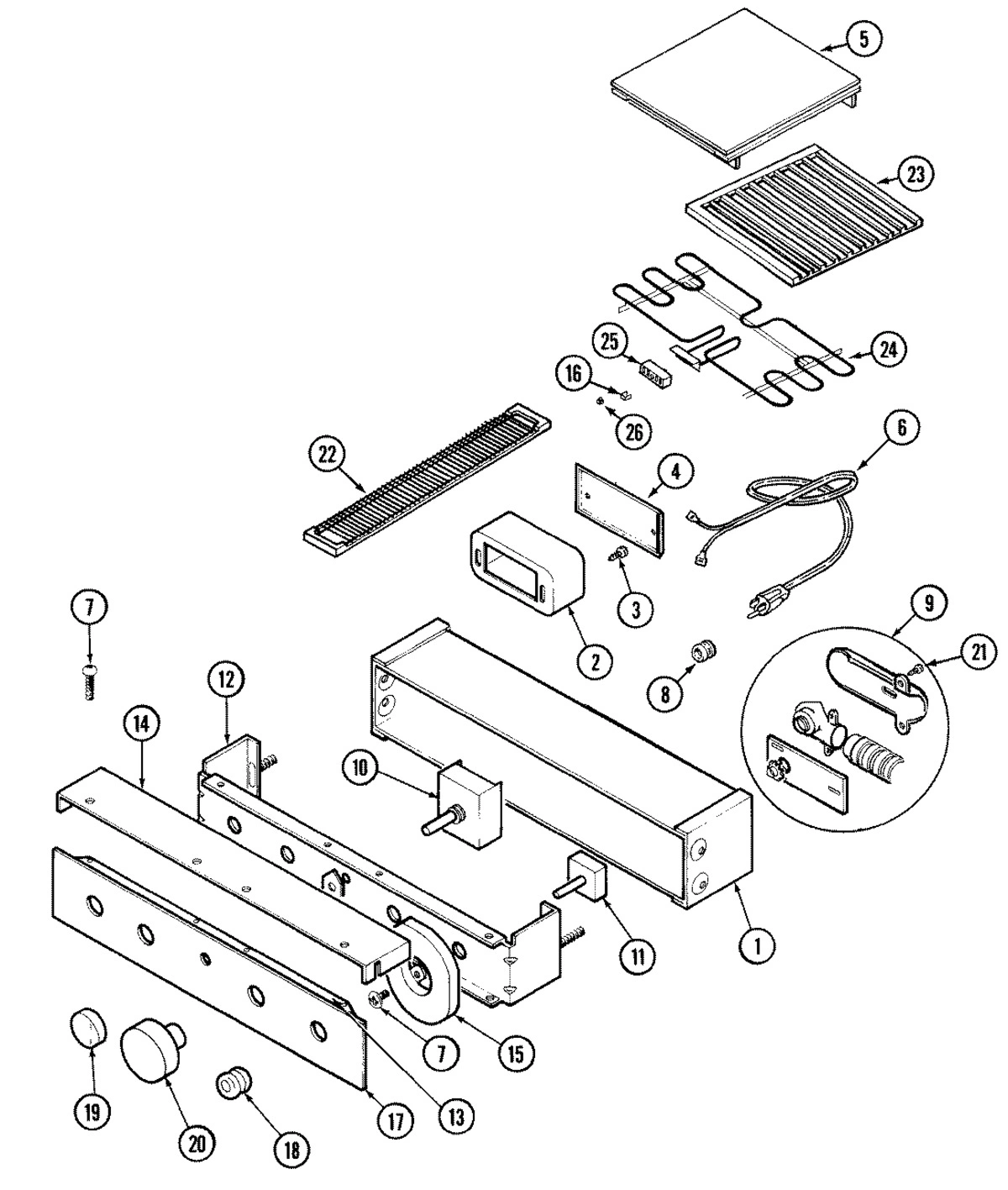

01 - CONTROL PANEL
Common parts from model Whirlpool CR220W ELECTRIC COOK-TOP
4
COVER, EXTENSION BOX WPL 04100102 Contact Us For Availability
5
COVER, GRILL (WHITE) WPL 12200018 Contact Us For Availability
6
CORD, RECEPTACLE WPL 04100097 Contact Us For Availability
7
SCREW WPL Y704864 Contact Us For Availability
8
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
9
CABLE, WIRE WPL 04100096 Contact Us For Availability
10
SPEED CONTROL WPL 04100103 Contact Us For Availability
12
PLATE, SWITCH WPL 04100095 Contact Us For Availability
13
BRACKET, GLASS WPL 04100098 Contact Us For Availability
14
BARRIER, WIRE WPL 04100111 Contact Us For Availability
15
BOX, LIGHT WPL Y706061 Contact Us For Availability
16
CLIP, SHUNT WPL Y700450 Contact Us For Availability
17
GLASS, CONTROL (WHT) WPL 04100113 Contact Us For Availability
19
KNOB, INFINITE SWITCH (GRAY) WPL Y706096 Contact Us For Availability
20
GROMMET, FAN SWITCH WPL Y706103 Contact Us For Availability
20
WING NUT WPL 04100100 Contact Us For Availability
20
KNOB, SPEED CONTROL (GRY) WPL 04100112 Contact Us For Availability
21
WIRE, SUPPLY (RED) WPL 04100106 Contact Us For Availability
21
WIRE, SUPPLY (BLK) WPL 04100107 Contact Us For Availability
21
HARNESS, NEUTRAL WPL 04100108 Contact Us For Availability
21
TAPE,FOAM (38`` STRIP) WPL 12200014 Contact Us For Availability
21
WIRE, WHITE WPL 706065 Contact Us For Availability
21
WIRE, GROUND WPL 706188 Contact Us For Availability
21
CONNECTOR, CRIMP WPL Y705273 Contact Us For Availability
21
INSULATOR, SPLICE CAP WPL Y705274 Contact Us For Availability
21
WIRE, PILOT LIGHT WPL Y706091 Contact Us For Availability
22
GRILL, AIR (WHT) WPL Y706115 Contact Us For Availability
23
GRATE, GRILL (EXCALIBUR) WPL Y706059 Contact Us For Availability
× ![]()
