Model Whirlpool CR153K MICROWAVE – Common Parts & Diagrams

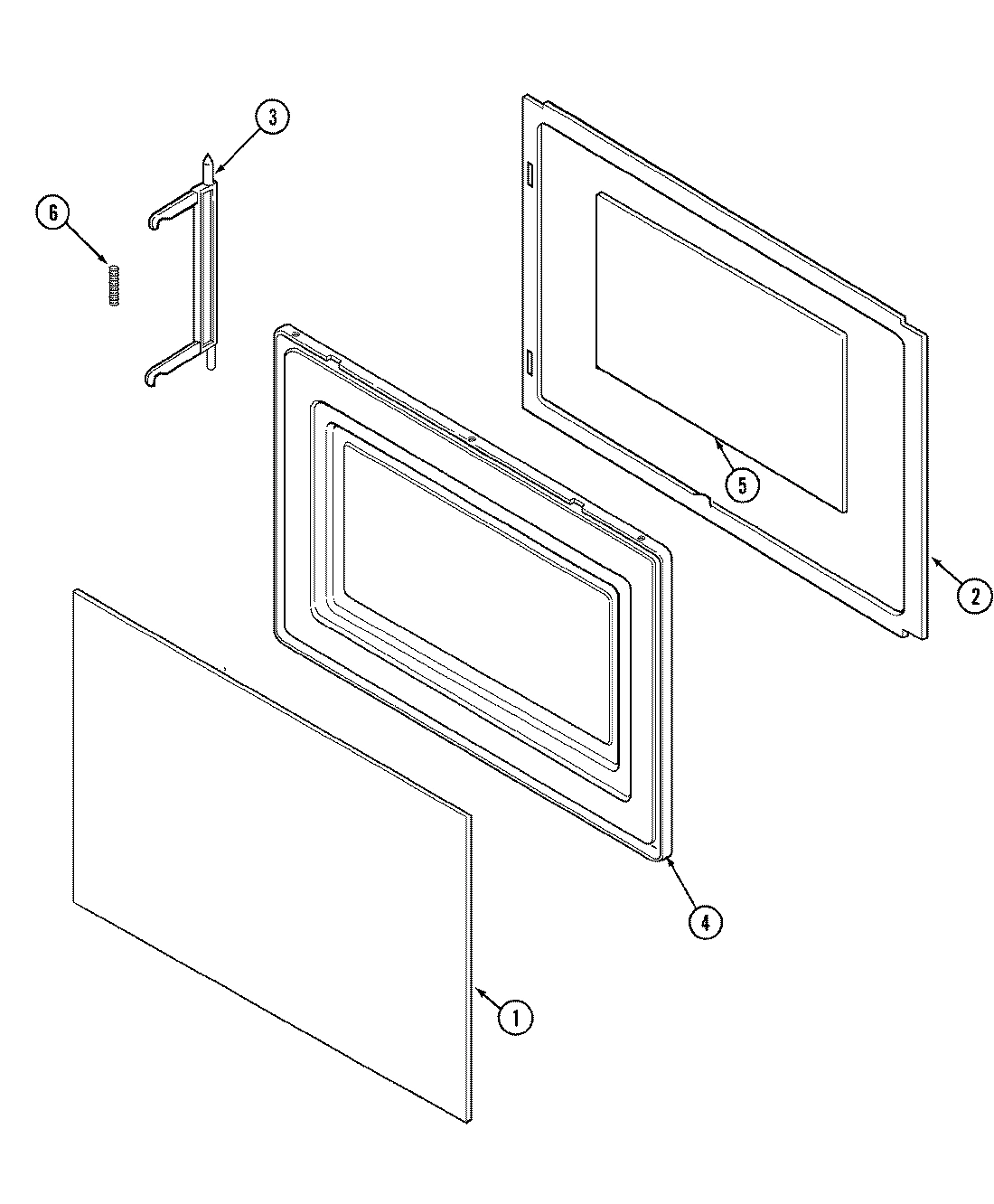

03 - DOOR

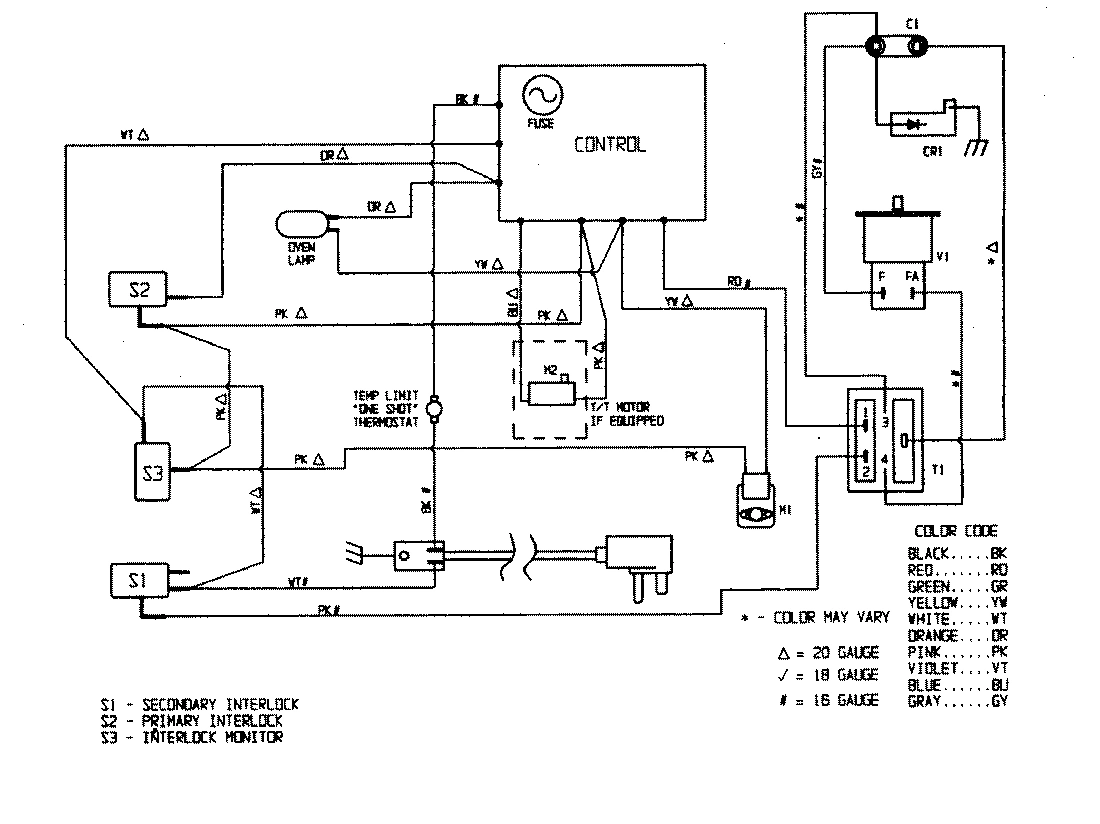

07 - WIRING INFORMATION

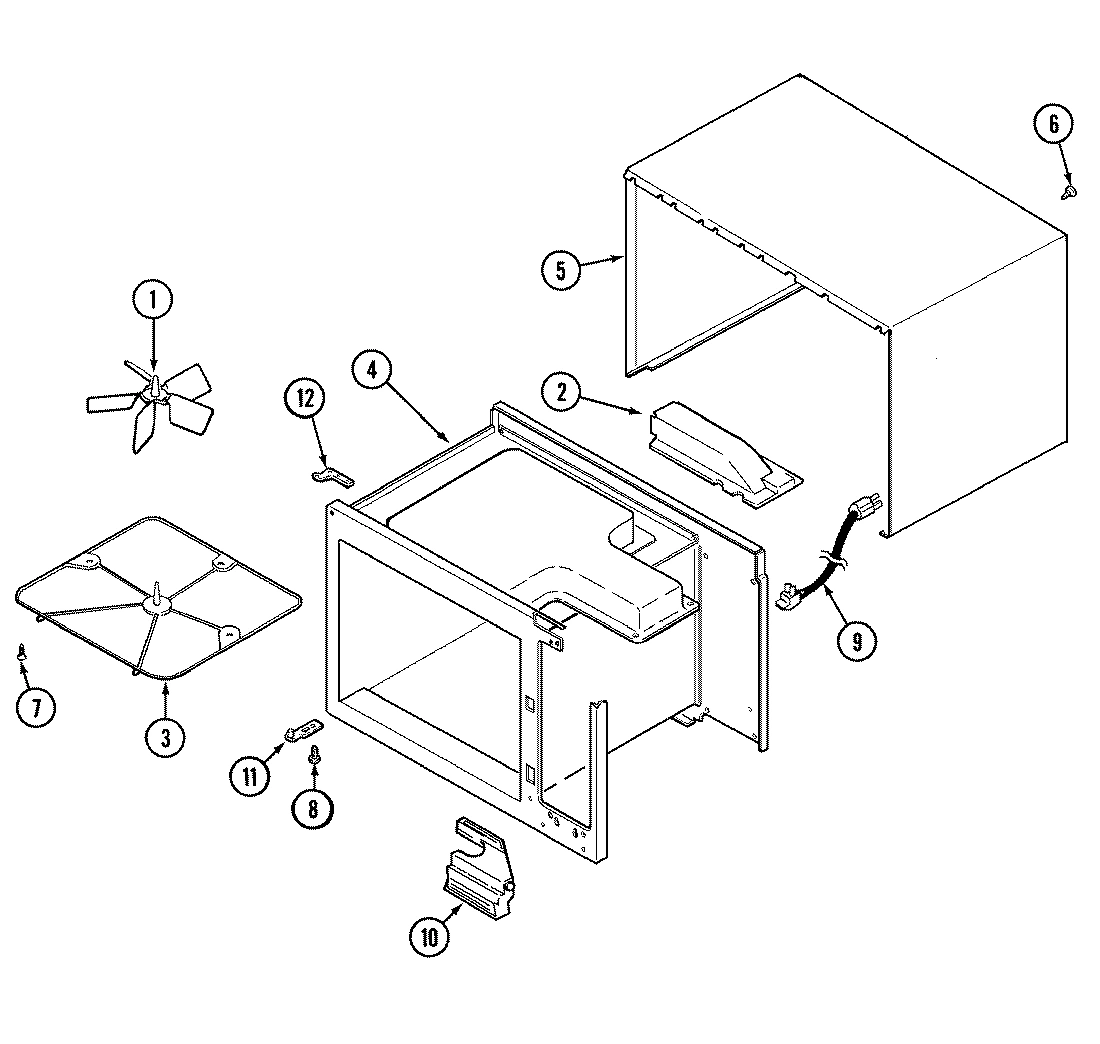

01 - BASE

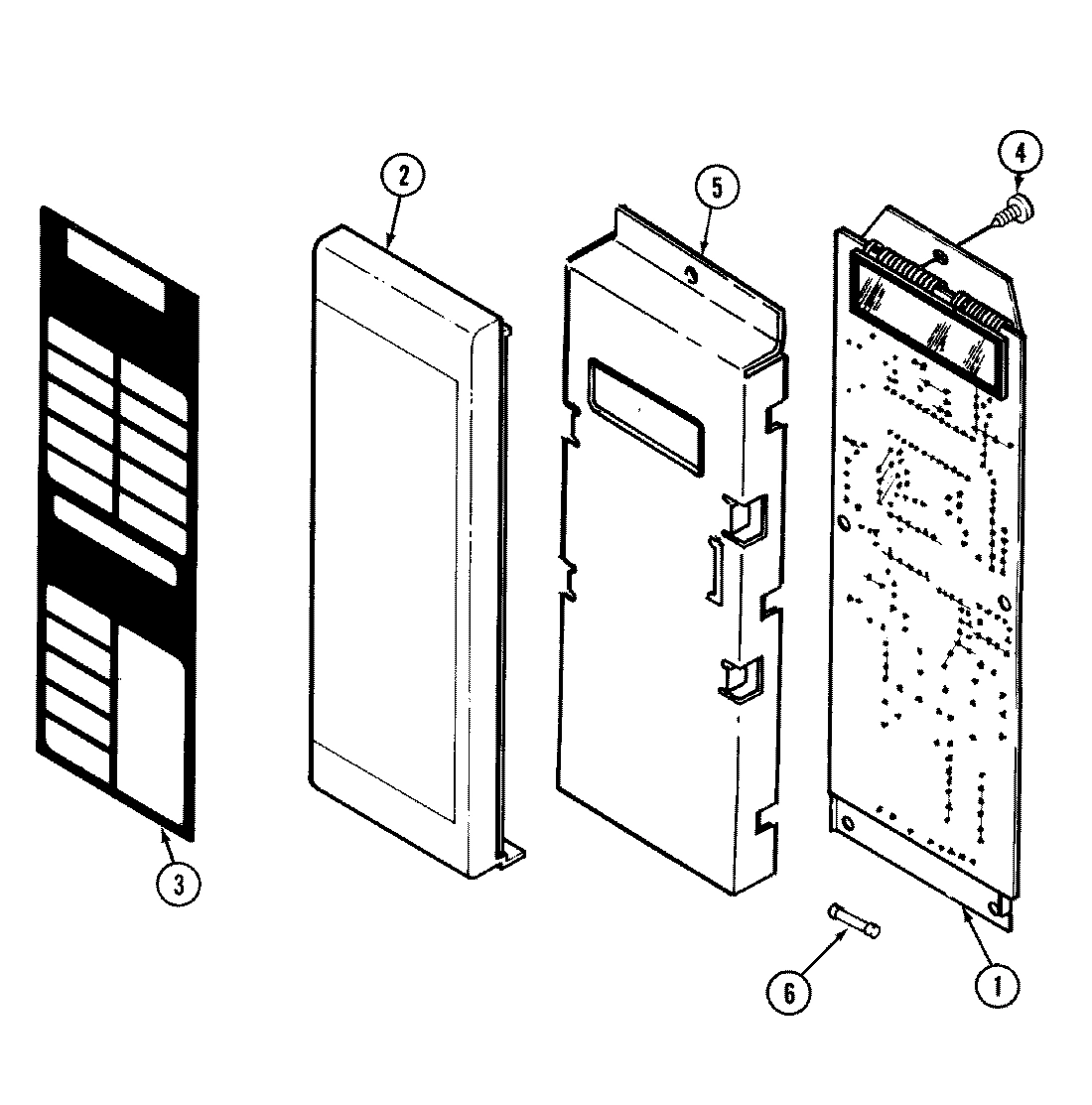

02 - CONTROL PANEL

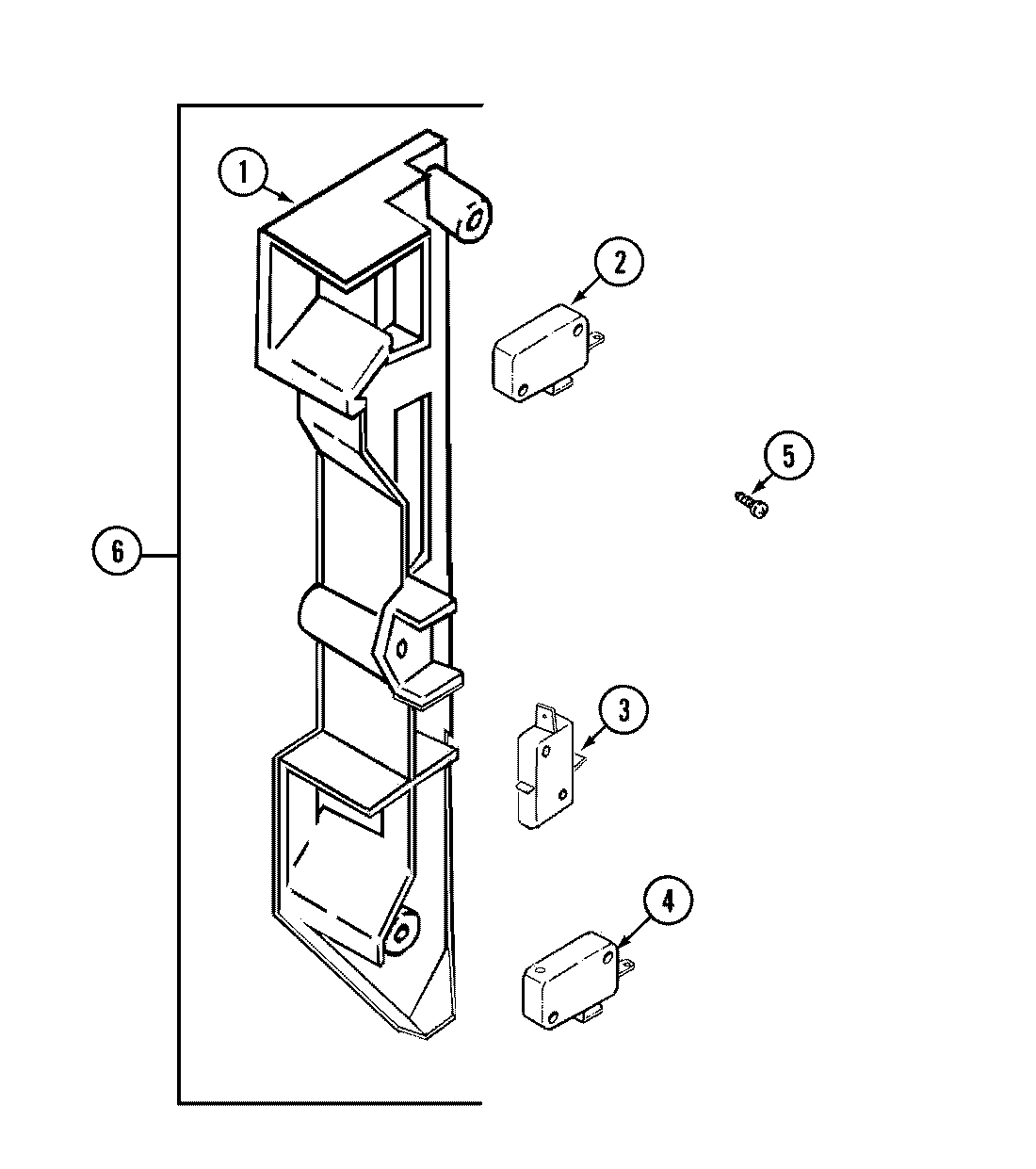

04 - INTERLOCK SWITCHES

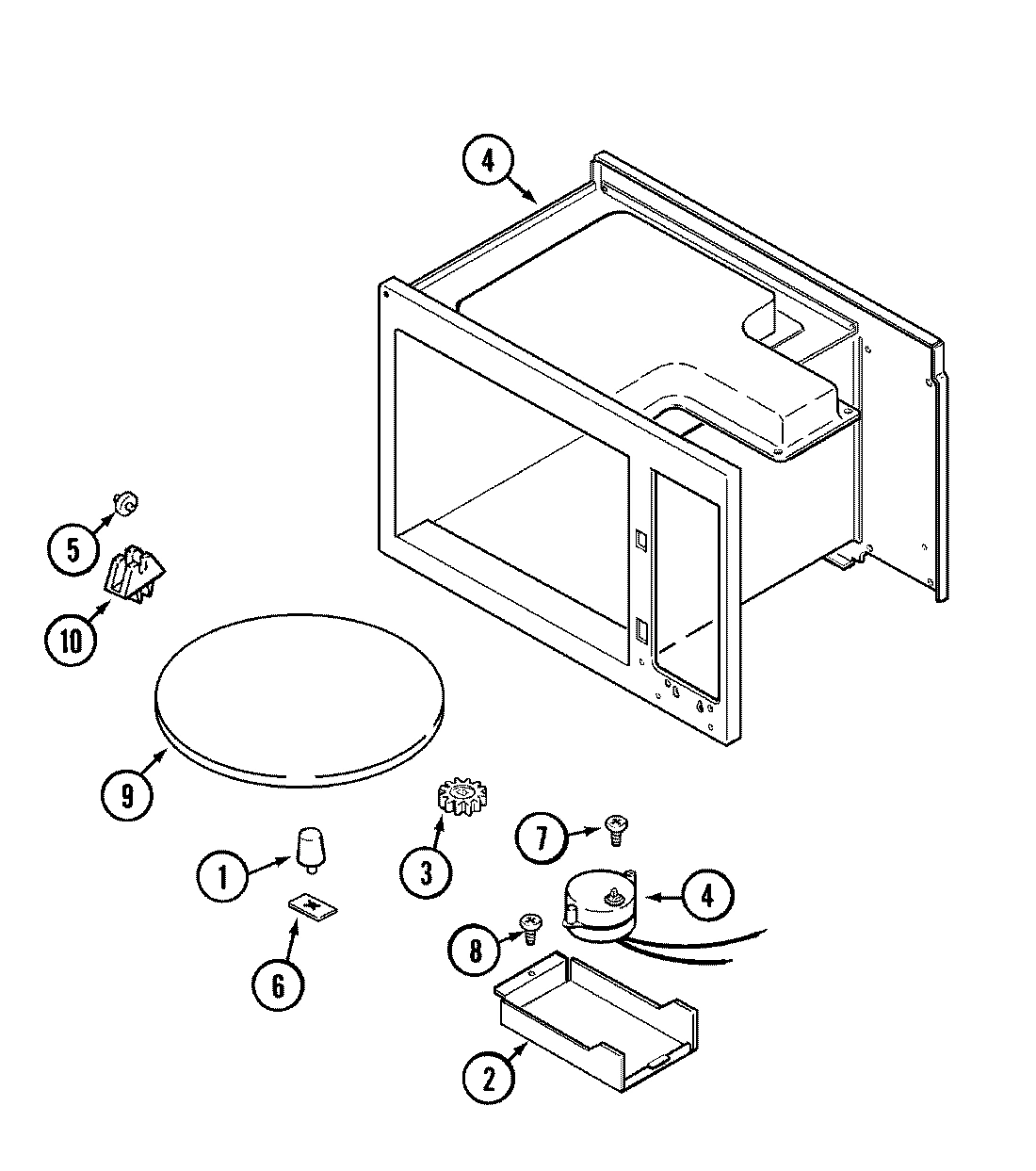

06 - TURNTABLE

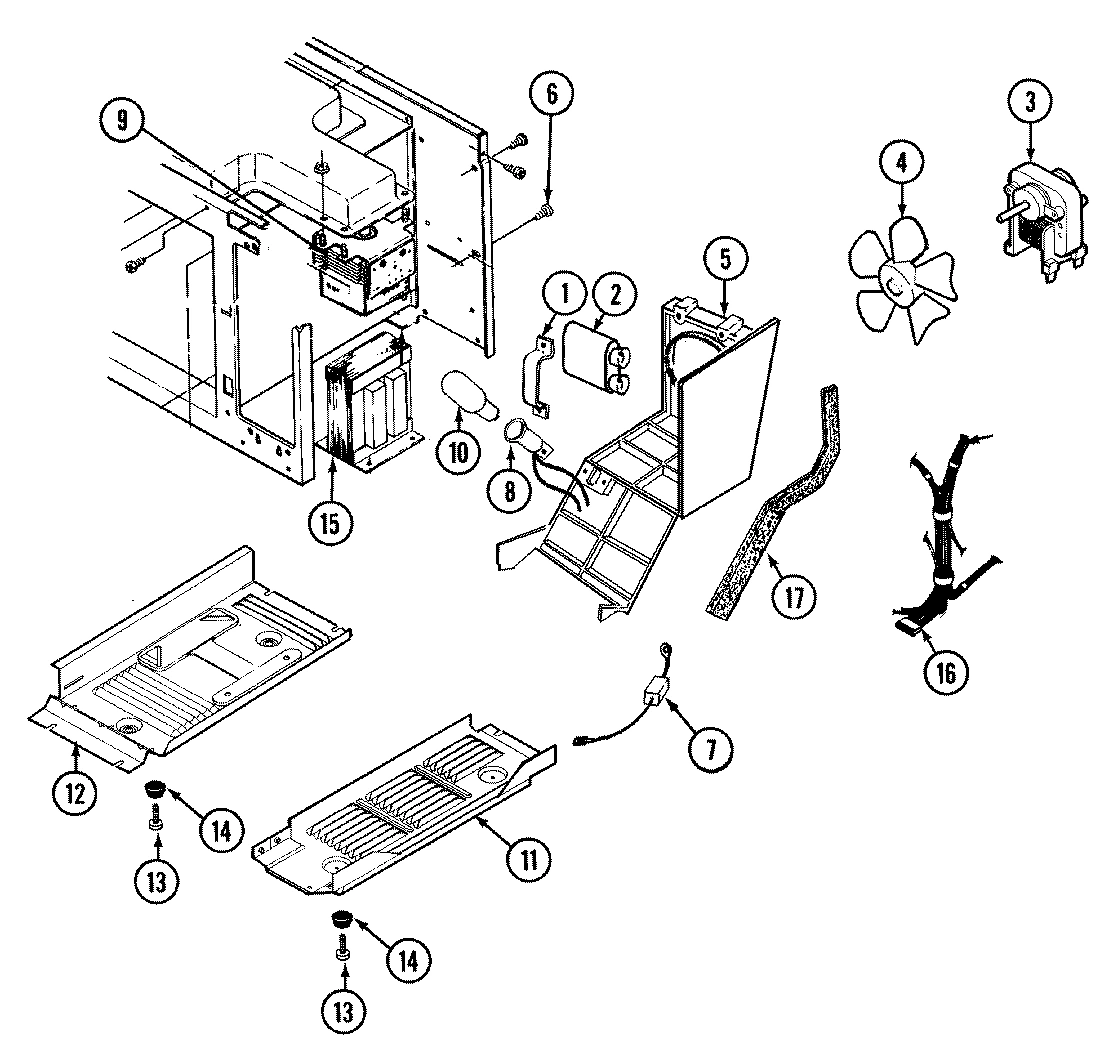

05 - INTERNAL CONTROLS
Common parts from model Whirlpool CR153K MICROWAVE
1
WINDOW, DOOR (OUTER) WPL 51001182 Contact Us For Availability
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
BOARD, CONTROL WPL 51001053 Contact Us For Availability
1
BOARD, CONTROL WPL 51001221 Contact Us For Availability
1
BOARD, CONTROL (W/OUT FUSE) WPL 51001336 Contact Us For Availability
1
BRACKET, SWITCH WPL 51001043 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
2
CHOKE, DOOR (BLK) WPL 51001038 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 51001052 Contact Us For Availability
2
SWITCH, INTERLOCK (PRIMARY) WPL 51001044 Contact Us For Availability
2
COVER, TURNTABLE MOTOR WPL 51001061 Contact Us For Availability
2
CAPACITOR (800/1100 WATT) WPL 51001301 Contact Us For Availability
3
LATCH, STRIKE WPL 51001036 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
INSERT, OVERLAY (BLK) WPL 51001187 Contact Us For Availability
3
SWITCH, INTERLOCK (MONITOR) WPL 51001045 Contact Us For Availability
3
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
3
MOTOR, FAN WPL 51001050 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 51001081 Contact Us For Availability
4
CAVITY (WHT) WPL 51001042 Contact Us For Availability
4
SWITCH, INTERLOCK (SECONDARY) WPL 51001046 Contact Us For Availability
4
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
5
WINDOW, DOOR (INNER) WPL 51001039 Contact Us For Availability
5
WRAPPER, CABINET (WHT) WPL 51001099 Contact Us For Availability
5
BRACKET, CONTROL WPL 51001054 Contact Us For Availability
5
LOCKWASHER No.6 WPL 03030001 Contact Us For Availability
5
SCREW WPL 51001217 Contact Us For Availability
5
ROLLER WPL 02210011 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
6
SPRING, DOOR WPL 51001037 Contact Us For Availability
6
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
6
INTERLOCK ASSY. WPL 51001078 Contact Us For Availability
6
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
6
SCREW WPL 51001094 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
7
SCREW WPL 03010151 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
8
WASHER WPL 51001100 Contact Us For Availability
8
SCREW WPL Y03020076 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
8
BAFFLE, BULB WPL 51001030 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
9
CORD, POWER WPL 51001202 Contact Us For Availability
9
TURNTABLE WPL 51001145 Contact Us For Availability
9
MAGNETRON (700 WATT) WPL 51001074 Contact Us For Availability
10
BUTTON, DOOR RELEASE (BLK) WPL 51001041 Contact Us For Availability
10
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
11
SCREW WPL 03020030 Contact Us For Availability
11
HINGE, DOOR (LOWER) WPL 51001047 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
12
HINGE, DOOR (UPPER) WPL 51001035 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001057 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
13
SCREW WPL Y03020104 Contact Us For Availability
14
FOOT, BASE WPL Y02230009 Contact Us For Availability
15
SCREW WPL 257764 Contact Us For Availability
15
TRANSFORMER (700 WATT) WPL 51001073 Contact Us For Availability
16
WIRE HARNESS WPL 51001064 Contact Us For Availability
17
TAPE, FOAM WPL 05140007 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001259 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
MANUAL, USE & CARE/COOKBOOK WPL 51001133 Contact Us For Availability
NI
MANUAL, USE & CARE/COOKBOOK WPL 51001350 Contact Us For Availability
NI
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
NI
CLIP WPL Y03110078 Contact Us For Availability
NI
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
