Model Whirlpool CR151KWH MICROWAVE – Common Parts & Diagrams
02 - CONTROL

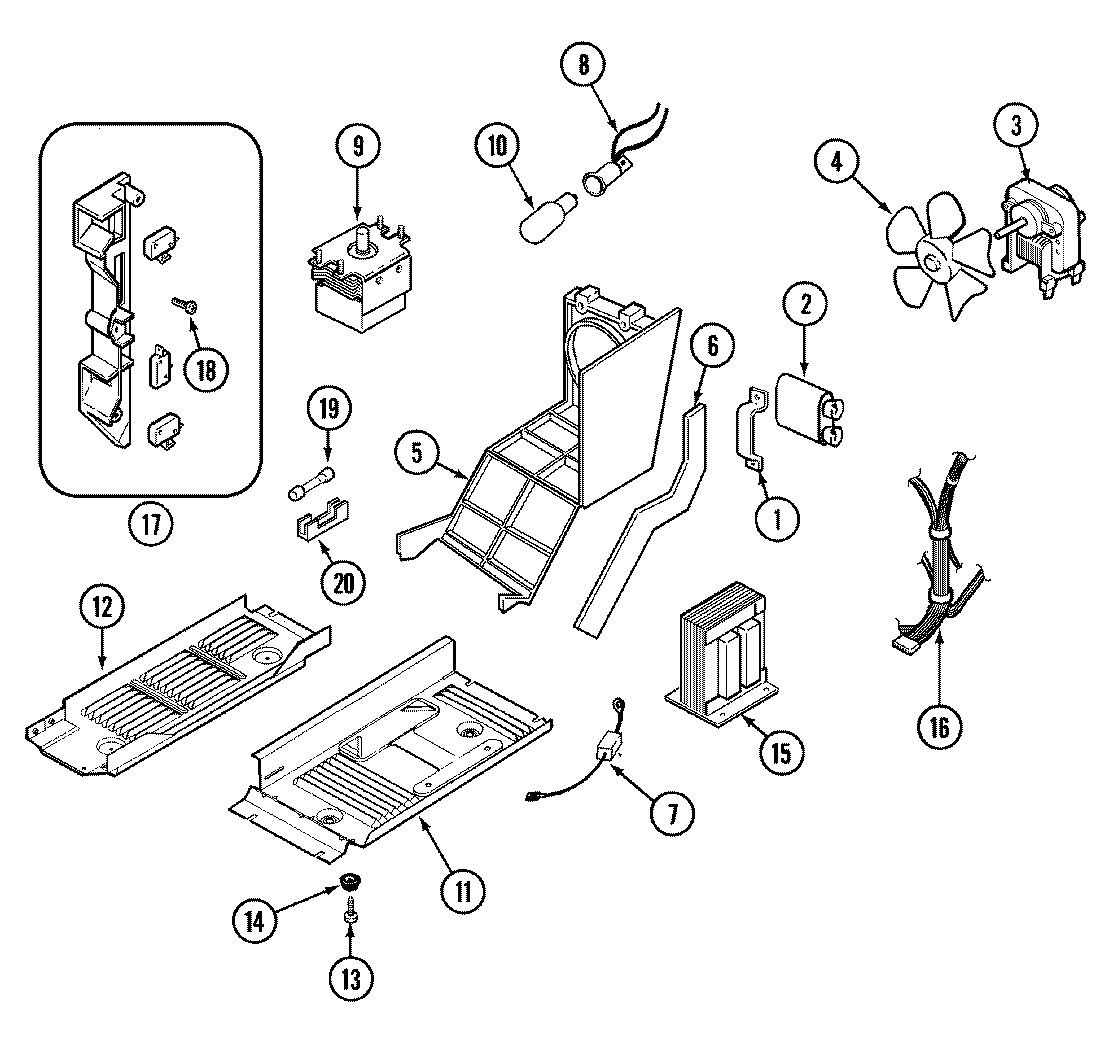

05 - INTERNAL CONTROLS
01 - BASE

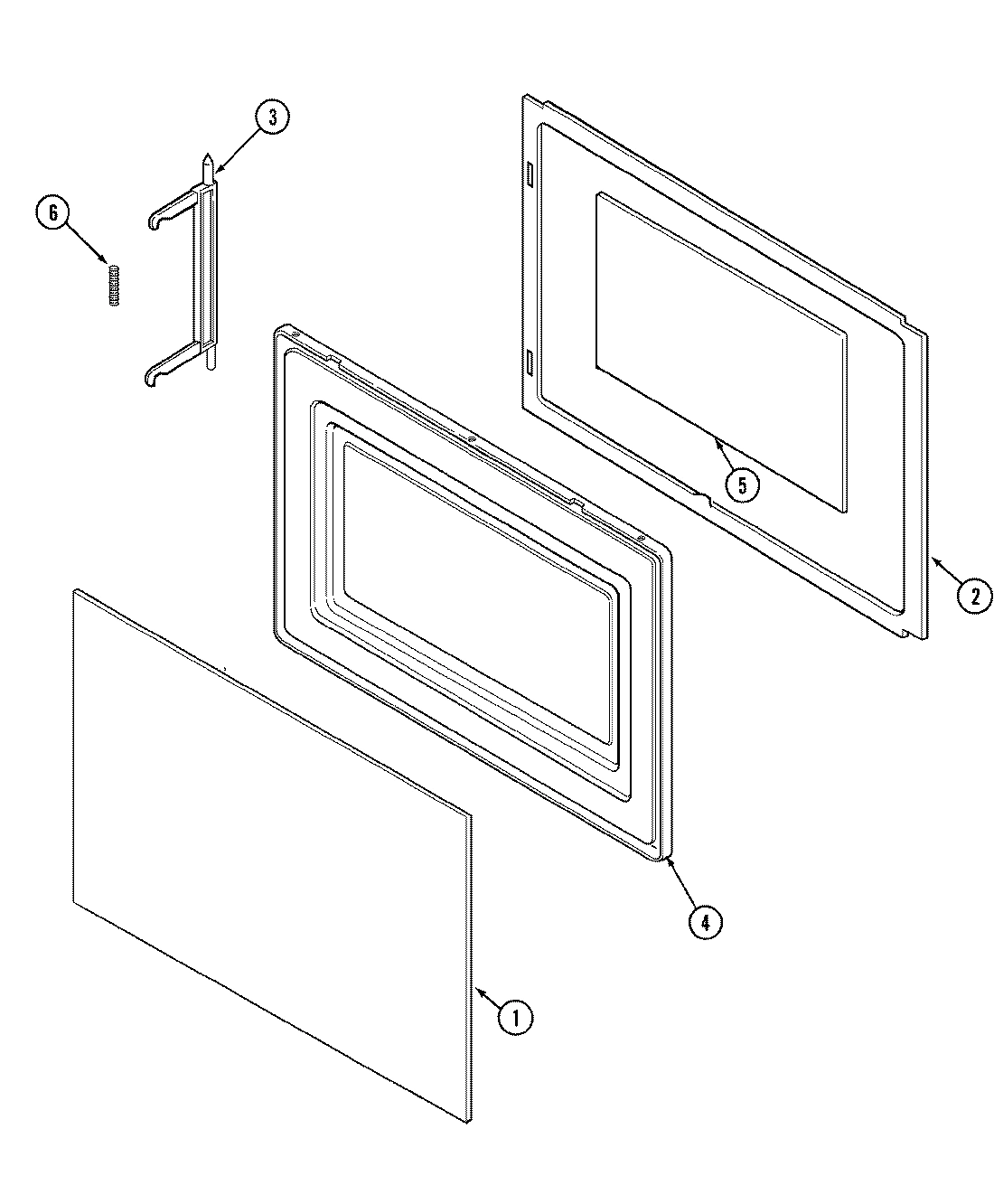

03 - DOOR

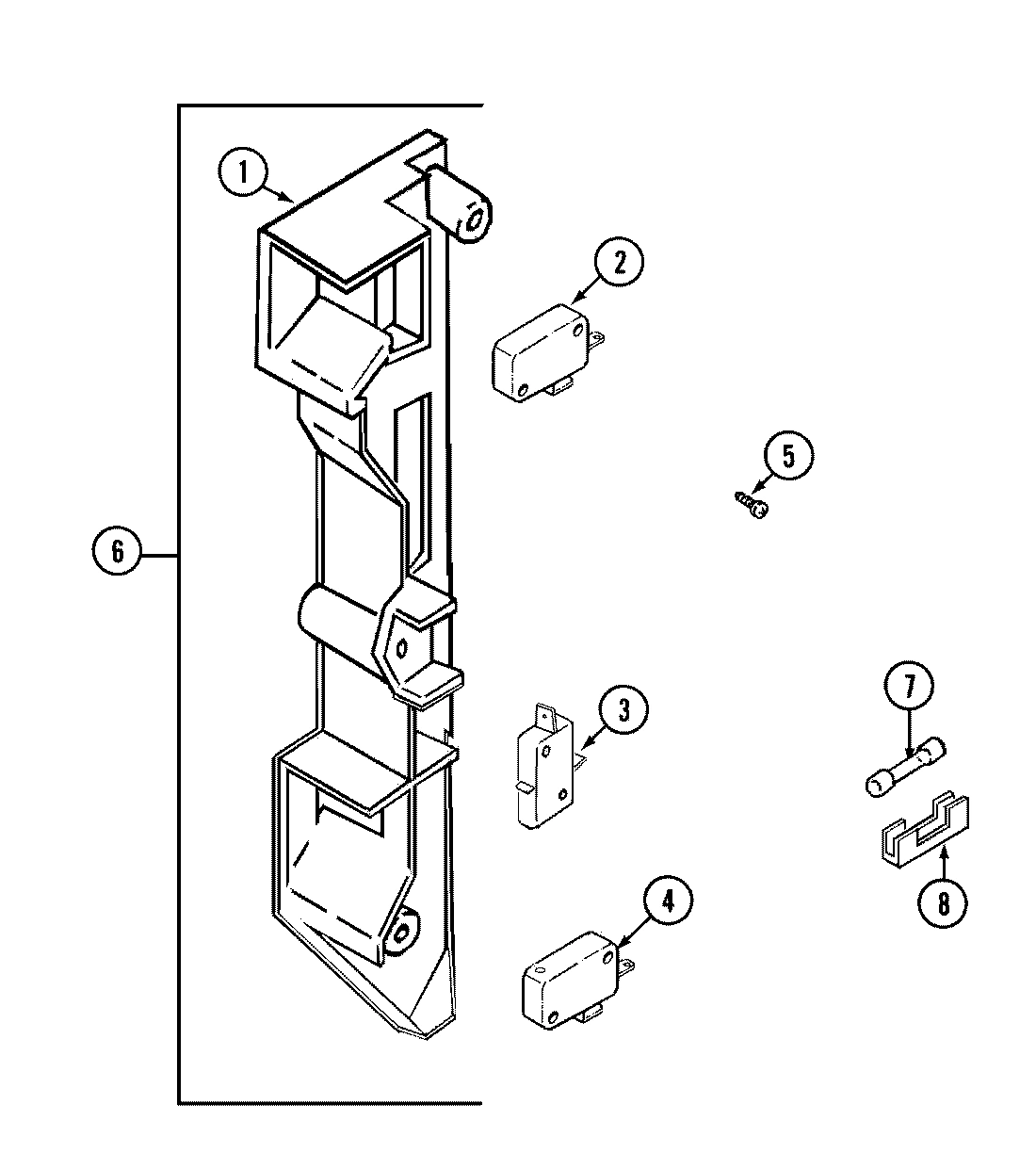

04 - INTERLOCK SWITCHES

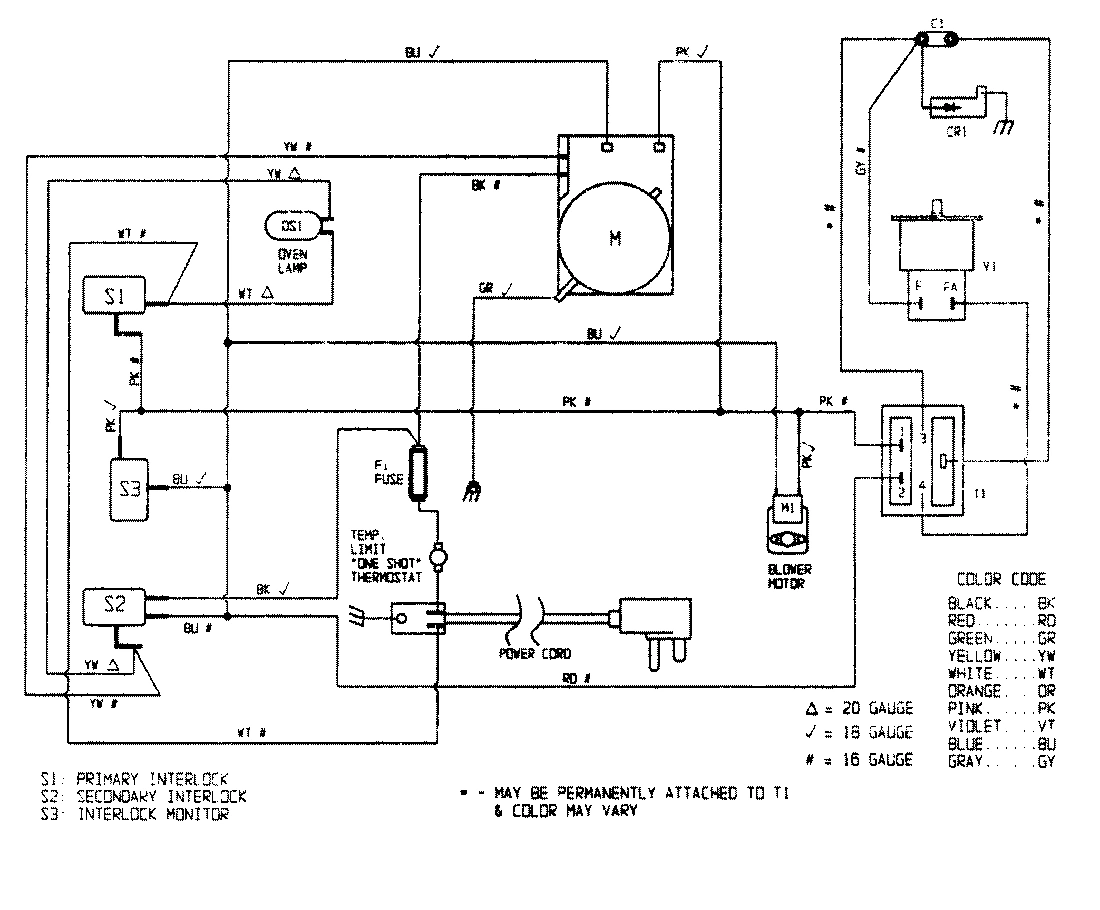

06 - WIRING INFORMATION
Common parts from model Whirlpool CR151KWH MICROWAVE
1
KNOB, CONTROL (WHT) WPL 51001158 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
WINDOW, DOOR (OUTER-WHT) WPL 51001155 Contact Us For Availability
1
BRACKET, SWITCH WPL 51001043 Contact Us For Availability
2
BRACKET, CONTROL WPL 51001067 Contact Us For Availability
2
CAPACITOR (800/1100 WATT) WPL 51001301 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
CHOKE, DOOR (WHT) WPL 51001154 Contact Us For Availability
2
SWITCH, INTERLOCK (PRIMARY) WPL 51001044 Contact Us For Availability
3
TRIM, CONTROL (WHT) WPL 51001159 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
3
MOTOR, FAN WPL 51001228 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
LATCH, STRIKE WPL 51001036 Contact Us For Availability
3
SWITCH, INTERLOCK (MONITOR) WPL 51001045 Contact Us For Availability
4
TIMER, 15 MINUTE WPL 01070043 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
4
CAVITY (WHT) WPL 51001079 Contact Us For Availability
4
LINING, DOOR (WHT) WPL 51001153 Contact Us For Availability
4
SWITCH, INTERLOCK (SECONDARY) WPL 51001046 Contact Us For Availability
5
INSERT, OVERLAY (WHT) WPL 51001157 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
5
SCREW WPL 51001094 Contact Us For Availability
5
SCREW WPL 03020060 Contact Us For Availability
5
LOCKWASHER No.6 WPL 03030001 Contact Us For Availability
5
WRAPPER, CABINET (WHT) WPL 51001099 Contact Us For Availability
5
WINDOW, DOOR (INNER) WPL 51001039 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
6
INTERLOCK ASSY. WPL 51001077 Contact Us For Availability
6
SPRING, DOOR WPL 51001037 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
7
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
8
BAFFLE, BULB WPL 51001030 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
8
HOLDER, FUSE WPL Y01100044 Contact Us For Availability
8
TRAY, PLASTIC (WHT) WPL 51001072 Contact Us For Availability
9
MAGNETRON (700 WATT) WPL 51001074 Contact Us For Availability
9
SCREW WPL 03020030 Contact Us For Availability
9
CORD, POWER WPL 51001202 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
10
BUTTON, DOOR RELEASE (WHT) WPL 51001156 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
11
HINGE, DOOR (LOWER) WPL 51001047 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001057 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
12
HINGE, DOOR (UPPER) WPL 51001035 Contact Us For Availability
13
WASHER WPL 51001100 Contact Us For Availability
13
SCREW WPL Y03020076 Contact Us For Availability
14
FOOT, BASE WPL 02230012 Contact Us For Availability
14
FOOT, BASE WPL Y02230009 Contact Us For Availability
15
SCREW WPL 257764 Contact Us For Availability
15
TRANSFORMER (700 WATT) WPL 51001073 Contact Us For Availability
16
HARNESS, WIRE (MAIN) WPL 51001102 Contact Us For Availability
18
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 51001126 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 51001332 Contact Us For Availability
NI
CLIP WPL Y03110078 Contact Us For Availability
NI
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001294 Contact Us For Availability
× ![]()
