Model Whirlpool CPT08D1A1 AIR CONDITIONER – Common Parts & Diagrams

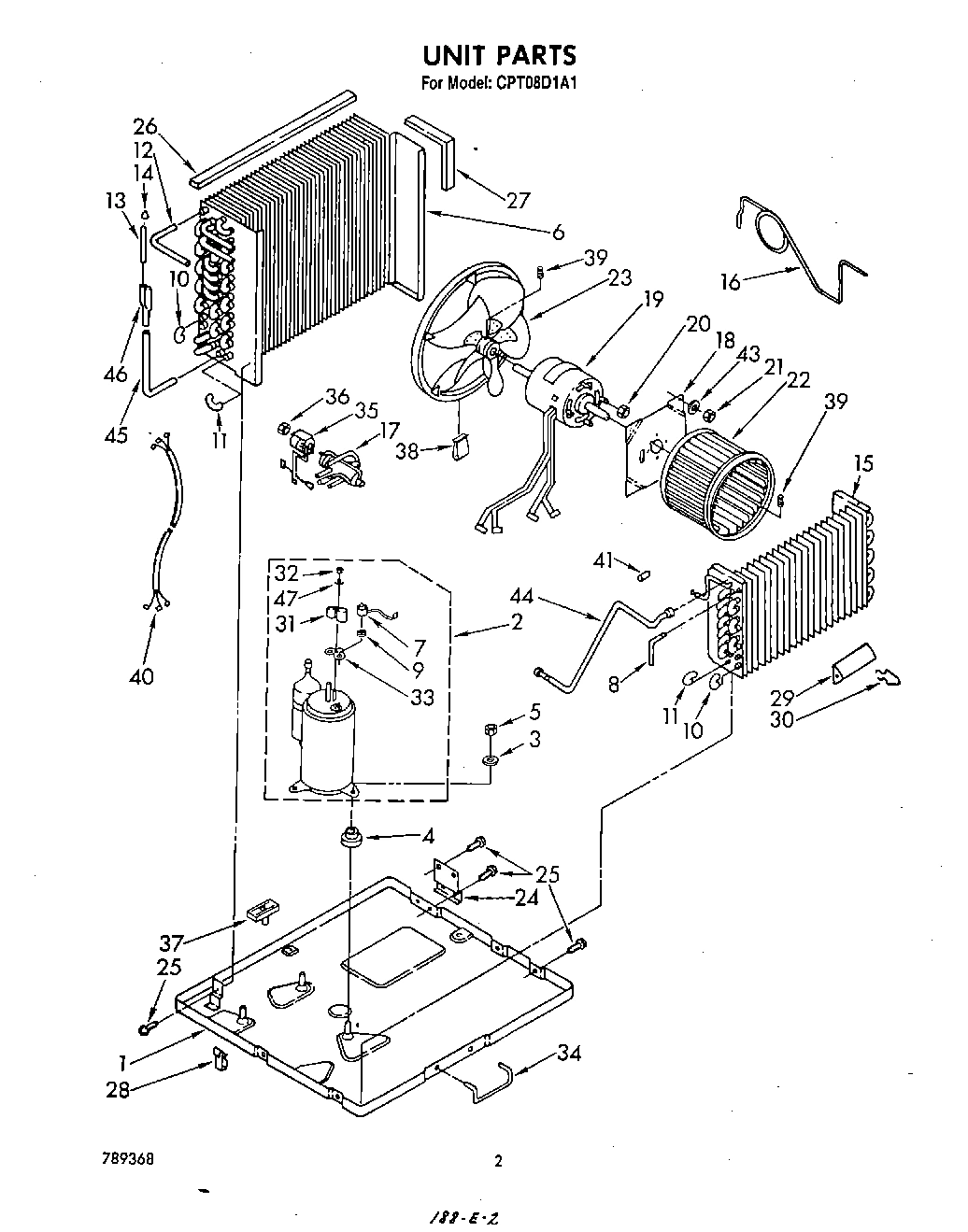

02 - UNIT

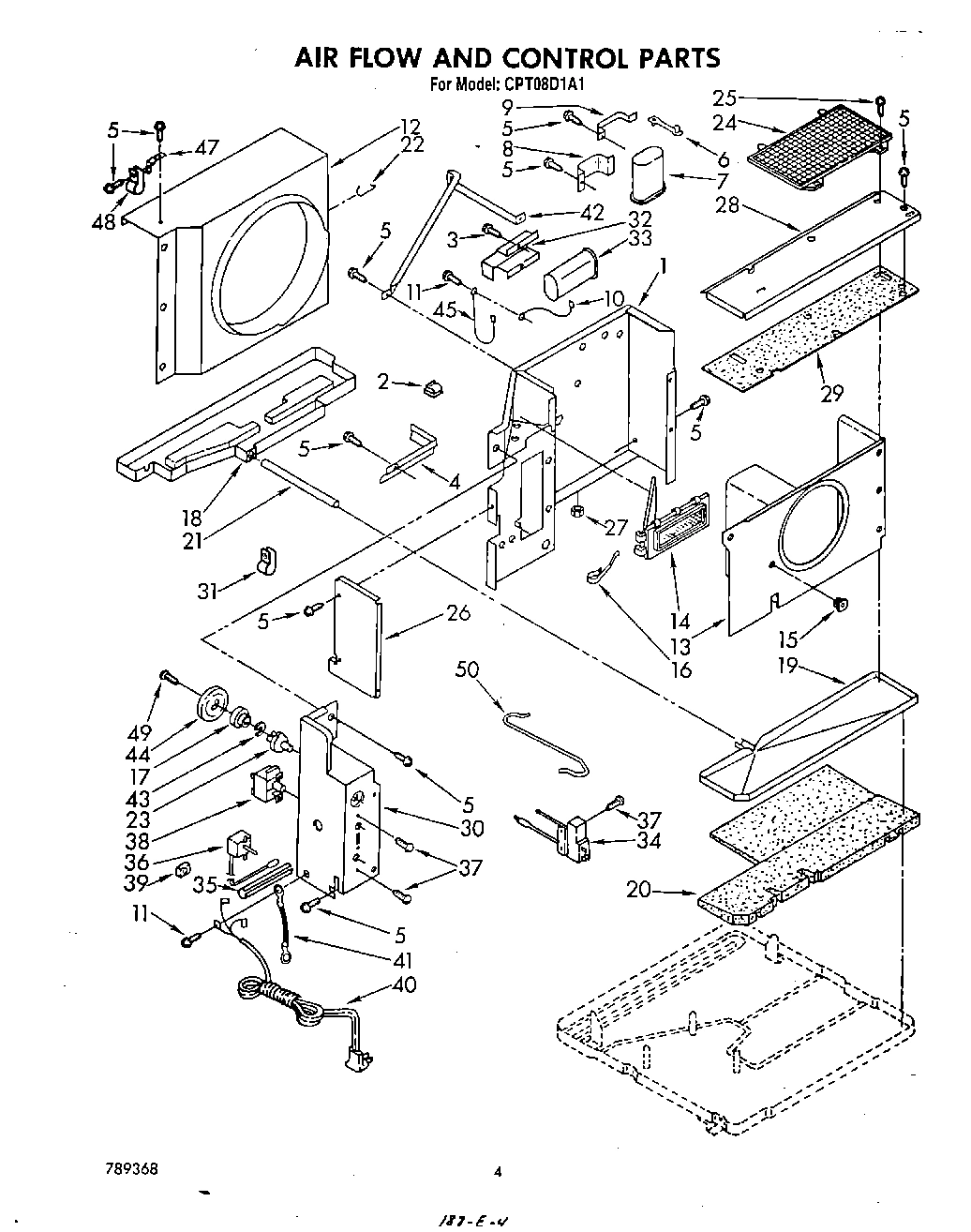

03 - AIR FLOW AND CONTROL , LIT/OPTIONAL

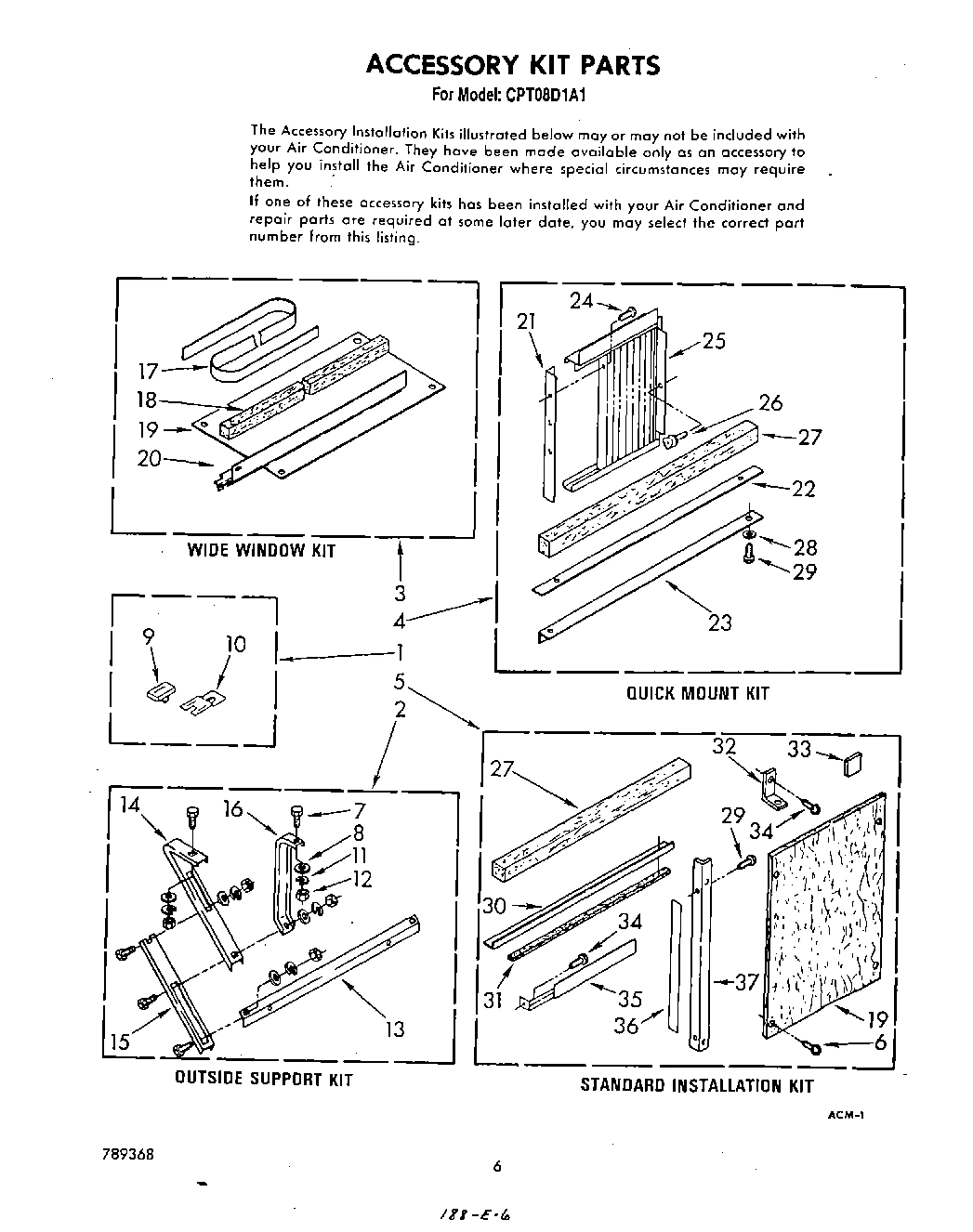

04 - ACCESSORY KIT

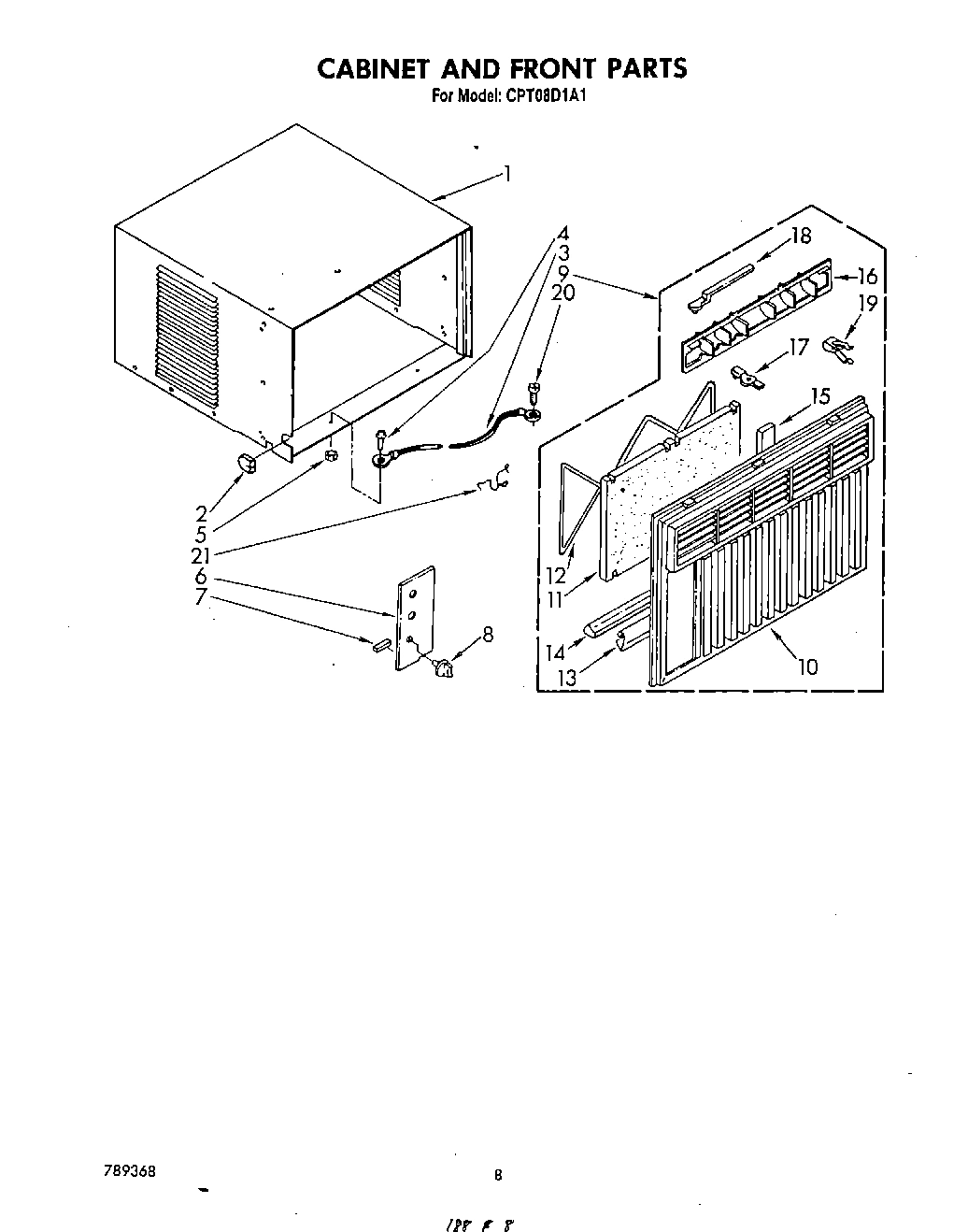

05 - CABINET AND FRONT
Common parts from model Whirlpool CPT08D1A1 AIR CONDITIONER
WPL LIT789368 WPL LIT789368 Contact Us For Availability
WPL LIT951455 WPL LIT951455 Contact Us For Availability
WPL LIT953077 WPL LIT953077 Contact Us For Availability
WPL LIT953096 WPL LIT953096 Contact Us For Availability
1
Wall, Dividing (Requires Insulation No. 46993 WPL 998003 Contact Us For Availability
1
Kit, Condensate Cup WPL 978929 Contact Us For Availability
1
WPL 858828 WPL 858828 Contact Us For Availability
2
WPL 465585 WPL 465585 Contact Us For Availability
2
WPL 485679 WPL 485679 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
3
Screw, Sm 10 x 3/8 (Repair) WPL 488481 Contact Us For Availability
3
WPL 485676 WPL 485676 Contact Us For Availability
3
Wire, Ground WPL 857017 Contact Us For Availability
4
WPL 852317 WPL 852317 Contact Us For Availability
4
WPL 485675 WPL 485675 Contact Us For Availability
4
Screw, Machine 8-32 x 3/8 WPL 488853 Contact Us For Availability
5
WPL 485674 WPL 485674 Contact Us For Availability
6
WPL 648791 WPL 648791 Contact Us For Availability
6
WPL 953003 WPL 953003 Contact Us For Availability
7
WPL 951444 WPL 951444 Contact Us For Availability
7
Bolt, 1/4-20 x 3/4 WPL 488750 Contact Us For Availability
7
Spacer, Plate (3) WPL 470036 Contact Us For Availability
8
WPL 475844 WPL 475844 Contact Us For Availability
8
Knob, Control (3) WPL 953054 Contact Us For Availability
9
Cup, Condensate WPL 647850 Contact Us For Availability
9
Bracket, Capacitor WPL 852992 Contact Us For Availability
9
WPL 953021 WPL 953021 Contact Us For Availability
10
Wire, Ground WPL 948285 Contact Us For Availability
10
WPL 995075 WPL 995075 Contact Us For Availability
10
WPL 953017 WPL 953017 Contact Us For Availability
11
WPL 486009 WPL 486009 Contact Us For Availability
11
Bend, Return Condenser (4) Evaportor (6) WPL 854624 Contact Us For Availability
11
WPL 648008 WPL 648008 Contact Us For Availability
12
Tube, 90~ Connect WPL 475635 Contact Us For Availability
12
WPL 647862 WPL 647862 Contact Us For Availability
12
Nut, 1/4-20 WPL 486035 Contact Us For Availability
12
WPL 476707 WPL 476707 Contact Us For Availability
13
Tube, Outlet (Includes No.14) WPL 484230 Contact Us For Availability
13
Housing, Wheel WPL 852875 Contact Us For Availability
13
Bracket, Cabinet Support WPL 644281 Contact Us For Availability
14
Strainer, Tube WPL 49599 Contact Us For Availability
14
WPL 649720 WPL 649720 Contact Us For Availability
14
Support, Cabinet (2) WPL 644283 Contact Us For Availability
14
Seal, Cabinet Front WPL 647914 Contact Us For Availability
15
WPL 951446 WPL 951446 Contact Us For Availability
15
Fastener, snap (2) WPL 487808 Contact Us For Availability
15
WPL 644284 WPL 644284 Contact Us For Availability
15
WPL 649198 WPL 649198 Contact Us For Availability
16
WPL 951448 WPL 951448 Contact Us For Availability
16
Spring, Door WPL 859369 Contact Us For Availability
16
Retainer, Support (2) WPL 644285 Contact Us For Availability
16
WPL 953068 WPL 953068 Contact Us For Availability
17
WPL 467396 WPL 467396 Contact Us For Availability
17
Bushing, Shaft WPL 647879 Contact Us For Availability
17
Handle, Vertical Louver WPL 953159 Contact Us For Availability
18
Plate, Fan Motor WPL 998024 Contact Us For Availability
18
Pan, Condensate Condenser WPL 852993 Contact Us For Availability
18
WPL 479158 WPL 479158 Contact Us For Availability
18
Link, Vertical Louver WPL 953067 Contact Us For Availability
19
WPL 998368 WPL 998368 Contact Us For Availability
19
Pan, Condensate Evaporator WPL 853268 Contact Us For Availability
19
Board, Filler (2) WPL 647835 Contact Us For Availability
19
WPL 641484 WPL 641484 Contact Us For Availability
20
Insulation, Pan WPL 853269 Contact Us For Availability
20
WPL 485454 WPL 485454 Contact Us For Availability
20
WPL 485455 WPL 485455 Contact Us For Availability
20
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
21
Locknut (4) WPL 858122 Contact Us For Availability
21
WPL 49181 WPL 49181 Contact Us For Availability
21
WPL 644388 WPL 644388 Contact Us For Availability
21
Clip, Cabinet Front (2) WPL 949634 Contact Us For Availability
22
WPL 859495 WPL 859495 Contact Us For Availability
22
Retainer, Shroud WPL 647873 Contact Us For Availability
22
WPL 477597 WPL 477597 Contact Us For Availability
23
WPL 859496 WPL 859496 Contact Us For Availability
23
WPL 852023 WPL 852023 Contact Us For Availability
23
Channel, Bottom Mounting WPL 644387 Contact Us For Availability
24
WPL 647824 WPL 647824 Contact Us For Availability
24
Guard, Impeller WPL 997949 Contact Us For Availability
24
Screw, SM 8 x 7/16A (6) WPL 488730 Contact Us For Availability
25
WPL 647840 WPL 647840 Contact Us For Availability
25
WPL 647841 WPL 647841 Contact Us For Availability
26
WPL 649609 WPL 649609 Contact Us For Availability
26
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
26
WPL 475581 WPL 475581 Contact Us For Availability
27
WPL 649610 WPL 649610 Contact Us For Availability
27
WPL 649620 WPL 649620 Contact Us For Availability
27
Seal, Meeting Rail WPL 469877 Contact Us For Availability
28
Clamp, Tube WPL 471088 Contact Us For Availability
28
WPL 856957 WPL 856957 Contact Us For Availability
28
WPL 488520 WPL 488520 Contact Us For Availability
29
WPL 475573 WPL 475573 Contact Us For Availability
29
Insulation, Cover WPL 948410 Contact Us For Availability
30
WPL 475577 WPL 475577 Contact Us For Availability
30
WPL 951086 WPL 951086 Contact Us For Availability
30
Channel, Top Mounting WPL 644380 Contact Us For Availability
31
Clamp, Wiring WPL 947072 Contact Us For Availability
31
Seal WPL 855265 Contact Us For Availability
32
Bracket, Fan Capacitor WPL 998009 Contact Us For Availability
32
Bracket, Window Lock WPL 644228 Contact Us For Availability
33
Capacitor, Fan Motor WPL 950192 Contact Us For Availability
33
Block, Spacer (4) WPL 995274 Contact Us For Availability
34
WPL 647971 WPL 647971 Contact Us For Availability
34
WPL 950634 WPL 950634 Contact Us For Availability
34
Wood Screw, 8 x 3/4 (5) WPL 488255 Contact Us For Availability
35
WPL 852978 WPL 852978 Contact Us For Availability
35
Sleeve, Insulation (Temp. Control) WPL 475841 Contact Us For Availability
35
WPL 645562 WPL 645562 Contact Us For Availability
35
WPL 645563 WPL 645563 Contact Us For Availability
36
WPL 853275 WPL 853275 Contact Us For Availability
36
WPL 856979 WPL 856979 Contact Us For Availability
37
Screw, Mach 6-32 x .175 WPL 488734 Contact Us For Availability
37
WPL 485687 WPL 485687 Contact Us For Availability
37
WPL 485688 WPL 485688 Contact Us For Availability
37
WPL 485706 WPL 485706 Contact Us For Availability
37
WPL 485707 WPL 485707 Contact Us For Availability
37
Angle, Side Mounting (2) WPL 645564 Contact Us For Availability
37
WPL 978930 WPL 978930 Contact Us For Availability
37
WPL 993380 WPL 993380 Contact Us For Availability
38
WPL 950525 WPL 950525 Contact Us For Availability
39
Setscrew, 5/16 x 1/4 (2) WPL 595085 Contact Us For Availability
39
Grommet, Wiring WPL 647865 Contact Us For Availability
40
Harness, Wiring WPL 484136 Contact Us For Availability
40
WPL 648535 WPL 648535 Contact Us For Availability
41
Strainer WPL 474013 Contact Us For Availability
41
WPL 857634 WPL 857634 Contact Us For Availability
42
WPL 852318 WPL 852318 Contact Us For Availability
43
Washer WPL 470280 Contact Us For Availability
43
WPL 647881 WPL 647881 Contact Us For Availability
44
Muffler, Tube (Includes No. 41) WPL 998355 Contact Us For Availability
44
Cam, Shaft WPL 647882 Contact Us For Availability
45
Tube, 90~ Connect WPL 950814 Contact Us For Availability
45
WPL 998010 WPL 998010 Contact Us For Availability
46
Tube, Flow Diver WPL 947364 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
47
WPL 10943 WPL 10943 Contact Us For Availability
47
WPL 484310 WPL 484310 Contact Us For Availability
47
WPL 950037 WPL 950037 Contact Us For Availability
47
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
WPL 947321 WPL 947321 Contact Us For Availability
48
Clamp, Discharge Tube WPL 43996 Contact Us For Availability
50
WPL 484069 WPL 484069 Contact Us For Availability
50
WPL 47261 WPL 47261 Contact Us For Availability
50
WPL 47262 WPL 47262 Contact Us For Availability
50
WPL 47263 WPL 47263 Contact Us For Availability
50
WPL 485426 WPL 485426 Contact Us For Availability
50
WPL 647847 WPL 647847 Contact Us For Availability
50
WPL 647848 WPL 647848 Contact Us For Availability
50
WPL 647854 WPL 647854 Contact Us For Availability
50
Wire, Control (Red) WPL 859370 Contact Us For Availability
50
WPL 950157 WPL 950157 Contact Us For Availability
× ![]()
