Model Maytag CPM9841A689DG GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

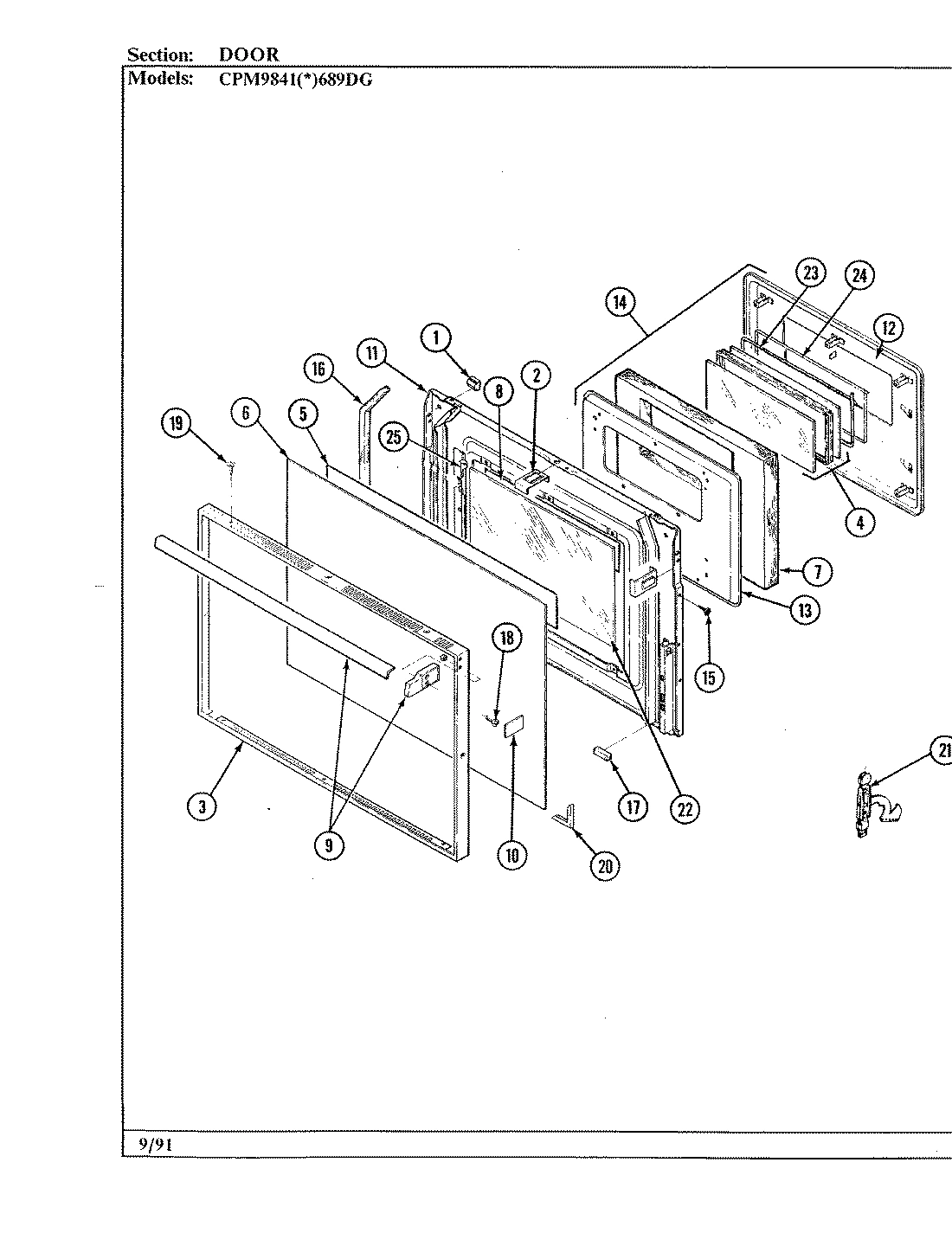

03 - DOOR

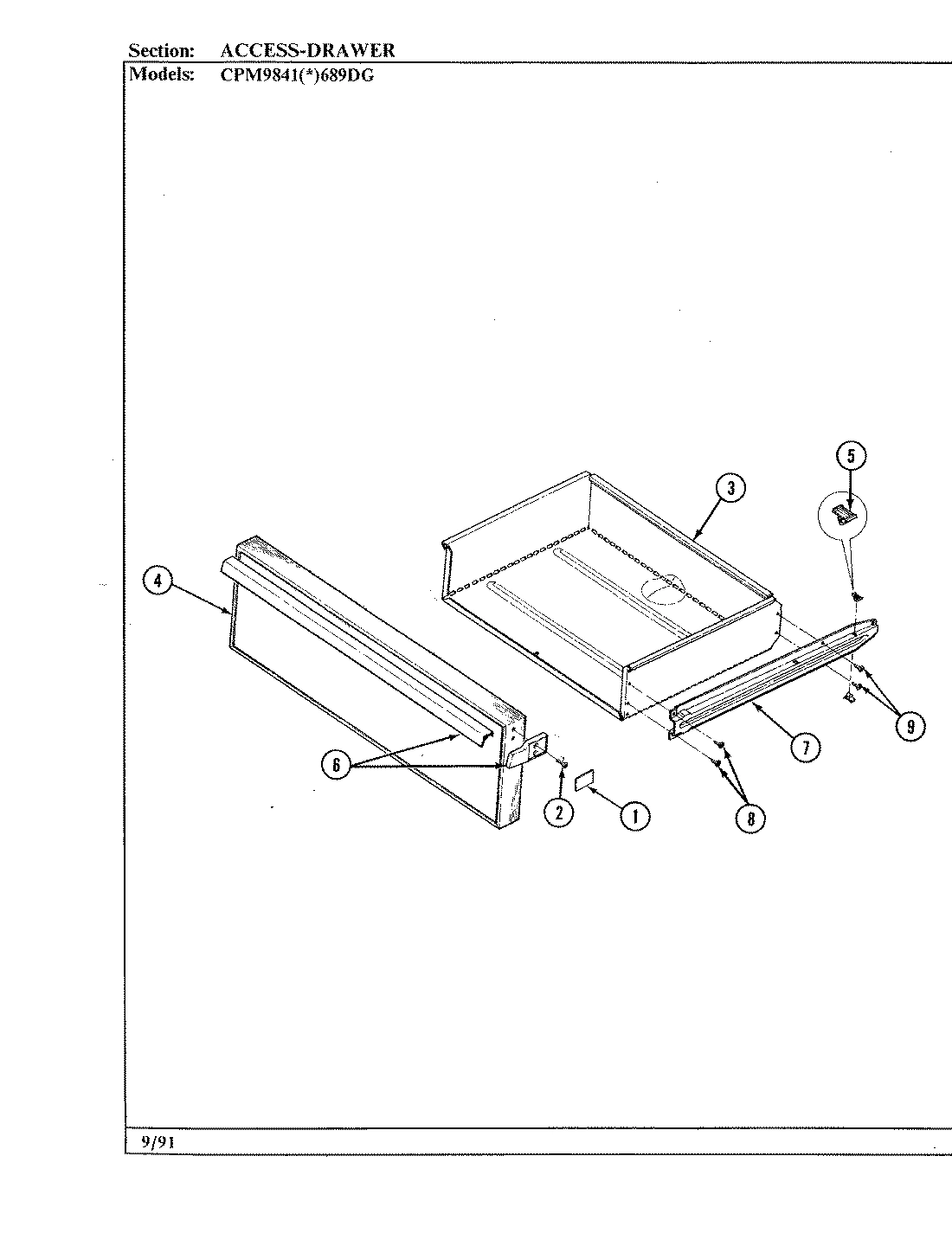

04 - DRAWER

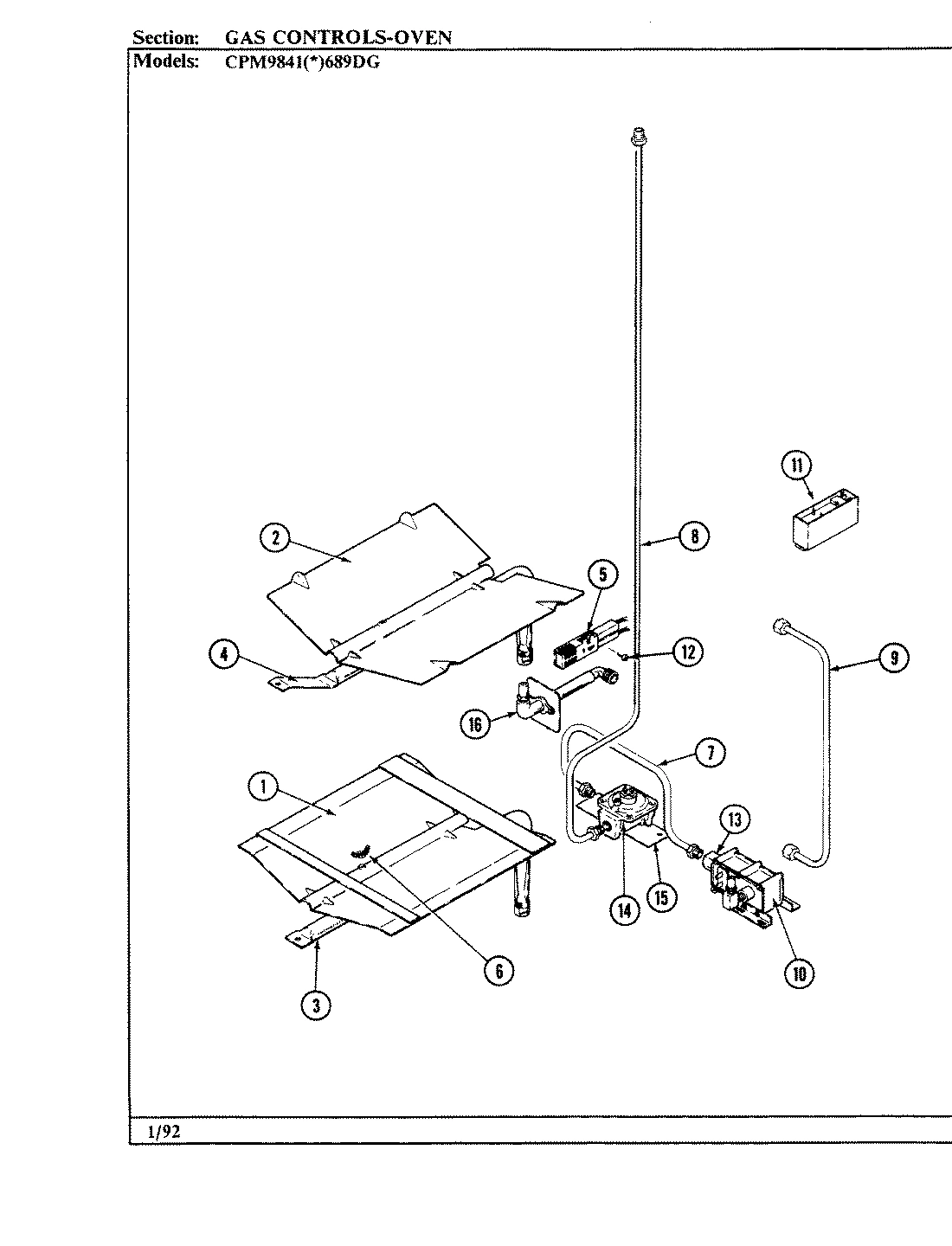

05 - GAS CONTROLS

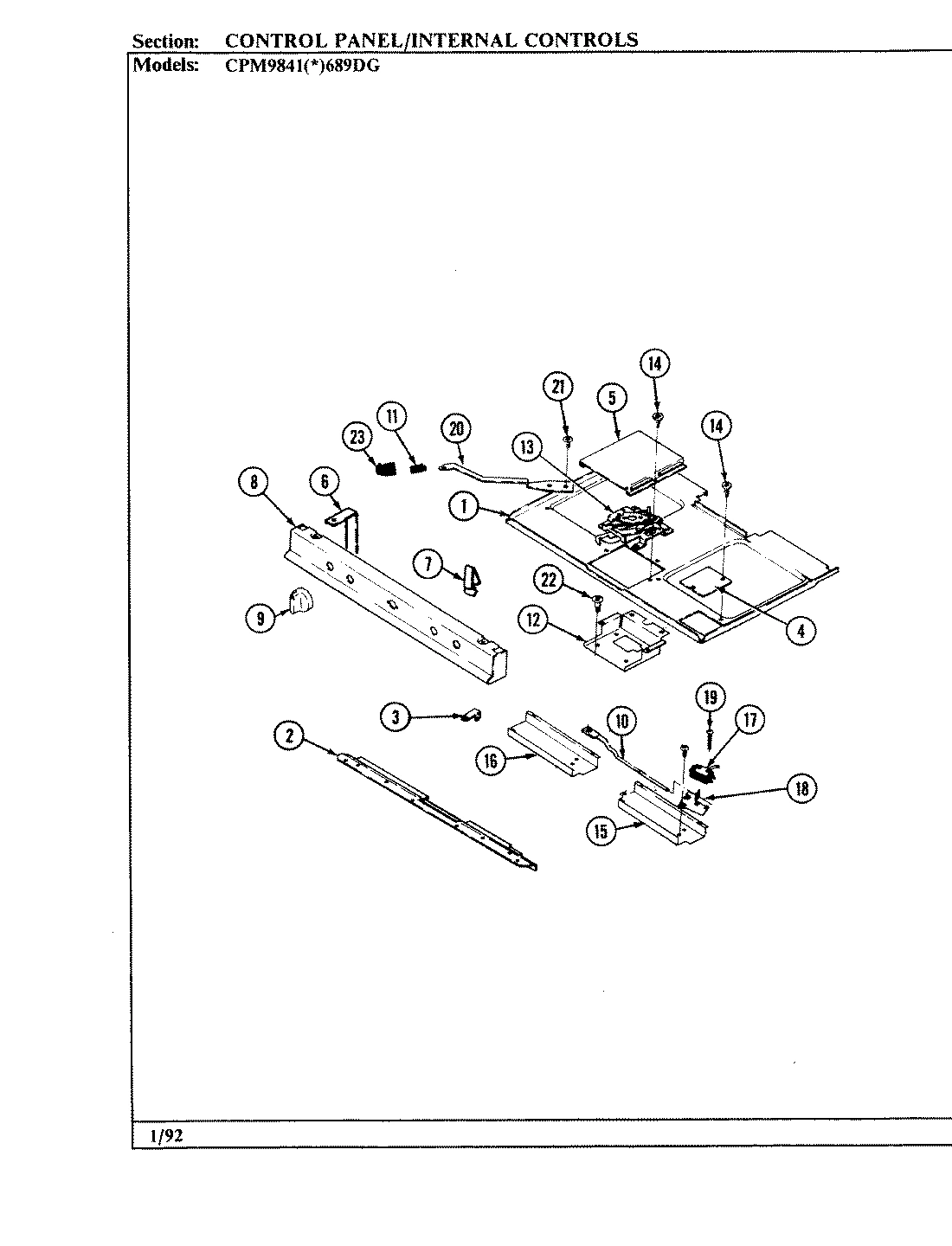

06 - INTERNAL CONTROLS

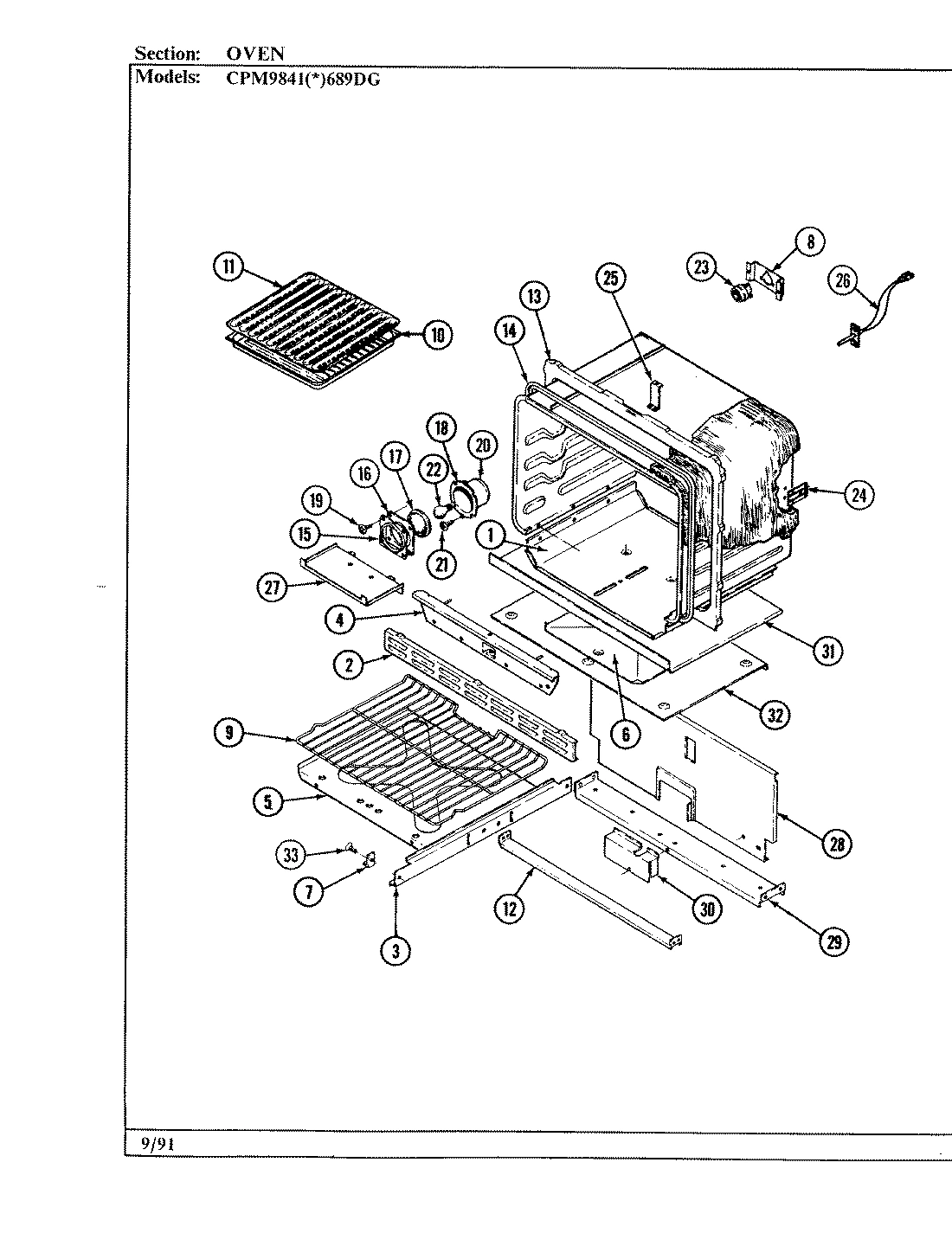

07 - OVEN

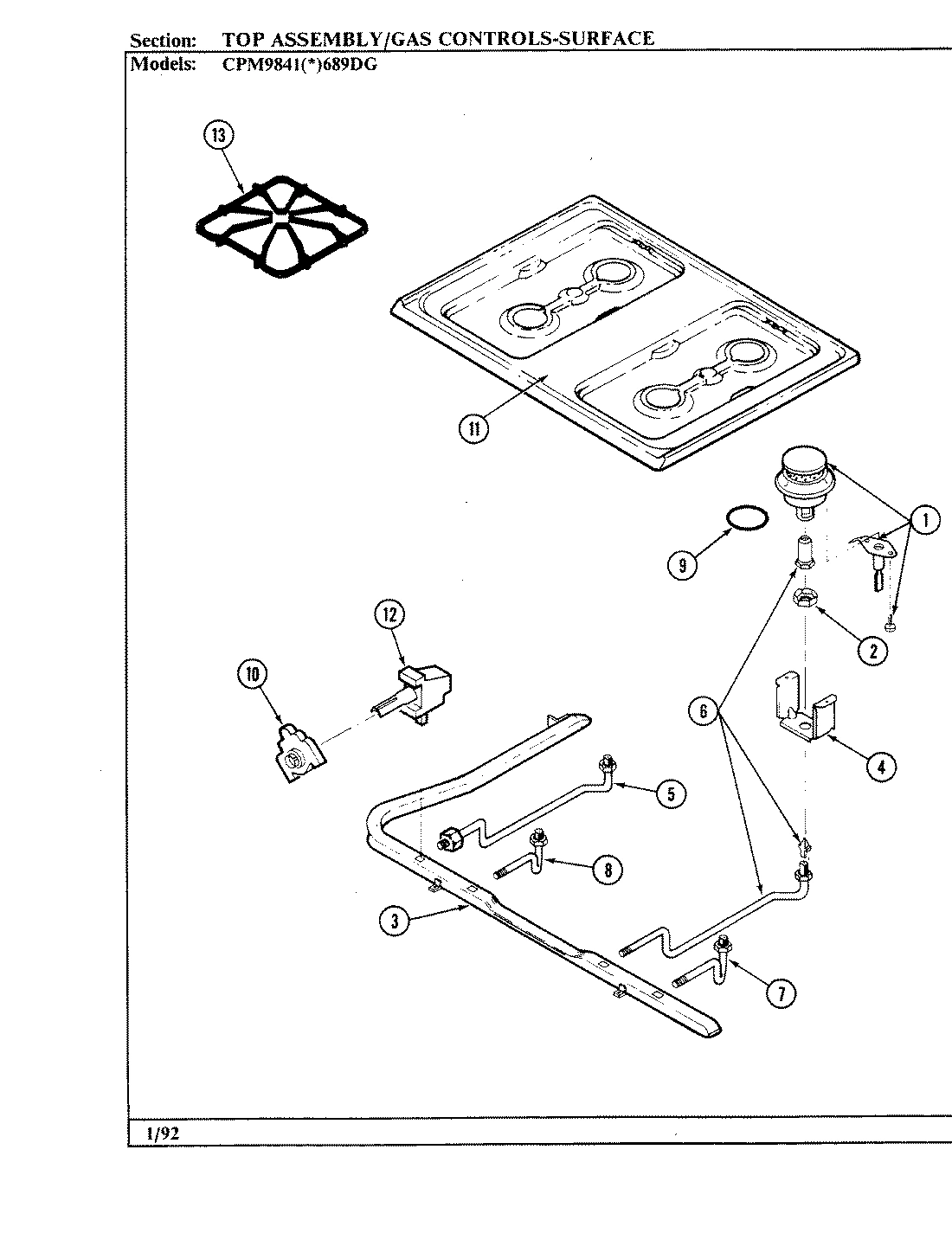

08 - TOP ASSEMBLY
Common parts from model Maytag CPM9841A689DG GAS RANGE
1
MAY 5111A360-60 MAY 5111A360-60 Contact Us For Availability
1
MAY 7726P031-60 MAY 7726P031-60 Contact Us For Availability
1
MAY 7726P032-60 MAY 7726P032-60 Contact Us For Availability
1
MAY 8003P009-60 MAY 8003P009-60 Contact Us For Availability
1
MAY 7728P068-60 MAY 7728P068-60 Contact Us For Availability
1
MAY 3601W184-19 MAY 3601W184-19 Contact Us For Availability
1
MAY 4011F200-80 MAY 4011F200-80 Contact Us For Availability
1
MAY 4001F060-45 MAY 4001F060-45 Contact Us For Availability
1
MAY 3412D015-14 MAY 3412D015-14 Contact Us For Availability
1
MAY 5111A361-60 MAY 5111A361-60 Contact Us For Availability
1
MAY 7118P010-60 MAY 7118P010-60 Contact Us For Availability
1
MAY 7432P072-60 MAY 7432P072-60 Contact Us For Availability
2
MAY 4005F155-80 MAY 4005F155-80 Contact Us For Availability
2
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
2
MAY 7101P123-60 MAY 7101P123-60 Contact Us For Availability
2
MAY 3601F181-45 MAY 3601F181-45 Contact Us For Availability
2
MAY 4012F020-80 MAY 4012F020-80 Contact Us For Availability
2
MAY 2614F008-80 MAY 2614F008-80 Contact Us For Availability
2
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
3
MAY 4005F393-80 MAY 4005F393-80 Contact Us For Availability
3
MAY 7706P243-60 MAY 7706P243-60 Contact Us For Availability
3
MAY 3405F008-80 MAY 3405F008-80 Contact Us For Availability
3
MAY 3403D027-45 MAY 3403D027-45 Contact Us For Availability
3
MAY 3801F047-34 MAY 3801F047-34 Contact Us For Availability
3
MAY 3801F049-34 MAY 3801F049-34 Contact Us For Availability
3
MAY 3406F027-51 MAY 3406F027-51 Contact Us For Availability
3
MAY 7513P104-60 MAY 7513P104-60 Contact Us For Availability
4
MAY 7101P058-60 MAY 7101P058-60 Contact Us For Availability
4
MAY 7910P154-60 MAY 7910P154-60 Contact Us For Availability
4
MAY 7910P161-60 MAY 7910P161-60 Contact Us For Availability
4
MAY 7902S303-60 MAY 7902S303-60 Contact Us For Availability
4
MAY 5425A021-74K MAY 5425A021-74K Contact Us For Availability
4
MAY 3403D028-45 MAY 3403D028-45 Contact Us For Availability
4
MAY 4005F139-51 MAY 4005F139-51 Contact Us For Availability
4
MAY 3601W125-19 MAY 3601W125-19 Contact Us For Availability
4
MAY 3807F378-45 MAY 3807F378-45 Contact Us For Availability
5
MAY 3418A030-34 MAY 3418A030-34 Contact Us For Availability
5
MAY 8016P008-60 MAY 8016P008-60 Contact Us For Availability
5
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
5
MAY 8016P004-60 MAY 8016P004-60 Contact Us For Availability
5
MAY 8016P009-60 MAY 8016P009-60 Contact Us For Availability
5
MAY 4005F363-45 MAY 4005F363-45 Contact Us For Availability
5
MAY 7432P067-60 MAY 7432P067-60 Contact Us For Availability
5
MAY 4005F137-80 MAY 4005F137-80 Contact Us For Availability
5
MAY 2205F020-21 MAY 2205F020-21 Contact Us For Availability
5
MAY 7507P092-60 MAY 7507P092-60 Contact Us For Availability
6
MAY 7112P019-60 MAY 7112P019-60 Contact Us For Availability
6
MAY 2601W328-81 MAY 2601W328-81 Contact Us For Availability
6
MAY 2601W328-84 MAY 2601W328-84 Contact Us For Availability
6
MAY 7902P277-60 MAY 7902P277-60 Contact Us For Availability
6
MAY 7701P032-60 MAY 7701P032-60 Contact Us For Availability
6
MAY 7701P031-60 MAY 7701P031-60 Contact Us For Availability
6
NUT, WING MAY 7103P030-60 Contact Us For Availability
6
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
6
MAY 3601F116-45 MAY 3601F116-45 Contact Us For Availability
6
MAY 7507P069-60 MAY 7507P069-60 Contact Us For Availability
7
MAY 2620W053-90 MAY 2620W053-90 Contact Us For Availability
7
MAY 4804F006-60 MAY 4804F006-60 Contact Us For Availability
7
MAY 3406F026-80 MAY 3406F026-80 Contact Us For Availability
7
MAY 7506P075-60 MAY 7506P075-60 Contact Us For Availability
7
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
7
MAY 8003P003-60 MAY 8003P003-60 Contact Us For Availability
7
MAY 8016P005-60 MAY 8016P005-60 Contact Us For Availability
7
MAY 7507P071-60 MAY 7507P071-60 Contact Us For Availability
8
MAY 7101P008-60 MAY 7101P008-60 Contact Us For Availability
8
MAY 8270P071-60 MAY 8270P071-60 Contact Us For Availability
8
MAY 7506P101-60 MAY 7506P101-60 Contact Us For Availability
8
MAY 3604F132-51 MAY 3604F132-51 Contact Us For Availability
8
MAY 7118P004-60 MAY 7118P004-60 Contact Us For Availability
8
MAY 7712A057-60 MAY 7712A057-60 Contact Us For Availability
8
MAY 7712P086-60 MAY 7712P086-60 Contact Us For Availability
8
MAY 3801F024-51 MAY 3801F024-51 Contact Us For Availability
8
MAY 7507P073-60 MAY 7507P073-60 Contact Us For Availability
9
MAY 3601F214-51 MAY 3601F214-51 Contact Us For Availability
9
MAY 7105P002-60 MAY 7105P002-60 Contact Us For Availability
9
MAY 3414F057-44 MAY 3414F057-44 Contact Us For Availability
9
MAY 7711P343-60 MAY 7711P343-60 Contact Us For Availability
9
MAY 7801P031-60 MAY 7801P031-60 Contact Us For Availability
9
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
10
MAY 3601F107-51 MAY 3601F107-51 Contact Us For Availability
10
MAY 7501P095-60 MAY 7501P095-60 Contact Us For Availability
10
MAY 7807P012-60 MAY 7807P012-60 Contact Us For Availability
10
MAY 3401F004-19 MAY 3401F004-19 Contact Us For Availability
11
MAY 8003P011-60 MAY 8003P011-60 Contact Us For Availability
11
MAY 3807F348-51 MAY 3807F348-51 Contact Us For Availability
11
MAY 3807F349-51 MAY 3807F349-51 Contact Us For Availability
11
MAY 2402W173-19 MAY 2402W173-19 Contact Us For Availability
11
MAY 8114P274-60 MAY 8114P274-60 Contact Us For Availability
11
MAY 3801F270-45 MAY 3801F270-45 Contact Us For Availability
11
MAY 7431P021-60 MAY 7431P021-60 Contact Us For Availability
11
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
11
MAY 3413F002-19 MAY 3413F002-19 Contact Us For Availability
11
MAY 2001F080-84 MAY 2001F080-84 Contact Us For Availability
12
MAY 7112P073-60 MAY 7112P073-60 Contact Us For Availability
12
MAY 2410W041-19 MAY 2410W041-19 Contact Us For Availability
12
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
12
MAY 3807F408-45 MAY 3807F408-45 Contact Us For Availability
12
MAY 3802F076-51 MAY 3802F076-51 Contact Us For Availability
12
MAY 7101P296-60 MAY 7101P296-60 Contact Us For Availability
12
MAY 7502P220-60 MAY 7502P220-60 Contact Us For Availability
13
MAY 3601F112-51 MAY 3601F112-51 Contact Us For Availability
13
MAY 7742P009-60 MAY 7742P009-60 Contact Us For Availability
13
MAY 2410F016-51 MAY 2410F016-51 Contact Us For Availability
13
MAY 1555251 MAY 1555251 Contact Us For Availability
13
MAY 3604F159-45 MAY 3604F159-45 Contact Us For Availability
13
MAY 8002P021-60 MAY 8002P021-60 Contact Us For Availability
13
MAY W10124350 MAY W10124350 Contact Us For Availability
13
MAY 2003W023-00 MAY 2003W023-00 Contact Us For Availability
13
MAY 2003W023-14 MAY 2003W023-14 Contact Us For Availability
14
MAY 7201P036-60 MAY 7201P036-60 Contact Us For Availability
14
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
14
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
14
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
14
MAY 2410A041-19 MAY 2410A041-19 Contact Us For Availability
14
MAY 7510P048-60 MAY 7510P048-60 Contact Us For Availability
15
MAY 4006W026-19 MAY 4006W026-19 Contact Us For Availability
15
MAY 7401P015-60 MAY 7401P015-60 Contact Us For Availability
15
MAY 7107P017-60 MAY 7107P017-60 Contact Us For Availability
15
MAY 3801F191-45 MAY 3801F191-45 Contact Us For Availability
15
MAY 3818F027-45 MAY 3818F027-45 Contact Us For Availability
15
MAY 3804F012-45 MAY 3804F012-45 Contact Us For Availability
16
MAY 7201P013-60 MAY 7201P013-60 Contact Us For Availability
16
MAY 7601P181-60 MAY 7601P181-60 Contact Us For Availability
16
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
16
MAY 7507P067-60 MAY 7507P067-60 Contact Us For Availability
16
MAY 3818F049-45 MAY 3818F049-45 Contact Us For Availability
16
MAY 7201P015-60 MAY 7201P015-60 Contact Us For Availability
17
MAY 7401P018-60 MAY 7401P018-60 Contact Us For Availability
17
MAY 7402P024-60 MAY 7402P024-60 Contact Us For Availability
17
BUSHING, SNAP MAY 8007P003-60 Contact Us For Availability
17
MAY 5170P100-60 MAY 5170P100-60 Contact Us For Availability
17
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
17
MAY 7003P019-60 MAY 7003P019-60 Contact Us For Availability
17
MAY 7003P039-60 MAY 7003P039-60 Contact Us For Availability
17
MAY 7403P099-60 MAY 7403P099-60 Contact Us For Availability
17
MAY 7902P057-60 MAY 7902P057-60 Contact Us For Availability
18
MAY 2618F073-74 MAY 2618F073-74 Contact Us For Availability
18
MAY 7711P431-60 MAY 7711P431-60 Contact Us For Availability
18
MAY 7711P432-60 MAY 7711P432-60 Contact Us For Availability
18
MAY 3807F434-45 MAY 3807F434-45 Contact Us For Availability
18
MAY 7201P014-60 MAY 7201P014-60 Contact Us For Availability
19
MAY 7711P452-60 MAY 7711P452-60 Contact Us For Availability
19
MAY 7711P453-60 MAY 7711P453-60 Contact Us For Availability
19
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
19
MAY 7101P064-60 MAY 7101P064-60 Contact Us For Availability
20
MAY 8010P045-60 MAY 8010P045-60 Contact Us For Availability
20
MAY 4005F396-80 MAY 4005F396-80 Contact Us For Availability
20
MAY 8009P019-60 MAY 8009P019-60 Contact Us For Availability
20
MAY 4001F020-19 MAY 4001F020-19 Contact Us For Availability
21
MAY 3818F032-80 MAY 3818F032-80 Contact Us For Availability
21
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
21
MAY 3420A033-34 MAY 3420A033-34 Contact Us For Availability
21
MAY 7101P018-60 MAY 7101P018-60 Contact Us For Availability
22
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
22
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
22
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
23
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
23
MAY 7701P088-60 MAY 7701P088-60 Contact Us For Availability
23
MAY 7701P089-60 MAY 7701P089-60 Contact Us For Availability
23
MAY 7408P002-60 MAY 7408P002-60 Contact Us For Availability
24
MAY 3801F021-45 MAY 3801F021-45 Contact Us For Availability
24
MAY 3804F022-45 MAY 3804F022-45 Contact Us For Availability
24
MAY 3807F205-45 MAY 3807F205-45 Contact Us For Availability
25
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
25
MAY 3801F093-45 MAY 3801F093-45 Contact Us For Availability
26
MAY 7430P007-60 MAY 7430P007-60 Contact Us For Availability
27
MAY 3601W130-45 MAY 3601W130-45 Contact Us For Availability
27
MAY 7101P273-60 MAY 7101P273-60 Contact Us For Availability
28
MAY 4002F159-45 MAY 4002F159-45 Contact Us For Availability
29
MAY 3807F329-45 MAY 3807F329-45 Contact Us For Availability
30
MAY 4005F258-51 MAY 4005F258-51 Contact Us For Availability
31
MAY 3807F388-45 MAY 3807F388-45 Contact Us For Availability
32
MAY 3604F162-45 MAY 3604F162-45 Contact Us For Availability
33
MAY 7101P013-60 MAY 7101P013-60 Contact Us For Availability
× ![]()
