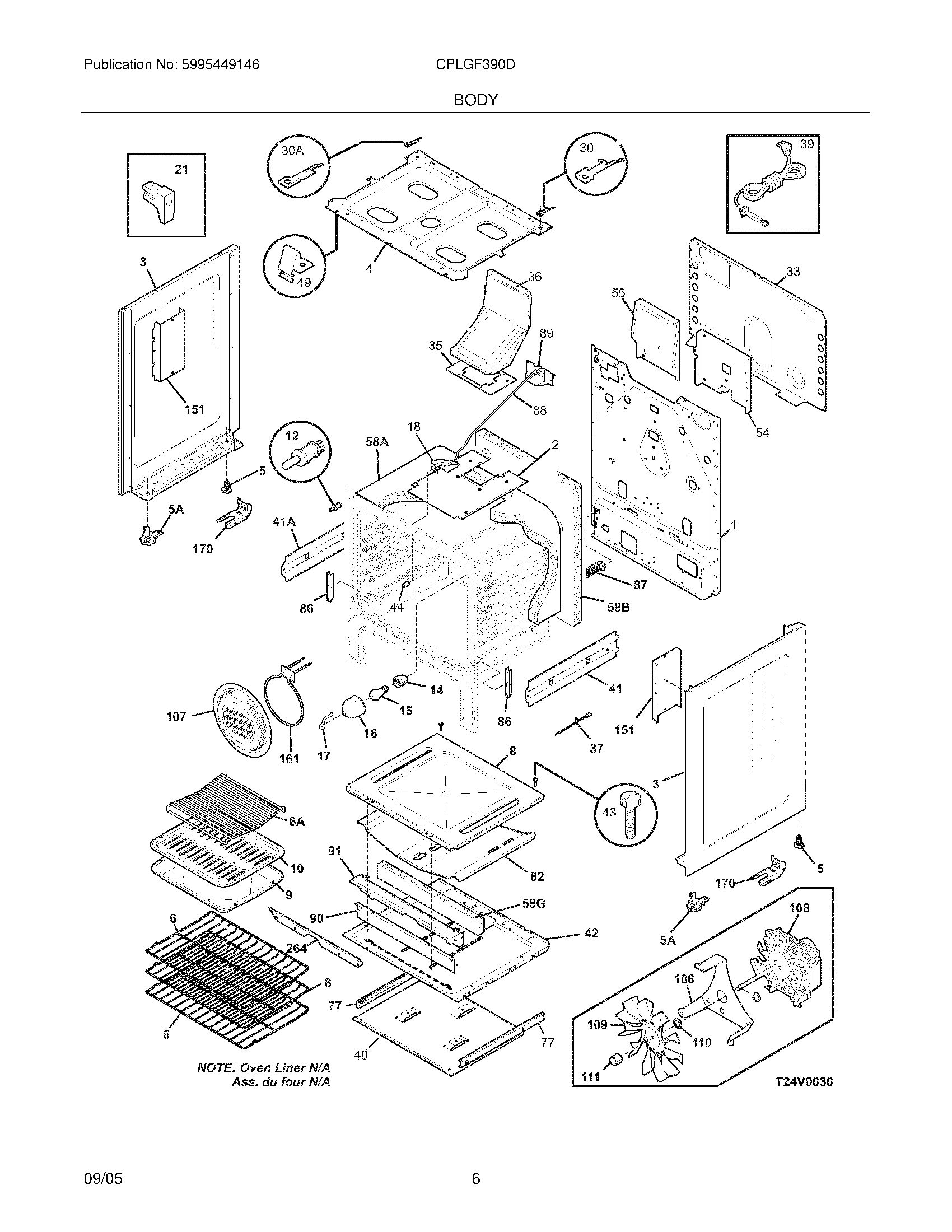

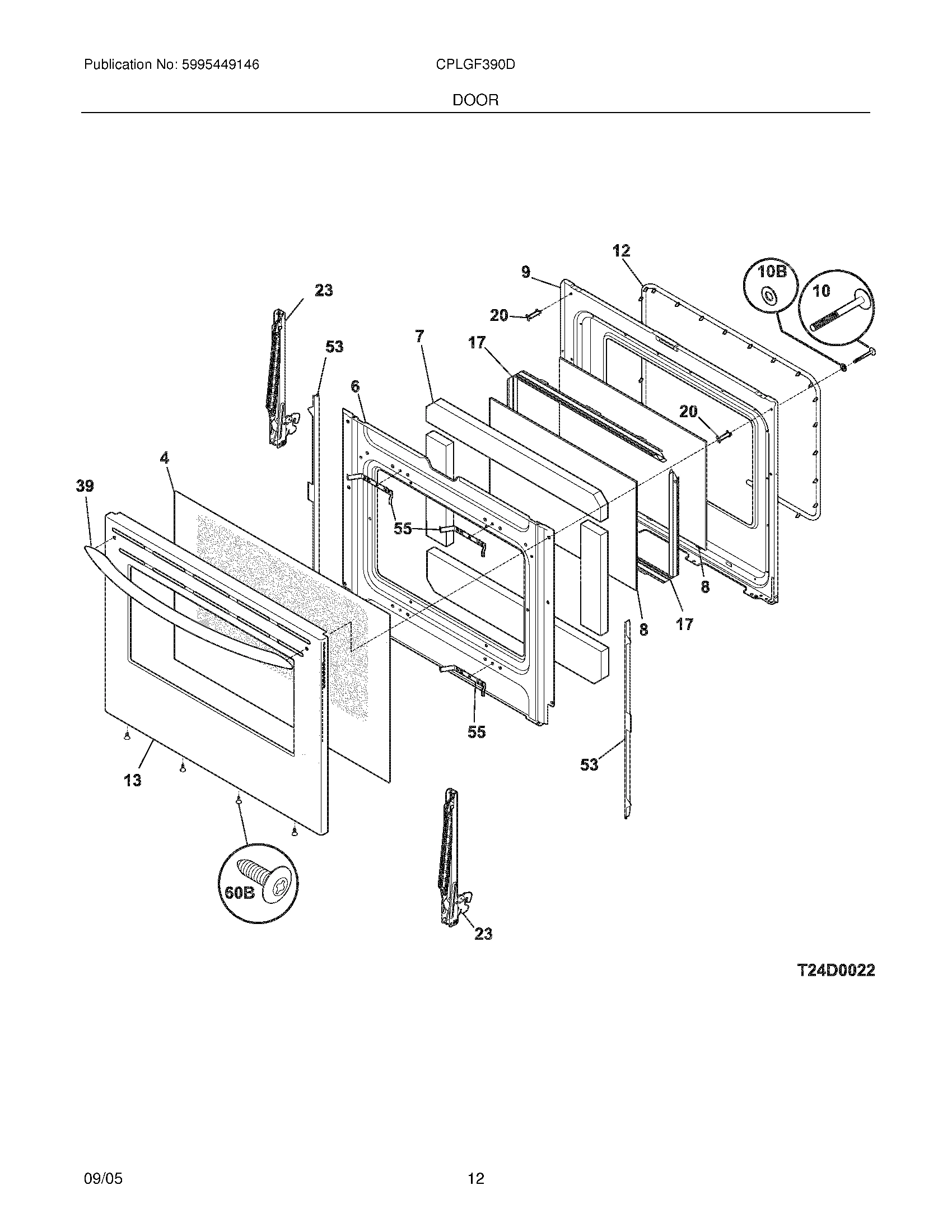

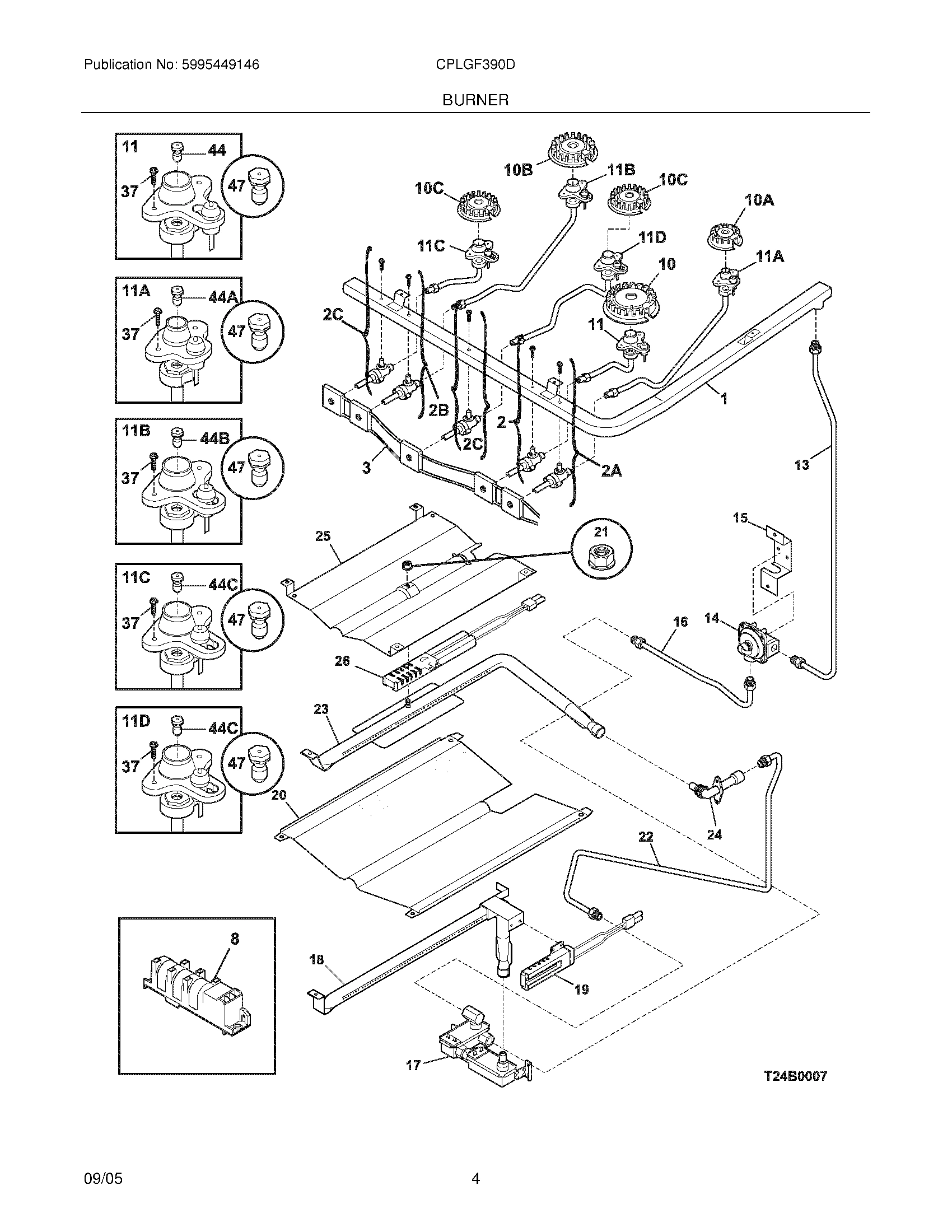

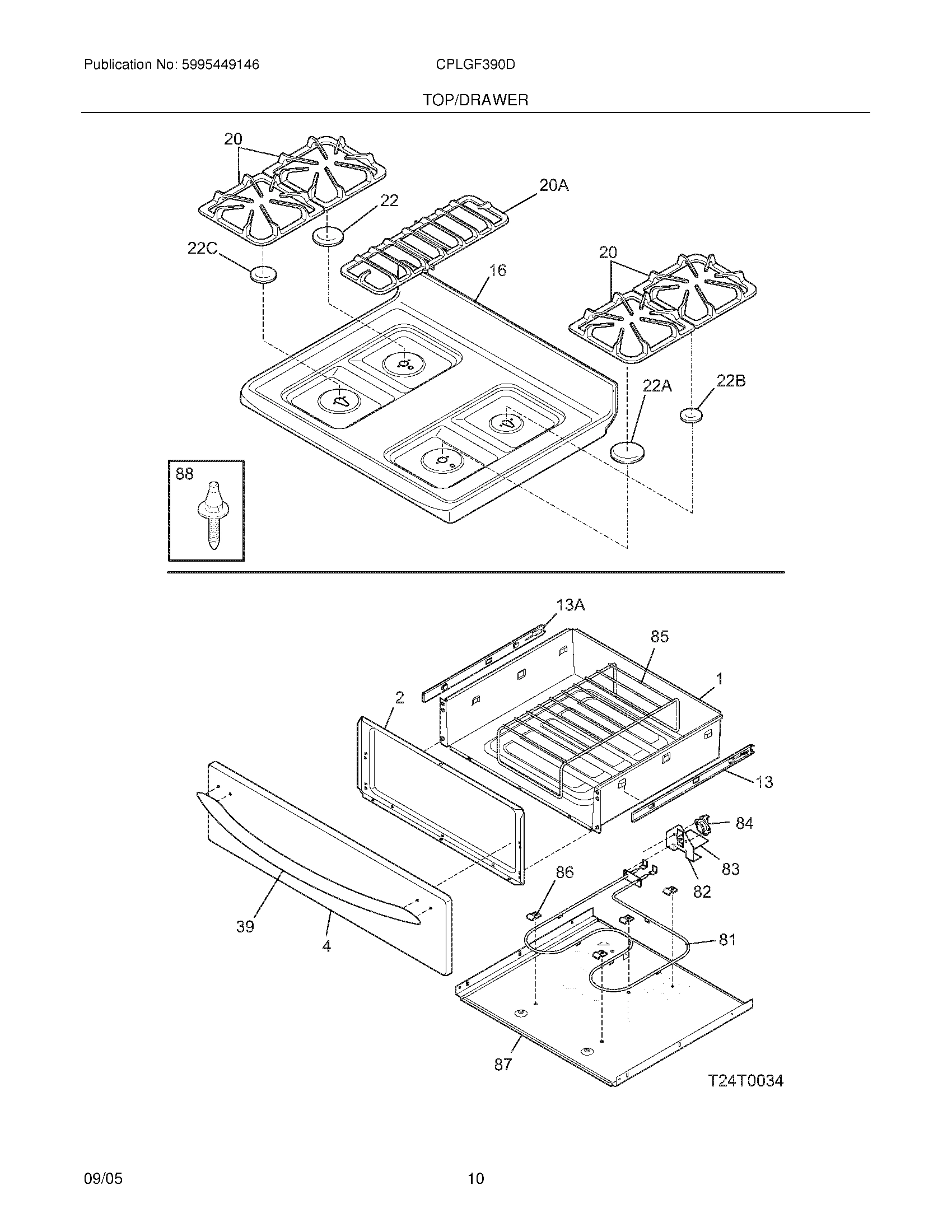

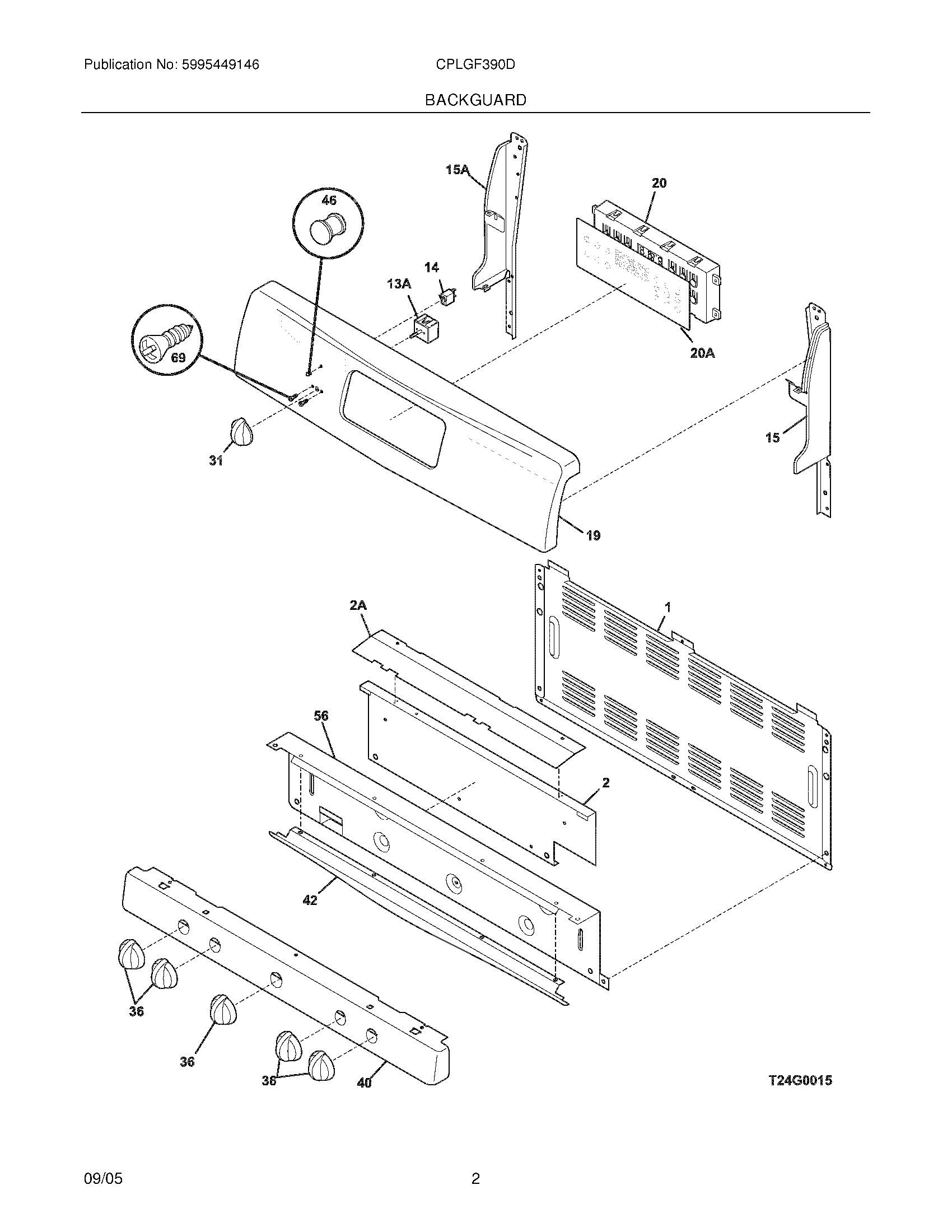

Model Electrolux CPLGF390DCE RANGE – Common Parts &amp; Diagrams

1

316401608 Frigidaire Back Appliance Backorder WCI 316401608 $80.21

2

5304527988 Frigidaire Liner Backorder WCI 5304527988 $15.85

2

WCI 5303935233 WCI 5303935233 Contact Us For Availability

2A

WCI 5303935235 WCI 5303935235 Contact Us For Availability

2B

5303935232 Frigidaire Range Valve Backorder WCI 5303935232 $76.64

2C

WCI 5303935234 WCI 5303935234 Contact Us For Availability

3

WCI 316219006 WCI 316219006 Contact Us For Availability

4

WCI 316452701 WCI 316452701 Contact Us For Availability

5

316272900 Frigidaire Oven Leg Levelling Plast In Stock WCI 316272900 $8.60

7

316403900 Frigidaire Insulation Backorder WCI 316403900 $45.72

8

316400603 Frigidaire Range Stove Bottom Panel In Stock WCI 316400603 $107.26

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

8

808608804 Frigidaire Oven Gas Range Spark Mod In Stock WCI 808608804 $54.56

9

Pan,broiler WCI 316081900 Contact Us For Availability

10

WCI 316001002 No Longer Available

10

Burner,sealed ,17K WCI 316223300 Contact Us For Availability

10

Insert-broiler pan WCI 316082000 Contact Us For Availability

10B

316008401 Frigidaire Washer P-1 In Stock WCI 316008401 $7.23

10B

WCI 316212300 WCI 316212300 Contact Us For Availability

10C

316212400 Frigidaire Oven Primary Burner Asse In Stock WCI 316212400 $19.49

11

WCI 316430500 WCI 316430500 Contact Us For Availability

11B

WCI 316430401 WCI 316430401 Contact Us For Availability

11D

316430700 Frigidaire Igniter Orifice Assembly In Stock WCI 316430700 $78.43

12

316445500 Frigidaire Oven Switch Backorder WCI 316445500 $38.11

12

5304498835 Frigidaire Range Seal In Stock WCI 5304498835 $63.63

13

316415000 Frigidaire Range Glide Backorder WCI 316415000 $37.19

13A

316415001 Frigidaire Oven Glide Backorder WCI 316415001 $37.19

14

316022500 Frigidaire Oven Warmer Drawer Zone In Stock WCI 316022500 $36.24

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

14

5304521339 Frigidaire Regulator In Stock WCI 5304521339 $62.28

15

316091600 Frigidaire Oven Bracket Backorder WCI 316091600 $43.49

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

WCI 316411405 WCI 316411405 Contact Us For Availability

15A

WCI 316411404 WCI 316411404 Contact Us For Availability

16

WCI 316411216 WCI 316411216 Contact Us For Availability

17

316087500 Frigidaire Oven Retainer Backorder WCI 316087500 $36.24

17

316404900 Frigidaire Range Valve Backorder WCI 316404900 $253.34

17

5304504811 Frigidaire Glass Spacer In Stock WCI 5304504811 $14.94

18

316404400 Frigidaire Range Burner Backorder WCI 316404400 $69.45

18

316405800 Frigidaire Assembly Latch Backorder WCI 316405800 $29.00

19

WCI 316424129 WCI 316424129 Contact Us For Availability

5304519024 Frigidaire Range Baffle In Stock WCI 5304519024 $47.49

WCI 316408600 WCI 316408600 Contact Us For Availability

WCI 316418701 WCI 316418701 Contact Us For Availability

WCI 316424203 WCI 316424203 Contact Us For Availability

20A

WCI 316419700 WCI 316419700 Contact Us For Availability

21

Backorder WCI 154079601 $0.28

21

316408000 Frigidaire Oven Clip Assembly Backorder WCI 316408000 $10.85

22

WCI 316271900 WCI 316271900 Contact Us For Availability

22A

WCI 316206600 WCI 316206600 Contact Us For Availability

22B

WCI 316213600 WCI 316213600 Contact Us For Availability

22C

316213500 Frigidaire Range Black Medium 9.5K In Stock WCI 316213500 $25.79

23

316437702 Frigidaire Range Hinge Backorder WCI 316437702 $55.23

23

WCI 316404300 WCI 316404300 Contact Us For Availability

24

5304516894 Frigidaire Range Elbow Assembly Backorder WCI 5304516894 $51.54

25

WCI 316401301 WCI 316401301 Contact Us For Availability

30

WCI 316217700 WCI 316217700 Contact Us For Availability

31

316223002 Frigidaire P-1 Knob Backorder WCI 316223002 $34.41

33

316402500 Frigidaire Range Shield Backorder WCI 316402500 $76.18

36

316220002 Frigidaire Range Black Burner Knob In Stock WCI 316220002 $36.24

37

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $7.23

39

316246105 Frigidaire Oven Handle Backorder WCI 316246105 $87.65

42

316416204 Frigidaire Range Trim Backorder WCI 316416204 $26.27

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $6.32

44A

WCI 316237903 WCI 316237903 Contact Us For Availability

44B

316237901 Frigidaire Oven Orifice In Stock WCI 316237901 $38.09

44C

316237902 Frigidaire Orifice Top Burner In Stock WCI 316237902 $38.53

55

316408300 Frigidaire Range Bracket Backorder WCI 316408300 $12.67

58A

316403700 Frigidaire Insulation Backorder WCI 316403700 $176.57

58B

WCI 316403600 WCI 316403600 Contact Us For Availability

58G

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $33.06

81

316437300 Frigidaire Oven Element Backorder WCI 316437300 $62.73

82

316400801 Frigidaire Range Shield Backorder WCI 316400801 $94.62

84

WCI 316093501 WCI 316093501 Contact Us For Availability

86

316441300 Frigidaire Receptacle In Stock WCI 316441300 $14.03

88

316099500 Frigidaire Oven Pin Backorder WCI 316099500 $4.14

88

316232702 Frigidaire Rod Backorder WCI 316232702 $7.67

106

316404100 Frigidaire Oven Bracket Backorder WCI 316404100 $37.65

107

316026701 Frigidaire Oven Cover Assembly Backorder WCI 316026701 $215.44

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.20

161

316211603 Frigidaire Oven Element Backorder WCI 316211603 $153.00

170

316112500 Frigidaire Oven Template Backorder WCI 316112500 $2.26

316001017 Frigidaire Screw Backorder WCI 316001017 $1.83

316021104 Frigidaire Oven Screw Assembly Backorder WCI 316021104 $4.97

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.23

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.06

316089500 Frigidaire Oven Screw In Stock WCI 316089500 $8.60

316215600 Frigidaire Oven Screw In Stock WCI 316215600 $9.04

316248105 Frigidaire Instructions / LP Conver Backorder WCI 316248105 $2.26

316401500 Frigidaire Range Cover Backorder WCI 316401500 $7.67

316418900 Frigidaire Oven Screw Backorder WCI 316418900 $9.06

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $9.06

5303271648 Frigidaire Oven Screw Backorder WCI 5303271648 $8.58

5303285179 Frigidaire Oven Door Screw Backorder WCI 5303285179 $8.60

Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability

WCI 316253702 WCI 316253702 Contact Us For Availability
