Model Maytag CPL1100BDW16 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - DOOR PARTS

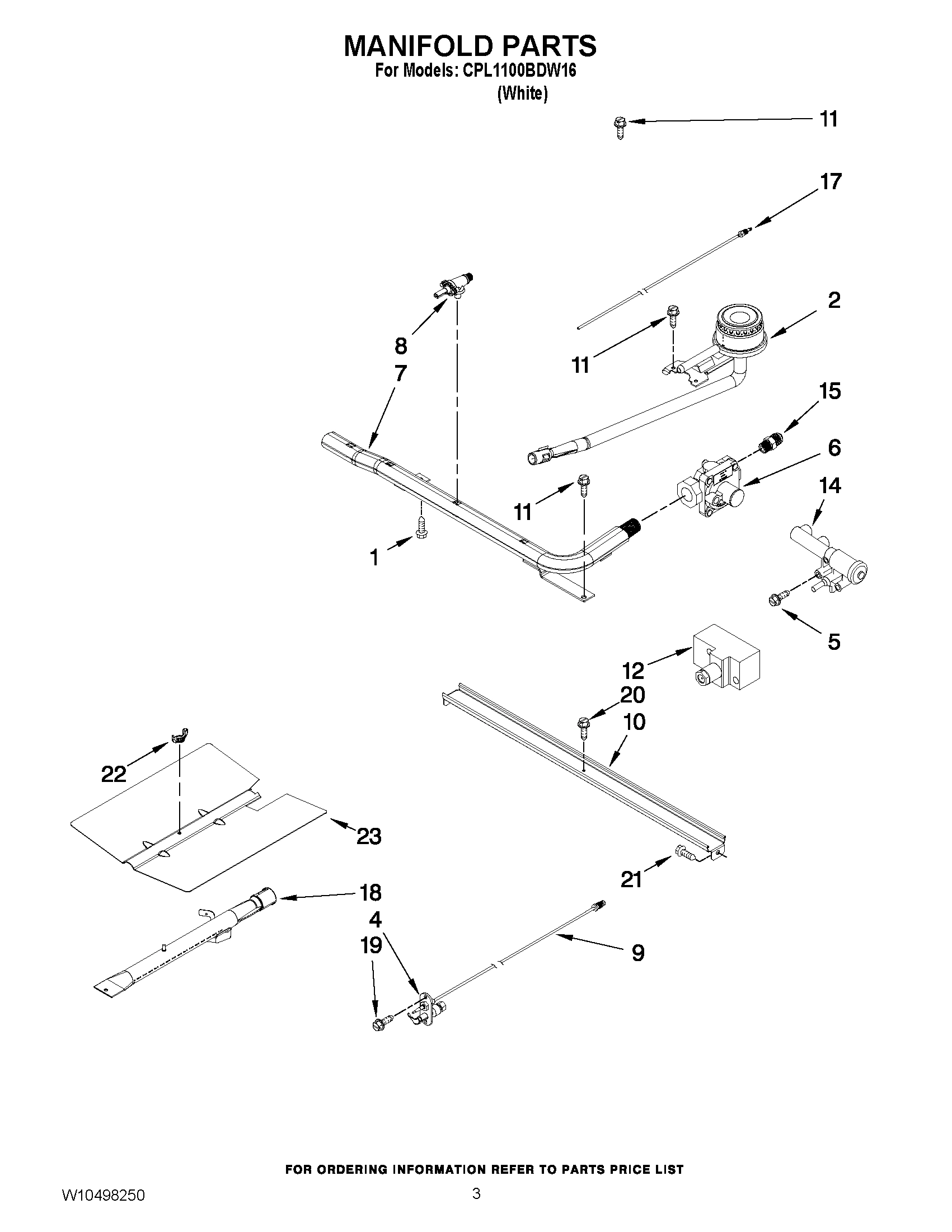

03 - MANIFOLD PARTS

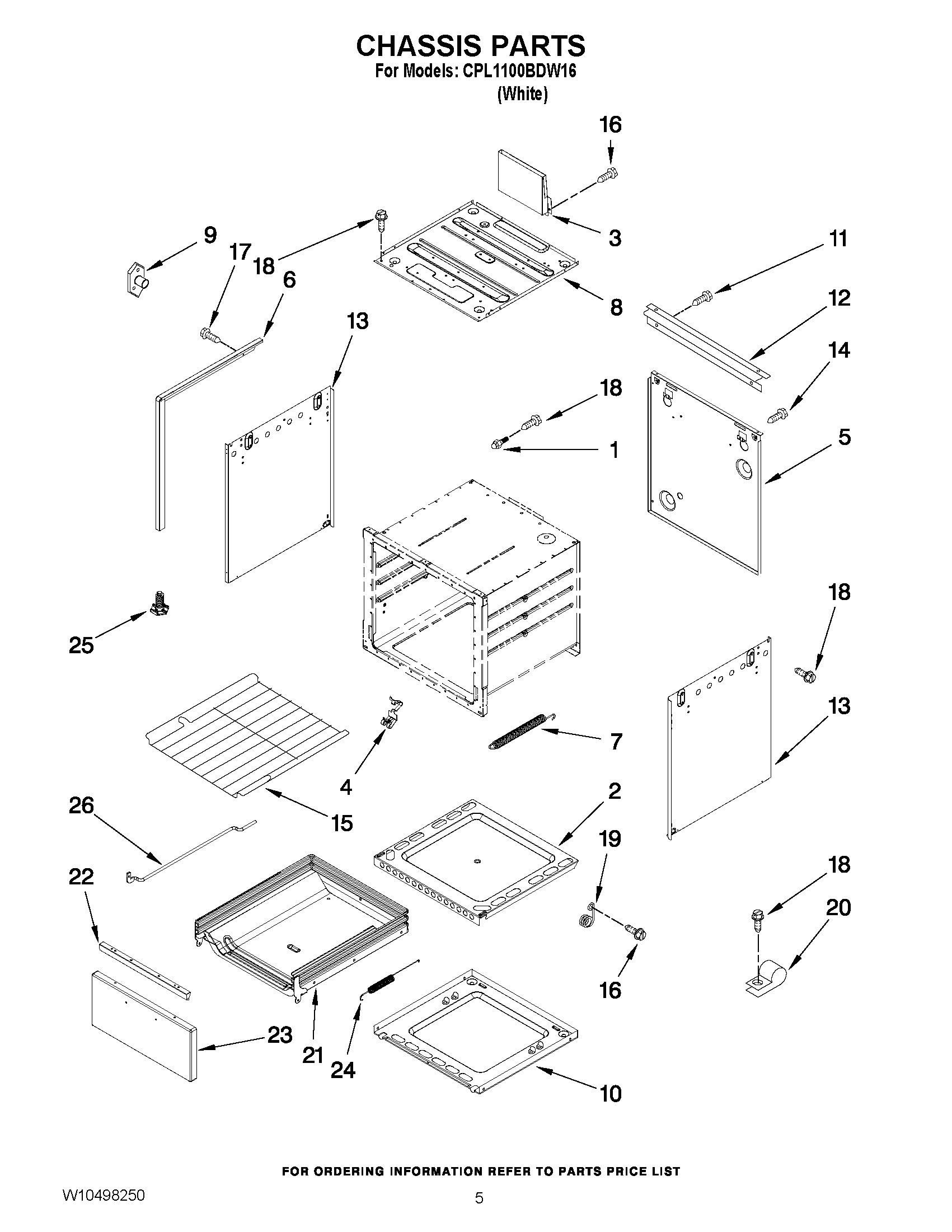

04 - CHASSIS PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag CPL1100BDW16 GAS RANGE
1
USE & CARE GUIDE (FRENCH) MAY 8113P706-60 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
PANEL, DOOR MAY 2401W059-71 Contact Us For Availability
1
SCREW MAY 7101P639-60 Contact Us For Availability
1
STRIKE, MAIN MAY 8024P003-60 Contact Us For Availability
2
COOKTOP (WHITE) MAY 2001F050-81 Contact Us For Availability
2
MAY 2411F011-71 MAY 2411F011-71 Contact Us For Availability
2
MAY 3412D025-09 MAY 3412D025-09 Contact Us For Availability
2
MAY 7505P325-60 MAY 7505P325-60 Contact Us For Availability
2
MAY 7505P326-60 MAY 7505P326-60 Contact Us For Availability
2
BOTTOM, OVEN MAY 5720A003-23 Contact Us For Availability
3
MAY 2616F396-71 MAY 2616F396-71 Contact Us For Availability
3
MAY 7101P510-60 MAY 7101P510-60 Contact Us For Availability
3
MAY 4006W133-51 MAY 4006W133-51 Contact Us For Availability
4
MAY 7733P445-60 MAY 7733P445-60 Contact Us For Availability
4
MAY 7505P329-60 MAY 7505P329-60 Contact Us For Availability
5
MAY 7731P212-60 MAY 7731P212-60 Contact Us For Availability
5
MAY 3818F053-34 MAY 3818F053-34 Contact Us For Availability
5
Screw MAY 7101P282-60 Contact Us For Availability
5
MAY 4002F353-51 MAY 4002F353-51 Contact Us For Availability
6
MAY 7518P463-60 MAY 7518P463-60 Contact Us For Availability
6
MAY 2402W102-19 MAY 2402W102-19 Contact Us For Availability
6
MAY 7510P083-60 MAY 7510P083-60 Contact Us For Availability
6
MAY 3608F147-70 MAY 3608F147-70 Contact Us For Availability
6
MAY 3608F148-70 MAY 3608F148-70 Contact Us For Availability
7
CATCH, TOP MAY 8002P022-60 Contact Us For Availability
7
ARM, SPRING MAY 3807F291-34 Contact Us For Availability
7
MAY 7513P512-60 MAY 7513P512-60 Contact Us For Availability
7
SPRING, DOOR MAY 7803P032-60 Contact Us For Availability
8
MAY 7212P014-60 MAY 7212P014-60 Contact Us For Availability
8
MAY 7502P551-60 MAY 7502P551-60 Contact Us For Availability
8
MAY 4011F507-51 MAY 4011F507-51 Contact Us For Availability
9
SEAL, DOOR (SIDES) MAY 7212P015-60 Contact Us For Availability
9
MAY 7515P047-60 MAY 7515P047-60 Contact Us For Availability
9
MAY 7506P520-60 MAY 7506P520-60 Contact Us For Availability
9
T-NUT MAY 7103P105-60 Contact Us For Availability
10
MAY 7101P651-60 MAY 7101P651-60 Contact Us For Availability
10
MAY 3807F718-51 MAY 3807F718-51 Contact Us For Availability
10
MAY 4011F325-51 MAY 4011F325-51 Contact Us For Availability
11
PANEL, BACKGUARD MAY 2602F365-71 Contact Us For Availability
11
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
11
MAY 8010P136-60 MAY 8010P136-60 Contact Us For Availability
12
BRKT, BACKGUARD MAY 3801F937-51 Contact Us For Availability
12
MAY 8010P125-60 MAY 8010P125-60 Contact Us For Availability
12
MAY 7527P115-60 MAY 7527P115-60 Contact Us For Availability
12
MAY 3604F122-45 MAY 3604F122-45 Contact Us For Availability
13
MAY 2618F193-71 MAY 2618F193-71 Contact Us For Availability
14
CLIP, GLASS (BLACK MODEL ONLY) MAY 7112P029-60 Contact Us For Availability
14
MAY 7507P422-60 MAY 7507P422-60 Contact Us For Availability
14
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
15
MAY 7507P388-60 MAY 7507P388-60 Contact Us For Availability
15
MAY 7801P151-60 MAY 7801P151-60 Contact Us For Availability
16
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
17
MAY 7506P518-60 MAY 7506P518-60 Contact Us For Availability
17
MAY 7101P301-60 MAY 7101P301-60 Contact Us For Availability
18
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
18
MAY 7505P252-60 MAY 7505P252-60 Contact Us For Availability
19
SCREW MAY 7101P188-60 Contact Us For Availability
19
MAY 7112P065-60 MAY 7112P065-60 Contact Us For Availability
20
MAY 7111P009-60 MAY 7111P009-60 Contact Us For Availability
21
MAY 7101P498-60 MAY 7101P498-60 Contact Us For Availability
21
MAY 3407W005-19 MAY 3407W005-19 Contact Us For Availability
22
WING NUT MAY 7103P030-60 Contact Us For Availability
22
MAY 2411F012-71 MAY 2411F012-71 Contact Us For Availability
23
MAY 3601P281-45 MAY 3601P281-45 Contact Us For Availability
23
MAY 2416F103-71 MAY 2416F103-71 Contact Us For Availability
24
SPRING, DRAWER MAY 7803P068-60 Contact Us For Availability
25
Leg, Leveling MAY 7101P507-60 Contact Us For Availability
26
ROD, RUNNER (LEFT) MAY 3808F007-61 Contact Us For Availability
26
ROD, RUNNER (RIGHT) MAY 3808F008-61 Contact Us For Availability
NI
INSULATION, BACK MAY 7002P429-60 Contact Us For Availability
NI
MAY 7002P495-60 MAY 7002P495-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BRKT, ANTI-TIP) MAY 3801F656-51 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (SCREW, ANTI-TIP) MAY 7101P485-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2)) MAY 98015022 Contact Us For Availability
× ![]()
