Model Electrolux CPES3085KF5 RANGE – Common Parts & Diagrams
01 - COVER

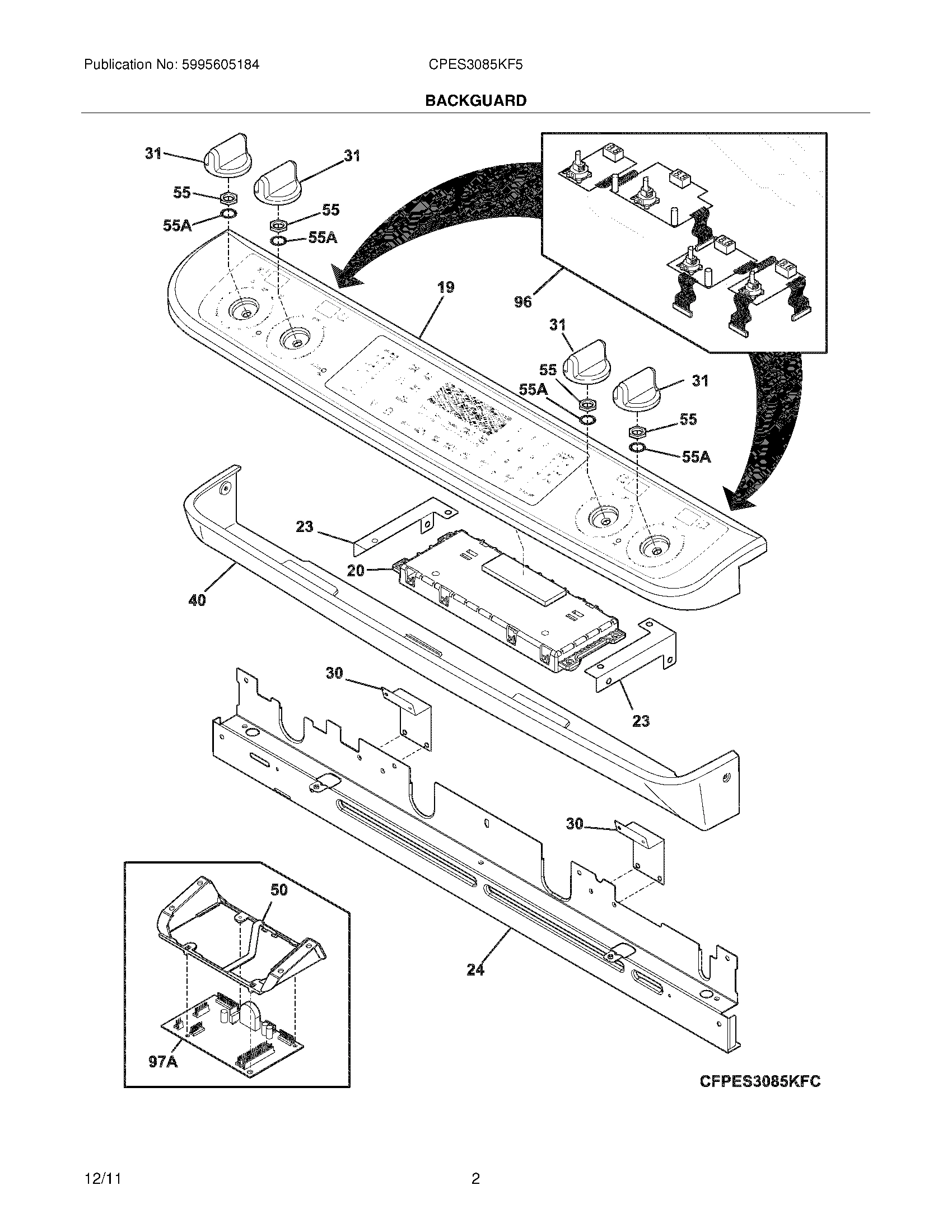

03 - BACKGUARD

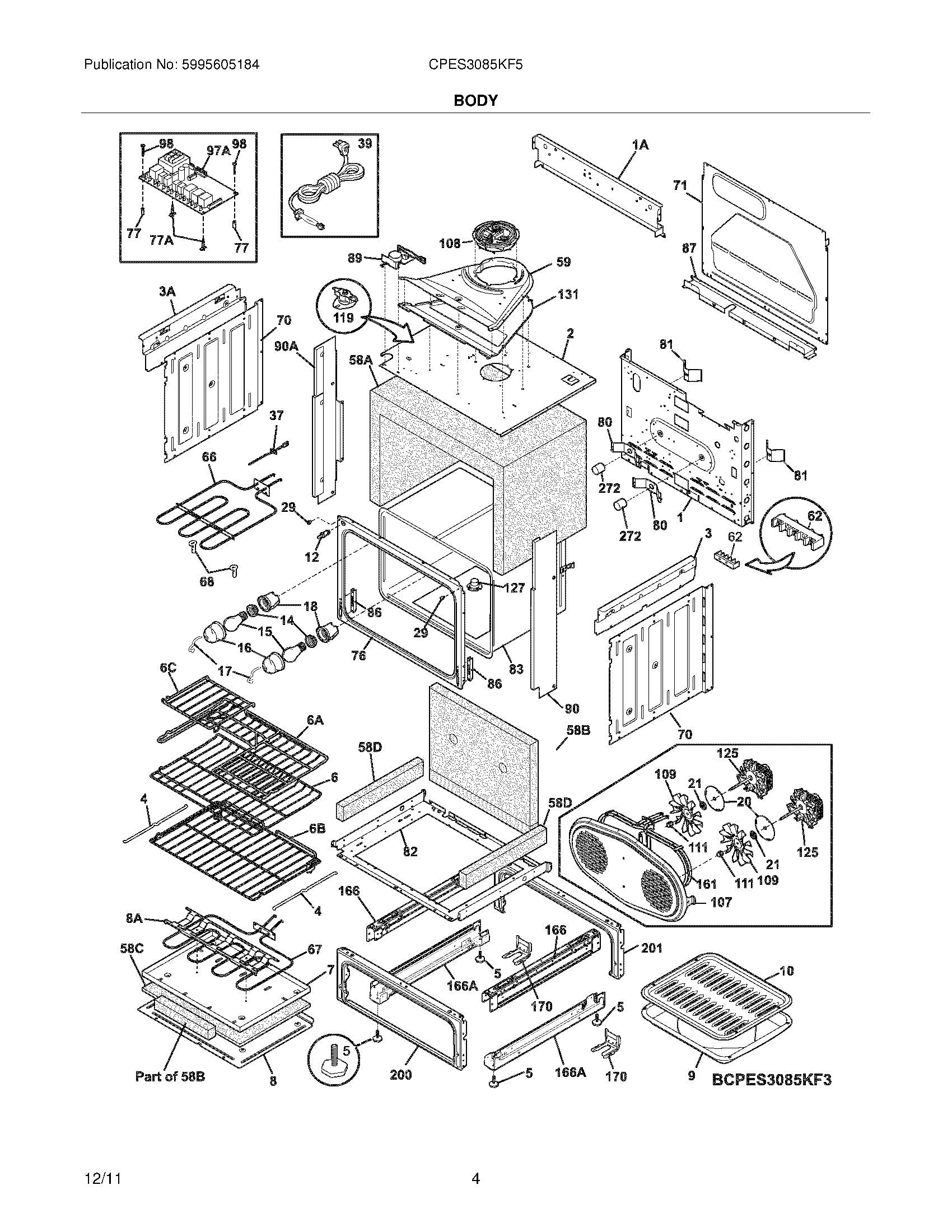

05 - BODY

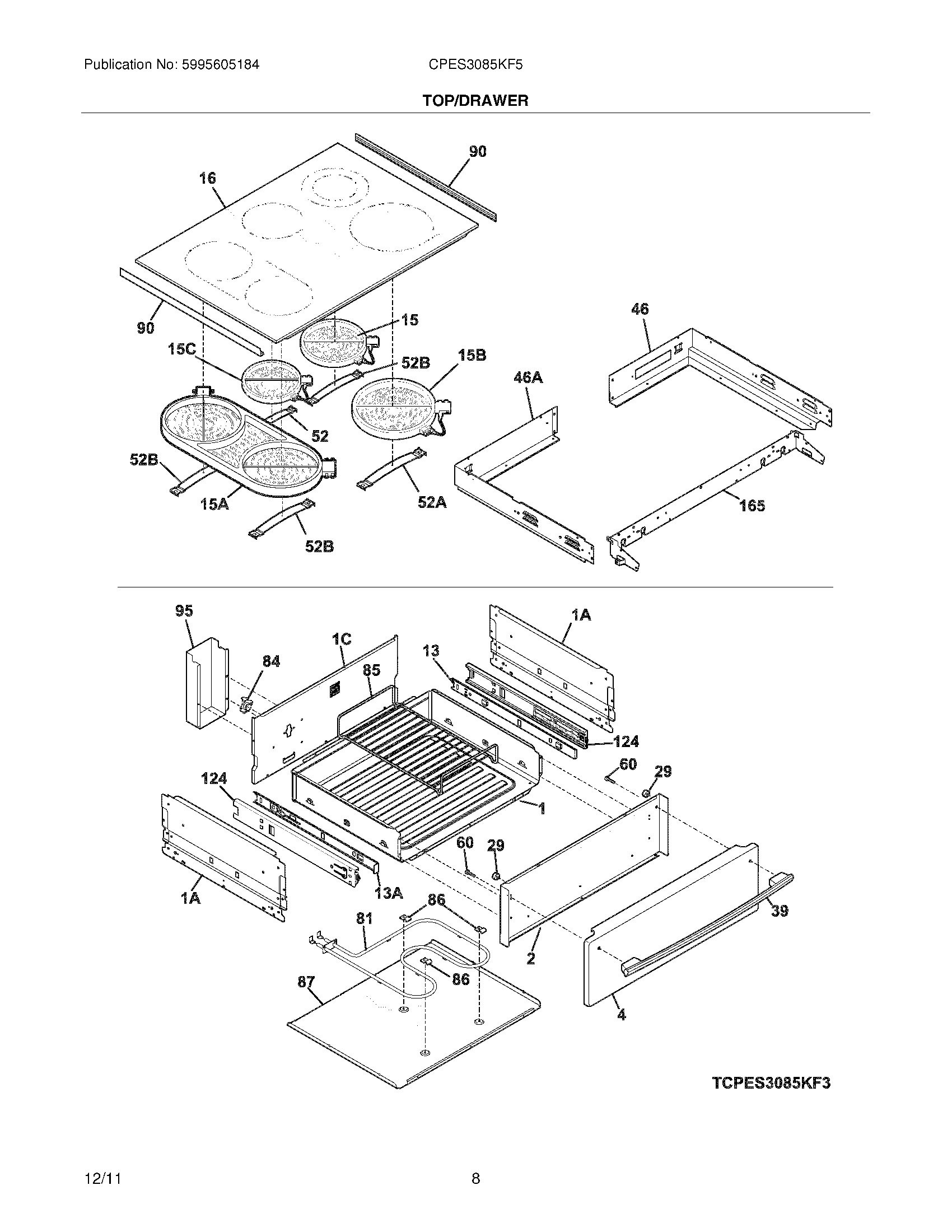

07 - TOP/DRAWER

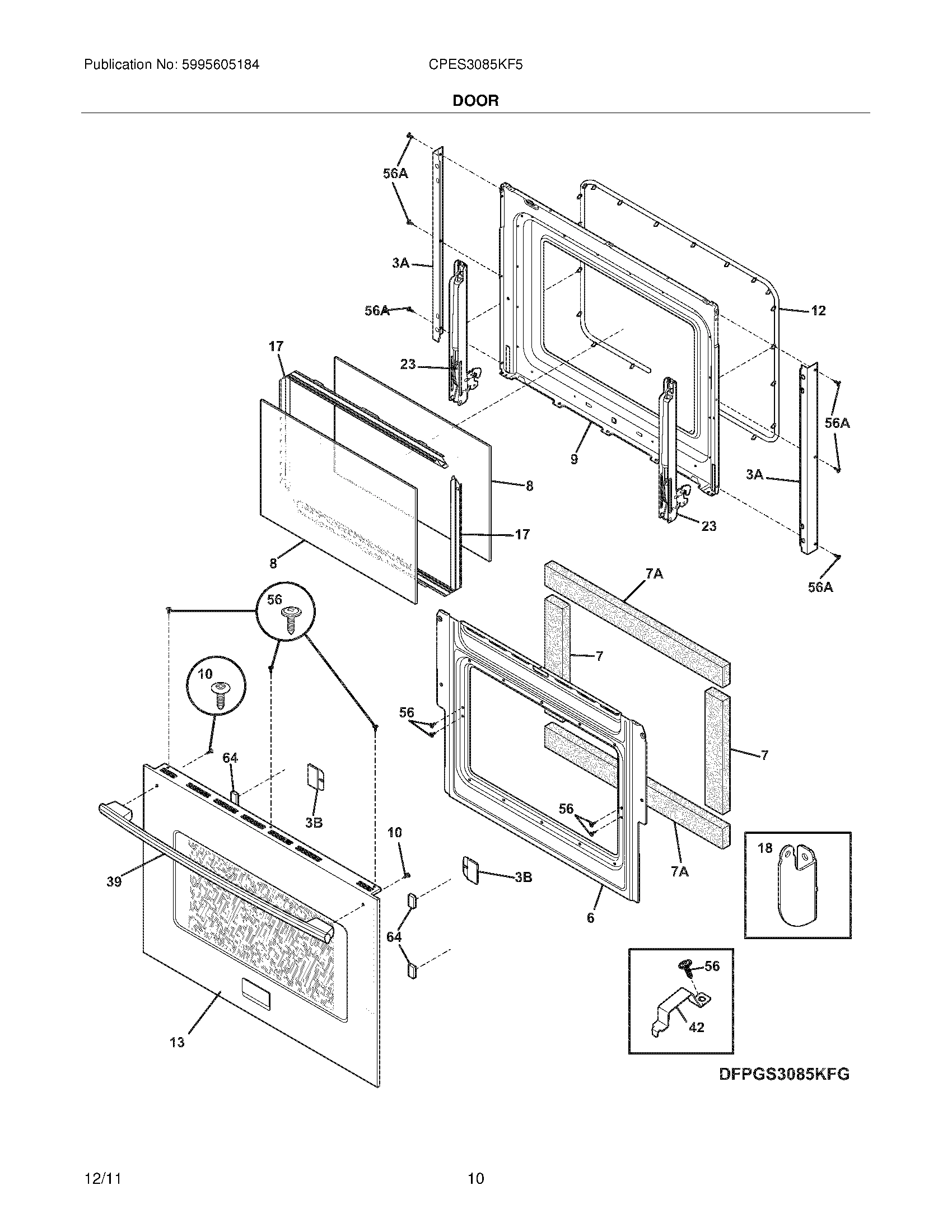

09 - DOOR

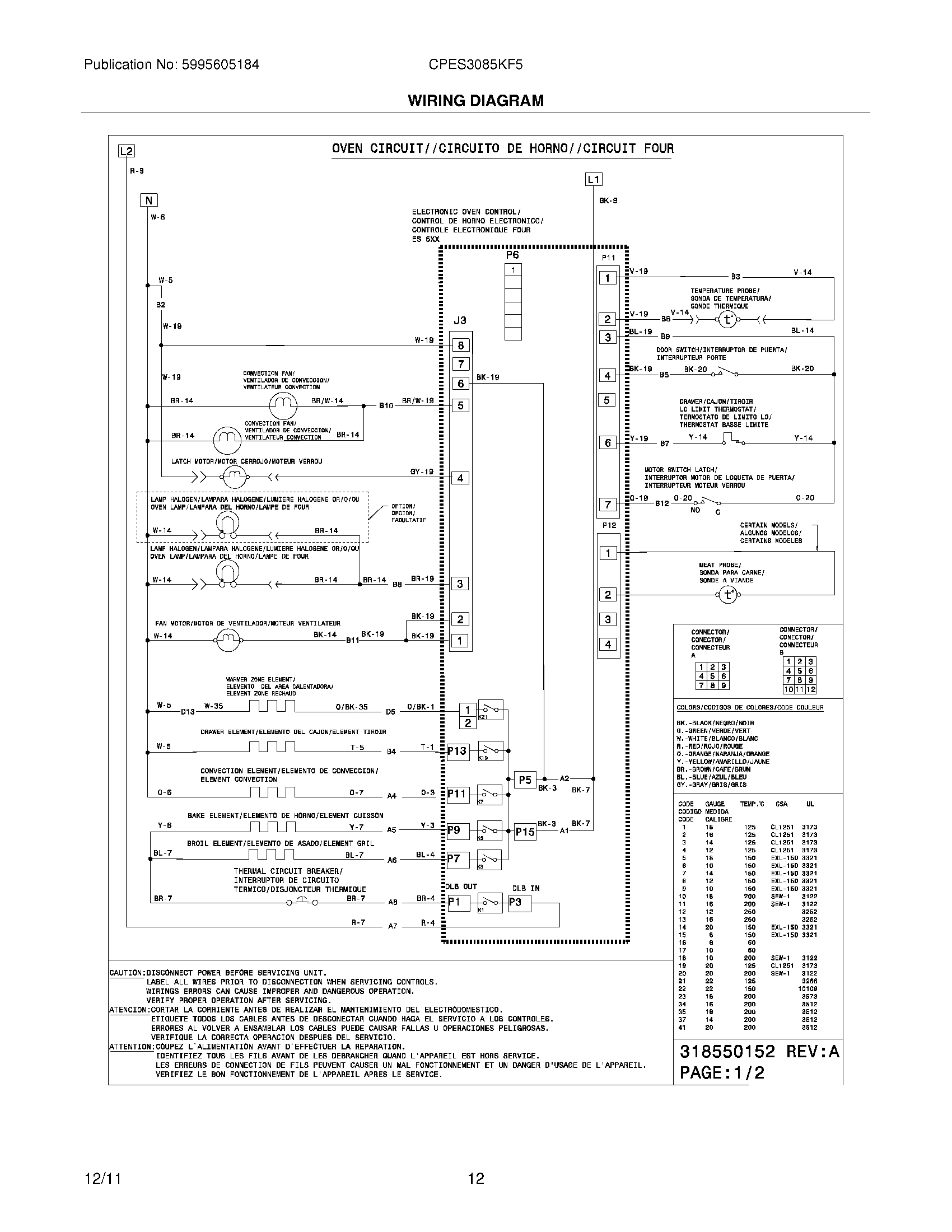

12 - WIRING DIAGRAM

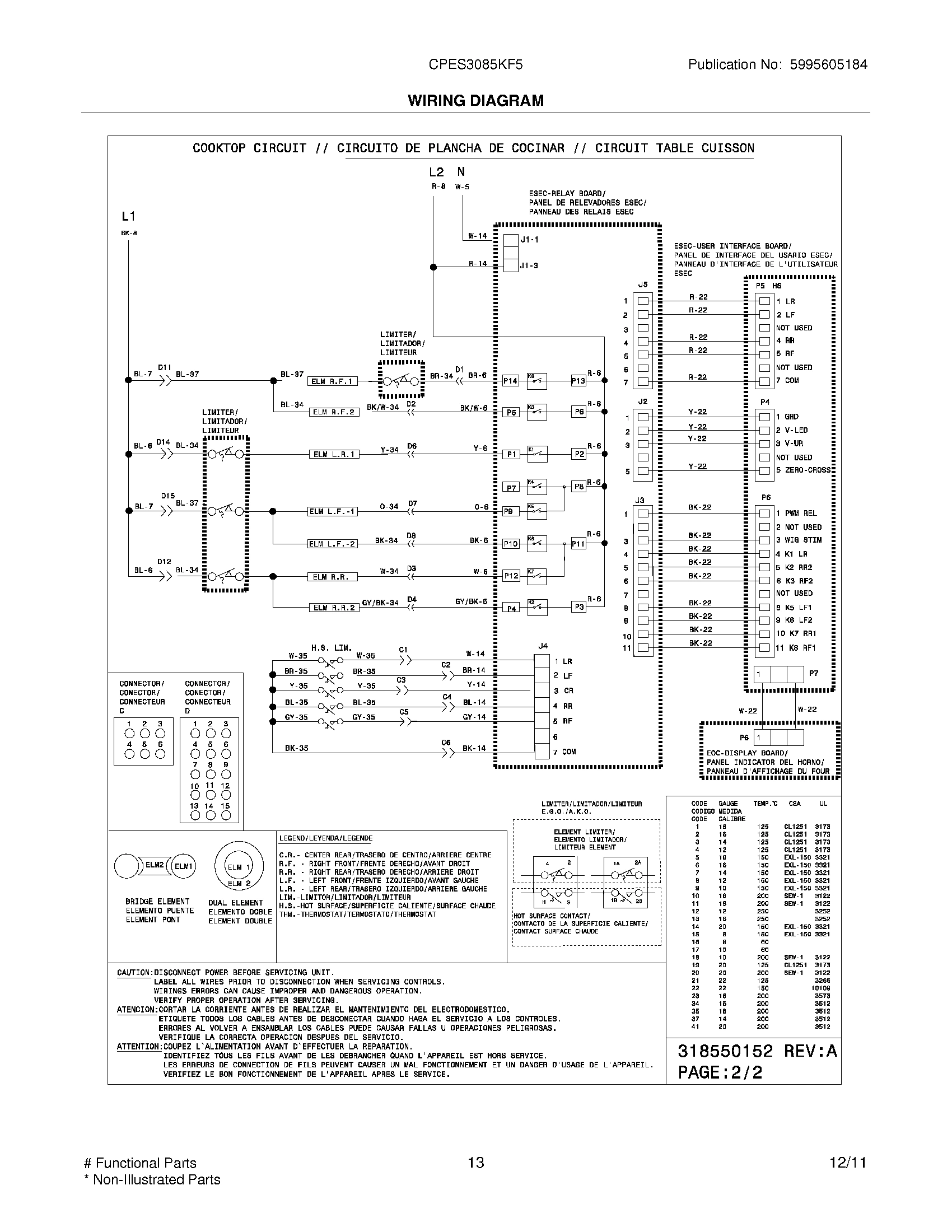

13 - WIRING DIAGRAM
Common parts from model Electrolux CPES3085KF5 RANGE
1
WCI 318304404 WCI 318304404 Contact Us For Availability
2
WCI 318303907 WCI 318303907 Contact Us For Availability
3A
WCI 318260401 WCI 318260401 Contact Us For Availability
4
WCI 318927600 WCI 318927600 Contact Us For Availability
5
WCI 318175503 WCI 318175503 Contact Us For Availability
6
WCI 318922301 WCI 318922301 Contact Us For Availability
6A
WCI 318926803 WCI 318926803 Contact Us For Availability
6B
WCI 318921600 WCI 318921600 Contact Us For Availability
6C
WCI 318929702 WCI 318929702 Contact Us For Availability
7
WCI 318297303 WCI 318297303 Contact Us For Availability
8
WCI 318359500 WCI 318359500 Contact Us For Availability
8A
WCI 318313601 WCI 318313601 Contact Us For Availability
9
WCI 316081900 WCI 316081900 Contact Us For Availability
10
Insert,broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
12
WCI 318053132 WCI 318053132 Contact Us For Availability
13
WCI 318259509 WCI 318259509 Contact Us For Availability
13A
WCI 318259508 WCI 318259508 Contact Us For Availability
15A
WCI 318258203 WCI 318258203 Contact Us For Availability
15C
Element,surface ,warm zone ,100W ,radiant WCI 318198843 Contact Us For Availability
16
WCI 318916901 WCI 318916901 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
18
WCI 316547900 WCI 316547900 Contact Us For Availability
18
WCI 318222400 WCI 318222400 Contact Us For Availability
20
WCI 318389400 WCI 318389400 Contact Us For Availability
21
WCI 318389000 WCI 318389000 Contact Us For Availability
23
WCI 318567101 WCI 318567101 Contact Us For Availability
23
WCI 318921300 WCI 318921300 Contact Us For Availability
29
WCI 318147430 WCI 318147430 Contact Us For Availability
29
WCI 316517600 WCI 316517600 Contact Us For Availability
31
WCI 316564406 WCI 316564406 Contact Us For Availability
50
WCI 318917700 WCI 318917700 Contact Us For Availability
52
WCI 318122006 WCI 318122006 Contact Us For Availability
52A
Spring,element mtg ,3000W WCI 318122010 Contact Us For Availability
55
WCI 316247700 WCI 316247700 Contact Us For Availability
55A
WCI 316247800 WCI 316247800 Contact Us For Availability
56
Screw,8-18 X 1/2 ,black ,(3) WCI 5304436875 Contact Us For Availability
56A
WCI 5304476599 WCI 5304476599 Contact Us For Availability
64
Spacer WCI 318165800 Contact Us For Availability
66
WCI 318255808 WCI 318255808 Contact Us For Availability
67
WCI 318254916 WCI 318254916 Contact Us For Availability
68
Support,hanger ,broil element WCI 5304403015 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
81
WCI 318255301 WCI 318255301 Contact Us For Availability
81
WCI 318192400 WCI 318192400 Contact Us For Availability
84
WCI 318005108 WCI 318005108 Contact Us For Availability
86
WCI 318561100 WCI 318561100 Contact Us For Availability
90
WCI 318368001 WCI 318368001 Contact Us For Availability
96
WCI 318411401 WCI 318411401 Contact Us For Availability
97A
WCI 316442119 WCI 316442119 Contact Us For Availability
97A
WCI 316442062 WCI 316442062 Contact Us For Availability
98
WCI 5303297477 WCI 5303297477 Contact Us For Availability
108
WCI 318575603 WCI 318575603 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
124
Glide,outer/RH & LH ,(2) WCI 316105501 Contact Us For Availability
127
WCI 318317105 WCI 318317105 Contact Us For Availability
161
WCI 318535300 WCI 318535300 Contact Us For Availability
165
WCI 318913300 WCI 318913300 Contact Us For Availability
166
Bracket,base support ,(2) WCI 318298410 Contact Us For Availability
170
WCI 318335500 WCI 318335500 Contact Us For Availability
NI
Screw,8-18 X 1/2 ,(4) WCI 5303300265 Contact Us For Availability
NI
Screw,10-24 x 0.500 ,probe,thrm brkt ,shield, WCI 08002868 Contact Us For Availability
NI
Screw,8-18 x 0.500 WCI 5303211311 Contact Us For Availability
NI
WCI 5303324184 WCI 5303324184 Contact Us For Availability
NI
WCI 5303323277 WCI 5303323277 Contact Us For Availability
NI
WCI 318531701 WCI 318531701 Contact Us For Availability
NI
WCI 318578318 WCI 318578318 Contact Us For Availability
NI
WCI 5303323129 WCI 5303323129 Contact Us For Availability
NI
WCI 5304415832 WCI 5304415832 Contact Us For Availability
NI
WCI 5304417153 WCI 5304417153 Contact Us For Availability
NI
WCI 5304461333 WCI 5304461333 Contact Us For Availability
NI
WCI 318402398 WCI 318402398 Contact Us For Availability
× ![]()
