Model Electrolux CPEB30T8CC2 OVEN – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD / DOSSERET

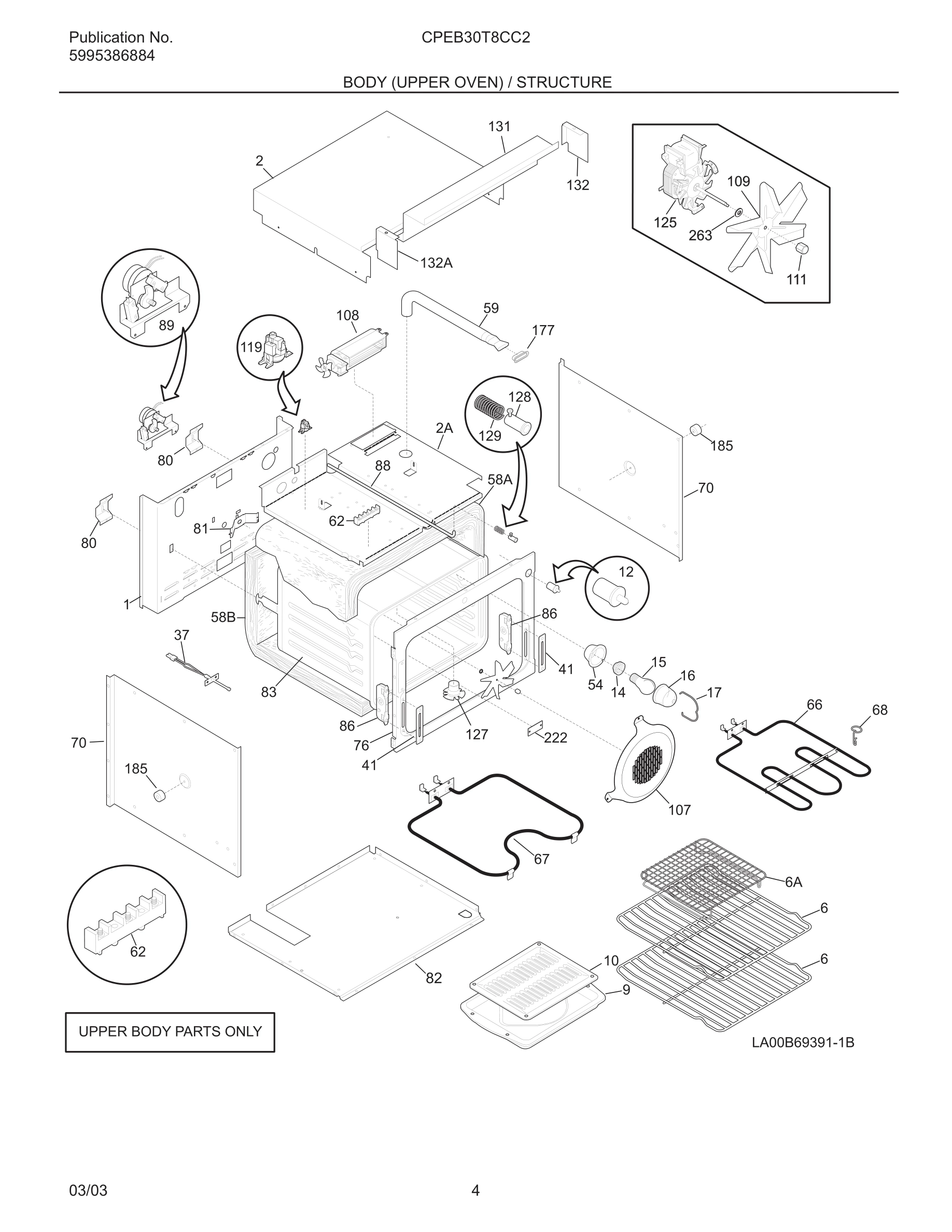

05 - BODY (UPPER OVEN) / STRUCTURE

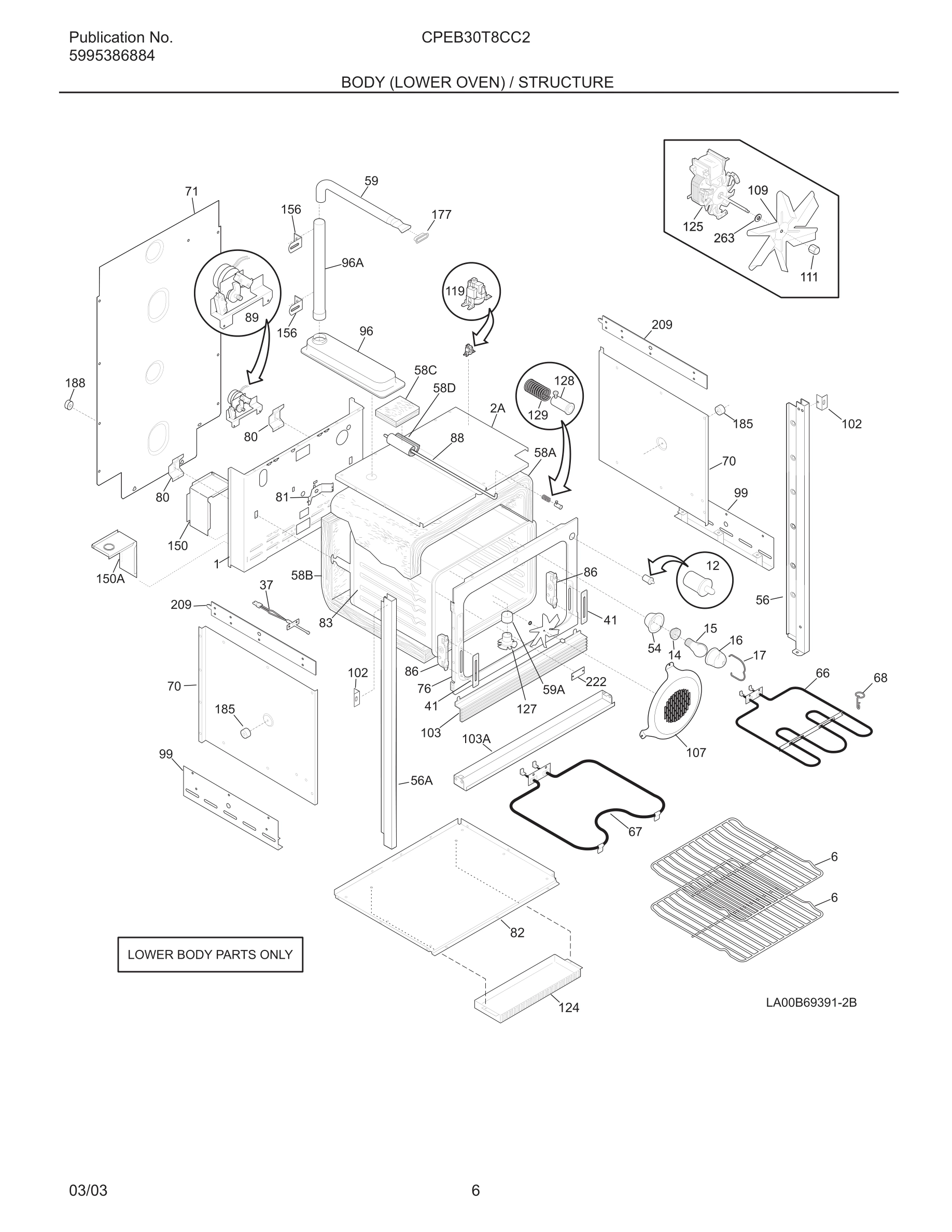

07 - BODY (LOWER OVEN) / STRUCTURE

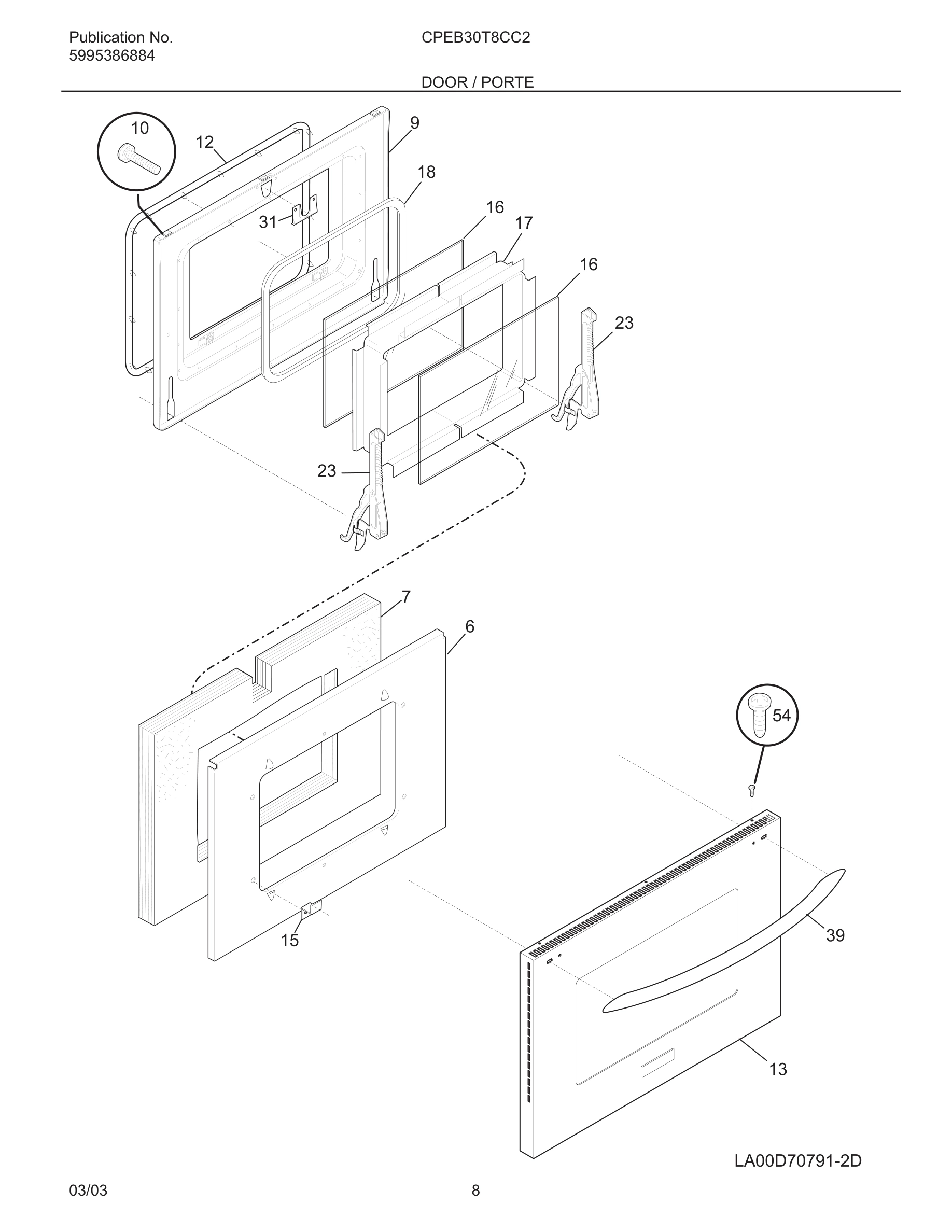

09 - DOOR / PORTE

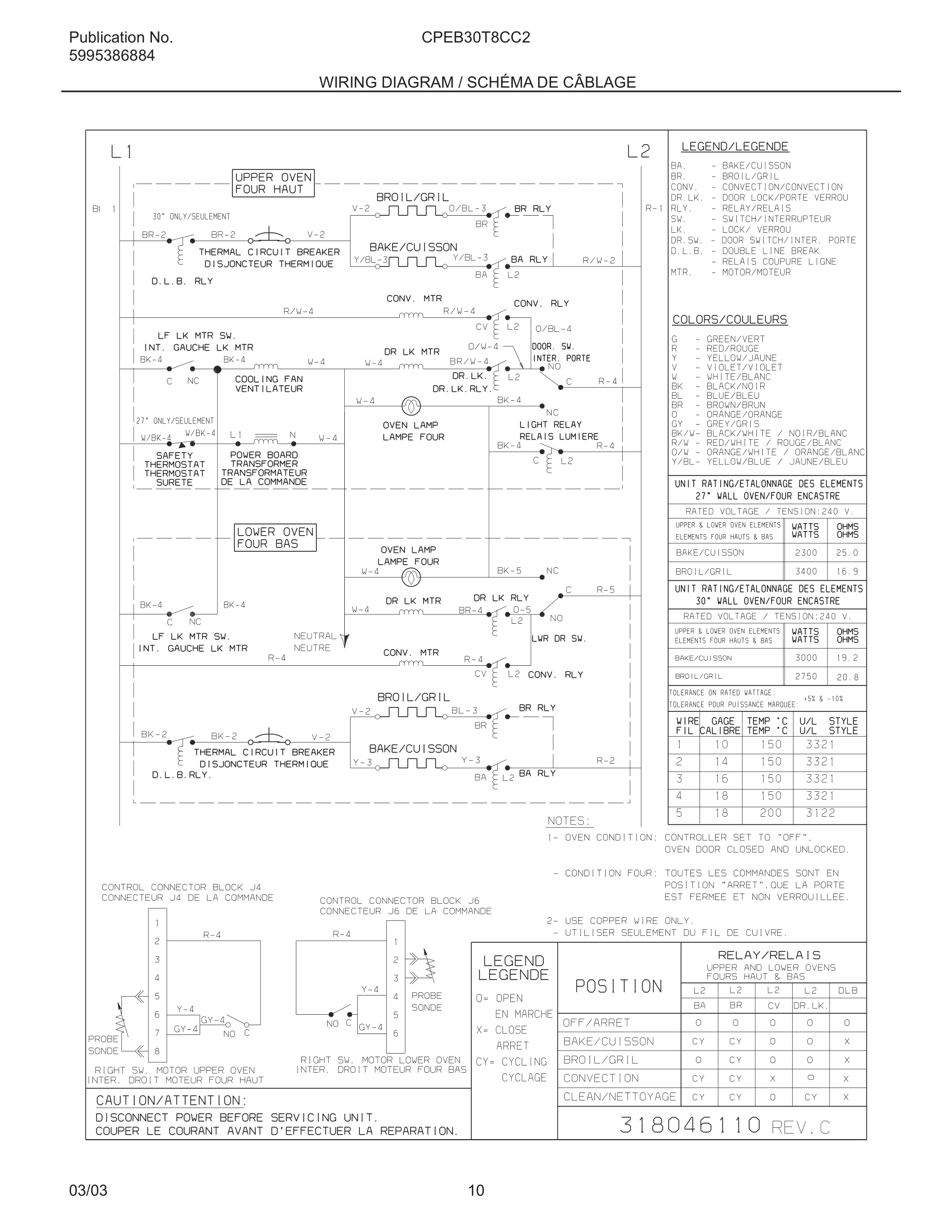

10 - WIRING DIAGRAM
Common parts from model Electrolux CPEB30T8CC2 OVEN
*
Screw,10-24 x 0.500 ,probe,thrm brkt ,shield, WCI 08002868 Contact Us For Availability
*
Tube,protector WCI 5303311207 Contact Us For Availability
1
Panel,main back WCI 318066402 Contact Us For Availability
2A
Shield,oven top WCI 318071704 Contact Us For Availability
6
Shield,air wash WCI 318056811 Contact Us For Availability
7
Insulation,oven door WCI 318133754 Contact Us For Availability
9
Liner,oven door WCI 318048612 Contact Us For Availability
13
Stainless Panel,oven door ,lower oven ,w/ gla WCI 318187931 Contact Us For Availability
13
Stainless Panel,oven door ,upper oven ,w/ gla WCI 318187933 Contact Us For Availability
15
Stiffener,glass WCI 318172904 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
20#
Clock/Timer,EOC WCI 318010501 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
31
Latch,door WCI 318065102 Contact Us For Availability
39
Handle,oven door ,stainless WCI 318197903 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing,oven light WCI 318222400 Contact Us For Availability
56
Trim,bodyside ,stainless ,RH WCI 318029111 Contact Us For Availability
56A
Trim,bodyside ,stainless ,LH WCI 318029110 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
58C
Insulation WCI 318133755 Contact Us For Availability
58D
Insulation WCI 318133757 Contact Us For Availability
59
Tube,oven vent WCI 318072504 Contact Us For Availability
59A
Tube,oven vent WCI 5303320844 Contact Us For Availability
70
Shield,insulation WCI 5303300142 Contact Us For Availability
71
Shield,wire WCI 318071211 Contact Us For Availability
76
Front,oven WCI 318056202 Contact Us For Availability
80
Spring,oven WCI 318192400 Contact Us For Availability
81
Plate,oven mtg WCI 5303320846 Contact Us For Availability
81#
Relay Board,w/transformer WCI 318022002 Contact Us For Availability
82
Shield,oven bottom WCI 318072302 Contact Us For Availability
83
Liner,oven complete WCI 318089615 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
88
Rod,latch WCI 5303311222 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
96
Duct,oven vent ,assy WCI 5303317197 Contact Us For Availability
96A
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
99
Support,adjustable ,(2) WCI 318055410 Contact Us For Availability
102
Support,oven front ,(2) WCI 318090900 Contact Us For Availability
103
Trim,base ,black WCI 318028500 Contact Us For Availability
103A
Trim,base ,stainless ,outer WCI 318027700 Contact Us For Availability
107
Cover,fan WCI 318219401 Contact Us For Availability
109
Blade,fan WCI 5303311203 Contact Us For Availability
124
Box,vent WCI 318076903 Contact Us For Availability
125*
Washer,motor ,convection WCI 318142100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
150
Bracket,support ,LH WCI 318072205 Contact Us For Availability
150A
Bracket,support ,RH WCI 318072204 Contact Us For Availability
156
Bracket,oven vent WCI 5303317198 Contact Us For Availability
177
Gasket,vent WCI 318053800 Contact Us For Availability
209
Plate,retainer WCI 318086200 Contact Us For Availability
222
Plate,oven temp probe WCI 318080000 Contact Us For Availability
264
Shield,wire WCI 318143815 Contact Us For Availability
× ![]()
