Model LG CPAD – Common Parts & Diagrams

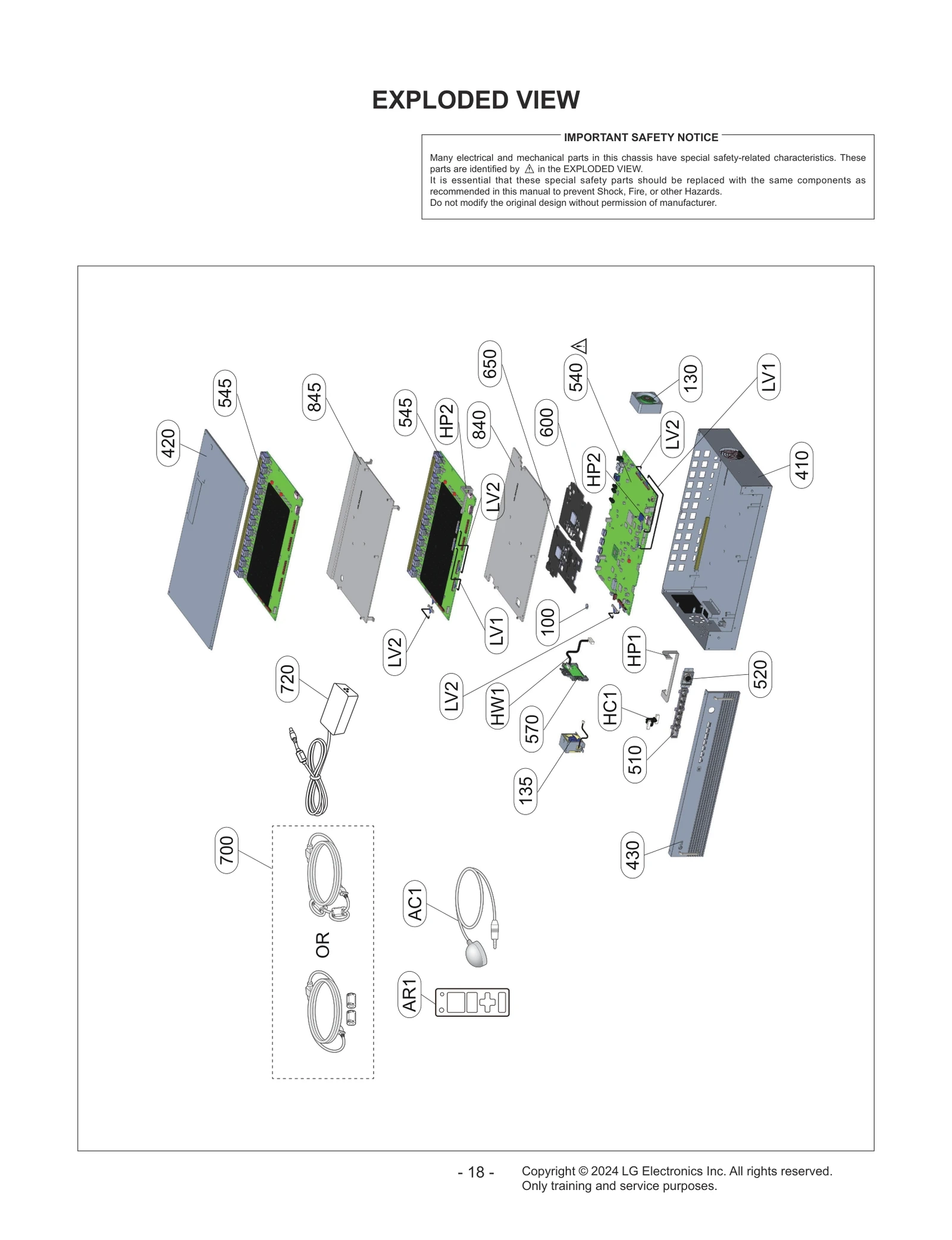

Diagram 0
Common parts from model LG CPAD
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
130
Fan Module LGE EAL62340901 Contact Us For Availability
135
Fan Module LGE EAL62140809 Contact Us For Availability
410
Cover Assembly,Bottom LGE ACQ90729311 Contact Us For Availability
420
Cover Assembly LGE ACQ90753711 Contact Us For Availability
430
Cover LGE MCK71725801 Contact Us For Availability
510
BPR Total Assembly,SVC LGE EBU30045601 Contact Us For Availability
520
BPR Total Assembly,SVC LGE EBU30045401 Contact Us For Availability
540
LGE EBU30253401 LGE EBU30253401 Contact Us For Availability
545
LGE EBU30253501 LGE EBU30253501 Contact Us For Availability
600
Plate,Shield LGE MGJ67495701 Contact Us For Availability
650
Plate,Shield LGE MGJ67388401 Contact Us For Availability
720
Adapters LGE EAY65068601 Contact Us For Availability
840
Plate,Shield LGE MGJ66342811 Contact Us For Availability
845
Plate,Shield LGE MGJ66342812 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB76039803 Contact Us For Availability
HC1
Harness,Single LGE EAD64126104 Contact Us For Availability
HP1
Harness,Single LGE EAD64030001 Contact Us For Availability
HW1
Harness,Single LGE EAD64126101 Contact Us For Availability
LV1
Harness,Single LGE EAD62107424 Contact Us For Availability
LV2
Harness,Single LGE EAD62107425 Contact Us For Availability
× ![]()
