Model Electrolux CP302BP2Y1 RANGE – Common Parts & Diagrams

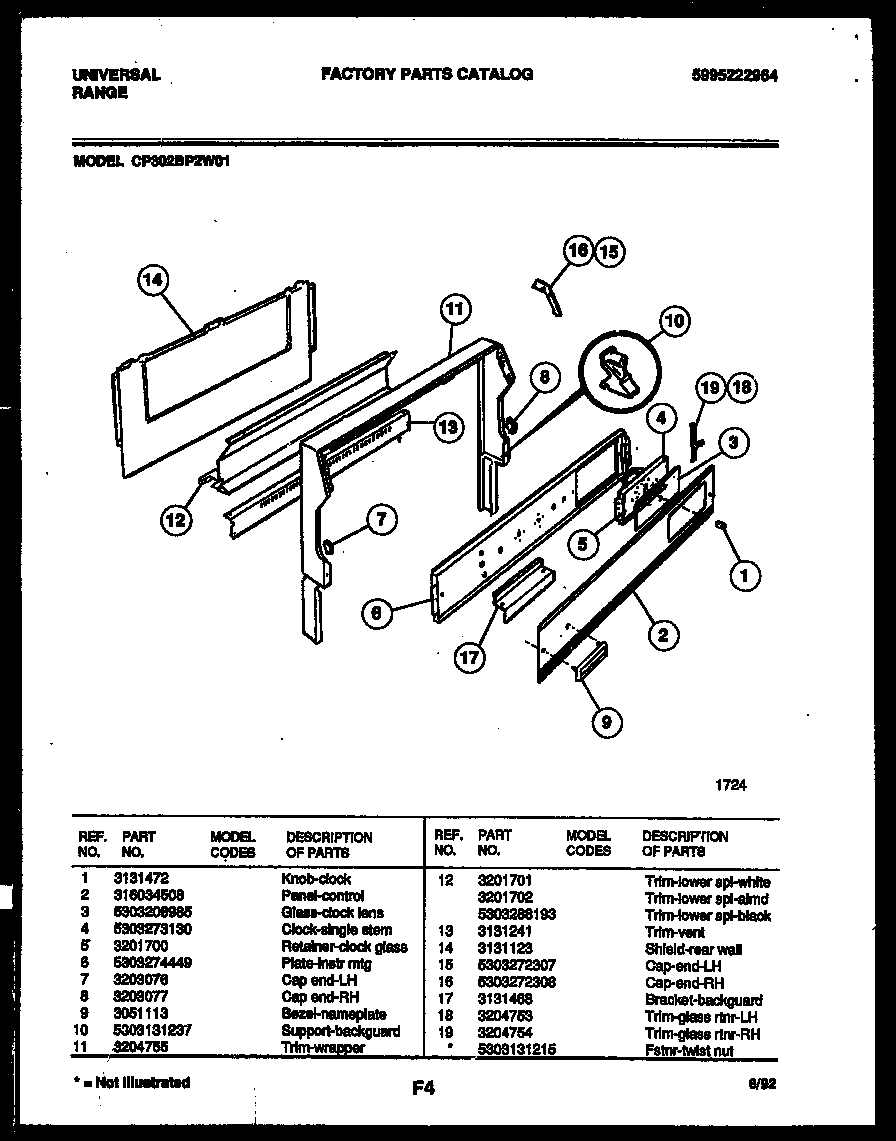

02 - BACKGUARD

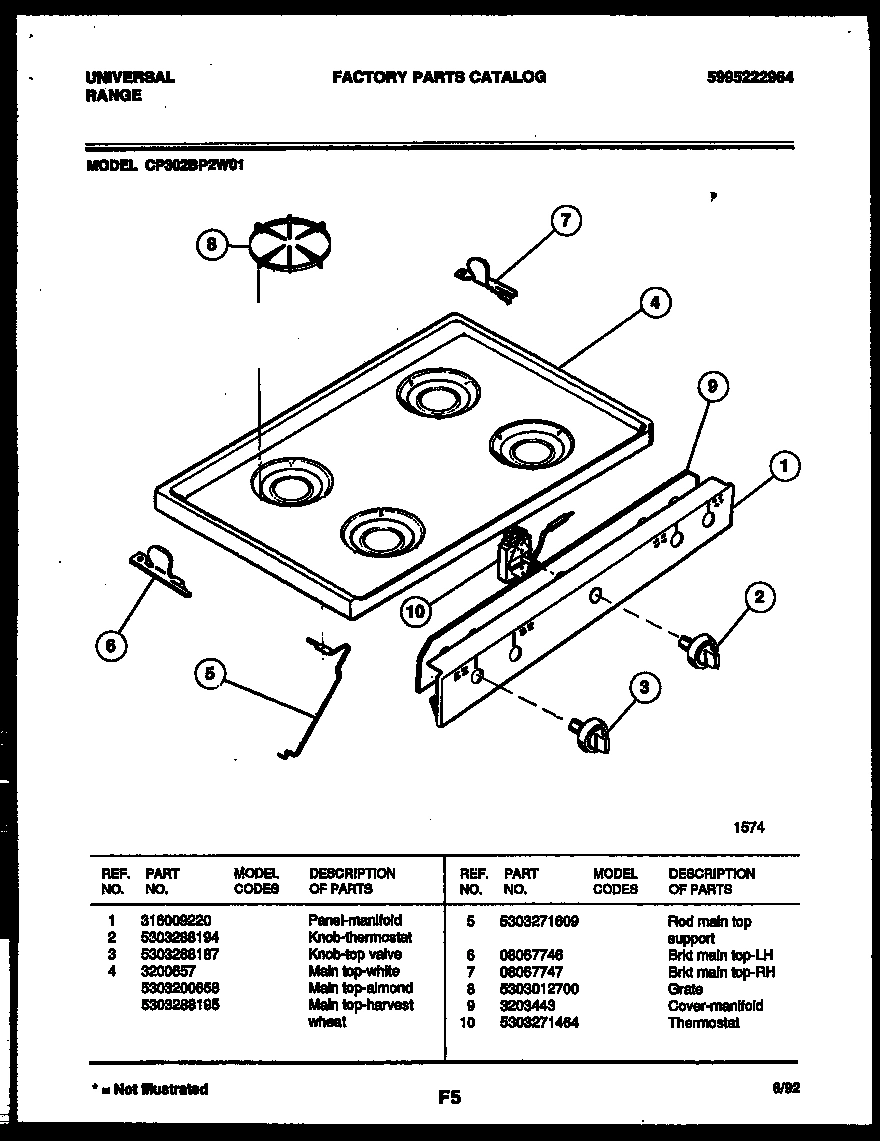

03 - COOKTOP PARTS

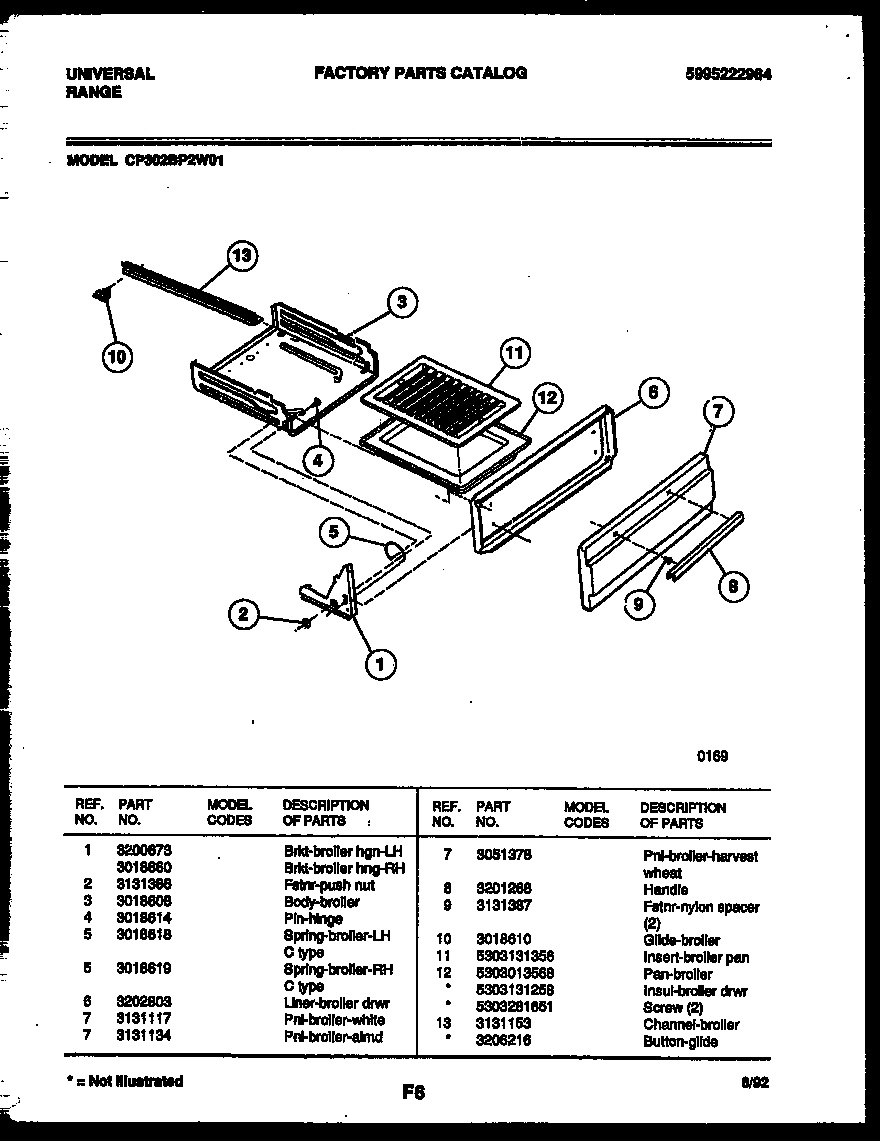

04 - BROILER DRAWER PARTS

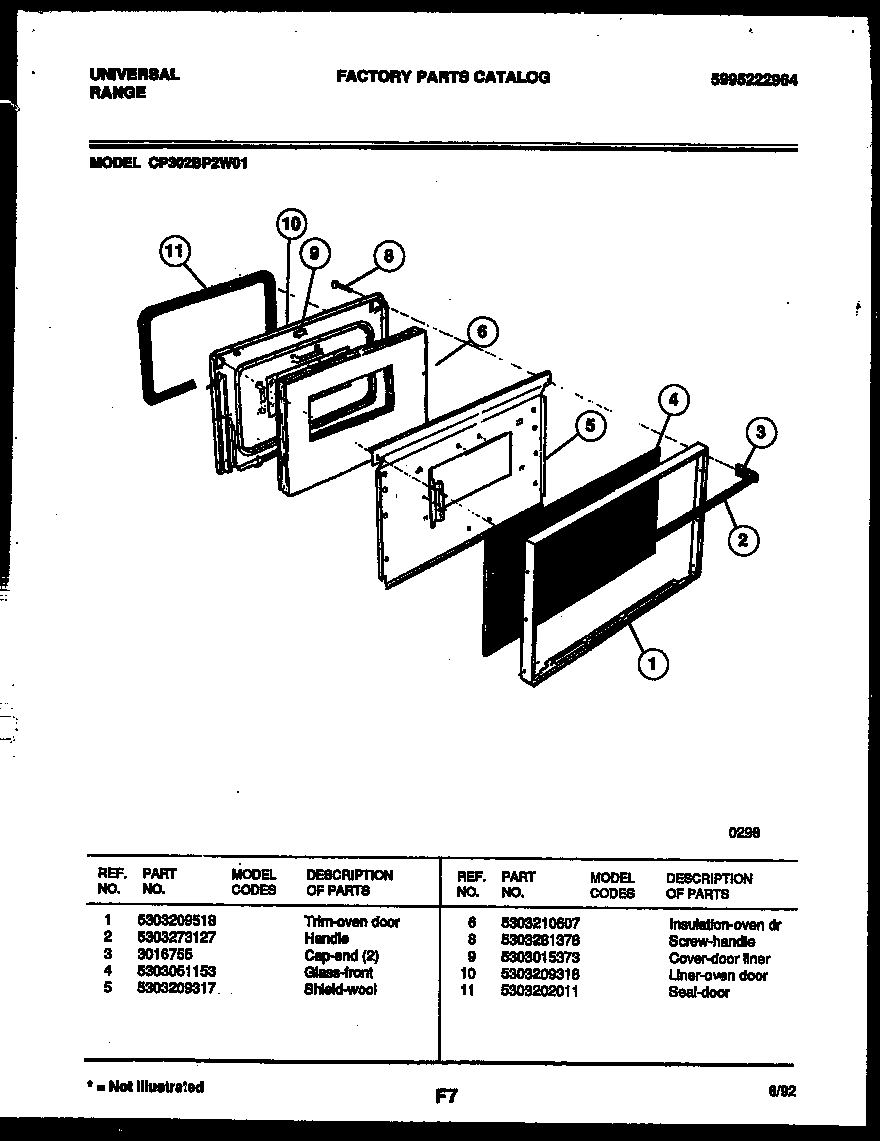

05 - DOOR PARTS

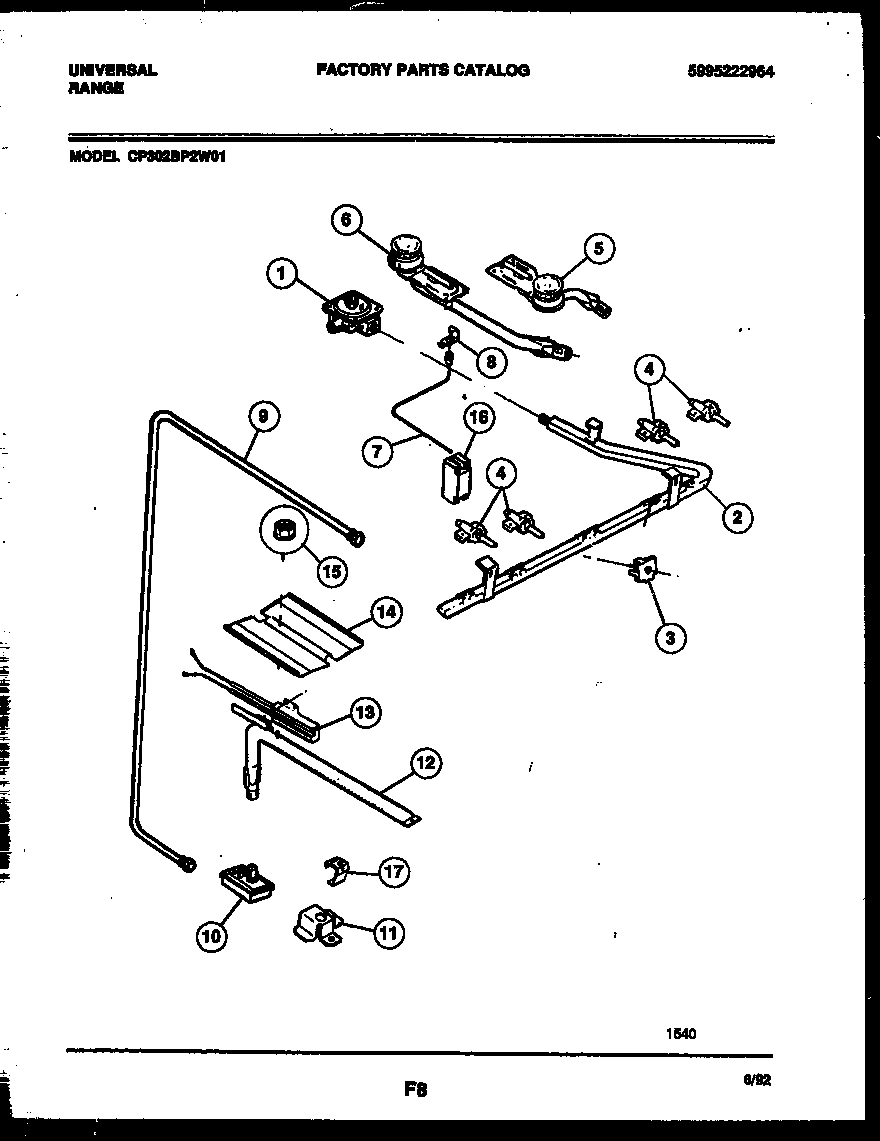

06 - BURNER, MANIFOLD AND GAS CONTROL

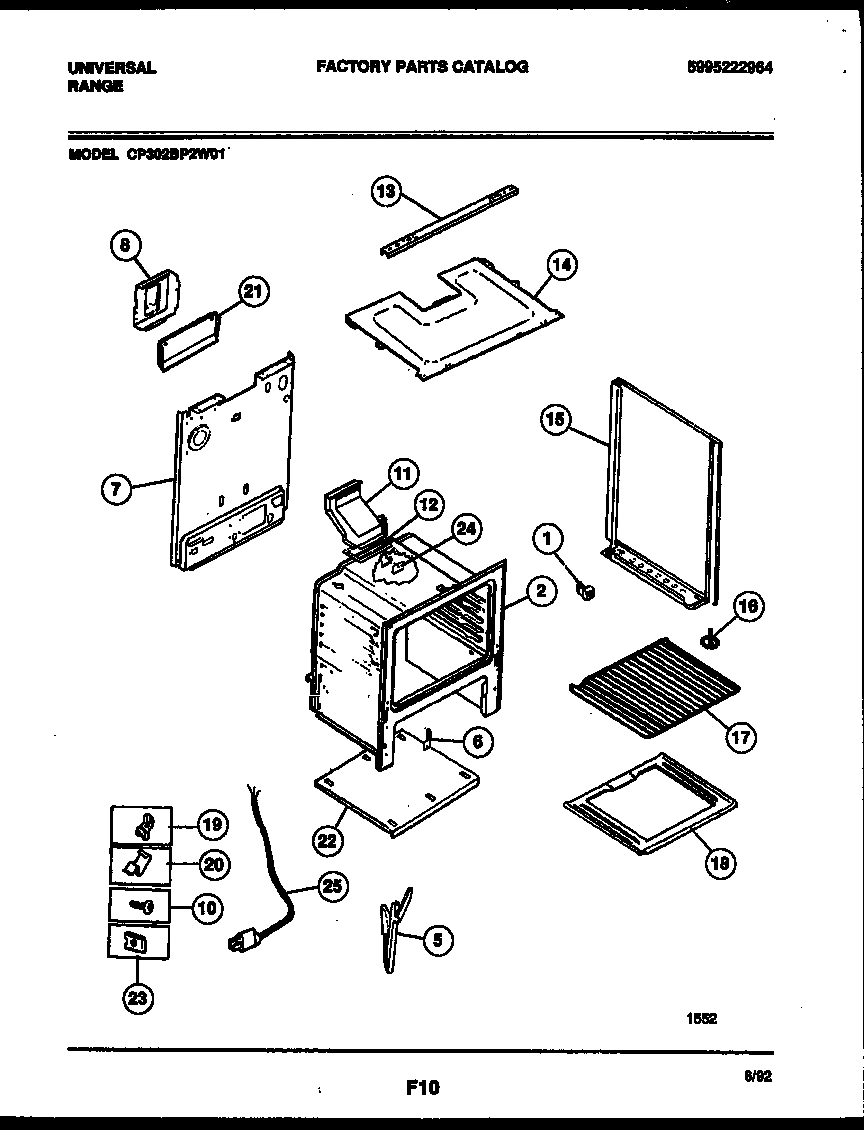

07 - BODY PARTS
Common parts from model Electrolux CP302BP2Y1 RANGE
*62304
WCI 3206216 WCI 3206216 Contact Us For Availability
*62309
WCI 08010570 WCI 08010570 Contact Us For Availability
*62309
WIRING DIAGRAM-NOT FOR PURCHASE WCI 19100180225 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 316009220 WCI 316009220 Contact Us For Availability
1
BRKT-BROILER HGN-LH WCI 3200673 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
CONTROL-REGULATION WCI 5303280293 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
WCI 5303288194 WCI 5303288194 Contact Us For Availability
2
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
WCI 5303272435 WCI 5303272435 Contact Us For Availability
3
SWITCH-IGNITER WCI 316032001 Contact Us For Availability
3
WCI 5303288187 WCI 5303288187 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
4
WCI 5303288195 WCI 5303288195 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
GLASS-FRONT WCI 5303051153 Contact Us For Availability
4
VALVE-TOP 2 POS WCI 316031700 Contact Us For Availability
5
CHANNEL-DOOR HINGE (2) WCI 316007001 Contact Us For Availability
5
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 3018619 WCI 3018619 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
6
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
7
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
7
PNL-BROILER-HARVEST WHEAT WCI 3051378 Contact Us For Availability
7
WCI 3200276 WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
WCI 5303281378 WCI 5303281378 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
FSTNR-NYLON SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 5303015373 WCI 5303015373 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRWR (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 5303281651 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
CHANNEL-BURNER BOX WCI 3203441 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
B/S PNL-HARVEST WHEAT-RH WCI 5303271917 Contact Us For Availability
15
B/S PNL-HARVEST WHEAT-LH WCI 5303271918 Contact Us For Availability
16
WCI 5303203397 WCI 5303203397 Contact Us For Availability
17
BRKT-OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
WCI 3017142 WCI 3017142 Contact Us For Availability
18B
INSULATION, OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19A
WCI 08067961 WCI 08067961 Contact Us For Availability
21
WCI 5303280614 WCI 5303280614 Contact Us For Availability
22
WCI 5303270160 WCI 5303270160 Contact Us For Availability
22A
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
24
WCI 3018607 WCI 3018607 Contact Us For Availability
24A
SHIELD-FLUE, (NON-ILLUSTRATED) WCI 3202799 Contact Us For Availability
24B
SHIELD-TOP (NON-ILLUSTRATED) WCI 3203455 Contact Us For Availability
× ![]()
