Model Whirlpool CP200B-C ELECTRIC COOK-TOP – Common Parts & Diagrams

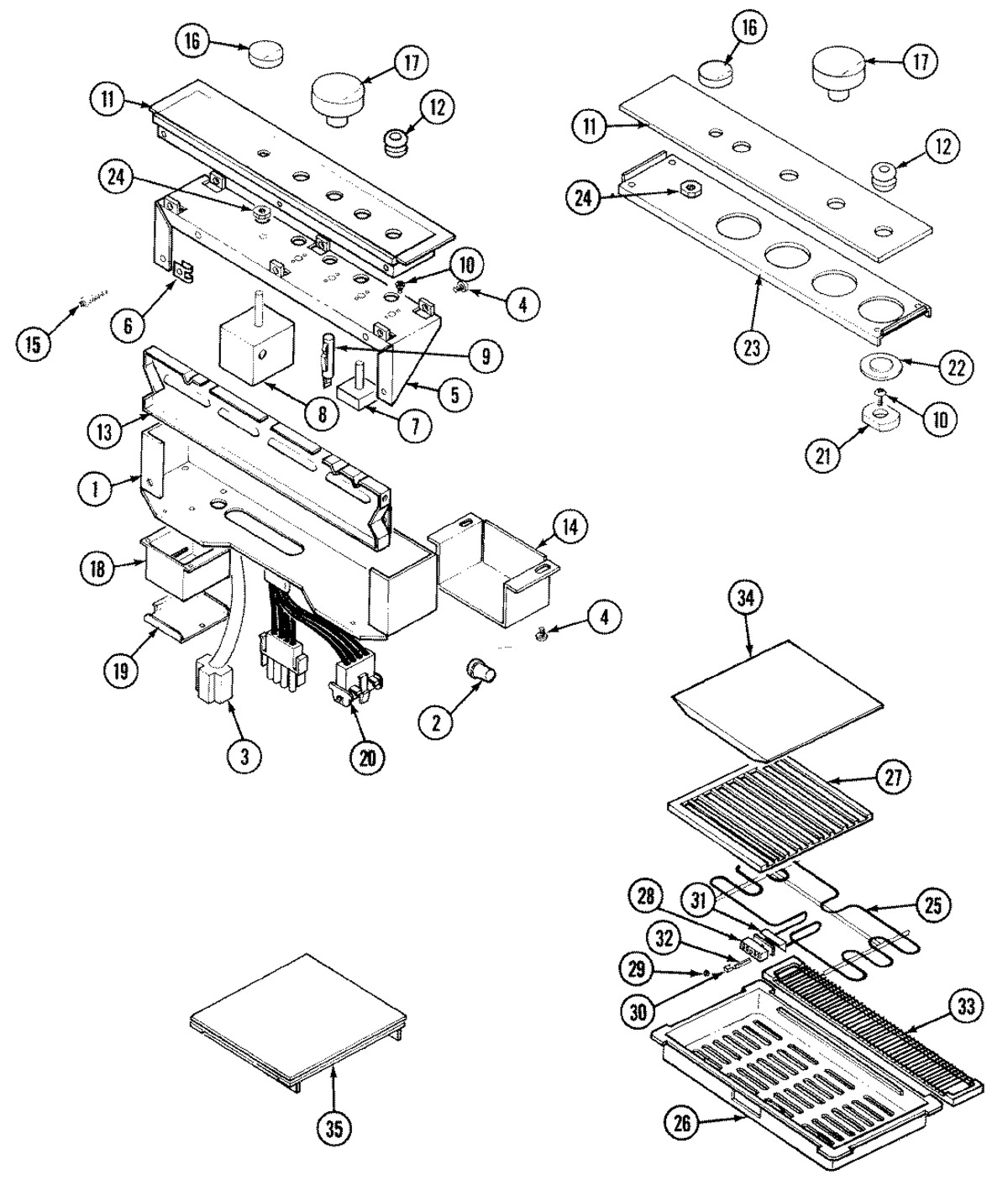

01 - CONTROL PANEL/ACCESSORIES
Common parts from model Whirlpool CP200B-C ELECTRIC COOK-TOP
4
SCREW WPL 715798 Contact Us For Availability
4
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
5
PLATE, SWITCH WPL 706027 Contact Us For Availability
6
CLIP, J WPL Y700556 Contact Us For Availability
8
CONTROL, FAN WPL 706171 Contact Us For Availability
9
LIGHT, INDICATOR WPL Y706125 Contact Us For Availability
10
SCREW WPL Y704864 Contact Us For Availability
11
PANEL, CONTROL (BLK) WPL 04100047 Contact Us For Availability
12
GROMMET, FAN SWITCH WPL Y706103 Contact Us For Availability
12
WIRE, PILOT LIGHT WPL Y706091 Contact Us For Availability
13
DIVIDER WPL 706026 Contact Us For Availability
14
COVER, WIRE HARNESS WPL Y706118 Contact Us For Availability
15
SCREW WPL 706113 Contact Us For Availability
17
INSULATOR, SPLICE CAP WPL Y705274 Contact Us For Availability
17
KNOB, INFINITE SWITCH (BLK) WPL Y706037 Contact Us For Availability
18
BOX, JUNCTION WPL Y706173 Contact Us For Availability
19
WIRE, WHITE WPL 706065 Contact Us For Availability
19
COVER, JUNCTION BOX WPL Y706174 Contact Us For Availability
20
HARNESS, CONTROL (DOUBLE) WPL Y706085 Contact Us For Availability
20
HARNESS, DOUBLE WPL Y706088 Contact Us For Availability
25
ELEMENT, GRILL WPL Y04100027 Contact Us For Availability
26
LINER, PAN WPL Y706003 Contact Us For Availability
27
GRATE, GRILL (EXCALIBUR) WPL Y706059 Contact Us For Availability
30
CLIP, SHUNT WPL Y700450 Contact Us For Availability
31
INSULATOR WPL 04100295 Contact Us For Availability
33
GRILL, AIR (BLK) WPL Y706005 Contact Us For Availability
34
COVER, GRILL (PORCELIN/BLK) WPL Y706130 Contact Us For Availability
NI
HARNESS, BREAKER (RT) WPL 04100242 Contact Us For Availability
NI
HARNESS, BREAKER (LT) WPL 04100243 Contact Us For Availability
NI
BREAKER, CIRCUIT WPL Y715443 Contact Us For Availability
× ![]()
