Model Whirlpool CNT17R5A REFRIGERATOR – Common Parts & Diagrams

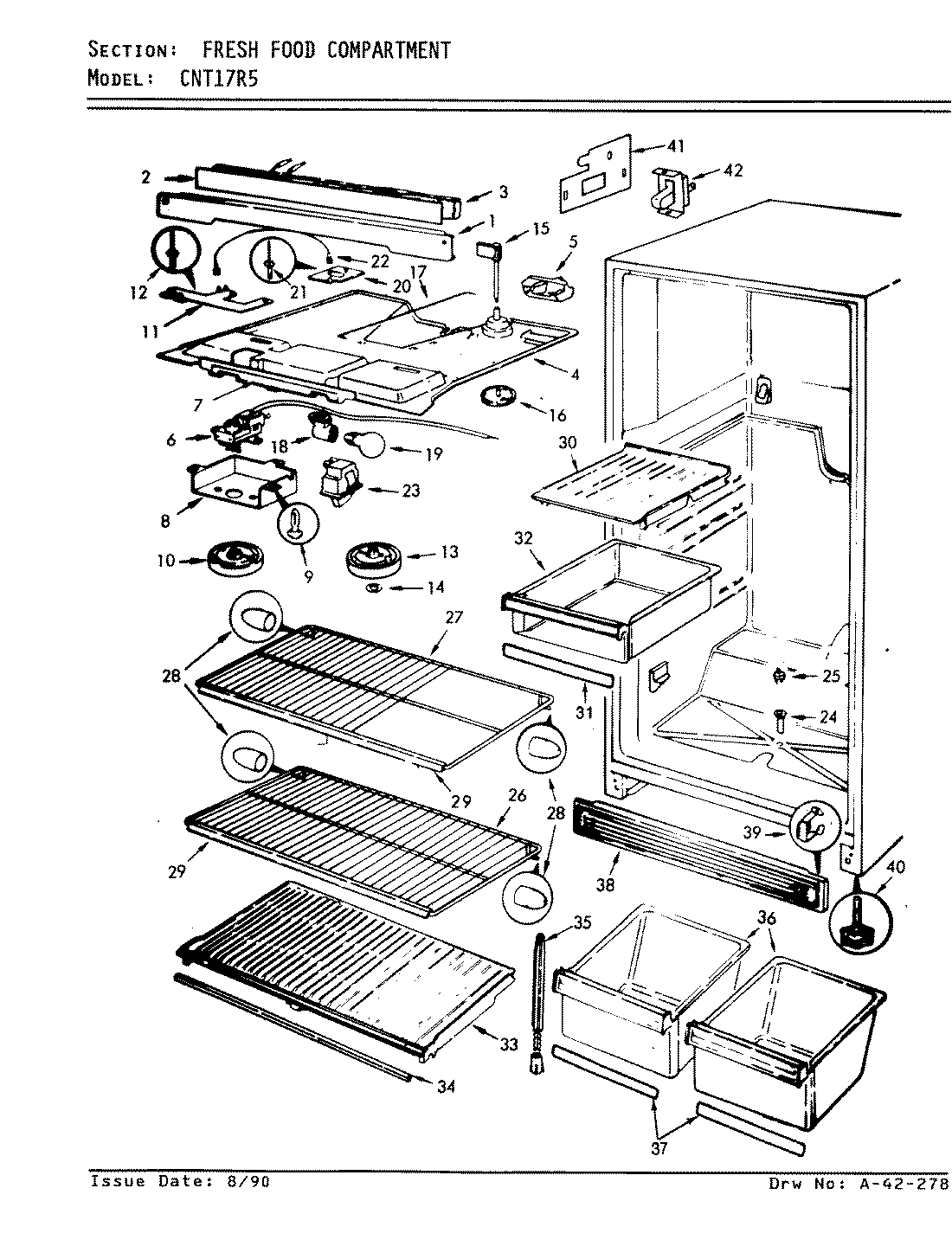

03 - FRESH FOOD COMPARTMENT
01 - DOORS

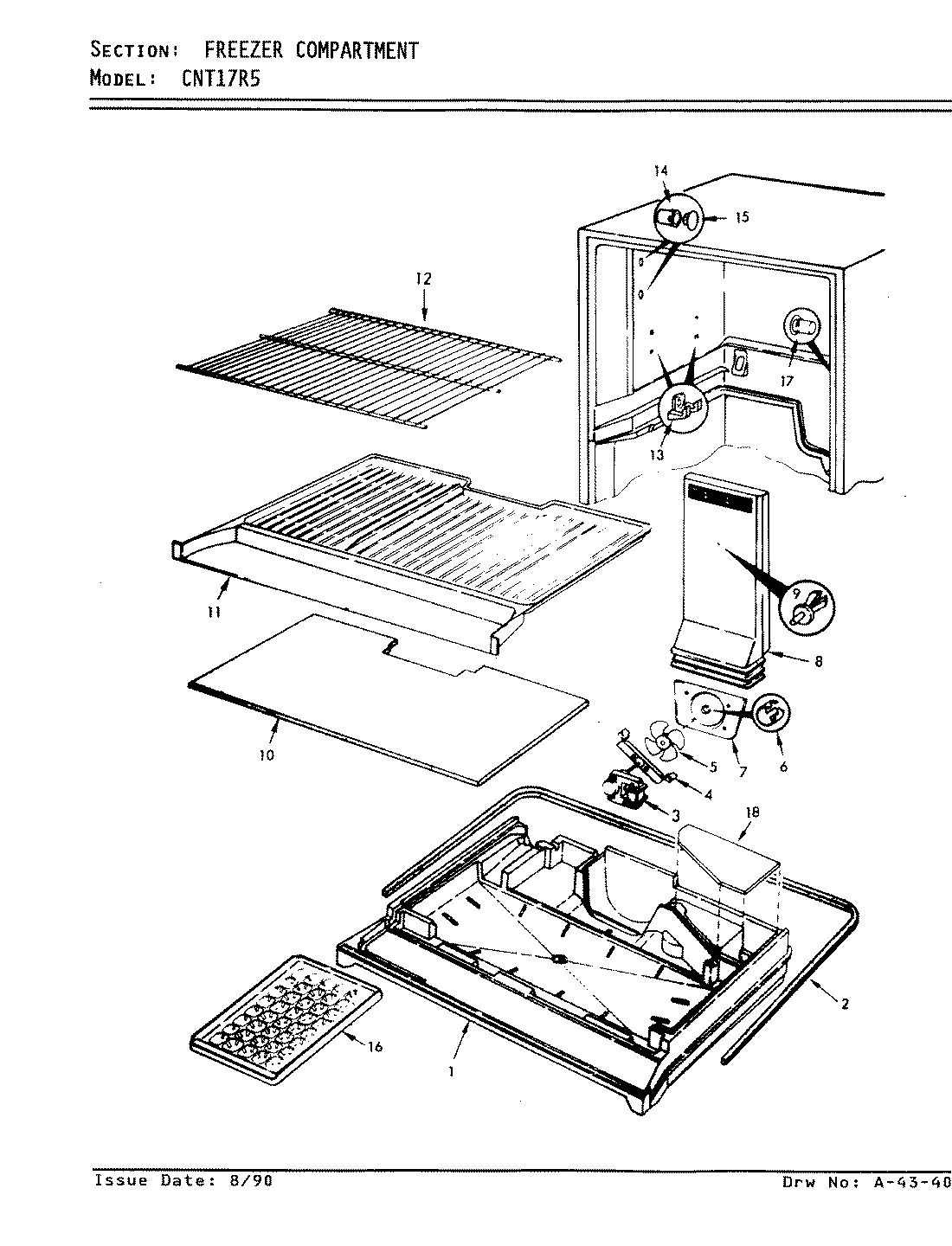

02 - FREEZER COMPARTMENT

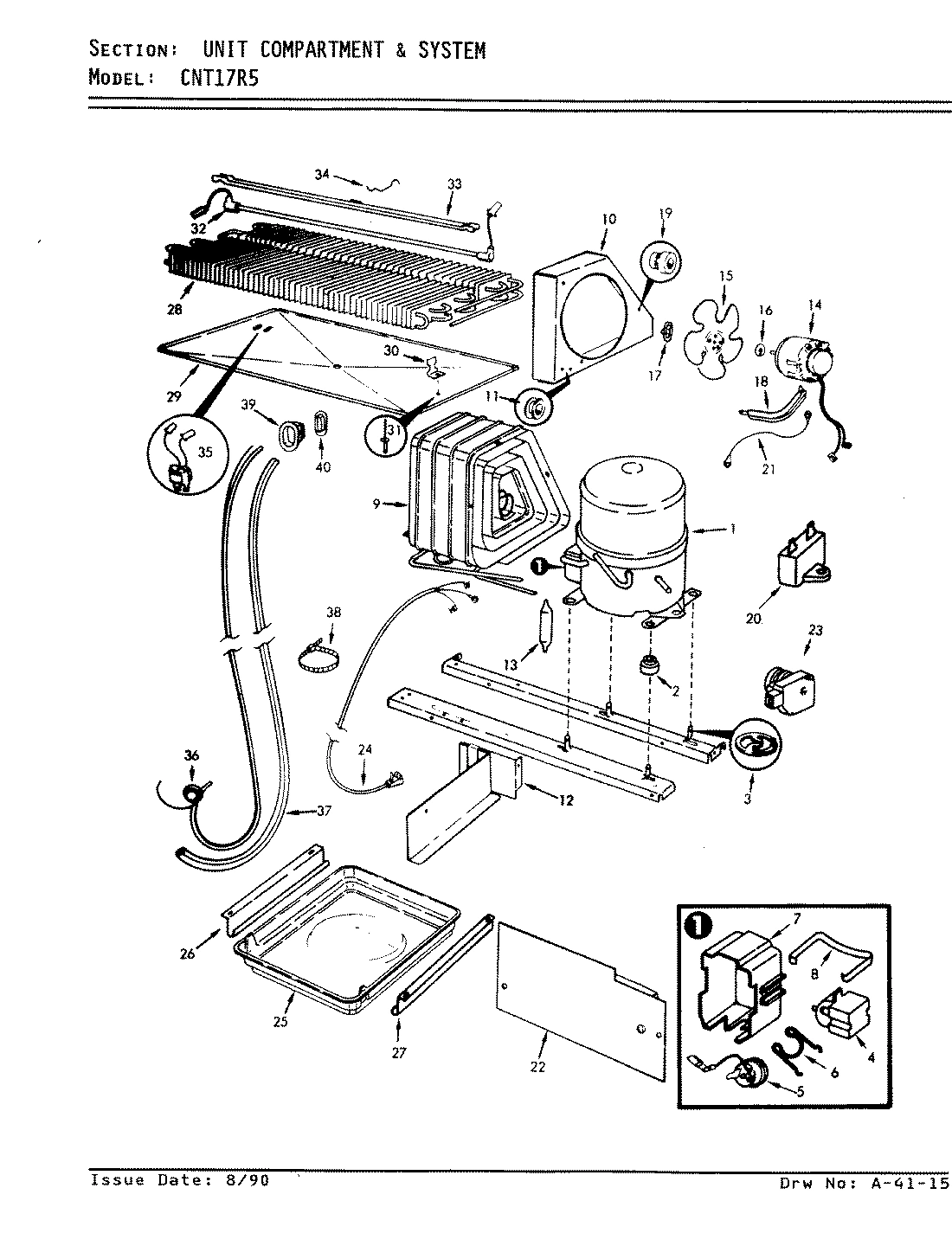

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool CNT17R5A REFRIGERATOR
1
DIVIDER, MULLION (ALM) WPL 657971AM Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
OUTER PANEL WPL 600335AM Contact Us For Availability
1
STYROFOAM MULLION DIVIDER WPL 674571 Contact Us For Availability
1
COMPRESSOR WPL RA1009 Contact Us For Availability
2
HEATER WIRE WPL 601057 Contact Us For Availability
2
OUTER PANEL WPL 6003250AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL WPL 663251 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
3
DOOR HANDLE WPL 662551 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008551 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329415 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681191 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
BEZEL WPL 606861 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
INSERT CONTROL WPL 5457154 Contact Us For Availability
7
INSERT WPL 653405 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
DOOR HANDLE WPL 662552 Contact Us For Availability
8
TUNNEL, AIR WPL 660442 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
INSERT WPL 606873 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
SCREW WPL 9986122 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
10
KNOB, CONTROL WPL 685201 Contact Us For Availability
10
INSERT WPL 606882 Contact Us For Availability
10
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
INSERT WPL 653401 Contact Us For Availability
11
SCREW WPL 9986112 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SHIM WPL 604561 Contact Us For Availability
12
SHELF WPL 6043813 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
KNOB, CONTROL WPL 685202 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
14
LINER, DOOR WPL 6592910 Contact Us For Availability
14
CUP, SHELF WPL 603131 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
15
DAMPER WPL 666091 Contact Us For Availability
15
LINER, DOOR WPL 6593411 Contact Us For Availability
15
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
15
CUP PLUG WPL 680531 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
CRANK WPL 681613 Contact Us For Availability
16
GASKET, DOOR WPL 661993 Contact Us For Availability
16
ICE CUBE TRAY WPL 601121 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
17
GASKET, DOOR WPL 661994 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 65151105 Contact Us For Availability
18
COVER, PLENUM WPL 664801 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
BULB, LIGHT WPL 681231 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 6515196 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151114 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515131 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 661281 Contact Us For Availability
24
TUBE, DRAIN WPL 545317 Contact Us For Availability
24
DOOR, DAIRY WPL 6040618 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
INSERT WPL 6057320 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
SHELF WPL 602236 Contact Us For Availability
26
BUMPER, DOOR WPL 282726 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SHELF WPL 602238 Contact Us For Availability
27
TRAY, BUTTER WPL 299362 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
TIP WPL 245803 Contact Us For Availability
28
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
TRIM WPL 6041446 Contact Us For Availability
29
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
COVER WPL 6007510 Contact Us For Availability
30
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
PAN, MEAT WPL 664902 Contact Us For Availability
32
WASHER WPL 521851 Contact Us For Availability
32
SCREW WPL 998687 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
SHELF, CRISPER WPL 668341 Contact Us For Availability
33
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
TRIM WPL 6045410 Contact Us For Availability
34
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
35
TAPPING PLATE WPL 606221 Contact Us For Availability
35
SCREW WPL 9986107 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
PAN, CRISPER WPL 68221104 Contact Us For Availability
36
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
INSERT WPL 681295 Contact Us For Availability
37
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
KICKPLATE WPL 6023737 Contact Us For Availability
38
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
39
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
LEG, LEVELING WPL 60128 Contact Us For Availability
40
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 668561 Contact Us For Availability
41
BRACKET, SWITCH WPL 605831 Contact Us For Availability
41
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
42
SCREW WPL 4020131 Contact Us For Availability
42
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
42
SCREW WPL 403100801 Contact Us For Availability
42
WASHER WPL 542332 Contact Us For Availability
× ![]()
