Model Maytag CNEA100ACL ELECTRIC RANGE – Common Parts & Diagrams

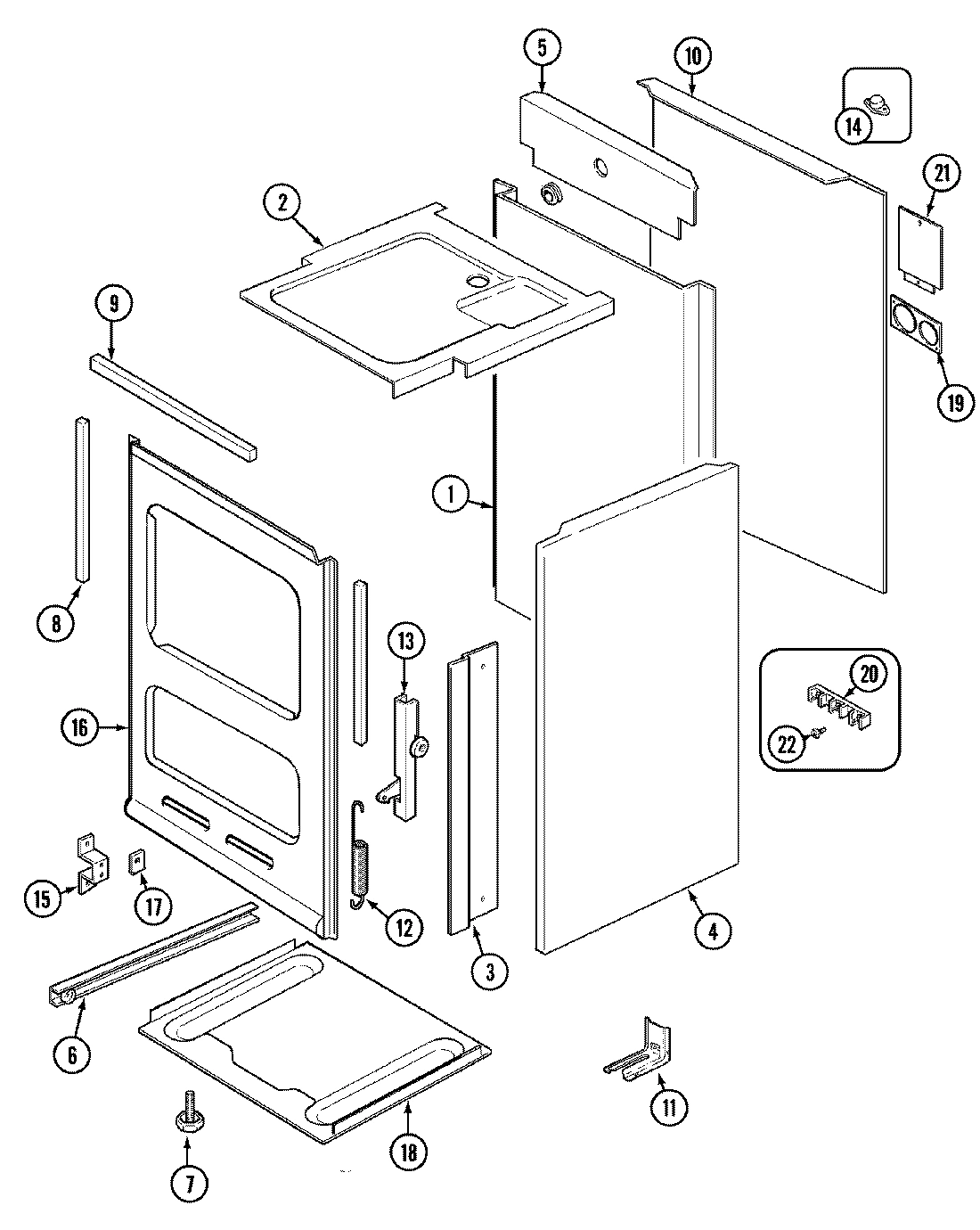

01 - BODY

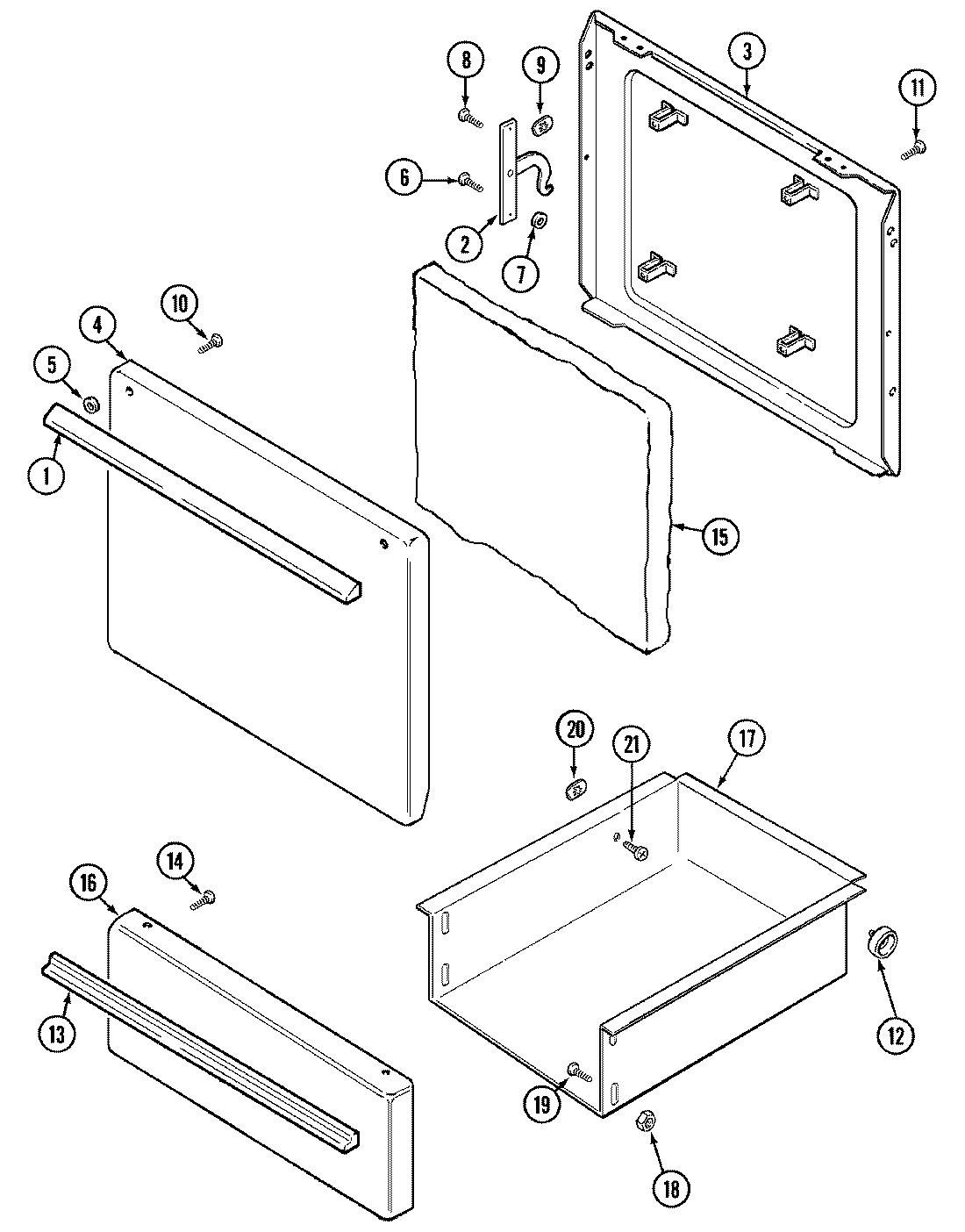

02 - DOOR/DRAWER
03 - OVEN
04 - TOP ASSEMBLY
05 - WIRING INFORMATION
Common parts from model Maytag CNEA100ACL ELECTRIC RANGE
1
MAY 7725P047-60 MAY 7725P047-60 Contact Us For Availability
1
MAY 74001871 MAY 74001871 Contact Us For Availability
1
MAY 7701P029-60 MAY 7701P029-60 Contact Us For Availability
1
MAY 7406P041-60 MAY 7406P041-60 Contact Us For Availability
2
MAY 3418A046-34 MAY 3418A046-34 Contact Us For Availability
2
MAY 3418A047-34 MAY 3418A047-34 Contact Us For Availability
2
MAY 7406P044-60 MAY 7406P044-60 Contact Us For Availability
2
MAY 7725P048-60 MAY 7725P048-60 Contact Us For Availability
3
MAY 2402W102-19 MAY 2402W102-19 Contact Us For Availability
3
MAY 7002P091-60 MAY 7002P091-60 Contact Us For Availability
3
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
4
MAY 2401W059-74 MAY 2401W059-74 Contact Us For Availability
4
MAY 7002P119-60 MAY 7002P119-60 Contact Us For Availability
4
MAY 7406P040-60 MAY 7406P040-60 Contact Us For Availability
5
MAY 8010P029-60 MAY 8010P029-60 Contact Us For Availability
5
MAY 2205F013-19 MAY 2205F013-19 Contact Us For Availability
5
MAY 7406P038-60 MAY 7406P038-60 Contact Us For Availability
6
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
6
MAY 7118P009-60 MAY 7118P009-60 Contact Us For Availability
6
MAY 3401F010-23 MAY 3401F010-23 Contact Us For Availability
6
MAY 1430306K MAY 1430306K Contact Us For Availability
7
MAY Y7101P25460 MAY Y7101P25460 Contact Us For Availability
7
MAY 7103P072-60 MAY 7103P072-60 Contact Us For Availability
7
MAY 3414F084-45 MAY 3414F084-45 Contact Us For Availability
7
MAY 2002F065-84 MAY 2002F065-84 Contact Us For Availability
8
MAY 7212P015-60 MAY 7212P015-60 Contact Us For Availability
8
MAY 7801P019-60 MAY 7801P019-60 Contact Us For Availability
8
MAY 2614F064-74 MAY 2614F064-74 Contact Us For Availability
9
MAY 7212P014-60 MAY 7212P014-60 Contact Us For Availability
9
MAY 3807F375-45 MAY 3807F375-45 Contact Us For Availability
9
MAY 7719P008-60 MAY 7719P008-60 Contact Us For Availability
10
MAY 3604F144-51 MAY 3604F144-51 Contact Us For Availability
10
MAY 7101P248-60 MAY 7101P248-60 Contact Us For Availability
10
MAY 3807F285-51 MAY 3807F285-51 Contact Us For Availability
10
MAY 3604F139-51 MAY 3604F139-51 Contact Us For Availability
11
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
11
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
11
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
11
MAY 3413F007-19 MAY 3413F007-19 Contact Us For Availability
11
MAY 7101P125-60 MAY 7101P125-60 Contact Us For Availability
11
MAY 7404P056-60 MAY 7404P056-60 Contact Us For Availability
12
MAY 7803P032-60 MAY 7803P032-60 Contact Us For Availability
12
MAY 8014P009-60 MAY 8014P009-60 Contact Us For Availability
12
MAY 7112P053-60 MAY 7112P053-60 Contact Us For Availability
13
MAY 3807A292-34 MAY 3807A292-34 Contact Us For Availability
13
MAY 3807A293-34 MAY 3807A293-34 Contact Us For Availability
13
MAY 74001820 MAY 74001820 Contact Us For Availability
13
MAY 7701P012-60 MAY 7701P012-60 Contact Us For Availability
13
MAY 7403P290-60 MAY 7403P290-60 Contact Us For Availability
14
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
14
MAY 7403P207-60 MAY 7403P207-60 Contact Us For Availability
15
MAY 3807F281-80 MAY 3807F281-80 Contact Us For Availability
15
MAY 8010P020-60 MAY 8010P020-60 Contact Us For Availability
15
MAY 7735P007-60 MAY 7735P007-60 Contact Us For Availability
16
MAY 2201W047-19 MAY 2201W047-19 Contact Us For Availability
16
MAY 2403W017-74 MAY 2403W017-74 Contact Us For Availability
16
MAY 7739P008-60 MAY 7739P008-60 Contact Us For Availability
17
MAY 7103P100-60 MAY 7103P100-60 Contact Us For Availability
17
MAY 3405W010-80 MAY 3405W010-80 Contact Us For Availability
17
MAY 7737P004-60 MAY 7737P004-60 Contact Us For Availability
18
MAY 4003A014-80 MAY 4003A014-80 Contact Us For Availability
18
MAY 7103P064-60 MAY 7103P064-60 Contact Us For Availability
18
MAY 7407P071-60 MAY 7407P071-60 Contact Us For Availability
19
PLATE, CONDUIT REINFORCEMENT MAY 3605F146-51 Contact Us For Availability
19
MAY 7118P004-60 MAY 7118P004-60 Contact Us For Availability
19
MAY 7407P072-60 MAY 7407P072-60 Contact Us For Availability
20
MAY 7103P118-60 MAY 7103P118-60 Contact Us For Availability
20
MAY 2601F206-84 MAY 2601F206-84 Contact Us For Availability
21
MAY 4005F286-51 MAY 4005F286-51 Contact Us For Availability
21
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
21
MAY 3603F017-50 MAY 3603F017-50 Contact Us For Availability
22
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
23
MAY 7103P071-60 MAY 7103P071-60 Contact Us For Availability
24
MAY 8024P003-60 MAY 8024P003-60 Contact Us For Availability
25
MAY 5125A200-60 MAY 5125A200-60 Contact Us For Availability
25
MAY 5175A040-60 MAY 5175A040-60 Contact Us For Availability
26
MAY 8112P089-60 MAY 8112P089-60 Contact Us For Availability
27
MAY 16002079 MAY 16002079 Contact Us For Availability
NI
MAY 15001413 MAY 15001413 Contact Us For Availability
× ![]()
