Model Whirlpool CMT135SGW0 MICROWAVE OVEN – Common Parts & Diagrams

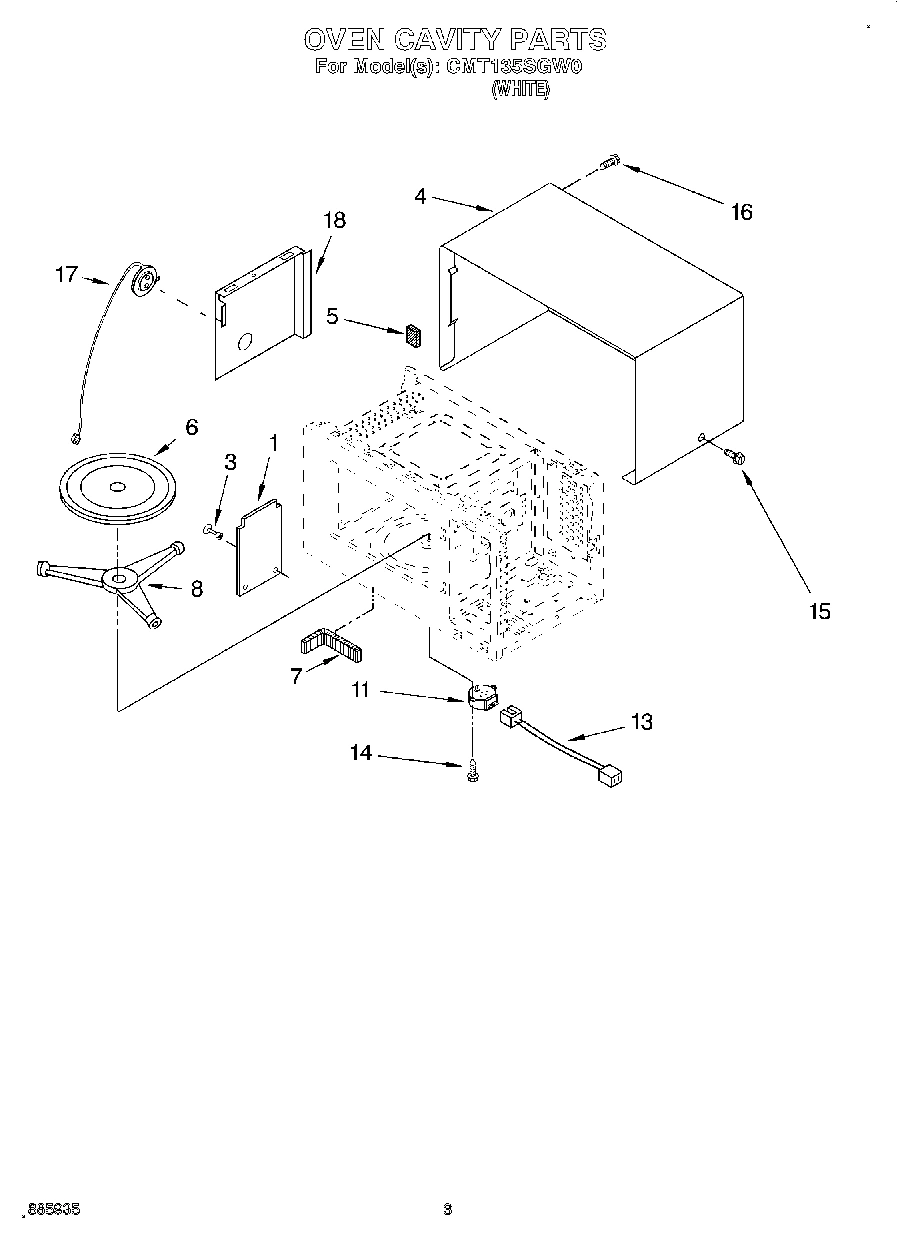

03 - OVEN CAVITY

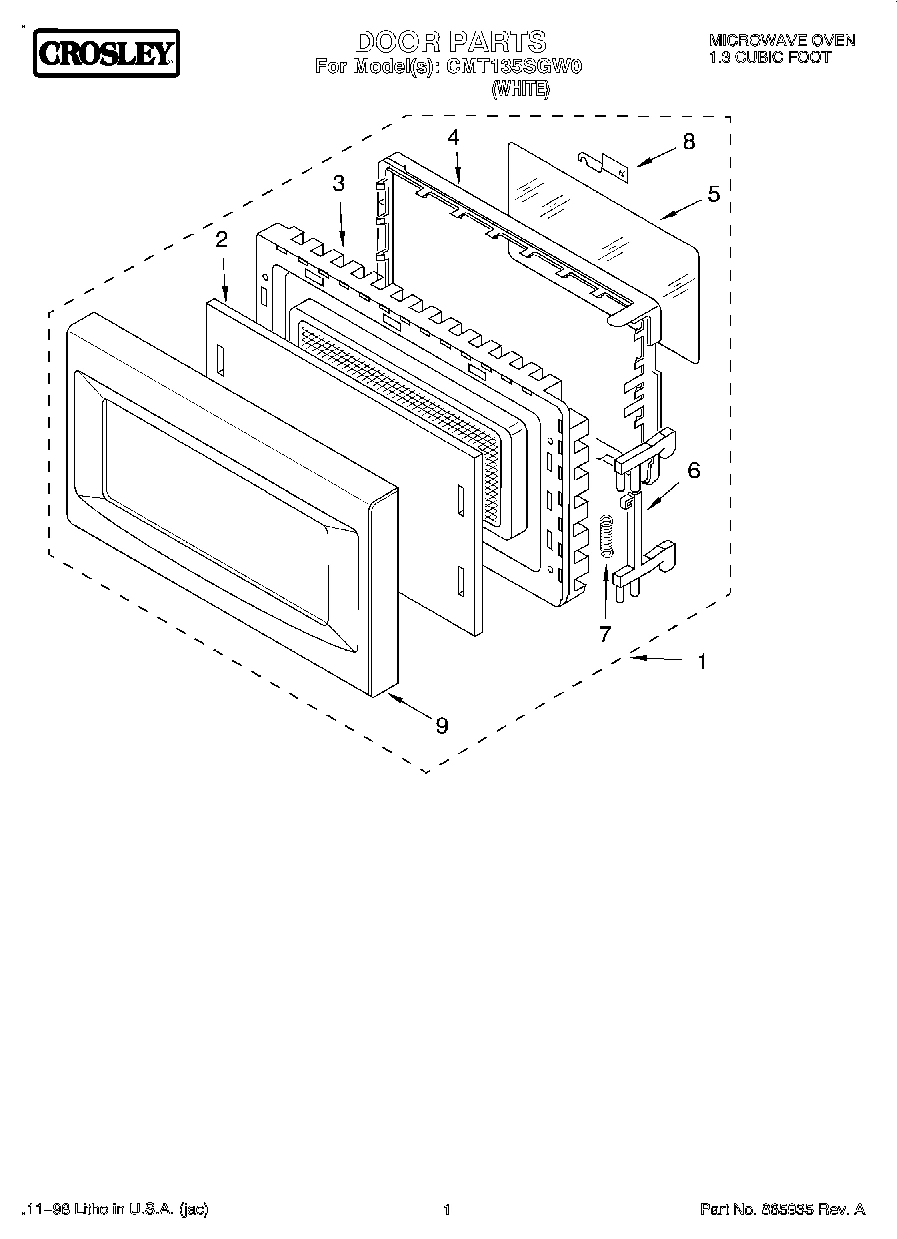

01 - DOOR
06 - BASE PLATE
05 - OVEN INTERIOR, LITERATURE
02 - CONTROL PANEL
04 - LATCH BOARD
Common parts from model Whirlpool CMT135SGW0 MICROWAVE OVEN
Installation/Instructions Trim Kits (30``) WPL LIT4359691 Contact Us For Availability
Installation/Instructions Trim Kits (27``) WPL LIT4359692 Contact Us For Availability
Installation/Instructions Trim Kits (24``) WPL LIT4359693 Contact Us For Availability
Use & Care Guide WPL LIT4393927 Contact Us For Availability
1
Canopy WPL 4359777 Contact Us For Availability
1
Door Assembly (White) WPL 4359947 Contact Us For Availability
1
Base Plate (L) WPL 4359798 Contact Us For Availability
1
Screw WPL 4358381 Contact Us For Availability
1
Propeller WPL 4358379 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI21456A5 Contact Us For Availability
2
Front Screen WPL 4359948 Contact Us For Availability
2
Base Plate (R) WPL 4359805 Contact Us For Availability
2
Guide, Suction WPL 4359786 Contact Us For Availability
2
Release Button (White Model) WPL 4359767 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4359760 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Motor, Fan WPL 4359787 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Transformer WPL 4359796 Contact Us For Availability
4
H.V. Capacitor WPL 4359221 Contact Us For Availability
4
Key Membrane (White) WPL 4359949 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
H.V.C Bracket WPL 4359797 Contact Us For Availability
5
Control Panel (White) WPL 4359773 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
Leadwire Assembly WPL 4359790 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359745 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4359501 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Screw WPL 4358051 Contact Us For Availability
8
Support, Turntable WPL 4359782 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
9
Panel, Door (White) WPL 4359766 Contact Us For Availability
9
Power Cord WPL 4359793 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359932 Contact Us For Availability
12
Holder, Fuse WPL 4359789 Contact Us For Availability
13
Lead wire assy. WPL 4359725 Contact Us For Availability
13
Magnetron WPL 4359950 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw WPL 4358451 Contact Us For Availability
17
Sensor WPL 4359568 Contact Us For Availability
18
Sensor Duct WPL 4359806 Contact Us For Availability
× ![]()
