Model Maytag CME9010AAB MICROWAVE – Common Parts & Diagrams

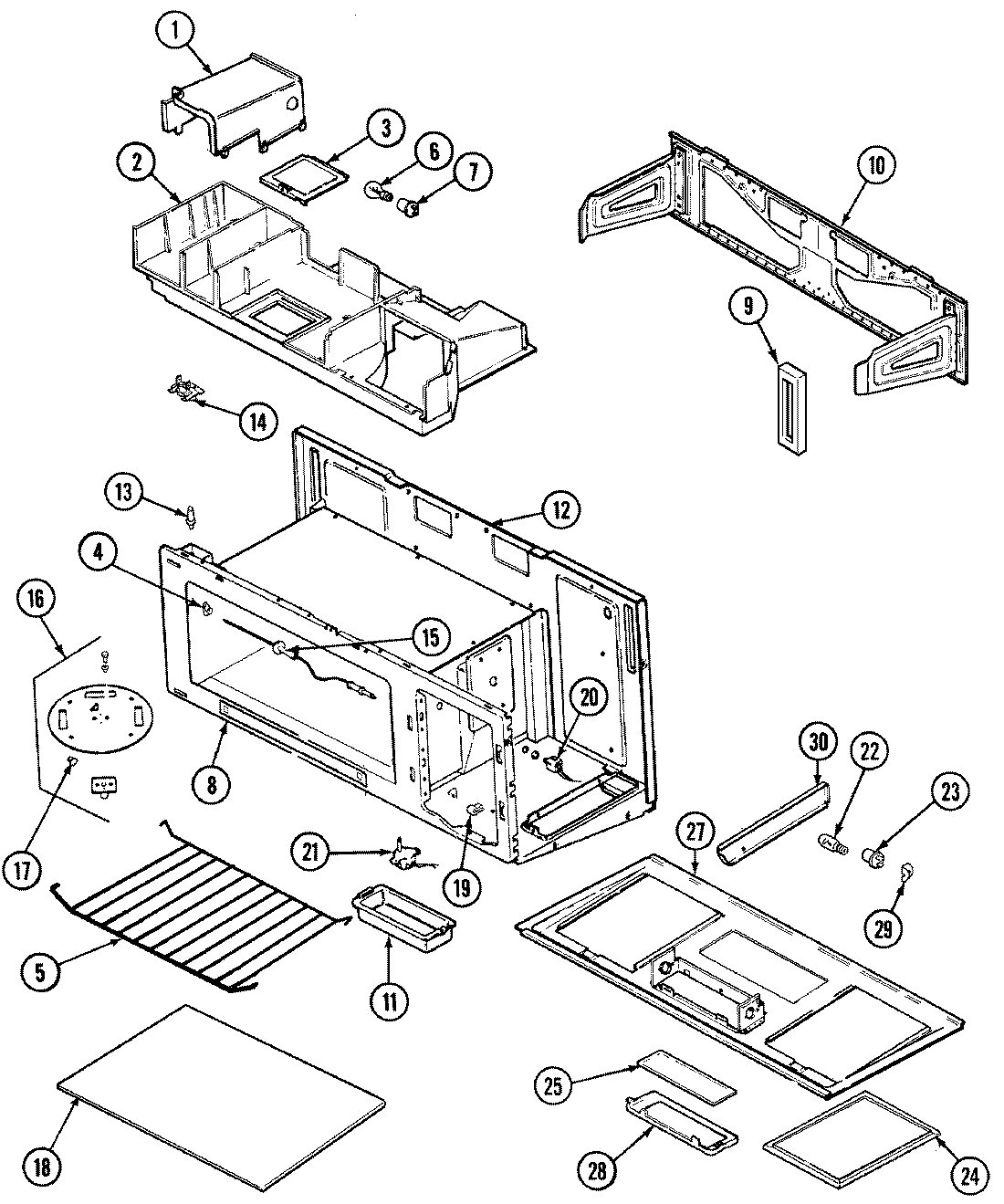

01 - BASE

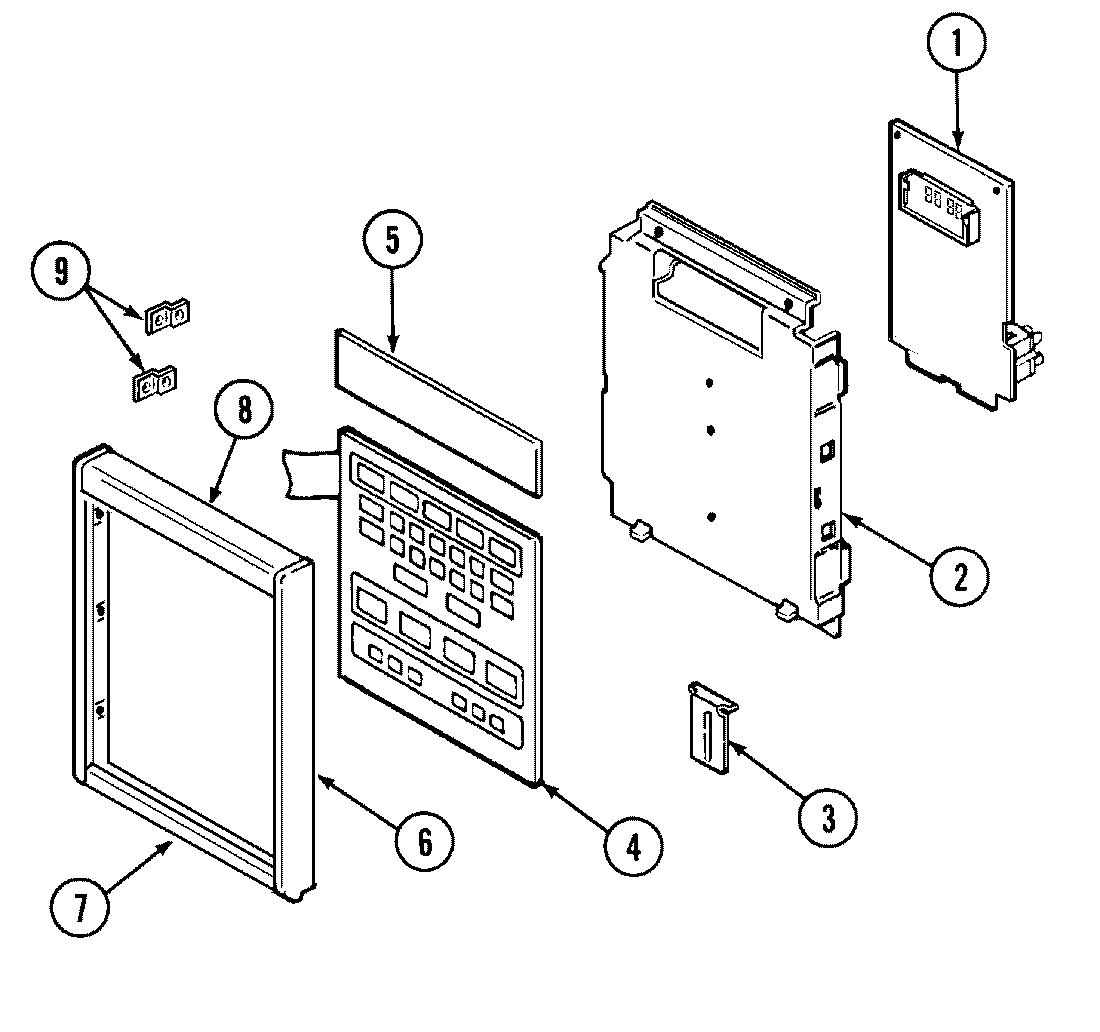

02 - CONTROL PANEL

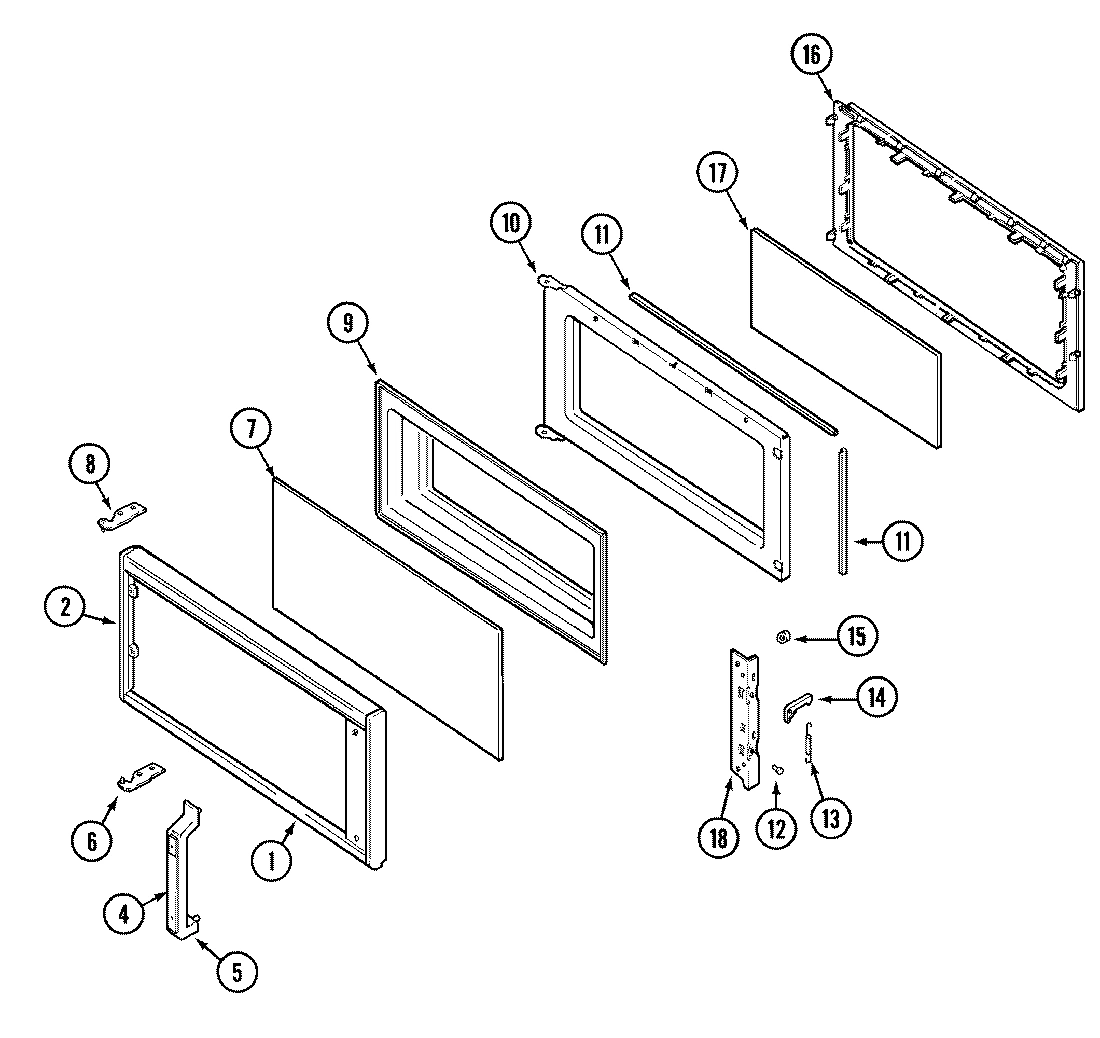

03 - DOOR
04 - INTERNAL CONTROLS

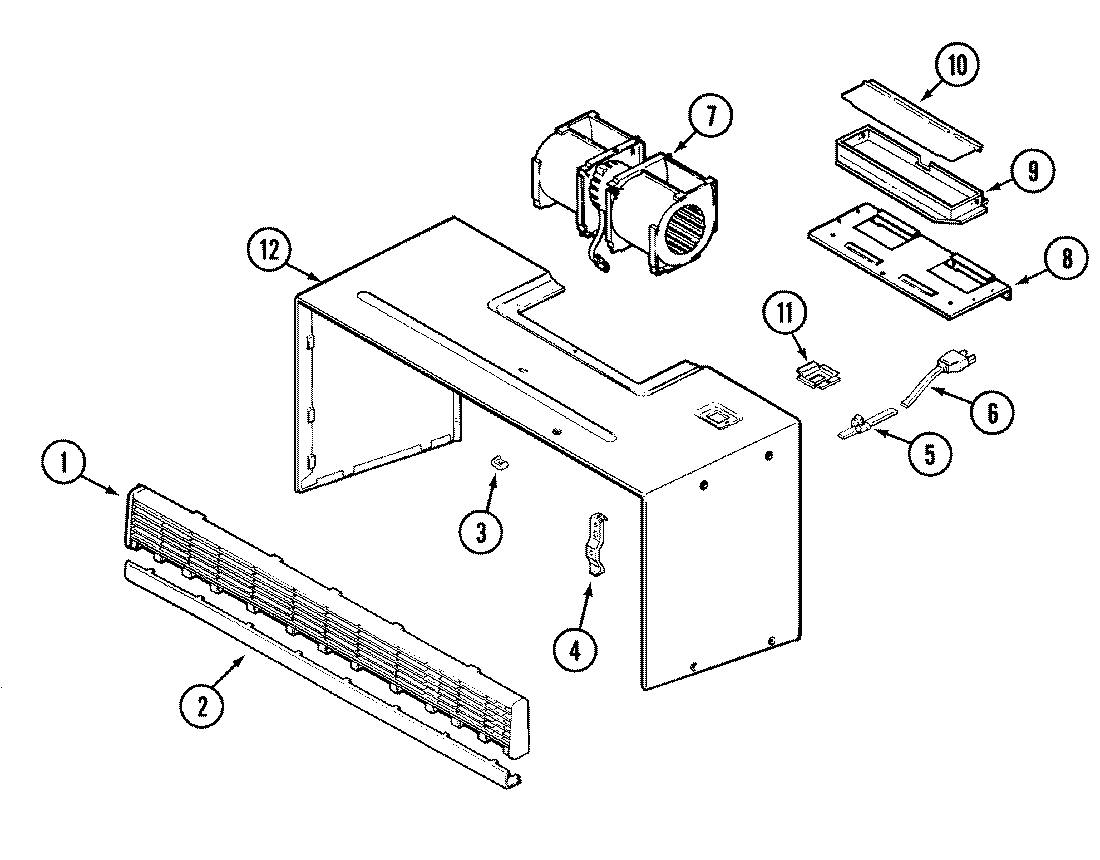

05 - MOTOR

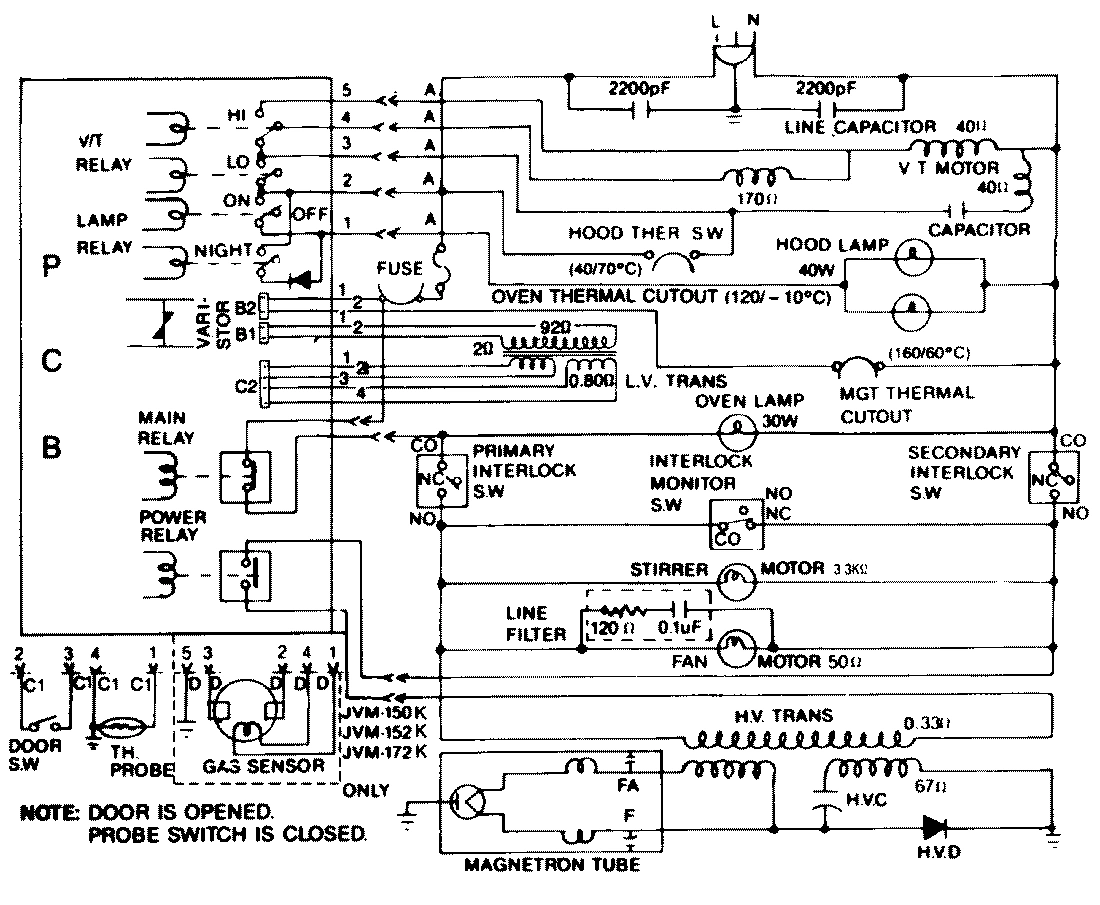

06 - WIRING INFORMATION
Common parts from model Maytag CME9010AAB MICROWAVE
1
MAY 05200157 MAY 05200157 Contact Us For Availability
1
MAY 05200192 MAY 05200192 Contact Us For Availability
1
MAY 05200217 MAY 05200217 Contact Us For Availability
1
MAY Y05200160 MAY Y05200160 Contact Us For Availability
1
MAY 05200285 MAY 05200285 Contact Us For Availability
2
MAY 05200262 MAY 05200262 Contact Us For Availability
2
MAY 05200184 MAY 05200184 Contact Us For Availability
2
MAY 54001008 MAY 54001008 Contact Us For Availability
3
MAY 05200141 MAY 05200141 Contact Us For Availability
3
MAY Y05200215 MAY Y05200215 Contact Us For Availability
3
MAY 05200172 MAY 05200172 Contact Us For Availability
3
MAY Y05200110 MAY Y05200110 Contact Us For Availability
4
MAY Y05200084 MAY Y05200084 Contact Us For Availability
4
MAY Y05200232 MAY Y05200232 Contact Us For Availability
4
MAY Y05200234 MAY Y05200234 Contact Us For Availability
4
MAY 3160-0010 MAY 3160-0010 Contact Us For Availability
4
MAY 2520-0011 MAY 2520-0011 Contact Us For Availability
5
MAY Y05200176 MAY Y05200176 Contact Us For Availability
5
MAY Y05200026 MAY Y05200026 Contact Us For Availability
5
MAY 05200181 MAY 05200181 Contact Us For Availability
5
MAY Y05200048 MAY Y05200048 Contact Us For Availability
5
MAY Y05200233 MAY Y05200233 Contact Us For Availability
5
MAY Y05200163 MAY Y05200163 Contact Us For Availability
6
MAY Y05200136 MAY Y05200136 Contact Us For Availability
6
MAY 05200139 MAY 05200139 Contact Us For Availability
6
MAY Y05200150 MAY Y05200150 Contact Us For Availability
6
MAY 05200188 MAY 05200188 Contact Us For Availability
6
MAY Y05200148 MAY Y05200148 Contact Us For Availability
7
MAY 05200052 MAY 05200052 Contact Us For Availability
7
MAY 05200178 MAY 05200178 Contact Us For Availability
7
MAY 05200235 MAY 05200235 Contact Us For Availability
7
MAY 2275-0041 MAY 2275-0041 Contact Us For Availability
7
MAY 2275-0043 MAY 2275-0043 Contact Us For Availability
7
MAY Y05200156 MAY Y05200156 Contact Us For Availability
8
MAY 05200271 MAY 05200271 Contact Us For Availability
8
MAY 05200182 MAY 05200182 Contact Us For Availability
8
MAY Y05200208 MAY Y05200208 Contact Us For Availability
8
MAY Y05200065 MAY Y05200065 Contact Us For Availability
9
MAY Y05200143 MAY Y05200143 Contact Us For Availability
9
MAY 05200138 MAY 05200138 Contact Us For Availability
9
MAY Y05200200 MAY Y05200200 Contact Us For Availability
9
MAY 05200081 MAY 05200081 Contact Us For Availability
9
MAY Y05200066 MAY Y05200066 Contact Us For Availability
10
MAY 05200142 MAY 05200142 Contact Us For Availability
10
MAY Y05200196 MAY Y05200196 Contact Us For Availability
10
MAY 3135-0085 MAY 3135-0085 Contact Us For Availability
10
MAY 2305-0002 MAY 2305-0002 Contact Us For Availability
11
MAY 05200270 MAY 05200270 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE COVER, STIRRER MAY W10124350 Contact Us For Availability
11
MAY Y05200203 MAY Y05200203 Contact Us For Availability
11
MAY 2195-0007 MAY 2195-0007 Contact Us For Availability
11
MAY 05200149 MAY 05200149 Contact Us For Availability
12
MAY 05200147 MAY 05200147 Contact Us For Availability
12
MAY 05200210 MAY 05200210 Contact Us For Availability
12
MAY 2660-0017 MAY 2660-0017 Contact Us For Availability
12
MAY 05200145 MAY 05200145 Contact Us For Availability
13
MAY Y05200222 MAY Y05200222 Contact Us For Availability
13
MAY Y05200207 MAY Y05200207 Contact Us For Availability
13
MAY 3005-0114 MAY 3005-0114 Contact Us For Availability
14
MAY Y05200144 MAY Y05200144 Contact Us For Availability
14
MAY Y05200204 MAY Y05200204 Contact Us For Availability
14
MAY 3135-0059 MAY 3135-0059 Contact Us For Availability
15
MAY Y05200169 MAY Y05200169 Contact Us For Availability
15
MAY Y05200209 MAY Y05200209 Contact Us For Availability
15
MAY 3070-0024 MAY 3070-0024 Contact Us For Availability
16
MAY 2950-0007 MAY 2950-0007 Contact Us For Availability
16
MAY Y05200159 MAY Y05200159 Contact Us For Availability
16
MAY 05200198 MAY 05200198 Contact Us For Availability
16
MAY 05200165 MAY 05200165 Contact Us For Availability
17
MAY 05200219 MAY 05200219 Contact Us For Availability
17
MAY Y05200202 MAY Y05200202 Contact Us For Availability
17
MAY 2145-0050 MAY 2145-0050 Contact Us For Availability
18
MAY 05200312 MAY 05200312 Contact Us For Availability
18
MAY Y05200170 MAY Y05200170 Contact Us For Availability
18
MAY 05200275 MAY 05200275 Contact Us For Availability
18
MAY 2315-0004 MAY 2315-0004 Contact Us For Availability
19
MAY 05200166 MAY 05200166 Contact Us For Availability
20
MAY 05200171 MAY 05200171 Contact Us For Availability
20
MAY Y05200167 MAY Y05200167 Contact Us For Availability
21
MAY Y05200158 MAY Y05200158 Contact Us For Availability
21
MAY 05200162 MAY 05200162 Contact Us For Availability
22
MAY Y05200137 MAY Y05200137 Contact Us For Availability
22
MAY 2145-0048 MAY 2145-0048 Contact Us For Availability
23
MAY 05200053 MAY 05200053 Contact Us For Availability
23
MAY Y05200185 MAY Y05200185 Contact Us For Availability
24
MAY 2390-0003 MAY 2390-0003 Contact Us For Availability
24
MAY Y05200037 MAY Y05200037 Contact Us For Availability
24
MAY Y05200094 MAY Y05200094 Contact Us For Availability
25
MAY Y05200153 MAY Y05200153 Contact Us For Availability
25
MAY Y05200186 MAY Y05200186 Contact Us For Availability
26
MAY 05200221 MAY 05200221 Contact Us For Availability
26
MAY Y05200164 MAY Y05200164 Contact Us For Availability
27
MAY 05200154 MAY 05200154 Contact Us For Availability
27
MAY Y05200187 MAY Y05200187 Contact Us For Availability
29
MAY 05200302 MAY 05200302 Contact Us For Availability
30
MAY 05200303 MAY 05200303 Contact Us For Availability
NI
MAY 05200230 MAY 05200230 Contact Us For Availability
NI
MAY Y05200280 MAY Y05200280 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY Y05200308 MAY Y05200308 Contact Us For Availability
NI
MAY 05200213 MAY 05200213 Contact Us For Availability
NI
MAY Y05200161 MAY Y05200161 Contact Us For Availability
NI
MAY 15001115 MAY 15001115 Contact Us For Availability
× ![]()
