Model GE CMB903P2N1S1 Microwave Or Advantium – Common Parts & Diagrams
CONTROL PANEL
BODY PARTS

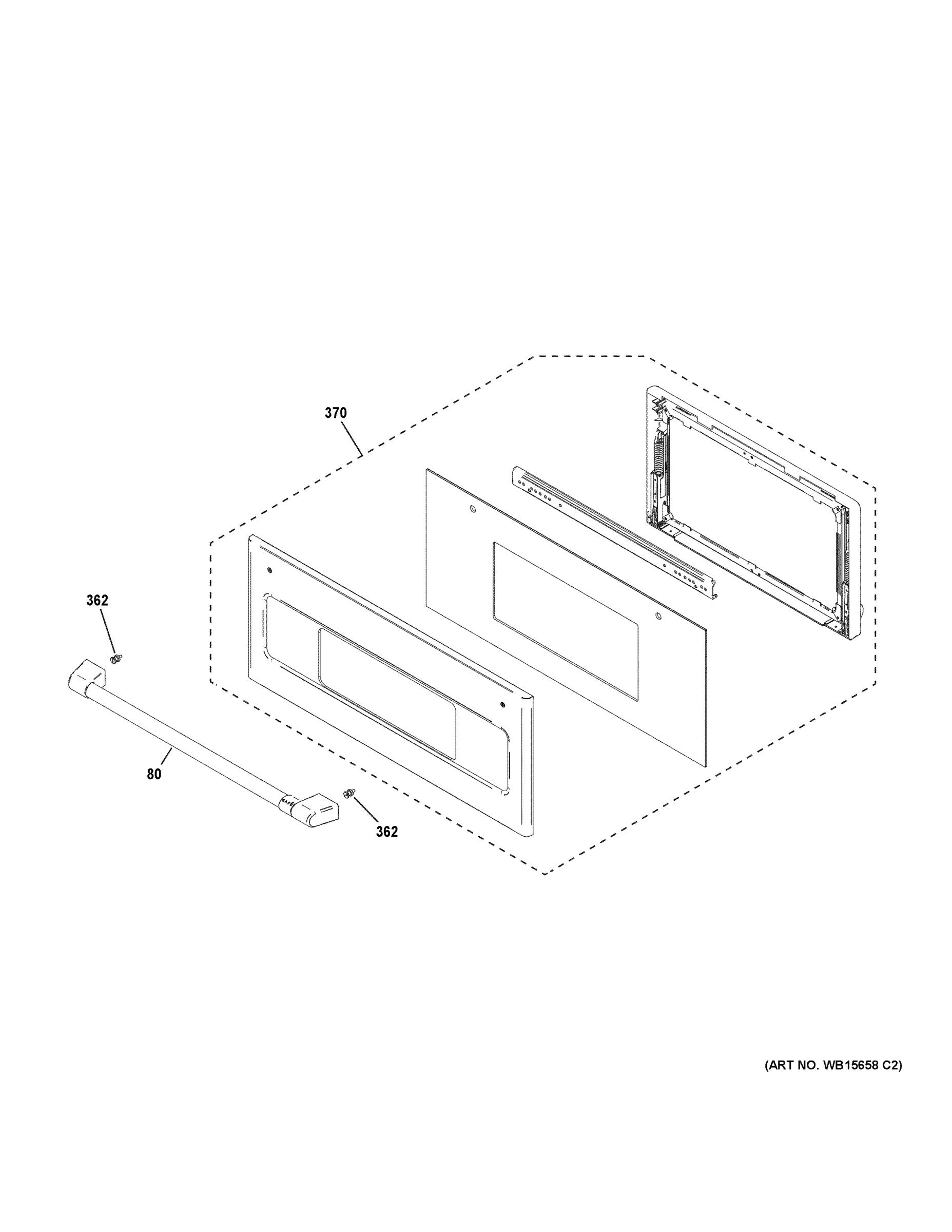

DOOR
Common parts from model GE CMB903P2N1S1 Microwave Or Advantium
1
POWER CORD ASM GEN WB02X35803 Contact Us For Availability
4
TERMINAL BLOCK GEN WB02X35175 Contact Us For Availability
5
BACK PANEL GEN WB34X35222 Contact Us For Availability
6
COVER HOUSING TOP GEN WB34X35194 Contact Us For Availability
8
CONDENSER SHROUD GEN WB34X38645 Contact Us For Availability
12
REAR INSULATION GEN WB35X35197 Contact Us For Availability
14
CONVECTION FAN GEN WB26X35221 Contact Us For Availability
20
COOLING FAN 60/180 120V UL GEN WB26X35176 Contact Us For Availability
24
HALOGEN LAMP ASM GEN WB01X35211 Contact Us For Availability
32
BOTTOM TRIM GEN WB07X36568 Contact Us For Availability
34
RIGHT SIDE PANEL GEN WB56X35790 Contact Us For Availability
35
LEFT SIDE PANEL GEN WB56X35785 Contact Us For Availability
36
BOTTOM PANEL GEN WB63X35220 Contact Us For Availability
51
OVEN RACK GEN WB34X36509 Contact Us For Availability
52
CONVECTION FAN COVER GEN WB34X35186 Contact Us For Availability
53
CONVENTION HEATING ELEMENT 1500W GEN WB44X35214 Contact Us For Availability
54
BROIL HEATING ELEMENT 1500W GEN WB44X35210 Contact Us For Availability
55
HIDDEN BAKE ELEMENT 300W GEN WB44X35145 Contact Us For Availability
56
HIDDEN BAKE TRAY GEN WB44X35192 Contact Us For Availability
66
SOLID PAN GEN WB48X35172 Contact Us For Availability
70
GASKET SHROUD GEN WB35X36726 Contact Us For Availability
71
MAIN BOARD GEN WB27X36526 Contact Us For Availability
91
OVEN SENSOR GEN WB01X35207 Contact Us For Availability
93
STAINLESS STEAL CONTROL PANEL ASSEMBLY C GEN WB56X36508 Contact Us For Availability
162
MEAT PROBE JACK GEN WB01X35213 Contact Us For Availability
163
MEAT PROBE CAP GEN WB01X35791 Contact Us For Availability
164
MEAT PROBE GEN WB01X35200 Contact Us For Availability
165
MEAT PROBE HARNESS GEN WB02X35792 Contact Us For Availability
167
DOOR REED SWITCH GEN WB24X35798 Contact Us For Availability
198
BROIL HEATING ELEMENT GASKET GEN WB44X35190 Contact Us For Availability
199
CONVENTION HEATING ELEMENT GASKET GEN WB44X35201 Contact Us For Availability
201
FLOW SENSOR GEN WB02X35209 Contact Us For Availability
202
MAGNETIC ANTI-SCALE GEN WB24X35208 Contact Us For Availability
204
BOILER GEN WB06X35800 Contact Us For Availability
205
SILICONE TUBE d.6X2MM GEN WB34X35203 Contact Us For Availability
206
SILICONE TUBE d.10X3MM GEN WB34X35204 Contact Us For Availability
210
PIPE CONDENSER GEN WB30X36665 Contact Us For Availability
211
TABLE RACK GEN WB48X35189 Contact Us For Availability
282
CONVECTION FAN GASKET GEN WB03X35171 Contact Us For Availability
314
FILTER GEN WB24X35212 Contact Us For Availability
318
NOZZLE 9 M20X1 GEN WB02X35199 Contact Us For Availability
319
NUZZLE NUT 9 M20X1 GEN WB02X35198 Contact Us For Availability
351
BUSHING FOR RUBBER RADIAL STEA GEN WB02X35205 Contact Us For Availability
362
STUD BOLT GEN WB01X35804 Contact Us For Availability
363
MEAT PROBE NUT GEN WB01X35805 Contact Us For Availability
364
RIGHT TRIM GEN WB56X35786 Contact Us For Availability
365
LEFT TRIM GEN WB56X35793 Contact Us For Availability
368
SIDE PANEL HANDLE GEN WB02X36510 Contact Us For Availability
369
PERFORATED PAN WITH LID GEN WB07X36527 Contact Us For Availability
372
TANK ASSEMBLY GEN WB34X36212 Contact Us For Availability
373
5mm CLAMP SPRING GEN WB01X36205 Contact Us For Availability
374
6 mm CLAMP SPRING GEN WB01X36206 Contact Us For Availability
375
10 mm CLAMP SPRING GEN WB01X36207 Contact Us For Availability
376
BRACKET CONDENSER GEN WB28X36567 Contact Us For Availability
377
MAIN HARNESS GEN WB27X36705 Contact Us For Availability
378
BRACKET FOR HIDDEN BAKE ELEMENT GEN WB02X36706 Contact Us For Availability
9999
PM MINI MANUAL AND WIRING GEN 312000690 Contact Us For Availability
9999
PM INSTALL INSTRUCTIONS GEN 312000694 Contact Us For Availability
9999
PM OWNERS MANUAL GEN 492000695 Contact Us For Availability
9999
PM QUICK OWNERS MANUAL GEN 492000697 Contact Us For Availability
× ![]()
