Model LG CM8460 – Common Parts & Diagrams

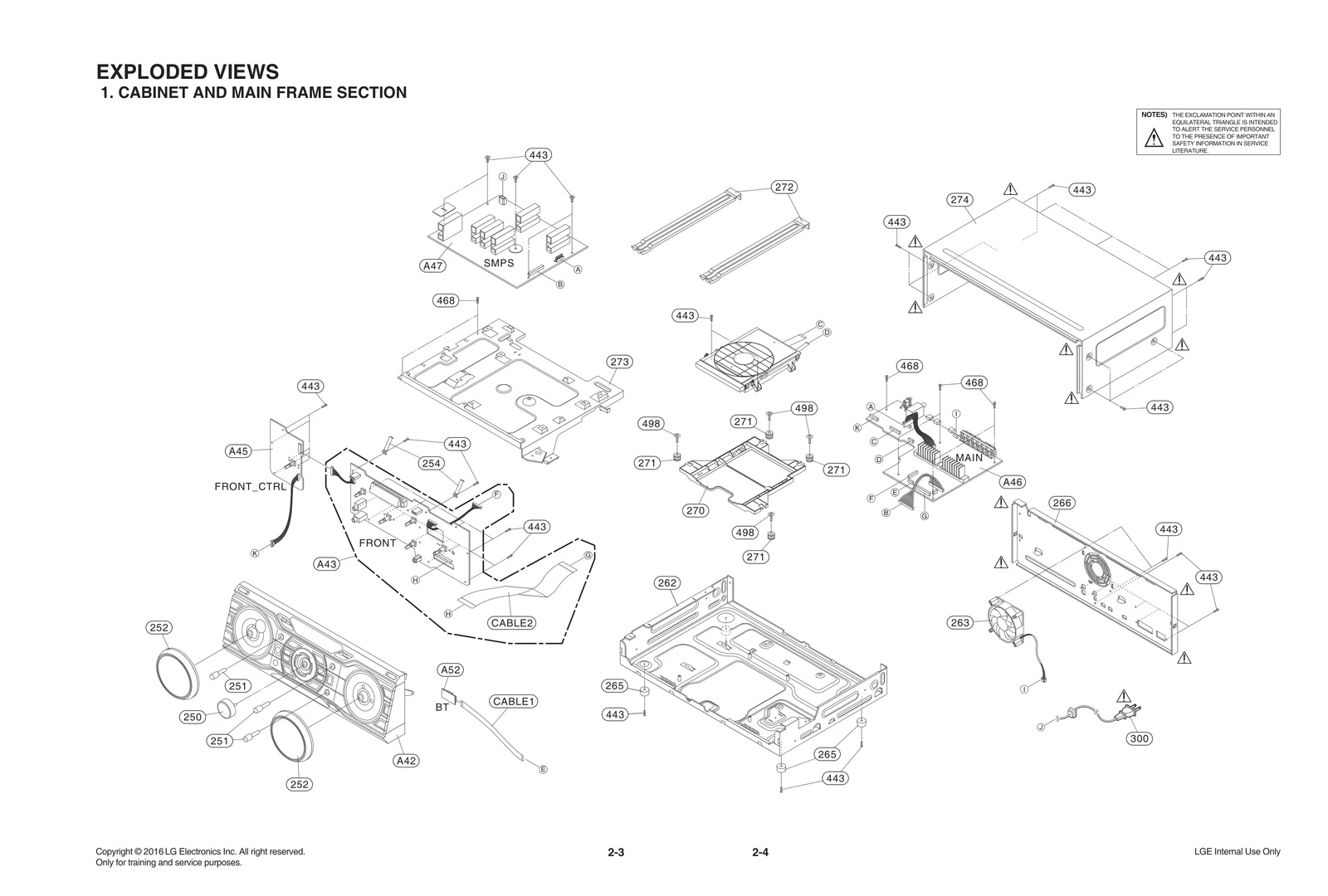

Diagram 0

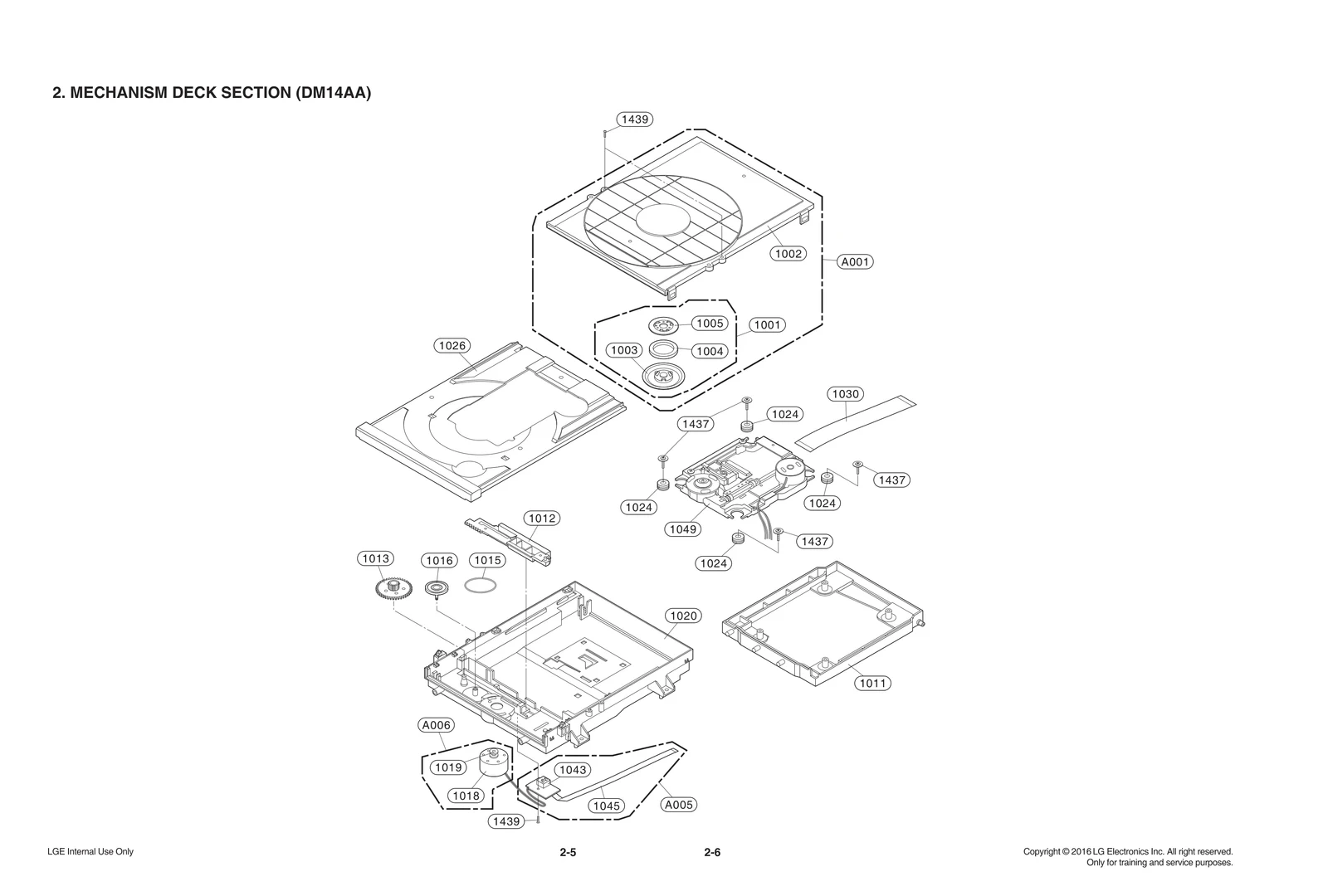

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Common parts from model LG CM8460
250
Knob LGE MEY63413701 Contact Us For Availability
251
Knob LGE MEY63393801 Contact Us For Availability
252
Knob LGE MEY63934302 Contact Us For Availability
254
Plate,Ground LGE MGJ63379301 Contact Us For Availability
262
Chassis LGE MBS63205402 Contact Us For Availability
263
Fan Module LGE EAL60700911 Contact Us For Availability
265
Damper LGE MCQ67215501 Contact Us For Availability
266
Panel,Rear LGE MGC63919628 Contact Us For Availability
270
Holder LGE MEG64219301 Contact Us For Availability
271
Damper LGE MCQ38556901 Contact Us For Availability
272
Bracket LGE MAZ64644301 Contact Us For Availability
273
Bracket LGE MAZ64684601 Contact Us For Availability
274
Case LGE MBN63922703 Contact Us For Availability
300
Power Cord,Attach LGE EAD60816757 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
498
Screw,Customized LGE 353-100AAAB Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77376122 Contact Us For Availability
802
Box,Master LGE MAY67369763 Contact Us For Availability
803
Packing LGE MFZ64632901 Contact Us For Availability
804
Bag LGE MAF58050935 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955301 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149601 Contact Us For Availability
1002
Cover LGE MCK66956902 Contact Us For Availability
1003
Clamp LGE MBU62365501 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM62647901 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62667001 Contact Us For Availability
1024
Damper LGE MCQ38556902 Contact Us For Availability
1026
Tray LGE MJS62532201 Contact Us For Availability
1026
Tray LGE MJS62532202 Contact Us For Availability
1030
Cable,FFC LGE EAD62056601 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD62056807 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ86011801 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR80491201 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL75052628 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR81879302 Contact Us For Availability
A45
Auto SMT PCB Assembly LGE EBR82666402 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR82683202 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR82278701 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A60L
Speaker System Total LGE TCG36588610 Contact Us For Availability
A60R
Speaker System Total LGE TCG36568110 Contact Us For Availability
A90
Speaker System Total LGE TCG36468610 Contact Us For Availability
AR205
Resistor,Array LGE EBC32260601 Contact Us For Availability
BC903
Filter,Bead LGE EAM38769505 Contact Us For Availability
BD901
Diode,Bridge LGE EAH61933801 Contact Us For Availability
C2A04
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C5A2
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C5B7
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C5C9
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
C30A5
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C30A17
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C30A19
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C124
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C131
Capacitor,Ceramic,Chip LGE 0CK104ERG6A Contact Us For Availability
C161
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C169
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C209
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C223
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C240
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C286
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C308
Capacitor,Ceramic,Axial LGE 0CN1010K519 Contact Us For Availability
C314
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C323
Capacitor,Ceramic,Axial LGE 0CN4730K949 Contact Us For Availability
C331
Capacitor,Ceramic,Axial LGE 0CN3310K519 Contact Us For Availability
C338
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C344
Capacitor,AL,Radial LGE 0CE227CF638 Contact Us For Availability
C349
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C354
CAPACITOR,TUBULAR(HI LGE 0CN2220K519 Contact Us For Availability
C356
Capacitor,Ceramic,Axial LGE 0CN6820F669 Contact Us For Availability
C404
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C411
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C415
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C419
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C427
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C451
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C500
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE 0CK100BKMDA Contact Us For Availability
C513
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C521
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C537
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C568
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C700
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C707
Capacitor,AL,Radial LGE 0CE228RA610 Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C722
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE 0CK101EY48A Contact Us For Availability
C798
Capacitor,AL,Radial LGE 0CE108RA610 Contact Us For Availability
C837
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C840
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C855
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C903
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CE277RVK10 Contact Us For Availability
C906
Capacitor,Film,Box,DC LGE EAE62962601 Contact Us For Availability
C910
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C915
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C917
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C921
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C923
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C928
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C929
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C929
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C930
Capacitor,AL,Radial LGE 0CE686CV610 Contact Us For Availability
C935
Capacitor,Ceramic,Chip LGE EAE60685501 Contact Us For Availability
C935
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C937
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C938
CAPACITOR LGE 624-087B Contact Us For Availability
C939
Capacitor,Ceramic,Chip LGE 0CH1563K516 Contact Us For Availability
C942
Capacitor,Ceramic,Chip LGE 0CH1154K516 Contact Us For Availability
C943
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C944
Capacitor,AL,Radial LGE EAE62784911 Contact Us For Availability
C945
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C948
Capacitor,AL,Radial LGE EAE42721810 Contact Us For Availability
C953
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C958
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C963
Capacitor,AL,Radial LGE 0CE338EHK10 Contact Us For Availability
C968
Capacitor,AL,Radial LGE EAE63162001 Contact Us For Availability
C973
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C978
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C996
Capacitor,Film,Box,DC LGE EAE63090003 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130035 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD42742306 Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
CM903
Capacitor,Film,Box LGE EAE62561701 Contact Us For Availability
CM903
Capacitor,Film,Box,X-CAP LGE EAE62887604 Contact Us For Availability
CN106
Harness,Single LGE EAD42218212 Contact Us For Availability
CN110
Harness,Single LGE 6631R-G007G Contact Us For Availability
CN201
Connector,Wafer LGE EAG41647503 Contact Us For Availability
CN301
Connector,Wafer LGE 6630VK19610 Contact Us For Availability
CN302
Harness,Single LGE EAD63828501 Contact Us For Availability
CN311
Harness,Single LGE EAD42004420 Contact Us For Availability
CN312
Connector,USB LGE EAG43134802 Contact Us For Availability
CN314
Harness,Single LGE EAD42004421 Contact Us For Availability
CN400
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN401
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN502
Connector,Wafer LGE EAG41647504 Contact Us For Availability
CN602
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
CN604
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN605
Connector,FFC/FPC/PI LGE 6630XF00429 Contact Us For Availability
CN901
Connector,Wafer LGE 6602T25008P Contact Us For Availability
CN902
Connector,BtoB LGE EAG63390002 Contact Us For Availability
D200
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
D302
Diode,Zener LGE 0DZ390009AC Contact Us For Availability
D304
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D500
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D511
Diode,Zener LGE 0DZ022029AA Contact Us For Availability
D709
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D736
Diode,Rectifier LGE EAH41590001 Contact Us For Availability
D905
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D906
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D912
Diode,Rectifier LGE EAH62273601 Contact Us For Availability
D912
Diode,Rectifier LGE EAH62753001 Contact Us For Availability
D913
Diode,Rectifier LGE EAH61253701 Contact Us For Availability
D926
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D926
Diode,Schottky LGE EAH62095801 Contact Us For Availability
D952
Diode,Schottky LGE EAH62134601 Contact Us For Availability
D952
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D954
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
D955
Diode,Rectifier LGE EAH61655001 Contact Us For Availability
D960
Diode,Rectifier LGE EAH61436301 Contact Us For Availability
D960
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D963
Diode,Switching LGE EAH31951401 Contact Us For Availability
D964
Diode,Switching LGE 0DS135519AA Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
F911
FUSE,SLOW BLOW LGE 0FS6301B51D Contact Us For Availability
FH901
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL308
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL500
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC30A1
IC,Line Driver LGE EAN62579201 Contact Us For Availability
IC101A
S/W,System Program LGE SAA38367801 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN61547501 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC202
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC203
IC,LINEAR LGE 0ILNRA0001A Contact Us For Availability
IC207
IC,LDO Voltage Regulator LGE EAN64166801 Contact Us For Availability
IC312
IC,LDO Voltage Regulator LGE EAN44022001 Contact Us For Availability
IC400
IC,Motor Driver LGE EAN33860001 Contact Us For Availability
IC401
IC,RF Amplifier LGE EAN63446501 Contact Us For Availability
IC402
IC,DC,DC Converter LGE EAN62794401 Contact Us For Availability
IC500
IC,DC,DC Converter LGE EAN63530001 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC502
IC,SDRAM LGE EAN62746202 Contact Us For Availability
IC503A
S/W,System Program LGE SAA38367703 Contact Us For Availability
IC504A
S/W,System Program LGE SAA38367901 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE EAN64166901 Contact Us For Availability
IC507
IC,LDO Voltage Regulator LGE EAN64109101 Contact Us For Availability
IC603
IC,LED Driver LGE EAN64170801 Contact Us For Availability
IC702
IC,Power Driver LGE EAN60778301 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN61970101 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN61854102 Contact Us For Availability
IC904
IC,PWM Controller LGE EAN62574101 Contact Us For Availability
IC905
IC,POWER MANAGEMENT LGE 0IPMGA0012A Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE EAN60728201 Contact Us For Availability
IC952
IC,LDO Voltage Regulator LGE EAN62866301 Contact Us For Availability
IC953
IC,Voltage Regulator LGE EAN38519601 Contact Us For Availability
JK200
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK311
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK312
Jack,Phone LGE 6612F00105C Contact Us For Availability
L404
Filter,Bead LGE EAM62151101 Contact Us For Availability
L405
Filter,Bead LGE EAM62155402 Contact Us For Availability
L405
Filter,Bead LGE EAM62155401 Contact Us For Availability
L407
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L407
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L507
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
L507
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L512
Filter,Bead LGE EAM60887204 Contact Us For Availability
L621
Filter,Bead LGE EAM62151001 Contact Us For Availability
L703
Coil,Choke LGE EAP62308301 Contact Us For Availability
L904
Coil,Choke LGE EAP62268101 Contact Us For Availability
L952
COIL,RF LGE 6140RCC003H Contact Us For Availability
LD313
LED,DIP LGE EAV35747602 Contact Us For Availability
LD313
LED,DIP LGE EAV62074401 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM62130101 Contact Us For Availability
PC903
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC903
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q102
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q302
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q400
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q612
TR,Bipolar LGE 0TR102009AC Contact Us For Availability
Q703
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q707
FET LGE EBK60711201 Contact Us For Availability
Q709
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q710
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q906
FET LGE EBK61492401 Contact Us For Availability
Q906
FET LGE EBK61493601 Contact Us For Availability
Q908
TR,Bipolar LGE 0TR222209IB Contact Us For Availability
Q909
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q911
FET LGE EBK61492501 Contact Us For Availability
Q951
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q953
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q956
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q957
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
R2A04
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R2A05
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R2A2
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3T10
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R3T11
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R5A6
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R5D4
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R5D6
Resistor,Chip LGE 0RJ1005C678 Contact Us For Availability
R5E2
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R5G9
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R5H8
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R7B3
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R7C3
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R9A7
Resistor,Metal Oxide Film LGE 0RS1500J619 Contact Us For Availability
R9A8
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R9B5
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R9C3
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R9C4
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R9C6
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R9C7
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
R9C9
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R30A9
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R30A13
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R30A14
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R30A15
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R30A19
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R70D
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R202
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R224
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R297
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R302
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R310
RESISTOR FIXED CARBON FILM SKN LGE 0RD3302F609 Contact Us For Availability
R315
RESISTOR FIXED CARBON FILM SKN LGE 0RD6802F609 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R325
Resistor,Carbon Film LGE 0RD8201F609 Contact Us For Availability
R329
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R331
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R332
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R334
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R334
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R335
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R336
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R338
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R340
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R342
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R344
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R345
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R401
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R413
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R417
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R418
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ0202C678 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R425
Resistor,Chip LGE 0RH5102C622 Contact Us For Availability
R427
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R429
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R517
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R520
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R582
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R726
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R728
RESISTOR,METAL GLAZE LGE 0RH2000C622 Contact Us For Availability
R734
Resistor,Chip LGE 0RH6203D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH2201E622 Contact Us For Availability
R750
Resistor,Chip LGE 0RH2201D422 Contact Us For Availability
R753
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R762
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R769
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R783
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R799
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R803
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R809
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R817
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R820
Resistor,Chip LGE 0RH0222G622 Contact Us For Availability
R859
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R861
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R892
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R901
Resistor,Chip LGE EBC38126101 Contact Us For Availability
R912
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R914
Resistor,Cement LGE EBC42756301 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R924
Resistor,Chip LGE 0RH3302D422 Contact Us For Availability
R925
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R926
Resistor,Chip LGE EBC62460701 Contact Us For Availability
R935
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R940
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R941
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R943
Resistor,Chip LGE 0RH1501D422 Contact Us For Availability
R947
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R952
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
R964
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R966
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R972
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R978
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R981
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R988
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R993
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R995
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R997
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
RA201
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
RC311
Receiver Module LGE EAV41920402 Contact Us For Availability
SW301
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
SW316
Switch,Tact LGE EBF40098802 Contact Us For Availability
SW316
Switch,Tact LGE EBF40098801 Contact Us For Availability
T901
Transformer,Switching LGE EBJ61630402 Contact Us For Availability
T902
Transformer,Switching LGE EBJ61630404 Contact Us For Availability
T903
Transformer,Switching LGE EBJ62710201 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61545702 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61545701 Contact Us For Availability
TH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
TM700
Connector,Terminal Block LGE EAG63374015 Contact Us For Availability
TU500
Tuner,Analog LGE EBL60740003 Contact Us For Availability
VFD301
VFD LGE EAJ60868415 Contact Us For Availability
VFD301
VFD LGE EAJ60868414 Contact Us For Availability
VR312
Switch,Encoder LGE EBF61954401 Contact Us For Availability
VR313
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X200
Crystal LGE EAW62583505 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X500
Crystal LGE EAW62583502 Contact Us For Availability
X501
Crystal LGE EAW30067102 Contact Us For Availability
ZD501
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
ZD901
Diode,Zener LGE EAH61533801 Contact Us For Availability
ZD902
Diode,TVS LGE EAH61192501 Contact Us For Availability
ZD908
Diode,Zener LGE EAH61433801 Contact Us For Availability
ZD911
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD915
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
ZD921
Diode,Zener LGE EAH61132701 Contact Us For Availability
× ![]()
Login and Registration Form
