Model LG CM8440 – Common Parts & Diagrams

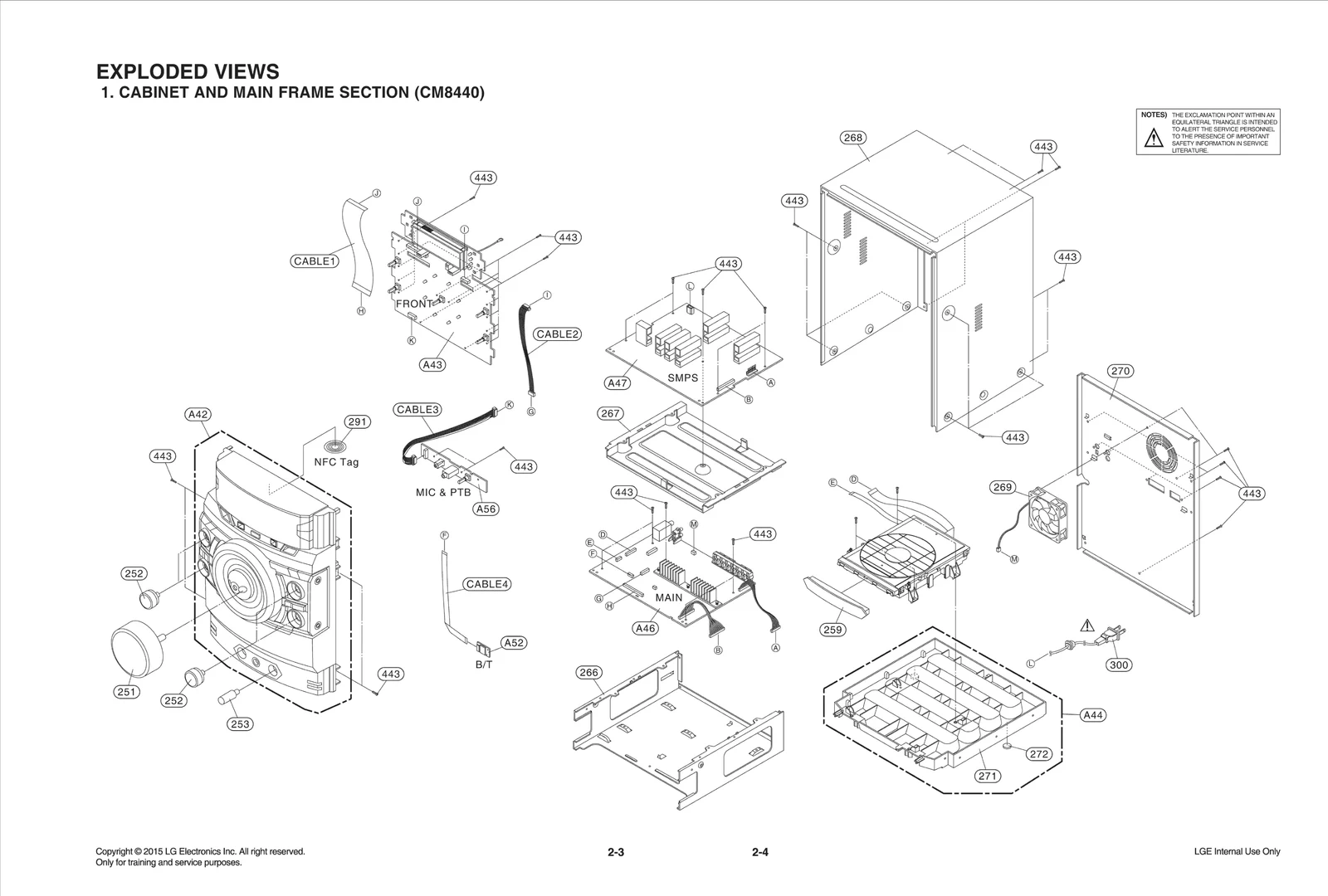

Diagram 0

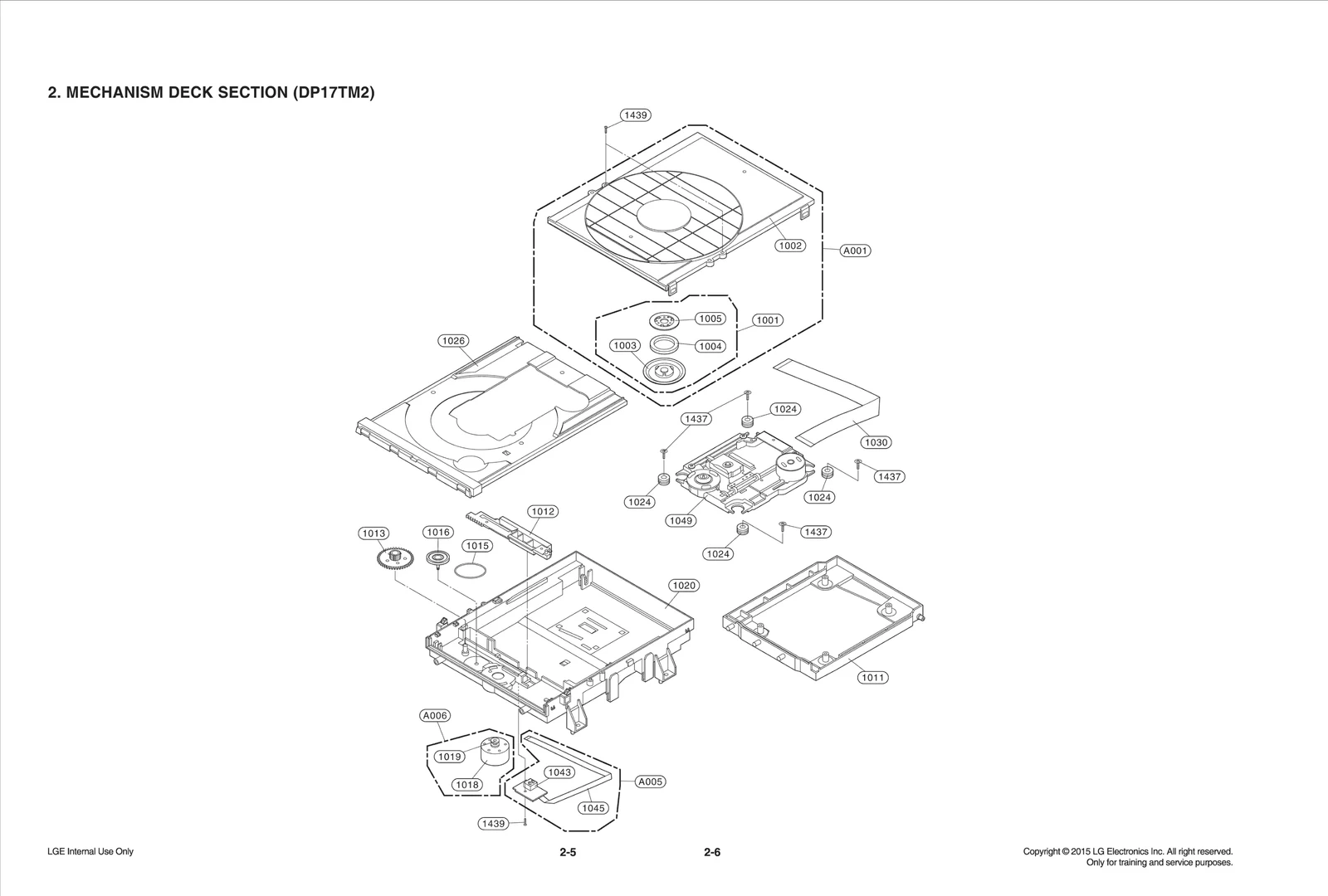

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG CM8440
251
Knob LGE MEY62994102 Contact Us For Availability
252
Knob LGE MEY62974102 Contact Us For Availability
253
Knob LGE MEY57746504 Contact Us For Availability
259
Door LGE MCV63013503 Contact Us For Availability
266
Bracket LGE MAZ62834001 Contact Us For Availability
267
Bracket LGE MAZ63668101 Contact Us For Availability
268
Case LGE MBN63264503 Contact Us For Availability
269
Fan Module LGE EAL61161201 Contact Us For Availability
270
Panel,Rear LGE MGC63340215 Contact Us For Availability
271
Frame LGE MDQ63677502 Contact Us For Availability
272
Foot LGE MDP62527001 Contact Us For Availability
291
Module,Assembly LGE EAT61873302 Contact Us For Availability
300
Power Cord,Attach LGE EAD60816757 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76696027 Contact Us For Availability
802
Box,Master LGE MAY65809375 Contact Us For Availability
803
Packing LGE MFZ64052001 Contact Us For Availability
804
Bag LGE 3880SCS001W Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004D Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655751 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149601 Contact Us For Availability
1002
Cover LGE MCK66956902 Contact Us For Availability
1002
Cover LGE MCK66956901 Contact Us For Availability
1003
Clamp LGE MBU62365501 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM62647901 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62667101 Contact Us For Availability
1024
Damper LGE MCQ38556902 Contact Us For Availability
1026
Tray LGE MJS62773201 Contact Us For Availability
1030
Cable,FFC LGE EAD62056608 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD62056805 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673601 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ86011801 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR78452301 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL74336931 Contact Us For Availability
A43
PCB Assembly LGE EBR78845101 Contact Us For Availability
A44
Frame Assembly LGE ADV74688602 Contact Us For Availability
A46
Option Code Assembly LGE EBR78498230 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR77661114 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A56
PCB Assembly LGE EBR78845201 Contact Us For Availability
A60L
Speaker System Total LGE TCG35949304 Contact Us For Availability
A60R
Speaker System Total LGE TCG35949404 Contact Us For Availability
A90
Speaker System Total LGE TCG35949504 Contact Us For Availability
BC903
Filter,Bead LGE EAM38769505 Contact Us For Availability
BD901
Diode,Bridge LGE EAH61836403 Contact Us For Availability
BD901
Diode,Bridge LGE EAH61933801 Contact Us For Availability
C5A4
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C5C9
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
C5E1
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C89A
Capacitor,Ceramic,Ch LGE 0CK100BKMDA Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C105
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C145
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C158
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C200
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C205
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C211
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C217
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C219
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C225
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C227
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C233
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C323
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
C325
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C340
Capacitor,Ceramic,Ch LGE 0CH4090K112 Contact Us For Availability
C381
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C386
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C390
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C391
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C402
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C404
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C446
CAPACITOR,FIXED CERA LGE 0CK472CF56A Contact Us For Availability
C447
Capacitor,Ceramic,Chip LGE 0CH1473H942 Contact Us For Availability
C449
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C452
Capacitor,Ceramic,Chip LGE EAE36842501 Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C461
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C462
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C468
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C471
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C479
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C622
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C700
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C728
Capacitor,AL,Radial LGE 0CE228RA610 Contact Us For Availability
C746
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C789
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C794
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C798
Capacitor,AL,Radial LGE 0CE108RA610 Contact Us For Availability
C828
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C832
Capacitor,Ceramic,Chip LGE 0CK104ERG6A Contact Us For Availability
C854
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C882
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C898
Capacitor,Ceramic,Chip LGE 0CH4330K442 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C904
Capacitor,AL,Radial LGE EAE60682601 Contact Us For Availability
C906
Capacitor,Film,Box,DC LGE EAE62962601 Contact Us For Availability
C909
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C909
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C915
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C921
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C923
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C929
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C930
Capacitor,AL,Radial LGE EAE60770601 Contact Us For Availability
C933
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C934
Capacitor,Film,Box,DC LGE EAE63182201 Contact Us For Availability
C935
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C937
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C938
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C939
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C942
Capacitor,Ceramic,Chip LGE 0CH1154K516 Contact Us For Availability
C943
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C944
Capacitor,AL,Radial LGE 0CE477NH638 Contact Us For Availability
C948
Capacitor,AL,Radial LGE EAE42721810 Contact Us For Availability
C949
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C951
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C956
Capacitor,AL,Radial LGE EAE62406201 Contact Us For Availability
C958
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C963
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C968
Capacitor,AL,Radial LGE EAE63162001 Contact Us For Availability
C975
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C979
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C980
CAPACITOR LGE 624-087D Contact Us For Availability
CABLE1
Cable,FFC LGE EAD43523203 Contact Us For Availability
CABLE2
Harness,Single LGE EAD42004413 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62130011 Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62524901 Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
CM903
Capacitor,Film,Box LGE EAE62561701 Contact Us For Availability
CM903
Capacitor,Film,Box,X-CAP LGE EAE62887601 Contact Us For Availability
CN106
Harness,Single LGE EAD42218212 Contact Us For Availability
CN107
Connector,Wafer LGE 6602T20008B Contact Us For Availability
CN110
Harness,Single LGE 6631R-G007C Contact Us For Availability
CN300
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
CN301
Connector,FFC/FPC/PIC LGE 6630XF00440 Contact Us For Availability
CN303
Connector,USB LGE EAG43134801 Contact Us For Availability
CN380
Connector,Wafer LGE EAG56285902 Contact Us For Availability
CN404
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN502
Connector,Wafer LGE 6602T12004J Contact Us For Availability
CN504
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN901
Connector,Wafer LGE 6602T25008P Contact Us For Availability
CN902
Connector,BtoB LGE EAG63390002 Contact Us For Availability
D401
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D402
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
D509
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D511
Diode,Zener LGE 0DZ022029AA Contact Us For Availability
D724
Diode,Rectifier LGE EAH61714201 Contact Us For Availability
D728
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D742
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D743
DIODE,ZENERS LGE 0DZRM00448A Contact Us For Availability
D906
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D907
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D910
Diode,Schottky LGE EAH62095801 Contact Us For Availability
D910
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D912
Diode,Rectifier LGE EAH43372801 Contact Us For Availability
D913
Diode,Rectifier LGE EAH61253701 Contact Us For Availability
D954
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
D955
Diode,Rectifier LGE EAH61655001 Contact Us For Availability
D957
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D959
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D959
Diode,Schottky LGE EAH62134601 Contact Us For Availability
D960
Diode,Rectifier LGE EAH61436301 Contact Us For Availability
D960
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D963
Diode,Switching LGE EAH31951401 Contact Us For Availability
D964
Diode,Switching LGE 0DS135519AA Contact Us For Availability
D966
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
DIG300
VFD LGE EAJ62312302 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
F911
FUSE,SLOW BLOW LGE 0FS6301B51D Contact Us For Availability
FL501
Filter,Common Mode LGE EAM62151601 Contact Us For Availability
HS901
Heat Sink LGE MED62731204 Contact Us For Availability
HS901
Heat Sink LGE MED62731202 Contact Us For Availability
HS905
Heat Sink LGE MED62731203 Contact Us For Availability
HS905
Heat Sink LGE MED62731201 Contact Us For Availability
HS906
Heat Sink LGE MED62731205 Contact Us For Availability
HS907
Heat Sink LGE MED63371402 Contact Us For Availability
IC100
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36853001 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC202
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC204
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC208
IC,LINEAR LGE 0ILNRA0001A Contact Us For Availability
IC407
IC,RF Amplifier LGE EAN62928001 Contact Us For Availability
IC408
IC,Motor Driver LGE EAN33860001 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC502
IC,SDRAM LGE EAN62355001 Contact Us For Availability
IC503A
S/W,System Program LGE SAA36852904 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC507
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC509
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC600
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC705
IC,Power Driver LGE EAN60778301 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN61970101 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN61854102 Contact Us For Availability
IC903
IC,POWER MANAGEMENT LGE 0IPMGA0012A Contact Us For Availability
IC904
IC,PWM Controller LGE EAN62574101 Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE EAN60728201 Contact Us For Availability
IC952
IC,LDO Voltage Regulator LGE EAN62866301 Contact Us For Availability
IC953
IC,Voltage Regulator LGE EAN38519601 Contact Us For Availability
ICM101
IC,PRE Amplifier LGE EAN57059401 Contact Us For Availability
JK200
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK380
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
JK381
Jack,Phone LGE 6612F00105C Contact Us For Availability
L211
Filter,Bead LGE EAM62151001 Contact Us For Availability
L401
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
L703
Coil,Choke LGE EAP62308302 Contact Us For Availability
L880
Filter,Bead LGE EAM62151101 Contact Us For Availability
L903
Coil,Choke LGE EAP62268101 Contact Us For Availability
L951
COIL,RF LGE 6140RCC003H Contact Us For Availability
L952
Coil,Choke LGE EAP60792101 Contact Us For Availability
L952
COIL,CHOKE LGE 633-088G Contact Us For Availability
LD323
LED,DIP LGE EAV35747603 Contact Us For Availability
LF902
Filter,Line Noise LGE EAM62130101 Contact Us For Availability
PC903
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC903
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q105
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q303
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q400
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q704
TRANSISTOR,BIPOLARS LGE 0TRKE90013A Contact Us For Availability
Q706
FET LGE EBK60711201 Contact Us For Availability
Q709
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q710
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q904
FET LGE EBK61492501 Contact Us For Availability
Q906
FET LGE EBK61492401 Contact Us For Availability
Q906
FET LGE EBK61493601 Contact Us For Availability
Q908
TR,Bipolar LGE 0TR222209IB Contact Us For Availability
Q909
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q951
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q953
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q954
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q955
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q955
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
R5D4
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R5D6
Resistor,Chip LGE 0RJ4704C678 Contact Us For Availability
R5E2
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R5F4
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R5F6
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R5G9
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R5H1
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R5H7
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R5K8
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R5K9
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R7A4
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R7B4
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R9A0
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
R9A2
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R9A3
Resistor,Chip LGE EBC38126101 Contact Us For Availability
R9A7
Resistor,Metal Oxide Film LGE 0RS1500J619 Contact Us For Availability
R9B0
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R9B2
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R9B5
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R9B9
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R9C3
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R9C6
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R70C
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R171
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R194
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R211
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R213
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R252
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R317
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R348
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R350
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R352
RESISTOR CHIP 24K 1/10W 5 TA LGE 0RH2402D622 Contact Us For Availability
R353
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R369
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R372
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R374
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R377
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R380
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R383
Resistor,Chip LGE 0RJ0000C477 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ0152E672 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R442
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R443
Resistor,Chip LGE 0RH2201C422 Contact Us For Availability
R444
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R452
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R454
Resistor,Chip LGE 0RH4700C422 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R458
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R464
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R466
Resistor,Chip LGE 0RZZR00001R Contact Us For Availability
R470
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R476
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R520
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R547
Filter,Bead LGE EAM38769502 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R582
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R644
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R649
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R700
Resistor,Chip LGE 0RH3900D622 Contact Us For Availability
R701
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R708
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R710
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R726
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R728
RESISTOR,METAL GLAZE LGE 0RH2000C622 Contact Us For Availability
R734
Resistor,Chip LGE 0RH6203D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RH2201E622 Contact Us For Availability
R804
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R814
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R822
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R851
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R854
Resistor,Chip LGE 0RH5102C622 Contact Us For Availability
R865
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R867
Resistor,Chip LGE 0RH0222G622 Contact Us For Availability
R869
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R871
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R885
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R890
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R892
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R925
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R926
Resistor,Chip LGE EBC62460701 Contact Us For Availability
R927
Resistor,Chip LGE 0RH3001D422 Contact Us For Availability
R930
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R932
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R933
Resistor,Cement LGE EBC42756301 Contact Us For Availability
R940
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R941
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R943
Resistor,Chip LGE 0RH1501D422 Contact Us For Availability
R947
Resistor,Chip LGE 0RH5601D422 Contact Us For Availability
R948
Resistor,Chip LGE 0RH3302D422 Contact Us For Availability
R952
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
R964
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R966
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R968
Fuse,Non Time Delay LGE 0FF1251FCN2 Contact Us For Availability
R972
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R977
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R978
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R979
Resistor,Chip LGE 0RH2201D422 Contact Us For Availability
R993
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R995
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R997
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
RC300
Receiver Module LGE EAV41920401 Contact Us For Availability
SW312
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ61651102 Contact Us For Availability
T902
Transformer,Switching LGE EBJ61630404 Contact Us For Availability
T903
Transformer,Switching LGE EBJ61651103 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61545701 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61545702 Contact Us For Availability
TH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
TM301
Harness,Single LGE 563-638F Contact Us For Availability
TM700
Connector,Terminal Block LGE EAG63374015 Contact Us For Availability
TU500
Tuner,Analog LGE EBL60740103 Contact Us For Availability
VR302
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR380
Switch,Encoder LGE EBF61954401 Contact Us For Availability
VR380
VOLUME,ENCODER LGE 6110E00018A Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X200
Crystal LGE EAW32919901 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X500
Crystal LGE 6212AB2240C Contact Us For Availability
X501
Crystal LGE 6212AB2327X Contact Us For Availability
ZD901
Diode,Zener LGE EAH61533801 Contact Us For Availability
ZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
ZD902
Diode,TVS LGE EAH61192501 Contact Us For Availability
ZD911
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD913
Diode,Zener LGE EAH61433801 Contact Us For Availability
ZD915
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
ZD920
Diode,Zener LGE EAH61132701 Contact Us For Availability
ZD951
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
× ![]()
Login and Registration Form
