Model LG CM8430 – Common Parts & Diagrams
Diagram 0
Diagram 1

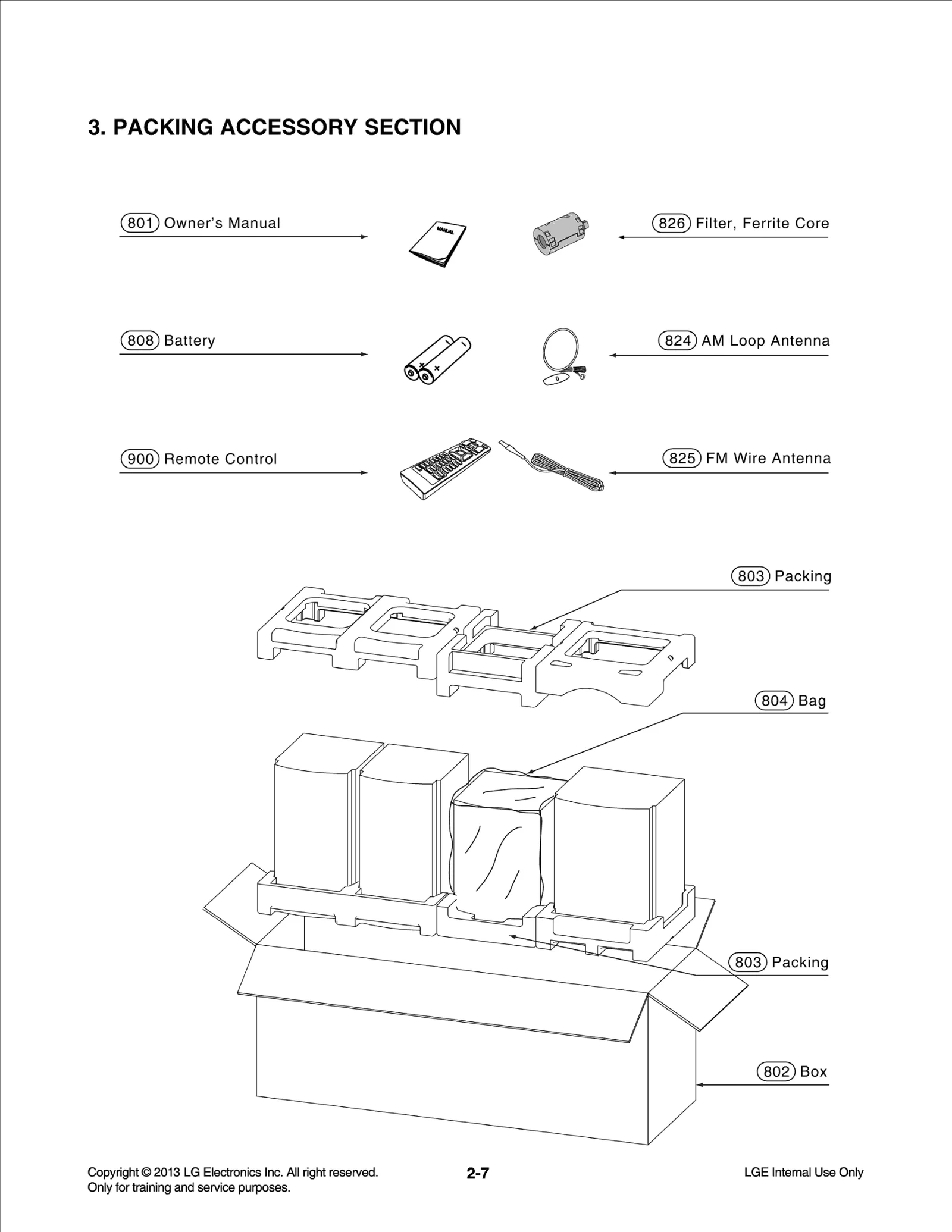

Diagram 2

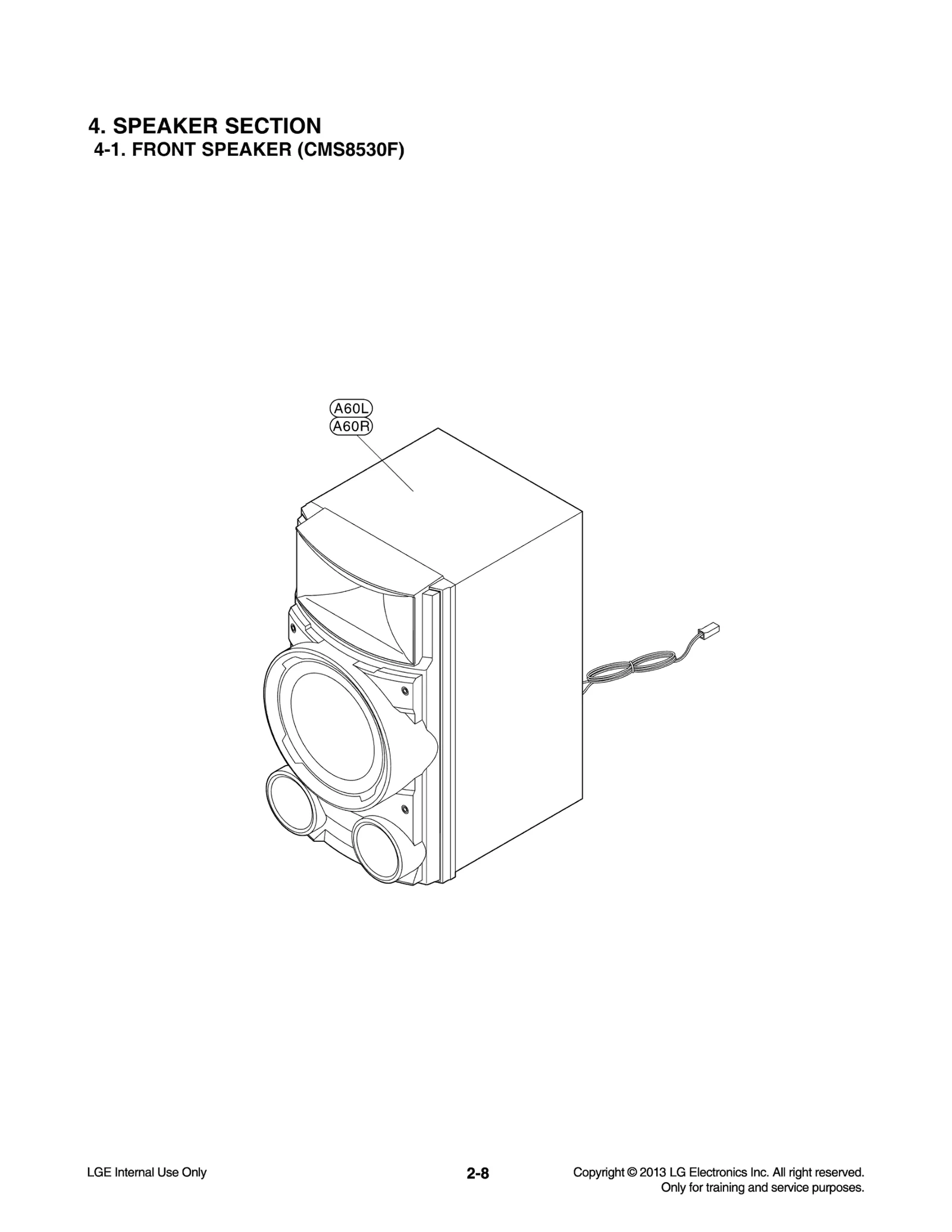

Diagram 3

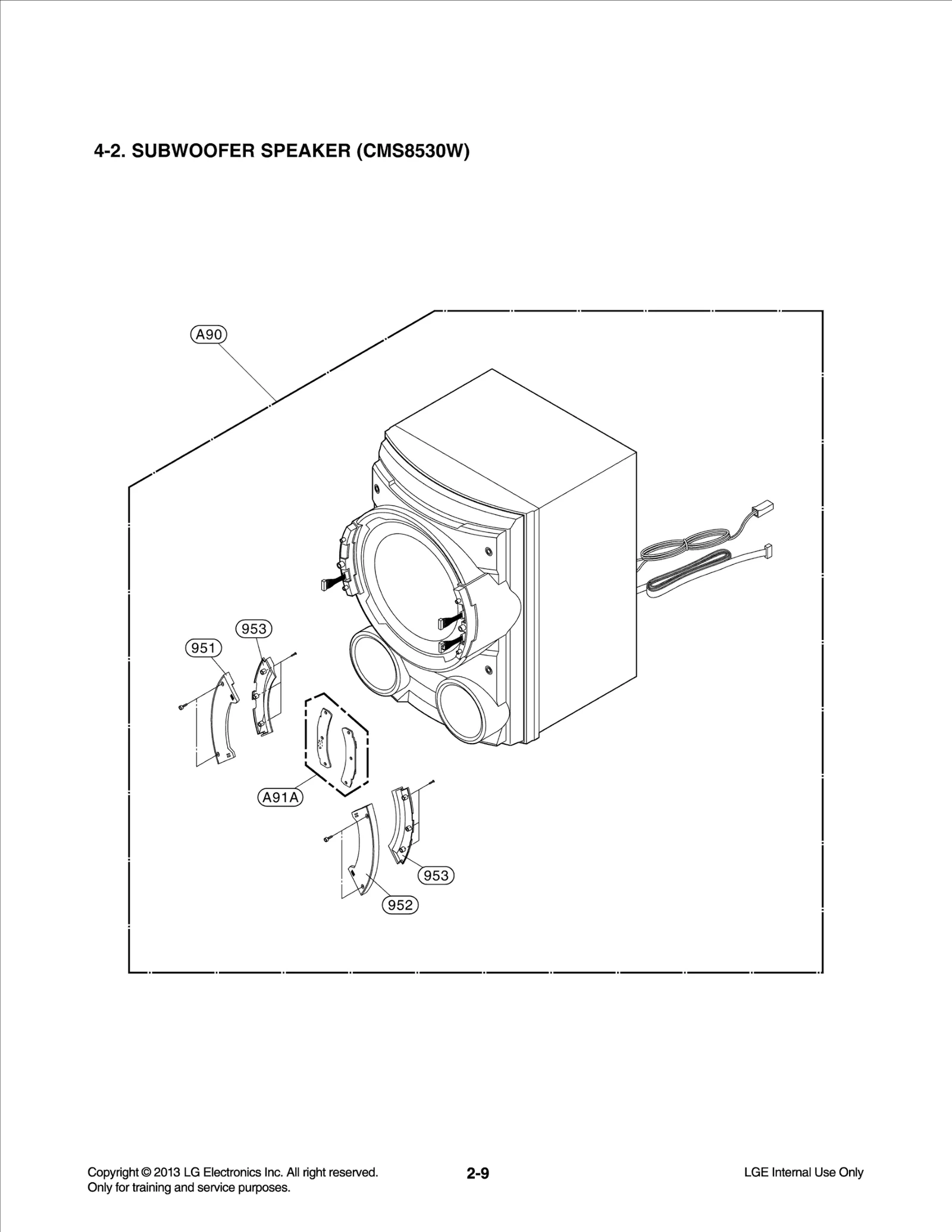

Diagram 4
Diagram 5
Common parts from model LG CM8430
251
Knob Assembly LGE AEZ73633530 Contact Us For Availability
252
Knob Assembly LGE AEZ73473330 Contact Us For Availability
253
Knob LGE MEY57746504 Contact Us For Availability
254
Cover Assembly LGE ACQ86391601 Contact Us For Availability
259
Door LGE MCV62793801 Contact Us For Availability
266
Bracket LGE MAZ62834001 Contact Us For Availability
267
Bracket LGE MAZ63668101 Contact Us For Availability
268
Case LGE MBN62984901 Contact Us For Availability
269
Fan Module LGE EAL61161201 Contact Us For Availability
270
Panel,Rear LGE MGC63061741 Contact Us For Availability
271
Frame LGE MDQ63438050 Contact Us For Availability
272
Foot LGE MDP62527001 Contact Us For Availability
300
Power Cord LGE EAD60816731 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75876681 Contact Us For Availability
802
Box,Master LGE MAY65809313 Contact Us For Availability
803
Packing LGE MFZ63587801 Contact Us For Availability
804
Bag LGE 3880SCS001J Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
824
Antenna,Loop LGE EAA56672101 Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655721 Contact Us For Availability
951
Cover LGE MCK67460101 Contact Us For Availability
952
Cover LGE MCK67460102 Contact Us For Availability
953
Lens LGE MFB62974301 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149601 Contact Us For Availability
1002
Cover LGE MCK66956901 Contact Us For Availability
1003
Clamp LGE MBU62365501 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM62647901 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62667101 Contact Us For Availability
1024
Damper LGE MCQ38556902 Contact Us For Availability
1026
Tray LGE MJS62773201 Contact Us For Availability
1030
Cable,FFC LGE EAD62056602 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1045
Cable,FFC LGE EAD62056802 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673602 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ86011801 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR76545701 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A42
Panel Assembly,Audio LGE AGL74160041 Contact Us For Availability
A43
PCB Assembly LGE EBR76301622 Contact Us For Availability
A44
Frame Assembly LGE ADV74488150 Contact Us For Availability
A46
Option Code Assembly LGE EBR76625607 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR76195012 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A54
PCB Assembly LGE EBR76514511 Contact Us For Availability
A60L
Speaker System Total LGE TCG35390007 Contact Us For Availability
A60R
Speaker System Total LGE TCG35390107 Contact Us For Availability
A90
Speaker System Total LGE TCG35391007 Contact Us For Availability
A91A
PCB Assembly LGE EBR76512712 Contact Us For Availability
BC915
Filter,Bead LGE EAM38769505 Contact Us For Availability
BD901
Diode,Bridge LGE EAH61933801 Contact Us For Availability
C100
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C211
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C219
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C227
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C235
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C244
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C262
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C263
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C303
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
C305
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C310
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C365
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C368
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C416
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C427
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C429
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C451
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C504
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C505
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CK182BK56A Contact Us For Availability
C517
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C536
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C555
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C601
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C621
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C643
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C700
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C707
Capacitor,AL,Radial LGE 0CE228RA610 Contact Us For Availability
C738
Capacitor,Ceramic,Chip LGE 0CK104ERG6A Contact Us For Availability
C836
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C840
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C903
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CZZR00032A Contact Us For Availability
C906
Capacitor,Film,Box,DC LGE EAE62962601 Contact Us For Availability
C910
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C915
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C918
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C921
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C924
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C927
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C929
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C930
Capacitor,AL,Radial LGE 0CE686CV610 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C934
Capacitor,Film,Box LGE EAE62962502 Contact Us For Availability
C935
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C937
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C942
Capacitor,Ceramic,Chip LGE 0CH1473H566 Contact Us For Availability
C943
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C944
Capacitor,AL,Radial LGE 0CE477NH638 Contact Us For Availability
C945
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C949
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C956
Capacitor,AL,Radial LGE EAE62406201 Contact Us For Availability
C957
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C963
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C964
Capacitor,AL,Radial LGE EAE42721810 Contact Us For Availability
C974
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C977
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C979
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C980
CAPACITOR LGE 624-087D Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62042702 Contact Us For Availability
CABLE2
Harness,Single LGE EAD61073415 Contact Us For Availability
CABLE3
Harness,Single LGE EAD42744318 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD61049016 Contact Us For Availability
CM102
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
CM104
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
CM107
CAPACITOR,FIXED CERA LGE 0CH1561K462 Contact Us For Availability
CM110
Capacitor,AL,Radial LGE 0CE4753K638 Contact Us For Availability
CM111
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
CM112
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
CM114
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
CM116
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
CM119
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62524901 Contact Us For Availability
CN103
CONNECTOR (CIRC),HOUSING LGE 561-712G Contact Us For Availability
CN105
Connector,FFC/FPC/PIC LGE EAG00461202 Contact Us For Availability
CN106
Harness,Single LGE EAD42218224 Contact Us For Availability
CN107
Connector,Wafer LGE 6602T20008B Contact Us For Availability
CN110
Harness,Single LGE 6631R-G007C Contact Us For Availability
CN200
Connector,Wafer LGE EAG41647504 Contact Us For Availability
CN301
Connector,BtoB LGE EAG43602008 Contact Us For Availability
CN351
Connector,Wafer LGE EAG56285902 Contact Us For Availability
CN352
CONNECTOR (CIRC),BOA LGE 6630R-BF03N Contact Us For Availability
CN404
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN405
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN502
Connector,Wafer LGE 6602T12004J Contact Us For Availability
CN504
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN901
Connector,Wafer LGE 6602T25008P Contact Us For Availability
CN902
Connector,BtoB LGE EAG63390002 Contact Us For Availability
CNM102
Connector,BtoB LGE EAG43602009 Contact Us For Availability
CNP101
Connector,BtoB LGE 6630R-BF03R Contact Us For Availability
CNW102
Connector,Wafer LGE 6602T20008F Contact Us For Availability
CNW201
Connector,Wafer LGE 561-711G Contact Us For Availability
CP103
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
CW101
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
CW104
CAPACITOR,FIXED CERA LGE 0CH1101F642 Contact Us For Availability
D102
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D201
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
D400
Diode,Switching LGE EAH35293601 Contact Us For Availability
D501
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D715
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D738
Diode,Rectifier LGE 0DRVH00138A Contact Us For Availability
D745
Diode,Zener LGE EAH60993001 Contact Us For Availability
D904
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D906
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D909
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D911
Diode,Rectifier LGE EAH43372801 Contact Us For Availability
D913
Diode,Rectifier LGE EAH61253701 Contact Us For Availability
D922
Diode,Switching LGE 0DS135519AA Contact Us For Availability
D934
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D952
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D954
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
D955
Diode,Rectifier LGE EAH61655001 Contact Us For Availability
D957
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D960
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D965
Diode,Rectifier LGE EAH61233501 Contact Us For Availability
D966
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D967
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D968
Diode,Switching LGE EAH31951401 Contact Us For Availability
DIG301
VFD LGE EAJ62312301 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
F911
FUSE,SLOW BLOW LGE 0FS6301B51D Contact Us For Availability
FL500
Filter,Common Mode LGE EAM62151601 Contact Us For Availability
FL500
Filter,Line Noise LGE 6200J000039 Contact Us For Availability
HS902
Heat Sink LGE MED62731201 Contact Us For Availability
HS902
Heat Sink LGE MED62731203 Contact Us For Availability
HS903
Heat Sink LGE MED62731202 Contact Us For Availability
HS903
Heat Sink LGE MED62731204 Contact Us For Availability
HS906
Heat Sink LGE MED62731205 Contact Us For Availability
IC100
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36368001 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC104
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC105
IC,CMOS LGE EAN61130301 Contact Us For Availability
IC202
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC204
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC207
IC,LINEAR LGE 0ILNRA0001A Contact Us For Availability
IC352
IC,LDO Voltage Regulator LGE EAN44022001 Contact Us For Availability
IC407
IC,RF Amplifier LGE EAN40169301 Contact Us For Availability
IC408
IC,Motor Driver LGE EAN60720701 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN62392701 Contact Us For Availability
IC502
IC,SDRAM LGE EAN34123102 Contact Us For Availability
IC502
IC,SDRAM LGE EAN62355001 Contact Us For Availability
IC503A
S/W,System Program LGE SAA36367801 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC509
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC510A
S/W,System Program LGE SAA36367901 Contact Us For Availability
IC600
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC705
IC,Power Driver LGE EAN60778301 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN61970101 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN61854102 Contact Us For Availability
IC904
IC,PWM Controller LGE EAN62574101 Contact Us For Availability
IC905
IC,POWER MANAGEMENT LGE 0IPMGA0012A Contact Us For Availability
IC951
IC,POWER MANAGEMENT LGE 0IPMGKE048A Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE EAN60728201 Contact Us For Availability
IC952
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC952
IC,LDO Voltage Regulator LGE EAN60921401 Contact Us For Availability
IC953
IC,Voltage Regulator LGE EAN38519601 Contact Us For Availability
ICM101
IC,PRE Amplifier LGE EAN57059401 Contact Us For Availability
ICW101
IC,ROHM LGE 0IRH209000A Contact Us For Availability
JK3M01
Jack,Phone LGE 6612F00105C Contact Us For Availability
JK200
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK352
Connector,USB LGE EAG43134801 Contact Us For Availability
JKP101
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
L211
Filter,Bead LGE EAM62151001 Contact Us For Availability
L401
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
L402
Filter,Bead LGE EAM62151101 Contact Us For Availability
L705
Coil,Choke LGE EAP62308301 Contact Us For Availability
L904
Coil,Choke LGE EAP62268101 Contact Us For Availability
L952
Coil,Choke LGE EAP60792101 Contact Us For Availability
L952
COIL,CHOKE LGE 633-088G Contact Us For Availability
LD352
LED,DIP LGE EAV62074401 Contact Us For Availability
LD352
LED,DIP LGE EAV35747602 Contact Us For Availability
LF902
Filter,Line Noise LGE EAM62130101 Contact Us For Availability
LUGM01
Harness,Single LGE EAD62387701 Contact Us For Availability
PC904
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC904
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q100
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q101
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q351
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q400
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q700
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q704
TR,Bipolar LGE 0TRKE80027A Contact Us For Availability
Q704
TRANSISTOR,BIPOLARS LGE 0TRKE90013A Contact Us For Availability
Q706
FET LGE EBK60711201 Contact Us For Availability
Q709
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q719
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q904
FET LGE EBK61492501 Contact Us For Availability
Q906
FET LGE EBK61492401 Contact Us For Availability
Q906
FET LGE EBK61493601 Contact Us For Availability
Q908
TR,Bipolar LGE 0TR222209IB Contact Us For Availability
Q910
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q951
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q951
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q952
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q953
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q956
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q956
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
R7B2
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R7B4
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R9A0
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
R9A7
Resistor,Metal Oxide Film LGE 0RS1500J619 Contact Us For Availability
R9A8
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R9B2
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R9B3
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R9B9
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R9C0
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R59B
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R59C
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R59D
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R70D
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ4704C678 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R189
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R190
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R192
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R211
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R223
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R230
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R244
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R247
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R258
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R301
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R308
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R353
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R354
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R358
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R371
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R372
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R373
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R374
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R378
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R379
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ0152E672 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R416
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R424
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R504
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ3401C478 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R547
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R649
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R666
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R702
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R705
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R708
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R710
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R725
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R728
RESISTOR,METAL GLAZE LGE 0RH2000C622 Contact Us For Availability
R735
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R738
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R742
Resistor,Chip LGE 0RH0222G622 Contact Us For Availability
R752
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R760
Resistor,Chip LGE 0RH6203D622 Contact Us For Availability
R769
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R771
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R850
Resistor,Chip LGE 0RH2201D422 Contact Us For Availability
R855
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R863
Resistor,Chip LGE 0RH2201E622 Contact Us For Availability
R871
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R887
Resistor,Chip LGE 0RH3900D622 Contact Us For Availability
R892
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R893
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R912
Resistor,Chip LGE 0RH3300D422 Contact Us For Availability
R914
Resistor,Cement LGE EBC42756301 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R925
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R926
Resistor,Chip LGE EBC62460701 Contact Us For Availability
R935
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R941
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R945
Resistor,Chip LGE EBC38126101 Contact Us For Availability
R946
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R952
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
R961
Resistor,Chip LGE 0RH3302D422 Contact Us For Availability
R963
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R964
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R966
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R968
Fuse,Non Time Delay LGE 0FF1251FCN2 Contact Us For Availability
R972
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R978
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R979
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R980
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R984
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R987
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R993
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R997
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R998
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
RC301
Receiver Module LGE EAV51497201 Contact Us For Availability
RM101
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
RM102
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
RM107
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
RM109
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
RM115
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
RP101
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
RW172
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
SW360
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ61651102 Contact Us For Availability
T902
Transformer,Switching LGE EBJ61630404 Contact Us For Availability
T903
Transformer,Switching LGE EBJ61651101 Contact Us For Availability
TH700
Thermistor,NTC LGE 6322A00017A Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61545701 Contact Us For Availability
TH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
TH912
Thermistor,PTC LGE EBG61565701 Contact Us For Availability
TM701
Connector,Terminal Block LGE EAG63374001 Contact Us For Availability
TU101
Tuner,Analog LGE EBL60739903 Contact Us For Availability
VR3M01
VOLUME,ENCODER LGE 6110E00018A Contact Us For Availability
VR353
Switch,Encoder LGE EBF61474401 Contact Us For Availability
VR354
Switch,Encoder LGE EBF61855401 Contact Us For Availability
VR533
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X100
Crystal LGE 6212AB2327X Contact Us For Availability
X101
Crystal LGE 6212AB2120H Contact Us For Availability
X200
Crystal LGE EAW32919901 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X501
Crystal LGE 6212AB2240C Contact Us For Availability
ZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
ZD902
Diode,TVS LGE EAH61192501 Contact Us For Availability
ZD904
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD908
Diode,Zener LGE EAH61433801 Contact Us For Availability
ZD915
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
ZD921
Diode,Zener LGE EAH61132701 Contact Us For Availability
ZD952
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
× ![]()
Login and Registration Form
