Model LG CM4550 – Common Parts & Diagrams
Diagram 0
Diagram 1

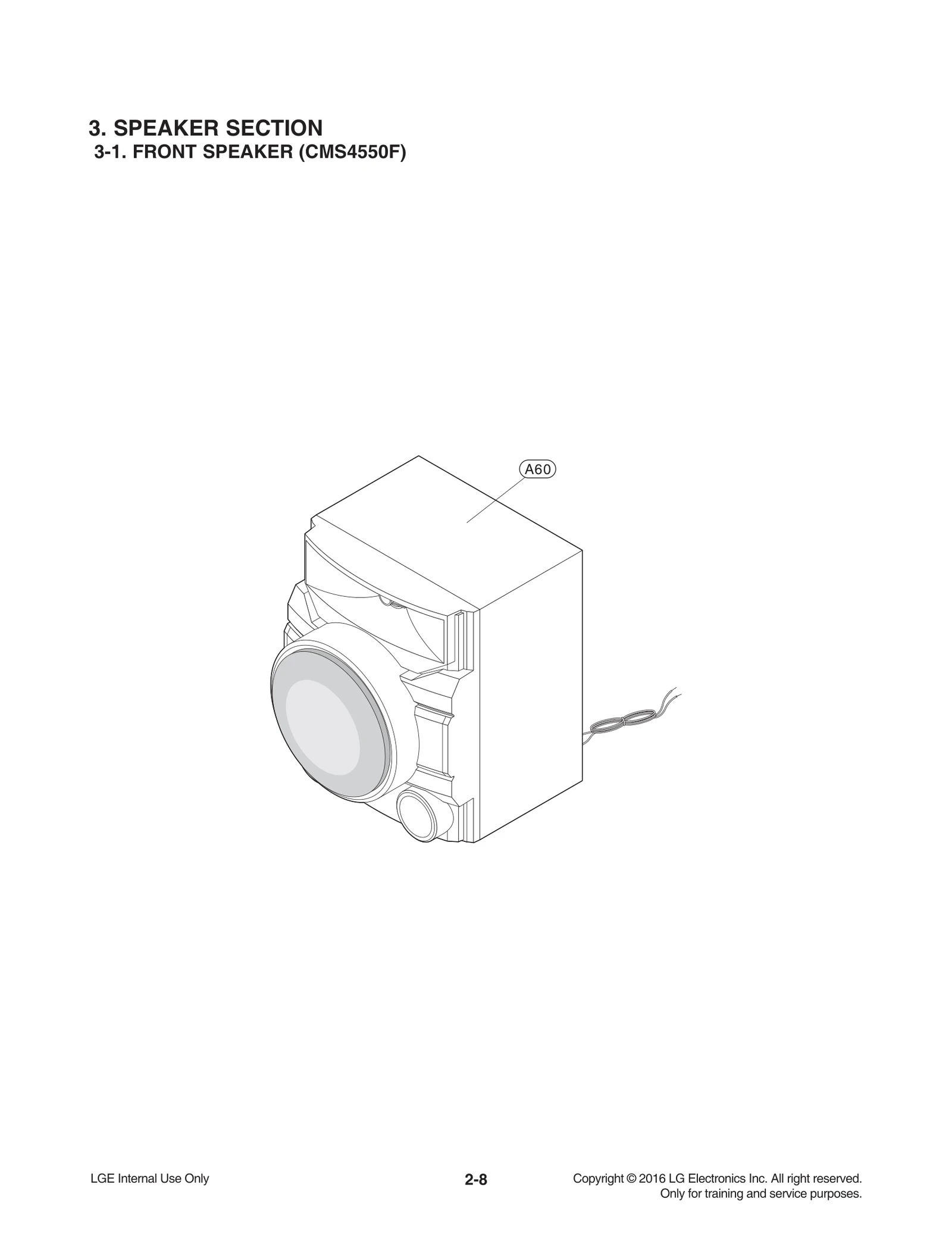

Diagram 2
Diagram 3
Diagram 4
Common parts from model LG CM4550
251
Knob LGE MEY62994202 Contact Us For Availability
252
Button LGE MBG64984601 Contact Us For Availability
253
Button LGE MBG64965201 Contact Us For Availability
255
Plate LGE 3300RCH001A Contact Us For Availability
259
Door LGE MCV63033401 Contact Us For Availability
260L
Cover LGE MCK67880202 Contact Us For Availability
260R
Cover LGE MCK67916902 Contact Us For Availability
261
Case LGE MBN63246602 Contact Us For Availability
262
Panel,Rear LGE MGC58624787 Contact Us For Availability
263
Bracket LGE MAZ64008701 Contact Us For Availability
264
Holder LGE MEG63540501 Contact Us For Availability
265
Chassis LGE MBS62825501 Contact Us For Availability
266
RUBBER LGE 5040R-0069X Contact Us For Availability
269
Fan Module LGE EAL60700909 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
460
Screw,Customized LGE 353-025C Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76992688 Contact Us For Availability
802
Box,Master LGE MAY67089493 Contact Us For Availability
803
Packing LGE MFZ64771401 Contact Us For Availability
804
BAG LGE 3880SCS001F Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655741 Contact Us For Availability
A00
Deck Assembly,DVD LGE EAZ62881401 Contact Us For Availability
A00
Deck Assembly,DVD LGE EAZ61961501 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL75093318 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR78239408 Contact Us For Availability
A44
Frame Assembly LGE ADV74749001 Contact Us For Availability
A46
Option Code Assembly LGE EBR80227513 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR80050716 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A60
Speaker System Total LGE TCG36188907 Contact Us For Availability
A90
Speaker System Total LGE TCG36189007 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C51A
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C51C
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C51D
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C223
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C226
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C233
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C310
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C316
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CH4470K416 Contact Us For Availability
C323
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C358
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C359
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C364
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C373
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
C377
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C381
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C385
Capacitor,Ceramic,Ch LGE 0CH4090K112 Contact Us For Availability
C409
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C411
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C446
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C447
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C452
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C455
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C461
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C462
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C479
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C481
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C501
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C503
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C523
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C540
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C548
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C590
Capacitor,Ceramic,Ch LGE 0CC100BKG1A Contact Us For Availability
C593
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
C605
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C608
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C614
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CH4330K442 Contact Us For Availability
C643
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C703
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C708
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C716
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C727
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C734
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C744
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C751
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C758
Capacitor,Ceramic,Chip LGE 0CH1222K566 Contact Us For Availability
C761
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C767
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE337RRK10 Contact Us For Availability
C905
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C908
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C911
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C914
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C917
Capacitor,Ceramic,Axial LGE 0CN8210K519 Contact Us For Availability
C918
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C920
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C921
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C931
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE107EH638 Contact Us For Availability
C951
CAPACITOR LGE 624-087D Contact Us For Availability
C955
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C956
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD61687002 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62130014 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE61103302 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN301
Connector,FFC/FPC/PIC LGE EAG42298404 Contact Us For Availability
CN302
Harness,Single LGE EAD42004412 Contact Us For Availability
CN404
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN405
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN501
Harness,Single LGE EAD42218212 Contact Us For Availability
CN502
Connector,FFC/FPC/PIC LGE EAG00462002 Contact Us For Availability
CN602
Connector,Wafer LGE EAG34656001 Contact Us For Availability
CN901
Connector,Wafer LGE 6602T25008P Contact Us For Availability
CY901
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
D502
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D507
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D510
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D701
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D705
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D902
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D902
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D904
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D911
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D934
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D951
Diode,Schottky LGE EAH62232901 Contact Us For Availability
D951
Diode,Schottky LGE EAH62174001 Contact Us For Availability
DIG302
VFD LGE EAJ58881201 Contact Us For Availability
DIG302
VFD LGE EAJ60868405 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB901
COIL LGE 636-004D Contact Us For Availability
FB902
Filter,Bead LGE EAM56488801 Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
FH902
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL500
Filter,Common Mode LGE EAM62151601 Contact Us For Availability
FR931
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC301
IC,Display Driver LGE EAN62790501 Contact Us For Availability
IC302
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC407
IC,RF Amplifier LGE EAN62928001 Contact Us For Availability
IC408
IC,Motor Driver LGE EAN33860001 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC502
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB004H Contact Us For Availability
IC503A
S/W,Firmware LGE SAA37752301 Contact Us For Availability
IC504A
S/W,Firmware LGE SAA37772401 Contact Us For Availability
IC505
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC507
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC508
IC,DC,DC Converter LGE EAN63530001 Contact Us For Availability
IC510
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC601
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC911
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC931
IC,LDO Voltage Regulator LGE EAN60921401 Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC951
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC951
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK200
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK302
Connector,USB LGE EAG43134801 Contact Us For Availability
JK303
JACK,HEADPHONE LGE 6612R-A002A Contact Us For Availability
L211
Filter,Bead LGE EAM62151001 Contact Us For Availability
L310
Filter,Bead LGE EAM62155402 Contact Us For Availability
L402
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
L500
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L500
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
L502
Filter,Bead LGE EAM62151101 Contact Us For Availability
L518
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
L701
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L931
COIL,CHOKE LGE 633-088G Contact Us For Availability
L931
Coil,Choke LGE EAP60792101 Contact Us For Availability
LD314
LED,DIP LGE EAV62074401 Contact Us For Availability
LD314
LED,DIP LGE EAV35747602 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61010401 Contact Us For Availability
PC903
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC903
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q304
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q305
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q400
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q501
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q502
TR,Bipolar LGE 0TRKE80051A Contact Us For Availability
Q503
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q504
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q701
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q706
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q901
FET LGE EBK61572401 Contact Us For Availability
Q911
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q911
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
R50D
Resistor,Chip LGE EBC33932801 Contact Us For Availability
R51E
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R51F
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R54B
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R54E
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R58B
Resistor,Chip LGE ERHZ0000219 Contact Us For Availability
R58C
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R58J
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R210
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R325
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R333
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R337
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R339
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R345
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R347
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R348
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R370
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R371
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R372
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R373
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R381
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R382
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R387
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R389
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R390
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R393
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ0152E672 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ0000C477 Contact Us For Availability
R442
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R443
Resistor,Chip LGE 0RH2201C422 Contact Us For Availability
R444
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R452
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R454
Resistor,Chip LGE 0RH4700C422 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R458
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R459
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R464
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R466
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R505
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R558
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R563
Resistor,Chip LGE 0RJ4704C678 Contact Us For Availability
R564
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R573
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R579
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R581
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R586
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R588
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R631
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R706
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R718
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R719
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R738
Resistor,Chip LGE 0RZZ000068A Contact Us For Availability
R742
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R911
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R914
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R915
Resistor,Wire Wound LGE EBC30416602 Contact Us For Availability
R916
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD2203F609 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R922
Resistor,Carbon Film LGE 0RD0562F609 Contact Us For Availability
R923
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R925
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R931
Resistor,Carbon Film LGE 0RD0331F609 Contact Us For Availability
R933
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R935
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R941
Resistor,Metal Film LGE 0RN3901F409 Contact Us For Availability
R942
Resistor,Metal Film LGE 0RN3001F409 Contact Us For Availability
R945
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R946
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R952
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R964
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
RC301
Receiver Module LGE EAV41920401 Contact Us For Availability
SW309
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ62670101 Contact Us For Availability
T903
Transformer,Switching LGE EBJ60770118 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TM701
Connector,Terminal Block LGE EAG63374008 Contact Us For Availability
TU500
Tuner,Analog LGE EBL60740003 Contact Us For Availability
VR301
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X500
Crystal LGE 6212AB2240C Contact Us For Availability
X501
Crystal LGE 6212AB2327X Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
ZD701
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD901
Diode,Zener LGE EAH62753301 Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD912
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
ZD913
Diode,Zener LGE 0DZGD00064B Contact Us For Availability
ZD913
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD914
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
ZD931
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
× ![]()
Login and Registration Form
