Model LG CM4530 – Common Parts & Diagrams

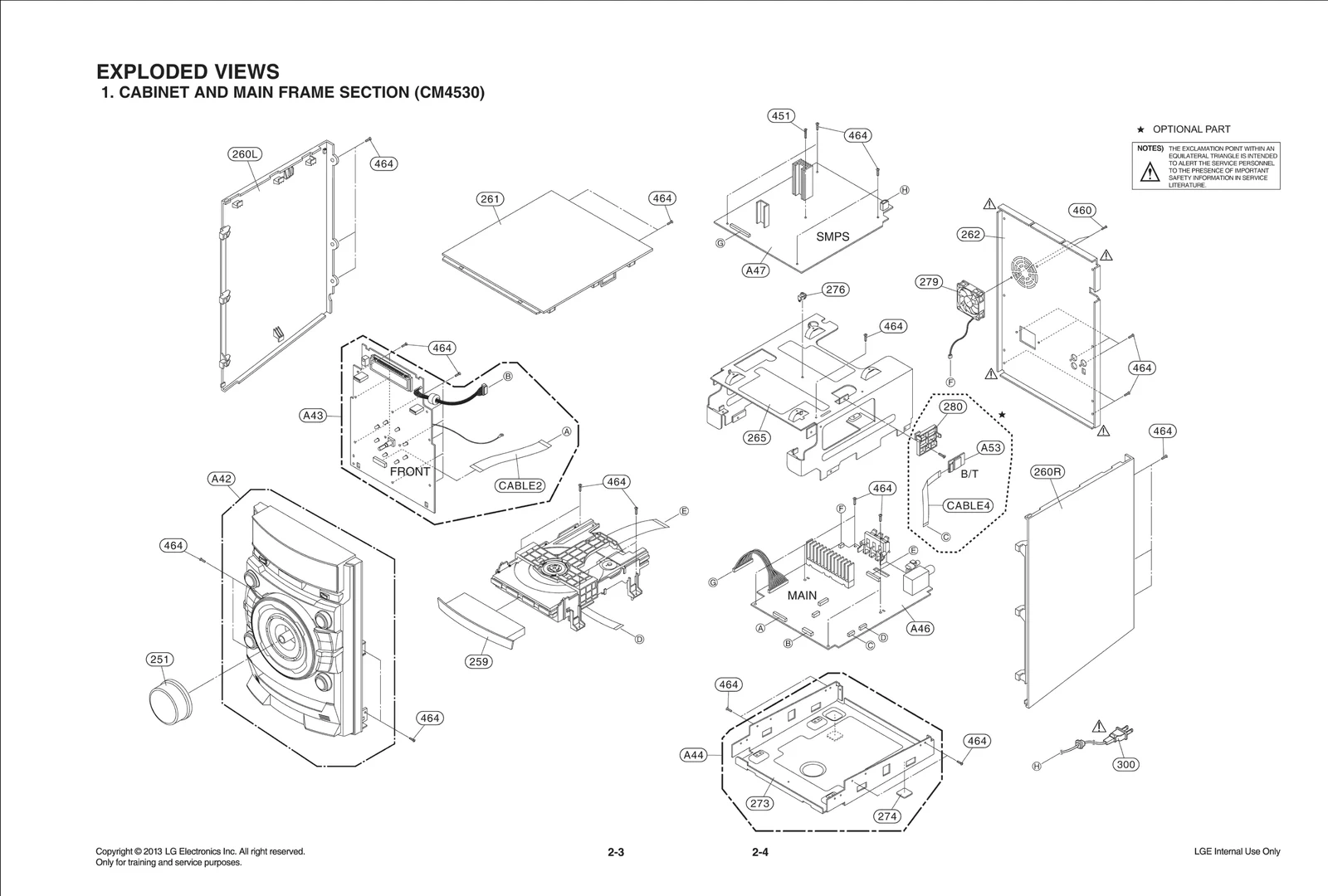

Diagram 0

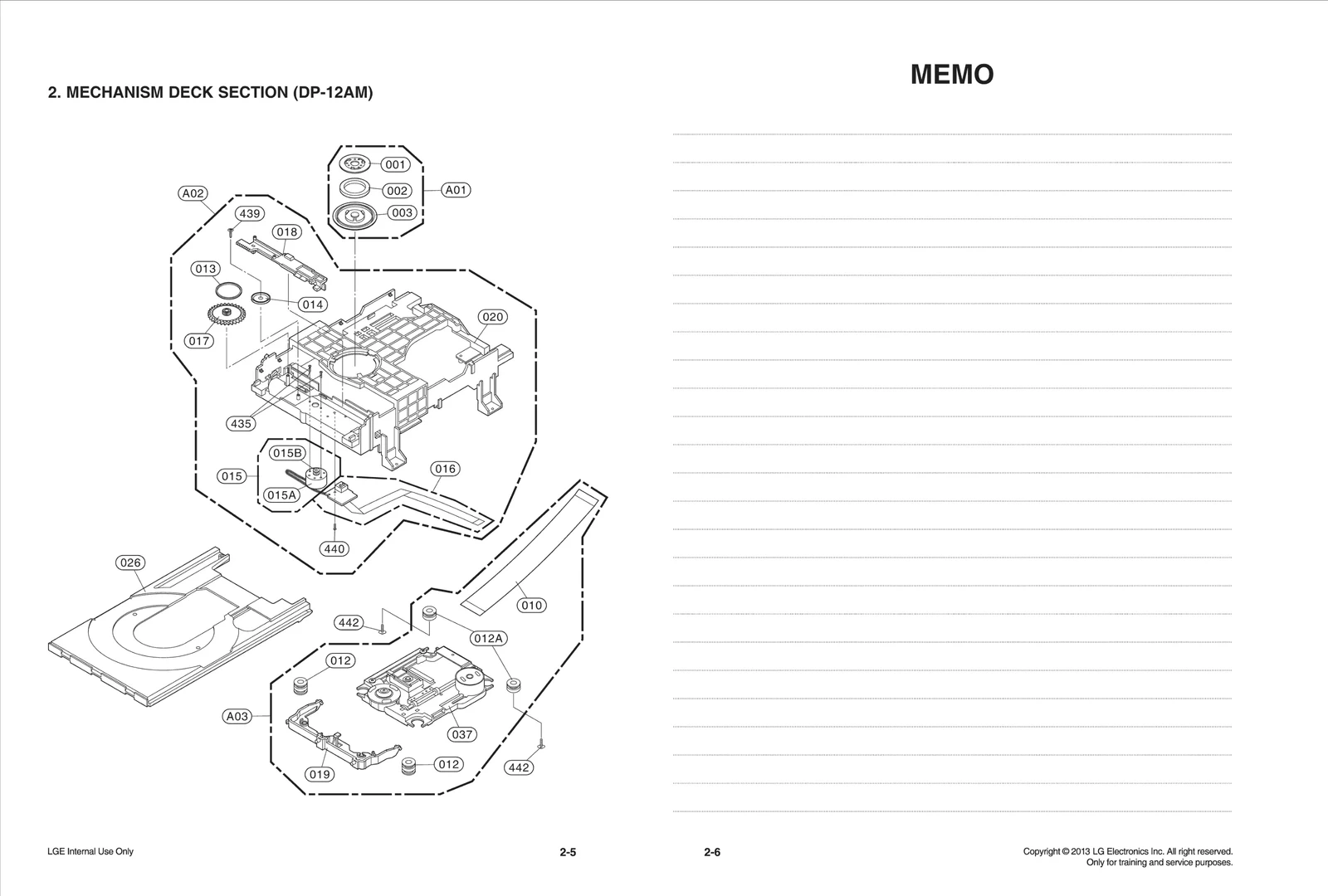

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Common parts from model LG CM4530
001
Plate LGE MGJ38556601 Contact Us For Availability
002
Magnet,Ferrite LGE RAB30611501 Contact Us For Availability
003
Clamp LGE MBU38556801 Contact Us For Availability
010
Cable,FFC LGE EAD62113102 Contact Us For Availability
012
Damper LGE MCQ41263801 Contact Us For Availability
012A
Damper LGE MCQ38556901 Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
Motor Assembly,DC LGE EAU62103601 Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015A
Motor,DC LGE EAU62065801 Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PCB Assembly LGE EBR72896701 Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
Frame LGE MDQ39573201 Contact Us For Availability
020
Base LGE MAM39572801 Contact Us For Availability
026
TRAY LGE 3390R-0032A Contact Us For Availability
037
Pick Up Assembly LGE EAZ60673602 Contact Us For Availability
251
Knob LGE MEY62834101 Contact Us For Availability
259
Door LGE MCV62774402 Contact Us For Availability
260L
Cover LGE MCK67458102 Contact Us For Availability
260R
Cover LGE MCK67477102 Contact Us For Availability
261
Case LGE MBN63025802 Contact Us For Availability
262
Panel,Rear LGE MGC58624738 Contact Us For Availability
265
Bracket LGE MAZ58617302 Contact Us For Availability
273
Chassis LGE MBS58617203 Contact Us For Availability
274
RUBBER LGE 5040R-0069X Contact Us For Availability
276
Holder LGE 4930RC0033A Contact Us For Availability
279
Fan Module LGE EAL60700803 Contact Us For Availability
280
Holder LGE MEG63263601 Contact Us For Availability
300
Power Cord LGE EAD60816718 Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
442
Screw,Taptite LGE FAB30124101 Contact Us For Availability
451
Screw,Customized LGE 353-025HAAA Contact Us For Availability
460
Screw,Customized LGE 353-025C Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75877206 Contact Us For Availability
802
Box,Master LGE MAY65745710 Contact Us For Availability
803
Packing LGE MFZ63565201 Contact Us For Availability
804
BAG LGE 3880SCS001F Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
824
Antenna,Loop LGE EAA56672101 Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655702 Contact Us For Availability
A01
Clamp Assembly LGE ACA34280801 Contact Us For Availability
A02
Base Assembly LGE AAN73669401 Contact Us For Availability
A03
Base Assembly LGE AAN74129501 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL74120202 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR76308501 Contact Us For Availability
A44
Frame Assembly LGE ADV71707911 Contact Us For Availability
A46
Option Code Assembly LGE EBR76323001 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR76267103 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A60
Speaker System Total LGE TCG35373307 Contact Us For Availability
A90
Speaker System Total LGE TCG35373407 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
C1F1
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C7C7
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C8F8
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C110
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C111
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C112
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C118
Capacitor,AL,Radial LGE 0CE108CC638 Contact Us For Availability
C120
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C301
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C313
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C317
Capacitor,AL,Radial LGE 0CE1074D638 Contact Us For Availability
C335
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C336
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
C337
Capacitor,Ceramic,Chip LGE 0CK224BCG7A Contact Us For Availability
C338
CAPACITOR ELECTROLYTIC AEGMG7 LGE 0CE4766H618 Contact Us For Availability
C343
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C354
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C356
Capacitor,Ceramic,Chip LGE 0CH1272K562 Contact Us For Availability
C366
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C404
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C410
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
C510
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C514
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C516
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CH4470K416 Contact Us For Availability
C523
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C539
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C558
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C559
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C607
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C614
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C616
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C621
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C625
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C626
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C629
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C636
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C668
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C740
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C742
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C747
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C751
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C753
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
C760
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C780
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C815
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C839
Capacitor,Ceramic,Chip LGE 0CK223BF5FA Contact Us For Availability
C842
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C859
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C874
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C883
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C903
CAPACITOR,FIXED ELEC LGE 0CE277JR6A0 Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ6821N409 Contact Us For Availability
C912
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C913
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C915
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C916
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C917
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C920
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C927
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C929
CAPACITOR LGE 624-087D Contact Us For Availability
C930
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C934
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C937
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C951
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C954
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C955
Capacitor,Ceramic,Radial,Disc LGE 0CN2230K949 Contact Us For Availability
C956
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD60718901 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD61049017 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC LGE 6630XF00416 Contact Us For Availability
CN103
Connector,Wafer LGE 6630R3S006F Contact Us For Availability
CN105
Harness,Single LGE EAD42218212 Contact Us For Availability
CN301
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN303
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
CN501
CONNECTOR (CIRC),FFC LGE 561-707P Contact Us For Availability
CN502
Harness,Single LGE EAD42004408 Contact Us For Availability
CN601
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
CN801
Connector,Wafer LGE 561-711H Contact Us For Availability
CN802
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN901
Connector,Wafer LGE 6602T25008P Contact Us For Availability
D103
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D302
Diode,Switching LGE EAH35293601 Contact Us For Availability
D602
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D701
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D903
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D907
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D913
DIODE,SWITCHING LGE 0DS141489AB Contact Us For Availability
D913
Diode,Switching LGE EAH32120501 Contact Us For Availability
D913
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D922
DIODE,RECTIFIER LGE 0DR302000AB Contact Us For Availability
D923
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D923
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D925
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D929
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
DIG502
VFD LGE EAJ58881201 Contact Us For Availability
DIG502
VFD LGE EAJ60868405 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB902
Filter,Bead LGE EAM56488801 Contact Us For Availability
FB902
Filter,Bead LGE 636-004C Contact Us For Availability
FL801
Filter,Common Mode LGE EAM62151601 Contact Us For Availability
FR951
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36344701 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC104
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC106
IC,LDO Voltage Regulator LGE EAN62682301 Contact Us For Availability
IC301
IC,Motor Driver LGE EAN60720701 Contact Us For Availability
IC302
IC,RF Amplifier LGE EAN40169301 Contact Us For Availability
IC401
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC402
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC501
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC502
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC601
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC702
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC801
IC,Digital Signal Processors LGE EAN61018501 Contact Us For Availability
IC802
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC802
IC,SDRAM LGE 0IMMREB004H Contact Us For Availability
IC803A
S/W,System Program LGE SAA36344601 Contact Us For Availability
IC805
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60993301 Contact Us For Availability
IC904
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC904
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC951
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE EAN38977001 Contact Us For Availability
JK401
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK502
Connector,USB LGE EAG43125201 Contact Us For Availability
L310
Filter,Bead LGE EAM62151101 Contact Us For Availability
L403
Filter,Bead LGE EAM62671601 Contact Us For Availability
L703
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L921
Coil,Choke LGE EAP60792101 Contact Us For Availability
L921
COIL,CHOKE LGE 633-088G Contact Us For Availability
LD517
LED,DIP LGE EAV62074401 Contact Us For Availability
LF902
Filter,Line Noise LGE EAM61230101 Contact Us For Availability
LF903
Filter,Line Noise LGE EAM61230102 Contact Us For Availability
PC901
SENSOR LGE 6500RDB011B Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q101
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q102
TR,Bipolar LGE 0TRKE80051A Contact Us For Availability
Q301
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q302
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q505
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q601
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q601
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q602
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q603
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q701
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q902
FET LGE EBK60872301 Contact Us For Availability
Q910
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
Q910
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q911
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q911
TR,Bipolar LGE 0TRKE90005B Contact Us For Availability
Q911
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q912
TR,Bipolar LGE 0TR320309AC Contact Us For Availability
Q913
TR,Bipolar LGE EBK61471701 Contact Us For Availability
Q953
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q954
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q954
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q954
TR,Bipolar LGE EBK61732501 Contact Us For Availability
Q955
TR,Bipolar LGE EBK61591702 Contact Us For Availability
Q955
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
R1F6
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R103
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R145
Resistor,Chip LGE 0RH4704C622 Contact Us For Availability
R148
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R173
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R195
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R196
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R197
Resistor,Chip LGE 0RJ2200C477 Contact Us For Availability
R307
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R313
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R315
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R316
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R325
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R331
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R424
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R523
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R525
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R532
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R534
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R535
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R536
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R542
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R544
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R546
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R558
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R570
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R571
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R572
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R573
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R581
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R587
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R589
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R603
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R607
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R626
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R633
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R646
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R723
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R732
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R736
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R753
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R841
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R842
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R862
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R863
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD1202F609 Contact Us For Availability
R914
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R917
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R925
Resistor,Metal Film LGE 0RN3001F409 Contact Us For Availability
R929
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD0331F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R936
Resistor,Carbon Film LGE 0RD1201F609 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R942
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R943
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R944
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R945
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R946
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R948
Resistor,Carbon Film LGE 0RD0562F609 Contact Us For Availability
R949
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R950
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
RC501
Receiver Module LGE EAV41920401 Contact Us For Availability
SW507
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
SW507
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770101 Contact Us For Availability
T903
Transformer,Switching LGE EBJ60770118 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TM601
Connector,Terminal Block LGE EAG63374008 Contact Us For Availability
TU100
Tuner,Analog LGE EBL60739903 Contact Us For Availability
VR501
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR501
Switch,Encoder LGE EBF61474401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
X101
Crystal LGE 617-602F Contact Us For Availability
X102
Crystal LGE 6212AB2120H Contact Us For Availability
X301
Crystal LGE 6212AB2884A Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
X802
Crystal LGE 6212AB2240C Contact Us For Availability
ZD601
Diode,Zener LGE 0DZPH00028A Contact Us For Availability
ZD701
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD801
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZRM00554A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD903
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD904
Diode,Zener LGE 0DZRM00484A Contact Us For Availability
ZD904
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD905
Diode,Zener LGE 0DZGD00084A Contact Us For Availability
ZD905
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
ZD906
Diode,Zener LGE 0DZ470009AD Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00154A Contact Us For Availability
ZD951
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
ZD952
Diode,Zener LGE 0DZSE00064B Contact Us For Availability
× ![]()
Login and Registration Form
