Model Whirlpool CM02743BL1 MICROWAVE OVEN – Common Parts & Diagrams

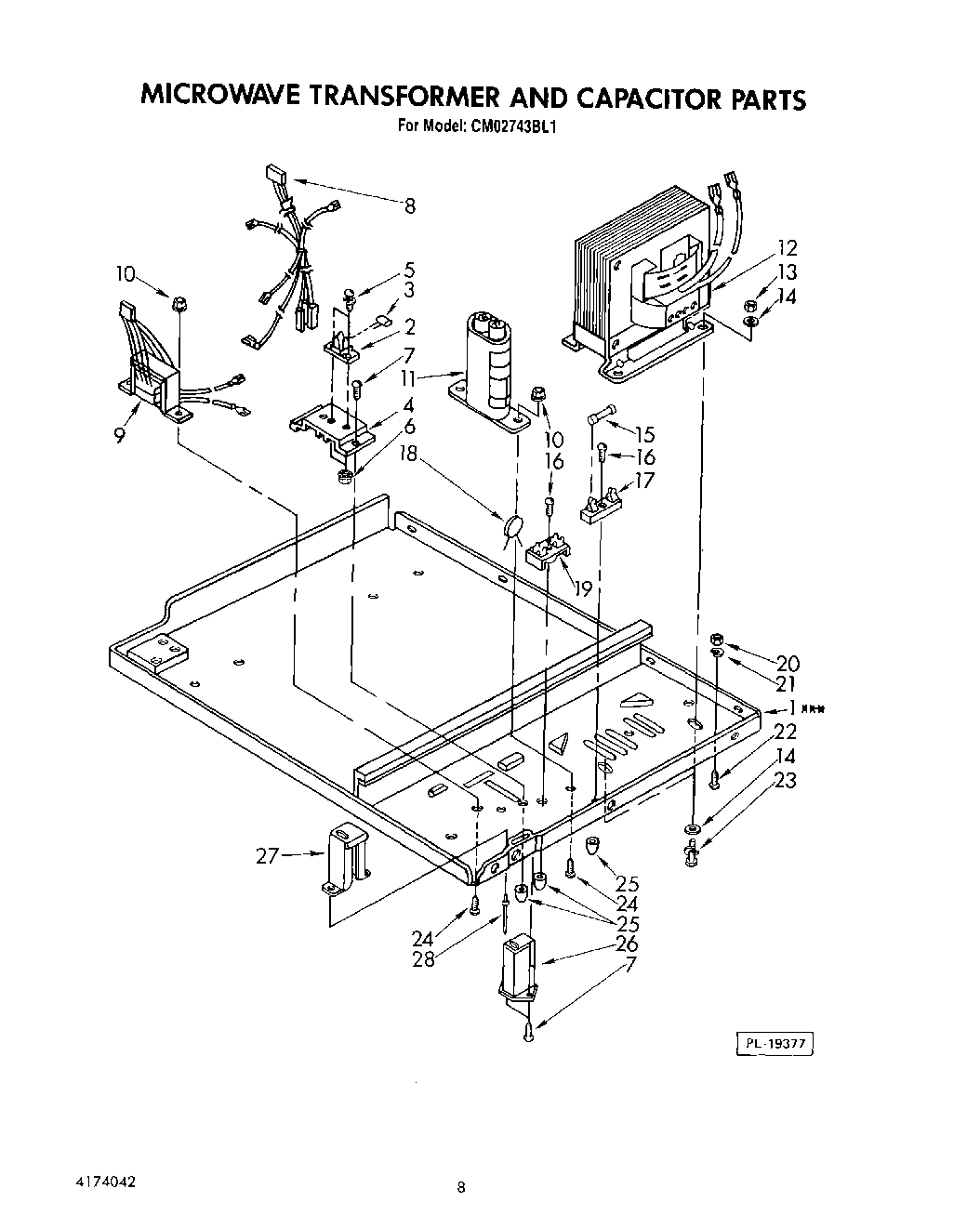

06 - MICROWAVE TRANSFORMER AND CAPACITOR
13 - DOOR, LIT/OPTIONAL
09 - LATCH
11 - CABINET
10 - OVEN LINER
12 - CONTROL COMPARTMENT AND CABINET TOP
04 - MICROWAVE CABINET
02 - CONTROL PANEL
03 - CONTROL FRAME AND KNOB
08 - MICROWAVE TOUCH PANEL
05 - MICROWAVE MAGNETRON AND INTERLOCK

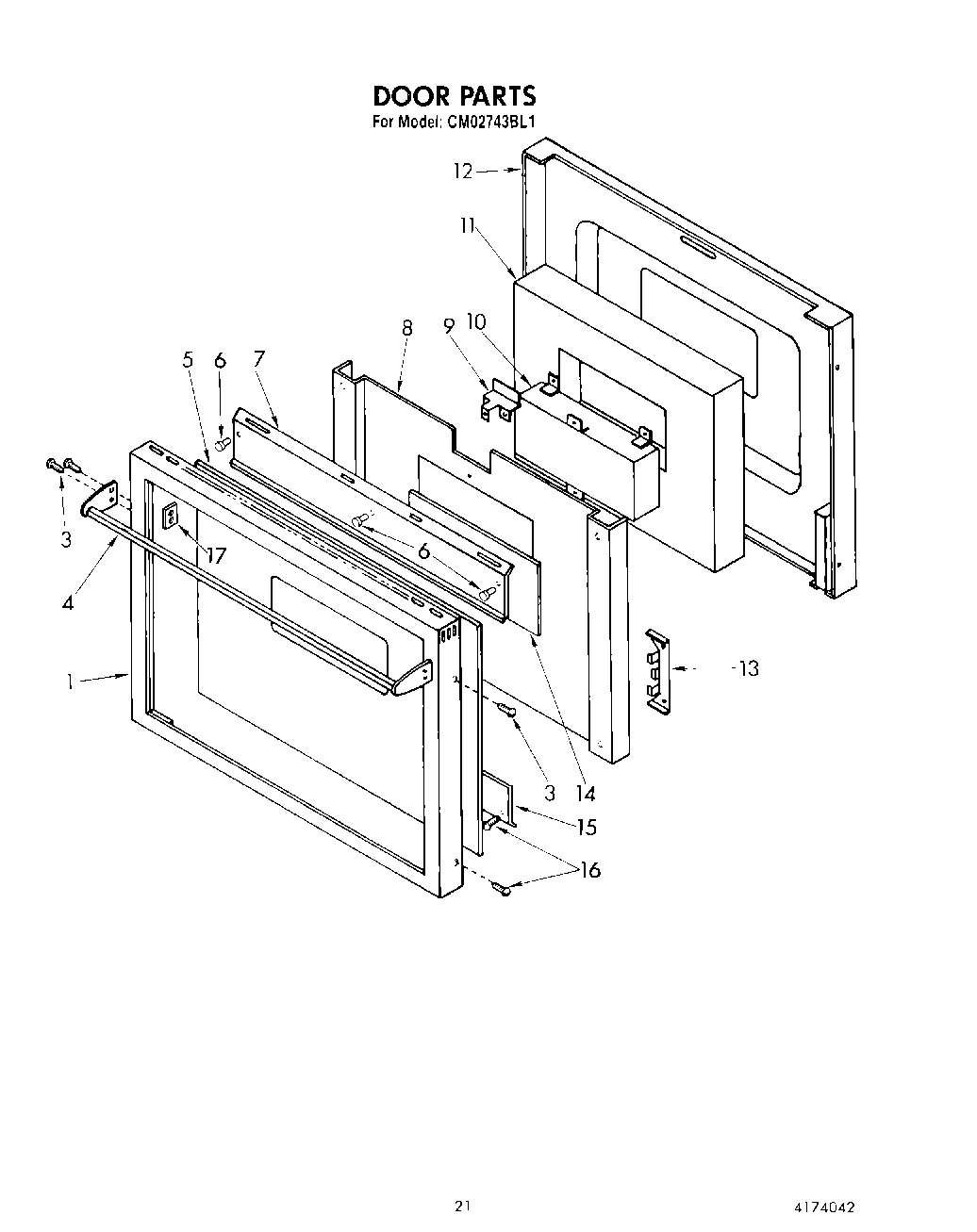

07 - MICROWAVE DOOR
Common parts from model Whirlpool CM02743BL1 MICROWAVE OVEN
Installation Instructions WPL LIT4174020 Contact Us For Availability
Instructions, Operating (Card) (Microwave) WPL LIT4174021 Contact Us For Availability
List, Repair Parts WPL LIT4174042 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT4177638 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4177672 Contact Us For Availability
Cookbook (Retained Heat) WPL LIT4177808 Contact Us For Availability
1
Door Frame WPL 4164391 Contact Us For Availability
1
Latch Mounting Plate WPL 4173044 Contact Us For Availability
1
Main Bottom WPL 4173086 Contact Us For Availability
1
Liner, Oven WPL 4163862 Contact Us For Availability
1
Sandwich Panel WPL 4163981 Contact Us For Availability
1
Cabinet WPL 4164041 Contact Us For Availability
1
Oven Cavityxxx WPL 4164043 Contact Us For Availability
1
Control Mounting Panel WPL 4167472 Contact Us For Availability
1
Vent Insert WPL 4168678 Contact Us For Availability
1
Door Handle With Plastic Stripexxx WPL 4164095 Contact Us For Availability
2
Screw, Truss, Hd. Tapping, 4 X 8, Z1-2 WPL 4164017 Contact Us For Availability
2
Mechanism, Latch WPL 4168538 Contact Us For Availability
2
Nut (4) WPL 4159109 Contact Us For Availability
2
Insulation, Bottom WPL 4164191 Contact Us For Availability
2
Resistor Block WPL 4168614 Contact Us For Availability
2
Clock, Digital WPL 4163729 Contact Us For Availability
2
Bottom Platexxx WPL 4164080 Contact Us For Availability
2
Hex Nut With Washer, 5mm, Z1xxx WPL 4164032 Contact Us For Availability
2
Spring, Door Handlexxx WPL 4164096 Contact Us For Availability
3
Polyester Film Capacitor, 0.1 mfd +/- 20 Perc WPL 4164082 Contact Us For Availability
3
Screw, 8-32 x 3/8 WPL 4159330 Contact Us For Availability
3
Screw, No.10-24 X 3/8`` Hex TCS WPL 4159186 Contact Us For Availability
3
Door Gasket WPL 4168829 Contact Us For Availability
3
Broiler Element Support-Right WPL 4168217 Contact Us For Availability
3
Hole Cover WPL 4168257 Contact Us For Availability
3
Caution Label And Nameplate WPL 4164042 Contact Us For Availability
3
Thermostat (Self-Clean) WPL 4164246 Contact Us For Availability
3
Control Frame With Metal Piecexxx (3) WPL 4164119 Contact Us For Availability
3
Blower Assembly WPL 4164065 Contact Us For Availability
3
Shaft, Door Handlexxx WPL 4164097 Contact Us For Availability
4
Heat Sink WPL 4164083 Contact Us For Availability
4
Door Handle WPL 4173018 Contact Us For Availability
4
Latch Lever WPL 4163838 Contact Us For Availability
4
Front Frame WPL 4163823 Contact Us For Availability
4
Element, Broil WPL 4164185 Contact Us For Availability
4
AC Plug WPL 4168749 Contact Us For Availability
4
Bracket Thermostat WPL 4168150 Contact Us For Availability
4
Bezel, Oven Light Switch WPL 4169372 Contact Us For Availability
4
Ferrite Rubberxxx Panel Back WPL 4164120 Contact Us For Availability
4
Metal, Reinforcementxxx WPL 4164098 Contact Us For Availability
5
Screw With Spring Washer, Pan Hd. Machine, 3 WPL 4164026 Contact Us For Availability
5
Door Glass WPL 4164241 Contact Us For Availability
5
Thermal Switch WPL 4173007 Contact Us For Availability
5
Bottom Trim WPL 4164196 Contact Us For Availability
5
Rotisserie Cover WPL 4167518 Contact Us For Availability
5
Transformer WPL 4168687 Contact Us For Availability
5
Screw (2) WPL 4159199 Contact Us For Availability
5
Switch, Selector WPL 3177174 Contact Us For Availability
5
Knob, Meat Probe Indicator WPL 4163840 Contact Us For Availability
5
Metal Bracketxxx Panel Mounting (3) WPL 4164121 Contact Us For Availability
5
Duct, Intake WPL 4164066 Contact Us For Availability
5
Handle Gripxxx WPL 4164099 Contact Us For Availability
6
Rubber Bumper WPL 4168826 Contact Us For Availability
6
Solenoid Spacer WPL 4168169 Contact Us For Availability
6
Shoulder Screw WPL 4168874 Contact Us For Availability
6
Special Washer Temperature Probe Jack WPL 4164044 Contact Us For Availability
6
Indicator Light 240V (3) WPL 4168598 Contact Us For Availability
6
Screw, Pan Hd. Tapping 3 X 12 mm C2-1xxx WPL 4164014 Contact Us For Availability
6
Magnetron, 2M-128 (B-RT) (Includes Illus. 7) WPL 4164067 Contact Us For Availability
6
Screw, Pan Head Tapping 3 X 6mm, Z1xxx WPL 4164010 Contact Us For Availability
7
Air Baffle WPL 4163857 Contact Us For Availability
7
Solenoid WPL 4173081 Contact Us For Availability
7
Cover, Seal End WPL 4167588 Contact Us For Availability
7
Light Lens Gasket WPL 4166868 Contact Us For Availability
7
Terminal Block WPL 4168561 Contact Us For Availability
7
Special Nut, Temperature Probe Jack WPL 4164045 Contact Us For Availability
7
Indicator Light 120V (2) WPL 4168597 Contact Us For Availability
7
Ground Leadxxx WPL 4164122 Contact Us For Availability
7
RF Gasket, Magnetron WPL 4164068 Contact Us For Availability
7
Door Sash With Metal Trimmingxxx WPL 4164100 Contact Us For Availability
8
Connector, Triac WPL 4164084 Contact Us For Availability
8
Retainer, Insulation WPL 4169357 Contact Us For Availability
8
Latch Switch With Roller WPL 4168514 Contact Us For Availability
8
Oven Liner (See Pages 16 & 17) WPL ARI21454A2 Contact Us For Availability
8
Light Lens WPL 4166866 Contact Us For Availability
8
Jack, Temperature Probe WPL 4164047 Contact Us For Availability
8
Switch, Heat WPL 4168533 Contact Us For Availability
8
Knob, Clock WPL 4168844 Contact Us For Availability
8
Touch Key Board (Incls. Harness) xxx WPL 4164123 Contact Us For Availability
8
Duct, Exhaust WPL 4164069 Contact Us For Availability
8
Plastic Bearingxxx WPL 4164101 Contact Us For Availability
9
Step-down Transformer, Control Circuit, P6T-3 WPL 4164085 Contact Us For Availability
9
Bracket, Lock WPL 4163852 Contact Us For Availability
9
Insulator WPL 4158522 Contact Us For Availability
9
Insulation, Top and Sides WPL 4169310 Contact Us For Availability
9
Light Lens Retainer WPL 4167938 Contact Us For Availability
9
5-Wire Harness With Socket WPL 4164046 Contact Us For Availability
9
Screw, Truss Hd. Tapping, 4 X 12 mm Z1-1xxx WPL 4164023 Contact Us For Availability
9
Switch, Oven Light WPL 4167332 Contact Us For Availability
9
Control Frame WPL 4164363 Contact Us For Availability
9
Thermostat, Magnetron WPL 4164070 Contact Us For Availability
9
Upper Hinge, Doorxxx WPL 4164102 Contact Us For Availability
10
Window Pack WPL 4173280 Contact Us For Availability
10
Solenoid Spring WPL 4168560 Contact Us For Availability
10
Control Frame Support WPL 4169336 Contact Us For Availability
10
Blower WPL 4168290 Contact Us For Availability
10
Temperature Probe WPL 4168761 Contact Us For Availability
10
Switch, Panel Light WPL 4166934 Contact Us For Availability
10
Top Insert WPL 4168552 Contact Us For Availability
10
Door Main Frame WPL 4164103 Contact Us For Availability
11
High Voltage Capacitor With Resistor And Rect WPL 4164086 Contact Us For Availability
11
Screw, Pan Hd. Diacut, 4 X 10mm Z1 WPL 4164021 Contact Us For Availability
11
Insulation WPL 4163987 Contact Us For Availability
11
Cotter Pin WPL 4159129 Contact Us For Availability
11
Module Air Baffle WPL 4163979 Contact Us For Availability
11
Terminal Block, Power Supply WPL 4168735 Contact Us For Availability
11
Plastic Stopper, Glass tray WPL 4164048 Contact Us For Availability
11
Screw (2) WPL 4159221 Contact Us For Availability
11
Holder, Lamp (2) WPL 4168750 Contact Us For Availability
11
Control Panel Glass WPL 4173202 Contact Us For Availability
11
Screw, Truss Hd. Tapping, 4 X 14mm, Z1-1 WPL 4164024 Contact Us For Availability
11
Ferrite Rubberxxx WPL 4164104 Contact Us For Availability
12
Hex Nut With Washer, 4mm, Z1-1 WPL 4164029 Contact Us For Availability
12
High Voltage Transformer, 120 V Input, H6T-38 WPL 4164087 Contact Us For Availability
12
Door Liner WPL 4164237 Contact Us For Availability
12
Screw, 4-40 X 5/8 Hex WPL 4173045 Contact Us For Availability
12
Compartment Top WPL 4169314 Contact Us For Availability
12
Plastic Stopper WPL 4164049 Contact Us For Availability
12
Lamp, Fluorescent WPL 4173041 Contact Us For Availability
12
Screw, No.8-18 X 3/8``, HWHTCS WPL 4159456 Contact Us For Availability
12
Retainer WPL 4167590 Contact Us For Availability
12
Circuit Board, Power And Control (Complete) WPL 4164124 Contact Us For Availability
12
Stay, Cavity And Magnetron WPL 4164071 Contact Us For Availability
13
Hex Nut, 6mm, Z1-1 WPL 4164033 Contact Us For Availability
13
Glass Mounting Bracket WPL 4163855 Contact Us For Availability
13
Insulator WPL 4163746 Contact Us For Availability
13
Knob, Latch Handle (Clean) WPL 4163821 Contact Us For Availability
13
Trim Piece Assy (Incls. Five Screws Illus No. WPL 4164050 Contact Us For Availability
13
Wire Clip WPL 4164061 Contact Us For Availability
13
Thermostat Disc WPL 4168510 Contact Us For Availability
13
Screw, Truss Head Tapping, 3 X 6mm Z1-1xxx WPL 4164011 Contact Us For Availability
14
Lock Washer Int, Tooth No.12 WPL 4159497 Contact Us For Availability
14
Glass Panel WPL 4164243 Contact Us For Availability
14
Screw, 4-40 X 1 1/4 WPL 4173053 Contact Us For Availability
14
Latch Assembly (See Pages For Further Breakdo WPL ARI21455A5 Contact Us For Availability
14
Cabinet Top WPL 4173276 Contact Us For Availability
14
Selector Disc WPL 4173301 Contact Us For Availability
14
Screw, Truss Hd. Tapping, 4 X 10mm, Z1-1 WPL 4164018 Contact Us For Availability
14
Choke Dielectric With Ferrite Rubber WPL 4164105 Contact Us For Availability
15
Fuse, 15A WPL 4164088 Contact Us For Availability
15
Air Baffle, Bottom WPL 4163859 Contact Us For Availability
15
Latch Switch SPDT WPL 4168517 Contact Us For Availability
15
Collector Box WPL 4168135 Contact Us For Availability
15
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
15
Rack Holder WPL 4164051 Contact Us For Availability
15
Screw, Pan Hd. Machine, 3x30mm Z1xxx WPL 4164016 Contact Us For Availability
15
Perforated Screenxxx WPL 4164106 Contact Us For Availability
16
Screw, Bind Hd. Tapping, 4 X 16mm, Z1-2 WPL 4164025 Contact Us For Availability
16
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
16
Latch Switch, Normally Open WPL 4168515 Contact Us For Availability
16
Compartment Vent Duct< WPL 4168285 Contact Us For Availability
16
Broiler Element Support-Left WPL 4168218 Contact Us For Availability
16
Conduit, 1/2`` X 56`` WPL 4167614 Contact Us For Availability
16
Glass Tray WPL 4168889 Contact Us For Availability
16
Micro Switch, Door Sensing xxx WPL 4164072 Contact Us For Availability
16
Glass Panelxxx WPL 4164107 Contact Us For Availability
17
Fuse Holder WPL 4164089 Contact Us For Availability
17
Insert WPL 4164131 Contact Us For Availability
17
Shoulder Screw, Latch Lever WPL 4168579 Contact Us For Availability
17
Module Support Plate WPL 4168313 Contact Us For Availability
17
Oven Rack WPL 4168401 Contact Us For Availability
17
Bushing WPL 4159035 Contact Us For Availability
17
Metal Tray WPL 4168657 Contact Us For Availability
17
Insulation Sheet, Micro Switch xxx WPL 4164073 Contact Us For Availability
17
Door Sealxxx WPL 4164108 Contact Us For Availability
18
Varistor WPL 4164090 Contact Us For Availability
18
Shoulder Screw, Actuator Arm WPL 4168554 Contact Us For Availability
18
Module Brace WPL 4163980 Contact Us For Availability
18
Clamp, Conduit WPL 4167593 Contact Us For Availability
18
Stirrer Cover WPL 4164052 Contact Us For Availability
18
Retaining Frame, Perforated Screenxxx WPL 4164109 Contact Us For Availability
19
Terminal Board WPL 4164091 Contact Us For Availability
19
Spacer, Actuator Arm WPL 4168553 Contact Us For Availability
19
Microwave Module WPL 4168365 Contact Us For Availability
19
Hinge, Lowerxxx WPL 4164053 Contact Us For Availability
19
Screw, Pan Hd. Tapping, 3 X16mm, Z1-1xxx WPL 4164015 Contact Us For Availability
19
Sink Screw, Oval Hd. Machine With Washer, 4 X WPL 4164110 Contact Us For Availability
20
Hex Nut, 4mm, Brass, N1-1 WPL 4164030 Contact Us For Availability
20
Actuator Arm WPL 4168058 Contact Us For Availability
20
Module Trim WPL 4168719 Contact Us For Availability
20
Rotisserie Rack WPL 4168412 Contact Us For Availability
20
Washer, 5mm, Uxxx WPL 4164035 Contact Us For Availability
20
Micro Switch, Interlock Monitorxxx WPL 4164075 Contact Us For Availability
20
Lower Hinge, Door WPL 4164111 Contact Us For Availability
21
Spring Washer, 4mm, Phosphated WPL 4164037 Contact Us For Availability
21
Retaining Ring WPL 4159160 Contact Us For Availability
21
Control Frame Support WPL 4167693 Contact Us For Availability
21
Rotisserie Spear WPL 4168724 Contact Us For Availability
21
Hex Nut With Washer, 5mm, Z1xxx WPL 4164031 Contact Us For Availability
21
Lever Stopperxxx WPL 4164076 Contact Us For Availability
21
Screw, Truss Hd. Machine, 4 X 10mm, Z1xxx WPL 4164022 Contact Us For Availability
22
Washer, Flat WPL 4159603 Contact Us For Availability
22
Exhaust Shield WPL 4163953 Contact Us For Availability
22
Rotisserie Skewer WPL 4166352 Contact Us For Availability
22
Air Guide, Stirrer, Right WPL 4164054 Contact Us For Availability
22
Latch Lever xxx WPL 4164077 Contact Us For Availability
22
Latch Lever WPL 4164128 Contact Us For Availability
23
Hex Hd. Bolt With Spring Washer, 6 X 14mm, Z1 WPL 4164039 Contact Us For Availability
23
Vent Box WPL 4164313 Contact Us For Availability
23
Vent Tube Extension WPL 4168126 Contact Us For Availability
23
Hex Nut, 8mm Z1-1 WPL 4164034 Contact Us For Availability
23
Hex Nut, 3mm, Z1xxx WPL 4164027 Contact Us For Availability
24
Hex Nut With Washer, 3mm, Z1-1 WPL 4164028 Contact Us For Availability
24
Screw With Washer And Spring Washer, 4 X 10mm WPL 4164019 Contact Us For Availability
24
Locknut WPL 4159117 Contact Us For Availability
24
Screw, 10-24 X 3/8`` PTMHMS WPL 4159287 Contact Us For Availability
24
Wiring Harness WPL 4163932 Contact Us For Availability
24
Wiring Harness WPL 4163996 Contact Us For Availability
24
Wiring Harness, Latch WPL 4173078 Contact Us For Availability
24
Service Power Cord WPL 4173145 Contact Us For Availability
24
Capillary Cover WPL 4168203 Contact Us For Availability
24
Special Washer WPL 4164055 Contact Us For Availability
25
Cap, Black Vinyl, Screw WPL 4164092 Contact Us For Availability
25
Strain Relief Bushing WPL 4159030 Contact Us For Availability
25
Gasket, Meat Probe Jack WPL 4163975 Contact Us For Availability
25
Meat Probe WPL 4167267 Contact Us For Availability
25
Smoke Eliminator WPL 4168492 Contact Us For Availability
25
Collar, Stirrer Shaft WPL 4164056 Contact Us For Availability
25
Micro Switch, Cavity Lightxxx WPL 4164125 Contact Us For Availability
25
Rubber Packing, Handle Shaftxxx WPL 4164112 Contact Us For Availability
26
Back-up Battery WPL 4164093 Contact Us For Availability
26
Cabinet Back Duct WPL 4163977 Contact Us For Availability
26
Stirrer Fan Assy. WPL 4164057 Contact Us For Availability
26
Lever Stopperxxx WPL 4164126 Contact Us For Availability
26
Shaft, Door Latch WPL 4164113 Contact Us For Availability
27
Battery Holder WPL 4164094 Contact Us For Availability
27
Cabinet Side Upper WPL 4163725 Contact Us For Availability
27
Stirrer Shaft WPL 4164058 Contact Us For Availability
27
Latch Lever WPL 4164127 Contact Us For Availability
27
Stopper, Latch Lever Shaftxxx WPL 4164114 Contact Us For Availability
28
Rivet, 3mm, Z1 WPL 4164040 Contact Us For Availability
28
Vent Tube WPL 4168591 Contact Us For Availability
28
Air Guide, Left WPL 4164059 Contact Us For Availability
28
Insulator, Oven Cavity WPL 4164078 Contact Us For Availability
28
Spring, Door Latch WPL 4164115 Contact Us For Availability
29
Vent Tube, Retainer WPL 4168140 Contact Us For Availability
29
Bolt, Hex Hd. With Phillips Slot, 5 X 12mm, Z WPL 4164038 Contact Us For Availability
29
Washer, External Tooth, 4mm WPL 4164036 Contact Us For Availability
29
Latch Leverxxx WPL 4164116 Contact Us For Availability
30
Bracket, Lamp Cover WPL 4164060 Contact Us For Availability
30
Stay WPL 4164079 Contact Us For Availability
30
Shaft, Latch Lever WPL 4164117 Contact Us For Availability
31
Trim Bracket WPL 4169326 Contact Us For Availability
31
Door Latchxxx WPL 4164118 Contact Us For Availability
32
Intake Box Back WPL 4168207 Contact Us For Availability
32
Screw, Flat Hd Tapping, 3 X 8 mm ZK-1xxx WPL 4164013 Contact Us For Availability
32
Screwdriver For Illus 19 WPL 4164129 Contact Us For Availability
33
Module Intake Duct WPL 4173146 Contact Us For Availability
33
Screw, Pan Hd. Tapping, 3X8mm, Z1-2 WPL 4164012 Contact Us For Availability
34
Lamp Socket (UL Listed) WPL 4164063 Contact Us For Availability
35
Insulation, Rear WPL 4164192 Contact Us For Availability
35
Light Opening Cover WPL 4164064 Contact Us For Availability
36
Rear Anchor WPL 4167526 Contact Us For Availability
36
Probe Spacer WPL 4168426 Contact Us For Availability
37
Cabinet Side Lower WPL 4173080 Contact Us For Availability
38
Cam Plate, R.H. WPL 4167597 Contact Us For Availability
38
Cam Plate (L.H.) WPL 4167598 Contact Us For Availability
39
Hinge Assembly WPL 4167897 Contact Us For Availability
40
Door Spring WPL 4173048 Contact Us For Availability
41
Spring, Anchor WPL 4167599 Contact Us For Availability
42
Cabinet Back WPL 4164297 Contact Us For Availability
43
cabinet support (r.h.) WPL 4163763 Contact Us For Availability
43
Cabinet Support (L.H.) WPL 4163764 Contact Us For Availability
44
Rotisserie Motor WPL 4163836 Contact Us For Availability
45
Rotisserie Motor Mounting Plate WPL 4167469 Contact Us For Availability
46
RT Thermostat WPL 4168550 Contact Us For Availability
48
Socket, Lamp WPL 4168755 Contact Us For Availability
49
Oven Light Shield WPL 4167579 Contact Us For Availability
50
Spacer WPL 4168590 Contact Us For Availability
51
Screw (18) WPL 4159465 Contact Us For Availability
51
Duct, Air L.H. WPL 4163754 Contact Us For Availability
51
Duct, Air R.H. WPL 4163755 Contact Us For Availability
51
Probe Cover WPL 4163883 Contact Us For Availability
51
Air Scoop WPL 4163978 Contact Us For Availability
51
Back Cover WPL 4168210 Contact Us For Availability
51
Extension, Air Duct L.H. WPL 4173016 Contact Us For Availability
51
Extension, Air Duct R.H. WPL 4173017 Contact Us For Availability
× ![]()
