Model Maytag CLY1620BDB13 RV GAS RANGE – Common Parts & Diagrams

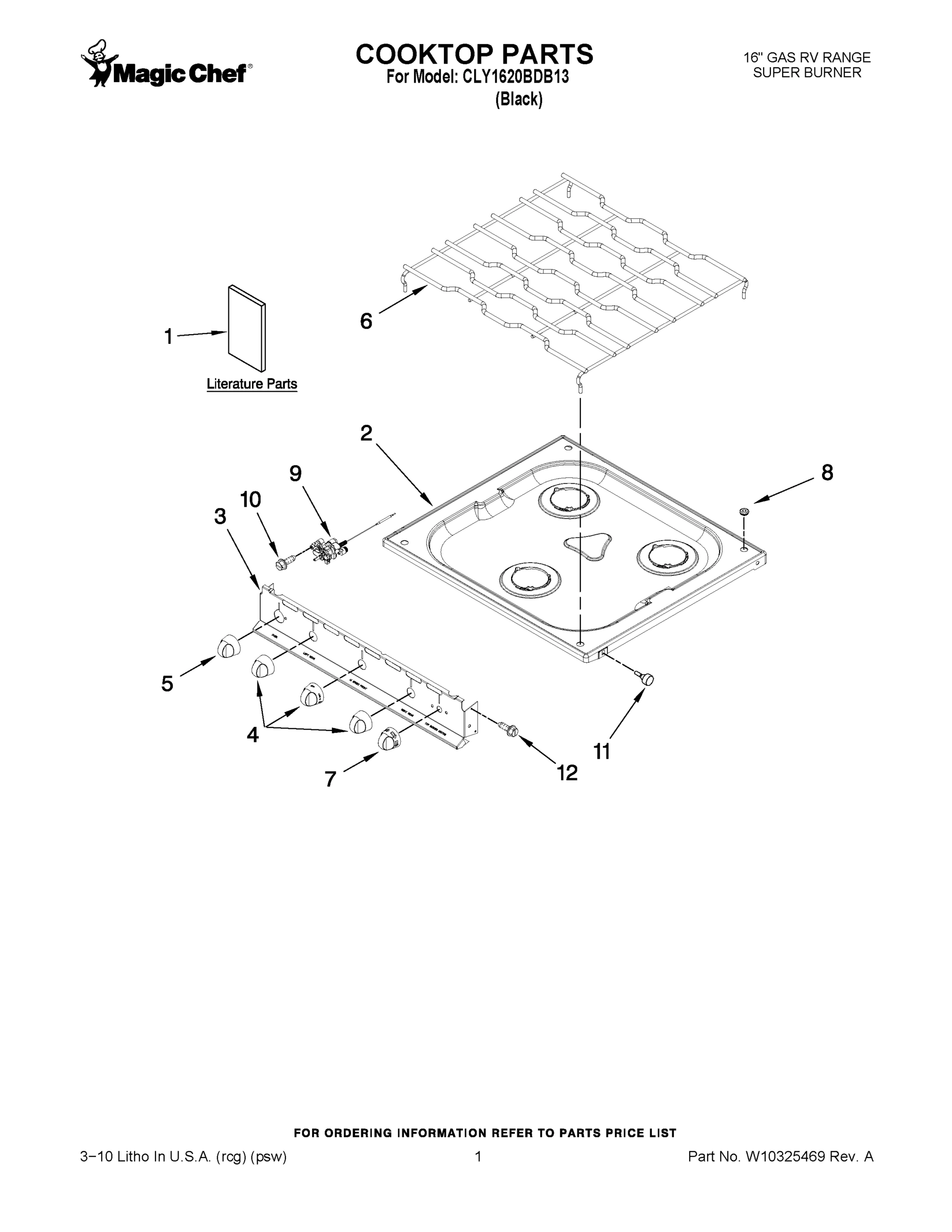

01 - COOKTOP PARTS

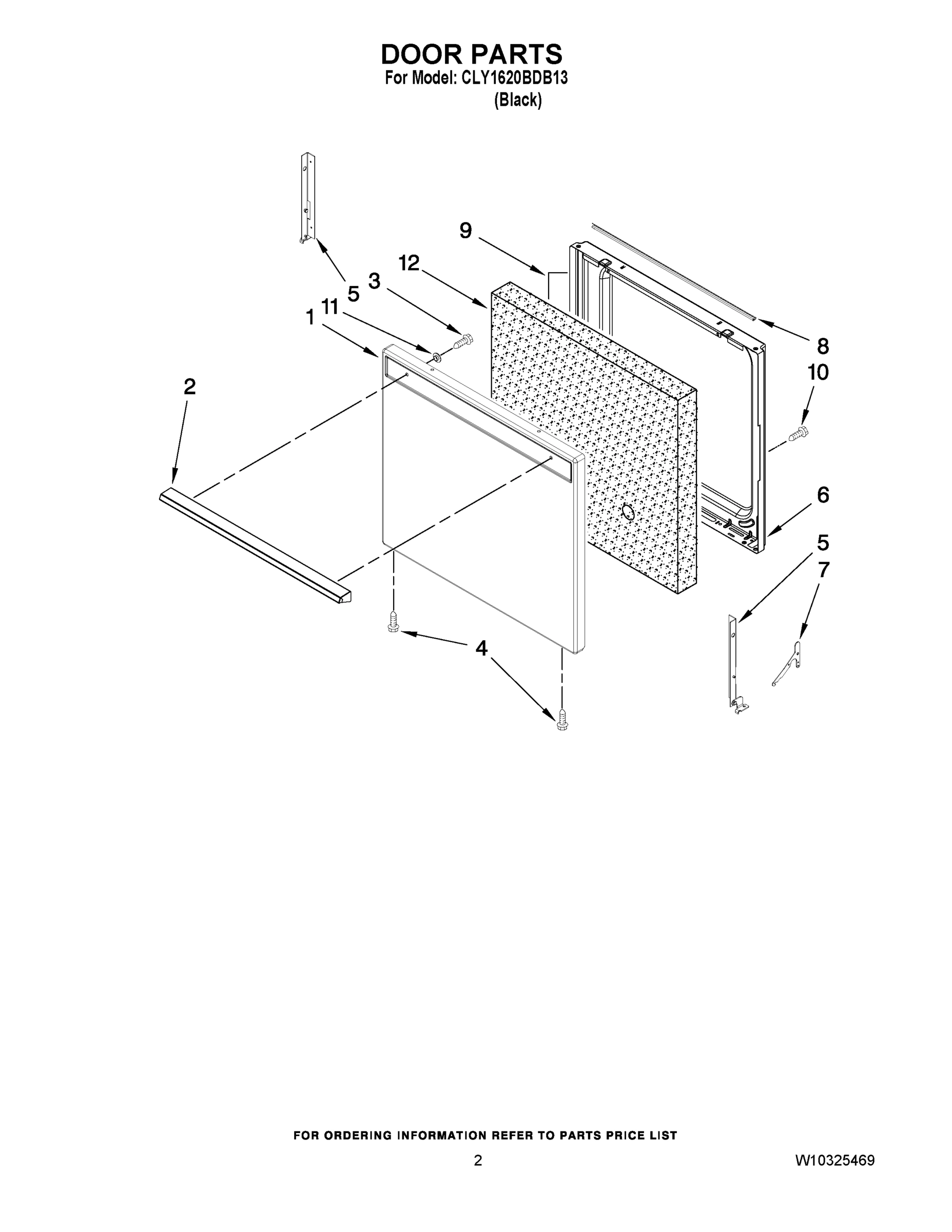

02 - DOOR PARTS
03 - MANIFOLD PARTS
04 - CHASSIS PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag CLY1620BDB13 RV GAS RANGE
1
PANEL, DOOR MAY 2401F126-70 Contact Us For Availability
1
SCREW MAY 7101P639-60 Contact Us For Availability
1
MAY 7112P142-60 MAY 7112P142-60 Contact Us For Availability
2
MAY 2411F011-70 MAY 2411F011-70 Contact Us For Availability
2
BURNER, FRONT MAY 7505P263-60 Contact Us For Availability
2
MAY 2205F050-19 MAY 2205F050-19 Contact Us For Availability
3
MAY 2616F316-70 MAY 2616F316-70 Contact Us For Availability
3
MAY 7101P520-60 MAY 7101P520-60 Contact Us For Availability
3
BURNER, REAR RIGHT MAY 7505P264-60 Contact Us For Availability
3
MAY 7505P265-60 MAY 7505P265-60 Contact Us For Availability
3
MAY 4006W237-51 MAY 4006W237-51 Contact Us For Availability
4
MAY 7733P199-60 MAY 7733P199-60 Contact Us For Availability
4
MAY 7733P200-60 MAY 7733P200-60 Contact Us For Availability
4
MAY 7505P338-60 MAY 7505P338-60 Contact Us For Availability
5
MAY 7731P182-60 MAY 7731P182-60 Contact Us For Availability
5
MAY 3418D091-34 MAY 3418D091-34 Contact Us For Availability
5
MAY 3418D092-34 MAY 3418D092-34 Contact Us For Availability
5
MAY 4002F329-51 MAY 4002F329-51 Contact Us For Availability
6
MAY 7518P418-60 MAY 7518P418-60 Contact Us For Availability
6
MAY 2402F272-19 MAY 2402F272-19 Contact Us For Availability
6
MAY 7510P098-60 MAY 7510P098-60 Contact Us For Availability
6
MAY 3608F149-70 MAY 3608F149-70 Contact Us For Availability
6
MAY 3608F150-70 MAY 3608F150-70 Contact Us For Availability
7
MAY 3423F001-34 MAY 3423F001-34 Contact Us For Availability
7
MAY 7739P117-60 MAY 7739P117-60 Contact Us For Availability
7
MAY 7513P467-60 MAY 7513P467-60 Contact Us For Availability
7
SPRING, DOOR MAY 7803P051-60 Contact Us For Availability
8
MAY 7212P014-60 MAY 7212P014-60 Contact Us For Availability
8
MAY W10308285 MAY W10308285 Contact Us For Availability
8
MAY 7502P523-60 MAY 7502P523-60 Contact Us For Availability
8
MAY 7502P524-60 MAY 7502P524-60 Contact Us For Availability
8
MAY 4011F460-51 MAY 4011F460-51 Contact Us For Availability
9
MAY 7515P046-60 MAY 7515P046-60 Contact Us For Availability
9
MAY 7212P038-60 MAY 7212P038-60 Contact Us For Availability
9
MAY 7112P068-60 MAY 7112P068-60 Contact Us For Availability
9
T-NUT MAY 7103P109-60 Contact Us For Availability
10
MAY 7101P651-60 MAY 7101P651-60 Contact Us For Availability
10
MAY 3807F747-45 MAY 3807F747-45 Contact Us For Availability
10
MAY 4011F325-51 MAY 4011F325-51 Contact Us For Availability
11
MAY 8003P008-60 MAY 8003P008-60 Contact Us For Availability
11
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
11
MAY 8010P136-60 MAY 8010P136-60 Contact Us For Availability
12
MAY 7101P229-60 MAY 7101P229-60 Contact Us For Availability
12
MAY 7527P115-60 MAY 7527P115-60 Contact Us For Availability
12
MAY 3604F273-70 MAY 3604F273-70 Contact Us For Availability
13
CUP/TUBE, ASSEMBLY MAY 7506P154-60 Contact Us For Availability
13
MAY 4016F059-51 MAY 4016F059-51 Contact Us For Availability
13
MAY 4016F060-51 MAY 4016F060-51 Contact Us For Availability
14
MAY 7432P085-60 MAY 7432P085-60 Contact Us For Availability
14
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
15
MAY 7507P388-60 MAY 7507P388-60 Contact Us For Availability
15
MAY 7801P155-60 MAY 7801P155-60 Contact Us For Availability
16
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
16
MAY 7506P152-60 MAY 7506P152-60 Contact Us For Availability
16
MAY 7506P153-60 MAY 7506P153-60 Contact Us For Availability
17
TUBING, GAS (1/4`` OD X 32.25``) MAY 7506P411-60 Contact Us For Availability
17
TUBING, GAS (3/16`` OD X 37.75``) MAY 7506P415-60 Contact Us For Availability
17
MAY 7101P301-60 MAY 7101P301-60 Contact Us For Availability
18
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
18
MAY 7505P360-60 MAY 7505P360-60 Contact Us For Availability
19
SCREW MAY 7101P188-60 Contact Us For Availability
19
MAY 7112P065-60 MAY 7112P065-60 Contact Us For Availability
20
MAY 7111P009-60 MAY 7111P009-60 Contact Us For Availability
21
MAY 7101P498-60 MAY 7101P498-60 Contact Us For Availability
22
WING NUT MAY 7103P030-60 Contact Us For Availability
23
MAY 3601P360-45 MAY 3601P360-45 Contact Us For Availability
24
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
25
MAY 3604F211-45 MAY 3604F211-45 Contact Us For Availability
26
MAY 3807F462-45 MAY 3807F462-45 Contact Us For Availability
27
IGNITOR, TOP MAY 7432P077-60 Contact Us For Availability
28
CLIP, IGNITOR MAY 7104P002-60 Contact Us For Availability
NI
INSULATION, BACK MAY 7002P428-60 Contact Us For Availability
NI
MAY 7002P095-60 MAY 7002P095-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 5111P719-60 MAY 5111P719-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2)) MAY 98015022 Contact Us For Availability
× ![]()
