Model Maytag CKG9641W589RGC GAS RANGE – Common Parts & Diagrams

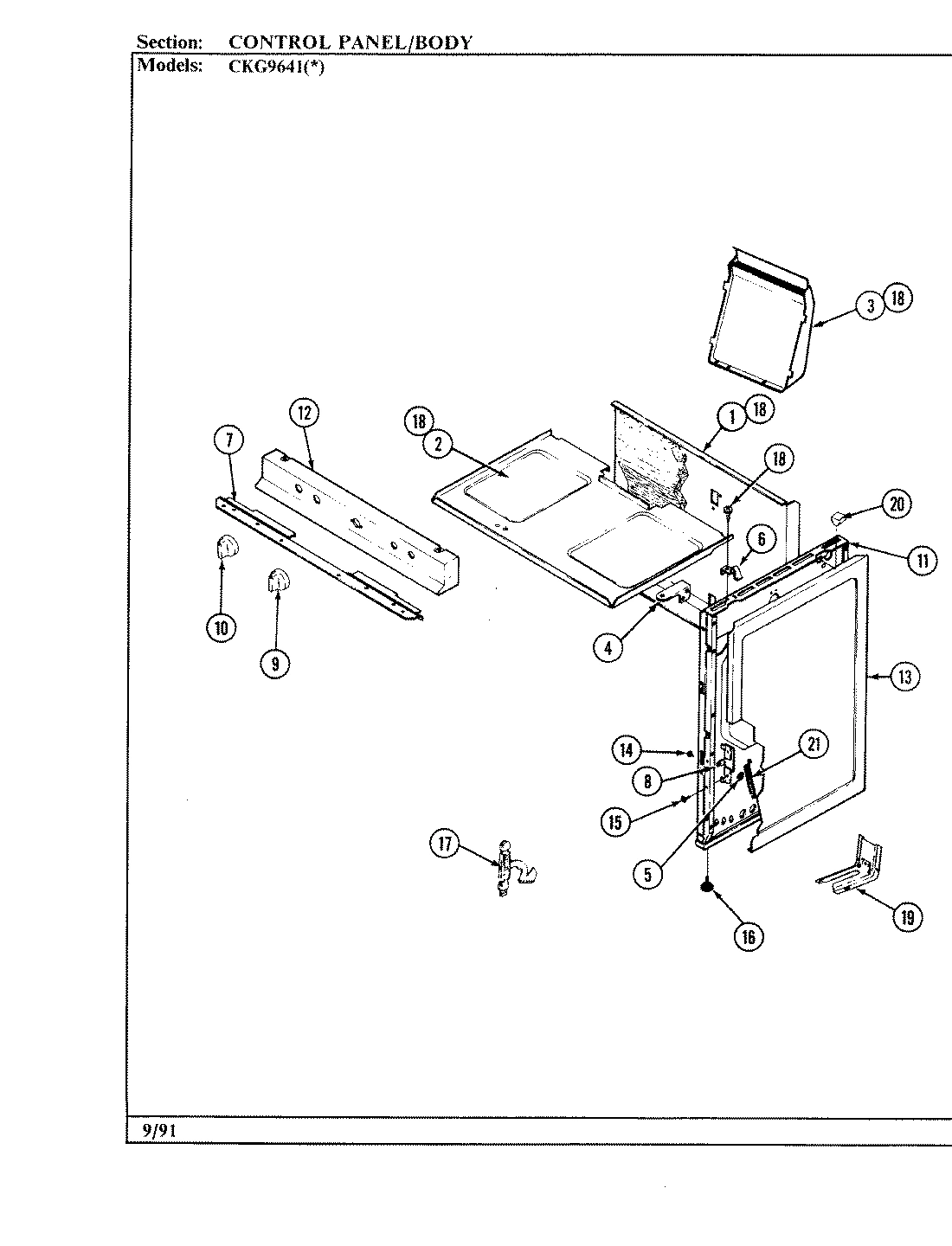

01 - BODY

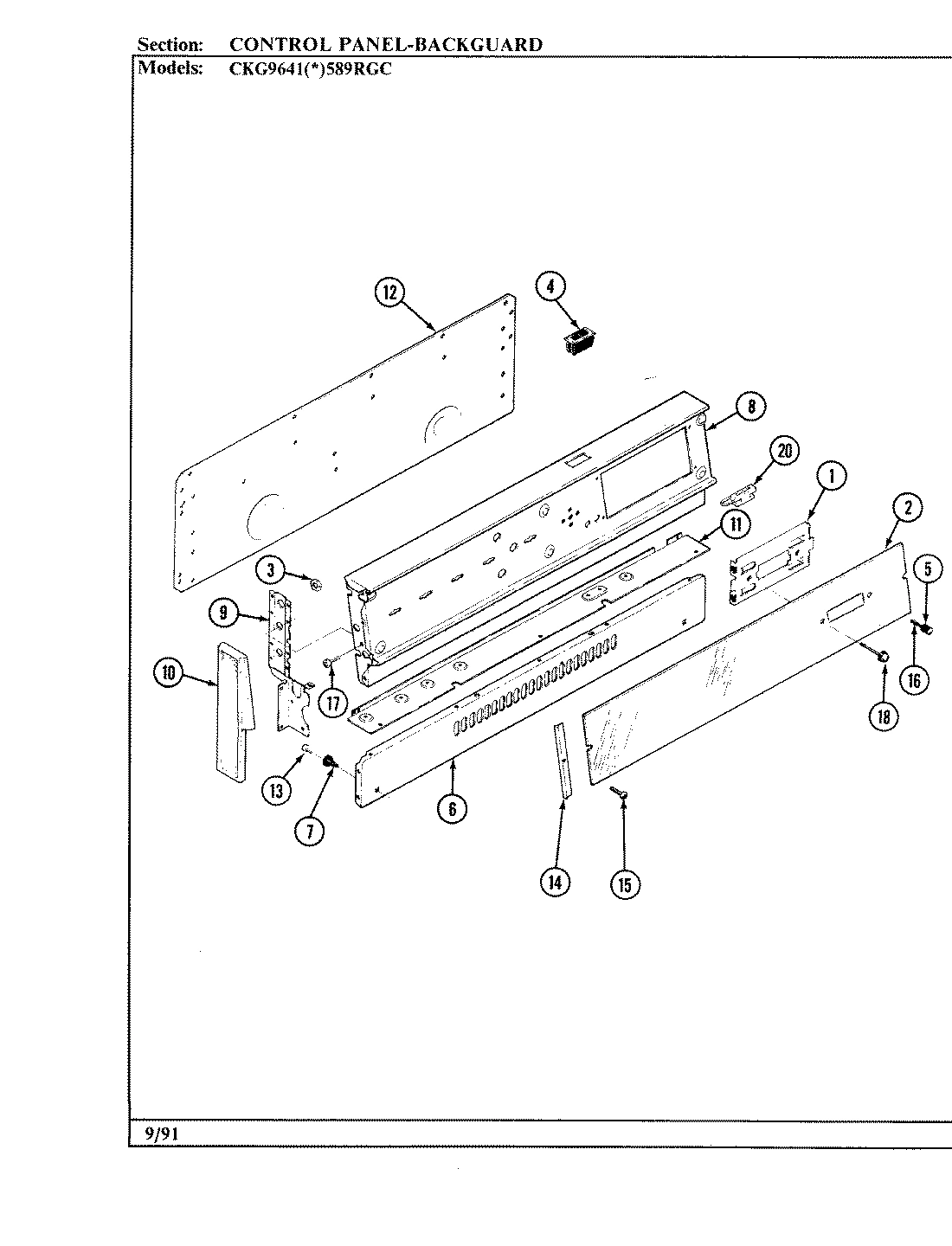

02 - CONTROL PANEL

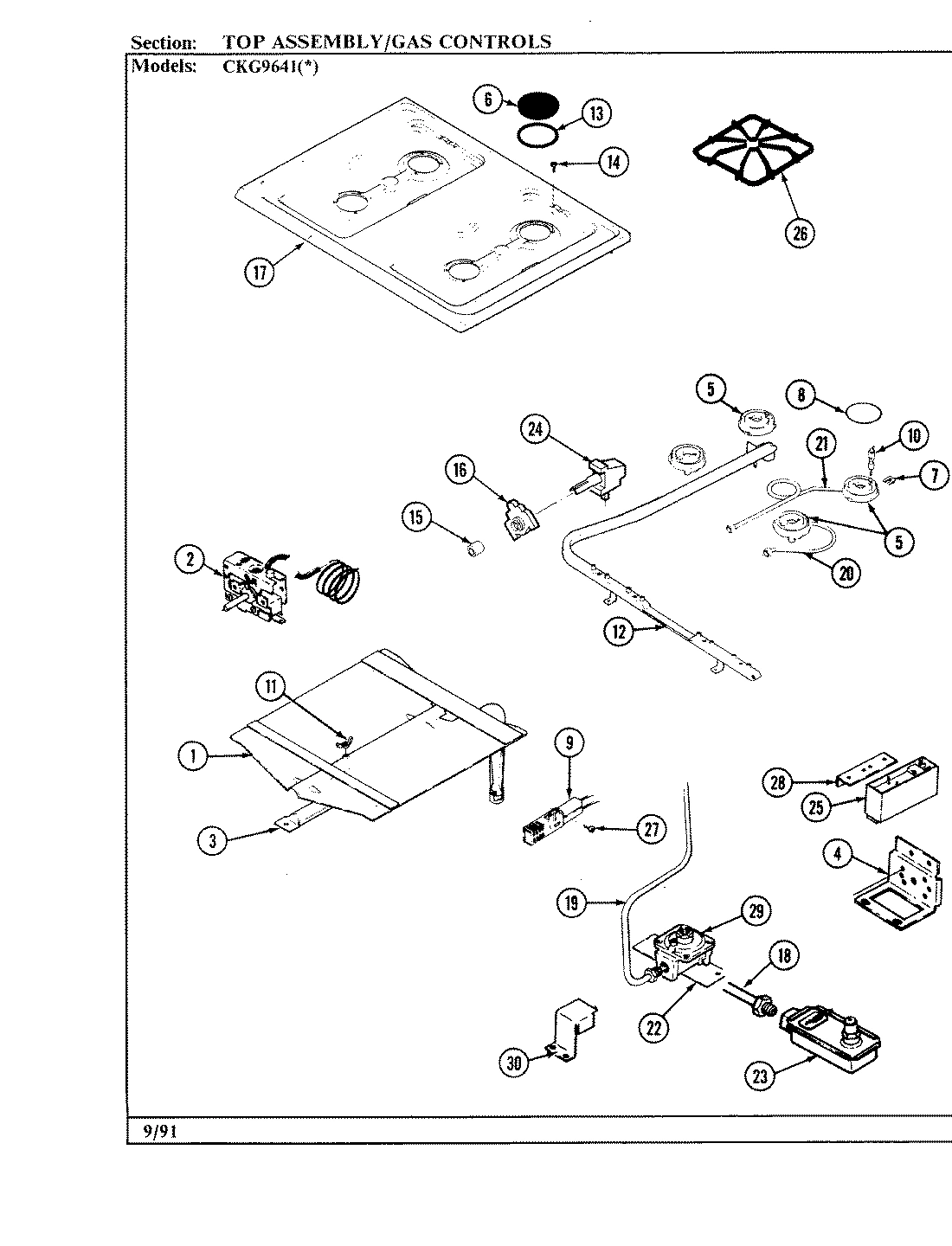

03 - CONTROLS

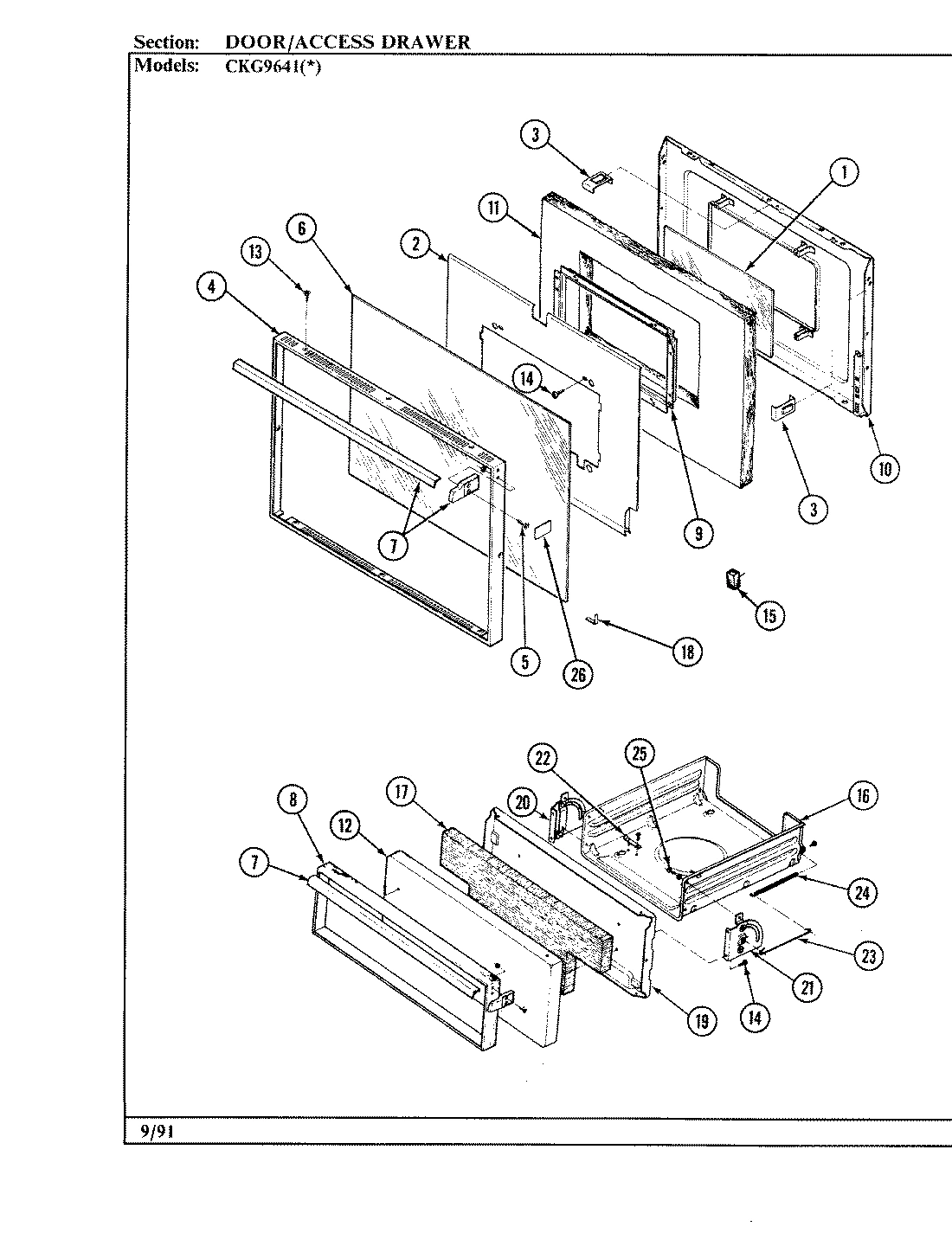

04 - DOOR/DRAWER

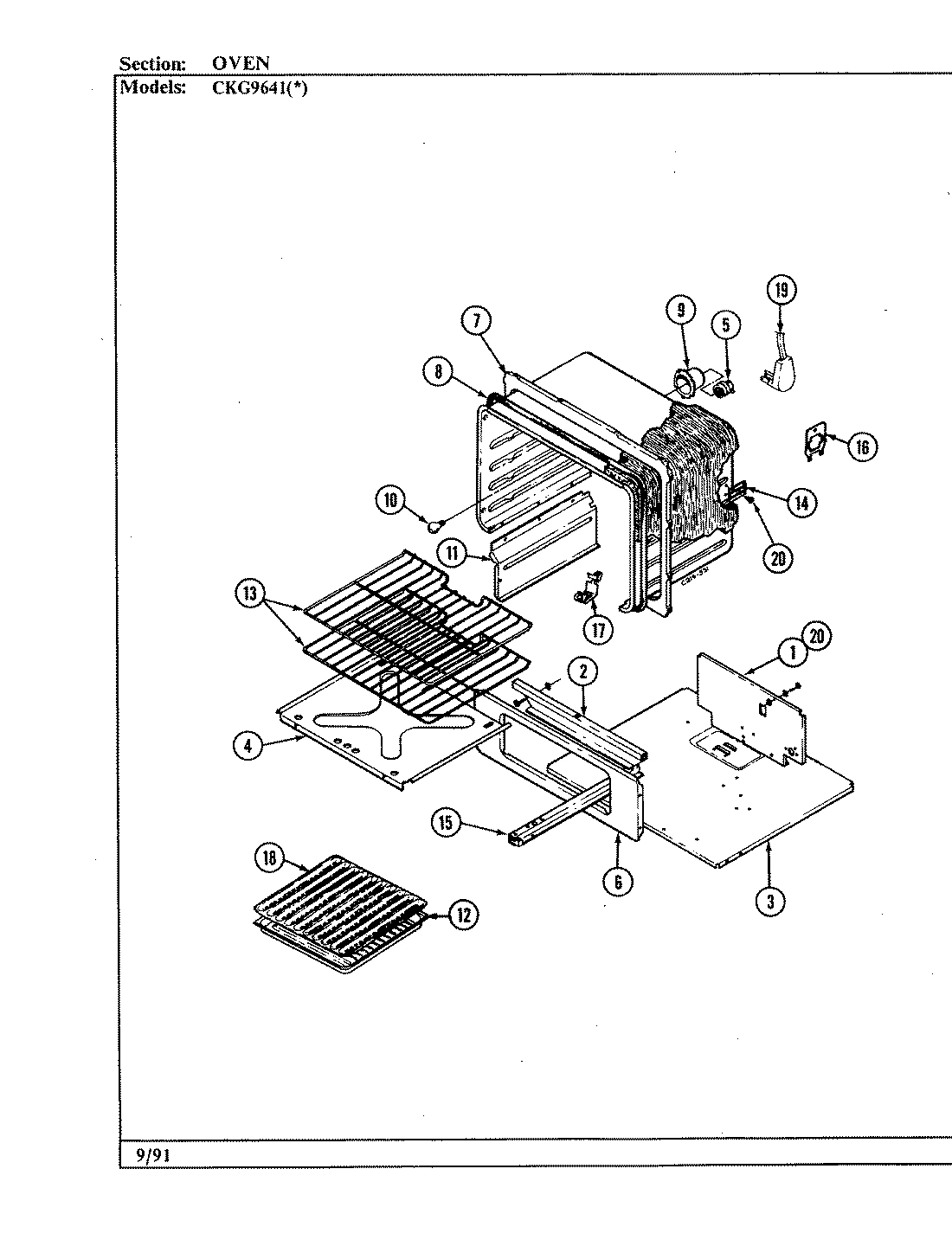

05 - OVEN
Common parts from model Maytag CKG9641W589RGC GAS RANGE
1
MAY 7602P097-60 MAY 7602P097-60 Contact Us For Availability
1
MAY 3601F181-45 MAY 3601F181-45 Contact Us For Availability
1
MAY 7902P035-60 MAY 7902P035-60 Contact Us For Availability
1
MAY 4002F166-45 MAY 4002F166-45 Contact Us For Availability
2
MAY 7910P159-60 MAY 7910P159-60 Contact Us For Availability
2
MAY 7910P160-60 MAY 7910P160-60 Contact Us For Availability
2
MAY 7101P279-60 MAY 7101P279-60 Contact Us For Availability
2
MAY 7404P062-60 MAY 7404P062-60 Contact Us For Availability
2
MAY 3601F094-51 MAY 3601F094-51 Contact Us For Availability
2
MAY 3601W124-19 MAY 3601W124-19 Contact Us For Availability
3
MAY 3403D027-45 MAY 3403D027-45 Contact Us For Availability
3
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
3
MAY 4011F161-80 MAY 4011F161-80 Contact Us For Availability
4
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
4
MAY 3807F120-34 MAY 3807F120-34 Contact Us For Availability
4
MAY 7706P243-60 MAY 7706P243-60 Contact Us For Availability
4
MAY 12400023 MAY 12400023 Contact Us For Availability
5
MAY 7711P172-60 MAY 7711P172-60 Contact Us For Availability
5
MAY 7112P019-60 MAY 7112P019-60 Contact Us For Availability
5
MAY 7711P419-60 MAY 7711P419-60 Contact Us For Availability
5
MAY 5111A095-60 MAY 5111A095-60 Contact Us For Availability
5
MAY 5111A096-60 MAY 5111A096-60 Contact Us For Availability
5
MAY 5415A015-60 MAY 5415A015-60 Contact Us For Availability
5
MAY 5415A016-60 MAY 5415A016-60 Contact Us For Availability
5
MAY 7505P187-60 MAY 7505P187-60 Contact Us For Availability
5
MAY 7101P305-60 MAY 7101P305-60 Contact Us For Availability
5
MAY 4005F088-80 MAY 4005F088-80 Contact Us For Availability
5
MAY 7408P002-60 MAY 7408P002-60 Contact Us For Availability
6
MAY 2620F053-81 MAY 2620F053-81 Contact Us For Availability
6
MAY 2620W053-19 MAY 2620W053-19 Contact Us For Availability
6
MAY 7504P007-60 MAY 7504P007-60 Contact Us For Availability
6
MAY 7504P009-60 MAY 7504P009-60 Contact Us For Availability
6
MAY 7902P285-60 MAY 7902P285-60 Contact Us For Availability
6
MAY 2201F074-19 MAY 2201F074-19 Contact Us For Availability
7
MAY 7105P002-60 MAY 7105P002-60 Contact Us For Availability
7
MAY 7112P072-60 MAY 7112P072-60 Contact Us For Availability
7
MAY 7701P031-60 MAY 7701P031-60 Contact Us For Availability
7
MAY W10124350 MAY W10124350 Contact Us For Availability
8
MAY 3418A029-34 MAY 3418A029-34 Contact Us For Availability
8
MAY 3418A030-34 MAY 3418A030-34 Contact Us For Availability
8
MAY 8016P008-60 MAY 8016P008-60 Contact Us For Availability
8
MAY 2601W199-81 MAY 2601W199-81 Contact Us For Availability
8
MAY 7201P037-60 MAY 7201P037-60 Contact Us For Availability
8
MAY 7706P182-60 MAY 7706P182-60 Contact Us For Availability
8
MAY 7212P001-60 MAY 7212P001-60 Contact Us For Availability
9
MAY 7731P044-60 MAY 7731P044-60 Contact Us For Availability
9
MAY 3807F348-51 MAY 3807F348-51 Contact Us For Availability
9
MAY 3807F349-51 MAY 3807F349-51 Contact Us For Availability
9
MAY 7432P067-60 MAY 7432P067-60 Contact Us For Availability
9
MAY 3603F013-80 MAY 3603F013-80 Contact Us For Availability
9
MAY 4001F016-23 MAY 4001F016-23 Contact Us For Availability
10
MAY 7733P060-60 MAY 7733P060-60 Contact Us For Availability
10
MAY 7726P031-60 MAY 7726P031-60 Contact Us For Availability
10
MAY 7726P032-60 MAY 7726P032-60 Contact Us For Availability
10
MAY 7432P053-60 MAY 7432P053-60 Contact Us For Availability
10
MAY 2402W154-19 MAY 2402W154-19 Contact Us For Availability
10
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
11
MAY 4009W078-80 MAY 4009W078-80 Contact Us For Availability
11
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
11
MAY 8008P012-60 MAY 8008P012-60 Contact Us For Availability
11
MAY 4005F034-80 MAY 4005F034-80 Contact Us For Availability
11
NUT, WING MAY 7103P030-60 Contact Us For Availability
11
MAY 4804F021-60 MAY 4804F021-60 Contact Us For Availability
11
MAY 4009F045-45 MAY 4009F045-45 Contact Us For Availability
12
MAY 7112P042-60 MAY 7112P042-60 Contact Us For Availability
12
MAY 7118P004-60 MAY 7118P004-60 Contact Us For Availability
12
MAY 7712P113-60 MAY 7712P113-60 Contact Us For Availability
12
MAY 4005F393-80 MAY 4005F393-80 Contact Us For Availability
12
MAY 7513P104-60 MAY 7513P104-60 Contact Us For Availability
12
MAY 2403F014-71 MAY 2403F014-71 Contact Us For Availability
12
MAY 3401F004-19 MAY 3401F004-19 Contact Us For Availability
13
MAY 7801P030-60 MAY 7801P030-60 Contact Us For Availability
13
MAY 2618F073-71 MAY 2618F073-71 Contact Us For Availability
13
MAY 2014F001-00 MAY 2014F001-00 Contact Us For Availability
14
MAY 7742P009-60 MAY 7742P009-60 Contact Us For Availability
14
MAY 7101P256-60 MAY 7101P256-60 Contact Us For Availability
14
MAY 3807F205-45 MAY 3807F205-45 Contact Us For Availability
15
MAY 7101P008-60 MAY 7101P008-60 Contact Us For Availability
15
MAY 7214P003-60 MAY 7214P003-60 Contact Us For Availability
15
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
15
MAY 3404A013-51 MAY 3404A013-51 Contact Us For Availability
15
MAY 3404A014-51 MAY 3404A014-51 Contact Us For Availability
16
MAY Y7101P25460 MAY Y7101P25460 Contact Us For Availability
16
MAY 7403P282-60 MAY 7403P282-60 Contact Us For Availability
16
MAY 3407W009-19 MAY 3407W009-19 Contact Us For Availability
16
MAY 7101P067-60 MAY 7101P067-60 Contact Us For Availability
16
MAY 3801F021-45 MAY 3801F021-45 Contact Us For Availability
16
MAY 4005F277-45 MAY 4005F277-45 Contact Us For Availability
17
MAY 3420A033-34 MAY 3420A033-34 Contact Us For Availability
17
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
17
MAY 2001F063-81 MAY 2001F063-81 Contact Us For Availability
17
MAY 7002P002-60 MAY 7002P002-60 Contact Us For Availability
18
MAY 8010P045-60 MAY 8010P045-60 Contact Us For Availability
18
MAY 7711P420-60 MAY 7711P420-60 Contact Us For Availability
18
MAY 7711P422-60 MAY 7711P422-60 Contact Us For Availability
18
MAY 7506P098-60 MAY 7506P098-60 Contact Us For Availability
18
MAY 3413F002-19 MAY 3413F002-19 Contact Us For Availability
19
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
19
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
19
MAY 7101P058-60 MAY 7101P058-60 Contact Us For Availability
19
MAY 7506P100-60 MAY 7506P100-60 Contact Us For Availability
19
MAY 2404F021-19 MAY 2404F021-19 Contact Us For Availability
19
MAY 7402P024-60 MAY 7402P024-60 Contact Us For Availability
19
BUSHING, SNAP MAY 8007P003-60 Contact Us For Availability
20
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
20
MAY 8003P011-60 MAY 8003P011-60 Contact Us For Availability
20
MAY 7506P076-60 MAY 7506P076-60 Contact Us For Availability
20
MAY 3418A063-34 MAY 3418A063-34 Contact Us For Availability
21
MAY 7506P077-60 MAY 7506P077-60 Contact Us For Availability
21
MAY 3418A062-34 MAY 3418A062-34 Contact Us For Availability
22
MAY 3801F191-45 MAY 3801F191-45 Contact Us For Availability
22
MAY 8002P001-60 MAY 8002P001-60 Contact Us For Availability
23
MAY 7501P108-60 MAY 7501P108-60 Contact Us For Availability
23
MAY 7807P001-60 MAY 7807P001-60 Contact Us For Availability
24
MAY 7101P296-60 MAY 7101P296-60 Contact Us For Availability
24
MAY 7502P229-60 MAY 7502P229-60 Contact Us For Availability
24
MAY 7803P014-60 MAY 7803P014-60 Contact Us For Availability
25
MAY 7431P020-60 MAY 7431P020-60 Contact Us For Availability
25
MAY 7101P114-60 MAY 7101P114-60 Contact Us For Availability
25
MAY 7103P067-60 MAY 7103P067-60 Contact Us For Availability
26
MAY 2003W023-00 MAY 2003W023-00 Contact Us For Availability
26
MAY 2003W023-14 MAY 2003W023-14 Contact Us For Availability
26
MAY 7728P068-60 MAY 7728P068-60 Contact Us For Availability
27
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
28
MAY 3801F226-45 MAY 3801F226-45 Contact Us For Availability
29
MAY 1555251 MAY 1555251 Contact Us For Availability
29
MAY 7510P040-60 MAY 7510P040-60 Contact Us For Availability
30
MAY 4005F173-51 MAY 4005F173-51 Contact Us For Availability
× ![]()
