Model LG CJ98 – Common Parts & Diagrams
Diagram 0
Diagram 1

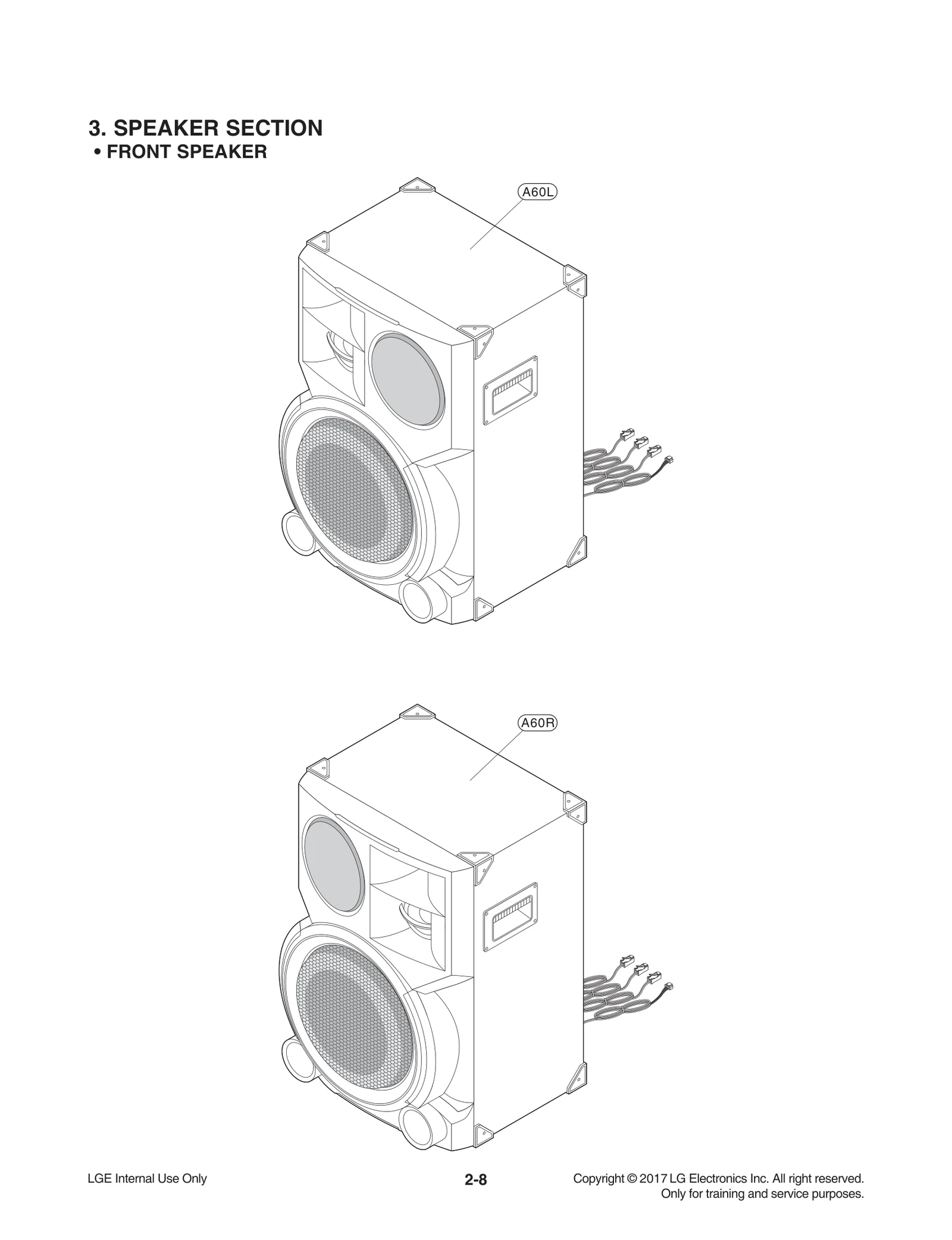

Diagram 2

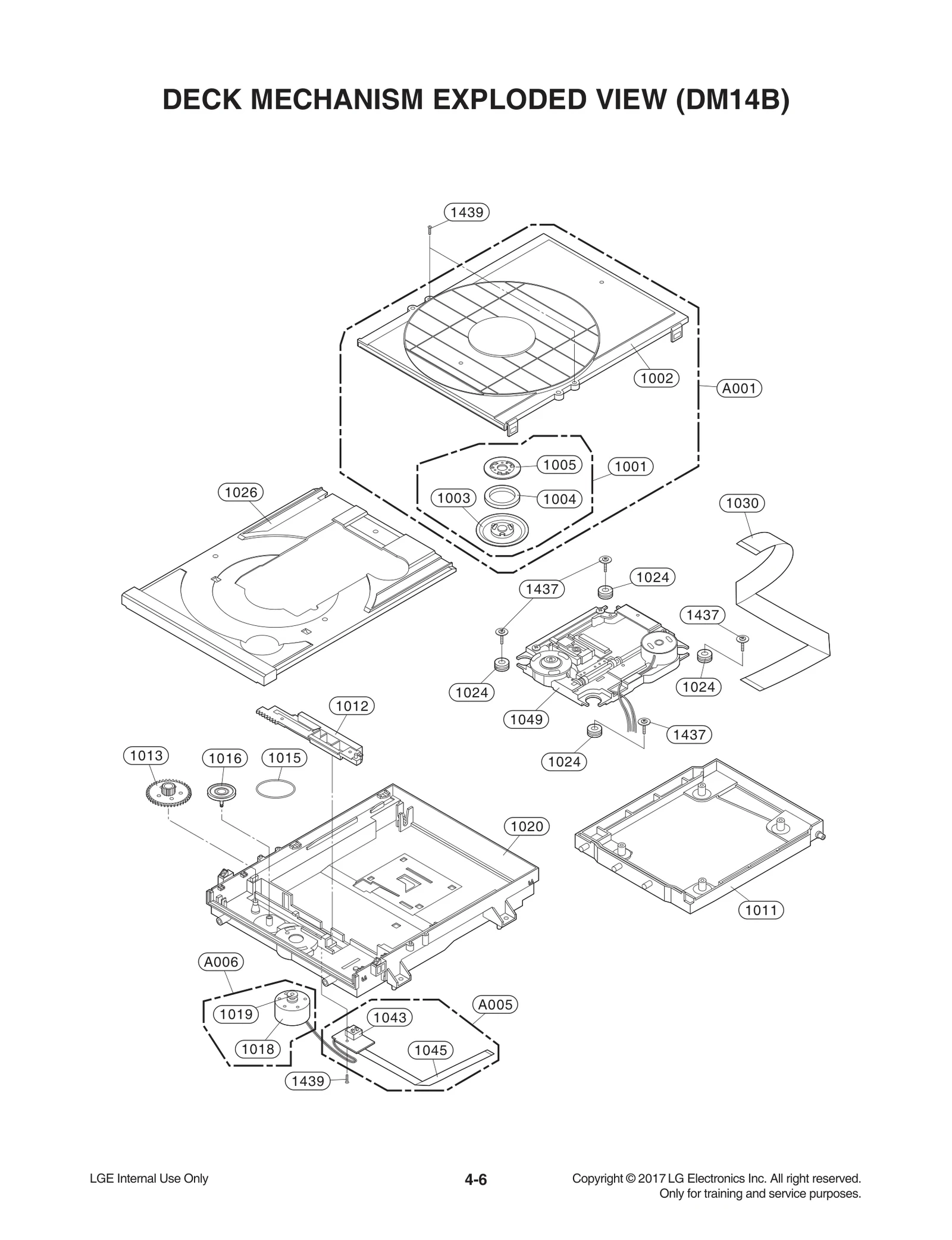

Diagram 3
Diagram 4
Common parts from model LG CJ98
252
Knob Assembly LGE AEZ74713601 Contact Us For Availability
254
Plate,Ground LGE MGJ65331101 Contact Us For Availability
262
Chassis LGE MBS63825601 Contact Us For Availability
263
Fan Module LGE EAL60700911 Contact Us For Availability
265
Damper LGE MCQ68807101 Contact Us For Availability
266
Panel,Rear LGE MGC64619811 Contact Us For Availability
270
Holder LGE MEG64219301 Contact Us For Availability
271
Damper LGE MCQ38556901 Contact Us For Availability
272
Bracket LGE MAZ65467301 Contact Us For Availability
273
Bracket LGE MAZ65467201 Contact Us For Availability
274
Case LGE MBN64644101 Contact Us For Availability
275
Holder LGE MEG64981001 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
498
Screw,Customized LGE 353-100AAAB Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77652111 Contact Us For Availability
802
Box,Master LGE MAY67867823 Contact Us For Availability
803
Packing LGE MFZ65357401 Contact Us For Availability
804
Bag LGE MAF58050935 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955331 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149601 Contact Us For Availability
1002
Cover LGE MCK66956902 Contact Us For Availability
1003
Clamp LGE MBU62365501 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM62647901 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62667001 Contact Us For Availability
1024
Damper LGE MCQ38556902 Contact Us For Availability
1026
Tray LGE MJS62532202 Contact Us For Availability
1026
Tray LGE MJS62532201 Contact Us For Availability
1030
Cable,FFC LGE EAD62039106 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1045
Cable,FFC LGE EAD62056814 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ86011801 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR83785101 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL75752910 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR83660202 Contact Us For Availability
A45
PCB Assembly,Jack LGE EBR83653402 Contact Us For Availability
A46
Option Code Assembly LGE EBR83974308 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR84059702 Contact Us For Availability
A48
PCB Assembly LGE EBR83683402 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A60L
Speaker System Total LGE TCG36468467 Contact Us For Availability
A60R
Speaker System Total LGE TCG36508067 Contact Us For Availability
AR200
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR602
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
BC904
Filter,Bead LGE EAM38769505 Contact Us For Availability
BC913
Filter,Bead LGE 636-004C Contact Us For Availability
BC913
Filter,Bead LGE EAM56488801 Contact Us For Availability
BC913
Filter,Bead LGE EAM64250501 Contact Us For Availability
BD901
Diode,Bridge LGE EAH61933801 Contact Us For Availability
C3L12
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C3M01
Capacitor,Ceramic,Chip LGE 0CH4330K416 Contact Us For Availability
C3M02
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C3M08
Capacitor,Ceramic,Chip LGE 0CH1682K566 Contact Us For Availability
C3M09
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
C43A7
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C53D
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C70A
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C71D
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C71E
Capacitor,Ceramic,Chip LGE 0CK101EY48A Contact Us For Availability
C128
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C202
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C210
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
C237
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C239
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C242
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C328
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C335
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C345
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C409
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C411
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C415
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C425
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C427
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C455
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C513
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK100BKMDA Contact Us For Availability
C543
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C603
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C641
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C700
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C732
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C814
Capacitor,Ceramic,Chip LGE 0CK104ERG6A Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C866
Capacitor,AL,Radial LGE 0CE228RA610 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CZZR00032A Contact Us For Availability
C906
Capacitor,Film,Box,DC LGE EAE62962602 Contact Us For Availability
C906
Capacitor,Film,Box,DC LGE EAE62962601 Contact Us For Availability
C909
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C909
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C910
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C915
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C920
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C921
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C929
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C930
Capacitor,AL,Radial LGE 0CE686CV610 Contact Us For Availability
C935
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C937
Capacitor,AL,Radial LGE EAE60800601 Contact Us For Availability
C938
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C939
Capacitor,AL,Radial LGE EAE61224401 Contact Us For Availability
C940
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C942
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C943
CAPACITOR,FIXED CERA LGE 0CH1473K566 Contact Us For Availability
C944
Capacitor,AL,Radial LGE EAE62784911 Contact Us For Availability
C949
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C957
Capacitor,AL,Radial LGE EAE42721810 Contact Us For Availability
C958
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C963
Capacitor,AL,Radial LGE 0CE338EHK10 Contact Us For Availability
C965
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C968
Capacitor,AL,Radial LGE EAE63162001 Contact Us For Availability
C969
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C976
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C989
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C995
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C996
Capacitor,Film,Box,DC LGE EAE64402302 Contact Us For Availability
C996
Capacitor,Film,Box LGE EAE64402301 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130046 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63565003 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62097104 Contact Us For Availability
CE300
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE62524901 Contact Us For Availability
CM903
Capacitor,Film,Box,X-CAP LGE EAE62887604 Contact Us For Availability
CM903
Capacitor,Film,Box LGE EAE62561701 Contact Us For Availability
CM903
Capacitor,Film,Box,X-CAP LGE EAE62887601 Contact Us For Availability
CN3L01
CONNECTOR (CIRC),FFC LGE 6630R-FB05L Contact Us For Availability
CN3L04
Connector,Wafer LGE 6602T20009D Contact Us For Availability
CN3M01
Harness,Single LGE EAD42004423 Contact Us For Availability
CN102
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN103
Connector,FFC/FPC/PIC LGE 6630XE00131 Contact Us For Availability
CN200
Connector,Wafer LGE EAG41647505 Contact Us For Availability
CN300
Harness,Single LGE EAD63946402 Contact Us For Availability
CN302
Harness,Single LGE EAD42004422 Contact Us For Availability
CN303
Connector,USB LGE EAG43125201 Contact Us For Availability
CN304
Connector,FFC/FPC/PIC LGE EAG00461202 Contact Us For Availability
CN400
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN401
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN501
Connector,BtoB LGE 6630VL01006 Contact Us For Availability
CN503
Connector,Wafer LGE EAG41647503 Contact Us For Availability
CN800
Harness,Single LGE 6631R-G007H Contact Us For Availability
CN901
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
CN902
Connector,BtoB LGE EAG63390002 Contact Us For Availability
D300
Diode,Zener LGE 0DZ022029AA Contact Us For Availability
D302
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D505
Diode,TVS LGE EAH62735601 Contact Us For Availability
D712
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D716
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D806
Diode,Rectifier LGE EAH61714201 Contact Us For Availability
D904
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D906
Diode,Rectifier LGE 0DRSA00119B Contact Us For Availability
D911
Diode,Rectifier LGE EAH62273601 Contact Us For Availability
D911
Diode,Rectifier LGE EAH62753001 Contact Us For Availability
D913
Diode,Rectifier LGE EAH61253701 Contact Us For Availability
D926
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D926
Diode,Schottky LGE EAH62095801 Contact Us For Availability
D931
Diode,Switching LGE 0DS135519AA Contact Us For Availability
D935
Diode,Rectifier LGE EAH61433501 Contact Us For Availability
D952
Diode,Schottky LGE EAH62134601 Contact Us For Availability
D952
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D954
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
D955
Diode,Rectifier LGE EAH61655001 Contact Us For Availability
D960
Diode,Rectifier LGE EAH61436301 Contact Us For Availability
D960
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D967
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D967
Diode,Rectifier LGE EAH63554701 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
F911
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB500
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FH912
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL3M03
Filter,Bead LGE EAM62155401 Contact Us For Availability
IC3L01
IC,LED Driver LGE EAN64170801 Contact Us For Availability
IC100A
S/W,System Program LGE SAA38903801 Contact Us For Availability
IC200
IC,A/D Converter LGE EAN64370001 Contact Us For Availability
IC201
IC,Line Driver LGE EAN60900101 Contact Us For Availability
IC300
IC,LDO Voltage Regulator LGE EAN64166901 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN64387301 Contact Us For Availability
IC303
IC,Analog Switch LGE EAN64407201 Contact Us For Availability
IC305
IC,DC,DC Converter LGE EAN62794401 Contact Us For Availability
IC306
IC,Analog Switch LGE EAN64407301 Contact Us For Availability
IC400
IC,Motor Driver LGE EAN33860001 Contact Us For Availability
IC401
IC,RF Amplifier LGE EAN63446501 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC502
IC,Reset LGE EAN64395501 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61547501 Contact Us For Availability
IC503A
S/W,System Program LGE SAA38903703 Contact Us For Availability
IC504
IC,SDRAM LGE EAN62746202 Contact Us For Availability
IC504
IC,SDRAM LGE EAN63666601 Contact Us For Availability
IC505A
S/W,System Program LGE SAA38903902 Contact Us For Availability
IC600
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC602
IC,LINEAR LGE 0ILNRA0001A Contact Us For Availability
IC602
IC,OP Amplifier LGE EAN64432901 Contact Us For Availability
IC702
IC,Power Driver LGE EAN60778301 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN61970101 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN62579901 Contact Us For Availability
IC904
IC,PWM Controller LGE EAN62574101 Contact Us For Availability
IC905
IC,POWER MANAGEMENT LGE 0IPMGA0012A Contact Us For Availability
IC905
IC,Voltage Reference LGE EAN64395301 Contact Us For Availability
IC951
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC952
IC,LDO Voltage Regulator LGE EAN62866301 Contact Us For Availability
IC953
IC,Voltage Regulator LGE EAN38519601 Contact Us For Availability
JK3M01
Jack,Phone LGE 6612F00091B Contact Us For Availability
JK3M03
Jack,Phone LGE 6612F00022H Contact Us For Availability
JK200
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK700
Connector,Terminal Block LGE EAG63374007 Contact Us For Availability
L50E
Filter,Bead LGE EAM60887204 Contact Us For Availability
L206
Filter,Bead LGE EAM62151001 Contact Us For Availability
L301
Inductor,Wire Wound,Chip LGE EAP62506408 Contact Us For Availability
L304
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L304
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L505
Filter,Bead LGE EAM62151101 Contact Us For Availability
L802
Coil,Choke LGE EAP62308301 Contact Us For Availability
L905
Transformer,Switching LGE EBJ63030302 Contact Us For Availability
L953
COIL,RF LGE 6140RCC003H Contact Us For Availability
LED303
LED,DIP LGE EAV62074401 Contact Us For Availability
LF902
Filter,Line Noise LGE EAM62130101 Contact Us For Availability
MCS SW
S/W,System Program LGE SAA38903701 Contact Us For Availability
PC904
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC904
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q3L02
TR,Bipolar LGE 0TR102009AC Contact Us For Availability
Q70B
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q307
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q801
FET LGE EBK60711201 Contact Us For Availability
Q901
FET LGE EBK62871401 Contact Us For Availability
Q905
FET LGE EBK61492401 Contact Us For Availability
Q908
TR,Bipolar LGE 0TR222209IB Contact Us For Availability
Q910
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q951
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q953
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q956
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q957
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q957
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q959
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
R3M02
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R3M05
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R9A0
Resistor,Metal Oxide Film LGE EBC31729501 Contact Us For Availability
R9B0
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R9B5
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R9C6
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R9C9
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R9E4
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R51E
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R53E
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R70D
RESISTOR,METAL GLAZE LGE 0RH2000C622 Contact Us For Availability
R72E
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R73C
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R74D
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R75E
Resistor,Chip LGE 0RH6203D622 Contact Us For Availability
R76D
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R76E
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R115
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R209
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
R223
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R224
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R225
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R229
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R232
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R304
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R309
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R319
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R329
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R330
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R331
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R336
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R339
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R347
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R351
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R352
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R401
Resistor,Chip LGE 0RH0152C622 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R548
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R551
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R561
Resistor,Chip LGE 0RJ1005C678 Contact Us For Availability
R562
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R563
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R569
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R607
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R651
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R728
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R736
Resistor,Chip LGE 0RH0222G622 Contact Us For Availability
R740
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R751
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R776
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R777
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R808
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R816
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R820
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R824
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R828
Resistor,Chip LGE 0RH2201D422 Contact Us For Availability
R831
Resistor,Chip LGE 0RH5102C622 Contact Us For Availability
R839
Resistor,Chip LGE 0RH2201E622 Contact Us For Availability
R860
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R869
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R888
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R892
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R905
Resistor,Chip LGE EBC38126101 Contact Us For Availability
R911
Resistor,Chip LGE 0RH2202D422 Contact Us For Availability
R914
Resistor,Cement LGE EBC62436501 Contact Us For Availability
R917,R918,R919
LGE - LGE - Contact Us For Availability
R917-R918
Resistor,Carbon Composition LGE EBC64895601 Contact Us For Availability
R919
Resistor,Chip LGE 0RH0000E622 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1802D422 Contact Us For Availability
R924
Resistor,Chip LGE 0RH3302D422 Contact Us For Availability
R925
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R926
Resistor,Chip LGE EBC62460701 Contact Us For Availability
R940
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R941
Resistor,Chip LGE 0RJ2402E472 Contact Us For Availability
R947
Resistor,Chip LGE 0RH2002D422 Contact Us For Availability
R950
RESISTOR,METAL GLAZE LGE 0RH4702D422 Contact Us For Availability
R951
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R952
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
R963
Resistor,Chip LGE 0RH1501D422 Contact Us For Availability
R966
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R972
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R974
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R978
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R983
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R984
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R990
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R992
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R995
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R997
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R998
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
RC3M01
Receiver Module LGE EAV58012902 Contact Us For Availability
SW301
Switch,Slide LGE EBF62234401 Contact Us For Availability
SW309
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ62670103 Contact Us For Availability
T904
Transformer,Switching LGE EBJ61651104 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61545702 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61545701 Contact Us For Availability
TH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
TUN200
Tuner,Analog LGE EBL60740003 Contact Us For Availability
VFD301
VFD LGE EAJ60868414 Contact Us For Availability
VR301
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X500
Crystal LGE EAW62583502 Contact Us For Availability
X501
Crystal LGE EAW30067102 Contact Us For Availability
X600
Crystal LGE EAW62583505 Contact Us For Availability
ZD301
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD901
Diode,Zener LGE EAH61533801 Contact Us For Availability
ZD901
Diode,Zener LGE EAH42410401 Contact Us For Availability
ZD902
Diode,TVS LGE EAH61192501 Contact Us For Availability
ZD908
Diode,Zener LGE EAH61433801 Contact Us For Availability
ZD908
Diode,Zener LGE EAH63494301 Contact Us For Availability
ZD909
Diode,Zener LGE EAH63494101 Contact Us For Availability
ZD909
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD915
Diode,Zener LGE EAH63494001 Contact Us For Availability
ZD915
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
ZD921
Diode,Zener LGE EAH61132701 Contact Us For Availability
× ![]()
Login and Registration Form
