Model LG CJ65 – Common Parts & Diagrams
Diagram 0
Diagram 1

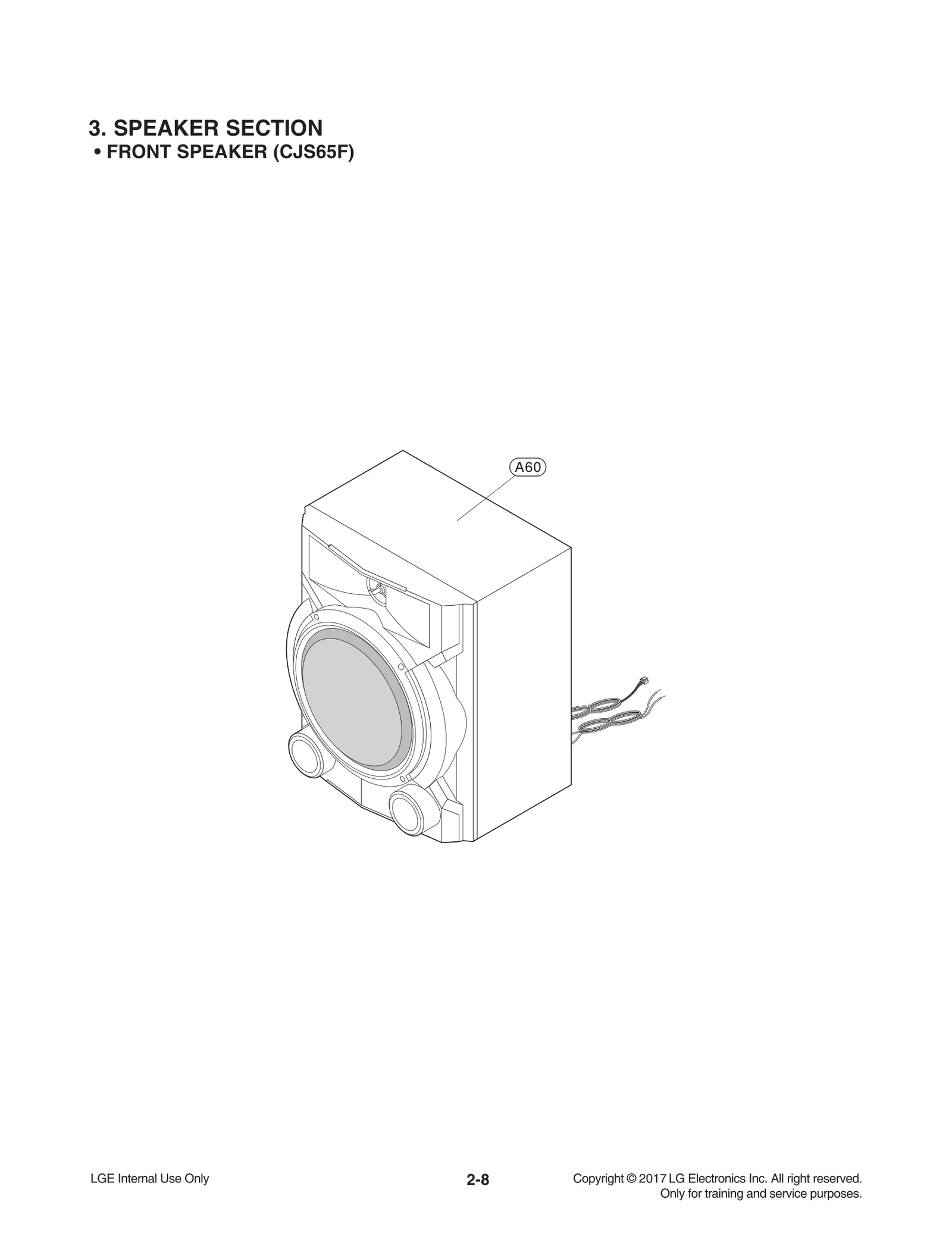

Diagram 2
Diagram 3
Common parts from model LG CJ65
252
Knob Assembly LGE AEZ74773301 Contact Us For Availability
254
Plate,Ground LGE MGJ65381401 Contact Us For Availability
262
Chassis LGE MBS63805801 Contact Us For Availability
263
Fan Module LGE EAL60700913 Contact Us For Availability
264
Holder LGE MEG63540501 Contact Us For Availability
265
Foot LGE MDP63526803 Contact Us For Availability
266
Panel,Rear LGE MGC64600577 Contact Us For Availability
272
Bracket LGE MAZ65448801 Contact Us For Availability
273
Bracket LGE MAZ65448701 Contact Us For Availability
274
Case LGE MBN64663801 Contact Us For Availability
300
Power Cord,Attach LGE EAD60816757 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
498
Screw,Customized LGE 353-100AAAB Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77632564 Contact Us For Availability
802
Box,Master LGE MAY67847708 Contact Us For Availability
803
Packing LGE MFZ65338201 Contact Us For Availability
804
Bag LGE 3880SCS001E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955341 Contact Us For Availability
A00
Deck Assembly,DVD LGE EAZ62881404 Contact Us For Availability
A42
Panel Assembly,Audio LGE AGL75734577 Contact Us For Availability
A43
PCB Assembly,Control LGE EBR83781301 Contact Us For Availability
A44
Frame Assembly LGE ADV76090001 Contact Us For Availability
A45
PCB Assembly,Jack LGE EBR83762501 Contact Us For Availability
A46
Option Code Assembly LGE EBR83974208 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR84270401 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A60
Speaker System Total LGE TCG36708107 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C151
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C161
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C180
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C220
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C260
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C266
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C282
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C304
Capacitor,Ceramic,Axial LGE 0CN1010K519 Contact Us For Availability
C318
Capacitor,Ceramic,Axial LGE 0CN4730K949 Contact Us For Availability
C322
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C337
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C340
Capacitor,Ceramic,Axial LGE 0CN3310K519 Contact Us For Availability
C345
Capacitor,Ceramic,Axial LGE 0CX5600K409 Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C409
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C411
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C414
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C428
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C430
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C447
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C449
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C522
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C528
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C547
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C551
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C553
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C728
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C732
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
C755
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C760
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C770
Capacitor,AL,Radial LGE EAE60777002 Contact Us For Availability
C775
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C786
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C791
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C798
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE337RRK10 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C911
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C912
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C912
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C913
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C914
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C916
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C920
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C931
CAPACITOR LGE 624-087D Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE108NH610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE477NH638 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C955
Capacitor,AL,Radial LGE EAE61381801 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130048 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62038007 Contact Us For Availability
CE304
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
CE331
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
CE332
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,Box,X-CAP LGE EAE61103302 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC LGE 6630XF00417 Contact Us For Availability
CN102
Conector,BtoB LGE 6630R-BF07N Contact Us For Availability
CN200
Connector,Wafer LGE EAG41647503 Contact Us For Availability
CN201
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
CN300
Connector,FFC/FPC/PIC LGE EAG42298403 Contact Us For Availability
CN301
Harness,Single LGE EAD63828503 Contact Us For Availability
CN302
Harness,Single LGE EAD63828505 Contact Us For Availability
CN400
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN401
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03N Contact Us For Availability
CN911
Connector,Wafer LGE 6602T20008B Contact Us For Availability
CY902
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
CY902
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
D100
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D303
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D503
Diode,TVS LGE EAH62735601 Contact Us For Availability
D700
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D706
Diode,Zener LGE EAH39305801 Contact Us For Availability
D904
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D911
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D933
Diode,Schottky LGE EAH62232801 Contact Us For Availability
D951
Diode,Rectifier LGE EAH61655101 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB500
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FB901
Filter,Bead LGE EAM64250401 Contact Us For Availability
FB901
COIL LGE 636-004D Contact Us For Availability
FB903
Filter,Bead LGE 636-004C Contact Us For Availability
FB903
Filter,Bead LGE EAM64250501 Contact Us For Availability
FH902
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,DC,DC Converter LGE EAN64387301 Contact Us For Availability
IC102
IC,DC,DC Converter LGE EAN64387401 Contact Us For Availability
IC103
IC,Analog Switch LGE EAN64407301 Contact Us For Availability
IC104
IC,Analog Switch LGE EAN64407201 Contact Us For Availability
IC200
IC,Line Driver LGE EAN62579201 Contact Us For Availability
IC202
IC,A/D Converter LGE EAN64370001 Contact Us For Availability
IC204
IC,LED Driver LGE EAN64170801 Contact Us For Availability
IC400
IC,Motor Driver LGE EAN33860001 Contact Us For Availability
IC401
IC,RF Amplifier LGE EAN63446501 Contact Us For Availability
IC500
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC501A
S/W,System Program LGE SAA39083901 Contact Us For Availability
IC502
IC,Reset LGE EAN64395501 Contact Us For Availability
IC503A
S/W,System Program LGE SAA39084001 Contact Us For Availability
IC504
IC,SDRAM LGE 0IMMREB008F Contact Us For Availability
IC504
IC,SDRAM LGE EAN62355002 Contact Us For Availability
IC700
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC702
IC,Audio Amplifier LGE EAN61836402 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC911
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK200
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK301
Connector,USB LGE EAG43134802 Contact Us For Availability
JK303
Jack,Phone LGE 6612F00022H Contact Us For Availability
JK304
Jack,Phone LGE 6612F00091B Contact Us For Availability
L101
Inductor,Wire Wound,Chip LGE EAP62506408 Contact Us For Availability
L104
Filter,Bead LGE EAM38769505 Contact Us For Availability
L132
Filter,Bead LGE EAM60887204 Contact Us For Availability
L204
Filter,Bead LGE EAM62151101 Contact Us For Availability
L232
Filter,Bead LGE EAM62151001 Contact Us For Availability
L708
Coil,Choke LGE EAP62127101 Contact Us For Availability
L931
COIL,RF LGE 6140RCC003H Contact Us For Availability
LF902
Filter,Line Noise LGE EAM61010401 Contact Us For Availability
PC903
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC903
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q107
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q205
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q300
TRANSISTOR,BIPOLARS LGE 0TRAU90005A Contact Us For Availability
Q301
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q302
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
Q400
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q706
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q901
FET LGE EBK63573001 Contact Us For Availability
Q911
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q911
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
R50C
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R50Z
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R102
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ3903C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R213
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R217
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R223
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R248
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R251
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R300
Resistor,Carbon Film LGE 0RD0682F609 Contact Us For Availability
R307
RESISTOR FIXED CARBON FILM SKN LGE 0RD3302F609 Contact Us For Availability
R308
RESISTOR FIXED CARBON FILM SKN LGE 0RD6802F609 Contact Us For Availability
R354
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R355
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R356
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R357
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R367
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
R370
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R373
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R374
Resistor,Carbon Film LGE 0RD8201F609 Contact Us For Availability
R401
Resistor,Chip LGE 0RH0152D622 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R413
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R418
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R510
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R511
Resistor,Chip LGE 0RH2202C422 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R546
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R568
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R590
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R593
Resistor,Chip LGE 0RJ1005C678 Contact Us For Availability
R594
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R596
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R597
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R700
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R747
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R756
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R757
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R760
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R763
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R770
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R774
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R779
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R780
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R785
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R787
RESISTOR,CHIP LGE 0RH3901C622 Contact Us For Availability
R795
Resistor,Chip LGE 0RJ8203C478 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0750K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R911
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R916
Resistor,Wire Wound LGE EBC30416602 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD2203F609 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R922
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R923
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R924
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R941
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R942
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R945
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R955
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R961
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R964
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R972
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
RC301
Receiver Module LGE EAV62054801 Contact Us For Availability
SW311
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ62670102 Contact Us For Availability
T904
Transformer,Switching LGE EBJ61490401 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TM700
Connector,Terminal Block LGE EAG63374023 Contact Us For Availability
TU200
Tuner,Analog LGE EBL60740003 Contact Us For Availability
VFD300
VFD LGE EAJ60868414 Contact Us For Availability
VR302
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
X400
Crystal LGE 6212AB2884A Contact Us For Availability
X500
Crystal LGE EAW62583502 Contact Us For Availability
X501
Crystal LGE EAW30067102 Contact Us For Availability
X700
Crystal LGE EAW32919901 Contact Us For Availability
ZD302
Diode,Zener LGE 0DZ390009AC Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD901
Diode,Zener LGE EAH62753301 Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD904
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD913
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD914
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD932
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
× ![]()
Login and Registration Form
