Model Maytag CHG9800AAB GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - DOOR/DRAWER

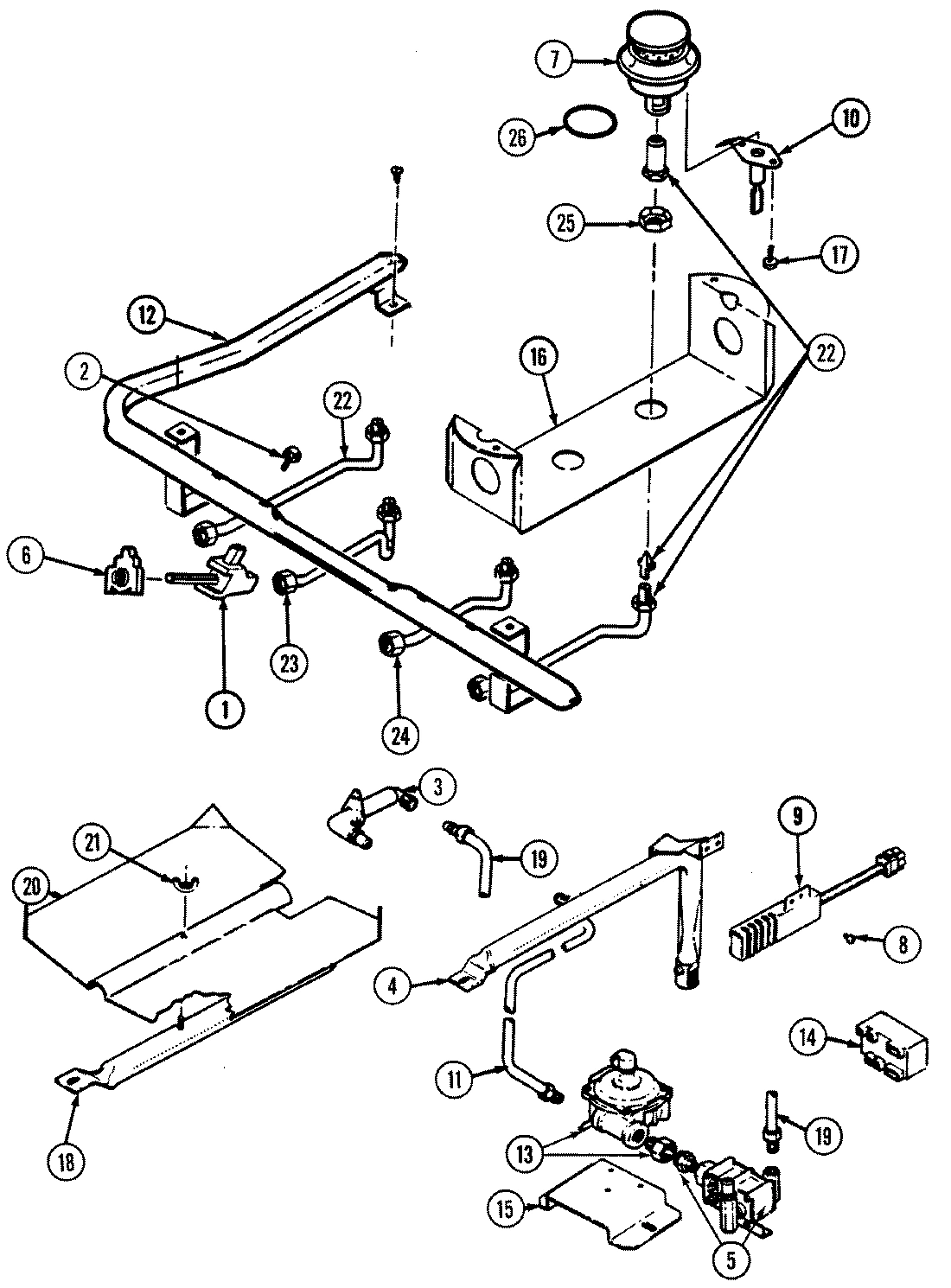

03 - GAS CONTROLS

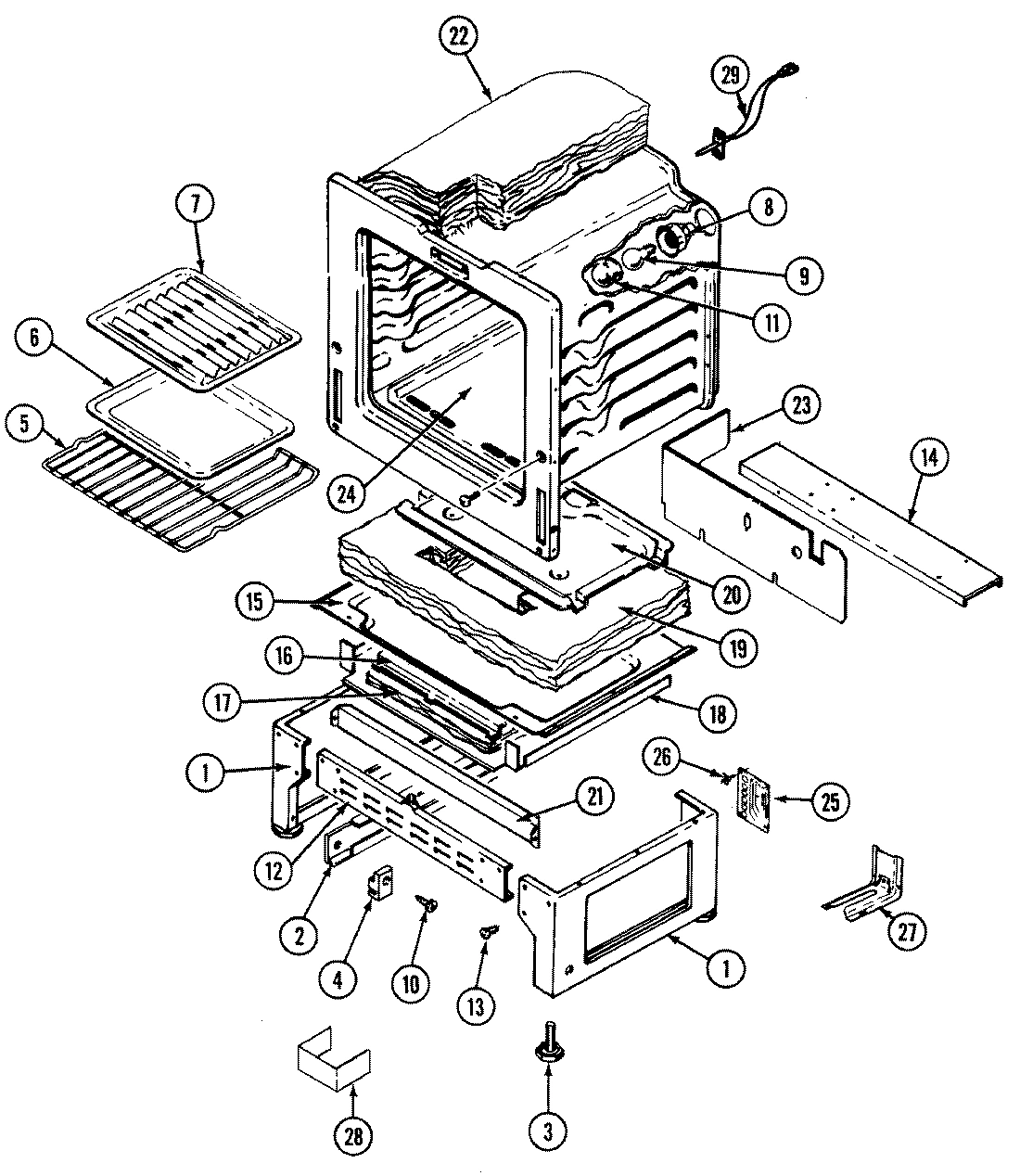

04 - OVEN

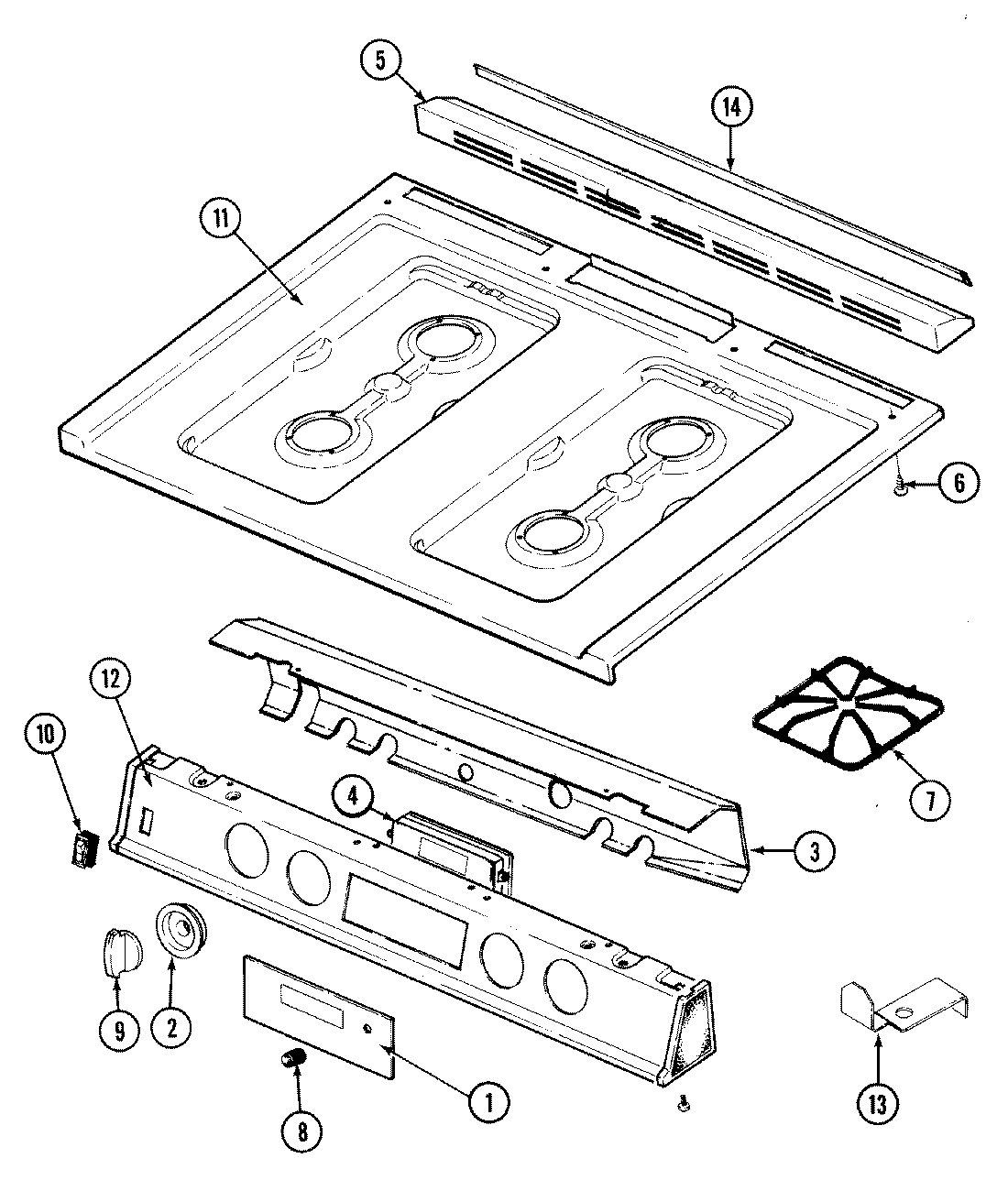

05 - TOP ASSEMBLY
Common parts from model Maytag CHG9800AAB GAS RANGE
1
MAY 7902P361-60 MAY 7902P361-60 Contact Us For Availability
1
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
1
MAY 7502P251-60 MAY 7502P251-60 Contact Us For Availability
1
MAY 4020W011-80 MAY 4020W011-80 Contact Us For Availability
1
MAY 7403P336-60 MAY 7403P336-60 Contact Us For Availability
2
MAY 2618F096-70 MAY 2618F096-70 Contact Us For Availability
2
MAY 8010P086-60 MAY 8010P086-60 Contact Us For Availability
2
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
2
MAY 7740P068-60 MAY 7740P068-60 Contact Us For Availability
3
MAY 4011F223-80 MAY 4011F223-80 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
3
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
3
MAY 7101P316-60 MAY 7101P316-60 Contact Us For Availability
3
MAY 4005F441-51 MAY 4005F441-51 Contact Us For Availability
4
MAY 7506P124-60 MAY 7506P124-60 Contact Us For Availability
4
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
4
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
4
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
4
MAY 3801F222-45 MAY 3801F222-45 Contact Us For Availability
4
MAY 7601P206-60 MAY 7601P206-60 Contact Us For Availability
5
MAY 7427P013-60 MAY 7427P013-60 Contact Us For Availability
5
SCREW MAY 7101P326-60 Contact Us For Availability
5
MAY 7801P046-60 MAY 7801P046-60 Contact Us For Availability
5
BAFFLE,VENT COVER MAY 3601F221-45 Contact Us For Availability
5
MAY 4825D001-59 MAY 4825D001-59 Contact Us For Availability
5
MAY 7724P051-60 MAY 7724P051-60 Contact Us For Availability
6
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
6
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
6
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
7
MAY 4005F355-51 MAY 4005F355-51 Contact Us For Availability
7
MAY 7701P127-60 MAY 7701P127-60 Contact Us For Availability
7
MAY 7701P149-60 MAY 7701P149-60 Contact Us For Availability
7
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
7
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
7
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
8
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
8
MAY 8009P017-60 MAY 8009P017-60 Contact Us For Availability
8
MAY 8009P028-60 MAY 8009P028-60 Contact Us For Availability
9
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
9
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
9
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
10
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
10
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
10
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
11
MAY 4006F140-51 MAY 4006F140-51 Contact Us For Availability
11
MAY 4804F034-60 MAY 4804F034-60 Contact Us For Availability
11
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
11
MAY 2001W089-09 MAY 2001W089-09 Contact Us For Availability
12
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
12
MAY 2416F047-70 MAY 2416F047-70 Contact Us For Availability
12
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
12
MAY 7513P121-60 MAY 7513P121-60 Contact Us For Availability
12
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
12
MAY 7103P120-60 MAY 7103P120-60 Contact Us For Availability
12
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
12
MAY 7712P185-60 MAY 7712P185-60 Contact Us For Availability
13
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
13
MAY 3801F325-51 MAY 3801F325-51 Contact Us For Availability
13
MAY 3601F232-45 MAY 3601F232-45 Contact Us For Availability
13
MAY 7510P050-60 MAY 7510P050-60 Contact Us For Availability
14
MAY 4022W004-45 MAY 4022W004-45 Contact Us For Availability
14
MAY 3405F017-80 MAY 3405F017-80 Contact Us For Availability
14
MAY 3801F270-45 MAY 3801F270-45 Contact Us For Availability
14
MAY 7431P024-60 MAY 7431P024-60 Contact Us For Availability
14
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
14
MAY 3807F447-51 MAY 3807F447-51 Contact Us For Availability
14
MAY 5170P138-60 MAY 5170P138-60 Contact Us For Availability
14
MAY 5170P184-60 MAY 5170P184-60 Contact Us For Availability
14
MAY 5195D105-60 MAY 5195D105-60 Contact Us For Availability
14
MAY 7201P040-60 MAY 7201P040-60 Contact Us For Availability
14
MAY 7201P061-60 MAY 7201P061-60 Contact Us For Availability
15
MAY 4011F226-51 MAY 4011F226-51 Contact Us For Availability
15
MAY 4011F242-51 MAY 4011F242-51 Contact Us For Availability
15
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
15
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
15
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
15
MAY 8020P007-60 MAY 8020P007-60 Contact Us For Availability
15
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
16
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
16
MAY 7744P087-60 MAY 7744P087-60 Contact Us For Availability
16
MAY 3807F451-45 MAY 3807F451-45 Contact Us For Availability
16
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
17
MAY 3801F267-45 MAY 3801F267-45 Contact Us For Availability
17
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
17
MAY 7403P363-60 MAY 7403P363-60 Contact Us For Availability
17
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
17
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
18
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
18
MAY 3818F052-51 MAY 3818F052-51 Contact Us For Availability
18
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
18
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
19
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
19
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
19
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
20
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
20
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
20
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
20
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
20
MAY 3401F024-45 MAY 3401F024-45 Contact Us For Availability
21
MAY 4006W122-45 MAY 4006W122-45 Contact Us For Availability
21
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
21
NUT, WING MAY 7103P030-60 Contact Us For Availability
21
MAY 3601F208-45 MAY 3601F208-45 Contact Us For Availability
22
MAY 3604F173-51 MAY 3604F173-51 Contact Us For Availability
22
MAY 3604F174-51 MAY 3604F174-51 Contact Us For Availability
22
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
22
MAY 7507P152-60 MAY 7507P152-60 Contact Us For Availability
22
MAY 4804F029-60 MAY 4804F029-60 Contact Us For Availability
22
MAY 4804F030-60 MAY 4804F030-60 Contact Us For Availability
22
MAY 4804F037-60 MAY 4804F037-60 Contact Us For Availability
22
MAY 7002P161-60 MAY 7002P161-60 Contact Us For Availability
23
MAY 8026P021-60 MAY 8026P021-60 Contact Us For Availability
23
MAY 7101P321-60 MAY 7101P321-60 Contact Us For Availability
23
MAY 7706P294-60 MAY 7706P294-60 Contact Us For Availability
23
MAY 7507P086-60 MAY 7507P086-60 Contact Us For Availability
23
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
24
MAY 7403P249-60 MAY 7403P249-60 Contact Us For Availability
24
MAY 7744P088-60 MAY 7744P088-60 Contact Us For Availability
24
MAY 7744P114-60 MAY 7744P114-60 Contact Us For Availability
24
MAY 7507P089-60 MAY 7507P089-60 Contact Us For Availability
24
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
24
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
25
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
25
MAY 3807F439-51 MAY 3807F439-51 Contact Us For Availability
25
MAY 7428P010-60 MAY 7428P010-60 Contact Us For Availability
26
MAY 7101P329-60 MAY 7101P329-60 Contact Us For Availability
26
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
26
MAY 8004P020-60 MAY 8004P020-60 Contact Us For Availability
26
MAY 8004P032-60 MAY 8004P032-60 Contact Us For Availability
27
MAY 2404F037-80 MAY 2404F037-80 Contact Us For Availability
27
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
27
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
28
MAY 4005F420-80 MAY 4005F420-80 Contact Us For Availability
29
MAY 5185D274-60 MAY 5185D274-60 Contact Us For Availability
29
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
NI
MAY 5140D038-60 MAY 5140D038-60 Contact Us For Availability
NI
MAY 5195D111-60 MAY 5195D111-60 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 8111P026-60 MAY 8111P026-60 Contact Us For Availability
× ![]()
