Model Whirlpool CGW3D6CVK GAS RANGE – Common Parts & Diagrams

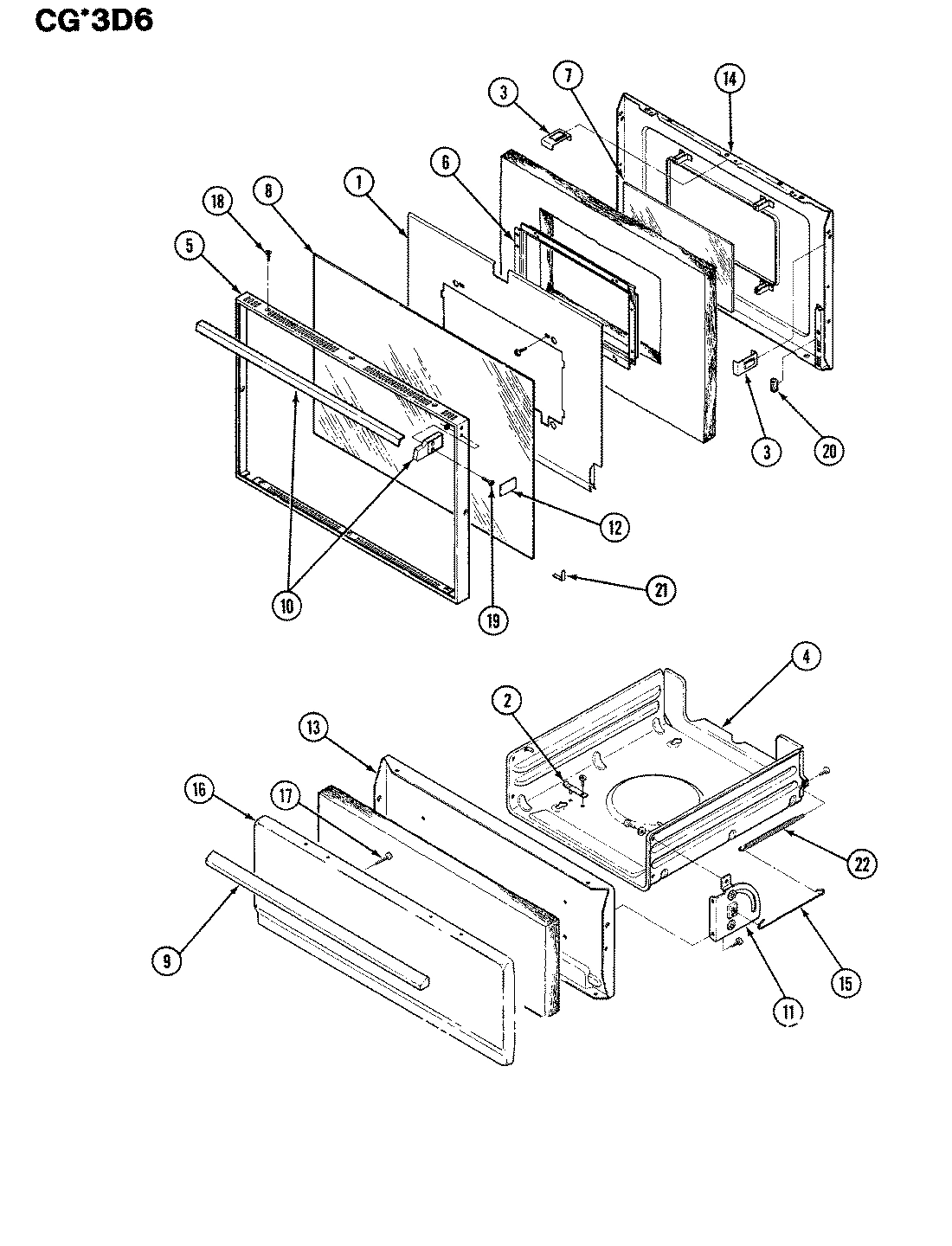

04 - DOOR/DRAWER

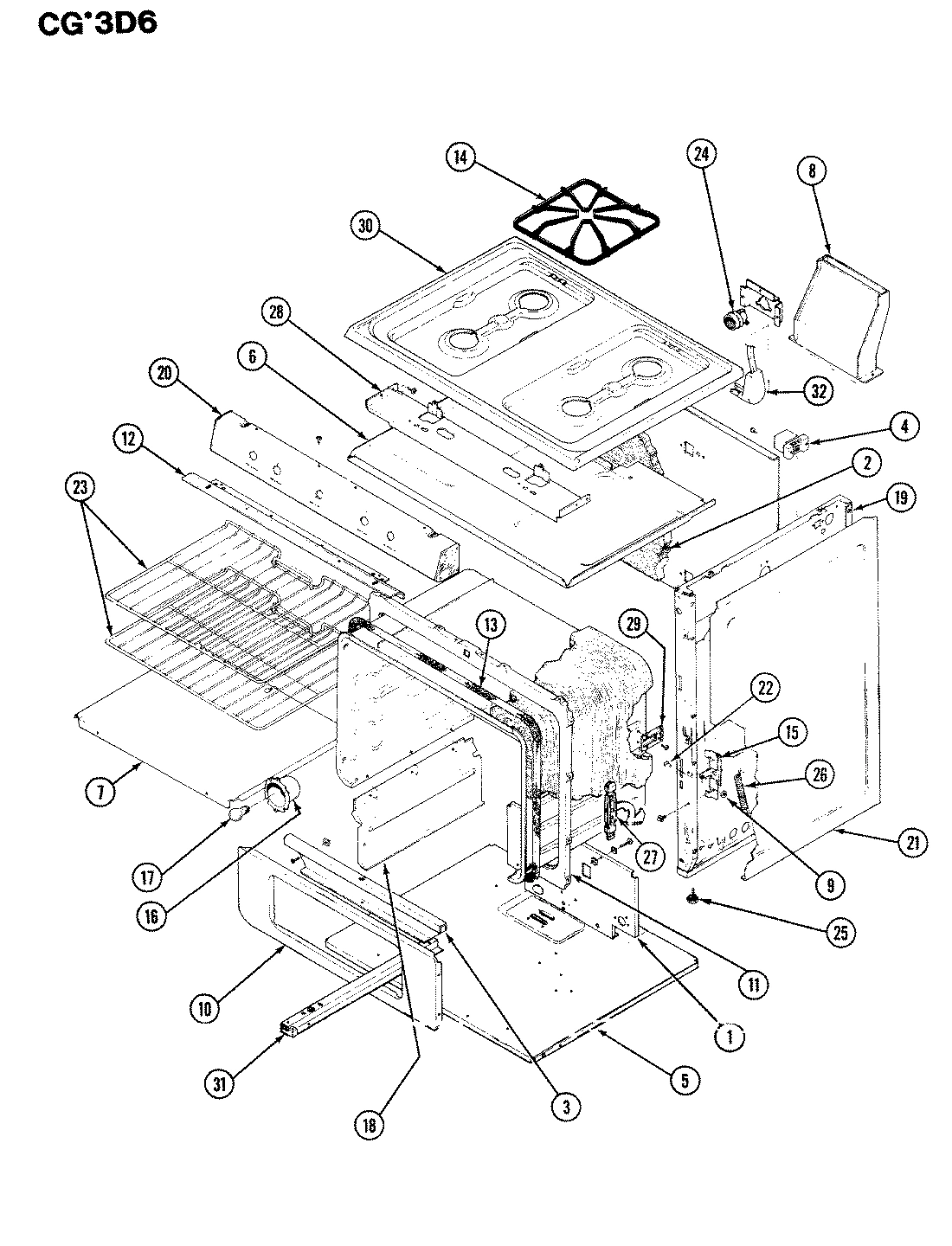

01 - BODY

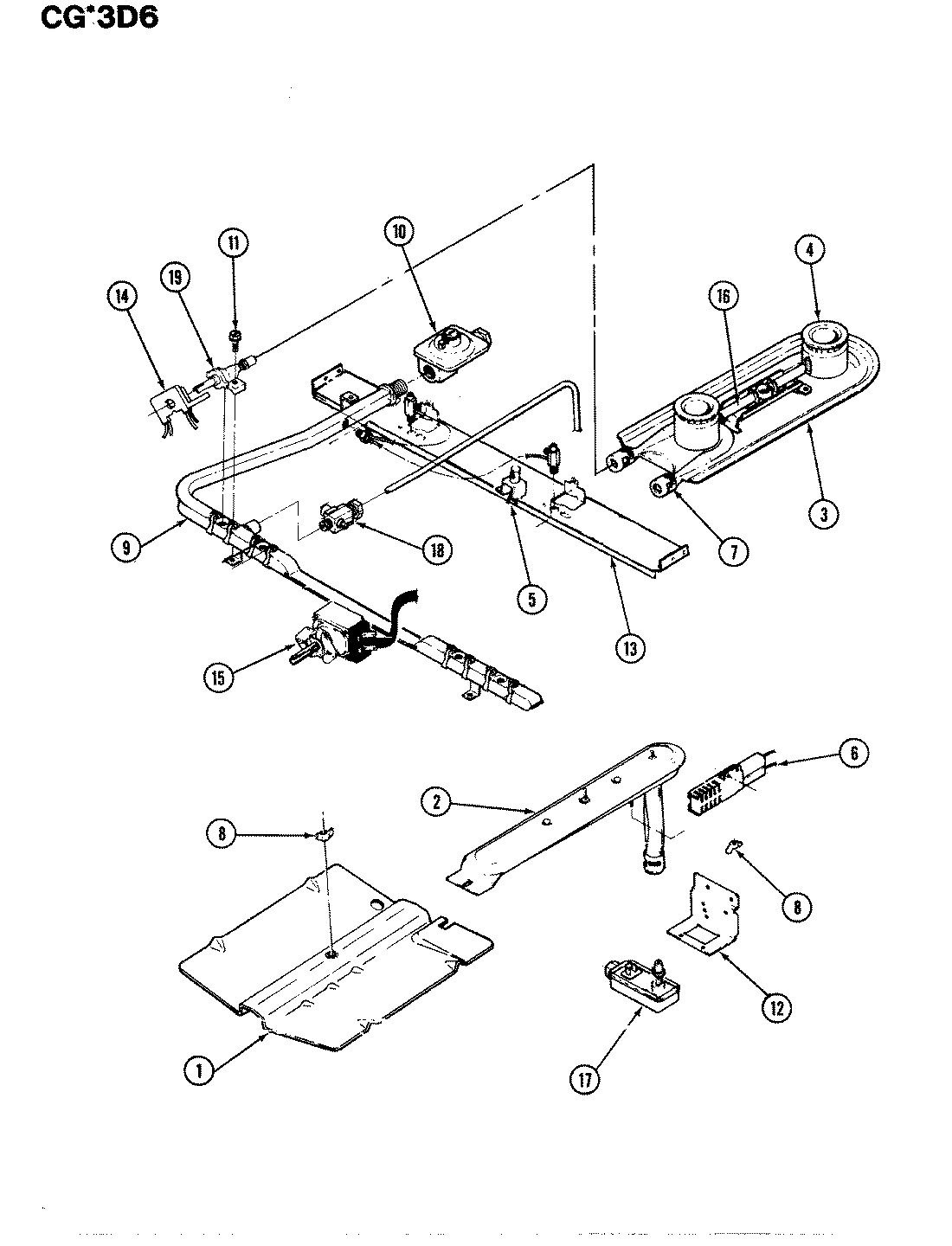

03 - CONTROLS

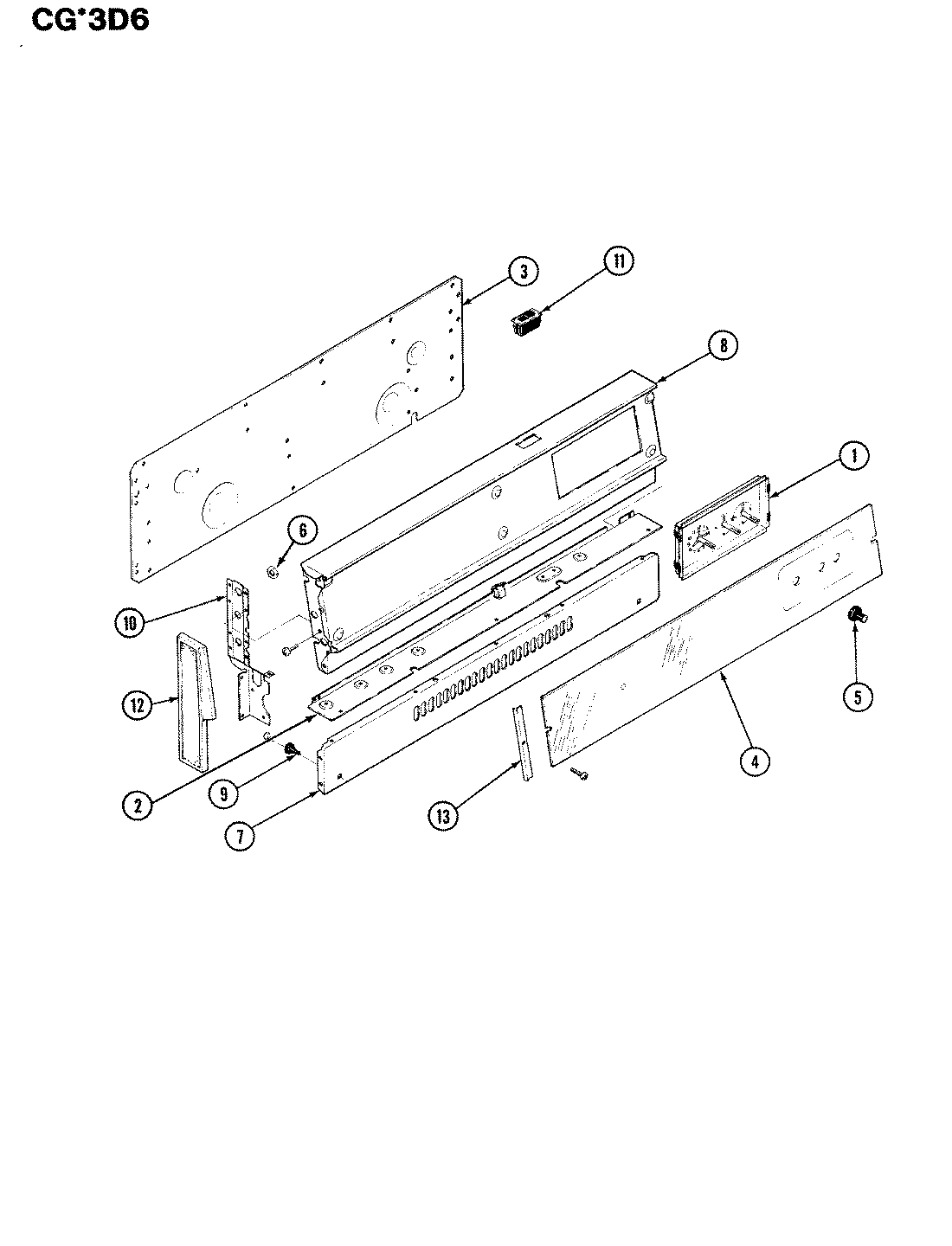

02 - CONTROL PANEL
Common parts from model Whirlpool CGW3D6CVK GAS RANGE
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
1
CLOCK WPL 7601P14160 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
COVER, IGNITOR WPL 4005F00680 Contact Us For Availability
4
COVER, MODULE WPL 4005F16780 Contact Us For Availability
4
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
GLASS BKGD WPL 7910P09160 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F14980 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
6
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
KNOB, THERMOSTAT WPL 7731P03660 Contact Us For Availability
6
KNOB, VALVE WPL 7733P04160 Contact Us For Availability
6
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
6
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
6
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01216 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
7
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
7
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
7
MIXER, AIR WPL 3411F00434 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
9
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
9
COVER WPL 4005F08880 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
9
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
9
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
10
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
10
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
11
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
11
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
11
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
11
SHIELD, THEMOSTAT WPL 3604F03051 Contact Us For Availability
11
SHIELD WIRE WPL 3604F04251 Contact Us For Availability
11
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
11
SLEEVE WPL 7214P00360 Contact Us For Availability
11
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
12
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
12
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
12
SUPPORT WPL 3807F12034 Contact Us For Availability
12
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
12
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
13
LINING, BROILER WPL 2404F02123 Contact Us For Availability
13
SEAL WPL 7212P00160 Contact Us For Availability
13
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
13
TRIM, GLASS RETAINER WPL 7720P08960 Contact Us For Availability
14
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
14
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
14
GRATE WPL 7518P00860 Contact Us For Availability
14
SWITCH, TOP BURNER WPL 7403P10760 Contact Us For Availability
14
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
14
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
14
SWITCH WPL 7403P25960 Contact Us For Availability
14
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
15
LINK, BROILER WPL 7807P00160 Contact Us For Availability
15
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
15
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
15
THERMOSTAT WPL 7404P06360 Contact Us For Availability
15
THERMOSTAT WPL 7515P00860 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
16
PAN, BROIL WPL 3401F00423 Contact Us For Availability
16
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
16
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
16
TUBING, 3/8`` X 54.5`` WPL 3414F04944 Contact Us For Availability
16
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
BULB, OVEN WPL 7407P02660 Contact Us For Availability
17
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
18
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
18
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
18
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
19
SCREW WPL 7101P12360 Contact Us For Availability
19
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
19
VALVE, TOP BURNER WPL 7502P01660 Contact Us For Availability
19
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
19
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
19
VALVE WPL 7502P22260 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
TRIM MANIFOLD PANEL WPL 7712P08260 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
22
SPRING WPL 7803P01460 Contact Us For Availability
22
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
RACK, OVEN WPL 7801P03060 Contact Us For Availability
24
RETAINER WPL 3804F01050 Contact Us For Availability
24
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
25
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
25
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
26
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
27
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
29
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
30
TOP, MAIN WPL 2001F03581 Contact Us For Availability
30
TOP, MAIN WPL 2001F03584 Contact Us For Availability
31
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
31
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
32
CORD, POWER WPL 7402P01460 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8112P03460 Contact Us For Availability
× ![]()
