Model GE CGS68AWF General Electric Model CGS68AWF – Common Parts & Diagrams

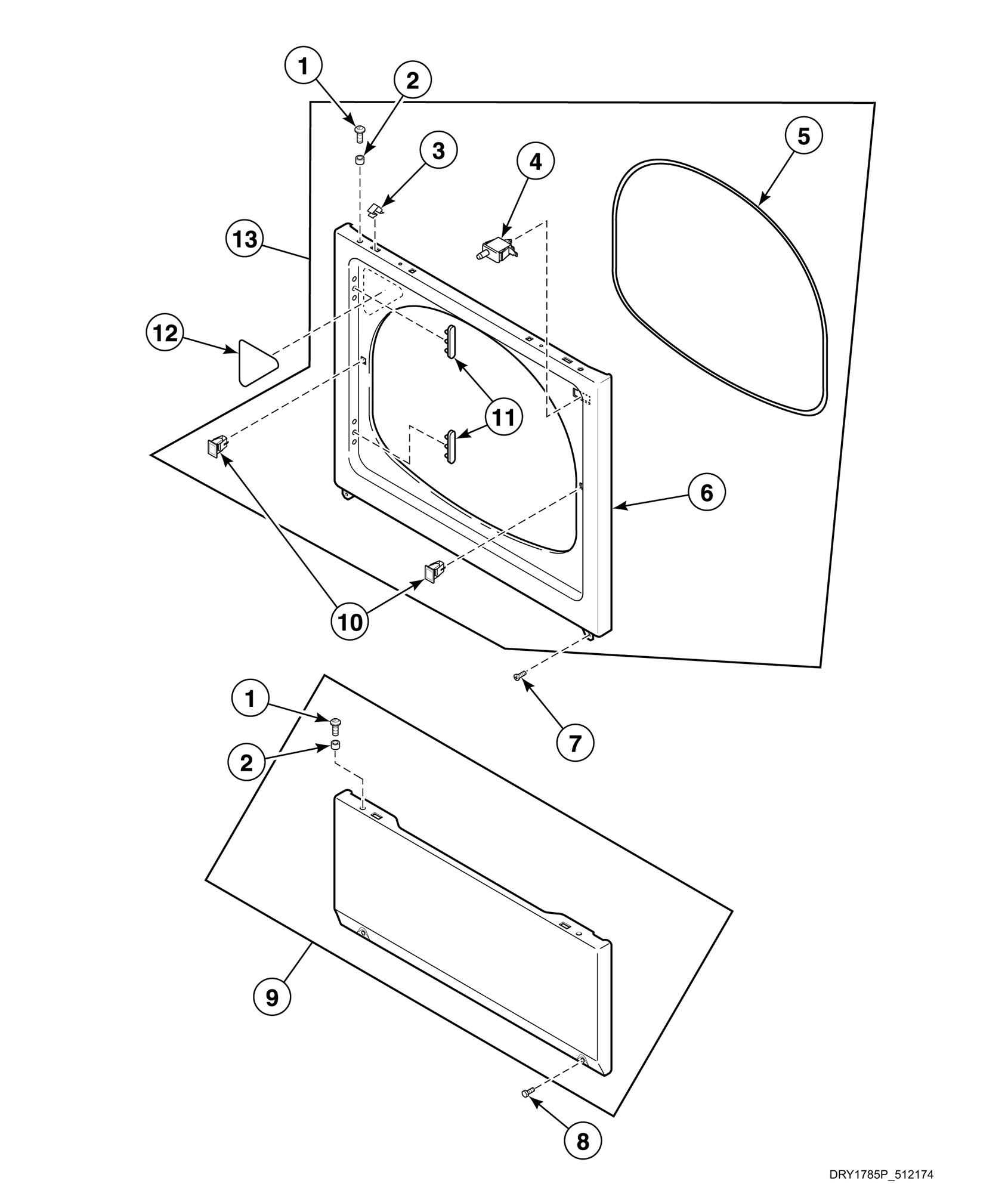

Access Panel, Front Panel and Seal

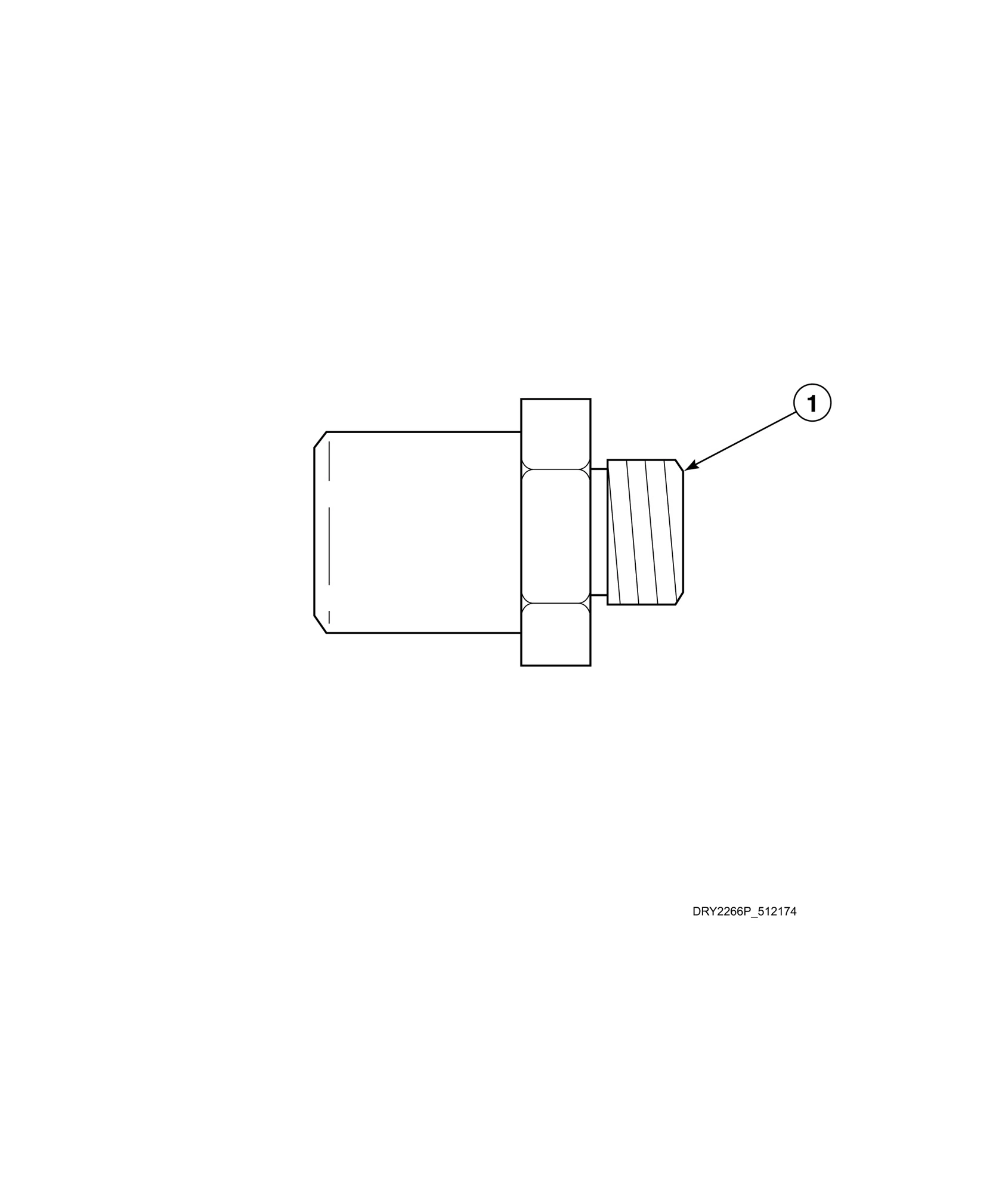

Burner Orifice Spuds - For Higher Elevations (Gas Models)
Cabinet, Exhaust Duct and Base - Single Dryers
Control Panel and Controls - Front Control
Front Bulkhead, Air Duct, Felt Seal and Cylinder with Light
Gas Valve, Igniter and Gas Conversion Kits (Gas Models)
Heater Duct Assembly (Gas Models)
Lead-In Cord (Gas Models)
Loading Door - Without Window (Drawing 2 of 2)
Motor, Exhaust Fan and Belt
Common parts from model GE CGS68AWF General Electric Model CGS68AWF
1
Panel Locator GEN 56079 Contact Us For Availability
1
Screw Orifice (Comment: N.G., 22,500 Btu, 600 GEN 58719 Contact Us For Availability
1
L.P. Orifice (Comment: 22,500 Btu, 3000-7999 GEN 58755 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 3000-5999 GEN D503778 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 8000-8999 GEN D503779 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 9000-9999 GEN D503780 Contact Us For Availability
1
N.G. Orifice (Comment: 22,500 Btu, 10,000 fee GEN D503781 Contact Us For Availability
1
L.P. Orifice (Comment: 22,500 Btu, 8000 feet GEN D503786 Contact Us For Availability
1
Top and Gusset Assembly GEN 802247WP Contact Us For Availability
1
Bulkhead Assembly (Comment: White, Punched wi GEN D505899WP Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Galvanized, GEN D512476 Contact Us For Availability
1
Lead-In Pipe Assembly GEN D510204 Contact Us For Availability
1
Screw GEN 20530 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
2
Screw (Comment: Use with painted side panels) GEN 39733 Contact Us For Availability
2
Screw (Comment: Use with stainless steel side GEN D512921 Contact Us For Availability
2
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
2
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
2
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Strain Relief GEN 38384 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
Bolt (Comment: 4 required) GEN 29651 Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required) GEN D510102W Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Outlet Cover GEN D500820 Contact Us For Availability
3
Lead-In Cord GEN 56222 Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
4
Switch GEN D512973 Contact Us For Availability
4
Cabinet Rear Panel GEN D514632P Contact Us For Availability
4
Top Mounting Bracket GEN D504228 Contact Us For Availability
4
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
4
Cylinder Assembly (Comment: Includes item 3) GEN D510265WP Contact Us For Availability
4
Screw GEN 23222 Contact Us For Availability
4
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
4
Liner, Seal and Grill Assembly (Comment: Incl GEN D510163WP Contact Us For Availability
5
Front Panel Seal GEN D511056 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Screw (Comment: 8 required) GEN 70240301 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Combustion Duct GEN D510131 Contact Us For Availability
6
Front Panel GEN D510066WP Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Control Cabinet Rear GEN 800867 Contact Us For Availability
6
Drying Rack GEN D512082P Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
7
Gas Clearance Label GEN D511004 Contact Us For Availability
7
Nut (Comment: 4 required) GEN 44087201 Contact Us For Availability
7
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Black, Auto reset) GEN D510702 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Includes it GEN D510103WP Contact Us For Availability
8
Screw GEN 33562 Contact Us For Availability
8
Access Panel Plate GEN D510903 Contact Us For Availability
8
Right Control Cabinet Side GEN 800915W Contact Us For Availability
8
Screw GEN D501285 Contact Us For Availability
8
L.P. Conversion Kit (Comment: Used to convert GEN 649P3 Contact Us For Availability
8
Door Handle Wedge GEN D510129 Contact Us For Availability
9
Access Panel Assembly GEN D514250WP Contact Us For Availability
9
NOT ON YOUR MODEL GEN - Contact Us For Availability
9
Air Duct Assembly GEN D510151W Contact Us For Availability
9
N.G. Conversion Kit (Comment: Used to convert GEN 650P3 Contact Us For Availability
9
Dryer Door GEN D510013WP Contact Us For Availability
10
Screw GEN D503688 Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Flexible Venting Kit GEN 521P3 Contact Us For Availability
10
Timer GEN D511149P Contact Us For Availability
10
Lint Filter GEN D503980W Contact Us For Availability
10
Secondary Coil GEN 58804B Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
11
Lint Filter Cover GEN D510502W Contact Us For Availability
11
Gas Valve Assembly (Comment: 22,500 Btu, Incl GEN D510506P Contact Us For Availability
11
Blower Fan Assembly GEN D510139P Contact Us For Availability
12
Warning/Caution Label GEN D500281 Contact Us For Availability
12
Cabinet Side Panel (Comment: Right) GEN D510002WP Contact Us For Availability
12
Control Panel Assembly GEN D512067W Contact Us For Availability
12
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
12
Screw GEN D56124 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
13
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
13
Graphic Overlay GEN D512214 Contact Us For Availability
13
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
13
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
13
Nut GEN 56156 Contact Us For Availability
14
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
14
Control Cabinet Bottom GEN 801777 Contact Us For Availability
14
Glide Kit (Comment: Includes 2 of items 12 an GEN RB170003 Contact Us For Availability
14
Booster and Holding Coil GEN 58804A Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
15
Leveling Leg GEN D510135 Contact Us For Availability
15
Screw (Comment: 4 required) GEN 800930 Contact Us For Availability
15
Cylinder Light Lens GEN D512106 Contact Us For Availability
15
Elbow Shut-Off Valve (Comment: Models through GEN D510205 Contact Us For Availability
15
Shaft GEN 56461P Contact Us For Availability
16
Rubber Foot GEN D501855 Contact Us For Availability
16
Timer Knob Assembly GEN D512117W Contact Us For Availability
16
Drum Light Lamp GEN 60954 Contact Us For Availability
16
Elbow (Comment: Models starting Serial No. 08 GEN D513072 Contact Us For Availability
16
Washer GEN 52549 Contact Us For Availability
17
Dryer Base GEN D513901 Contact Us For Availability
17
Rocker Switch GEN 38424W Contact Us For Availability
17
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
18
Cabinet Side Panel (Comment: Left) GEN D510001WP Contact Us For Availability
18
Knob Assembly GEN 36701W Contact Us For Availability
18
Screw GEN D500227 Contact Us For Availability
18
Retaining Ring GEN 23748 Contact Us For Availability
19
Screw GEN D501086 Contact Us For Availability
19
Left Control Cabinet Side GEN 800900WP Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
20
Expansion Clip (Comment: 12 required) GEN 70030501 Contact Us For Availability
20
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
20
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
21
Fabric Selector Switch GEN D513506 Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
22
Buzzer GEN D510211 Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
23
Thermostat (Comment: Pink/White) GEN D510707P Contact Us For Availability
24
Screw GEN D502535 Contact Us For Availability
NA
Wire Assembly (Comment: Extra tumble, Use wit GEN D511148 Contact Us For Availability
× ![]()
