Model Whirlpool CGS3760ADQ GAS RANGE – Common Parts & Diagrams

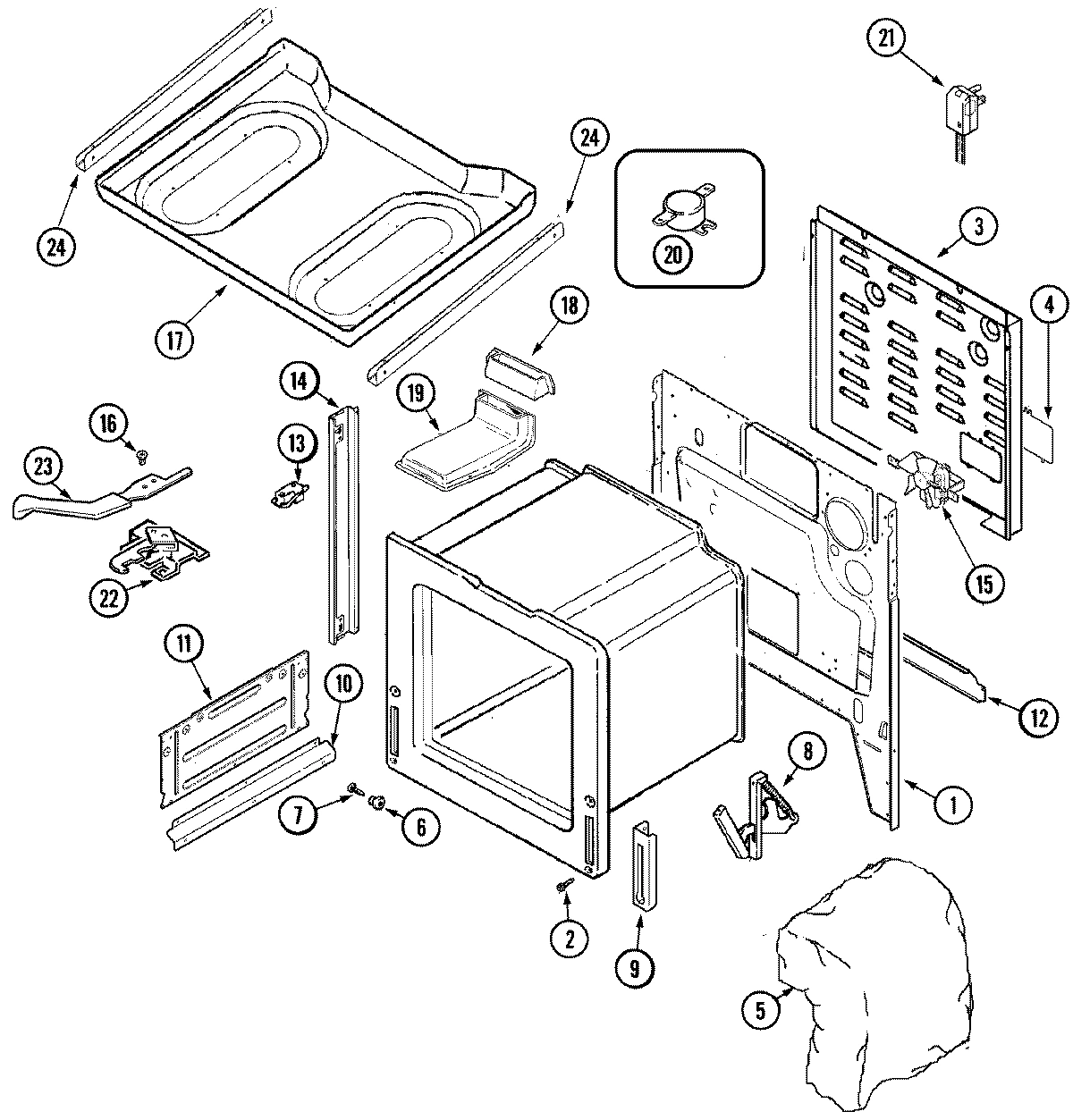

01 - BODY

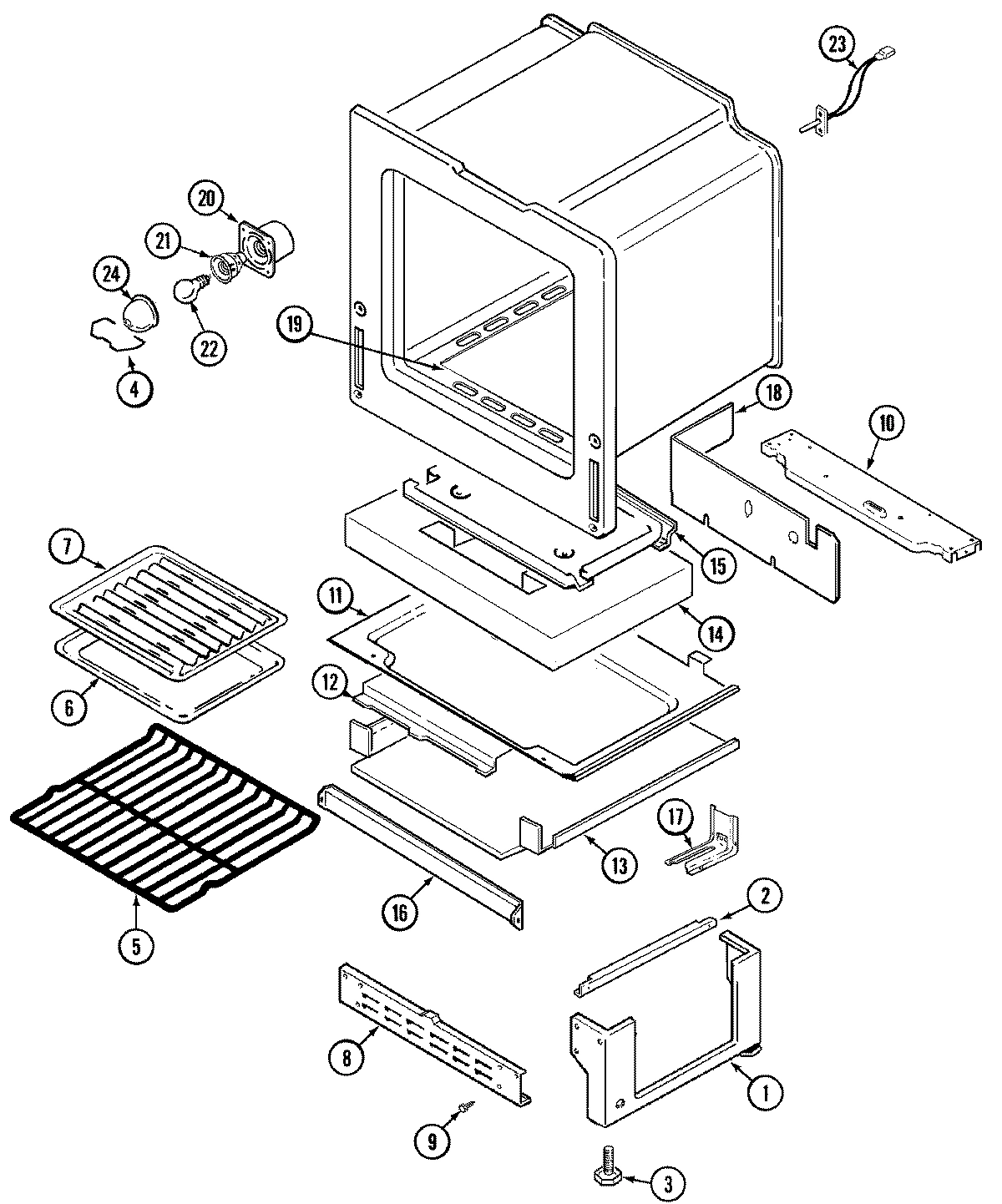

04 - OVEN/BASE

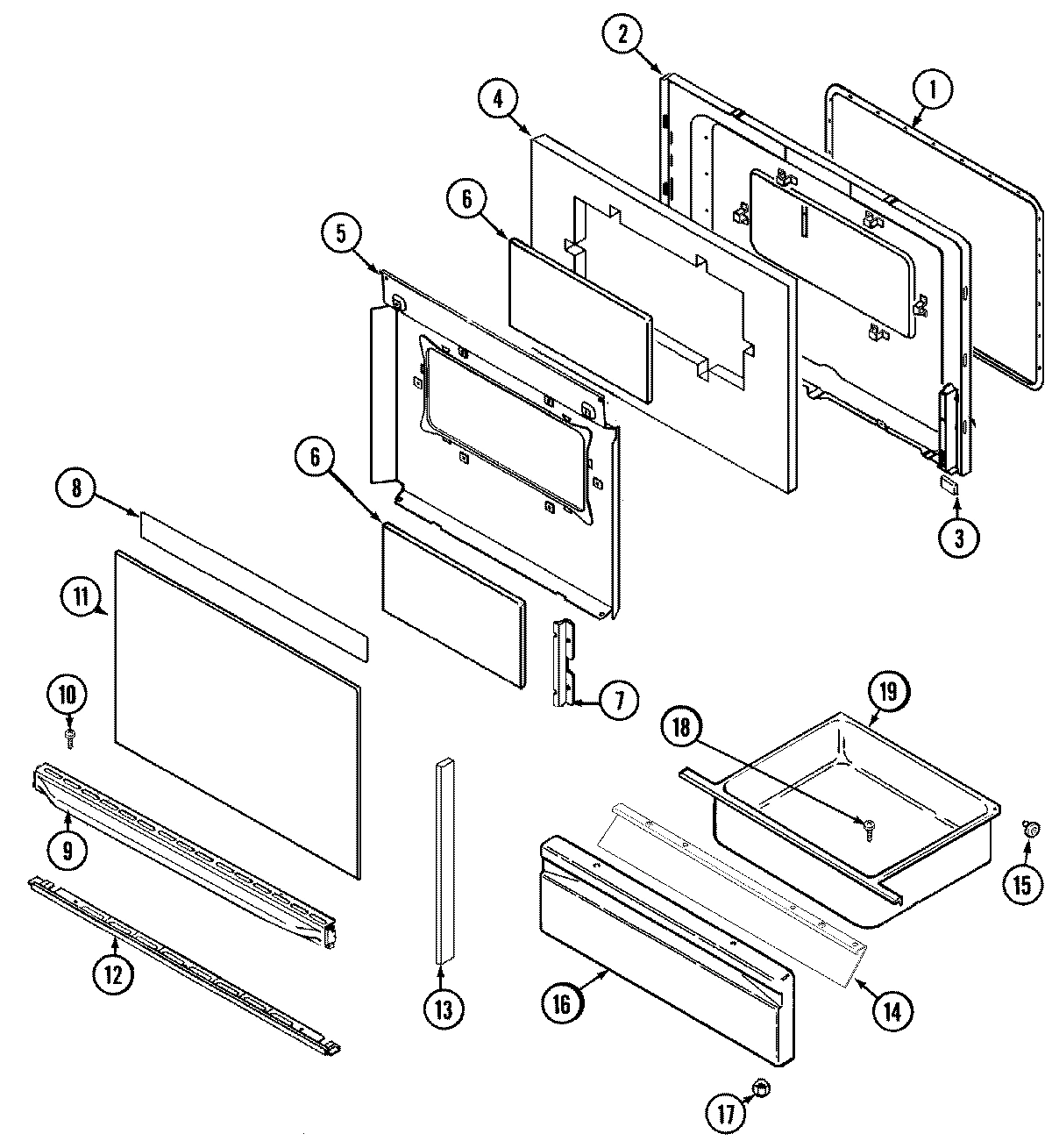

02 - DOOR/DRAWER

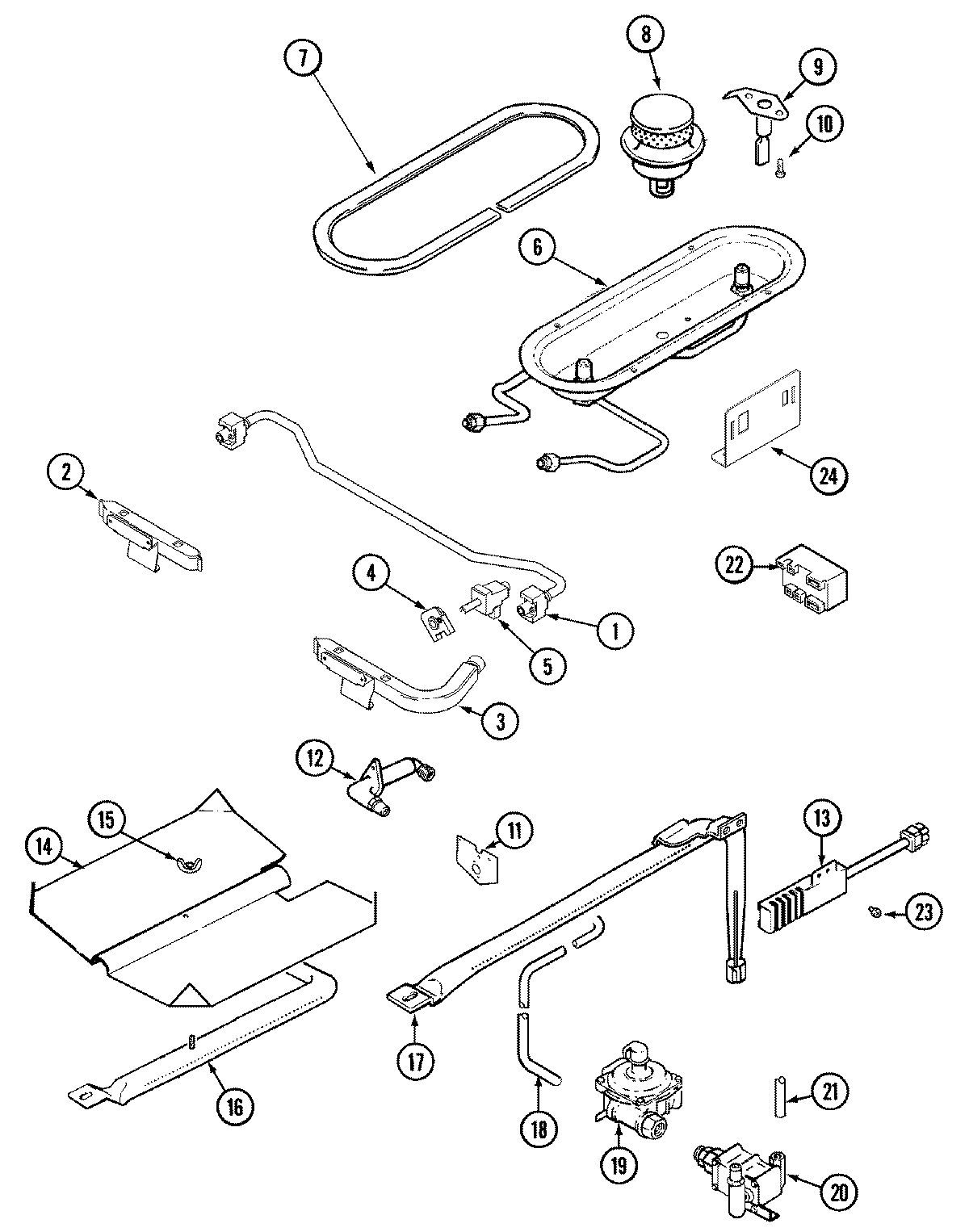

03 - GAS CONTROLS

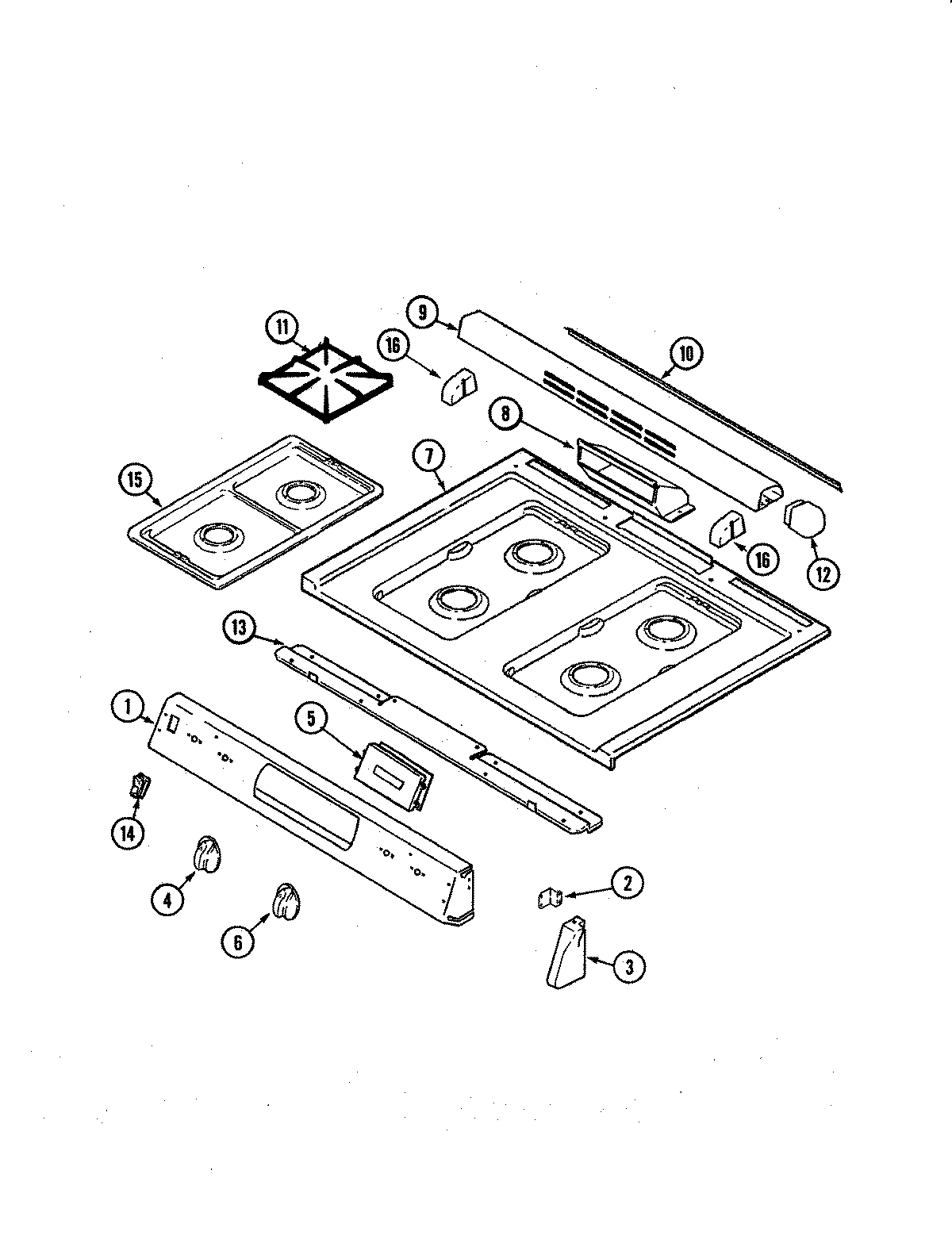

05 - TOP ASSEMBLY (ADQ)

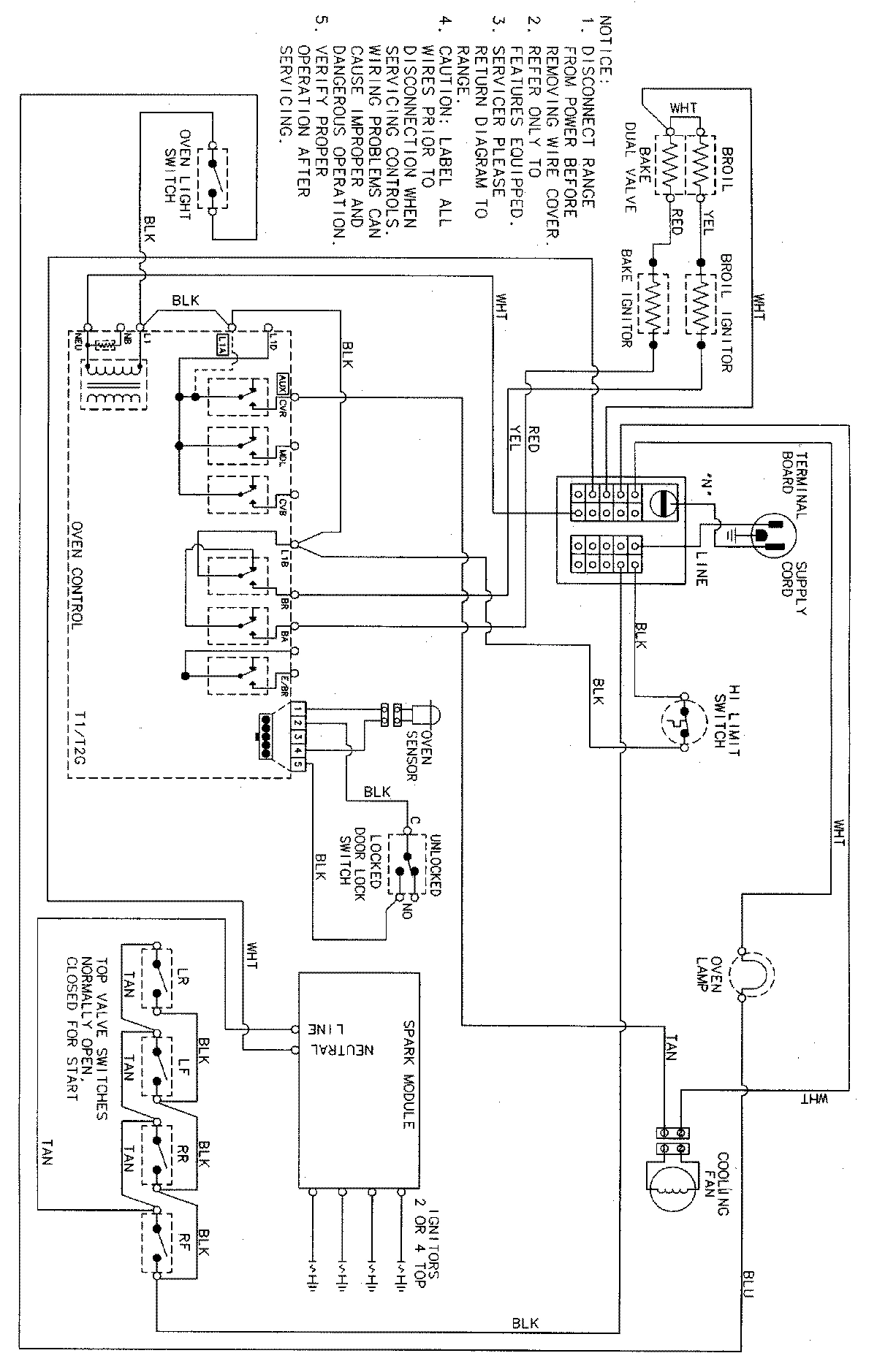

06 - WIRING INFORMATION
Common parts from model Whirlpool CGS3760ADQ GAS RANGE
1
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
TUBING, MANIFOLD CROSSOVER WPL 74004298 Contact Us For Availability
1
GASKET, TUBING WPL 74004299 Contact Us For Availability
1
PANEL, MANIFOLD (BSQ) WPL 74005207 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
2
LINING, OVEN DOOR WPL 74004972 Contact Us For Availability
2
PIPE, MANIFOLD (LT) WPL 74004411 Contact Us For Availability
2
BRACKET, END CAP WPL 74004186 Contact Us For Availability
2
BRACKET, END CAP WPL 74005671 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
KIT, PIPE W/SCREW & SEAL WPL 12002322 Contact Us For Availability
3
PIPE, MANIFOLD (RT) WPL 74004412 Contact Us For Availability
3
SCREW WPL 74004208 Contact Us For Availability
3
CAP, END (BSQ-RT) WPL 74005085 Contact Us For Availability
3
CAP, END (BSQ-LT) WPL 74005086 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74004184 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
4
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
4
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
4
KNOB, VALVE (BSQ) WPL 74005208 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
VALVE, TOP BURNER WPL 74004302 Contact Us For Availability
5
VALVE, TOP BURNER WPL 74004303 Contact Us For Availability
5
VALVE, TOP BURNER WPL 74004409 Contact Us For Availability
5
VALVE, MUELLER WPL 74009530 Contact Us For Availability
5
VALVE, MUELLER WPL 74009535 Contact Us For Availability
5
INSULATOR, FIBER BOARD WPL 74004246 Contact Us For Availability
5
CLOCK W/OVERLAY (BSQ) WPL 74005261 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
GLASS, INNER WPL 74003320 Contact Us For Availability
6
ORIFICE PAN ASSY. (LT) WPL 74004304 Contact Us For Availability
6
GROMMET WPL 74004306 Contact Us For Availability
6
ORIFICE PAN ASSY. (RT) WPL 74004413 Contact Us For Availability
6
KNOB, VALVE (BSQ) WPL 74005209 Contact Us For Availability
7
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
GASKET, BURNER PAN WPL 74006056 Contact Us For Availability
7
TOP, MAIN (BSQ) WPL 74005016 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
BURNER, SEALED (TAUPE) WPL 74003966 Contact Us For Availability
8
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
9
PLATE, HINGE WPL 74004173 Contact Us For Availability
9
HANDLE, DOOR (BSQ) WPL 74005042 Contact Us For Availability
9
IGNITER WPL 74004410 Contact Us For Availability
9
COVER, VENT (CLR) WPL 74004289 Contact Us For Availability
9
COVER, VENT (CLEAR) WPL 74005324 Contact Us For Availability
10
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
10
SUPPORT WPL 74004167 Contact Us For Availability
10
GASKET WPL 7201P06160 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 74004296 Contact Us For Availability
11
GLASS, DOOR (OUTER-BSQ) WPL 74005041 Contact Us For Availability
11
PLATE, BROIL FITTING WPL 74004307 Contact Us For Availability
11
GRATE (TAUPE) WPL 74003514 Contact Us For Availability
12
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
12
EXTENSION, MAIN BACK WPL 74004175 Contact Us For Availability
12
TRIM, DOOR (LWR-BSQ) WPL 74005043 Contact Us For Availability
12
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
12
END CAP, VENT (TAUPE-RT) WPL 74004422 Contact Us For Availability
12
END CAP, VENT (TAUPE-LT) WPL 74004423 Contact Us For Availability
13
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
13
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
13
TAPE WPL 74004075 Contact Us For Availability
13
TRIM, DOOR (SIDE-BSQ) WPL 74005044 Contact Us For Availability
13
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
SUPPORT, MANIFOLD PANEL WPL 74004785 Contact Us For Availability
14
INSULATION, OVEN WPL 74003503 Contact Us For Availability
14
TRIM, SIDE (BSQ) WPL 74005017 Contact Us For Availability
14
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
14
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
14
BAFFLE, BROIL BURNER WPL 74009231 Contact Us For Availability
15
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
15
PAN, BAKE BURNER WPL 74004465 Contact Us For Availability
15
NUT WPL 7103P08260 Contact Us For Availability
15
SHAFT, ROLLER WPL 74004079 Contact Us For Availability
15
NUT, WING WPL 7103P03060 Contact Us For Availability
15
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
16
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
16
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
16
PANEL, DRAWER (BSQ) WPL 74004966 Contact Us For Availability
16
BURNER, BROIL WPL 74004076 Contact Us For Availability
16
INSERT, OVEN VENT WPL 74006057 Contact Us For Availability
17
ASSY., BURNER BOX WPL 74004826 Contact Us For Availability
17
BOX, BURNER WPL 74006045 Contact Us For Availability
17
GASKET, WINDOW WPL 790058 Contact Us For Availability
17
SCREW WPL 7101P34460 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
17
BURNER, BAKE WPL 74003960 Contact Us For Availability
18
EXTENSION, FLUE BOX WPL 74004294 Contact Us For Availability
18
COVER, BURNER VALVE WPL 74003329 Contact Us For Availability
18
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
18
TUBING, REGULATOR/PIPE (3/8``) WPL 74004462 Contact Us For Availability
19
BOX, VENT WPL 74002367 Contact Us For Availability
19
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
19
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
20
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
20
HOUSING, BULB WPL 74003388 Contact Us For Availability
20
VALVE, OVEN WPL 74007621 Contact Us For Availability
20
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
21
CORD, POWER WPL 74004295 Contact Us For Availability
21
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
21
TUBING (3/8``) WPL 74004408 Contact Us For Availability
22
DOOR LATCH KIT WPL 12001942 Contact Us For Availability
22
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
22
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
22
LATCH ASSY. WPL 74003502 Contact Us For Availability
22
BULB-OVEN WPL 7407P10360 Contact Us For Availability
23
LEVER, LATCH (BRN) WPL 74001057 Contact Us For Availability
23
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
23
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
24
BRACKET, SUPPORT WPL 74005822 Contact Us For Availability
24
COVER, BULB WPL 74003389 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 74004297 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE (FRCH) WPL 74002746 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 74004250 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004664 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002576 Contact Us For Availability
× ![]()
