Model Maytag CGRP305TDW0 GAS RANGE – Common Parts & Diagrams

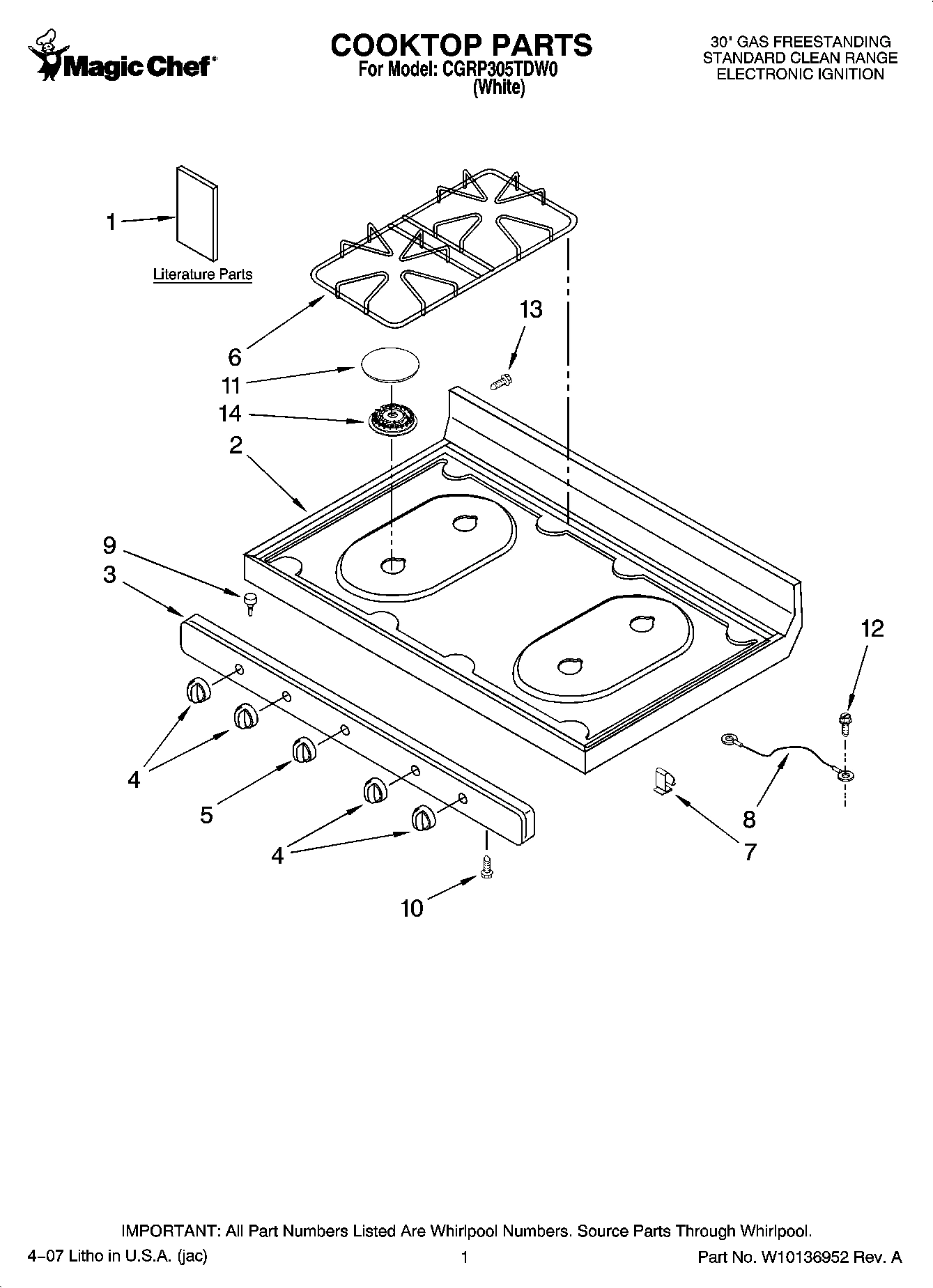

01 - COOKTOP PARTS

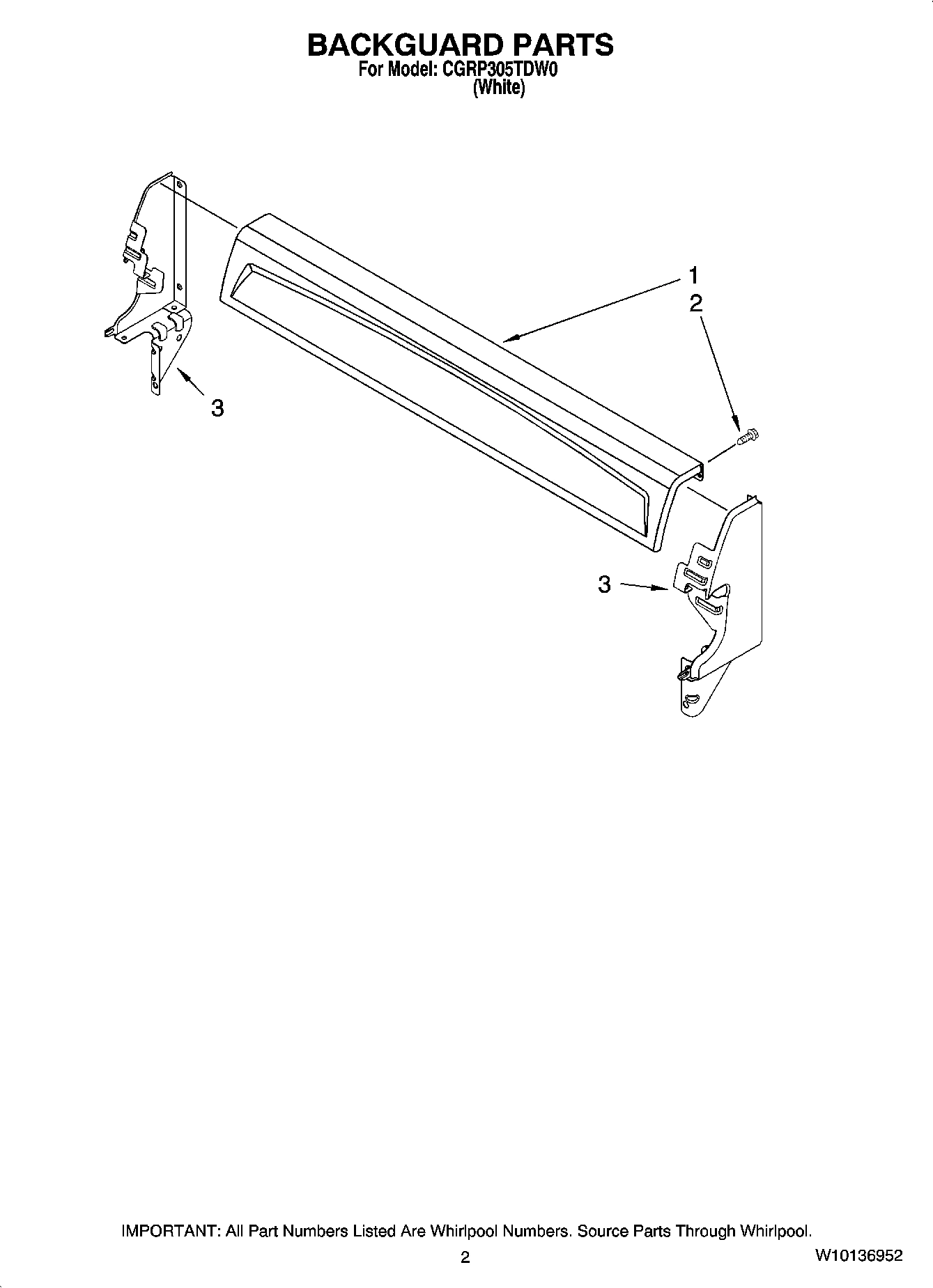

02 - BACKGUARD PARTS

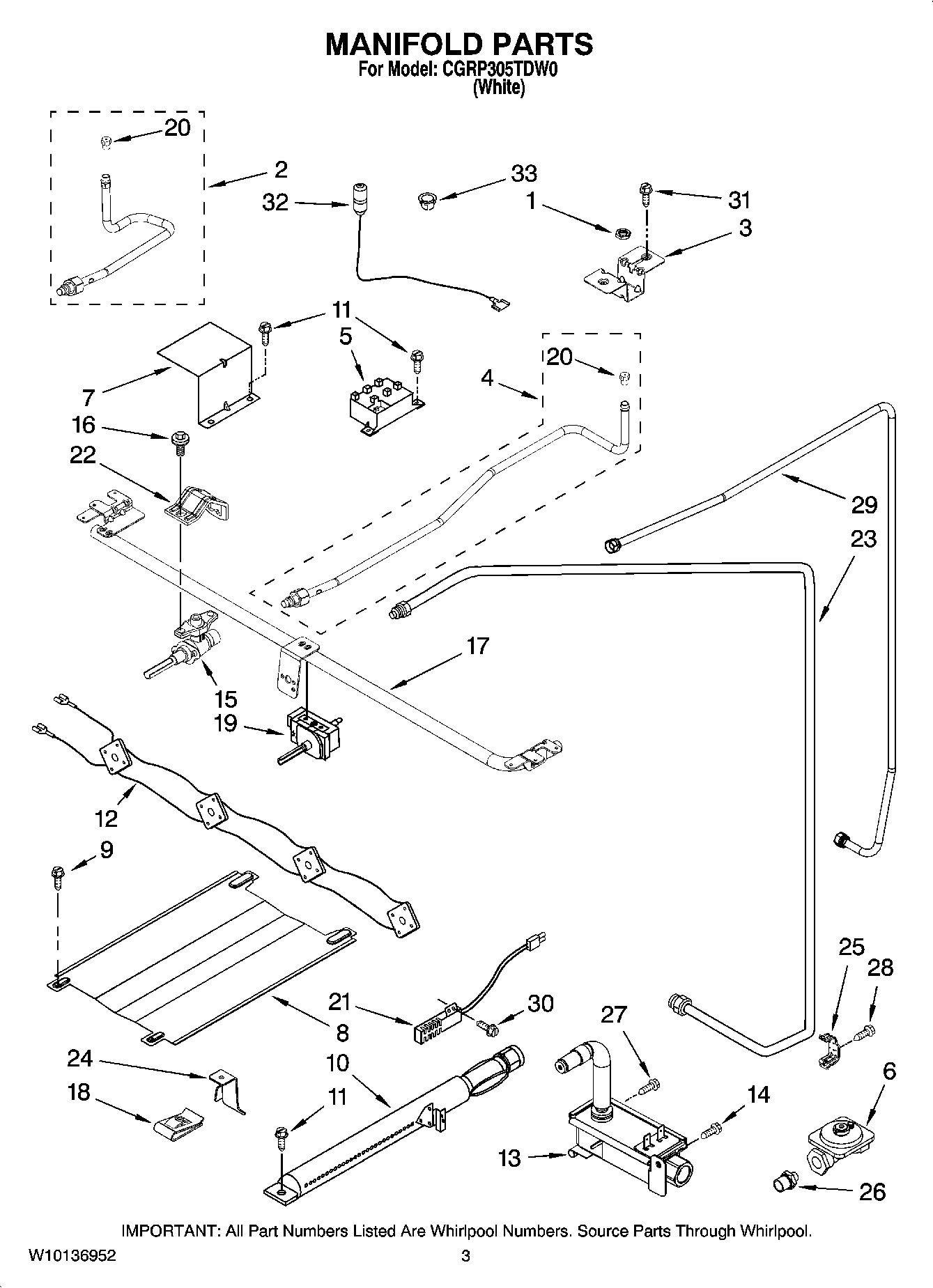

03 - MANIFOLD PARTS

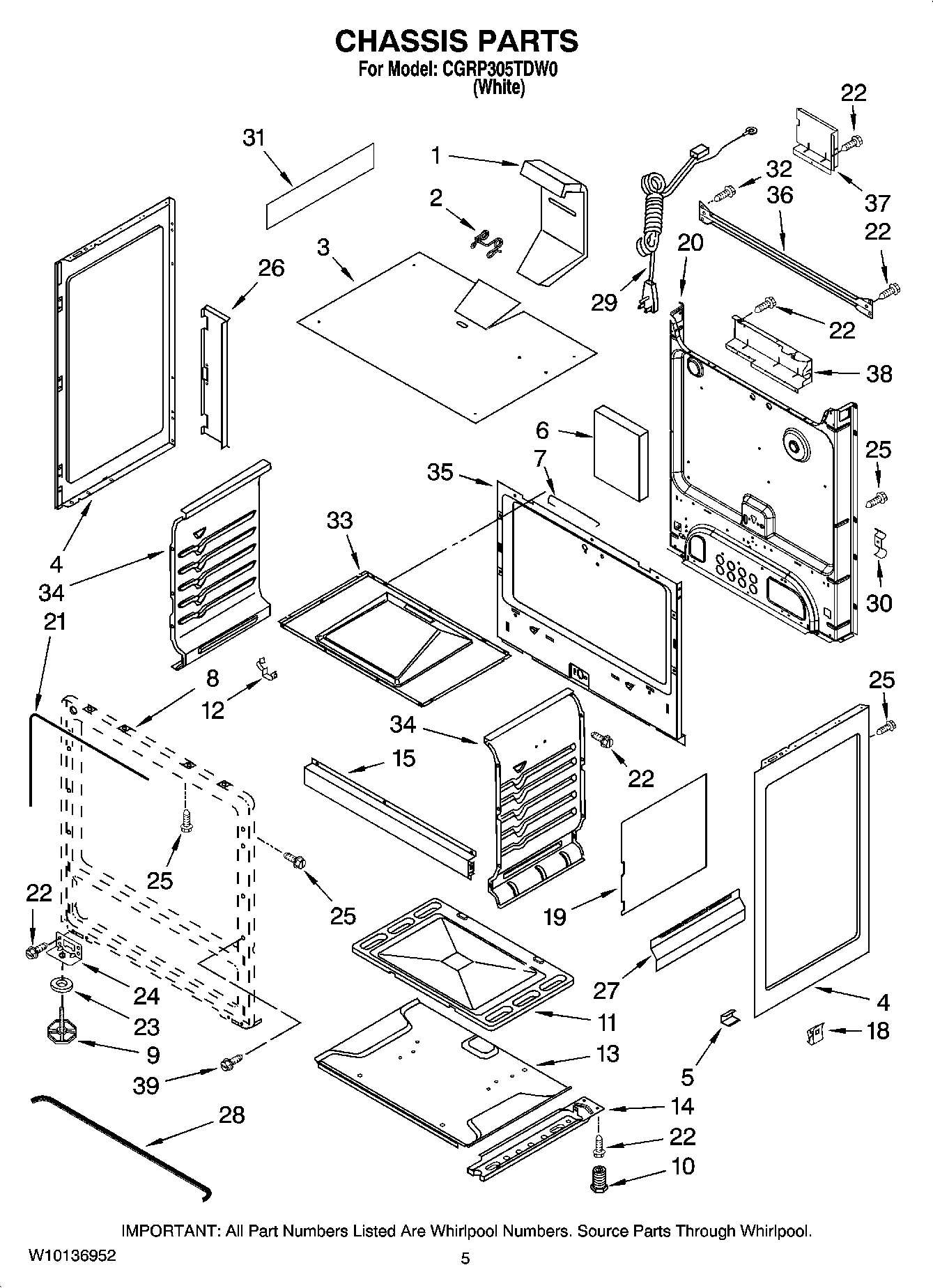

04 - CHASSIS PARTS

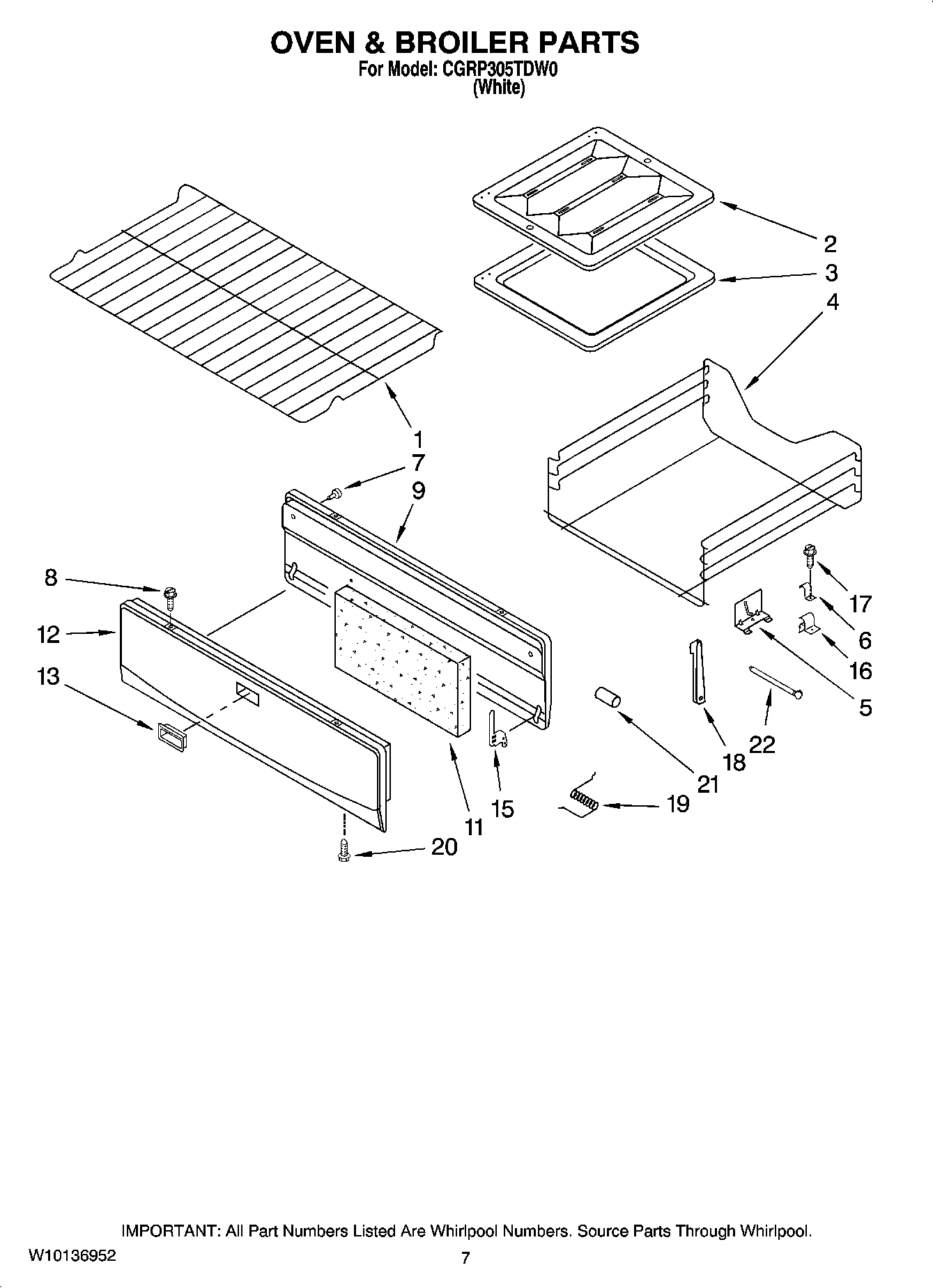

05 - OVEN & BROILER PARTS

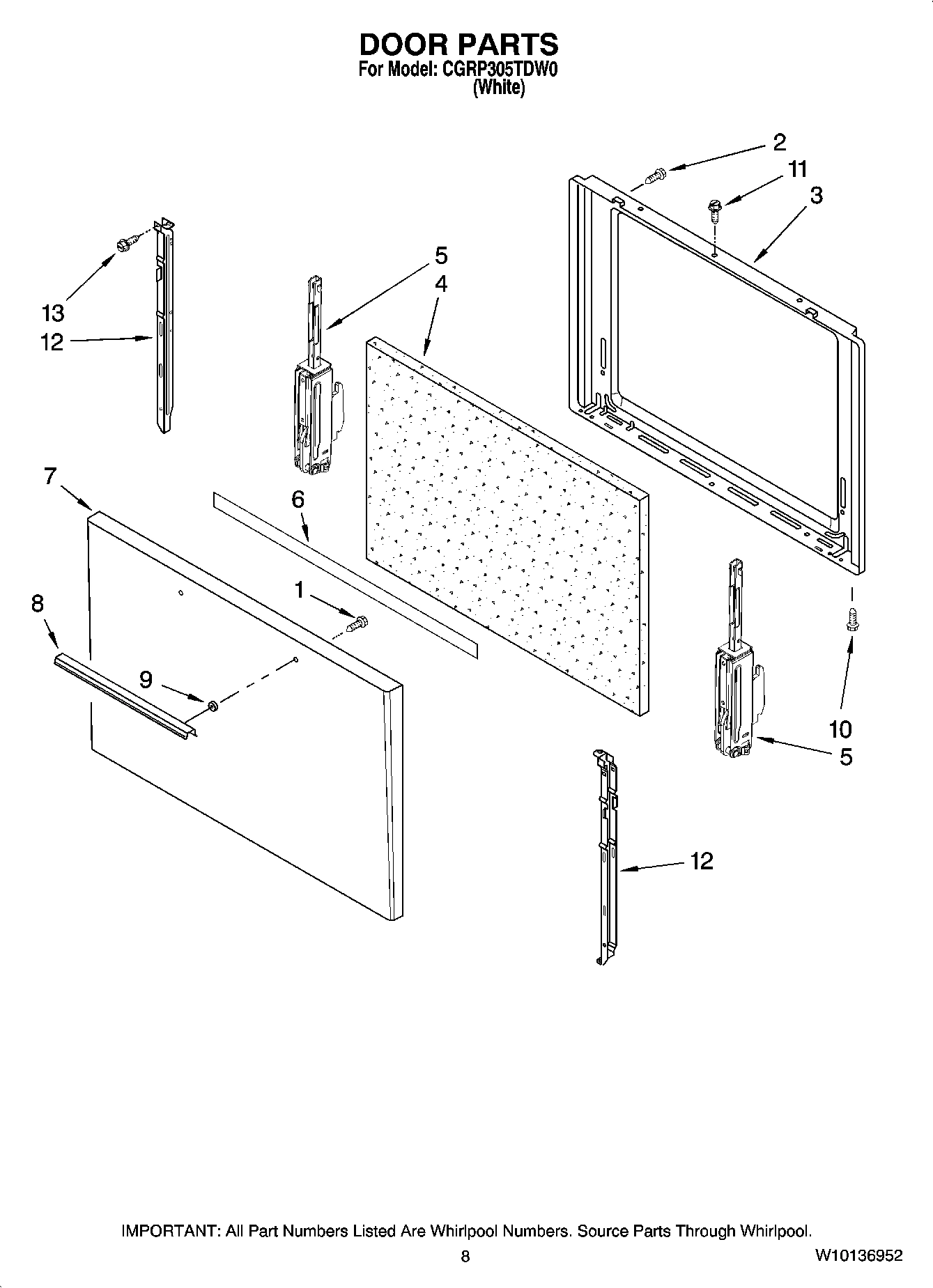

06 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag CGRP305TDW0 GAS RANGE
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
MAY 240132 MAY 240132 Contact Us For Availability
Touch-Up Self-Clean(1/2 Pt) MAY 242756 Contact Us For Availability
Wire, Blue 14 Ga. 150 c MAY 242821 Contact Us For Availability
Wire, Brown 14 Ga. 150 c MAY 242822 Contact Us For Availability
Wire, Green 14 Ga. 150 c MAY 242823 Contact Us For Availability
Wire, Orange 14 Ga. 150 c MAY 242824 Contact Us For Availability
Wire, Red 14 Ga. 150 c MAY 242825 Contact Us For Availability
Wire, Yellow 14 Ga. 150 c MAY 242827 Contact Us For Availability
Wire, Black 12 Ga. 150 c MAY 242828 Contact Us For Availability
Wire, Brown 14 Ga. 200 c MAY 242830 Contact Us For Availability
Wire, Red 14 Ga. 200 c MAY 242831 Contact Us For Availability
WIRE MAY 253886 Contact Us For Availability
MAY 261514 MAY 261514 Contact Us For Availability
MAY 261582 MAY 261582 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
Clip, Harness MAY 3196696 Contact Us For Availability
Cable Tie-Push Mnt MAY 3391018 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
MAY 4392899 MAY 4392899 Contact Us For Availability
MAY 4392900 MAY 4392900 Contact Us For Availability
MAY 4392901 MAY 4392901 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
MAY 799832 MAY 799832 Contact Us For Availability
MAY 8316781 MAY 8316781 Contact Us For Availability
MAY 98005894 MAY 98005894 Contact Us For Availability
Pin Kit-Dr Removal MAY 98012220 Contact Us For Availability
MAY 98014534 MAY 98014534 Contact Us For Availability
MAY 98015022 MAY 98015022 Contact Us For Availability
MAY 98017833 MAY 98017833 Contact Us For Availability
1
MAY 98007032 MAY 98007032 Contact Us For Availability
1
MAY 98007130 MAY 98007130 Contact Us For Availability
1
Installation Instr (Tmplate-Anti-tip) MAY 98015589 Contact Us For Availability
1
MAY W10121768 MAY W10121768 Contact Us For Availability
1
Instructions, Installation MAY W10130752 Contact Us For Availability
1
MAY W10121765 MAY W10121765 Contact Us For Availability
1
MAY 98017323 MAY 98017323 Contact Us For Availability
1
MAY 98003799 MAY 98003799 Contact Us For Availability
1
MAY 98014136 MAY 98014136 Contact Us For Availability
1
MAY 98006644 MAY 98006644 Contact Us For Availability
2
MAY 98017619W MAY 98017619W Contact Us For Availability
2
Screw MAY 98015526 Contact Us For Availability
2
MAY 98017582 MAY 98017582 Contact Us For Availability
2
Clip, Flue MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
Screw (2) MAY 98008699 Contact Us For Availability
3
MAY W10121766 MAY W10121766 Contact Us For Availability
3
Endcap (Left Hand) MAY 98005252 Contact Us For Availability
3
Endcap (Right Hand) MAY 98005253 Contact Us For Availability
3
MAY 98017741 MAY 98017741 Contact Us For Availability
3
MAY 98014398 MAY 98014398 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
MAY 98017966 MAY 98017966 Contact Us For Availability
4
MAY 98006106 MAY 98006106 Contact Us For Availability
4
MAY 98017359 MAY 98017359 Contact Us For Availability
4
MAY 98010042 MAY 98010042 Contact Us For Availability
4
MAY 98016570 MAY 98016570 Contact Us For Availability
4
MAY 98006853 MAY 98006853 Contact Us For Availability
5
MAY 98008445 MAY 98008445 Contact Us For Availability
5
MAY 6610341 MAY 6610341 Contact Us For Availability
5
Clip, Oven Bottom MAY 98005502 Contact Us For Availability
5
MAY 98004761 MAY 98004761 Contact Us For Availability
5
Hinge, Door (2) (Left) MAY 98017873 Contact Us For Availability
5
MAY 98017875 MAY 98017875 Contact Us For Availability
6
MAY W10133344 MAY W10133344 Contact Us For Availability
6
MAY 98007411 MAY 98007411 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
MAY 98004715 MAY 98004715 Contact Us For Availability
6
Retainer, Upper(2) MAY 98017250 Contact Us For Availability
7
Clip, Cooktop (2) MAY 98004722 Contact Us For Availability
7
MAY 98007192 MAY 98007192 Contact Us For Availability
7
MAY 98006739 MAY 98006739 Contact Us For Availability
7
MAY 98004052 MAY 98004052 Contact Us For Availability
7
MAY W10128741 MAY W10128741 Contact Us For Availability
8
MAY 98014544 MAY 98014544 Contact Us For Availability
8
Spreader, Flame MAY 98015099 Contact Us For Availability
8
MAY 98006750 MAY 98006750 Contact Us For Availability
8
MAY 98006623 MAY 98006623 Contact Us For Availability
9
MAY 98013389 MAY 98013389 Contact Us For Availability
9
Foot, Front (2) MAY 98005306 Contact Us For Availability
9
MAY 98004698 MAY 98004698 Contact Us For Availability
9
MAY 98004773 MAY 98004773 Contact Us For Availability
10
Screw (3) MAY 98005000 Contact Us For Availability
10
MAY 98012138 MAY 98012138 Contact Us For Availability
10
Foot, Rear (2) MAY W10058460 Contact Us For Availability
10
MAY 98004993 MAY 98004993 Contact Us For Availability
11
MAY 98017461 MAY 98017461 Contact Us For Availability
11
MAY 98004449 MAY 98004449 Contact Us For Availability
11
MAY 98006727 MAY 98006727 Contact Us For Availability
11
MAY 98015234 MAY 98015234 Contact Us For Availability
12
Screw (2) MAY 8534079 Contact Us For Availability
12
MAY 98014545 MAY 98014545 Contact Us For Availability
12
Clip, Bulb (2) MAY 98005642 Contact Us For Availability
12
MAY 98009342 MAY 98009342 Contact Us For Availability
12
MAY 98004564 MAY 98004564 Contact Us For Availability
12
MAY 98004629 MAY 98004629 Contact Us For Availability
13
MAY 98007225 MAY 98007225 Contact Us For Availability
13
MAY 98014893 MAY 98014893 Contact Us For Availability
13
MAY 98003847 MAY 98003847 Contact Us For Availability
13
MAY 98008486 MAY 98008486 Contact Us For Availability
13
MAY 98004219 MAY 98004219 Contact Us For Availability
14
MAY 98017537 MAY 98017537 Contact Us For Availability
14
Rail, Base (2) MAY 98003830 Contact Us For Availability
15
MAY 98017498 MAY 98017498 Contact Us For Availability
15
MAY 98012175 MAY 98012175 Contact Us For Availability
15
MAY 98003790 MAY 98003790 Contact Us For Availability
16
MAY 98017517 MAY 98017517 Contact Us For Availability
16
MAY 98008341 MAY 98008341 Contact Us For Availability
17
Screw MAY 98006633 Contact Us For Availability
17
MAY 98017558 MAY 98017558 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
18
MAY 98003791 MAY 98003791 Contact Us For Availability
19
MAY 98003984 MAY 98003984 Contact Us For Availability
19
MAY 98015683 MAY 98015683 Contact Us For Availability
19
MAY 98008379 MAY 98008379 Contact Us For Availability
19
MAY 98008380 MAY 98008380 Contact Us For Availability
20
MAY 98017348 MAY 98017348 Contact Us For Availability
20
MAY 98015100 MAY 98015100 Contact Us For Availability
21
Igniter, Oven Oven Pilot) MAY 98005652 Contact Us For Availability
21
MAY 98017163 MAY 98017163 Contact Us For Availability
21
MAY W10114592 MAY W10114592 Contact Us For Availability
22
MAY 98017516 MAY 98017516 Contact Us For Availability
22
MAY 98004053 MAY 98004053 Contact Us For Availability
23
MAY 98007428 MAY 98007428 Contact Us For Availability
23
MAY 98007193 MAY 98007193 Contact Us For Availability
24
MAY 98013314 MAY 98013314 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
26
MAY 98007431 MAY 98007431 Contact Us For Availability
26
Shield, Channel(2) MAY 98006715 Contact Us For Availability
27
MAY 98013634 MAY 98013634 Contact Us For Availability
27
Shield, Lower MAY 98007191 Contact Us For Availability
28
Screw MAY 1180823 Contact Us For Availability
28
MAY 98017162 MAY 98017162 Contact Us For Availability
29
Tubing, Inlet MAY 98017171 Contact Us For Availability
29
MAY 98014532 MAY 98014532 Contact Us For Availability
30
MAY 98005659 MAY 98005659 Contact Us For Availability
30
MAY 98005026 MAY 98005026 Contact Us For Availability
31
MAY 98004484 MAY 98004484 Contact Us For Availability
31
MAY 98015346 MAY 98015346 Contact Us For Availability
32
Igniter, Top (RF, RR) MAY 98014514 Contact Us For Availability
32
MAY 98014516 MAY 98014516 Contact Us For Availability
32
MAY 98017917 MAY 98017917 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
MAY 98015032 MAY 98015032 Contact Us For Availability
33
MAY W10032010 MAY W10032010 Contact Us For Availability
33
MAY 98004447 MAY 98004447 Contact Us For Availability
34
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
34
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
35
MAY 98005768 MAY 98005768 Contact Us For Availability
36
MAY 98015363 MAY 98015363 Contact Us For Availability
37
Cover, Socket MAY 98014104 Contact Us For Availability
38
MAY 98014105 MAY 98014105 Contact Us For Availability
39
MAY 98004286 MAY 98004286 Contact Us For Availability
39
MAY 98008545 MAY 98008545 Contact Us For Availability
39
MAY 98014360 MAY 98014360 Contact Us For Availability
× ![]()
