Model Whirlpool CGR3742CDW GAS RANGE – Common Parts & Diagrams

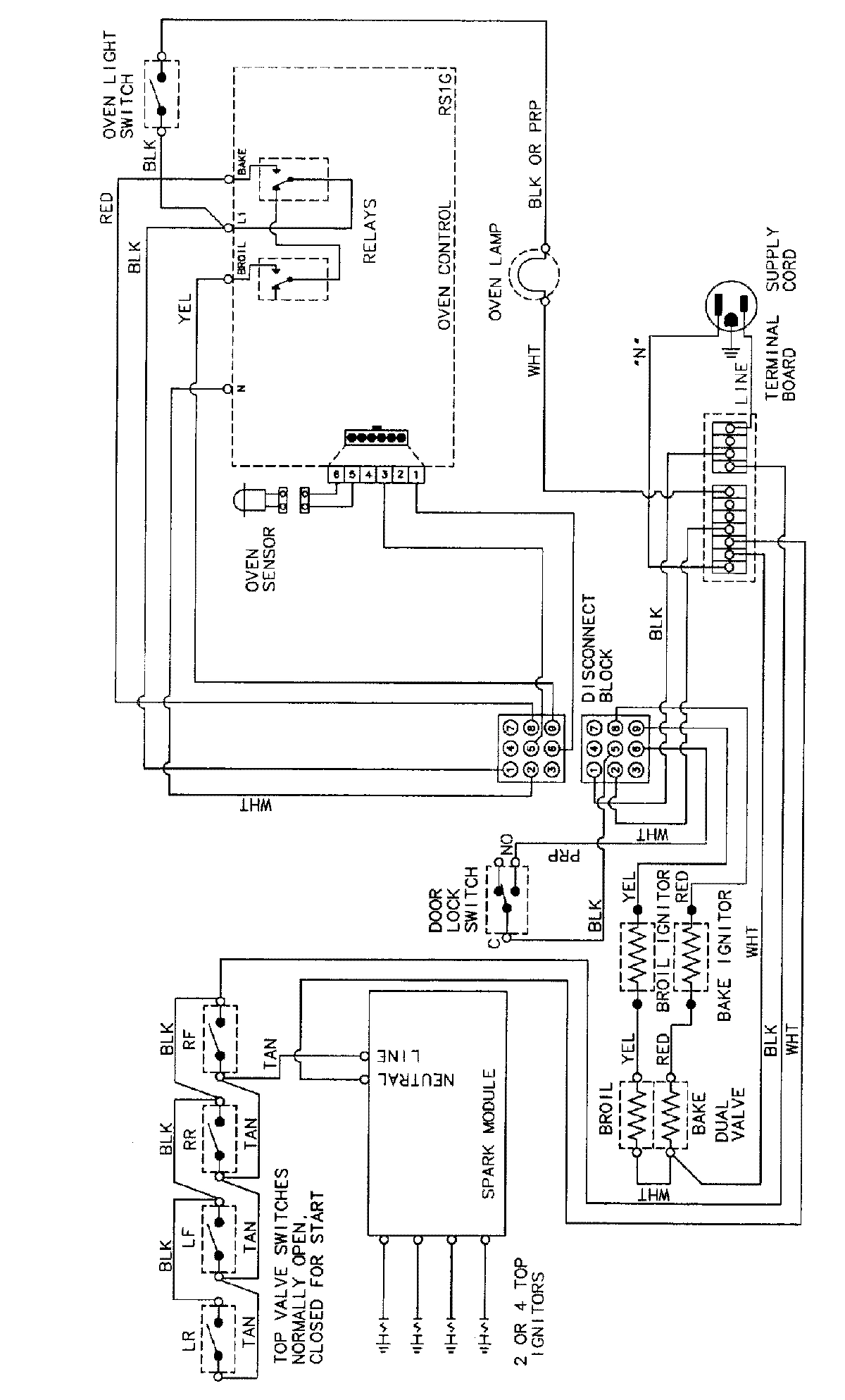

07 - WIRING INFORMATION

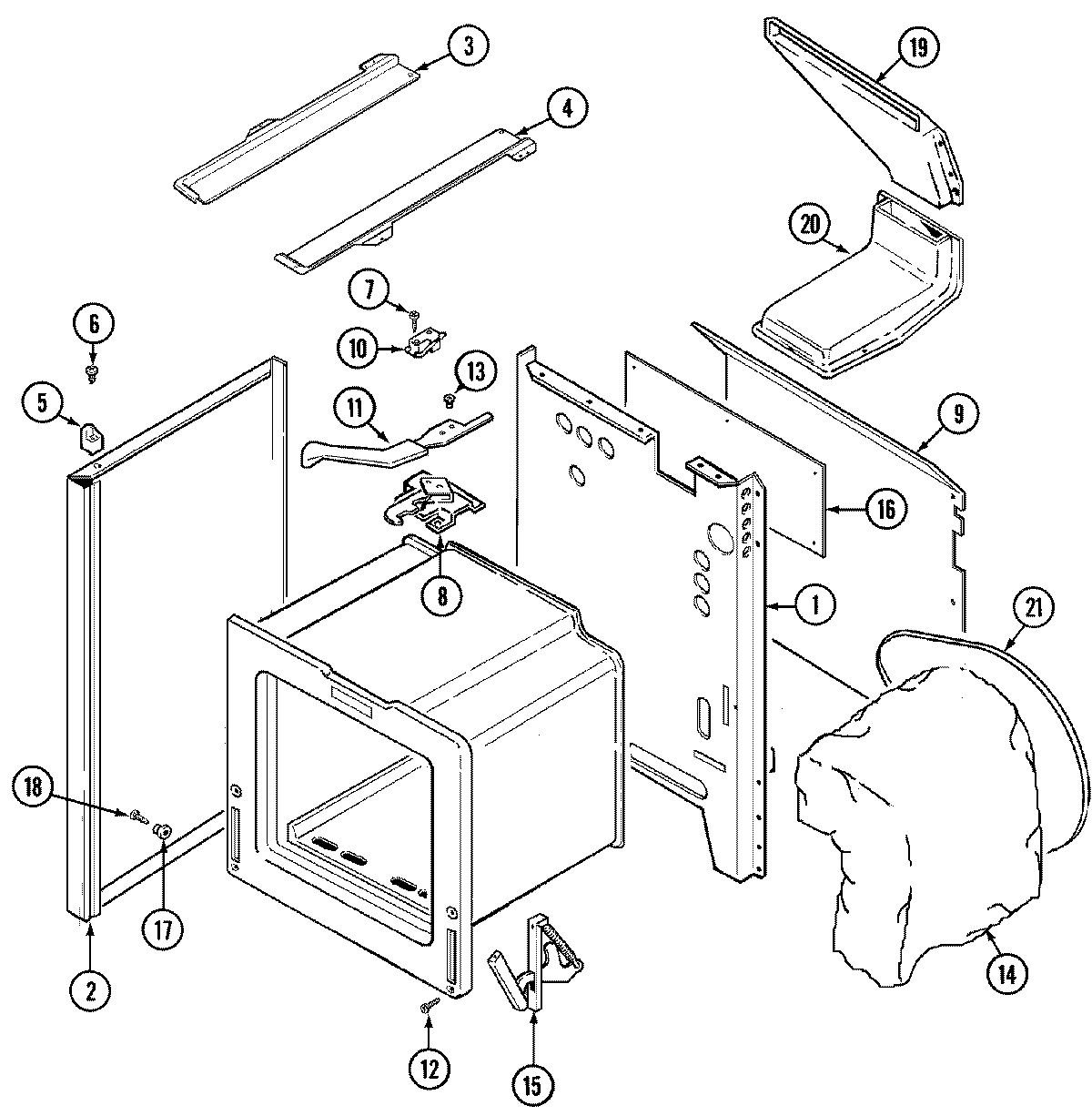

01 - BODY

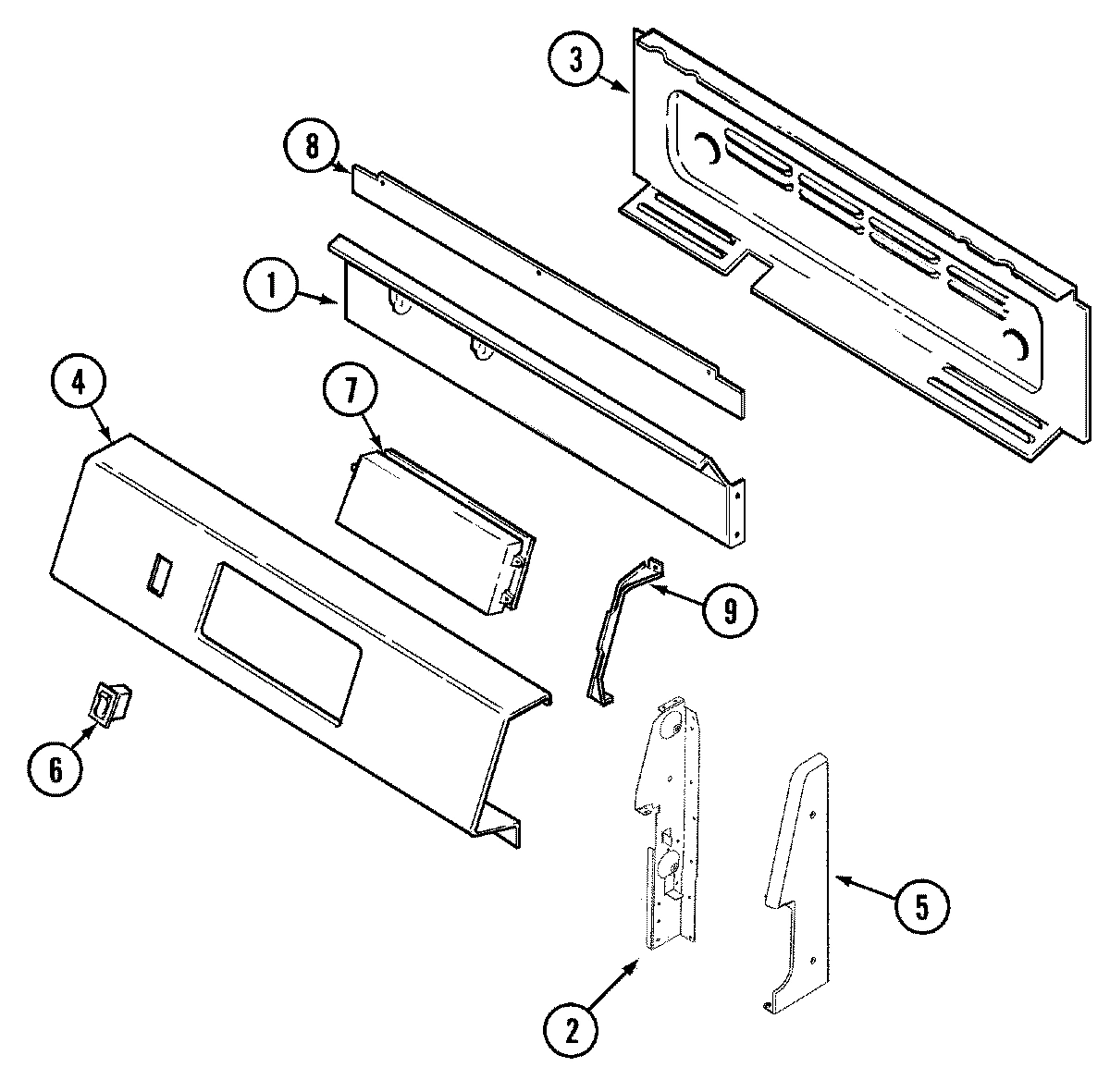

02 - CONTROL PANEL

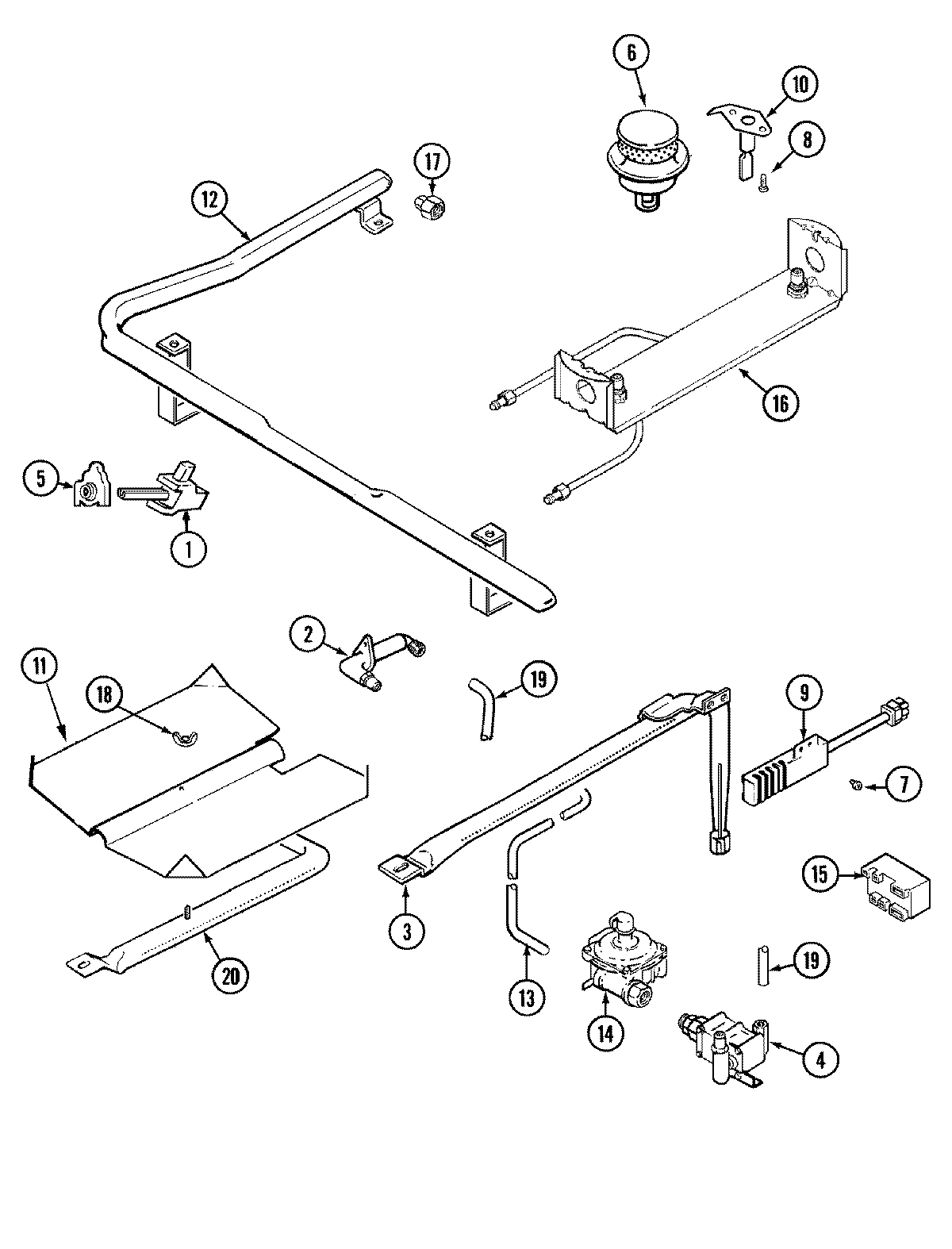

04 - GAS CONTROLS

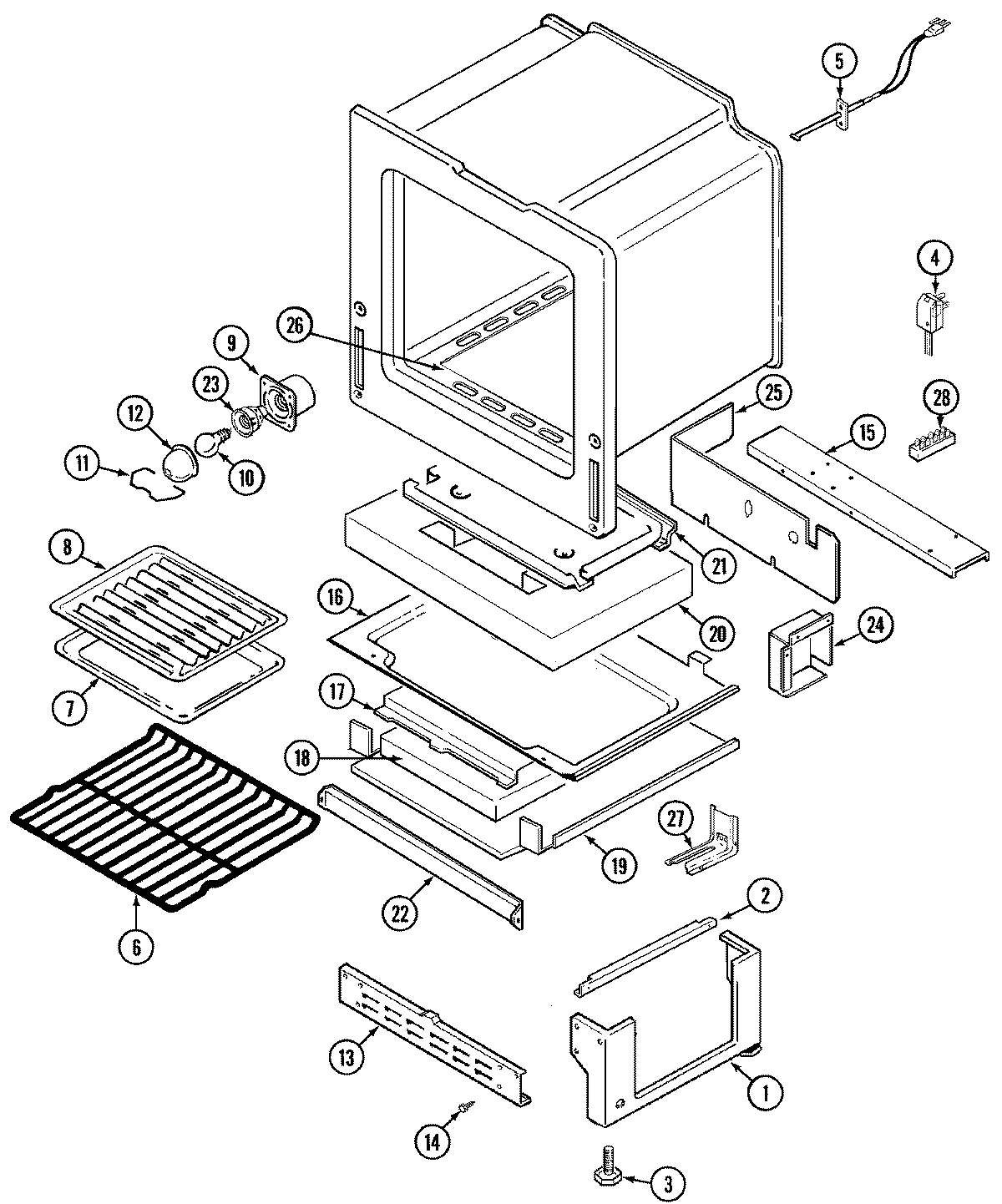

05 - OVEN/BASE

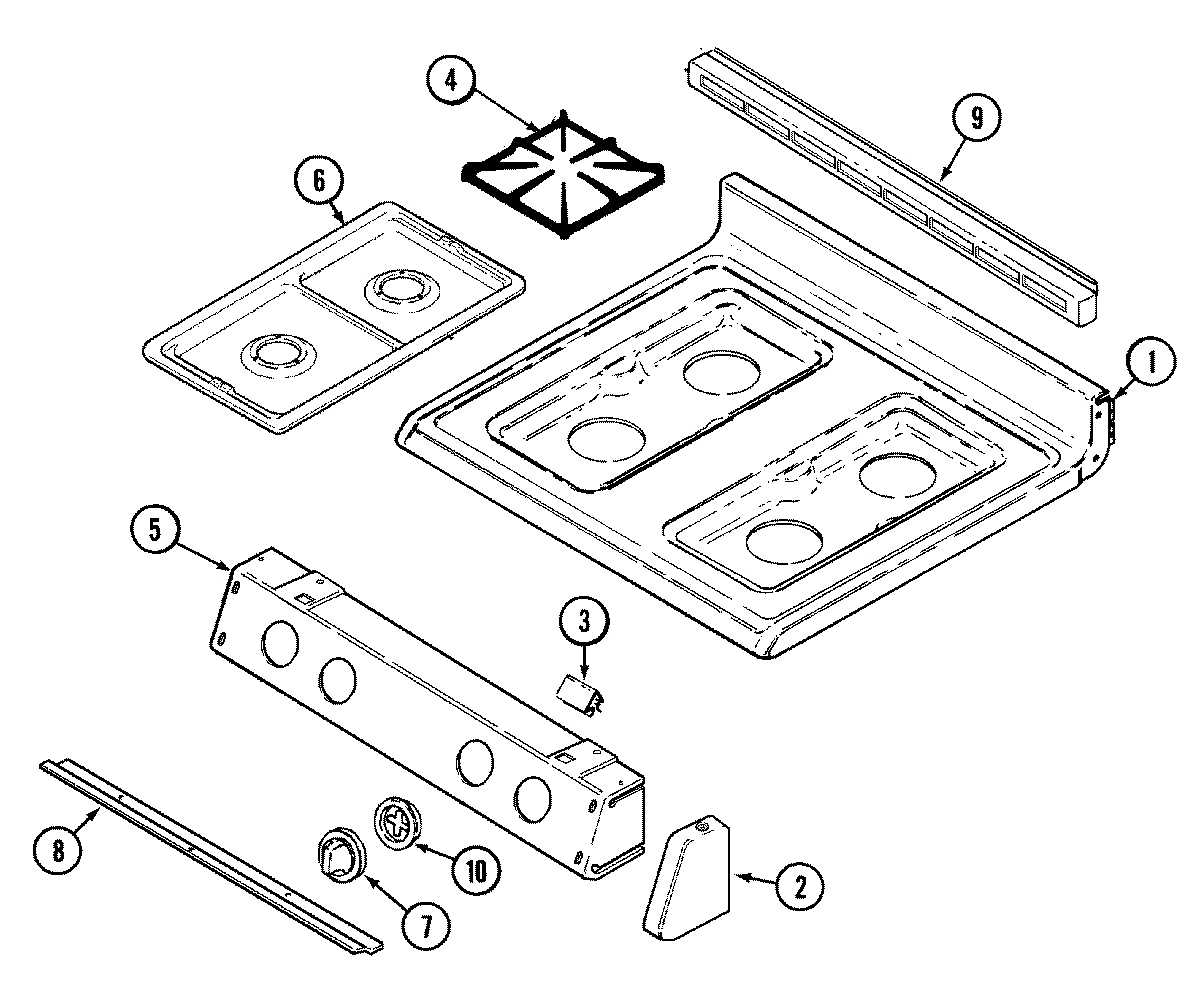

06 - TOP ASSEMBLY

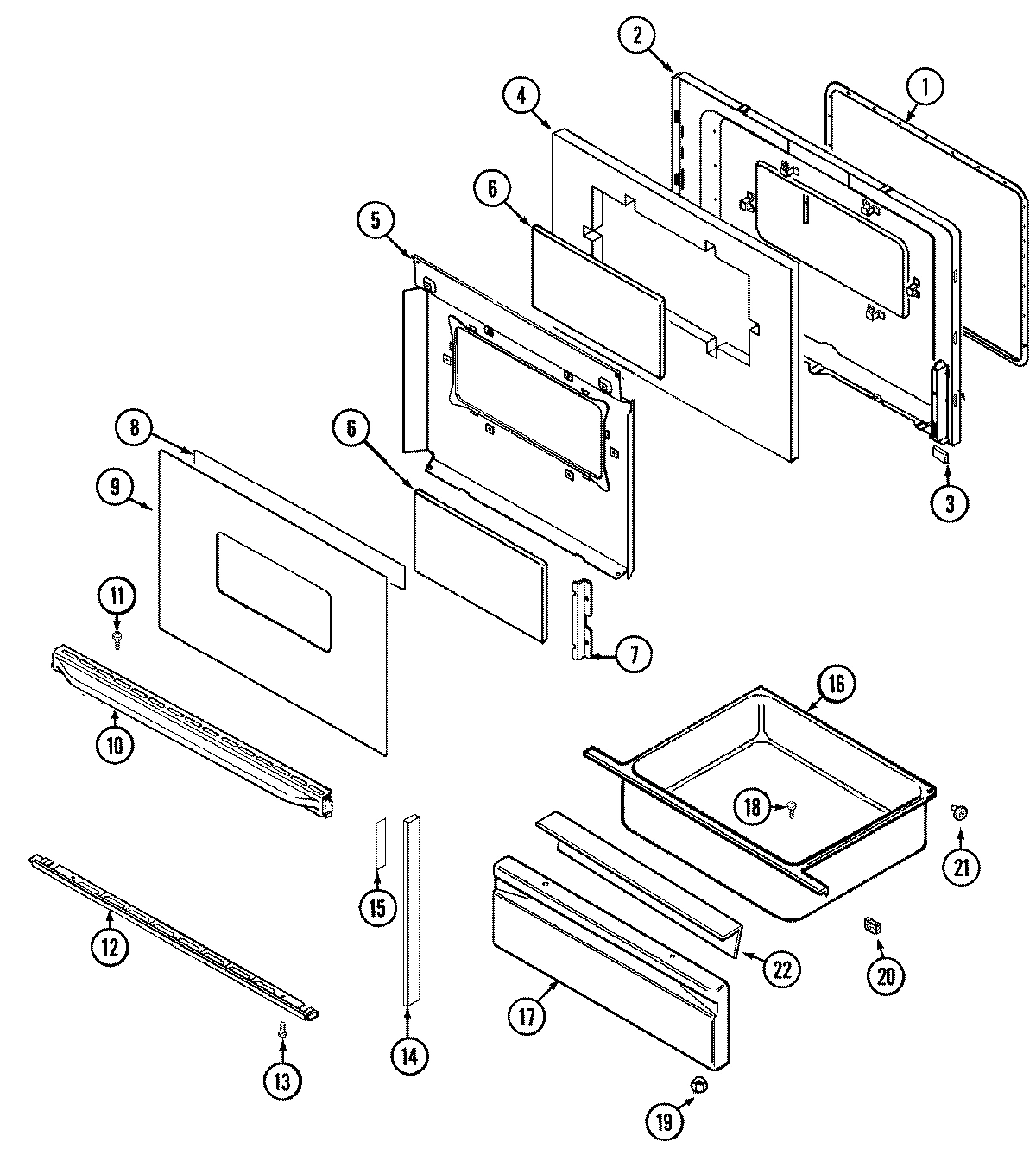

03 - DOOR/DRAWER
Common parts from model Whirlpool CGR3742CDW GAS RANGE
1
BACK, MAIN WPL 74006548 Contact Us For Availability
1
GROMMET WPL 8008P01060 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74003488 Contact Us For Availability
1
SCREW, VALVE WPL 71003231 Contact Us For Availability
1
VALVE, BURNER WPL 74003924 Contact Us For Availability
1
VALVE, TOP BURNER WPL 74004303 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74005772 Contact Us For Availability
1
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 74003512 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
BRACKET, CONTROL PANEL (LT) WPL 74003489 Contact Us For Availability
2
BRACKET, CONTROL PANEL (RT) WPL 74003490 Contact Us For Availability
2
PLATE, BROIL FITTING WPL 74004307 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 74006421 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
2
END CAP, PANEL (RT-WHT) WPL 74003515 Contact Us For Availability
2
END CAP, PANEL (LT-WHT) WPL 74003516 Contact Us For Availability
2
SCREW WPL 74003860 Contact Us For Availability
2
LINING, OVEN DOOR WPL 74004972 Contact Us For Availability
3
BOX, BURNER (LT) WPL 74002633 Contact Us For Availability
3
HOUSING, CONTROL PANEL WPL 74004963 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
BURNER, BAKE WPL 74003960 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
4
BOX, BURNER (RT) WPL 74002632 Contact Us For Availability
4
PANEL, CONTROL (WHT) WPL 74005260 Contact Us For Availability
4
CORD, POWER WPL 7402P04360 Contact Us For Availability
4
GRATE (GRAY) WPL 74005301 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
5
SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability
5
END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability
5
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
PANEL, MANIFOLD (WHT) WPL 74003526 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
6
GLASS, INNER WPL 74003320 Contact Us For Availability
7
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
CLOCK (WHT) WPL 74003880 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
KNOB, VALVE (WHT) WPL 74005682 Contact Us For Availability
7
KNOB, VALVE (WHT) WPL 7733P08360 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
DOOR LATCH KIT WPL 12001942 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
8
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
8
LATCH ASSY. WPL 74003502 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
9
COVER, MAIN BACK (WIRE) WPL 74003816 Contact Us For Availability
9
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
9
BRACKET, CLOCK WPL 74004913 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
TRIM, VENT (GRY) WPL 74003519 Contact Us For Availability
9
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
10
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
BEZEL, KNOB (WHT) WPL 74005306 Contact Us For Availability
10
BEZEL, KNOB (WHT) WPL 7740P05960 Contact Us For Availability
10
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
11
LEVER, LATCH (GRY) WPL 74002974 Contact Us For Availability
11
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
11
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
11
BAFFLE, BROIL BURNER WPL 74009231 Contact Us For Availability
11
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74006422 Contact Us For Availability
12
COVER, BULB WPL 74003389 Contact Us For Availability
12
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
13
TUBING, REGULATOR/PIPE(3/8``) WPL 74006428 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
14
VALVE/REG. ASSEMBLY WPL 74007780 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
15
HARNESS, SPARK (4-OR) WPL 74005266 Contact Us For Availability
15
SUPPORT, VALVE REGULATOR WPL 74006324 Contact Us For Availability
15
TAPE WPL 74004075 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
FITTING ASSY., ORIFICE (LT) WPL 74003528 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 74004296 Contact Us For Availability
16
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
17
SHIELD, HEAT WPL 74006323 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 74003407 Contact Us For Availability
18
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
18
NUT, WING WPL 7103P03060 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
19
TUBING, BROIL FITTING WPL 74006430 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
BOX, VENT WPL 74006420 Contact Us For Availability
20
BURNER, BROIL WPL 74004076 Contact Us For Availability
20
INSULATION, OVEN WPL 74003503 Contact Us For Availability
21
STRAP, INSULATION WPL 74003385 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74004465 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
21
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
22
SCREW WPL 74004208 Contact Us For Availability
23
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 74004499 Contact Us For Availability
25
COVER, VALVE/REGULATOR WPL 74005465 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003869 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 74004945 Contact Us For Availability
NI
HARNESS, VALVE SWITCH/BBB WPL 74006516 Contact Us For Availability
NI
KIT, NAT TO LP WPL 74009913 Contact Us For Availability
× ![]()
