Model Electrolux CGR3600AS2 DRYER – Common Parts & Diagrams
01 - COVER
03 - CABINET

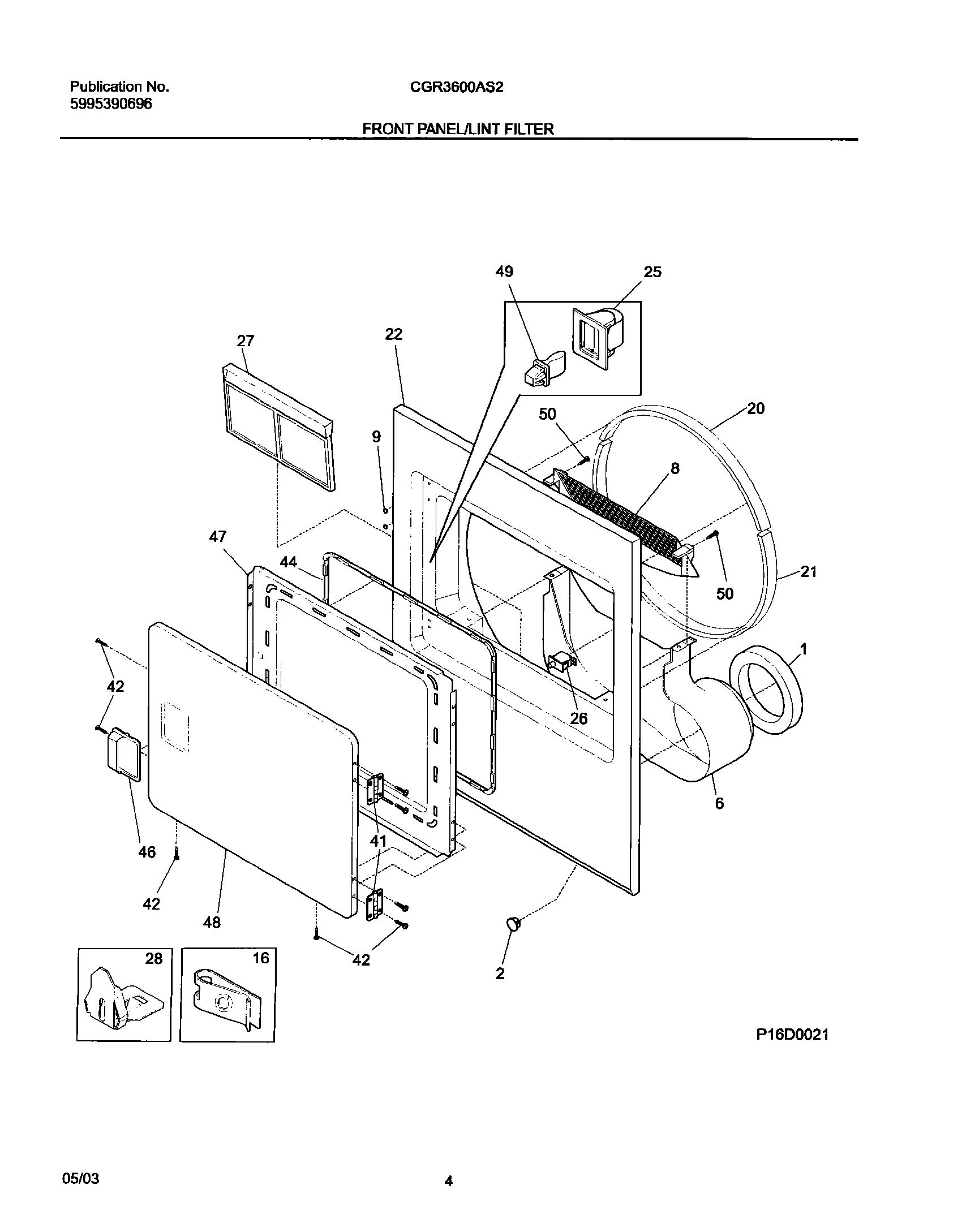

05 - FRONT

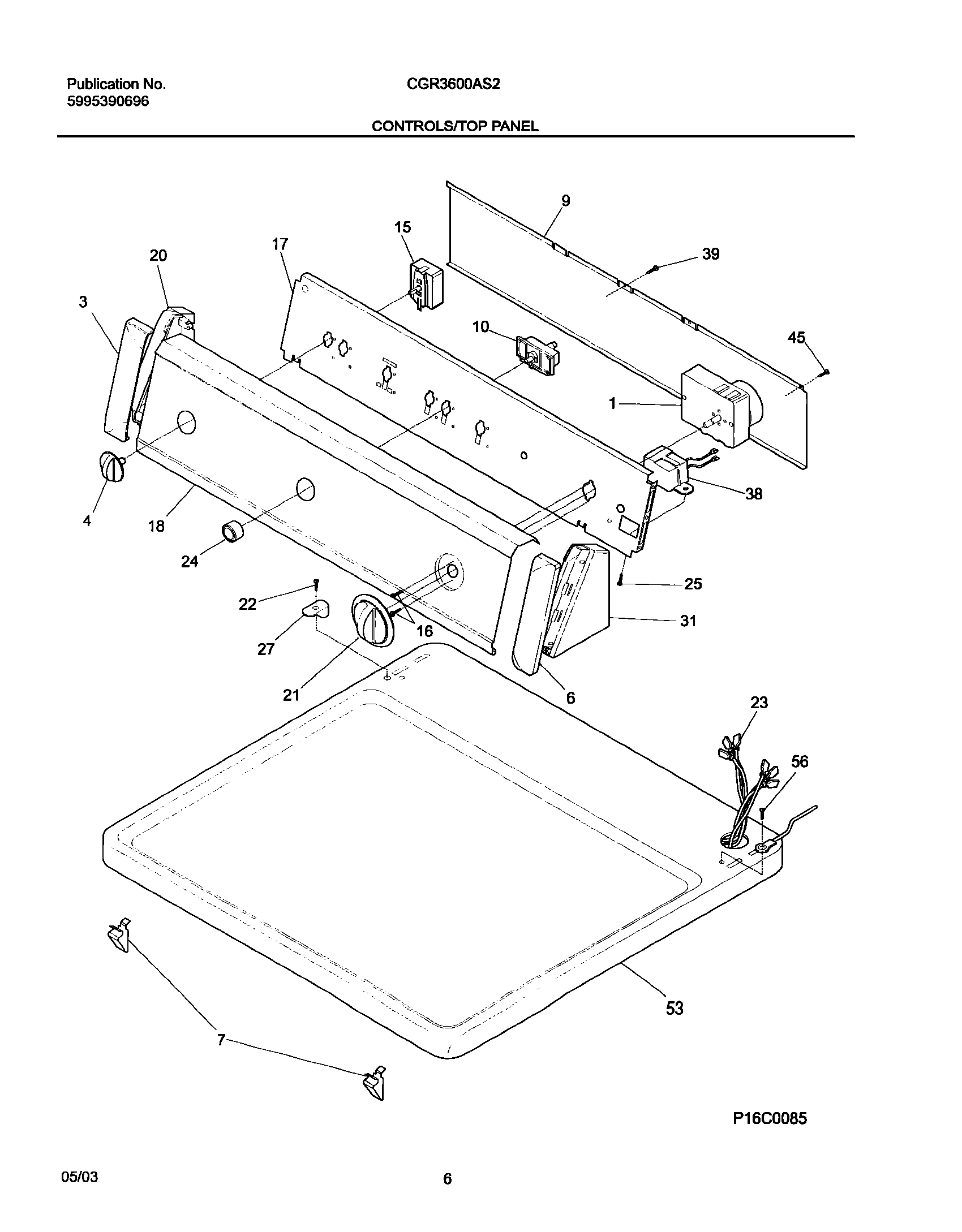

07 - CONTROLS

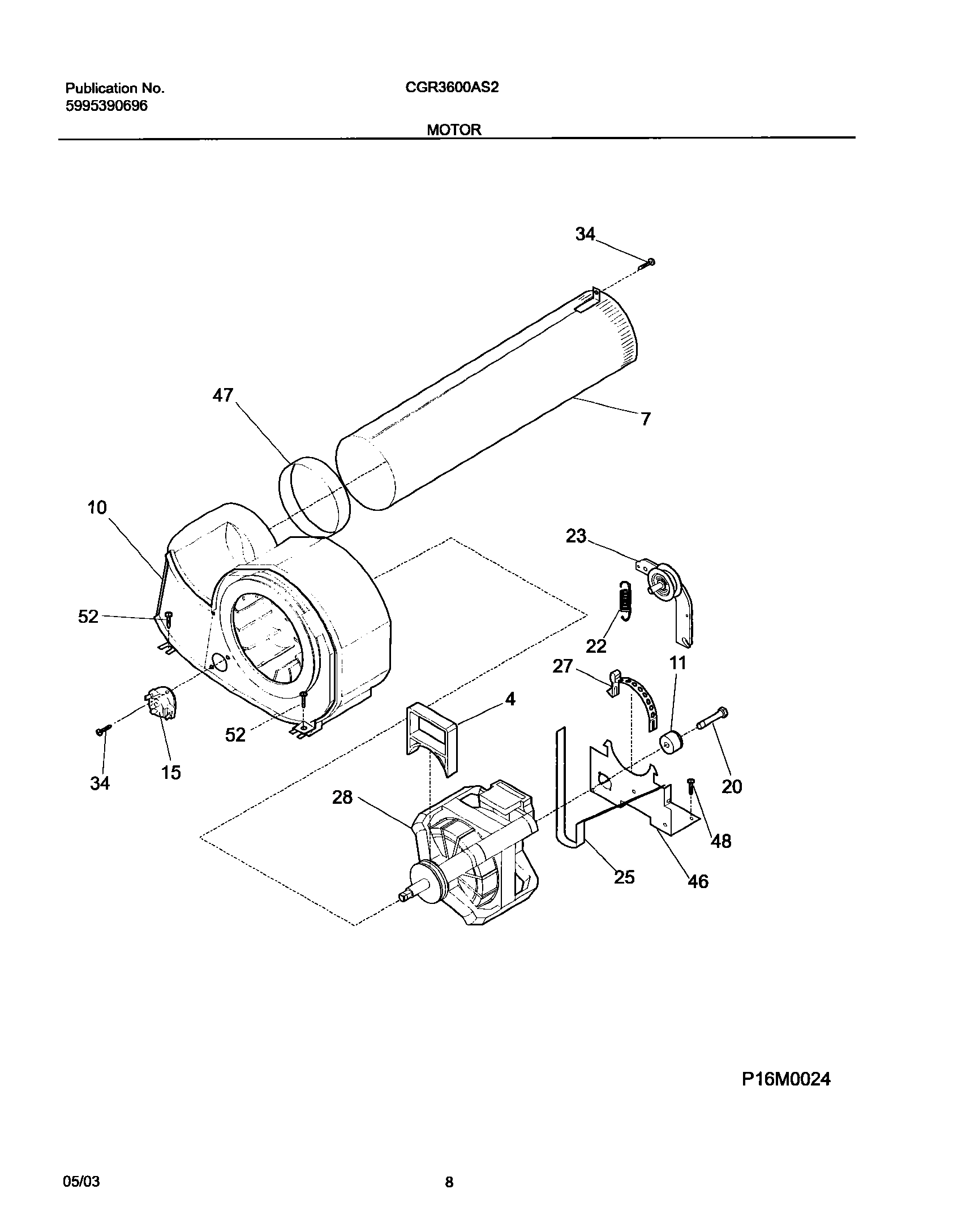

09 - MOTOR

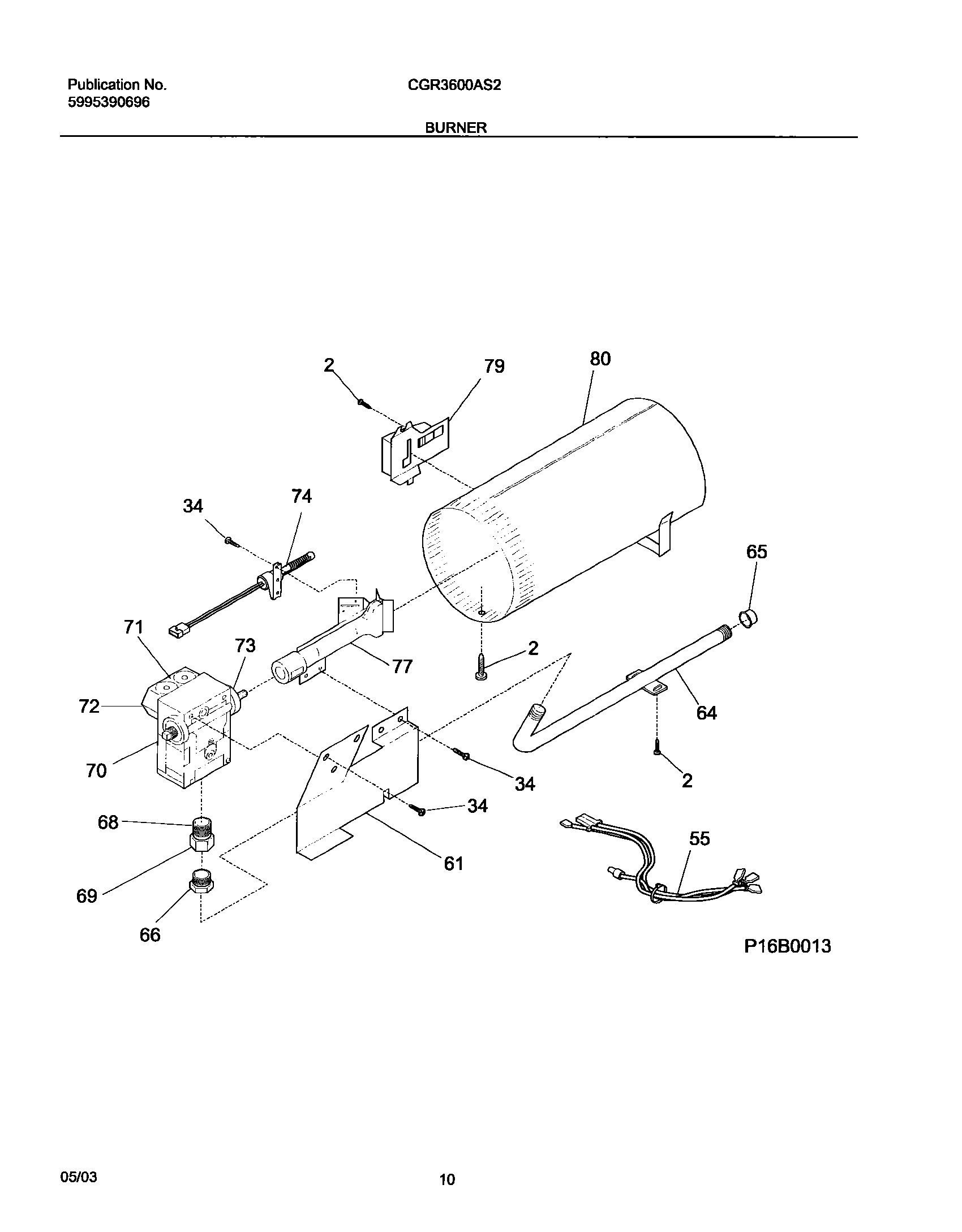

11 - BURNER

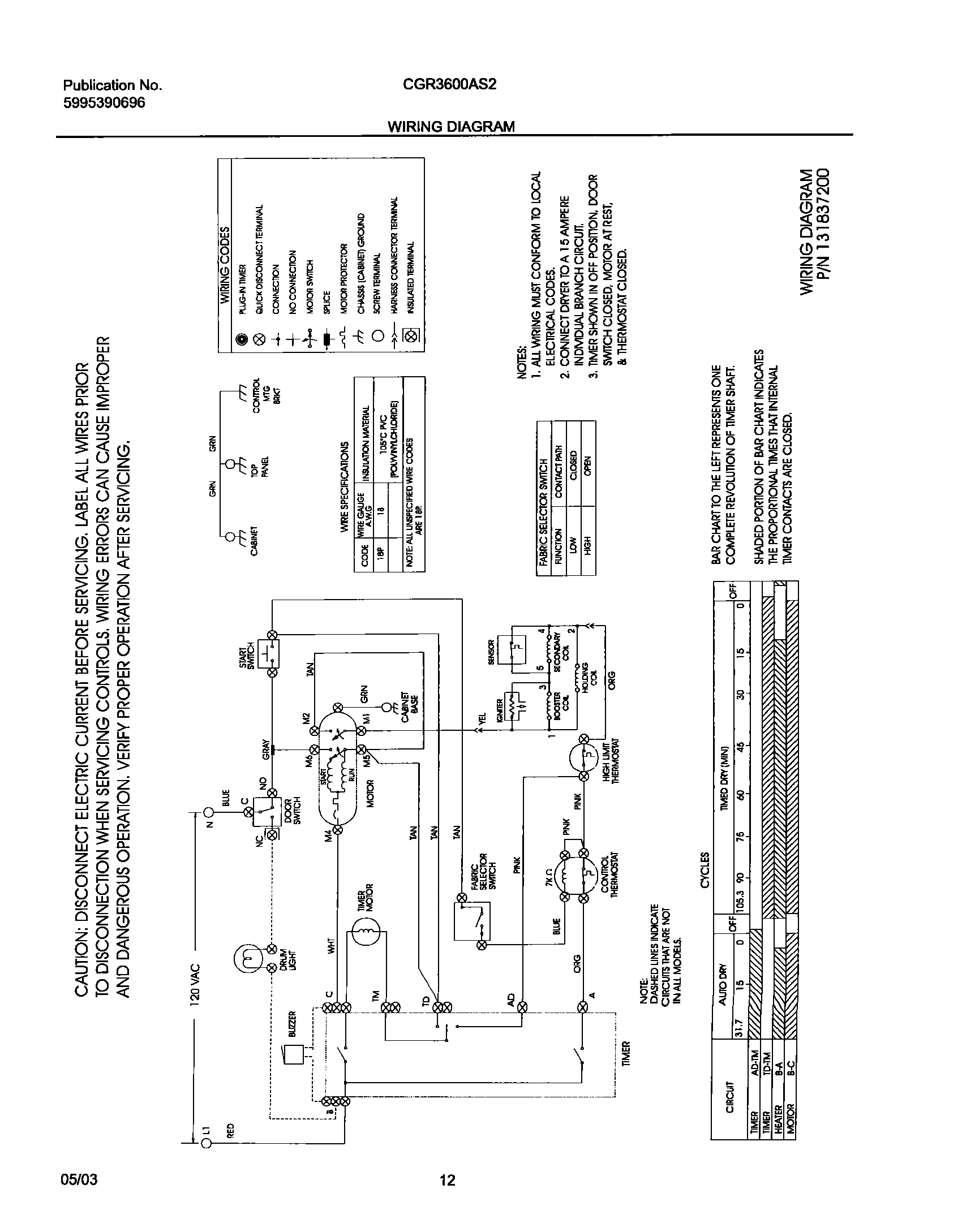

12 - WIRING DIAGRAM
Common parts from model Electrolux CGR3600AS2 DRYER
1
WCI 5303297139 WCI 5303297139 Contact Us For Availability
2
WCI 131397000 WCI 131397000 Contact Us For Availability
3
WCI 131122611 WCI 131122611 Contact Us For Availability
4
Lock,blower housing WCI 131435200 Contact Us For Availability
6
Clip,ball ,steel ,flat nut WCI 5303281020 Contact Us For Availability
6
WCI 131122601 WCI 131122601 Contact Us For Availability
7
Tube,exhaust ,rear ,w/mtg bracket WCI 131451600 Contact Us For Availability
8
WCI 131622202 WCI 131622202 Contact Us For Availability
9
WCI 131633200 WCI 131633200 Contact Us For Availability
10
Housing,blower assy ,cover & wheel WCI 131775600 Contact Us For Availability
10
WCI 131469000 WCI 131469000 Contact Us For Availability
11
WCI 131749800 WCI 131749800 Contact Us For Availability
14
Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq dri WCI 131205400 Contact Us For Availability
15
WCI 131298400 WCI 131298400 Contact Us For Availability
16
WCI 131063700 WCI 131063700 Contact Us For Availability
20
WCI 131122711 WCI 131122711 Contact Us For Availability
20
Screw,hex head ,1/4-20T x 1.25 ,spacer mtg.,t WCI 131017900 Contact Us For Availability
20
Bracket,hinge ,rear ,top panel mtg. WCI 131469100 Contact Us For Availability
21
WCI 134011703 WCI 134011703 Contact Us For Availability
21
WCI 134122532 WCI 134122532 Contact Us For Availability
22
Spring,idler arm WCI 131601000 Contact Us For Availability
22
WCI 131266330 WCI 131266330 Contact Us For Availability
24
Button-start switch,white WCI 131111501 Contact Us For Availability
27
CLIP-CONSOLE MTG WCI 131197000 Contact Us For Availability
27
Clamp,motor mtg. WCI 131419800 Contact Us For Availability
28
Motor,main drive ,w/pulley WCI 131560100 No Longer Available
28
WCI 5303281074 WCI 5303281074 Contact Us For Availability
29
Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,s WCI 131382300 Contact Us For Availability
31
WCI 131122701 WCI 131122701 Contact Us For Availability
32
WCI 131777700 WCI 131777700 Contact Us For Availability
33
WCI 5308015399 No Longer Available
38
WCI 5303210285 WCI 5303210285 Contact Us For Availability
45
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq dr WCI 131205100 Contact Us For Availability
46
WCI 134203400 WCI 134203400 Contact Us For Availability
47
WCI 131633300 WCI 131633300 Contact Us For Availability
47
WCI 131844104 WCI 131844104 Contact Us For Availability
48
WCI 131789303 WCI 131789303 Contact Us For Availability
55
WCI 134155800 WCI 134155800 Contact Us For Availability
56
Screw,pan hd locking ,8-32CA x 0.375 ,cup poi WCI 131243800 Contact Us For Availability
64
CLIP WCI 131704600 Contact Us For Availability
73
Orifice,natural gas ,size 44 WCI 5303207410 Contact Us For Availability
NI
Tube,exhaust ,side/bottom ,Optional Kit WCI 131456800 Contact Us For Availability
NI
WCI 131474700 WCI 131474700 Contact Us For Availability
× ![]()
