Model Maytag CGR3300XDW0 GAS RANGE – Common Parts & Diagrams

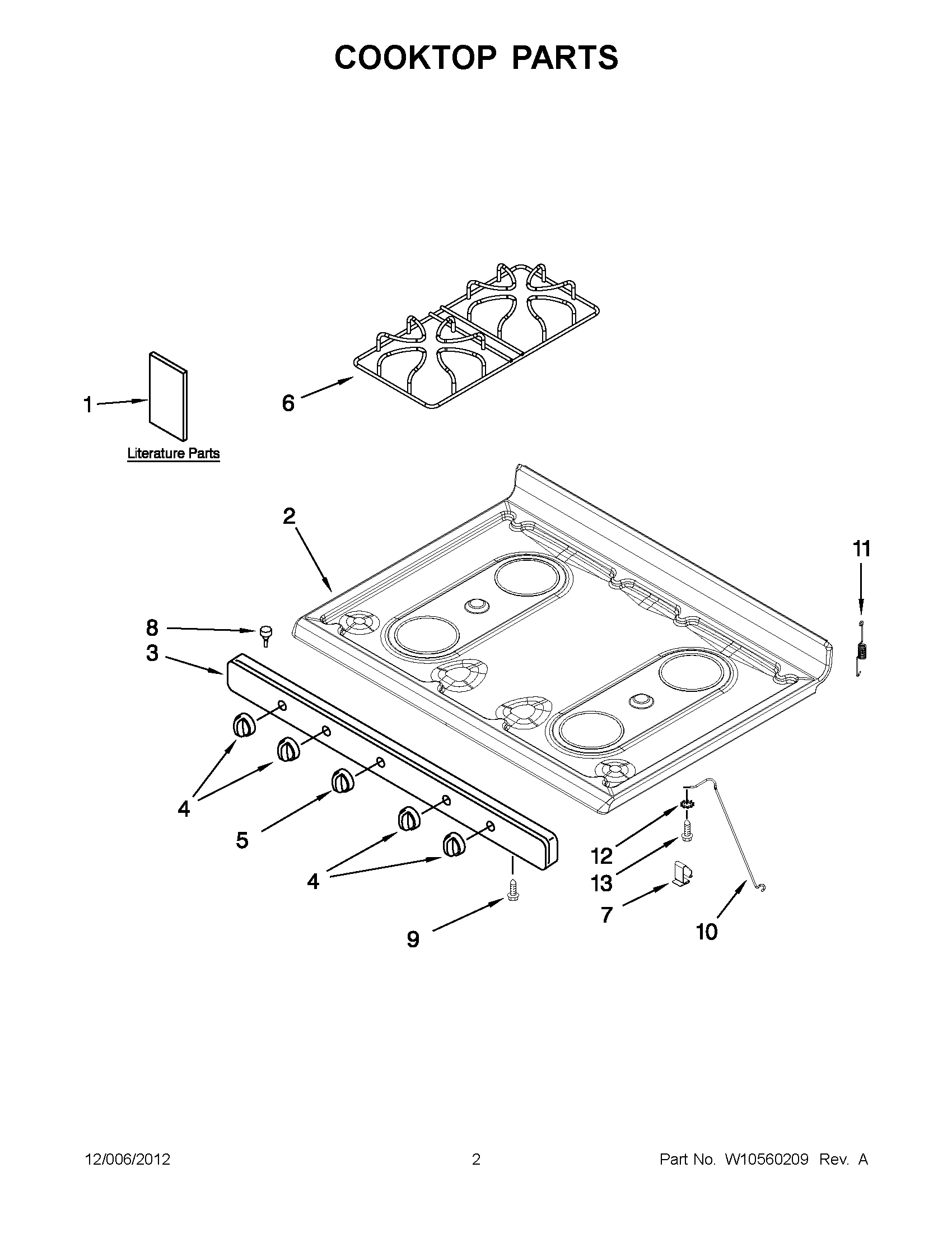

01 - COOKTOP PARTS

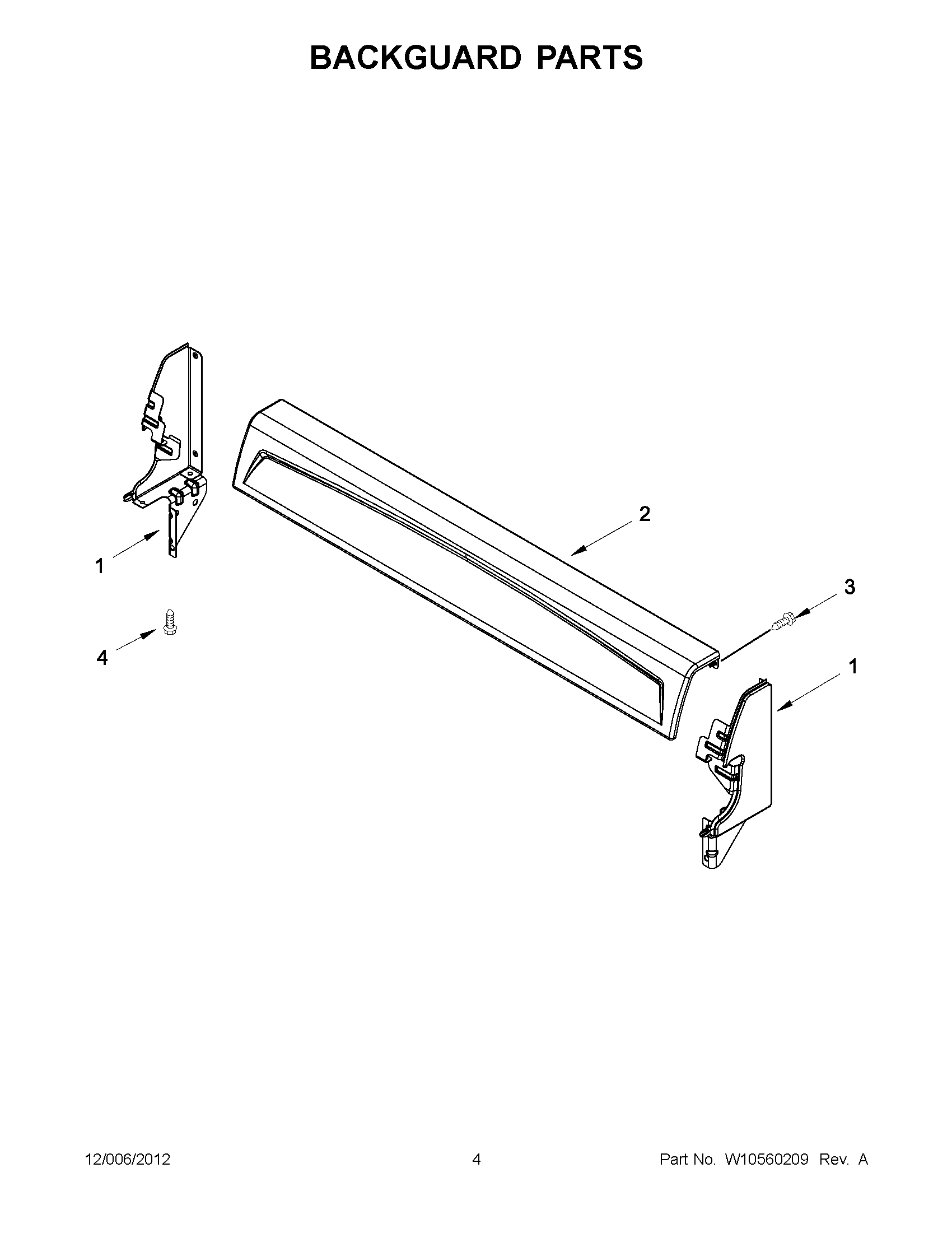

02 - BACKGUARD PARTS
03 - MANIFOLD PARTS
04 - CHASSIS PARTS
05 - OVEN AND BROILER PARTS
06 - DOOR PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag CGR3300XDW0 GAS RANGE
1
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10325493 MAY W10325493 Contact Us For Availability
1
MAY W10330186 MAY W10330186 Contact Us For Availability
1
ENDCAP (WHITE LEFT HAND) MAY W10144828 Contact Us For Availability
1
ENDCAP (WHITE RIGHT HAND) MAY W10144829 Contact Us For Availability
1
MAY W10128110 MAY W10128110 Contact Us For Availability
1
BOX, FLUE MAY W10116396 Contact Us For Availability
1
MAY W10312013 MAY W10312013 Contact Us For Availability
1
MAY 8533842 MAY 8533842 Contact Us For Availability
2
MAY W10141521 MAY W10141521 Contact Us For Availability
2
PANEL, BACKGUARD MAY 98009818 Contact Us For Availability
2
MAY W10119798 MAY W10119798 Contact Us For Availability
2
MAY 98013690 MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
MAY 98008699 MAY 98008699 Contact Us For Availability
3
MAY W10323490 MAY W10323490 Contact Us For Availability
3
SCREW MAY 98005000 Contact Us For Availability
3
BRACKET, BURNER MAY W10119802 Contact Us For Availability
3
BOX-BURNER MAY W10119764 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
MAY 98017966 MAY 98017966 Contact Us For Availability
4
KNOB, BURNER (WHITE) MAY 98006102 Contact Us For Availability
4
Screw MAY 98015526 Contact Us For Availability
4
SCREW MAY 98017517 Contact Us For Availability
4
WHITE MAY 98010042 Contact Us For Availability
4
MAY 98016570 MAY 98016570 Contact Us For Availability
4
INSULATION, OVEN DOOR MAY W10137223 Contact Us For Availability
5
KNOB, OVEN (WHITE) MAY 98008321 Contact Us For Availability
5
MAY 98005502 MAY 98005502 Contact Us For Availability
5
MAY 98004761 MAY 98004761 Contact Us For Availability
5
HINGE, DOOR (OVEN DOOR) MAY 98017873 Contact Us For Availability
5
HINGE, DOOR (OVEN DOOR) MAY 98017875 Contact Us For Availability
6
GRATE, BURNER (BLACK) MAY W10180089 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
GUIDE, RACK MAY 98004715 Contact Us For Availability
6
PANEL-DOOR MAY 98017968W Contact Us For Availability
7
MAY 98004722 MAY 98004722 Contact Us For Availability
7
MAY W10119804 MAY W10119804 Contact Us For Availability
7
MAY 98006739 MAY 98006739 Contact Us For Availability
7
BUMPER, DOOR MAY 98004052 Contact Us For Availability
7
RETAINER, INSULATION UPPER MAY 98017250 Contact Us For Availability
8
MAY 98004723 MAY 98004723 Contact Us For Availability
8
VALVE, BURNER MAY W10121580 Contact Us For Availability
8
MAY W10166434 MAY W10166434 Contact Us For Availability
8
MAY 98017915W MAY 98017915W Contact Us For Availability
9
MAY W10121631 MAY W10121631 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
LINER, BROILER DOOR MAY W10162115 Contact Us For Availability
9
BRACKET, HANDLE MAY 98017967 Contact Us For Availability
10
ROD, SUPPORT LEFT HAND MAY W10143497 Contact Us For Availability
10
ROD, SUPPORT RIGHT HAND MAY W10156802 Contact Us For Availability
10
MAY W10119799 MAY W10119799 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
10
HINGE, BROILER DOOR MAY W10201341 Contact Us For Availability
10
MAY 98004993 MAY 98004993 Contact Us For Availability
11
SPRING, COOKTOP MAY W10132429 Contact Us For Availability
11
MAY 98004449 MAY 98004449 Contact Us For Availability
11
WHITE MAY 98006727 Contact Us For Availability
11
INSULATION, BROILER DOOR MAY W10137230 Contact Us For Availability
12
WASHER, LOCK MAY 98016879 Contact Us For Availability
12
MAY 98005514 MAY 98005514 Contact Us For Availability
12
MAY 98005642 MAY 98005642 Contact Us For Availability
12
WHITE MAY 98009342 Contact Us For Availability
12
RETAINER (RIGHT HAND) MAY 98004564 Contact Us For Availability
12
RETAINER (LEFT HAND) MAY 98004629 Contact Us For Availability
13
SCREW MAY 98014402 Contact Us For Availability
13
MAY W10121620 MAY W10121620 Contact Us For Availability
13
MAY 98003847 MAY 98003847 Contact Us For Availability
13
HANDLE, BROILER DRAWER (WHITE) MAY 98008486 Contact Us For Availability
13
MAY 98004219 MAY 98004219 Contact Us For Availability
14
MAY W10155906 MAY W10155906 Contact Us For Availability
14
MAY 98003830 MAY 98003830 Contact Us For Availability
14
MAY 98008341 MAY 98008341 Contact Us For Availability
15
Screw MAY 98006633 Contact Us For Availability
15
TUBING, THERMOSTAT TO PILOT MAY 98004310 Contact Us For Availability
15
MAY 98012175 MAY 98012175 Contact Us For Availability
16
MAY 98007109 MAY 98007109 Contact Us For Availability
17
MAY 98013314 MAY 98013314 Contact Us For Availability
17
MAY 98005713 MAY 98005713 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
18
MAY W10116419 MAY W10116419 Contact Us For Availability
19
MAY W10085400 MAY W10085400 Contact Us For Availability
19
BAFFLE, SIDE MAY W10164109 Contact Us For Availability
20
MAY 98015100 MAY 98015100 Contact Us For Availability
21
MAY 98007116 MAY 98007116 Contact Us For Availability
21
MAY W10217472 MAY W10217472 Contact Us For Availability
23
SPREAD, FLAME (BAKE) MAY 98015099 Contact Us For Availability
24
MAY W10434312 MAY W10434312 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
26
SEAL, BROILER DOOR MAY 98017162 Contact Us For Availability
27
MAY 98007191 MAY 98007191 Contact Us For Availability
29
SCREW, TRIM MAY 98008545 Contact Us For Availability
30
MAY 98005026 MAY 98005026 Contact Us For Availability
31
FOIL, SIDE MAY 98015346 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
MAY 98004447 MAY 98004447 Contact Us For Availability
34
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
34
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
35
MAY 98005768 MAY 98005768 Contact Us For Availability
36
MAY 98015363 MAY 98015363 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10121808 Contact Us For Availability
NI
MAY W10137227 MAY W10137227 Contact Us For Availability
NI
MAY W10137233 MAY W10137233 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
NI
WIRING HARNESS PARTS, BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
MAY W10233413 MAY W10233413 Contact Us For Availability
× ![]()
