Model Whirlpool CGL1120ADH GAS RANGE – Common Parts & Diagrams

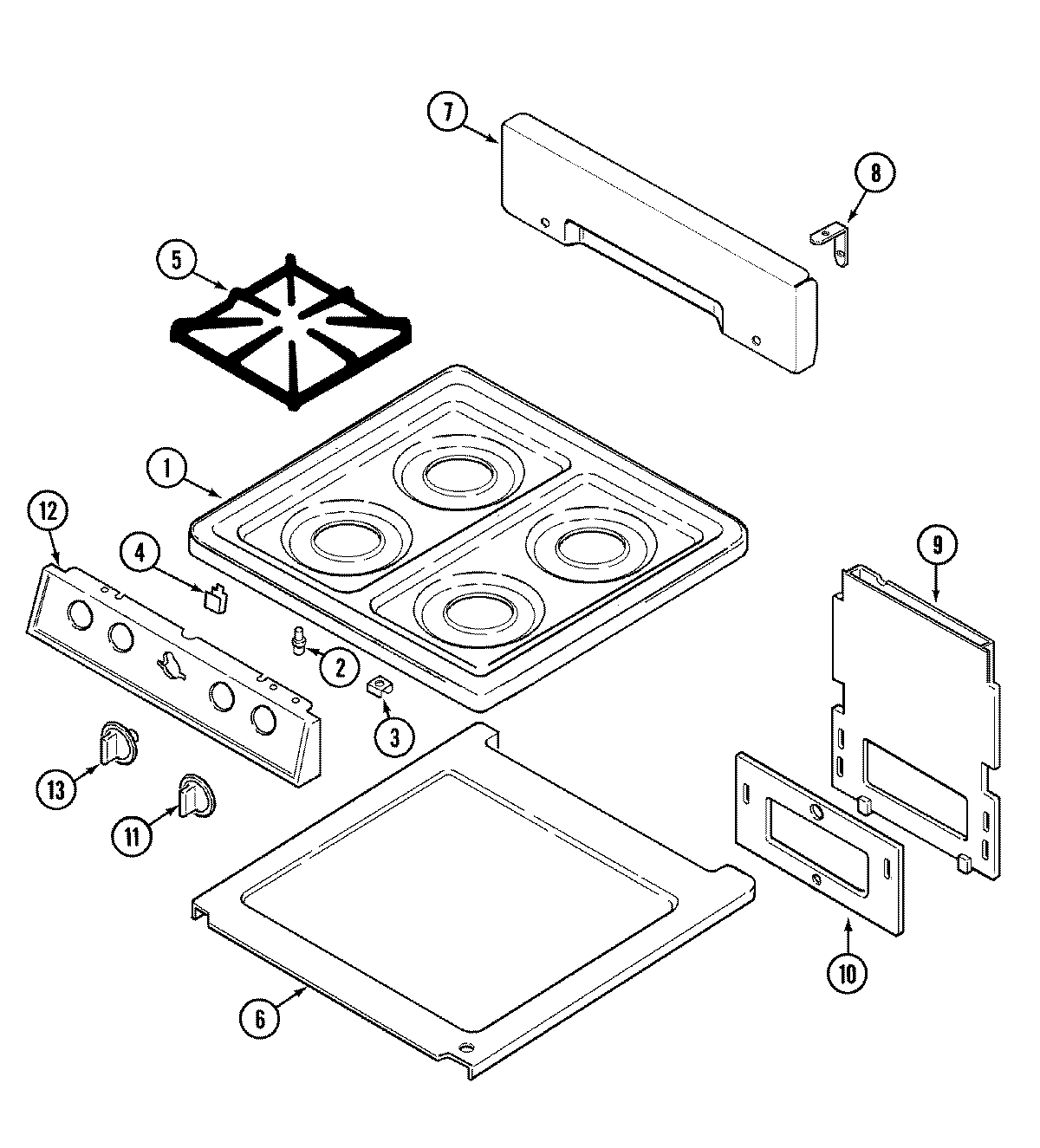

04 - TOP ASSEMBLY

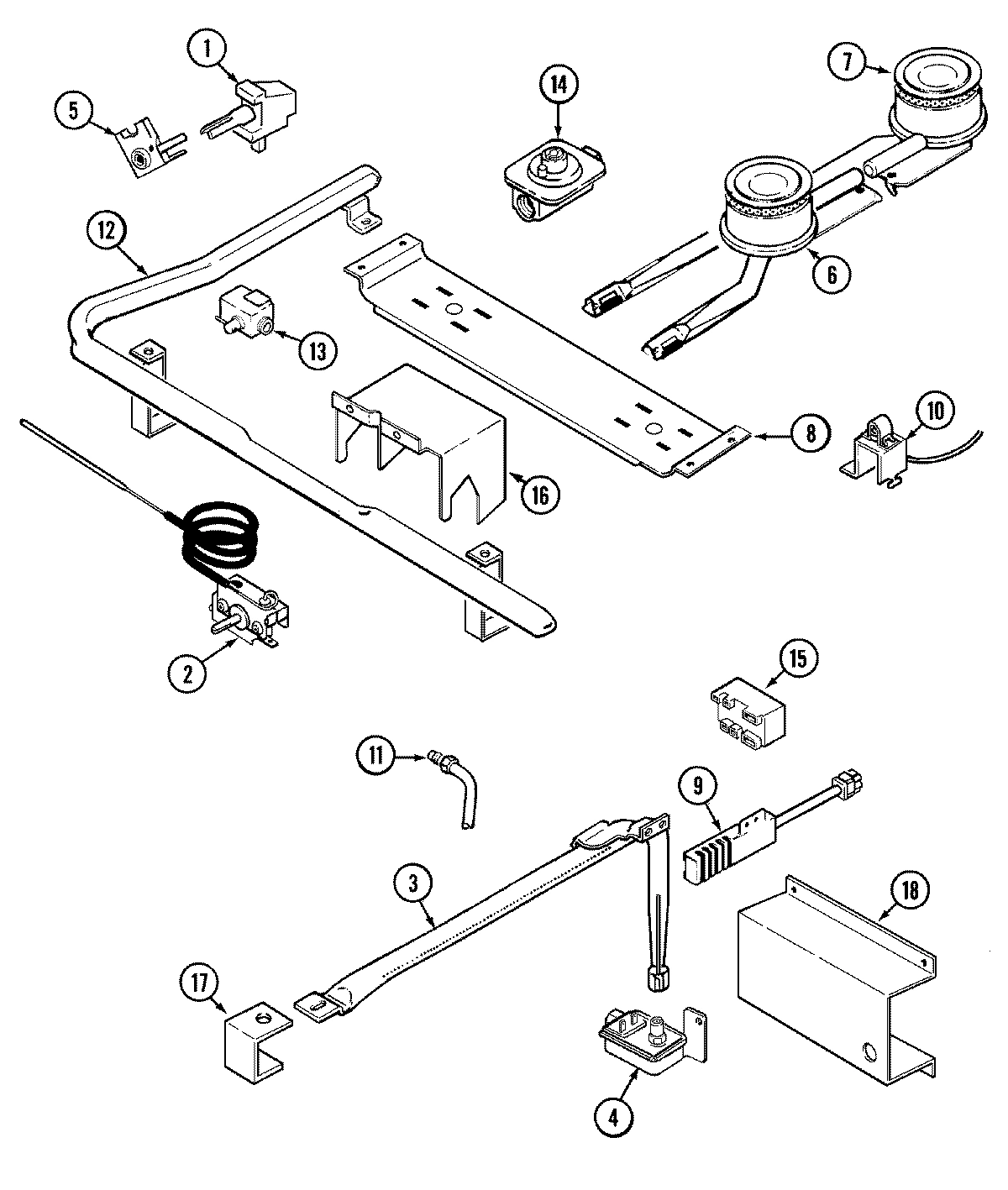

03 - GAS CONTROLS
05 - WIRING INFORMATION

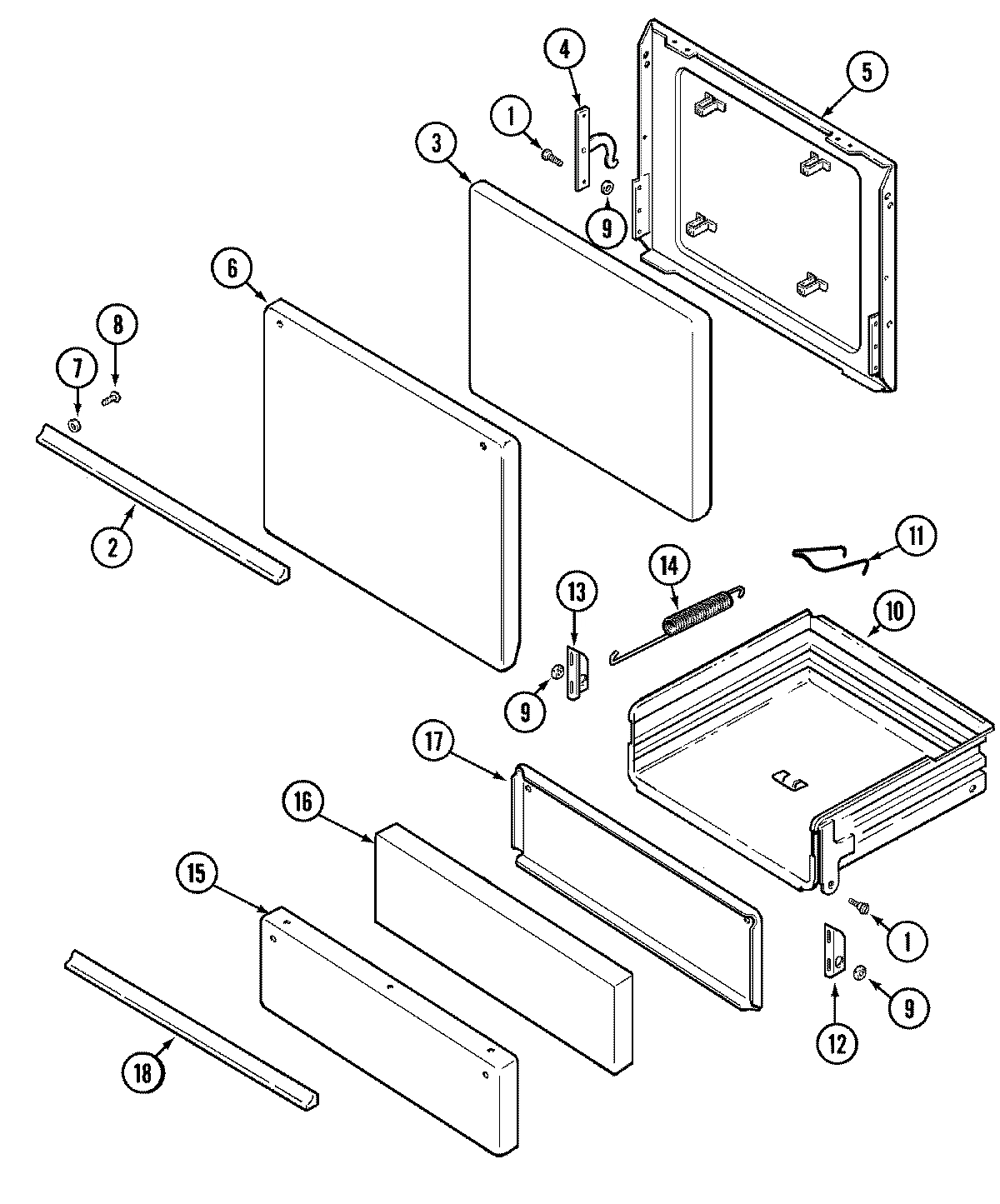

02 - DOOR/DRAWER

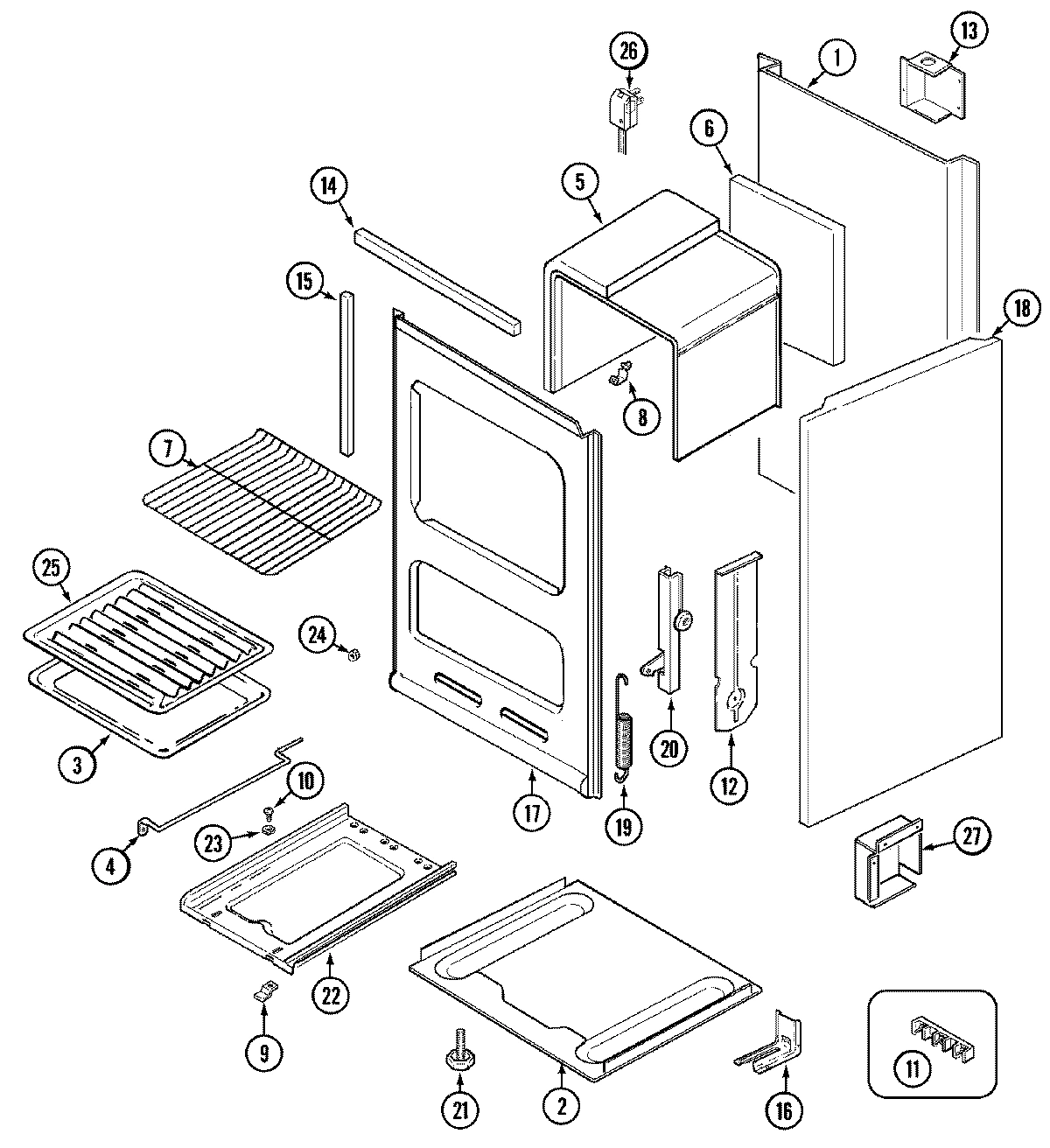

01 - BODY/OVEN
Common parts from model Whirlpool CGL1120ADH GAS RANGE
1
TOP, MAIN (WHT) WPL 2001F05081 Contact Us For Availability
1
NUT, PROJECTION WELD WPL 7103P08960 Contact Us For Availability
1
KIT, VALVE & SCREW (MUELLER) WPL 12002244 Contact Us For Availability
1
VALVE, TOP BURNER WPL 74003303 Contact Us For Availability
1
BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability
1
BACK, MAIN WPL 74003298 Contact Us For Availability
1
BACK, MAIN WPL 74006885 Contact Us For Availability
2
STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
HANDLE, DOOR (CHR)----NA WPL 74001871 Contact Us For Availability
2
BASE, MAIN WPL 4003A01480 Contact Us For Availability
3
NUT, STRIKE WPL 7103P10560 Contact Us For Availability
3
BURNER, OVEN WPL 3403D04845 Contact Us For Availability
3
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
3
PAN, BROILER WPL 3401F01619 Contact Us For Availability
4
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
4
VALVE, OVEN WPL 74003311 Contact Us For Availability
4
VALVE, SAFETY WPL 74007335 Contact Us For Availability
4
HINGE, OVEN DOOR WPL 3418F05334 Contact Us For Availability
4
NUT LOCK WPL 7103P07260 Contact Us For Availability
4
ROD, BROILER RUNNER (LT) WPL 3808F00761 Contact Us For Availability
4
ROD, BROILER RUNNER (RT) WPL 3808F00861 Contact Us For Availability
4
SCREW WPL 7101P06860 Contact Us For Availability
5
SCREW WPL 7101P35660 Contact Us For Availability
5
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
5
SWITCH, SPARK IGNITOR ASSY. WPL 74009415 Contact Us For Availability
5
LINING, DOOR WPL 2402W10219 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 7002P08360 Contact Us For Availability
6
BOX, BURNER WPL 74003292 Contact Us For Availability
6
BURNER, TOP (FRT) WPL 74003299 Contact Us For Availability
6
PANEL, OVEN DOOR (WHT) WPL 2401W05971 Contact Us For Availability
6
SCREW WPL 7101P05960 Contact Us For Availability
6
INSULATION, OVEN BACK WPL 7002P09160 Contact Us For Availability
7
PANEL, CONTROL (BLK) WPL 74003293 Contact Us For Availability
7
BURNER, TOP (REAR) WPL 74003300 Contact Us For Availability
7
RACK, OVEN WPL 7801P01960 Contact Us For Availability
8
BRACKET, SUPPORT WPL 74003271 Contact Us For Availability
8
SUPPORT, TOP BURNER WPL 74003308 Contact Us For Availability
8
SUPPORT, TOP BURNER WPL 74010147 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
DEFLECTOR, VENT BOX WPL 74003294 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
CLIP, OVEN BOTTOM PL WPL 3819F01161 Contact Us For Availability
10
GASKET, VENT DEFLECT WPL 7201P03860 Contact Us For Availability
10
IGNITER, TOP BURNER (RT) WPL 74004467 Contact Us For Availability
10
IGNITER, TOP BURNER (LT) WPL 74004468 Contact Us For Availability
10
IGNITER, TOP BURNER (RT) WPL 7432P02860 Contact Us For Availability
10
IGNITER, TOP BURNER (LT) WPL 7432P02960 Contact Us For Availability
10
DRAWER, BROILER WPL 3407W00519 Contact Us For Availability
10
SCREW WPL 7118P00460 Contact Us For Availability
11
KNOB, VALVE (BLK) WPL 74003297 Contact Us For Availability
11
TUBING, OVEN (3/8``) WPL 3414F08544 Contact Us For Availability
11
STOP, BROILER DRAWER WPL 7809P00460 Contact Us For Availability
12
NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability
12
PANEL, MANIFOLD (BLK) WPL 74003295 Contact Us For Availability
12
PANEL, MANIFOLD (BLK) WPL 74005225 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74003309 Contact Us For Availability
12
HINGE, BROILER DRAWER (RT) WPL 3418F03580 Contact Us For Availability
12
CHANNEL AIR SIDE WPL 3818F03451 Contact Us For Availability
13
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
13
KNOB, THERMOSTAT (BLK) WPL 74003909 Contact Us For Availability
13
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
13
HINGE, BROILER DRAWER (LT) WPL 3418F03480 Contact Us For Availability
13
COVER, WIRE WPL 74003306 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
14
SPRING, BROILER DRAWER WPL 7803P06860 Contact Us For Availability
14
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
15
COVER, SPARK MODULE WPL 4005F31945 Contact Us For Availability
15
MODULE, SPARK (2+0) WPL 74004282 Contact Us For Availability
15
COVER, SPARK MODULE WPL 74006886 Contact Us For Availability
15
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 2403W01971 Contact Us For Availability
15
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
16
COVER, THERMOSTAT WPL 74003310 Contact Us For Availability
16
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
16
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
17
SUPPORT, BURNER WPL 3807F33651 Contact Us For Availability
17
LINING DOOR BROILER WPL 2404F02219 Contact Us For Availability
17
FRONT, MAIN WPL 2201W08919 Contact Us For Availability
17
NUT 10-24 WPL 7103P07160 Contact Us For Availability
18
SUPPORT, OVEN VALVE WPL 3807F36945 Contact Us For Availability
18
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
18
PANEL, SIDE (WHT) WPL 74003185 Contact Us For Availability
19
KIT, NATURAL TO LP WPL 74009923 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
20
SCREW WPL 7101P07260 Contact Us For Availability
20
SUPPORT, HINGE (LT) WPL 3807F29034 Contact Us For Availability
20
SUPPORT, HINGE (RT) WPL 3807F29134 Contact Us For Availability
20
SCREW, W/WASHER WPL 7101P18860 Contact Us For Availability
20
NUT WPL 7103P06460 Contact Us For Availability
21
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
22
PLATE, OVEN BOTTOM WPL 5720A00323 Contact Us For Availability
23
WASHER, ALUM WPL 71001403 Contact Us For Availability
24
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
25
INSERT PAN WPL 3413F00719 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
26
TERMINAL .250 MALE WPL 74002814 Contact Us For Availability
26
CORD, POWER WPL 7402P04360 Contact Us For Availability
26
MALE PIN TERMINAL WPL 7405P01660 Contact Us For Availability
27
COVER, MODULE SPARK WPL 4005F31851 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 74002356 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003054 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001858 Contact Us For Availability
× ![]()
