Model Electrolux CGEF306TPFA RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - BACKGUARD

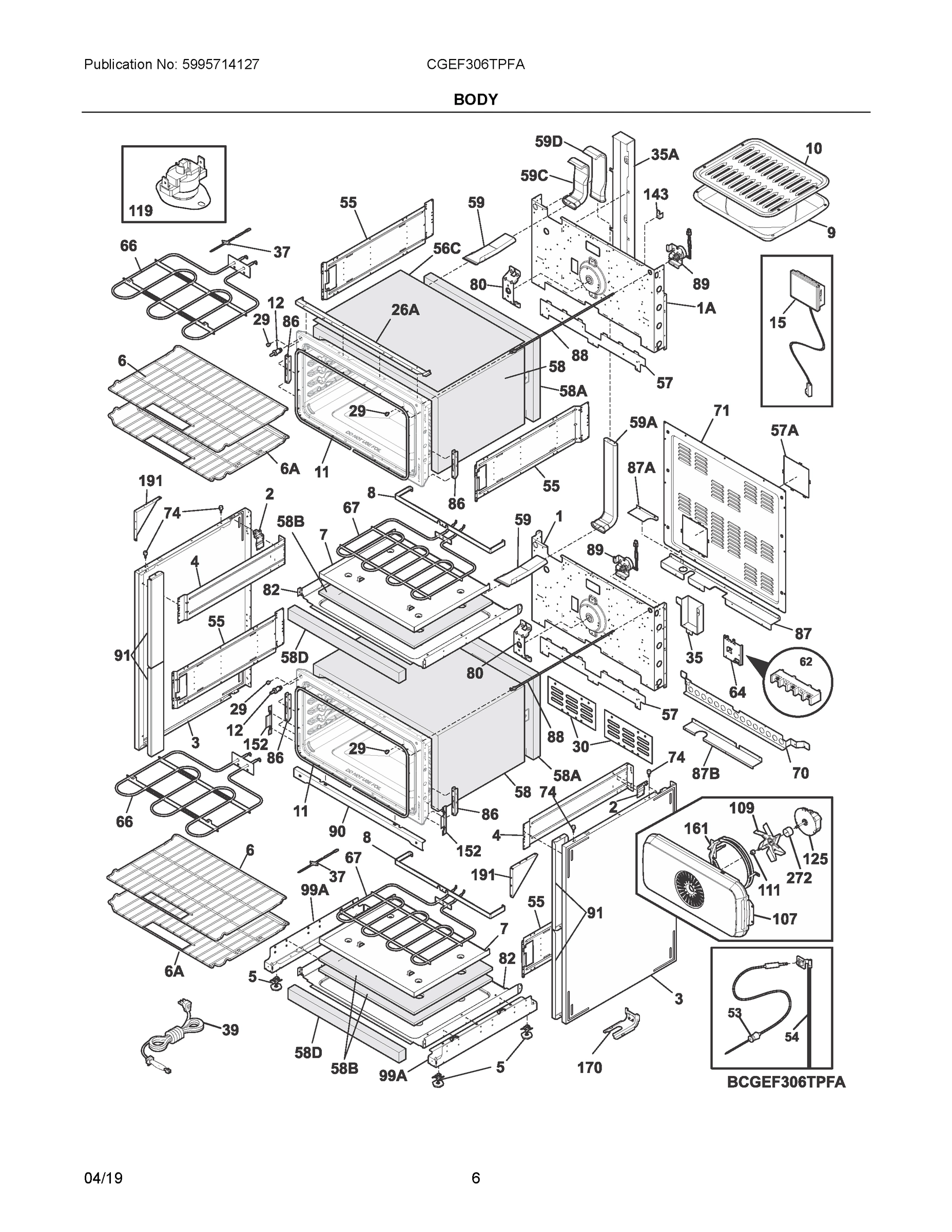

03 - BODY

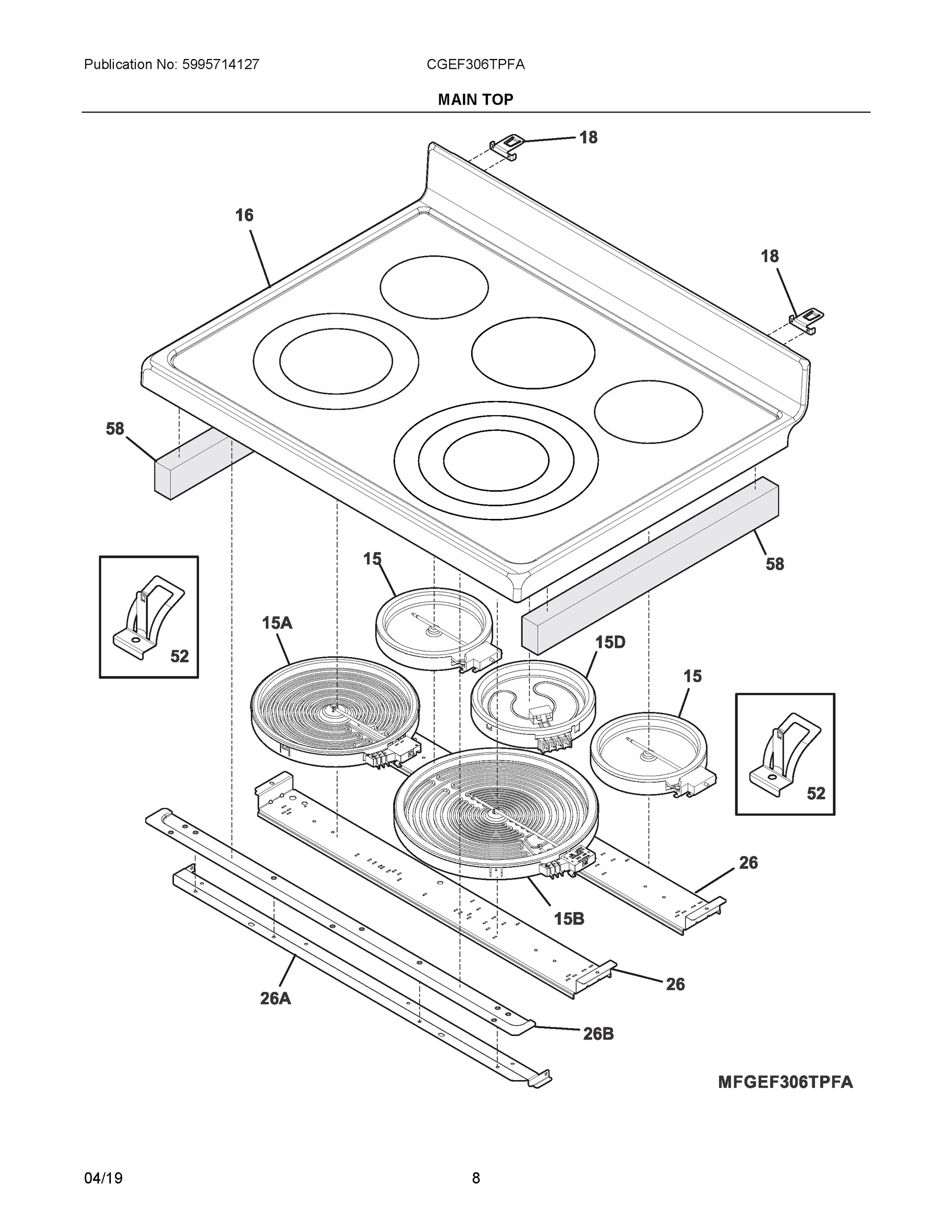

04 - MAIN TOP

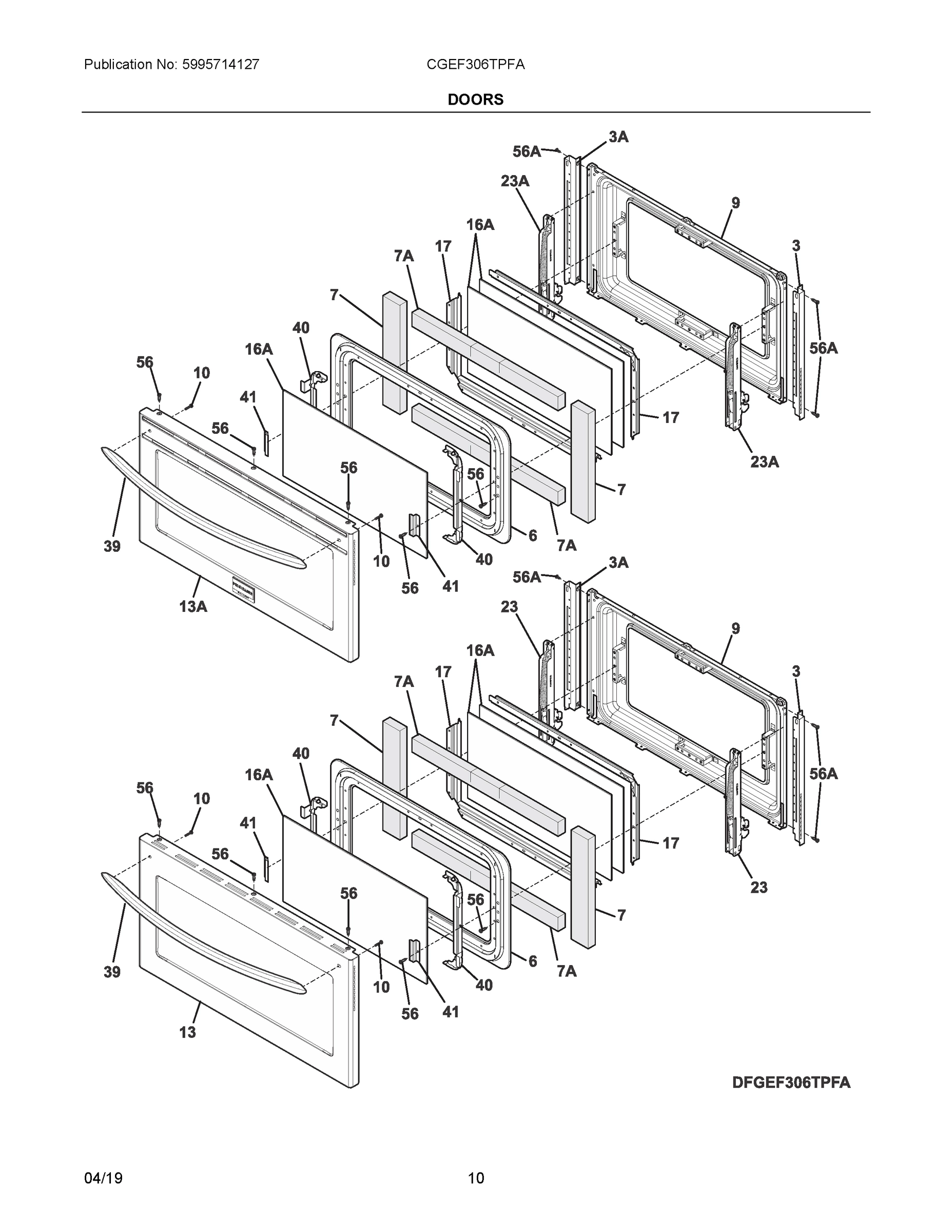

05 - DOORS

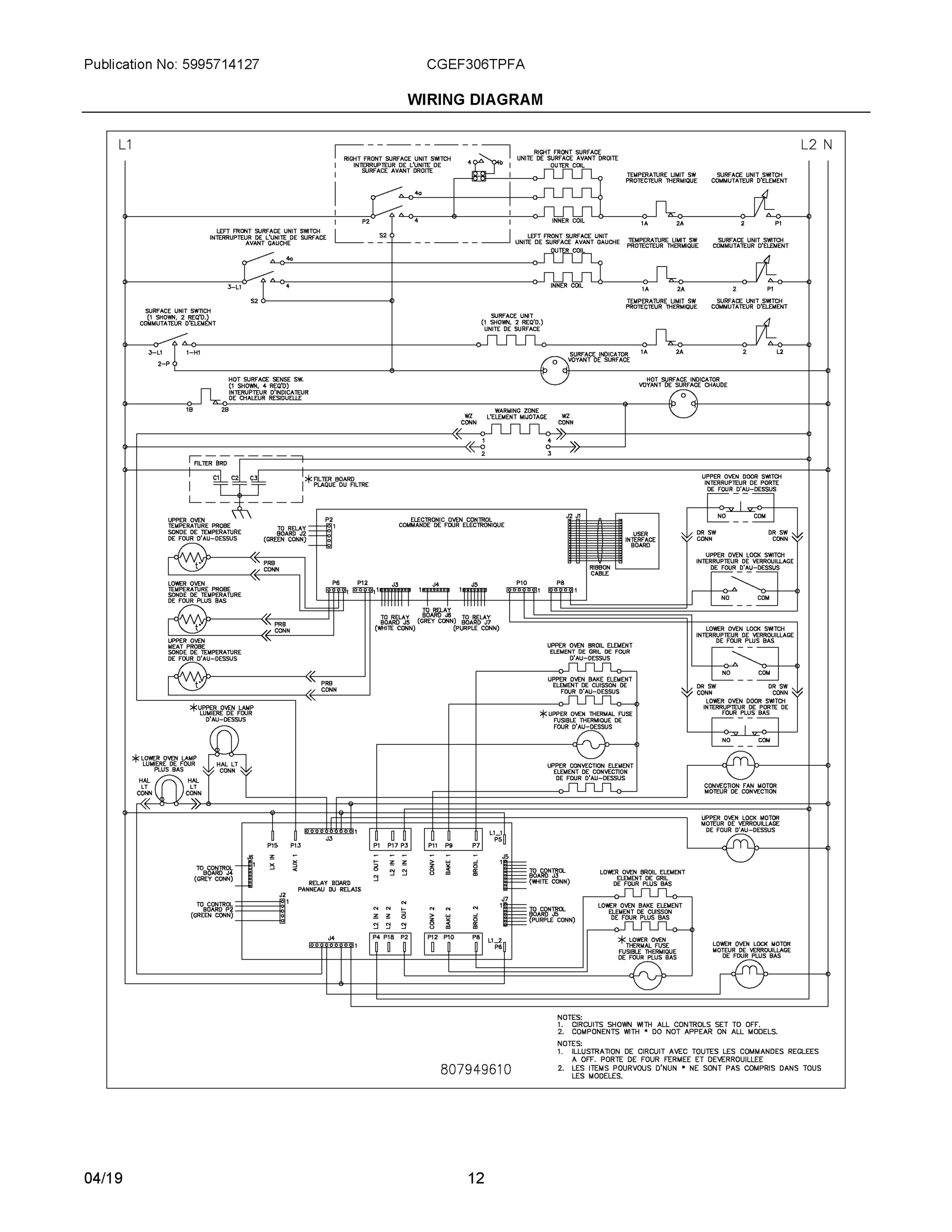

06 - WIRING DIAGRAM

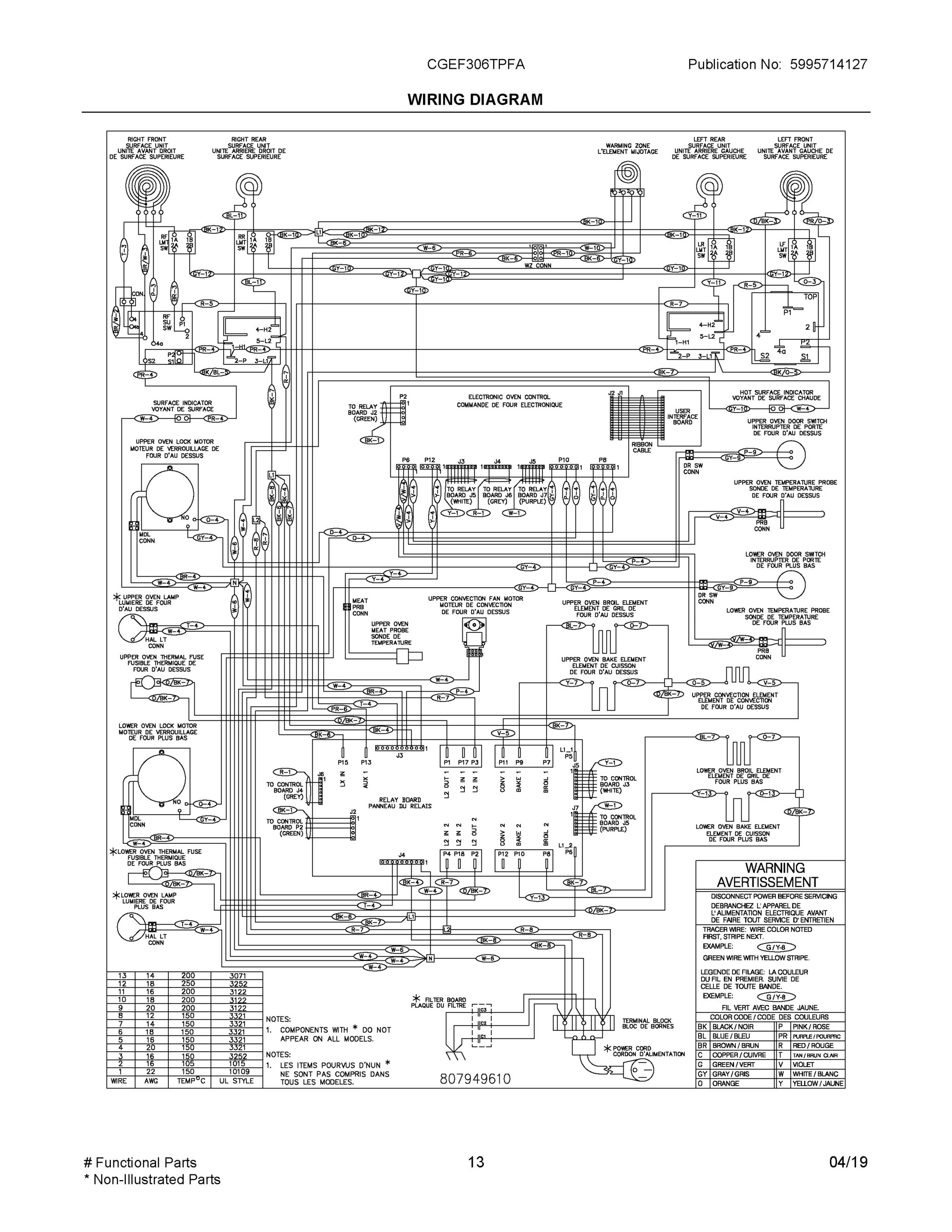

07 - WIRING DIAGRAM
Common parts from model Electrolux CGEF306TPFA RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
SHIELD, REAR WALL WCI 316557600 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 139011600 Contact Us For Availability
6A
RACK, OVEN, OFFSET, W/HANDLE WCI 139012400 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7A
INSUALTION, OVEN DOOR, TOP/BOTTOM WCI 808949801 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 318138801 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 139098502 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, LOWER WCI 807939204 Contact Us For Availability
13A
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, UPPER WCI 807939203 Contact Us For Availability
14A
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, 26" HARNESS, W/G9 40W WCI 139001800 Contact Us For Availability
15
END CAP, BACKGUARD, BLACK, RH WCI 807437103 Contact Us For Availability
15A
END CAP, BACKGUARD, BLACK, LH WCI 807437104 Contact Us For Availability
15B
ELEMENT, SURFACE, TRIPLE, 800/1000/1200, 6"/8 WCI 318297810 Contact Us For Availability
16
SMOOTHTOP ASSEMBLY, GLASS/STEEL, BLACK WCI 139033846 Contact Us For Availability
16A
GLASS, OVEN DOOR, HEAT BARRIER, HBII WCI 318212216 Contact Us For Availability
18
HINGE BRACKET, MAINTOP, (2) WCI 316436600 Contact Us For Availability
19
PANEL, BACKGUARD, STAINLESS WCI 316572447 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, BLACK, W/MEMBRANE WCI 139092900 Contact Us For Availability
21
CAP, BACKGUARD, BLACK, TOP WCI 316546601 Contact Us For Availability
36
KNOB, CONTROL, STAINLESS, (5) WCI 316564407 Contact Us For Availability
41
BRACKET, GLASS PANEL, (2) WCI 318370602 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54A
SWITCH, INFINITE, TRIPLE WCI 5304490134 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
67
ELEMENT, BAKE, 250 WCI 139211601 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
86
WCI 318561100 WCI 318561100 Contact Us For Availability
88
WCI 318250207 WCI 318250207 Contact Us For Availability
89
WCI 318095967 WCI 318095967 Contact Us For Availability
90
WCI 318405203 WCI 318405203 Contact Us For Availability
97B
BOARD, RELAY, DUAL OVEN WCI 316443939 Contact Us For Availability
107
WCI 5304494168 WCI 5304494168 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
119
WCI 318004902 WCI 318004902 Contact Us For Availability
125
WCI 139008500 WCI 139008500 Contact Us For Availability
170
WCI 318584501 WCI 318584501 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
NI
WCI 316021105 WCI 316021105 Contact Us For Availability
NI
WCI 316303501 WCI 316303501 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NIA
WCI 318946400 WCI 318946400 Contact Us For Availability
NIA
WCI 316247900 WCI 316247900 Contact Us For Availability
NIA
WCI 316247300 WCI 316247300 Contact Us For Availability
NIB
WCI 5303311164 WCI 5303311164 Contact Us For Availability
× ![]()
