Model Electrolux CGD2M5WSTC RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

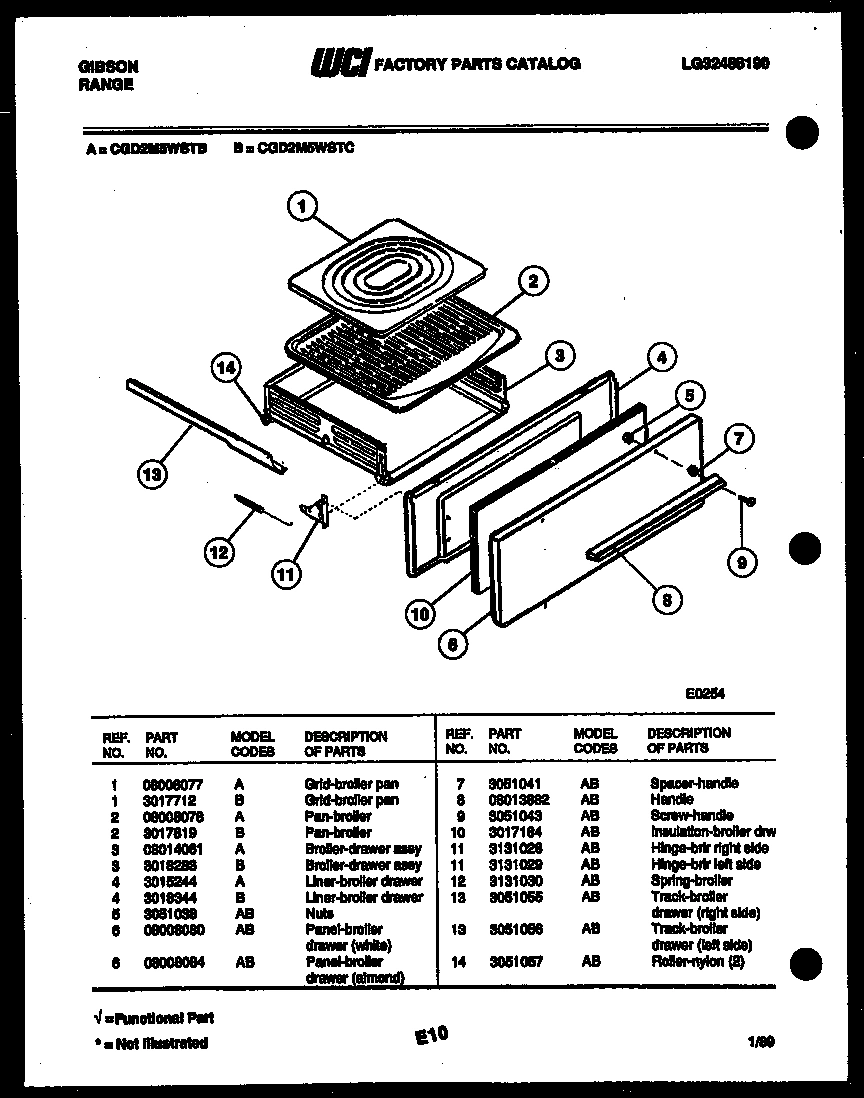

04 - BROILER DRAWER PARTS

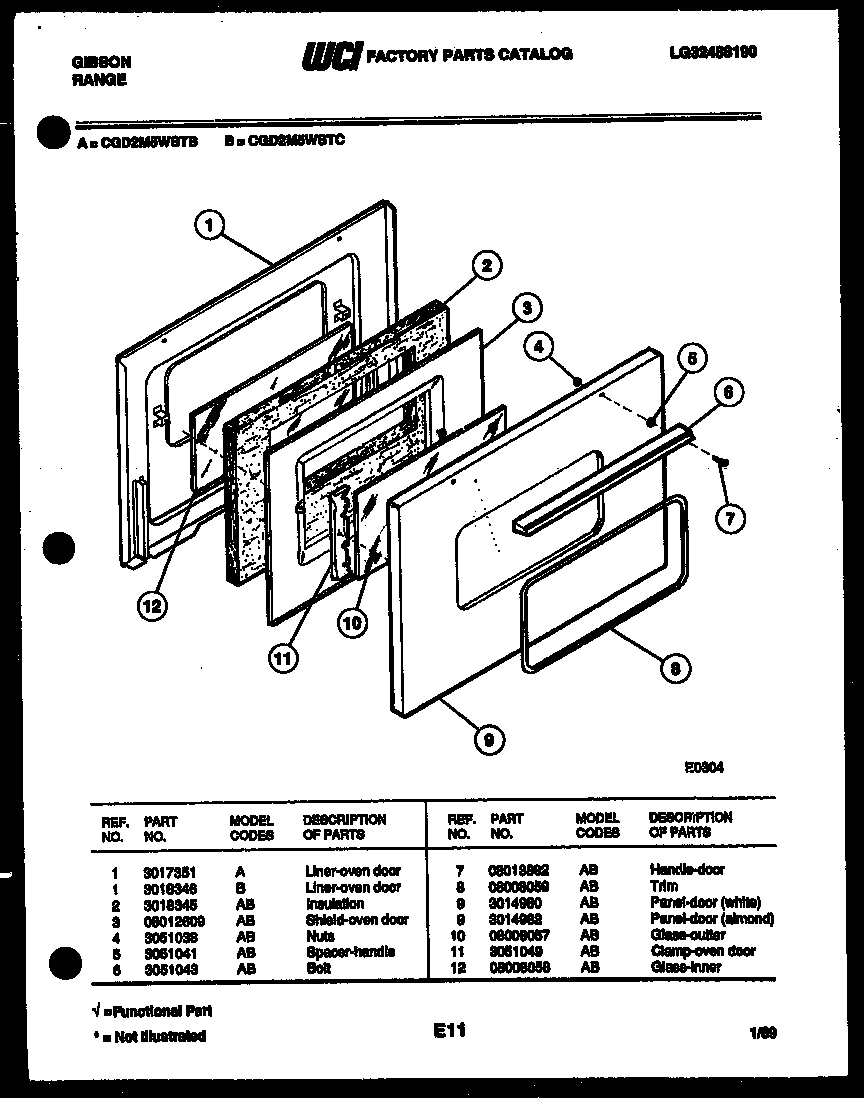

05 - DOOR PARTS

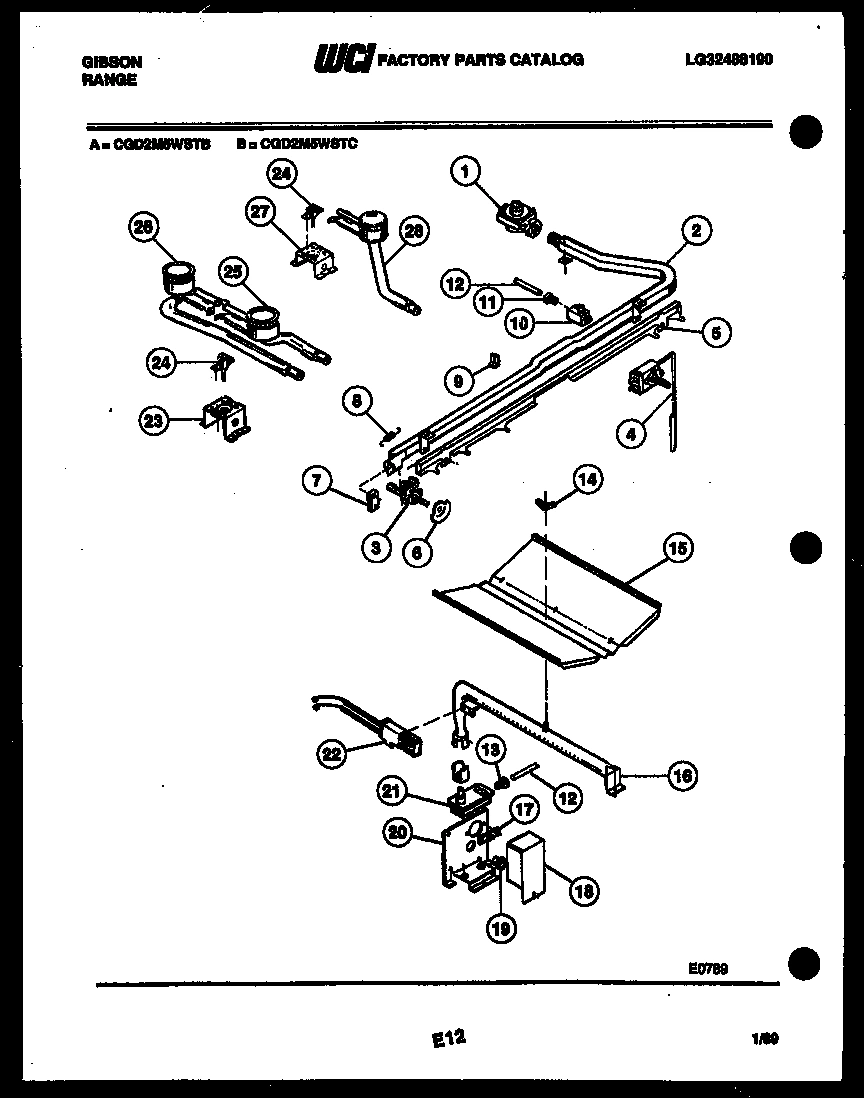

06 - BURNER PARTS

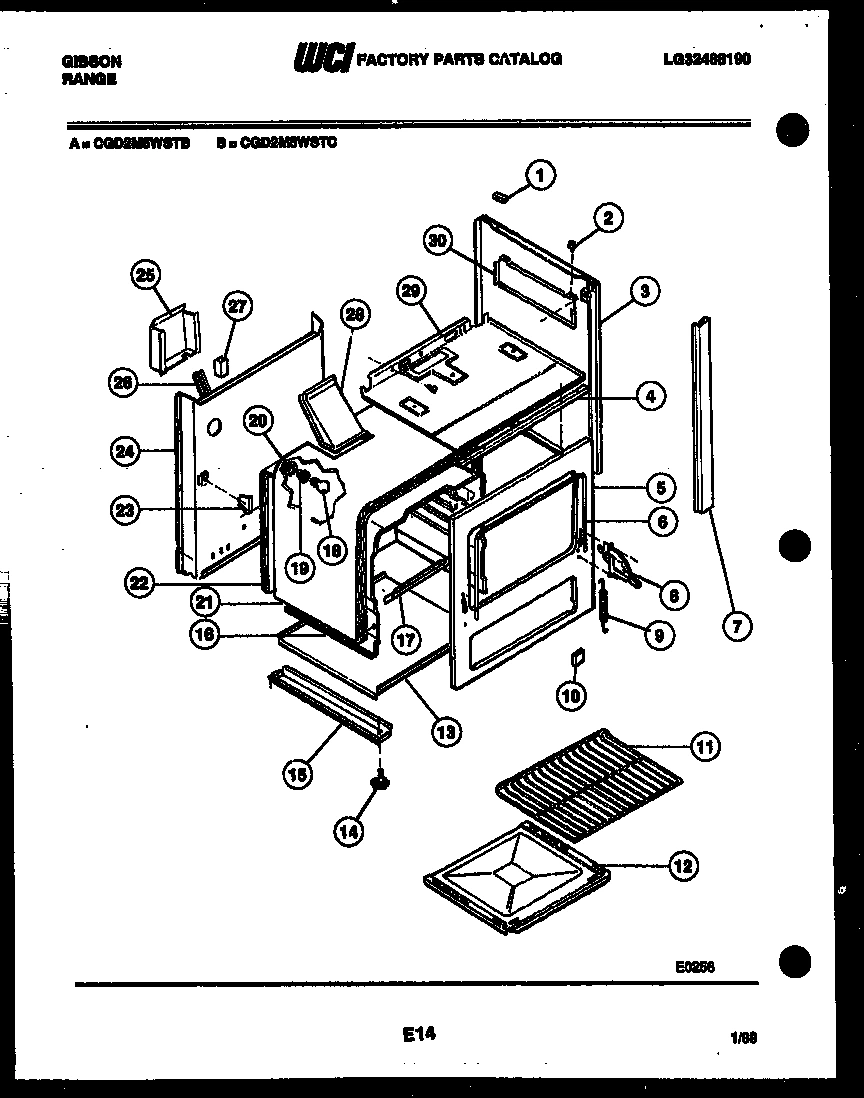

07 - BODY PARTS
Common parts from model Electrolux CGD2M5WSTC RANGE
1
PAN AERATION WCI 08013991 Contact Us For Availability
1
GRID-BROILER PAN WCI 3017712 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
WCI 3018343 WCI 3018343 Contact Us For Availability
2
WCI 08013949 WCI 08013949 Contact Us For Availability
2
COVER-GRIDDLE (ALMOND) WCI 08013951 Contact Us For Availability
2
WCI 3017819 WCI 3017819 Contact Us For Availability
2
WCI 3018345 WCI 3018345 Contact Us For Availability
2
WCI 08013907 WCI 08013907 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
GRIDDLE WCI 08013877 Contact Us For Availability
3
SHIELD-OVEN DOOR WCI 08012609 Contact Us For Availability
3
TOP BURNER VALVE WCI 3131057 Contact Us For Availability
3
WCI 08014019 WCI 08014019 Contact Us For Availability
3
PANEL-BODYSIDE WHITE WCI 3051061 Contact Us For Availability
3A
GRIDDLE VALVE WCI 3131058 Contact Us For Availability
4
WCI 08013963 WCI 08013963 Contact Us For Availability
4
WCI 08014034 WCI 08014034 Contact Us For Availability
4
WCI 08014035 WCI 08014035 Contact Us For Availability
4
WCI 3018344 WCI 3018344 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
WCI 08014025 WCI 08014025 Contact Us For Availability
5
WCI 08013857 WCI 08013857 Contact Us For Availability
5
WCI 3131018 WCI 3131018 Contact Us For Availability
5
SPACER-HANDLE WCI 3051041 Contact Us For Availability
5
WCI 3018341 WCI 3018341 Contact Us For Availability
5
FRAME - FRONT WCI 3017790 Contact Us For Availability
6
WCI 3131756 WCI 3131756 Contact Us For Availability
6
KNOB-GRIDDLE WCI 08013894 Contact Us For Availability
6
WCI 08008080 WCI 08008080 Contact Us For Availability
6
WCI 08008084 WCI 08008084 Contact Us For Availability
6
CAM TOP BURNER WCI 3131091 Contact Us For Availability
6
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
6A
CAM-GRIDDLE WCI 3131859 Contact Us For Availability
7
TRIM BACKGUARD GLASS WCI 08013930 Contact Us For Availability
7
KNOB - TOP BURNER WCI 08013898 Contact Us For Availability
7
HANDLE DOOR WCI 08013882 Contact Us For Availability
7
WCI 3131094 WCI 3131094 Contact Us For Availability
7
FILLER-PANEL BODYSIDE WHITE WCI 08013993 Contact Us For Availability
7
FILLER-PANEL BODYSIDE ALMOND WCI 08013994 Contact Us For Availability
8
GLASS-BACKGUARD WCI 3202334 Contact Us For Availability
8
WCI 08014004 WCI 08014004 Contact Us For Availability
8
WCI 08014005 WCI 08014005 Contact Us For Availability
8
WCI 08008059 WCI 08008059 Contact Us For Availability
8
WCI 3131096 WCI 3131096 Contact Us For Availability
8
HINGE-OVEN DOOR-RIGHT WCI 3051078 Contact Us For Availability
9
WCI 3051008 WCI 3051008 Contact Us For Availability
9
GRATE (5) WCI 3009309 Contact Us For Availability
9
PANEL-DOOR (WHITE) WCI 3014980 Contact Us For Availability
9
PANEL-DOOR (ALMOND) WCI 3014982 Contact Us For Availability
9
WCI 3131060 WCI 3131060 Contact Us For Availability
9
SPRING-OVEN DOOR WCI 08008023 Contact Us For Availability
10
WCI 3009576 WCI 3009576 Contact Us For Availability
10
INSULATION-BROILER DRW WCI 3017184 Contact Us For Availability
10
GLASS-OUTTER WCI 08008057 Contact Us For Availability
10
WCI 3131099 WCI 3131099 Contact Us For Availability
10
WCI 08014023 WCI 08014023 Contact Us For Availability
11
CORD - POWER WCI 3015249 Contact Us For Availability
11
HINGE-BRLR RIGHT SIDE WCI 3131028 Contact Us For Availability
11
HINGE-BRLR LEFT SIDE WCI 3131029 Contact Us For Availability
11
CLAMP-OVEN DOOR WCI 3051049 Contact Us For Availability
11
WCI AP00269017 WCI AP00269017 Contact Us For Availability
11
RACK-OVEN WCI 3015714 Contact Us For Availability
12
WCI 3131007 WCI 3131007 Contact Us For Availability
12
SPRING-BROILER WCI 3131030 Contact Us For Availability
12
WCI 08008058 WCI 08008058 Contact Us For Availability
12
TUBE - OVEN FEED WCI 3131085 Contact Us For Availability
12
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
13
BRACKET-CLOCK MTG WCI 08014140 Contact Us For Availability
13
TRACK-BROILER DRAWER (RIGHT SIDE) WCI 3051055 Contact Us For Availability
13
TRACK-BROILER DRAWER (LEFT SIDE) WCI 3051056 Contact Us For Availability
13
WCI AP00269033 WCI AP00269033 Contact Us For Availability
13
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
14
WCI 08007925 WCI 08007925 Contact Us For Availability
14
ROLLER - NYLON (2) WCI 3051057 Contact Us For Availability
14
WCI 08007979 WCI 08007979 Contact Us For Availability
14
LEG LEVELER WCI 3051080 Contact Us For Availability
15
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
15
BASE-RAIL WCI 3051081 Contact Us For Availability
16
WCI 3131084 WCI 3131084 Contact Us For Availability
16
LINER-RIGHT SIDE WCI 3018284 Contact Us For Availability
16
LINER-LEFT SIDE WCI 3018285 Contact Us For Availability
16
WCI 3018286 WCI 3018286 Contact Us For Availability
16
WCI 3018347 WCI 3018347 Contact Us For Availability
17
WCI 3131087 WCI 3131087 Contact Us For Availability
17
SUPPORT-OVEN BUTTON WCI 3131038 Contact Us For Availability
18
WCI 3131088 WCI 3131088 Contact Us For Availability
19
WCI 3051101 WCI 3051101 Contact Us For Availability
20
WCI 3051511 WCI 3051511 Contact Us For Availability
20
SUPPORT-OPEN VALVE WCI 3131069 Contact Us For Availability
21
VALVE-OPEN SAFETY WCI 3131089 Contact Us For Availability
21
WCI 3017171 WCI 3017171 Contact Us For Availability
22
WCI 3017172 WCI 3017172 Contact Us For Availability
23
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
23
Support,oven rear WCI 3051096 Contact Us For Availability
24
IGNITOR (3) WCI 3202375 Contact Us For Availability
24
WCI 08013945 WCI 08013945 Contact Us For Availability
25
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
25
WCI 3018340 WCI 3018340 Contact Us For Availability
26
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
26
CHANNEL - MAIN WIRE WCI 3131046 Contact Us For Availability
27
SUPPORT - GRID BURNER WCI 3018342 Contact Us For Availability
27
WCI 3018338 WCI 3018338 Contact Us For Availability
28
WCI 3131882 WCI 3131882 Contact Us For Availability
28
FLUE BOX WCI 3017173 Contact Us For Availability
29
BOTTOM-BURNER BOX WCI 3017993 Contact Us For Availability
30
SHIELD - BURNER BOX RIGHT WCI 3131053 Contact Us For Availability
30
SHIELD - BURNER BOX LEFT WCI 3131054 Contact Us For Availability
× ![]()
